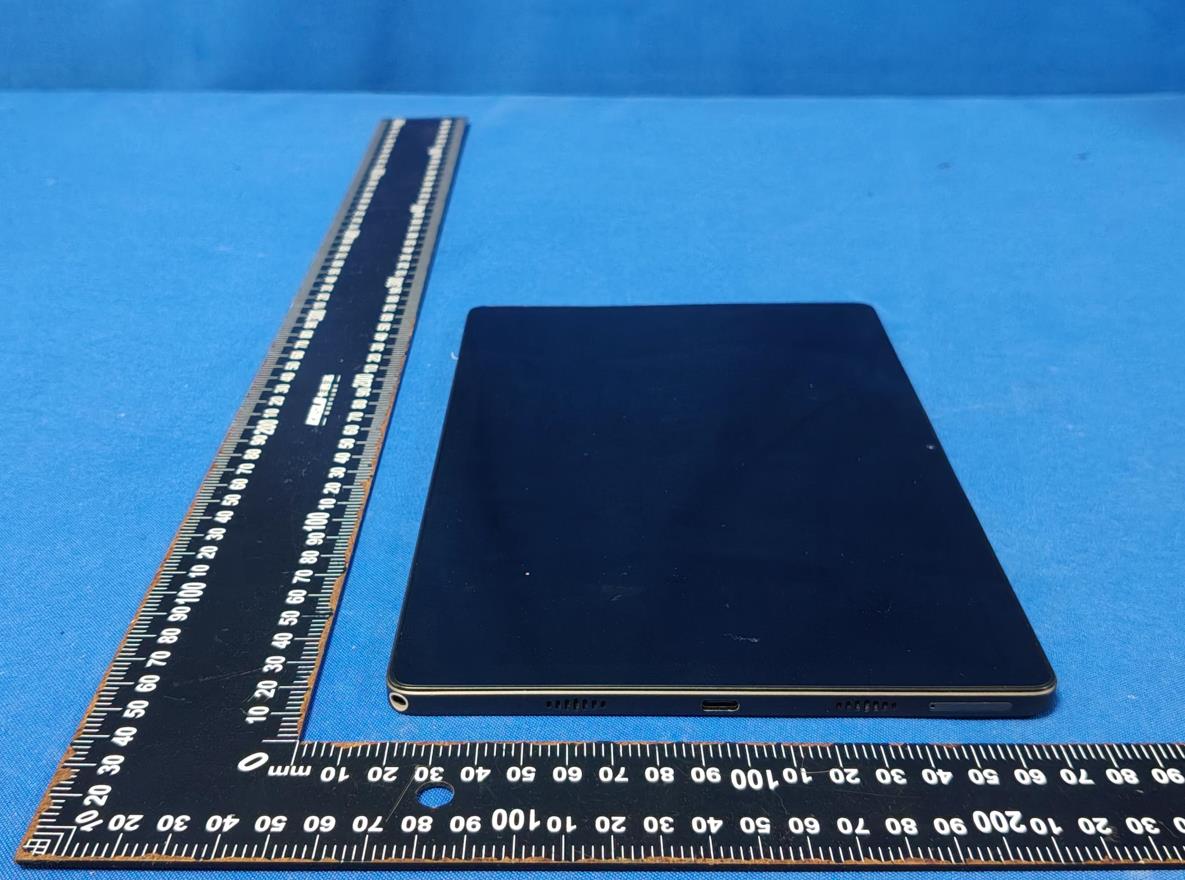

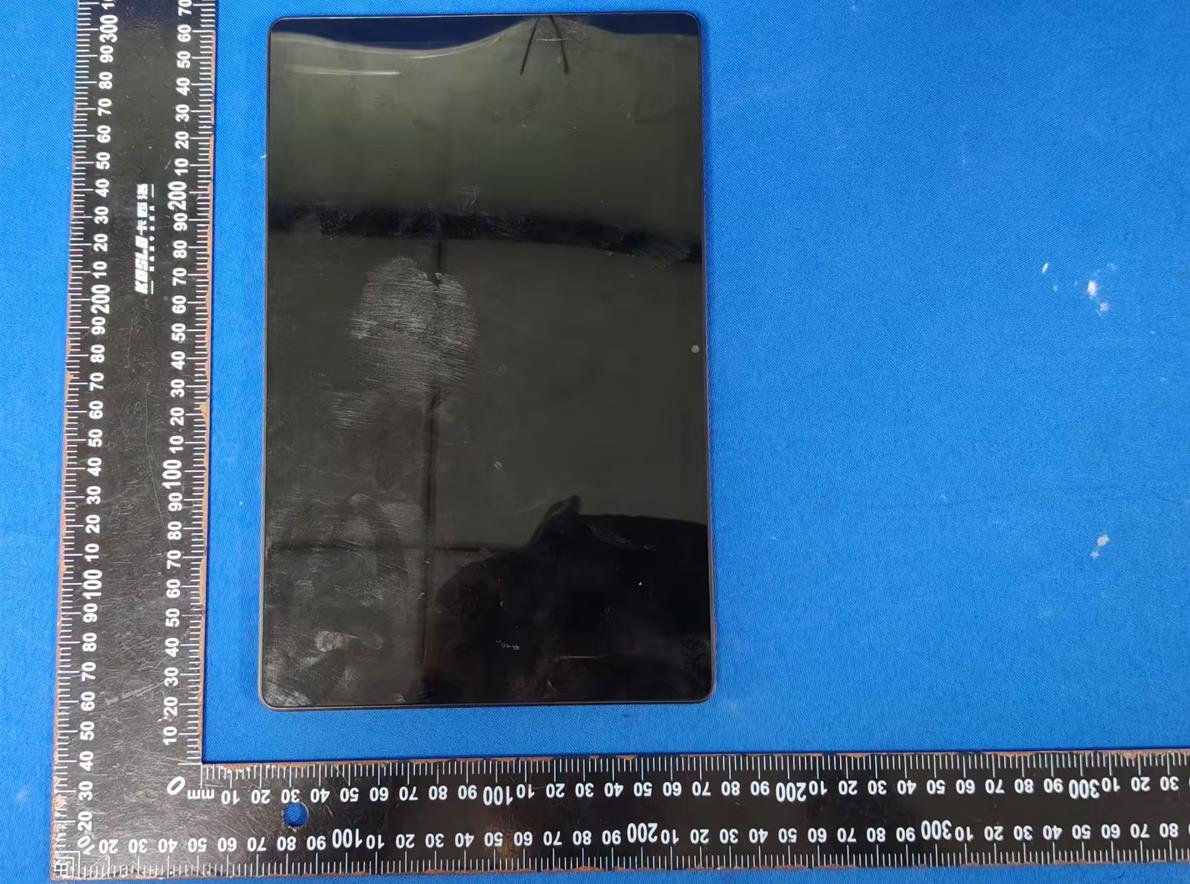

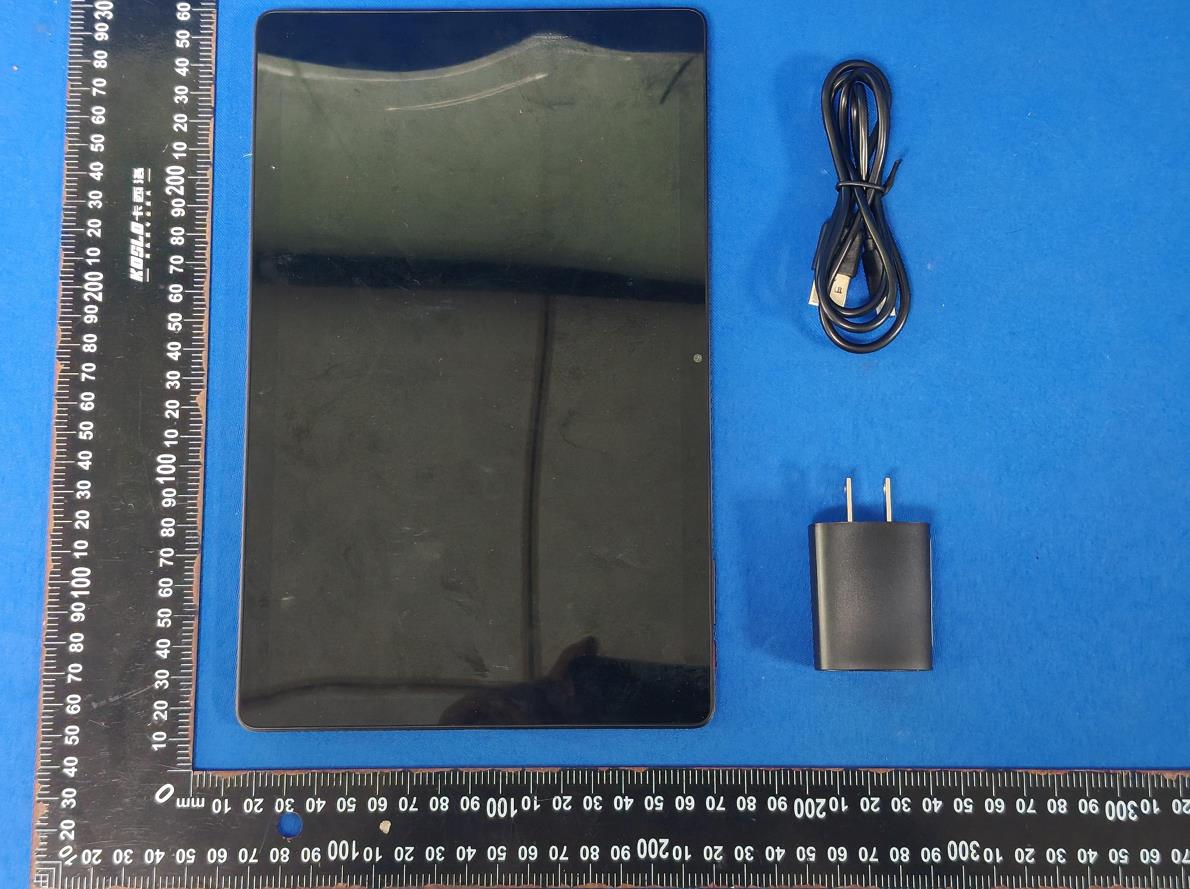

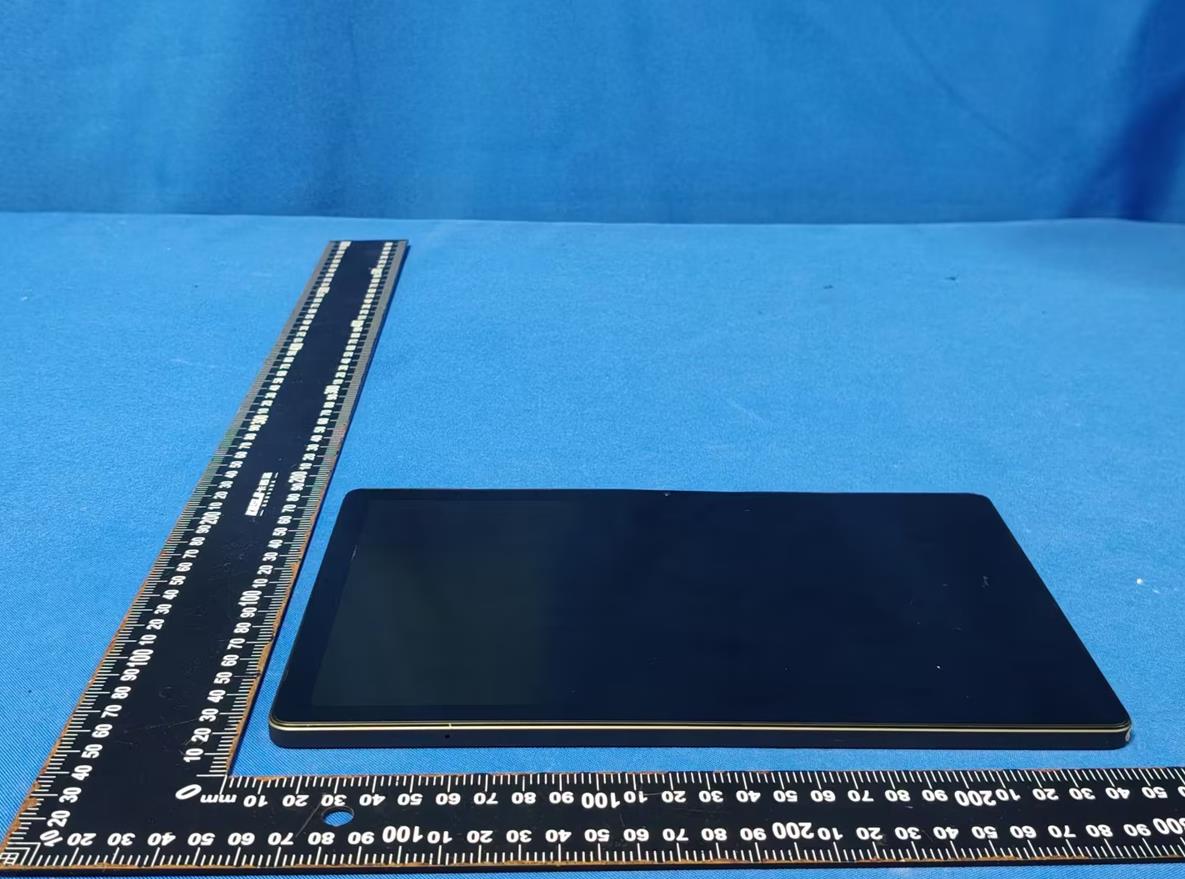

13245 9810 PROBLEMREASONSOLUTION May the signal is weak or bad. If you are on the ground, signal reception may be reduced. Change another place and try again. 111213 Manual de Usuario Tablet PCTablet PC TAB-T10 4- 6 Especificaciones técnicas Procesador: MT8786 Sistema operativo: Powered by Androidâ„¢ RAM: 6GB DDR Almacenamiento: 128GB Pantalla: 10.36 pulgadas, 1200 x 2000 Display: Pantalla IPS y pantalla táctil de 10 puntos Música: MP3, AAC, AAC+, AMR-NB, etc. Video: MP4, OGM, 3GP, AVI, etc. Imágenes: JPG, JPEG, GIF, BMP, PNG, etc. BaterÃa: 6200mAh, 3.8V Adaptador: Carga TIPO-C, 5V, 2A Cámara: Frontal 5.0 MP, Trasera 8.0 MP Red:2G/3G/4G Wi-Fi: IEEE 802.11 b/g/n/ac, 2.4GHz + 5.0GHz Bluetooth: BT 5.0 Puertos: Ranura 3 en 2 para tarjeta (SIM+SIM o SIM+TF) / Type-C / Jack para auriculares Las especificaciones y este manual están sujetos a cambios sin previo aviso. Google, Android, Google Play y YouTube son marcas registradas de Google LLC Contenido de la caja del producto Tablet(baterÃa integrada en el dispositivo), cargador, cable USB, manual de usuario Vista general En este manual de usuario, las especificaciones mostradas en las imágenes y las partes indicadas en el contenido de la caja pueden variar según el modelo. Las imágenes son representativas. Solución de problemas SSi detectas una condición inusual en tu dispositivo, puedes intentar resolver el problema consultando la descripción en la tabla. PROBLEMA RAZÓNSOLUCIÓN La tablet no se conecta a LAN ni a Wi-Fi. La señal entrante es demasiado baja. La señal puede ser débil o mala. Si estás en el suelo, la recepción de la señal puede reducirse. Cambia de lugar y vuelve a intentarlo. Saltos en pantalla táctil Quizás tus manos estén mojadas, el software de la tablet o la pantalla táctil no pueden detectar la operación táctil. Al tocar la pantalla táctil, asegúrate de que esté seca. Si la pantalla táctil está rayada o dañada, por favor contáctanos. Bloqueos intermitentes o la tablet deja de responder Puede que haya demasiadas aplicaciones en funcionamient o. La tablet emite pitidos y el Ãcono de la baterÃa parpadea. Tu baterÃa está débil. Para continuar usando el dispositivo, recárgalo. Mensaje de error de la cámara de la tablet No hay suficiente memoria o la baterÃa está débil. Carga la baterÃa. Transfiere archivos a una PC o libera espacio eliminando algunos archivos de la memoria. La tablet no enciende al sacarla de la caja. Baja energÃa Conecta el adaptador de corriente a la toma de pared y luego a la tablet. La tablet deberÃa encenderse. Se recomienda cargar el dispositivo durante 8 horas antes del primer uso. Para un dispositivo completamente descargado, déjalo conectado y apagado por lo menos 12 horas. No se puede establecer conexión con su computadora. Compatible con el conector USB o PC, los controladores más recientes no están instalados. Si estás usando el cable USB con tu dispositivo, asegúrate de que sea compatible. Tu PC debe tener instalados los controladores correctos y asegúrate de actualizarlos. Eliminación de su dispositivo de manera ecológica Este sÃmbolo en el producto o en su embalaje indica que el producto no debe tratarse como un residuo doméstico común. En su lugar, debe llevarse al punto de recolección correspondiente para el reciclaje de equipos electrónicos. Si elimina este producto correctamente, podrá evitar posibles consecuencias negativas para el medio ambiente y la salud humana derivadas del tratamiento inadecuado de los residuos. El reciclaje de materiales ayuda a conservar los recursos naturales.Para obtener más información sobre el reciclaje de este producto, por favor comunÃquese con su municipio local, el servicio de gestión de residuos domésticos o la tienda donde compró el producto. Sugerencias para el ahorro de energÃa Cuando no esté utilizando el dispositivo, apague funciones como el Wi-Fi y el Bluetooth. Si es necesario, desactive sonidos innecesarios como las notificaciones de aplicaciones o el sonido de las teclas. Según sus necesidades, reducir el brillo de la pantalla y el volumen le permitirá usar la energÃa de manera más eficiente. Eliminación adecuada de la baterÃa (Para paÃses con sistemas de recolección separados) La marca en la baterÃa, la guÃa y el compartimento de almacenamiento indica que esta baterÃa no debe desecharse junto con otros residuos domésticos. Los sÃmbolos quÃmicos Hg, Cd o Pb indican que la baterÃa contiene mercurio, cadmio o plomo por encima de los valores de referencia especificados en la Directiva 2006/66/CE. La baterÃa suministrada con este producto no puede ser reemplazada por el usuario. Para obtener información detallada sobre el reemplazo, por favor contacte con su proveedor de servicio. No intente quitar la baterÃa ni arrojarla al fuego. No la desarme, aplaste ni perfore. Si planea desechar el producto, se tomarán las medidas necesarias en el ámbito de gestión de residuos. Android es una marca registrada de Google LLC 67 Cumplimiento con la Parte 15 de las Reglas de la FCC Este equipo ha sido probado y se ha encontrado que cumple con los lÃmites para un dispositivo digital de Clase B, conforme a la parte 15 de las Reglas de la FCC. Estos lÃmites están diseñados para proporcionar una protección razonable contra interferencias perjudiciales en una instalación residencial. Este equipo genera, utiliza y puede irradiar energÃa de radiofrecuencia y, si no se instala y utiliza de acuerdo con las instrucciones, puede causar interferencia perjudicial a las radiocomunicaciones. Sin embargo, no hay garantÃa de que no se produzcan interferencias en una instalación particular. Si este equipo causa interferencia perjudicial a la recepción de radio o televisión, lo cual se puede determinar apagando y encendiendo el equipo, se recomienda al usuario que intente corregir la interferencia mediante una o más de las siguientes medidas: . Reorientar o reubicar la antena receptora. . Aumentar la separación entre el equipo y el receptor. . Conectar el equipo a un tomacorriente en un circu…
Text truncated - open the document above for the full version.
GPRS 1900 Test Data FCC ID: 2BQHT-TAB-T104-6 Table of Contents 1. Conducted Output Power&&EIRP/ERP....................................................................................................................... 2 2. Occupied Bandwidth .................................................................................................................................................. 3 3. Peak to Average Ratio ................................................................................................................................................. 5 4. Unwanted Spurious Emission ..................................................................................................................................... 7 5. Frequency Stability ................................................................................................................................................... 11 Page 2 of 13 1. Conducted Output Power&&EIRP/ERP Services Band Modulation Class Type Frequency(MHz) Conducted Power(dBm) ANT Gain(dBi) EIRP(dBm) limit(dBm) Result GPRS PCS 1900 GMSK Class8 1850.2 27.47 2.16 29.63 33.01 Pass GPRS PCS 1900 GMSK Class10 1850.2 27.89 2.16 30.05 33.01 Pass GPRS PCS 1900 GMSK Class11 1850.2 28.20 2.16 30.36 33.01 Pass GPRS PCS 1900 GMSK Class12 1850.2 28.10 2.16 30.26 33.01 Pass GPRS PCS 1900 GMSK Class8 1880.0 27.58 2.16 29.74 33.01 Pass GPRS PCS 1900 GMSK Class10 1880.0 27.99 2.16 30.15 33.01 Pass GPRS PCS 1900 GMSK Class11 1880.0 28.80 2.16 30.96 33.01 Pass GPRS PCS 1900 GMSK Class12 1880.0 28.83 2.16 30.99 33.01 Pass GPRS PCS 1900 GMSK Class8 1909.8 27.79 2.16 29.95 33.01 Pass GPRS PCS 1900 GMSK Class10 1909.8 27.90 2.16 30.06 33.01 Pass GPRS PCS 1900 GMSK Class11 1909.8 28.12 2.16 30.28 33.01 Pass GPRS PCS 1900 GMSK Class12 1909.8 28.95 2.16 31.11 33.01 Pass EIRP = Conducted Power + ANT Gain Page 3 of 13 2. Occupied Bandwidth Condition Services Band Modulation Class Type Frequency(MHz) OBW(MHz) - 26EBW(MHz) NVNT GPRS PCS 1900 GMSK Class12 1850.2 0.2419 0.3182 NVNT GPRS PCS 1900 GMSK Class12 1880.0 0.2423 0.3121 NVNT GPRS PCS 1900 GMSK Class12 1909.8 0.2423 0.3118 SA_65_NT_NV_0_GPRS_PCS_1900_200k_GMSK_Class12_CH512 SA_65_NT_NV_0_GPRS_PCS_1900_200k_GMSK_Class12_CH661 SA_65_NT_NV_0_GPRS_PCS_1900_200k_GMSK_Class12_CH810 Page 4 of 13 Page 5 of 13 3. Peak to Average Ratio Condition Services Band Modulation Class Type Frequency(MHz) Peak to AVG Ratio- 0.1%(dB) Limit(dB) Result NVNT GPRS PCS 1900 GMSK Class12 1850.2 4.78 13.00 Pass NVNT GPRS PCS 1900 GMSK Class12 1880.0 4.93 13.00 Pass NVNT GPRS PCS 1900 GMSK Class12 1909.8 4.73 13.00 Pass SA_65_NT_NV_0_GPRS_PCS_1900_200k_GMSK_Class12_CH512 SA_65_NT_NV_0_GPRS_PCS_1900_200k_GMSK_Class12_CH661 SA_65_NT_NV_0_GPRS_PCS_1900_200k_GMSK_Class12_CH810 Page 6 of 13 Page 7 of 13 4. Unwanted Spurious Emission Conditio n Service s Ban d Modulati on Class Type Frequency(M Hz) RBW(kH z) Test Freq Range(MHz) Spur Freq (MHz) Spur Level(dB m) Limit(dB m) Resu lt NVNT GPRS PCS 190 0 GMSK Class1 2 1850.20 1000 1845.0~1849.0 1848.991 -24.10 -13 Pass NVNT GPRS PCS 190 0 GMSK Class1 2 1850.20 3 1849.0~1850.0 1849.997 -15.39 -13 Pass NVNT GPRS PCS 190 0 GMSK Class1 2 1850.20 1 0.009~0.150 0.010 -53.47 -13 Pass NVNT GPRS PCS 190 0 GMSK Class1 2 1850.20 10 0.150~30.000 0.150 -55.03 -13 Pass NVNT GPRS PCS 190 0 GMSK Class1 2 1850.20 100 30.000~1000.000 940.701 -61.12 -13 Pass NVNT GPRS PCS 190 0 GMSK Class1 2 1850.20 1000 1000.000~1845.00 0 1844.775 -34.47 -13 Pass NVNT GPRS PCS 190 0 GMSK Class1 2 1850.20 1000 1915.000~20000.0 00 2417.763 -43.17 -13 Pass NVNT GPRS PCS 190 0 GMSK Class1 2 1880.00 1 0.009~0.150 0.098 -53.86 -13 Pass NVNT GPRS PCS 190 0 GMSK Class1 2 1880.00 10 0.150~30.000 0.158 -55.08 -13 Pass NVNT GPRS PCS 190 0 GMSK Class1 2 1880.00 100 30.000~1000.000 892.492 -60.70 -13 Pass NVNT GPRS PCS 190 0 GMSK Class1 2 1880.00 1000 1000.000~1845.00 0 1842.014 -52.83 -13 Pass NVNT GPRS PCS 190 0 GMSK Class1 2 1880.00 1000 1915.000~20000.0 00 19915.60 3 -45.63 -13 Pass NVNT GPRS PCS 190 0 GMSK Class1 2 1909.80 3 1910.0~1911.0 1910.003 -19.72 -13 Pass NVNT GPRS PCS 190 0 GMSK Class1 2 1909.80 1000 1911.0~1915.0 1911.033 -27.55 -13 Pass NVNT GPRS PCS 190 0 GMSK Class1 2 1909.80 1 0.009~0.150 0.011 -53.90 -13 Pass NVNT GPRS PCS 190 0 GMSK Class1 2 1909.80 10 0.150~30.000 0.150 -55.68 -13 Pass NVNT GPRS PCS 190 0 GMSK Class1 2 1909.80 100 30.000~1000.000 814.924 -61.06 -13 Pass NVNT GPRS PCS 190 0 GMSK Class1 2 1909.80 1000 1000.000~1845.00 0 1838.127 -54.33 -13 Pass NVNT GPRS PCS 190 0 GMSK Class1 2 1909.80 1000 1915.000~20000.0 00 1915.603 -40.25 -13 Pass LOW_EDGE_65_NT_NV_0_GPRS_PCS_1900_200k_GMSK_Class12_CH512 Page 8 of 13 SA_65_NT_NV_0_GPRS_PCS_1900_200k_GMSK_Class12_CH512 SA_65_NT_NV_0_GPRS_PCS_1900_200k_GMSK_Class12_CH661 Page 9 of 13 UPPER_EDGE_65_NT_NV_0_GPRS_PCS_1900_200k_GMSK_Class12_CH810 SA_65_NT_NV_0_GPRS_PCS_1900_200k_GMSK_Class12_CH810 Page 10 of 13 Page 11 of 13 5. Frequency Stability Temperature( C) Voltage( V) Service s Ban d Modulatio n Class Type Frequency (MHz) Frequency Stabilizatio n (ppm) Limit_Low (ppm) Limit_Up (ppm) Result -30 3.47 GPRS PCS 1900 GMSK Class12 1850.2 -0.0004 -2.50 2.50 Pass -30 3.47 GPRS PCS 1900 GMSK Class12 1880.0 0.0018 -2.50 2.50 Pass -30 3.47 GPRS PCS 1900 GMSK Class12 1909.8 0.0031 -2.50 2.50 Pass -30 3.85 GPRS PCS 1900 GMSK Class12 1850.2 0.0086 -2.50 2.50 Pass -30 3.85 GPRS PCS 1900 GMSK Class12 1880.0 0.0016 -2.50 2.50 Pass -30 3.85 GPRS PCS 1900 GMSK Class12 1909.8 0.0037 -2.50 2.50 Pass -30 4.24 GPRS PCS 1900 GMSK Class12 1850.2 0.0013 -2.50 2.50 Pass -30 4.24 GPRS PCS 1900 GMSK Class12 1880.0 0.0028 -2.50 2.50 Pass -30 4.24 GPRS PCS 1900 GMSK Class12 1909.8 0.0024 -2.50 2.50 Pass -20 3.47 GPRS PCS 1900 GMSK Class12 1850.2 0.0068 -2.50 2.50 Pass -20 3.47 GPRS PCS 1900 GMSK Class12 1880.0 0.0052 -2.50 2.50 Pass -20 3.47 GPRS PCS 1900 GMSK Class12 1909.8 0.0075 -2.50 2.50 Pass -20 3.85 GPRS PCS 1900 GMSK Class12 1850.2 0.0056 -2.50 2.50 Pass -20 3.85 GPRS PCS 1900 GMSK Class12 1880.0 0.0041 -2.50 2.…
Text truncated - open the document above for the full version.
Page 1 of 2 Report No.: psi2509211-C01-R26 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Appendix I Test Setup Photo FCC ID: 2BQHT-TAB-T104-6 Spurious Radiation Emissions Test (<1G) Spurious Radiation Emissions Test (>1G) Page 2 of 2 Report No.: psi2509211-C01-R26 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Conducted emission Test ------End------
2BQHT-TAB-T104-6_SARSetupphotos BackSide(separationdistanceis0mm) Leftside(separationdistanceis0mm) Rightside(separationdistanceis0mm) Topside(separationdistanceis0mm) Bottomside(separationdistanceis0mm)
LTE Band 7 Test Data FCC ID: 2BQHT-TAB-T104-6 Table of Contents 1. Effective (Isotropic) Radiated Power Output Data ..................................................................................................... 2 2. Peak to Average Ratio ................................................................................................................................................. 7 3. Occupied Bandwidth ................................................................................................................................................ 20 4. Unwanted Spurious Emission ................................................................................................................................... 33 5. Frequency Stability ................................................................................................................................................... 68 Page 2 of 72 IC LTE FDD Test Data +LLKIZO\K/YUZXUVOI8GJOGZKJ6U]KX5[ZV[Z*GZG Band Bandwidth Modulation Channel RB Configuration Result(dBm) Gain (dB) EIRP (dBm) EIRP Limit (dBm) Verdict Band7 5MHz QPSK 20775 1RB#0 21.69 3.55 25.24 33.01 PASS Band7 5MHz QPSK 20775 1RB#12 23.79 3.55 27.34 33.01 PASS Band7 5MHz QPSK 20775 1RB#24 21.34 3.55 24.89 33.01 PASS Band7 5MHz QPSK 20775 12RB#0 21.85 3.55 25.40 33.01 PASS Band7 5MHz QPSK 20775 12RB#6 22.47 3.55 26.02 33.01 PASS Band7 5MHz QPSK 20775 12RB#13 22.13 3.55 25.68 33.01 PASS Band7 5MHz QPSK 20775 25RB#0 21.93 3.55 25.48 33.01 PASS Band7 5MHz QPSK 21100 1RB#0 21.95 3.55 25.50 33.01 PASS Band7 5MHz QPSK 21100 1RB#12 23.08 3.55 26.63 33.01 PASS Band7 5MHz QPSK 21100 1RB#24 21.87 3.55 25.42 33.01 PASS Band7 5MHz QPSK 21100 12RB#0 21.32 3.55 24.87 33.01 PASS Band7 5MHz QPSK 21100 12RB#6 21.36 3.55 24.91 33.01 PASS Band7 5MHz QPSK 21100 12RB#13 22.19 3.55 25.74 33.01 PASS Band7 5MHz QPSK 21100 25RB#0 21.78 3.55 25.33 33.01 PASS Band7 5MHz QPSK 21425 1RB#0 21.41 3.55 24.96 33.01 PASS Band7 5MHz QPSK 21425 1RB#12 21.82 3.55 25.37 33.01 PASS Band7 5MHz QPSK 21425 1RB#24 23.13 3.55 26.68 33.01 PASS Band7 5MHz QPSK 21425 12RB#0 22.82 3.55 26.37 33.01 PASS Band7 5MHz QPSK 21425 12RB#6 21.81 3.55 25.36 33.01 PASS Band7 5MHz QPSK 21425 12RB#13 22.24 3.55 25.79 33.01 PASS Band7 5MHz QPSK 21425 25RB#0 23.14 3.55 26.69 33.01 PASS Band7 5MHz 16QAM 20775 1RB#0 22.88 3.55 26.43 33.01 PASS Band7 5MHz 16QAM 20775 1RB#12 22.17 3.55 25.72 33.01 PASS Band7 5MHz 16QAM 20775 1RB#24 22.41 3.55 25.96 33.01 PASS Band7 5MHz 16QAM 20775 12RB#0 22.97 3.55 26.52 33.01 PASS Band7 5MHz 16QAM 20775 12RB#6 22.61 3.55 26.16 33.01 PASS Band7 5MHz 16QAM 20775 12RB#13 22.30 3.55 25.85 33.01 PASS Band7 5MHz 16QAM 20775 25RB#0 22.36 3.55 25.91 33.01 PASS Band7 5MHz 16QAM 21100 1RB#0 22.86 3.55 26.41 33.01 PASS Band7 5MHz 16QAM 21100 1RB#12 22.47 3.55 26.02 33.01 PASS Band7 5MHz 16QAM 21100 1RB#24 22.26 3.55 25.81 33.01 PASS Band7 5MHz 16QAM 21100 12RB#0 23.16 3.55 26.71 33.01 PASS Page 3 of 72 Band7 5MHz 16QAM 21100 12RB#6 22.26 3.55 25.81 33.01 PASS Band7 5MHz 16QAM 21100 12RB#13 22.49 3.55 26.04 33.01 PASS Band7 5MHz 16QAM 21100 25RB#0 22.14 3.55 25.69 33.01 PASS Band7 5MHz 16QAM 21425 1RB#0 22.22 3.55 25.77 33.01 PASS Band7 5MHz 16QAM 21425 1RB#12 22.40 3.55 25.95 33.01 PASS Band7 5MHz 16QAM 21425 1RB#24 22.89 3.55 26.44 33.01 PASS Band7 5MHz 16QAM 21425 12RB#0 23.03 3.55 26.58 33.01 PASS Band7 5MHz 16QAM 21425 12RB#6 21.55 3.55 25.10 33.01 PASS Band7 5MHz 16QAM 21425 12RB#13 22.14 3.55 25.69 33.01 PASS Band7 5MHz 16QAM 21425 25RB#0 22.83 3.55 26.38 33.01 PASS Band7 10MHz QPSK 20800 1RB#0 22.69 3.55 26.24 33.01 PASS Band7 10MHz QPSK 20800 1RB#24 21.55 3.55 25.10 33.01 PASS Band7 10MHz QPSK 20800 1RB#49 22.71 3.55 26.26 33.01 PASS Band7 10MHz QPSK 20800 25RB#0 22.80 3.55 26.35 33.01 PASS Band7 10MHz QPSK 20800 25RB#12 23.21 3.55 26.76 33.01 PASS Band7 10MHz QPSK 20800 25RB#25 22.45 3.55 26.00 33.01 PASS Band7 10MHz QPSK 20800 50RB#0 23.23 3.55 26.78 33.01 PASS Band7 10MHz QPSK 21100 1RB#0 21.16 3.55 24.71 33.01 PASS Band7 10MHz QPSK 21100 1RB#24 22.37 3.55 25.92 33.01 PASS Band7 10MHz QPSK 21100 1RB#49 22.04 3.55 25.59 33.01 PASS Band7 10MHz QPSK 21100 25RB#0 22.48 3.55 26.03 33.01 PASS Band7 10MHz QPSK 21100 25RB#12 23.35 3.55 26.90 33.01 PASS Band7 10MHz QPSK 21100 25RB#25 22.50 3.55 26.05 33.01 PASS Band7 10MHz QPSK 21100 50RB#0 22.23 3.55 25.78 33.01 PASS Band7 10MHz QPSK 21400 1RB#0 22.46 3.55 26.01 33.01 PASS Band7 10MHz QPSK 21400 1RB#24 22.71 3.55 26.26 33.01 PASS Band7 10MHz QPSK 21400 1RB#49 22.38 3.55 25.93 33.01 PASS Band7 10MHz QPSK 21400 25RB#0 22.65 3.55 26.20 33.01 PASS Band7 10MHz QPSK 21400 25RB#12 23.07 3.55 26.62 33.01 PASS Band7 10MHz QPSK 21400 25RB#25 23.26 3.55 26.81 33.01 PASS Band7 10MHz QPSK 21400 50RB#0 22.09 3.55 25.64 33.01 PASS Band7 10MHz 16QAM 20800 1RB#0 22.86 3.55 26.41 33.01 PASS Band7 10MHz 16QAM 20800 1RB#24 24.02 3.55 27.57 33.01 PASS Band7 10MHz 16QAM 20800 1RB#49 22.27 3.55 25.82 33.01 PASS Band7 10MHz 16QAM 20800 25RB#0 23.07 3.55 26.62 33.01 PASS Band7 10MHz 16QAM 20800 25RB#12 23.23 3.55 26.78 33.01 PASS Band7 10MHz 16QAM 20800 25RB#25 22.27 3.55 25.82 33.01 PASS Band7 10MHz 16QAM 20800 50RB#0 22.08 3.55 25.63 33.01 PASS Band7 10MHz 16QAM 21100 1RB#0 23.12 3.55 26.67 33.01 PASS Page 4 of 72 Band7 10MHz 16QAM 21100 1RB#24 23.06 3.55 26.61 33.01 PASS Band7 10MHz 16QAM 21100 1RB#49 22.56 3.55 26.11 33.01 PASS Band7 10MHz 16QAM 21100 25RB#0 23.04 3.55 26.59 33.01 PASS Band7 10MHz 16QAM 21100 25RB#12 22.89 3.55 26.44 33.01 PASS Band7 10MHz 16QAM 21100 25RB#25 22.68 3.55 26.23 33.01 PASS Band7 10MHz 16QAM 21100 50RB#0 21.95 3.55 25.50 33.01 PASS Band7 10MHz 16QAM 21400 1RB#0 22.31 3.55 25.86 33.01 PASS Band7 10MHz 16QAM 21400 1RB#24 22.28 3.55 25.83 33.01 PASS Band7 10MHz 16QAM 21400 1RB#49 22.66 3.55 26.21 33.01 PASS Band7 10MHz 16QAM 21400 25RB#0 22.45 3.55 26.00 33.01 PASS Band7 10MHz 16QAM 21400 25RB#12 23.02 3.55 26.57 33.01 PASS Band7 10MHz 16QAM 21400 25RB#25 22.83 3.55 26.38 33.01 PASS Band7 10MHz 16QAM 21400 50RB#0 23.25 3.55 26.80 33.01 PA…
Text truncated - open the document above for the full version.
Page 47 of 103 ;T]GTZKJ9V[XOU[Y+SOYYOUT Conditi on Ban d Modulati on BW(M Hz) Frequency(M Hz) RB_Si ze RB_st art RBW(k Hz) Test Freq Range(MHz) Spur Freq (MHz) Spur Level(dB m) Limit(dB m) Resu lt NV_NT Ban d 4 QPSK 1.4M 1710.7 1 0 1000 1708.6~1709.0 1708.74 5 -23.20 -13 Pass NV_NT Ban d 4 QPSK 1.4M 1710.7 1 0 14.0 1709.0~1710.0 1709.99 9 -21.57 -13 Pass NV_NT Ban d 4 QPSK 1.4M 1710.7 6 0 1000 1708.6~1709.0 1708.99 1 -24.50 -13 Pass NV_NT Ban d 4 QPSK 1.4M 1710.7 6 0 14.0 1709.0~1710.0 1710.00 0 -29.34 -13 Pass NV_NT Ban d 4 QPSK 1.4M 1710.7 1 0 1 0.009~0.150 0.098 -52.47 -13 Pass NV_NT Ban d 4 QPSK 1.4M 1710.7 1 0 10 0.150~30.000 2.002 -41.64 -13 Pass NV_NT Ban d 4 QPSK 1.4M 1710.7 1 0 100 30.000~1000.00 0 47.104 -54.83 -13 Pass NV_NT Ban d 4 QPSK 1.4M 1710.7 1 0 1000 1000.000~1707. 200 1488.29 8 -55.36 -13 Pass NV_NT Ban d 4 QPSK 1.4M 1710.7 1 0 1000 1757.800~20000 .000 19917.3 02 -46.49 -13 Pass NV_NT Ban d 4 16QAM 1.4M 1710.7 1 0 1000 1708.6~1709.0 1708.92 3 -27.20 -13 Pass NV_NT Ban d 4 16QAM 1.4M 1710.7 1 0 14.0 1709.0~1710.0 1709.98 4 -22.28 -13 Pass NV_NT Ban d 4 16QAM 1.4M 1710.7 6 0 1000 1708.6~1709.0 1708.99 0 -24.89 -13 Pass NV_NT Ban d 4 16QAM 1.4M 1710.7 6 0 14.0 1709.0~1710.0 1709.97 0 -31.12 -13 Pass NV_NT Ban d 4 16QAM 1.4M 1710.7 1 0 1 0.009~0.150 0.098 -52.94 -13 Pass NV_NT Ban d 4 16QAM 1.4M 1710.7 1 0 10 0.150~30.000 2.012 -39.30 -13 Pass NV_NT Ban d 4 16QAM 1.4M 1710.7 1 0 100 30.000~1000.00 0 47.395 -61.00 -13 Pass NV_NT Ban d 4 16QAM 1.4M 1710.7 1 0 1000 1000.000~1707. 200 1707.20 0 -42.91 -13 Pass NV_NT Ban d 4 16QAM 1.4M 1710.7 1 0 1000 1757.800~20000 .000 19964.1 24 -47.22 -13 Pass NV_NT Ban d 4 QPSK 1.4M 1732.5 6 0 1 0.009~0.150 0.098 -51.39 -13 Pass NV_NT Ban d 4 QPSK 1.4M 1732.5 6 0 10 0.150~30.000 2.013 -38.41 -13 Pass NV_NT Ban d 4 QPSK 1.4M 1732.5 6 0 100 30.000~1000.00 0 46.781 -58.98 -13 Pass NV_NT Ban d 4 QPSK 1.4M 1732.5 6 0 1000 1000.000~1708. 600 1579.18 6 -55.09 -13 Pass NV_NT Ban d 4 QPSK 1.4M 1732.5 6 0 1000 1756.400~20000 .000 19920.9 44 -46.66 -13 Pass NV_NT Ban d 4 16QAM 1.4M 1732.5 6 0 1 0.009~0.150 0.098 -51.83 -13 Pass NV_NT Ban d 4 16QAM 1.4M 1732.5 6 0 10 0.150~30.000 1.985 -37.48 -13 Pass NV_NT Ban d 4 16QAM 1.4M 1732.5 6 0 100 30.000~1000.00 0 782.041 -61.76 -13 Pass NV_NT Ban d 4 16QAM 1.4M 1732.5 6 0 1000 1000.000~1708. 600 1578.71 4 -55.20 -13 Pass NV_NT Ban d 4 16QAM 1.4M 1732.5 6 0 1000 1756.400~20000 .000 19894.1 87 -46.63 -13 Pass NV_NT Ban d 4 QPSK 1.4M 1754.3 1 5 14.0 1755.0~1756.0 1755.00 4 -23.28 -13 Pass NV_NT Ban d 4 QPSK 1.4M 1754.3 1 5 1000 1756.0~1756.4 1756.29 7 -35.77 -13 Pass NV_NT Ban d 4 QPSK 1.4M 1754.3 6 0 14.0 1755.0~1756.0 1755.00 4 -29.49 -13 Pass NV_NT Ban d 4 QPSK 1.4M 1754.3 6 0 1000 1756.0~1756.4 1756.01 1 -24.33 -13 Pass NV_NT Ban d 4 QPSK 1.4M 1754.3 1 5 1 0.009~0.150 0.098 -51.67 -13 Pass Page 48 of 103 NV_NT Ban d 4 QPSK 1.4M 1754.3 1 5 10 0.150~30.000 2.147 -38.37 -13 Pass NV_NT Ban d 4 QPSK 1.4M 1754.3 1 5 100 30.000~1000.00 0 47.331 -56.67 -13 Pass NV_NT Ban d 4 QPSK 1.4M 1754.3 1 5 1000 1000.000~1707. 200 1523.32 8 -55.14 -13 Pass NV_NT Ban d 4 QPSK 1.4M 1754.3 1 5 1000 1757.800~20000 .000 1757.80 0 -42.18 -13 Pass NV_NT Ban d 4 16QAM 1.4M 1754.3 1 5 14.0 1755.0~1756.0 1755.00 2 -23.75 -13 Pass NV_NT Ban d 4 16QAM 1.4M 1754.3 1 5 1000 1756.0~1756.4 1756.36 2 -35.74 -13 Pass NV_NT Ban d 4 16QAM 1.4M 1754.3 6 0 14.0 1755.0~1756.0 1755.03 3 -30.42 -13 Pass NV_NT Ban d 4 16QAM 1.4M 1754.3 6 0 1000 1756.0~1756.4 1756.00 7 -24.93 -13 Pass NV_NT Ban d 4 16QAM 1.4M 1754.3 1 5 1 0.009~0.150 0.098 -51.79 -13 Pass NV_NT Ban d 4 16QAM 1.4M 1754.3 1 5 10 0.150~30.000 2.111 -41.55 -13 Pass NV_NT Ban d 4 16QAM 1.4M 1754.3 1 5 100 30.000~1000.00 0 899.508 -61.56 -13 Pass NV_NT Ban d 4 16QAM 1.4M 1754.3 1 5 1000 1000.000~1707. 200 1557.74 5 -55.11 -13 Pass NV_NT Ban d 4 16QAM 1.4M 1754.3 1 5 1000 1757.800~20000 .000 1757.80 0 -43.54 -13 Pass NV_NT Ban d 4 QPSK 3M 1711.5 15 0 1000 1707.0~1709.0 1708.98 4 -23.80 -13 Pass NV_NT Ban d 4 QPSK 3M 1711.5 15 0 30.0 1709.0~1710.0 1709.98 8 -30.13 -13 Pass NV_NT Ban d 4 QPSK 3M 1711.5 1 0 1000 1707.0~1709.0 1708.84 4 -22.18 -13 Pass NV_NT Ban d 4 QPSK 3M 1711.5 1 0 30.0 1709.0~1710.0 1709.97 8 -18.81 -13 Pass NV_NT Ban d 4 QPSK 3M 1711.5 1 0 1 0.009~0.150 0.098 -51.38 -13 Pass NV_NT Ban d 4 QPSK 3M 1711.5 1 0 10 0.150~30.000 2.137 -39.69 -13 Pass NV_NT Ban d 4 QPSK 3M 1711.5 1 0 100 30.000~1000.00 0 47.298 -58.45 -13 Pass NV_NT Ban d 4 QPSK 3M 1711.5 1 0 1000 1000.000~1704. 000 1680.51 0 -55.22 -13 Pass NV_NT Ban d 4 QPSK 3M 1711.5 1 0 1000 1761.000~20000 .000 19888.1 34 -45.89 -13 Pass NV_NT Ban d 4 16QAM 3M 1711.5 15 0 1000 1707.0~1709.0 1708.81 8 -23.26 -13 Pass NV_NT Ban d 4 16QAM 3M 1711.5 15 0 30.0 1709.0~1710.0 1709.98 9 -32.23 -13 Pass NV_NT Ban d 4 16QAM 3M 1711.5 1 0 1000 1707.0~1709.0 1708.98 7 -26.70 -13 Pass NV_NT Ban d 4 16QAM 3M 1711.5 1 0 30.0 1709.0~1710.0 1709.99 0 -18.97 -13 Pass NV_NT Ban d 4 16QAM 3M 1711.5 1 0 1 0.009~0.150 0.099 -51.94 -13 Pass NV_NT Ban d 4 16QAM 3M 1711.5 1 0 10 0.150~30.000 2.089 -38.15 -13 Pass NV_NT Ban d 4 16QAM 3M 1711.5 1 0 100 30.000~1000.00 0 46.716 -60.60 -13 Pass NV_NT Ban d 4 16QAM 3M 1711.5 1 0 1000 1000.000~1704. 000 1703.97 7 -48.64 -13 Pass NV_NT Ban d 4 16QAM 3M 1711.5 1 0 1000 1761.000~20000 .000 5293.89 4 -41.18 -13 Pass NV_NT Ban d 4 QPSK 3M 1732.5 15 0 1 0.009~0.150 0.098 -53.74 -13 Pass NV_NT Ban d 4 QPSK 3M 1732.5 15 0 10 0.150~30.000 2.133 -39.83 -13 Pass NV_NT Ban d 4 QPSK 3M 1732.5 15 0 100 30.000~1000.00 0 47.298 -59.29 -13 Pass NV_NT Ban d 4 QPSK 3M 1732.5 15 0 1000 1000.000~1707. 000 1701.32 0 -54.69 -13 Pass NV_NT Ban d 4 QPSK 3M 1732.5 15 0 1000 1758.000~20000 .000 19982.9 74 -45.52 -13 Pass NV_NT Ban d 4 16QAM 3M 1732.5 15 0 1 0.009~0.150 0.098 -51.67 -13 Pass NV_NT Ban d 4 16QAM 3M 1732.5 15 0 10 0.150~30.000 2.584 -40.02 -13 Pass NV_NT Ban16QAM 3M 1732.5 15 0 100 30.000~1000.0047.169 -59.89 -13 Pass Page 49 of 103 d 4 0 NV_NT Ban d 4 16QAM 3M 1732.5 15 0 1000 1000.000~1707. 000 1650.60 5 -55.19 …
Text truncated - open the document above for the full version.
LTE Band 4 Test Data FCC ID: 2BQHT-TAB-T104-6 Table of Contents 1. Effective (Isotropic) Radiated Power Output Data ..................................................................................................... 2 2. Peak to Average Ratio ................................................................................................................................................. 9 3. Occupied Bandwidth ................................................................................................................................................ 28 4. Unwanted Spurious Emission ................................................................................................................................... 47 5. Frequency Stability ................................................................................................................................................... 97 Page 2 of 103 IC LTE FDD Test Data +LLKIZO\K/YUZXUVOI8GJOGZKJ6U]KX5[ZV[Z*GZG Band Bandwidth Modulation Channel RB Configuration Result(dBm) Gain (dB) EIRP (dBm) EIRP Limit (dBm) Verdict Band4 1.4MHz QPSK 19957 1RB#0 22.47 2.16 24.63 30.0 PASS Band4 1.4MHz QPSK 19957 1RB#2 22.83 2.16 24.99 30.0 PASS Band4 1.4MHz QPSK 19957 1RB#5 21.53 2.16 23.69 30.0 PASS Band4 1.4MHz QPSK 19957 3RB#0 22.57 2.16 24.73 30.0 PASS Band4 1.4MHz QPSK 19957 3RB#1 22.18 2.16 24.34 30.0 PASS Band4 1.4MHz QPSK 19957 3RB#3 21.75 2.16 23.91 30.0 PASS Band4 1.4MHz QPSK 19957 6RB#0 21.62 2.16 23.78 30.0 PASS Band4 1.4MHz QPSK 20175 1RB#0 22.04 2.16 24.20 30.0 PASS Band4 1.4MHz QPSK 20175 1RB#2 22.54 2.16 24.70 30.0 PASS Band4 1.4MHz QPSK 20175 1RB#5 22.31 2.16 24.47 30.0 PASS Band4 1.4MHz QPSK 20175 3RB#0 21.92 2.16 24.08 30.0 PASS Band4 1.4MHz QPSK 20175 3RB#1 21.48 2.16 23.64 30.0 PASS Band4 1.4MHz QPSK 20175 3RB#3 21.96 2.16 24.12 30.0 PASS Band4 1.4MHz QPSK 20175 6RB#0 21.16 2.16 23.32 30.0 PASS Band4 1.4MHz QPSK 20393 1RB#0 21.12 2.16 23.28 30.0 PASS Band4 1.4MHz QPSK 20393 1RB#2 21.73 2.16 23.89 30.0 PASS Band4 1.4MHz QPSK 20393 1RB#5 23.27 2.16 25.43 30.0 PASS Band4 1.4MHz QPSK 20393 3RB#0 22.22 2.16 24.38 30.0 PASS Band4 1.4MHz QPSK 20393 3RB#1 22.15 2.16 24.31 30.0 PASS Band4 1.4MHz QPSK 20393 3RB#3 22.51 2.16 24.67 30.0 PASS Band4 1.4MHz QPSK 20393 6RB#0 22.48 2.16 24.64 30.0 PASS Band4 1.4MHz 16QAM 19957 1RB#0 22.74 2.16 24.90 30.0 PASS Band4 1.4MHz 16QAM 19957 1RB#2 22.88 2.16 25.04 30.0 PASS Band4 1.4MHz 16QAM 19957 1RB#5 22.96 2.16 25.12 30.0 PASS Band4 1.4MHz 16QAM 19957 3RB#0 22.65 2.16 24.81 30.0 PASS Band4 1.4MHz 16QAM 19957 3RB#1 22.65 2.16 24.81 30.0 PASS Band4 1.4MHz 16QAM 19957 3RB#3 22.71 2.16 24.87 30.0 PASS Band4 1.4MHz 16QAM 19957 6RB#0 22.83 2.16 24.99 30.0 PASS Band4 1.4MHz 16QAM 20175 1RB#0 22.56 2.16 24.72 30.0 PASS Band4 1.4MHz 16QAM 20175 1RB#2 21.81 2.16 23.97 30.0 PASS Band4 1.4MHz 16QAM 20175 1RB#5 22.00 2.16 24.16 30.0 PASS Band4 1.4MHz 16QAM 20175 3RB#0 23.35 2.16 25.51 30.0 PASS Page 3 of 103 Band4 1.4MHz 16QAM 20175 3RB#1 22.27 2.16 24.43 30.0 PASS Band4 1.4MHz 16QAM 20175 3RB#3 22.66 2.16 24.82 30.0 PASS Band4 1.4MHz 16QAM 20175 6RB#0 21.91 2.16 24.07 30.0 PASS Band4 1.4MHz 16QAM 20393 1RB#0 22.09 2.16 24.25 30.0 PASS Band4 1.4MHz 16QAM 20393 1RB#2 21.64 2.16 23.80 30.0 PASS Band4 1.4MHz 16QAM 20393 1RB#5 23.21 2.16 25.37 30.0 PASS Band4 1.4MHz 16QAM 20393 3RB#0 23.36 2.16 25.52 30.0 PASS Band4 1.4MHz 16QAM 20393 3RB#1 21.27 2.16 23.43 30.0 PASS Band4 1.4MHz 16QAM 20393 3RB#3 22.47 2.16 24.63 30.0 PASS Band4 1.4MHz 16QAM 20393 6RB#0 23.26 2.16 25.42 30.0 PASS Band4 3MHz QPSK 19965 1RB#0 22.80 2.16 24.96 30.0 PASS Band4 3MHz QPSK 19965 1RB#8 21.73 2.16 23.89 30.0 PASS Band4 3MHz QPSK 19965 1RB#14 22.58 2.16 24.74 30.0 PASS Band4 3MHz QPSK 19965 8RB#0 22.56 2.16 24.72 30.0 PASS Band4 3MHz QPSK 19965 8RB#4 22.64 2.16 24.80 30.0 PASS Band4 3MHz QPSK 19965 8RB#7 21.94 2.16 24.10 30.0 PASS Band4 3MHz QPSK 19965 15RB#0 23.44 2.16 25.60 30.0 PASS Band4 3MHz QPSK 20175 1RB#0 21.38 2.16 23.54 30.0 PASS Band4 3MHz QPSK 20175 1RB#8 22.64 2.16 24.80 30.0 PASS Band4 3MHz QPSK 20175 1RB#14 21.64 2.16 23.80 30.0 PASS Band4 3MHz QPSK 20175 8RB#0 22.46 2.16 24.62 30.0 PASS Band4 3MHz QPSK 20175 8RB#4 23.35 2.16 25.51 30.0 PASS Band4 3MHz QPSK 20175 8RB#7 22.41 2.16 24.57 30.0 PASS Band4 3MHz QPSK 20175 15RB#0 22.27 2.16 24.43 30.0 PASS Band4 3MHz QPSK 20385 1RB#0 22.12 2.16 24.28 30.0 PASS Band4 3MHz QPSK 20385 1RB#8 22.69 2.16 24.85 30.0 PASS Band4 3MHz QPSK 20385 1RB#14 22.96 2.16 25.12 30.0 PASS Band4 3MHz QPSK 20385 8RB#0 22.18 2.16 24.34 30.0 PASS Band4 3MHz QPSK 20385 8RB#4 22.78 2.16 24.94 30.0 PASS Band4 3MHz QPSK 20385 8RB#7 22.87 2.16 25.03 30.0 PASS Band4 3MHz QPSK 20385 15RB#0 22.31 2.16 24.47 30.0 PASS Band4 3MHz 16QAM 19965 1RB#0 22.85 2.16 25.01 30.0 PASS Band4 3MHz 16QAM 19965 1RB#8 23.16 2.16 25.32 30.0 PASS Band4 3MHz 16QAM 19965 1RB#14 22.26 2.16 24.42 30.0 PASS Band4 3MHz 16QAM 19965 8RB#0 22.78 2.16 24.94 30.0 PASS Band4 3MHz 16QAM 19965 8RB#4 22.51 2.16 24.67 30.0 PASS Band4 3MHz 16QAM 19965 8RB#7 22.66 2.16 24.82 30.0 PASS Band4 3MHz 16QAM 19965 15R…
Text truncated - open the document above for the full version.
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|---|---|---|---|---|
| 1 | 22H | 824.2 MHz - 848.8 MHz | 1.7499 W | 249KG7W | 2.5ppm |
| 2 | 22H | 824.2 MHz - 848.8 MHz | 1.2618 W | 245KG7W | 2.5ppm |
| 3 | 22H | 824.2 MHz - 848.8 MHz | 1.349 W | 246KGXW | 2.5ppm |
| 4 | 24E | 1.85 GHz - 1.91 GHz | 977.20 mW | 246KG7W | 2.5ppm |
| 5 | 24E | 1.85 GHz - 1.91 GHz | 785.20 mW | 242KG7W | 2.5ppm |
| 6 | 24E | 1.85 GHz - 1.91 GHz | 993.10 mW | 246KGXW | 2.5ppm |
| 7 | 24E | 1.85 GHz - 1.91 GHz | 281.80 mW | 4M16F9W | 2.5ppm |
| 8 | 24E | 1.85 GHz - 1.91 GHz | 199.50 mW | 4M18F9W | 2.5ppm |
| 9 | 24E | 1.85 GHz - 1.91 GHz | 168.30 mW | 4M18F9W | 2.5ppm |
| 1 | 27 | 1.71 GHz - 1.75 GHz | 237.70 mW | 17M9G7D | 2.5ppm |
| 11 | 27 | 1.71 GHz - 1.75 GHz | 231.70 mW | 17M9W7D | 2.5ppm |
| 12 | 27 | 2.50 GHz - 2.57 GHz | 269.20 mW | 17M9G7D | 2.5ppm |
| 13 | 27 | 2.50 GHz - 2.57 GHz | 266.10 mW | 17M9W7D | 2.5ppm |
