2BQHT-TAB-T863-3Tablet PC

DAMASCO TRADING LLC
Tablet PC - FCC ID 2BQHT-TAB-T863-3 - DAMASCO TRADING LLC
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Dec 04, 2025
Application Purpose
Original Equipment
Equipment Note
Tablet PC
Frequency Range
2402.00000000 - 2480.00000000
Company
DAMASCO TRADING LLC
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗

Cover Letter(s)

↗
↗
↗

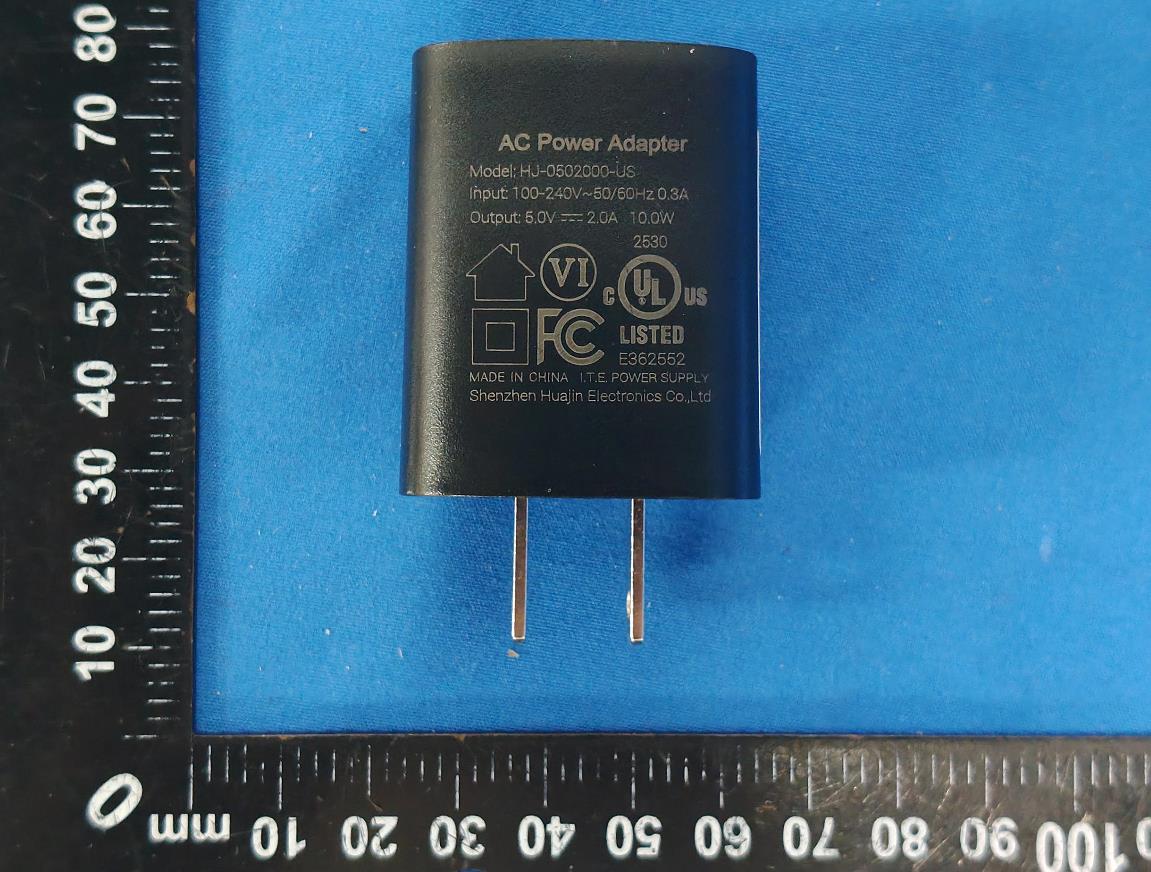

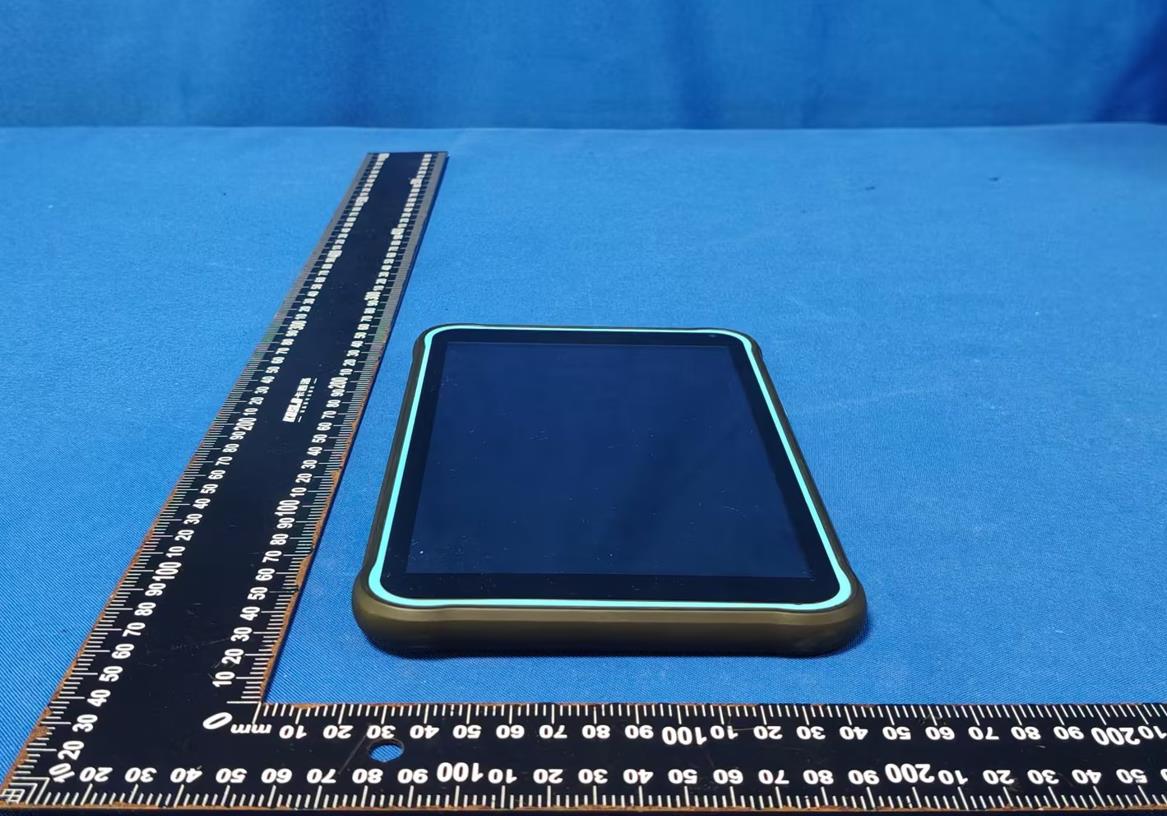

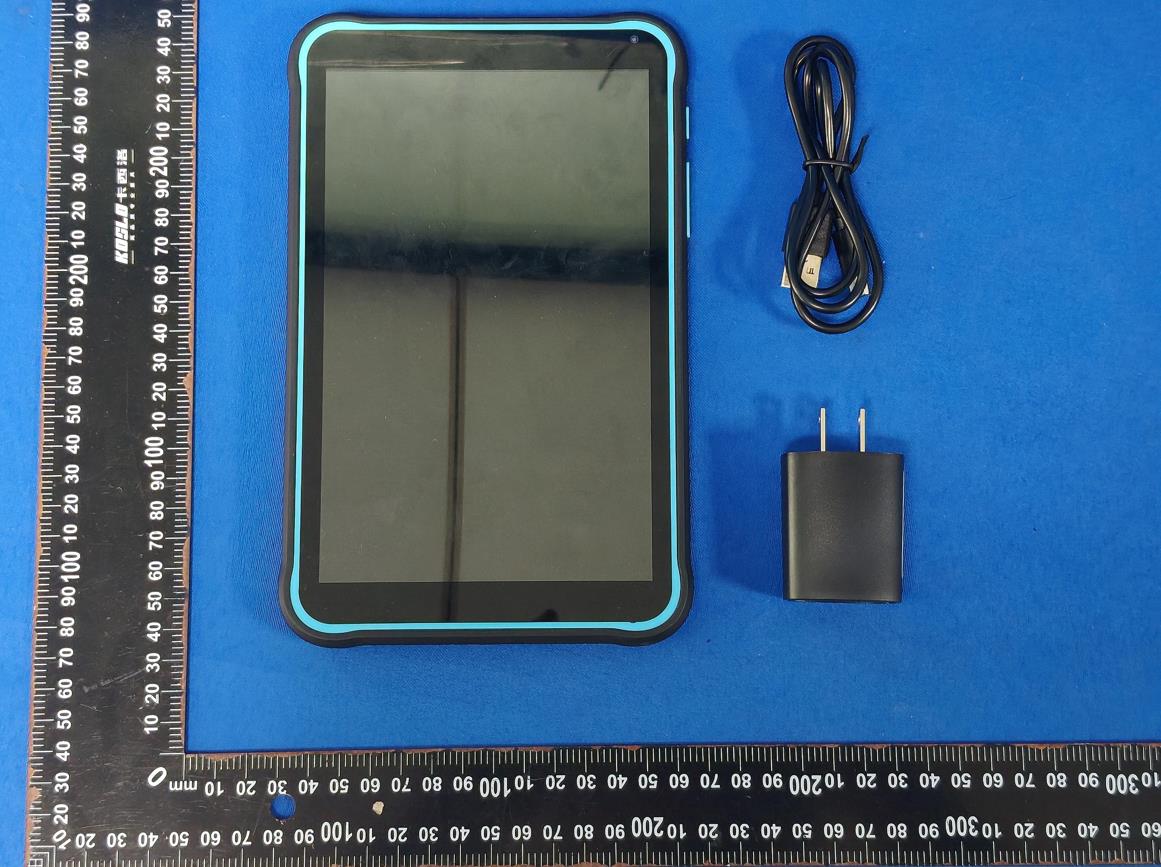

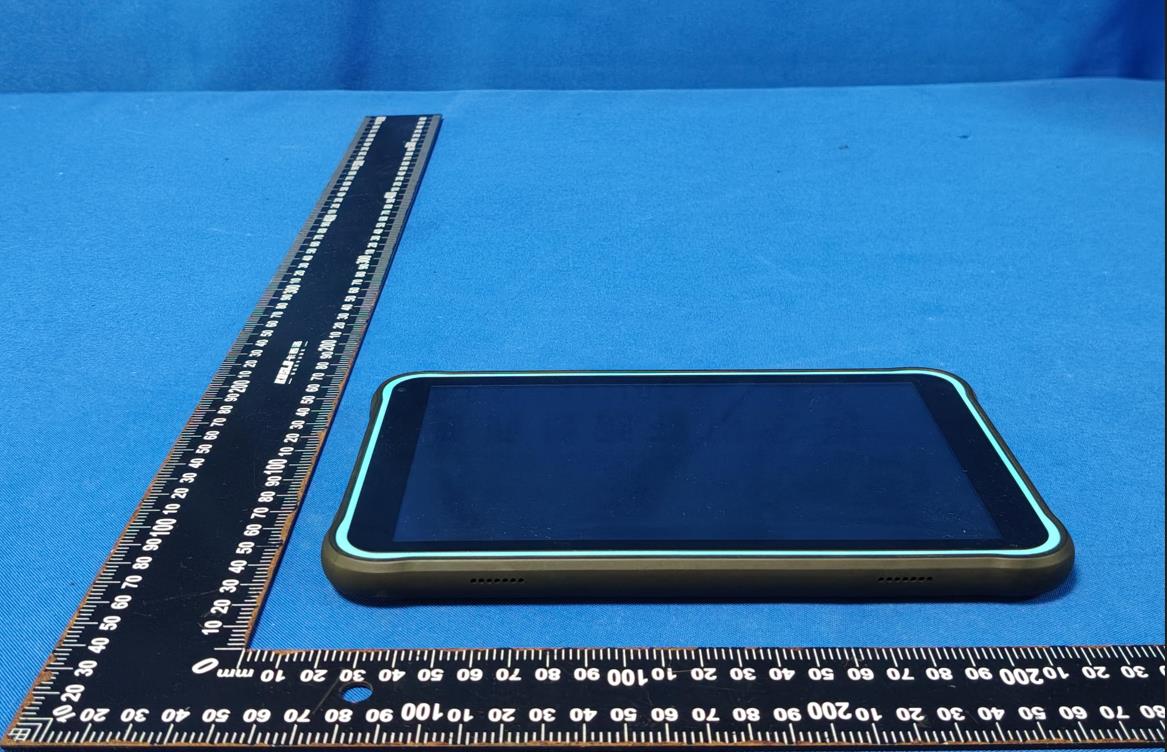

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗
↗
↗

Test Report

↗
↗
↗

Test Setup Photos

↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Manual de Usuario TAB-T863-3 12 1.Botón de encen2dido 2.Volumen + / Volumen - 3.Conector de auriculares 4.Tarjeta TF 5.Tipo-C 6.Cámara frontal 7.Micrófono 8.Flash 9.Cámara trasera 10.Altavoz TAB-T863-3 89 User Manual 1. Power button 6. Front Camera 2. Volume +/Volume - 7. MIC 3. Headphone jack 8. Flash 4. TF Card 9. Rear Camera 5. TYPE-C 10.Speaker Tablet PC Tablet PC Especificaciones técnicas Procesador: A333 Sistema operativo: Powered by Android™ RAM: 3GB DDR Almacenamiento: 32GB Pantalla: 8 pulgadas, 800 × 1280 Pantalla: Pantalla IPS y pantalla táctil de 5 puntos Audio: MP3, AAC, AAC+, AMR-NB, etc. Video: H.264 / H.263 / H.265 MPEG4, VP8, VP9 Imagen: JPG, JPEG, GIF, BMP, PNG, etc. Batería: 4000mAh, 3.8V Adaptador: Carga TYPE-C, 5V, 2A Cámara: Frontal 2.0 MP, Trasera 5.0 MP Wi-Fi: 802.11 a/b/g/n/ac Bluetooth: BT 5.0 Puertos: Micro TF / Tipo-C / Auriculares Las especificaciones y este manual están sujetos a cambios sin previo aviso. Google, Android, Google Play y YouTube son marcas registradas de Google LLC Contenido de la caja del producto Tablet(batería integrada en el dispositivo), cargador, cable USB, manual de usuario Vista general En este manual de usuario, las especificaciones mostradas en las imágenes y las partes indicadas en el contenido de la caja pueden variar según el modelo. Las imágenes son representativas. 345 Solución de problemas SSi detectas una condición inusual en tu dispositivo, puedes intentar resolver el problema consultando la descripción en la tabla. PROBLEMA RAZÓNSOLUCIÓN La tablet no se conecta a LAN ni a Wi-Fi. La señal entrante es demasiado baja. La señal puede ser débil o mala. Si estás en el suelo, la recepción de la señal puede reducirse. Cambia de lugar y vuelve a intentarlo. Saltos en pantalla táctil Quizás tus manos estén mojadas, el software de la tablet o la pantalla táctil no pueden detectar la operación táctil. Al tocar la pantalla táctil, asegúrate de que esté seca. Si la pantalla táctil está rayada o dañada, por favor contáctanos. Bloqueos intermitentes o la tablet deja de responder Puede que haya demasiadas aplicaciones en funcionamient o. La tablet emite pitidos y el ícono de la batería parpadea. Tu batería está débil. Para continuar usando el dispositivo, recárgalo. Mensaje de error de la cámara de la tablet No hay suficiente memoria o la batería está débil. Carga la batería. Transfiere archivos a una PC o libera espacio eliminando algunos archivos de la memoria. La tablet no enciende al sacarla de la caja. Baja energía Conecta el adaptador de corriente a la toma de pared y luego a la tablet. La tablet debería encenderse. Se recomienda cargar el dispositivo durante 8 horas antes del primer uso. Para un dispositivo completamente descargado, déjalo conectado y apagado por lo menos 12 horas. No se puede establecer conexión con su computadora. Compatible con el conector USB o PC, los controladores más recientes no están instalados. Si estás usando el cable USB con tu dispositivo, asegúrate de que sea compatible. Tu PC debe tener instalados los controladores correctos y asegúrate de actualizarlos. Eliminación de su dispositivo de manera ecológica Este símbolo en el producto o en su embalaje indica que el producto no debe tratarse como un residuo doméstico común. En su lugar, debe llevarse al punto de recolección correspondiente para el reciclaje de equipos electrónicos. Si elimina este producto correctamente, podrá evitar posibles consecuencias negativas para el medio ambiente y la salud humana derivadas del tratamiento inadecuado de los residuos. El reciclaje de materiales ayuda a conservar los recursos naturales.Para obtener más información sobre el reciclaje de este producto, por favor comuníquese con su municipio local, el servicio de gestión de residuos domésticos o la tienda donde compró el producto. Sugerencias para el ahorro de energía Cuando no esté utilizando el dispositivo, apague funciones como el Wi-Fi y el Bluetooth. Si es necesario, desactive sonidos innecesarios como las notificaciones de aplicaciones o el sonido de las teclas. Según sus necesidades, reducir el brillo de la pantalla y el volumen le permitirá usar la energía de manera más eficiente. Eliminación adecuada de la batería (Para países con sistemas de recolección separados) La marca en la batería, la guía y el compartimento de almacenamiento indica que esta batería no debe desecharse junto con otros residuos domésticos. Los símbolos químicos Hg, Cd o Pb indican que la batería contiene mercurio, cadmio o plomo por encima de los valores de referencia especificados en la Directiva 2006/66/CE. La batería suministrada con este producto no puede ser reemplazada por el usuario. Para obtener información detallada sobre el reemplazo, por favor contacte con su proveedor de servicio. No intente quitar la batería ni arrojarla al fuego. No la desarme, aplaste ni perfore. Si planea desechar el producto, se tomarán las medidas necesarias en el ámbito de gestión de residuos. Android es una marca registrada de Google LLC 67 Cumplimiento con la Parte 15 de las Reglas de la FCC Este equipo ha sido probado y se ha encontrado que cumple con los límites para un dispositivo digital de Clase B, conforme a la parte 15 de las Reglas de la FCC. Estos límites están diseñados para proporcionar una protección razonable contra interferencias perjudiciales en una instalación residencial. Este equipo genera, utiliza y puede irradiar energía de radiofrecuencia y, si no se instala y utiliza de acuerdo con las instrucciones, puede causar interferencia perjudicial a las radiocomunicaciones. Sin embargo, no hay garantía de que no se produzcan interferencias en una instalación particular. Si este equipo causa interferencia perjudicial a la recepción de radio o televisión, lo cual se puede determinar apagando y encendiendo el equipo, se recomienda al usuario que intente corregir la interferencia mediante una o más de las siguientes medidas: . Reorientar o reubicar la antena receptora. . Aumentar la separación e…

Text truncated - open the document above for the full version.

RF Exposure Info

Page: 1/11 SHENZHEN STS TEST SERVICES CO., LTD. 1/F, BUILDING 2, ZHUOKE SCIENCE PARK, 190 CHONGQING ROAD FUYONG, BAO’ AN DISTRICT, SHENZHEN,CHINA MVG COMOSAR DOSIMETRIC E-FIELD PROBE SERIAL NO.: SN 08/21 EPGO352 Calibrated at MVG Z.I. de la pointe du diable Technopôle Brest Iroise – 295 avenue Alexis de Rochon 29280 PLOUZANE - FRANCE Calibration date: 09/15/2025 Accreditations #2-6789 Scope available on www.cofrac.fr The use of the Cofrac brand and the accreditation references is prohibited from any reproduction. Summary: This document presents the method and results from an accredited COMOSAR Dosimetric E-Field Probe calibration performed at MVG, using the CALIPROBE test bench, for use with a MVG COMO SAR system only. The test results covered by accreditation are traceable to the International System of Units (SI). COMOSAR E-Field Probe Calibration Report Ref : ACR.95.19.25.BES.A Docusign Envelope ID: 711C3E09-7054-43A0-BF16-C536091746C4 COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.95.19.25.BES.A Page: 2/11 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vM This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. Name Function Date Signature Prepared by : Pedro Ruiz Measurement Responsible 9/16/2025 Checked & approved by: Jérôme L uc Technical Manager 9/16/2025 Authorized by: Laboratory Director Customer Name Distribution : Shenzhen STS Test Services Co., Ltd. Issue Name Date Modifications A Pedro Ruiz 9/16/2025 Initial release Docusign Envelope ID: 711C3E09-7054-43A0-BF16-C536091746C4 Geraldine Toutain 9/16/2025 COMOSAR E-FIELD PROBE CALIBRATION REPORT Page: 3/11 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vM This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. TABLE OF CONTENTS 1 Device Under Test ..................................................................................................... 4 2 Product Description ................................................................................................... 4 2.1 General Information _______________________________________________________ 4 3 Measurement Method ................................................................................................ 4 3.1 Sensitivity _______________________________________________________________ 4 3.2 Linearity ________________________________________________________________ 5 3.3 Isotropy _________________________________________________________________ 5 3.4 Boundary Effect __________________________________________________________ 5 3.5 Probe Modulation Response _________________________________________________ 6 4 Measurement Uncertainty .......................................................................................... 6 5 Calibration Results ..................................................................................................... 6 5.1 Calibration in air __________________________________________________________ 6 5.2 Calibration in liquid _______________________________________________________ 7 6 Verification Results ................................................................................................... 8 7 List of Equipment ...................................................................................................... 9 Docusign Envelope ID: 711C3E09-7054-43A0-BF16-C536091746C4 Ref: ACR.95.19.25.BES.A COMOSAR E-FIELD PROBE CALIBRATION REPORT Page: 4/11 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vM This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 1 DEVICE UNDER TEST Device Under Test Device Type COMOSAR DOSIMETRIC E FIELD PROBE Manufacturer MVG Model SSE2 Serial Number SN 08/21 EPGO352 Product Condition (new / used) Used Frequency Range of Probe 0.15 GHz-7.5GHz Resistance of Three Dipoles at Connector Dipole 1: R1=0.222 M: Dipole 2: R2=0.198 M: Dipole 3: R3=0.191 M: 2 PRODUCT DESCRIPTION 2.1 GENERAL INFORMATION MVG’s COMOSAR E field Probes are built in accordance to the IEC/IEEE 62209-1528 and FCC KDB865664 D01 standards. Figure 1 – MVG COMOSAR Dosimetric E field Probe Probe Length 330 mm Length of Individual Dipoles 2 mm Maximum external diameter 8 mm Probe Tip External Diameter 2.5 mm Distance between dipoles / probe extremity 1 mm 3 MEASUREMENT METHOD The IEC/IEEE 62209-1528 and FCC KDB865664 D01 standards provide recommended practices for the probe calibrations, including the performance characteristics of interest and methods by which to assess their effect. All calibrations / measurements performed meet the fore-mentioned standards. 3.1 SENSITIVITY The sensitivity factors of the three dipoles were determined using a two step calibration method (air and tissue simulating liquid) using waveguides as outlined in the standards for frequency range 600- 7500MHz and using the calorimeter cell method (transfer method) as outlined in the standards for frequency 150-450 MHz. Docusign Envelope ID: 711C3E09-7054-43A0-BF16-C536091746C4 Ref: ACR.95.19.25.BES.A COMOSAR E-FIELD PROBE CALIBRATION REPORT Page: 5/11 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vM This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 3.2 LINEARITY The evaluation of the linearity was done in fr…

Text truncated - open the document above for the full version.

Test Setup Photos

2BQHT-TAB-T863-3_SAR Setup photos Back Side (separation distance is 0mm) Top Side (separation distance is 0mm) Right Side (separation distance is 0mm)

Test Setup Photos

Page 1 of 2 Report No.: psi2509211-C01-R21 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Appendix I Test Setup Photo FCC ID: 2BQHT-TAB-T863-3 Spurious Radiation Emissions Test (<1G) Spurious Radiation Emissions Test (>1G) Page 2 of 2 Report No.: psi2509211-C01-R21 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Conducted emission Test ------End------

Test Report

ACKNOWLEDGMENTLETTER SPECIFICATIONFORAPPROVAL SpecificationModel/Description:XinErsheng(Xin'ersheng)/Antenna/2.4G/5.8G/XESANT11B131083/ XESANT333-863B-080PL/3rd-GenerationTerminalCoaxialCable/0.81MMBlackCable/Cable Length:95±2mm/CompliantwithRoHSQualityRequirements MaterialCode:F.P.W.0000034 ManufacturerPartNumber:XESANT11B131083 Supplier:ShenZhenXinErShengTechnologyCo.,Ltd PartType☑Standard(STANDARD)□Special(DesignatedorSPECIAL MaterialPartAcceptanceItem'ImplementationStandard(ReferenceAcceptanceChecklist) AcknowledgmentItemsTechnicalConfirmationColumn/Time Whethertheappearancemeetstheoverallmachine requirements □ IDEngineer: Confirmwhethertheelectricalperformance,pin definition,andpowerconsumptionmeettheoverall systemrequirements. □HardwareEngineer: Confirmwhetherthematerialsmeetthecomplete machineEMC/SAFETY/RFrequirements □EMCEngineer: Refertothe'MaterialApprovalChecklist'for confirmationoftheorganizationalpart. □StructuralEngineer: Confirmwhetherthedriverandothercomponents meettheoverallmachinerequirements □DriveEngineer: Thermal:Confirmwhetheritmeetstherequirements oftheentiremachine □ThermalEngineer: Confirmwhetheritmeetsthewholemachine BIOS/ECrequirements □SWEngineer: Confirmwhetherthewholemachinemeetssystem compatibility/reliabilitytesting. □DQASystemsEngineer: EnvironmentalReviewRecord(ApplicabletoROHS Directive) □EnvironmentalEngineer: Confirmthesupplier'sappearanceinspection standards/keyprocesses □SQEEngineer: Confirmwhetheritmeetsthecustomer's requirements □ ProjectManager: FAIfull-sizereport,CPKreport,packagingmethod (package),singleunitreliabilityreport,etc. □ CEEngineer: Sampleattached☑R&D□Quality□Purchasing☑Supplier□Customer☑Assemblyplant PrecautionsforIQCInspection: VersionDescriptionofchangesChangeDateReviser AFirsteditionrelease FormulateReview ShenZhenXinErShengTechnologyCo.,Ltd SPECIFICATIONFORAPPROVAL Customernane:A333-863B-080PL Productname :2.4/5.8GFPCantenna,0.81mmblackwire,L=95mm,with third-generationIPEXconnector. Customer Part Number :F.P.W.0000034 Manufacturersof Material :XESANT11B131083 Deliverquantity :5PCS MarkCheckExamineand approve Datelanded Biao LisenAmy 2025.05.15 ThatCustomers: AcknowledgeCheckExamineand approve Datelanded Admitthatsituation:  newproduct  productshanges Admitthatproject:□acknowledgement□soecimen5PCS Admitthatconclusion:□reception□refuse Companyaddress : Floor3,BuildingD,No.96LingxiaRoad,FuyongFenghuang FourthIndustrialZone,BaoanDistrict,Shenzhen Phonenumber:0755-33881455FaxNO.:0755-33233276 Email:[email protected] ShenZhenXinErShengTechnologyCo.,Ltd Maintechnicalparametersoftheproduct Maintechnicalspecifications FrequencyRange(MHZ)2400-2500/5150-5850 Impedance(Ω) 50 ± 10 Gain(dBi) 2.5±1 ReTurnLoss(dB) ≤ -10 VSWR ≤2 AdmittedPower1W PolarizationLinearVertical ConnectorTypeIPEX PhysicalProperties AntennaBaseFPC OperatingTemp -20°C-+60°C StorageTemp -20°C-+70°C ShenZhenXinErShengTechnologyCo.,Ltd Productdrawing ShenZhenXinErShengTechnologyCo.,Ltd Testequipment ShenZhenXinErShengTechnologyCo.,Ltd Networkanalyzertestreport 1.SWR ShenZhenXinErShengTechnologyCo.,Ltd 2D、3DRaditationPattern 2.4GGain(Peak):2.66dBiEfficiency:55.9% 2.45GGain(Peak):2.53BiEfficiency:60.3% 2.5GGain(Peak):2.58dBiEfficiency:57.7% ShenZhenXinErShengTechnologyCo.,Ltd 5.15GGain(Peak):2.28dBiEfficiency:57.71% 5.5GGain(Peak):1.83dBiEfficiency:52.6% 5.85GGain(Peak):1.97dBiEfficiency:55.3% ShenZhenXinErShengTechnologyCo.,Ltd Assemblypicture OTAtestingdata ShenZhenXinErShengTechnologyCo.,Ltd Reliabilitytestingreport 1 SAITSPRAYTEST Saltwaterspraytest:inaccordancewiththe standardGB1266-86. Distilledwater:Singledistillation PH6.5~7 Sprayvolume:1.4me80cm²/h Compressedairpressure:1Kgf/cm² Relativetestangle:98° Temperature:45°to47° Pressure-temperature:35° Testduration:48hours Allcharacteristic rangeis30%of theinitialvalue Thereareno signsindicating anydamagetothe electrical performanceof thedevice. 2HEATTEST for96hours,afterkeepinnormalcondition for30mimthetotest . 3HUMIDITYTEST 40+2°C90-95%RHfor96hours,afterkeep innormalconditionfor30mimthetotest. 4COLDTEST-20+2 °C for96hours,afterkeepinnormal conditionfor30mimthetotest . ShenZhenXinErShengTechnologyCo.,Ltd Productpackagingspecifications Productname/Specifications 1、LabelingRequirements ************ 采购单号*************采购单号************* 物料编码*****************物料编码***************** 品名规格********品名规格******* 数量/单位*****数量/单位***** 备注*************备注************* 2、Packingrequirements Homeworkinstructions: Innerpackaging: Product:100piecespersmallbag Exteriorpackaging: Quantitydeterminedbasedonactualquantity/box Precautions: 1.Isitnecessarytoadddividersorpolyethylenefoam; 2.Adhesionoflabels,suchasROHS;

Test Report

Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Page 1 of 90 Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China FCC TEST REPORT FCC ID: 2BQHT-TAB-T863-3 On Behalf of DAMASCO TRADING LLC Tablet PC Model No.: TAB-T863-3, TAB-T863-******* (“*”= 0-9, A-Z, a-z, -, \, / or space) Prepared for : DAMASCO TRADING LLC Address : 3847 NE 168TH ST APT 3C NORTH MIAMI BEACH 33160 FLORIDA USA Prepared By : Shenzhen PSI Testing Co., Ltd. Address : 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Report Number : psi2509211-C01-R23 Date of Receipt : September 28, 2025 Date of Test : September 28, 2025–October 30, 2025 Date of Report : October 31, 2025 Version Number : V0 Page 2 of 90 Report No.: psi2509211-C01-R23 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China TABLE OF CONTENTS Description Page 1. Summary Of Standards And Results ---------------------------------------------------------------------------------- 6 1.1. Description of Standards and Results --------------------------------------------------------------------------- 6 2. General Information --------------------------------------------------------------------------------------------------------- 7 2.1. Description of Device (EUT) --------------------------------------------------------------------------------------- 7 2.2. Accessories of Device (EUT) -------------------------------------------------------------------------------------- 8 2.3. Tested Supporting System Details ------------------------------------------------------------------------------- 8 2.4. Block Diagram of Connection Between EUT and Simulators---------------------------------------------- 8 2.5. Test Mode Description ---------------------------------------------------------------------------------------------- 9 2.6. Software test version and power setting information ------------------------------------------------------ 10 2.7. Test Conditions------------------------------------------------------------------------------------------------------ 10 2.8. Test Facility ---------------------------------------------------------------------------------------------------------- 11 2.9. Measurement Uncertainty ---------------------------------------------------------------------------------------- 11 2.10. Test Equipment List ------------------------------------------------------------------------------------------------ 12 3. Spurious Emission -------------------------------------------------------------------------------------------------------- 13 3.1. Test Limits ------------------------------------------------------------------------------------------------------------ 13 3.2. Block Diagram of Test setup ------------------------------------------------------------------------------------- 16 3.3. Test Procedure ------------------------------------------------------------------------------------------------------ 17 3.4. Test Results ---------------------------------------------------------------------------------------------------------- 18 4. Power Line Conducted Emission ------------------------------------------------------------------------------------- 27 4.1. Test Limits ------------------------------------------------------------------------------------------------------------ 27 4.2. Test Procedure ------------------------------------------------------------------------------------------------------ 27 4.3. Test Setup ------------------------------------------------------------------------------------------------------------ 27 4.4. Test Results ---------------------------------------------------------------------------------------------------------- 28 5. Out-of-band Emissions--------------------------------------------------------------------------------------------------- 31 5.1. Test Limits ------------------------------------------------------------------------------------------------------------ 31 5.2. Test Procedure ------------------------------------------------------------------------------------------------------ 31 5.3. Test Setup ------------------------------------------------------------------------------------------------------------ 31 5.4. Test Results ---------------------------------------------------------------------------------------------------------- 31 6. Conducted Maximum Output Power --------------------------------------------------------------------------------- 53 6.1. Test limits ------------------------------------------------------------------------------------------------------------- 53 6.2. Test Procedure ------------------------------------------------------------------------------------------------------ 53 6.3. Test Setup ------------------------------------------------------------------------------------------------------------ 53 6.4. Test Results ---------------------------------------------------------------------------------------------------------- 53 7. Duty Cycle -------------------------------------------------------------------------------------------------------------------- 54 7.1. Test Procedure ------------------------------------------------------------------------------------------------------ 54 7.2. Test Setup ------------------------------------------------------------------------------------------------------------ 54 7.3. Test Results ---------------------------------------------------------------------------------------------------------- 54 8. Peak Power Spectral Density ------------------------------------------------------------------------------------------ 61 8.1. Test limits --------…

Text truncated - open the document above for the full version.

Test Report

Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Page 1 of 56 Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China FCC TEST REPORT FCC ID: 2BQHT-TAB-T863-3 On Behalf of DAMASCO TRADING LLC Tablet PC Model No.: TAB-T863-3, TAB-T863-******* (“*”= 0-9, A-Z, a-z, -, \, / or space) Prepared for : DAMASCO TRADING LLC Address : 3847 NE 168TH ST APT 3C NORTH MIAMI BEACH 33160 FLORIDA USA Prepared By : Shenzhen PSI Testing Co., Ltd. Address : 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Report Number : psi2509211-C01-R22 Date of Receipt : September 28, 2025 Date of Test : September 28, 2025–October 30, 2025 Date of Report : October 31, 2025 Version Number : V0 Page 2 of 56 Report No.: psi2509211-C01-R22 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China TABLE OF CONTENTS Description Page 1. Summary Of Standards And Results ------------------------------------------------------------------------------- 6 1.1. Description of Standards and Results ----------------------------------------------------------------------- 6 2. General Information ----------------------------------------------------------------------------------------------------- 7 2.1. Description of Device (EUT) ----------------------------------------------------------------------------------- 7 2.2. Accessories of Device (EUT) ---------------------------------------------------------------------------------- 8 2.3. Tested Supporting System Details---------------------------------------------------------------------------- 8 2.4. Block Diagram of Connection Between EUT and Simulators ------------------------------------------ 8 2.5. Test Mode Description ------------------------------------------------------------------------------------------- 9 2.6. Software test version and power setting information----------------------------------------------------- 9 2.7. Test Conditions -------------------------------------------------------------------------------------------------- 10 2.8. Test Facility ------------------------------------------------------------------------------------------------------- 10 2.9. Measurement Uncertainty ------------------------------------------------------------------------------------ 10 2.10. Test Equipment List -------------------------------------------------------------------------------------------- 11 3. Spurious Emission ----------------------------------------------------------------------------------------------------- 12 3.1. Test Limits -------------------------------------------------------------------------------------------------------- 12 3.2. Block Diagram of Test setup --------------------------------------------------------------------------------- 15 3.3. Test Procedure -------------------------------------------------------------------------------------------------- 16 3.4. Test Results ------------------------------------------------------------------------------------------------------ 17 4. Power Line Conducted Emission --------------------------------------------------------------------------------- 23 4.1. Test Limits -------------------------------------------------------------------------------------------------------- 23 4.2. Test Procedure -------------------------------------------------------------------------------------------------- 23 4.3. Test Setup -------------------------------------------------------------------------------------------------------- 23 4.4. Test Results ------------------------------------------------------------------------------------------------------ 24 5. Out-of-band Emissions ----------------------------------------------------------------------------------------------- 27 5.1. Test Limits -------------------------------------------------------------------------------------------------------- 27 5.2. Test Procedure -------------------------------------------------------------------------------------------------- 27 5.3. Test Setup -------------------------------------------------------------------------------------------------------- 27 5.4. Test Results ------------------------------------------------------------------------------------------------------ 27 6. Conducted Maximum Output Power ----------------------------------------------------------------------------- 38 6.1. Test limits --------------------------------------------------------------------------------------------------------- 38 6.2. Test Procedure -------------------------------------------------------------------------------------------------- 38 6.3. Test Setup -------------------------------------------------------------------------------------------------------- 38 6.4. Test Results ------------------------------------------------------------------------------------------------------ 38 7. Peak Power Spectral Density --------------------------------------------------------------------------------------- 39 7.1. Test limits --------------------------------------------------------------------------------------------------------- 39 7.2. Test Procedure -------------------------------------------------------------------------------------------------- 39 7.3. Test Setup -------------------------------------------------------------------------------------------------------- 39 7.4. Test Results ------------------------------------------------------------------------------------------------------ 40 8. Bandwidth ---------------------------------------------------------------------------------------------------------------- 44 8.1. Test limits --------------------------…

Text truncated - open the document above for the full version.

RF Exposure Info

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. SAR Test Report Report No.: STS2510057H01 Issued for DAMASCO TRADING LLC 3847 NE 168TH ST APT 3C NORTH MIAMI BEACH 33160 FLORIDA USA Product Name: Tablet PC Brand Name: N/A Model Name: TAB-T863-3, TAB-T863-******* (“*”= 0-9, A-Z, a-z, -, \, / or space) Ser…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Jonathan Ibarah
[email protected]Fax: 3054695332

Test Firm

Shenzhen PSI Testing Co., Ltd.Simple Guan
[email protected]

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz70.47 mW
215C2.40 GHz - 2.48 GHz3.65 mW
Confidentiality
Long Term
Grant Notes
Output power listed is conducted. The device supports 20MHz and 40MHz bandwidths. Highest reported SAR for Body-worn accessory is 0.59W/kg.
