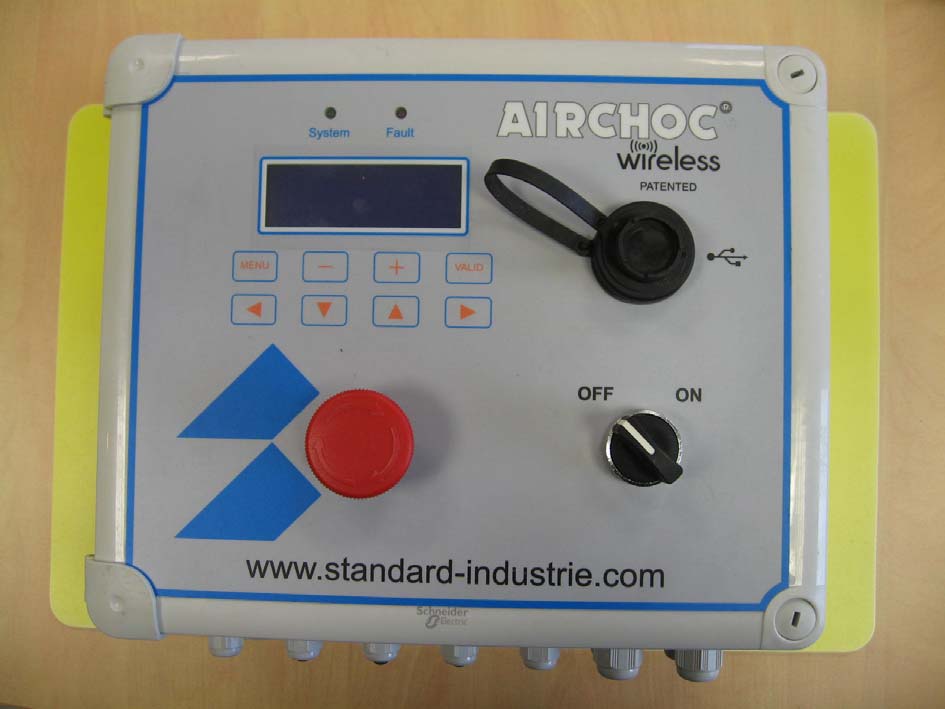

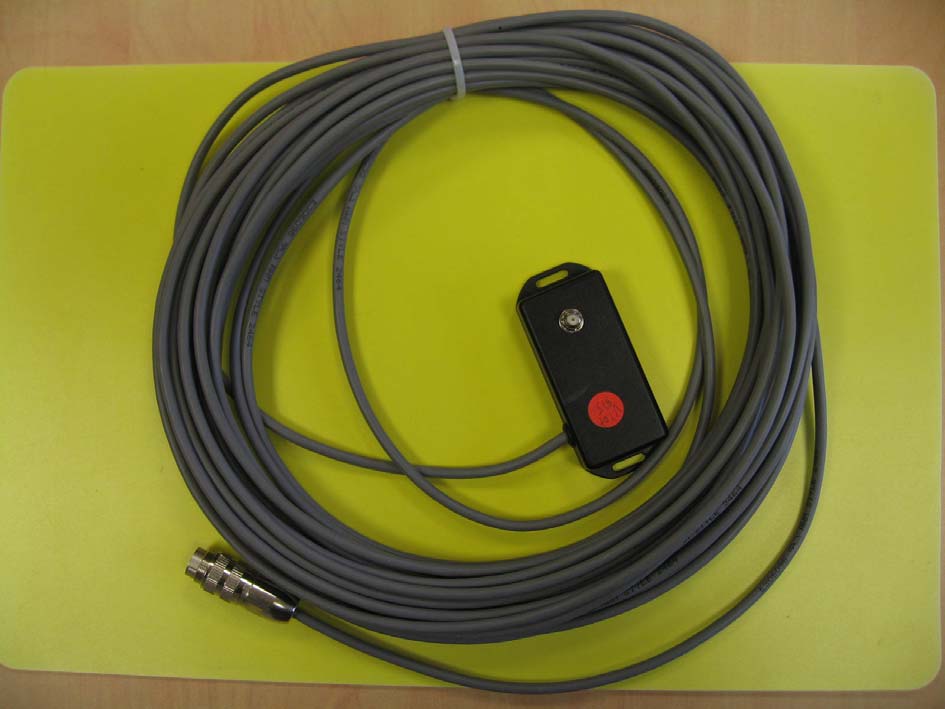

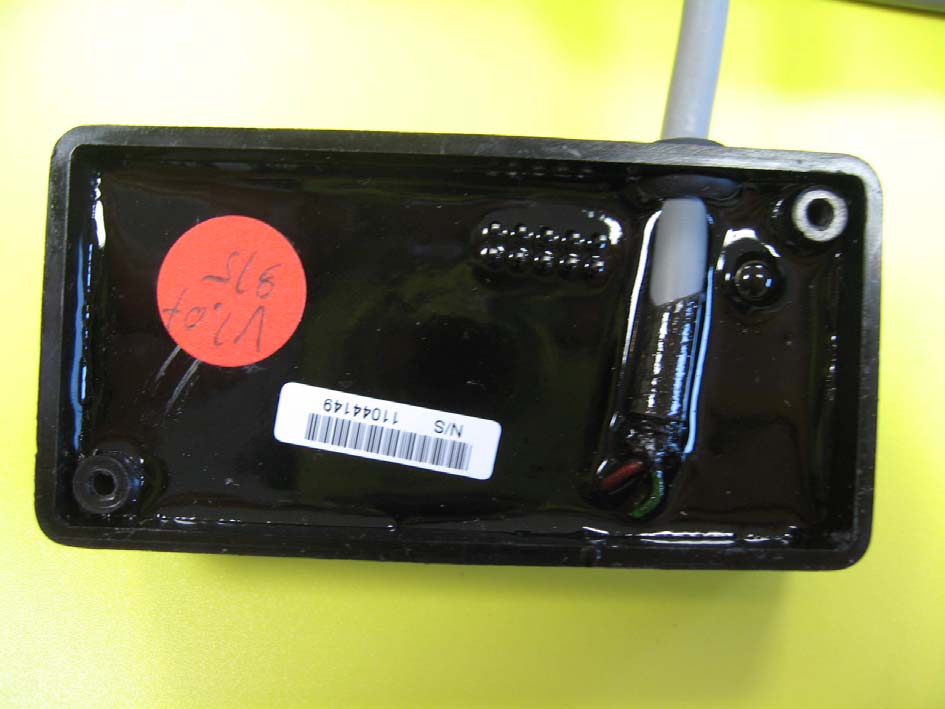

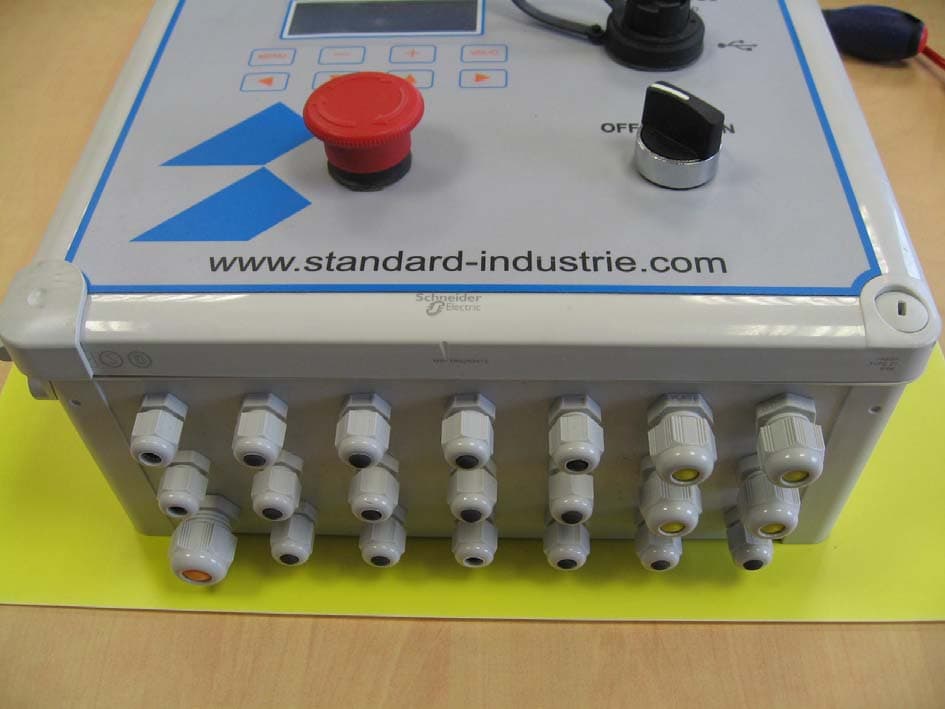

A29-COFACWCACONTROL PANEL FOR AIRCHOC WIRELESS APPLICATION

NOTCOFACW-US.doc 1 December 6th, 2012 Produced on: December 20th, 2012 By: DESIGN OFFICE Checked on: By: BOISLEUX.M Signature: TECHNICAL INSTRUCTIONS Revision Level: H1 NOTCOFACW-US Date: December 6th, 2012 HEAD OFFICE- Standard Industrie : 139-141 rue du Luxembourg-BP50207 59054 ROUBAIX CEDEX 1- FRANCE +33 (0)3 20 28 32 32 / @ : [email protected] NOTCOFACW-US.doc 2 December 6th, 2012 1- PRINCIPLE OF AIRCHOC WIRELESS Page 3 2- AIRCHOC WIRELESS TRANSMITTER INSTALLATION Page 3 2-1 Control panel fixation Page 3 2-2 Antenna Connection Page 3 2-3 Antenna Placement Page 3 2-4 Control panel Presentation Page 4 2-5 Control panel Electrical Hook-up Page 5 2-51 Electrical Characteristics Page 5 2-52 Environmental Characteristics Page 6 2-53 Additional Exterior Characteristics Page 6 2-54 Explanation of different symbol on the labels Page 6 2-55 Switching device Page 6 2-54 Control panel Circuit Board Operation Page 6 2-56 Instructions Page 6 2-57 Control panel circuit board operation Page 7 2-58 Servo-control Hook-up Page 7 2-59 Alarm, Cycle, and Fault Relay Output Page 8 2-60 Changing fuses Page 8 3-RECEIVER UNIT CHARACTERISTICS Page 9 3-1 Receiver Unit Batteries Page 9 3-2 Recycling Page 9 3-3 Warranty Page 9 4-WIRELESS RECEIVER UNIT START-UP Page 10 5- CONTROL PANEL START-UP Page 12 6- MAIN MENU Page 12 6-1 Menu Operation Page 13 6-11 Display Menu Page 13 6-12 Manu Discharge Page 13 6-13 Erasure Menu Page 14 6-13a Fault Presence Page 14 6-13b Fault Deletion Page 15 6-13c General Fault Deletion Page 15 6-13d Airchoc Deletion Page 15 6-13e Sequence Deletion Page 16 6-13f Super Sequence Deletion Page 16 6-13g Factory Reset Page 16 6-14 Airchoc Programming Menu Page 17 6-14a Receiver Unit MAC Address Page 17 6-14b Airchoc Registration Page 18 6-14c Counters Page 19 6-14d Reception Level between Control panel and Receiver Unit Page 19 6-14e Network Monitoring Page 19 6-15 Sequence Programming Menu Page 20 6-16 Super Sequence Programming Menu Page 22 6-16a Super Sequence Configuration Page 22 6-16b Super Sequence Programming Page 22 6-17 Access Code Management Page 23 6-17a Code Creation / Modification Page 23 6-17b Code Level Page 23 6-17c Code Table Initialization Page 24 6-18 Language Setting Menu Page 24 6-19 Control USB Key Menu Page 24 6-20a Save Program Page 25 6-20b Upload Program to Control panel Page 25 6-20c Update Control panel Version Page 26 6-21 Communication Test Page 26 7-CHANGING RECEIVER UNIT BATTERIES Pages 27 to 30 CONTENTS NOTCOFACW-US.doc 3 December 6th, 2012 1- Principle of Airchoc Wireless NOTCOFACW-US.doc 4 December 6th, 2012 2- AIRCHOC WIRELESS TRANSMITTER INSTALLATION 2-1. Control panel fixation Attachment lugs are provided to mount the control panel on a wall. 2-2. Antenna Module Connection NB. The antenna module is provided with 20 m of cable. If additional length is required, please contact us. 2-3. Antenna Module Placement We suggest placing the antenna as high as possible in order to radiate towards the receiver unit and obtain better reception. Communication between the transmitter Control panel and the receiver units takes place by means of this antenna module. This antenna module is sealed and may be installed outdoors. 2-31 Wireless external antenna characteristics Standard Industrie Reference : COFANTENNA 65 Set of 4 brackets . Preserves the protection index . Possibility of vertical or horizontal mounting . kit consisting of 4 brackets + screws brackets (internal dimensions) Screw the antenna Screw the antenna connector to the box presence of a label keyed A=385 NOTCOFACW-US.doc 5 December 6th, 2012 2-4. Control panel Presentation 2-5. Control panel Electrical Hook-up White terminal block Emergency stop button Start / Stop button Display LED indicators Keyboard USB socket Release to open the Control panel The insulation of the conductors from the circuits with hazardous voltage and the other circuits need to be insulated by double/reinforced insulation for 300V outside and inside the equipment and to accessible parts NOTCOFACW-US.doc 6 December 6th, 2012 2-51. Control panel Electrical Characteristics -Control panel universal supply voltage 120Vac -Frequency 60 Hz -Consumption 15W Max -Protection, can withstand 105% of the initial power and the power source automatically cuts-off and turns back on. - If there is a power surge, the power source automatically cuts-off and turns back on after the repair. - RF transmission module - 915 MHz as per IEEE 802.15.4 -2003/2006 2-52. Environmental characteristics: - Protection Index: IP66 IK 08 - Service temperature: - Humidity : - Max altitude - Pollution degree Minimum: -10°C Maximum: +70°C no more than 80% e.g up to 2000 m 2 - Material : Polycarbonate UL 2-53. Additional exterior Characteristics : 2-54.Explanation of the different symbols on the labels : Direct current Alternating current 2-55. Switching device : The control panel is permanently connected to building installation, the installer must provide a current isolation device, easy accessible to operator and marked as disconnecting device to use in case of intervention in the control panel. Attention : it is forbidden to clean the control panel in the high-pressure water. The protection is impaired if equipment is used in a manner not specified by the manufacturer. 2-56.Instructions : Changes or modifications not expressly approved by Standard Industrie could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can - Operator interface: - 4 line LCD backlit display of 20 characters each - 8-key keyboard - Indicator LED: - system (system operational) - fault (fault detected) - Front USB (software update and program upload) Earth The user must disconnect the control panel…
