A29-COFROUTCAROUTER FOR AIRCHOC WIRELESS APPLICATION

NOTCOFROUT-US.doc 1 December 6th, 2012 USER MANUAL Revision Level: G1 NOTCOFROUT-US Date: December 6th, 2012 Produced on: December 6th, 2012 By: DESIGN OFFICE Checked on: By: BOISLEUX.M Signature: HEAD OFFICE- Standard Industrie : 139-141 rue du Luxembourg-BP50207 59054 ROUBAIX CEDEX 1- FRANCE +33 (0)3 20 28 32 32 / @ : [email protected] NOTCOFROUT-US.doc 2 December 6th, 2012 CONTENTS 1 Principle of Airchoc Wireless page 3 2 Router presentation page 4 2-2 General characteristics page 4 2-21 Electrical characteristics page 4 2-22 Explanation of the symbol on the label page 4 2-23 Environmental characteristics: page 4 2-24 Additional exterior characteristics page 4 3 Network with router page 4 3-1 Principle page 5 4 General information Page 6 NOTCOFROUT-US.doc 3 December 6th, 2012 1- Principle of Airchoc Wireless NOTCOFROUT-US.doc 4 December 6th, 2012 2- ROUTER PRESENTATION 2-2. General Characteristics 2-21. Electrical Characteristics - Power supply : 120V ac - 60Hz - Max power : 1W 2-22. Explanation of the symbol on the label : After power has been removed and the overcurrent condition eliminated, the circuit is restored to normal operating condition This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2-23. Environmental characteristics: Material : Flame Retardant ABS (UL94-V0) - Service temperature: - Humidity : - Max altitude - Pollution degree Minimum: -20°C Maximum: +70°C no more than 80% e.g up to 2000 m 2 Attention : it is forbidden to clean the control panel to the high-pressure water. The protection is impaired if equipment is used in a manner not specified by the manufacturer. - Electric cable used for connecting have to be in accordance with the standard IEC 60320-1, 60227 2-24. Additional Exterior Characteristics This router includes -RF transmission module - 915 MHz as per IEEE 802.15.4-2003/2006 standard Number of address of the router which will be visualized in the network There is no risk of power to hit the metal part of the antenna out put if the router is powered. This router is Class II The router is protected by a resettable fuse 0,16A and no dismantling of the box is called. Wireless external antenna Standard Industrie reference : COFANTENNA Characteristics Frequency [MHz] : 868-928 Gain [dBi] : 3.0 Impedance [Nom] : 50Ω VSWR : ≤2.0 Polarization : Vertical Electrical length : ¼, dipole Radiation : Omni NOTCOFROUT-US.doc 5 December 6th, 2012 3) NETWORK WITH ROUTER FOR SYSTEME WIRELESS 3-1) Principle In the case of transmission problems between the control panel and the receiv ers, routers can be installed. While positioning the routers on high points, and provide a power supply. The control panel communicates with the router through the antenna. The router relays the information to the receiver Antenna Control p anel Router Receiver Control panel Power NOTCOFROUT-US.doc 6 December 6th, 2012 4 – General Information Changes or modifications not expressly approved by Standard Industrie could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC’s radiation exposure limits set forth for an uncontrolled environment under the following conditions : 1. This equipment should be installed and operated such that a minimum separation distance of 20cm is maintained between the radiator (antenna) and user’s/nearby person’s body at all times. 2. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

S.A.S. au capital de 1 237 600 € - R.C. ROUBAIX 312 479 769 - SIRET 312 479 769 00035 - APE 2899B - TVA FR 853 12479769 Siège social et usines 139-141, rue du Luxembourg Tél. : +33 (0)3 20 28 32 32 CS 50207 Fax. : +33 (0)3 20 68 51 16 59054 ROUBAIX Cedex 1 E-mail : [email protected] France www.standard-industrie.com Attn: TIMCO Engineering Inc. Authority to Act as Agent On our behalf, I appoint M. Loïc BERTHAUD from Emitech Angers - site de Beaucouzé, 15 rue de la Claie ZI Angers/Beaucouzé, 49070 Beaucouzé FRANCE, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Standard Industrie, 139-141 rue du Luxembourg, BP 50207, 59054 Roubaix FRANCE . This authorization is valid until further written notice from Standard Industrie. January the 21 st , 2013 By DUHAUTOIS Jean-François – Technical Manager Signature

S.A.S. au capital de 1 237 600 € - R.C. ROUBAIX 312 479 769 - SIRET 312 479 769 00035 - APE 2899B - TVA FR 853 12479769 Siège social et usines 139-141, rue du Luxembourg Tél. : +33 (0)3 20 28 32 32 CS 50207 Fax. : +33 (0)3 20 68 51 16 59054 ROUBAIX Cedex 1 E-mail : [email protected] France www.standard-industrie.com Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: A29- COFROUTCA. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Operational description COFROUTCA –OpDes_EN.pdf Block diagram COFROUTCA -BlkDia.pdf Electrical schematics COFROUTCA -Schem.pdf Parts list COFROUTCA -PartsLst.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, By DUHAUTOIS Jean-François – Technical Manager Signature

Z.I. Angers - Beaucouzé - 15, rue de la Claie - 49070 BEAUCOUZE - Siret : 344 545 645 00055 Tél. : 02 41 73 26 27 - Fax : 02 41 73 26 40 - E-mail : [email protected] - URL : www.emitech.fr Siège Social : 3, rue des Coudriers - CAP 78 - ZA de l’Observatoire - 78180 MONTIGNY LE BX S.A. au capital de 1 560 000 € - R.C.S. VERSAILLES 344 545 645 - APE 7112B  Siège Social : Emitech ‐ 3, rue des Coudriers ‐ Z.A. de l’Observatoire ‐78180 MONTIGNY LE BX ‐France Siret : 344 545 645 00022 ‐ Tél. : 33 (0)1 30 57 55 55 ‐ Fax : 33 (0)1 30 43 74 48 ‐ E‐mail : [email protected] ‐ URL : www.emitech.fr S.A. au capital de 1 560 000 € ‐ R.C.S. VERSAILLES 344 545 645 ‐ APE 7112B Centre d’ANGERS 15 Rue de la Claie 49070 BEAUCOUZE FRANCE Tél : +33 241 732 627 Attention : Timco Engineering, Inc. Airchoc router Model : COFROUTCA FCC ID : A29-COFROUTCA IC : 10022A-COFROUTCA I, Jean-François DUHAUTOIS, Technical Manager from Standard Industrie, 139-141 rue du Luxembourg BP50207 59054 Roubaix FRANCE, declare that the device presented to certification has not been amended since March 02, 2012. Produced devices remain electrically identical to tested sample and data submitted reflects present operation of the device. As stated in test report, the device has been verified to comply with KDB 558074 for a DTS device. The test report has been revalidated to ensure compliance with the latest FCC Rules. - On behalf of Mr. Jean-François DUHAUTOIS – Beaucouzé - January 20, 2014 Loïc BERTHAUD International & Certification Manager

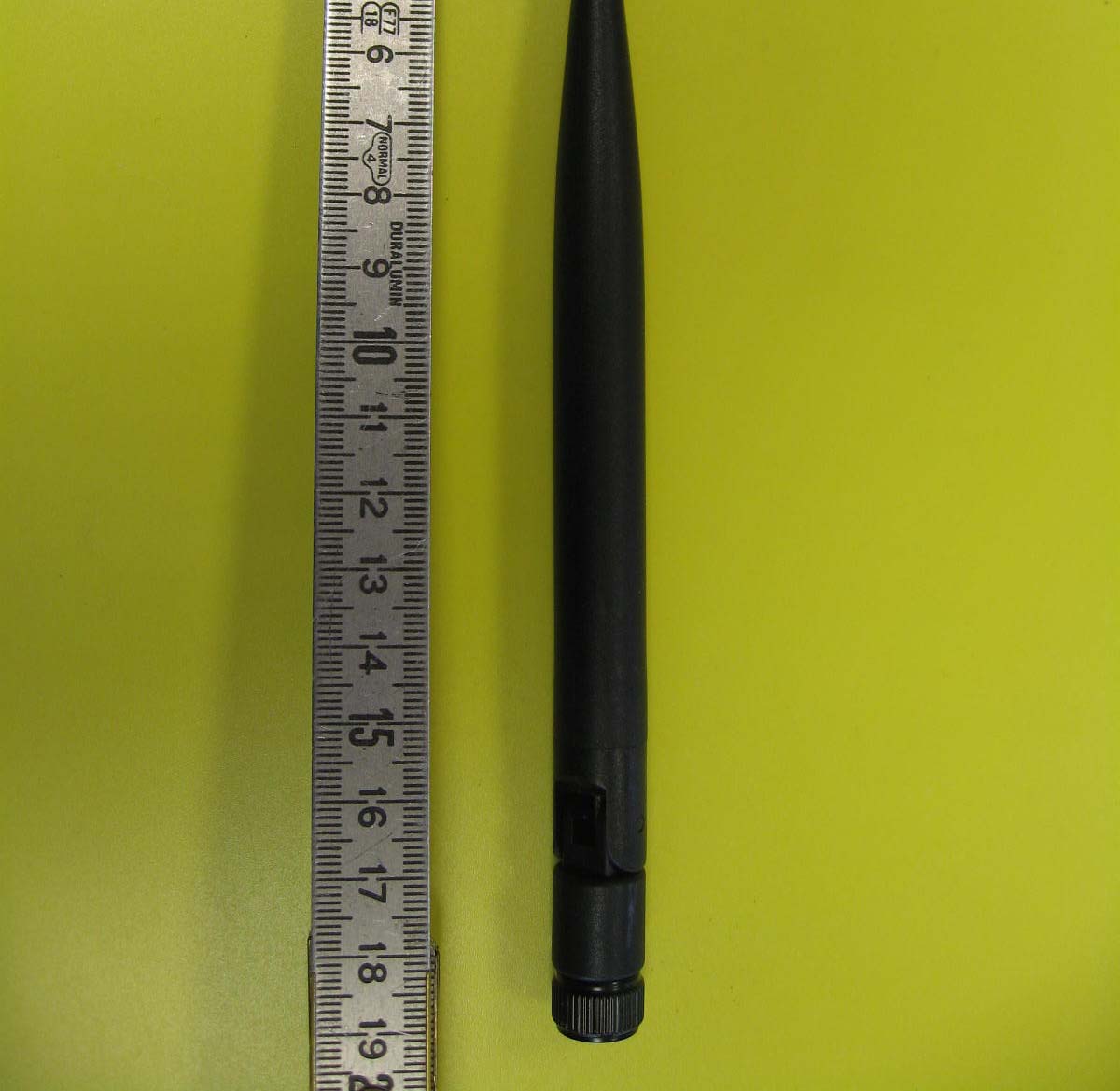

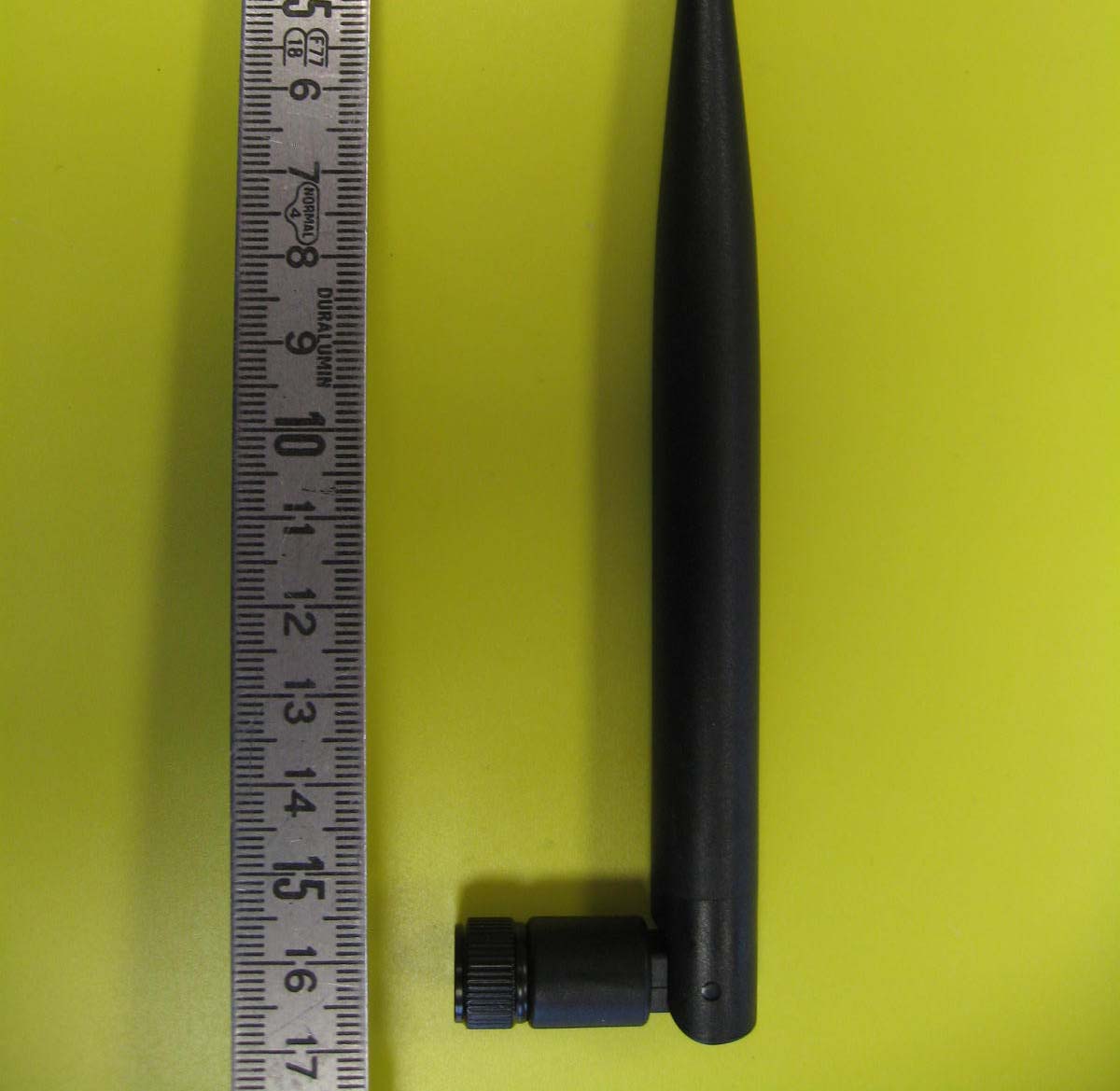

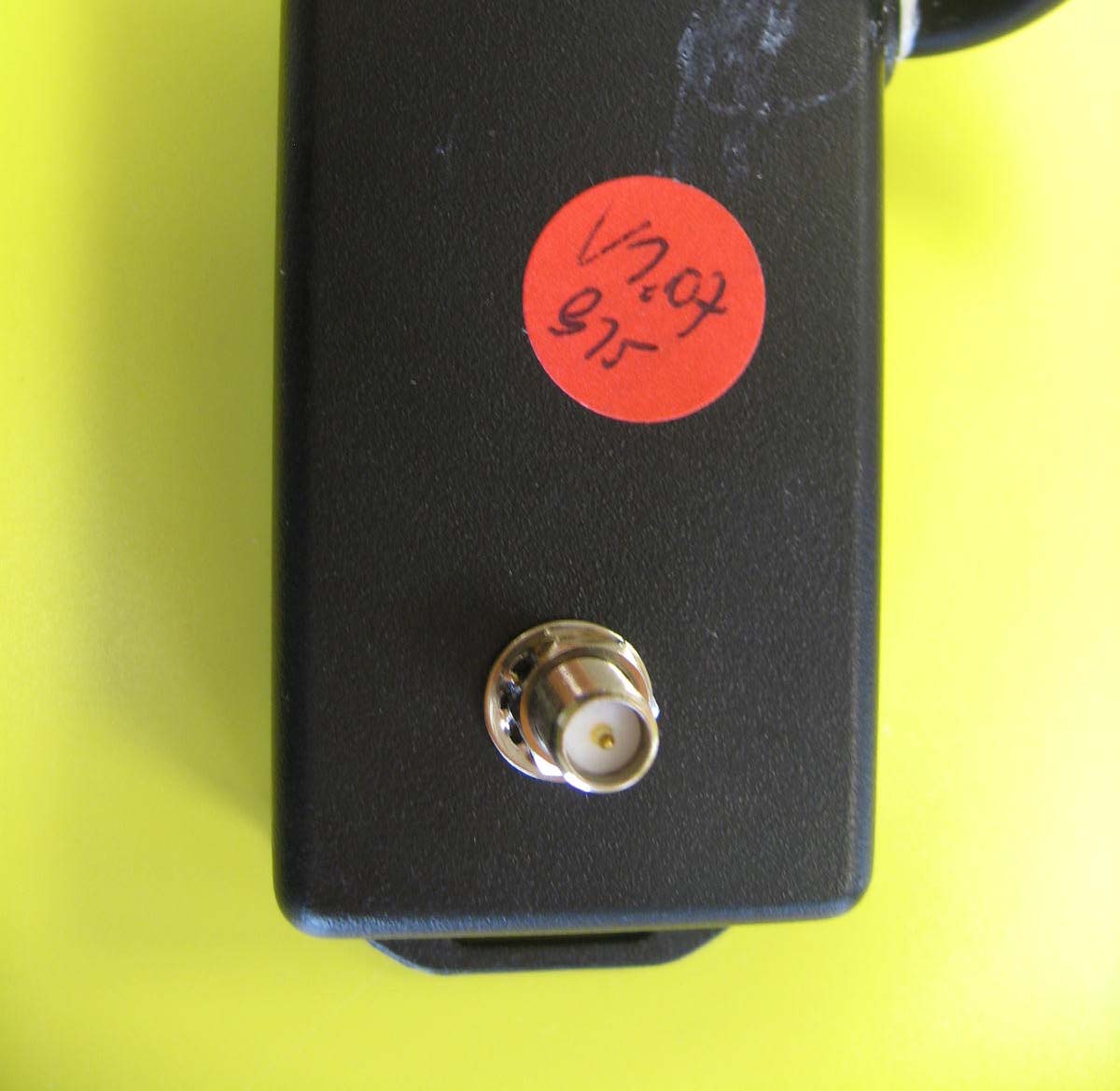

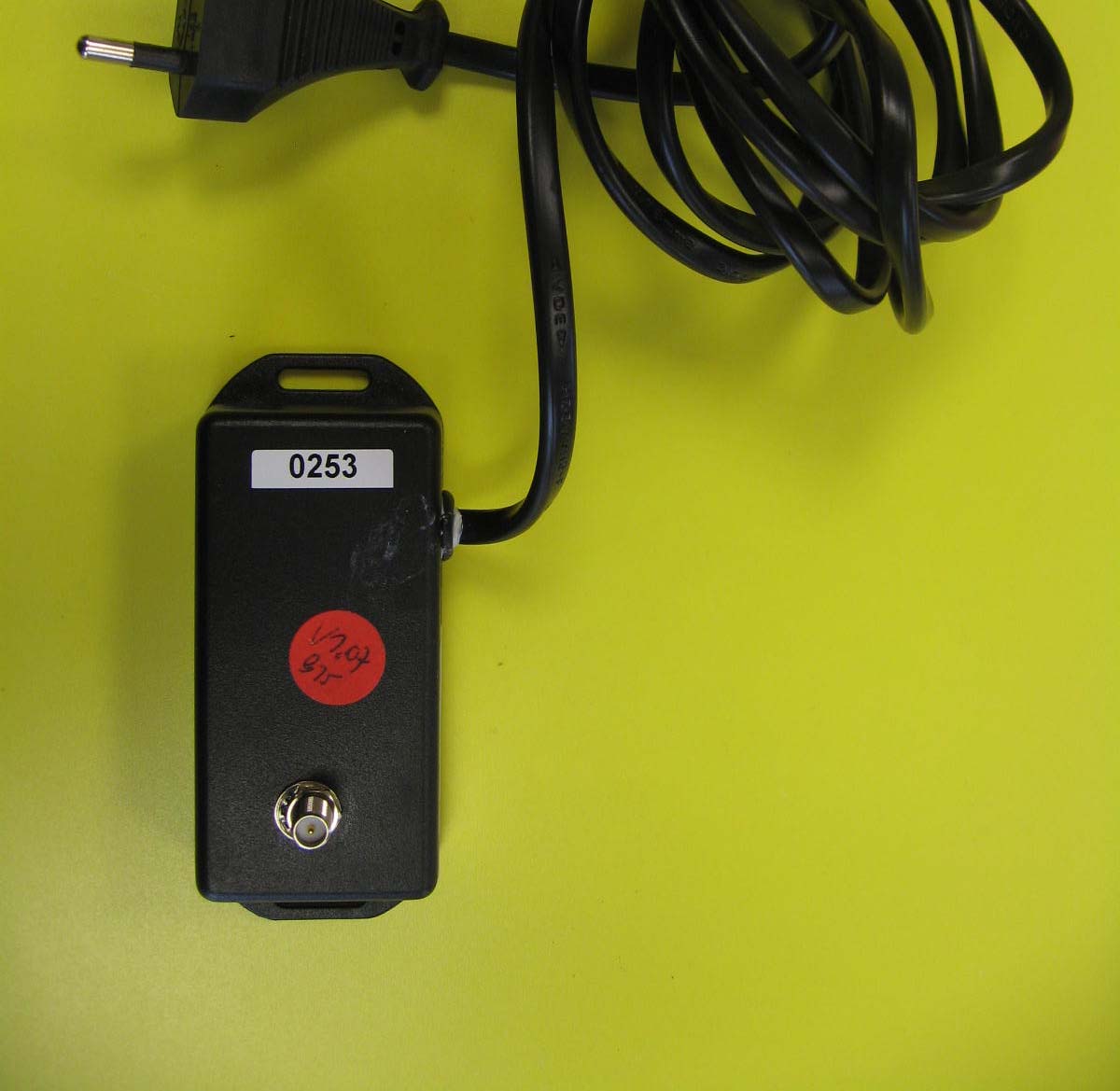

Z.I. Angers - Beaucouzé - 15, rue de la Claie - 49070 BEAUCOUZE - Siret : 344 545 645 00055 Tél. : 02 41 73 26 27 - Fax : 02 41 73 26 40 - E-mail : [email protected] - URL : www.emitech.fr Siège Social : 3, rue des Coudriers - CAP 78 - ZA de l’Observatoire - 78180 MONTIGNY LE BX S.A. au capital de 1 560 000 € - R.C.S. VERSAILLES 344 545 645 - APE 7112B R051-24-11-105713-2/A Ed. 0 RADIO test report according to standard: CFR 47 - FCC Part 15 Equipment under test: ZIGBIT 900 ROUTER BOX Model: COFROUTCA FCC ID: A29-COFROUTCA Company: STANDARD INDUSTRIE DISTRIBUTION: Mr DUHAUTOIS Company: STANDARD INDUSTRIE Number of pages: 28 including 5 annexes Technical Verification Ed. Date ModifiedWritten by Quality Approval pages Name Visa Name Visa 0 17-Jul-12 Creation M. DUMESNIL Duplication of this document is only permitted for an integral photographic facsimile. It includes the number of pages referenced here above. This document is the result of testing a specimen or a sample of the product submitted. It does not imply an assessment of the conformity of the whole manufactured products of the tested sample. R051-24-11-105713-2/A Ed. 0 PAGE 2 R051-24-11-105713-2-A-SG PRODUCT: Zigbit 900 router box Reference / model : COFROUTCA Serial number : Not communicated MANUFACTURER: STANDARD INDUSTRIE COMPANY SUBMITTING THE PRODUCT: Company : STANDARD INDUSTRIE Address : 139-141 rue du Luxembourg BP 50207 59054 ROUBAIX Cedex 01 FRANCE Responsible : Mr DUHAUTOIS TECHNICAL SUPPORT: Company : SERSA Address : 264 avenue de la Mauldre 78680 EPONE FRANCE Responsible : Mr OBERT DATE(S) OF TEST: 18, 25 and 30 November 2011 1, 2, 7, 9 and 14 December 2011 2 March 2012 TESTING LOCATION: EMITECH ATLANTIQUE laboratory at JUIGNE SUR LOIRE (49) FRANCE EMITECH ATLANTIQUE open area test site in JUIGNE SUR LOIRE (49) FRANCE FCC Registration Number: 90469 TESTED BY: M. DUMESNIL A. ABBASSI R051-24-11-105713-2/A Ed. 0 PAGE 3 R051-24-11-105713-2-A-SG CONTENTS TITLE PAGE 1. INTRODUCTION.......................................................................................................................... 4 2. PRODUCT DESCRIPTION .........................................................................................................4 3. NORMATIVE REFERENCE....................................................................................................... 4 4. TEST METHODOLOGY .............................................................................................................5 5. TEST EQUIPMENT CALIBRATION DATES.......................................................................... 5 6. TESTS AND CONCLUSIONS ..................................................................................................... 6 7. RADIATED EMISSION LIMITS ................................................................................................ 8 8. MEASUREMENT OF THE CONDUCTED DISTURBANCES............................................. 10 Measurement on the mains power supply:..................................................................................... 11 Curve N° 1: ................................................................................................................................ 11 Curve N° 2: ................................................................................................................................ 11 9. ADDITIONAL PROVISIONS TO THE GENERAL RADIATED EMISSION LIMITATIONS ................................................................................................................................ 12 10. MAXIMUM PEAK OUTPUT POWER .................................................................................. 14 11. INTENTIONAL RADIATOR .................................................................................................. 16 12. PEAK POWER DENSITY........................................................................................................ 18 ANNEX 1: 6 dB BANDWIDTH...................................................................................................... 20 ANNEX 2: BANDE EDGE.............................................................................................................. 21 ANNEX 3: 20 dB BANDWIDTH.................................................................................................... 22 ANNEX 4: PHOTOS OF THE EQUIPMENT UNDER TEST ................................................... 23 ANNEX 5: TEST SET UP AND OPEN AREA TEST SITE ....................................................... 27 R051-24-11-105713-2/A Ed. 0 PAGE 4 R051-24-11-105713-2-A-SG 1. INTRODUCTION This document presents the result of RADIO test carried out on the following equipment: Zigbit 900 router box − Model: COFROUTCA in accordance with normative reference. 2. PRODUCT DESCRIPTION ITU Emission code: 1M03-G1D Class: B (residential environment) Utilization: device used to relay RF signals when devices (any kind) are too far from each other Antenna type and gain: dedicated antenna (reverse SMA connector), 3 dBi Operating frequency range: 915 MHz Number of channels: 1 Channel spacing: not concerned Frequency generation: quartz 8 MHz and phase-locked loop Modulation: BPSK (Binary Phase Shifting Key) Power source: 120 Va.c. / 60 Hz Power level, frequency range and channels characteristics are not user adjustable. The details pictures of the product and the circuit boards are joined with this file. 3. NORMATIVE REFERENCE The standards and testing methods related throughout this report are those listed below. They are applied on the whole test report even though the extensions (version, date and amendment) are not repeated. CFR 47 - FCC Part 15 (2011) Radio Frequency Devices ANSI C63.4 (2003) Methods of Measurement of Radio-Noise Emissions from Low- voltage Electrical and Electronics Equipment in the range of 9 kHz to 40 GHz. 558074 D01 DTS Meas guidance v01 Guidance for performing Compliance Measurement on Digital Transmission Systems (DTS) Operating under …
