A2H-RS2929BCD Music System

User Manual RS2929B CD Music System It’s important to read this User Manual prior to using your new product for the first time. FCC Information This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. For Customers in Canada This apparatus complies with the Class B limits for radio noise emission set out in radio interference regulations. CAN ICES-3 (B) / NMB-3 (B) Warning: • The AC adapter is used as disconnect device and it should remain readily operable during intended used. In order to disconnect the unit from the mains completely, the AC adapter should be disconnected from the mains socket outlet completely. • The AC adapter of unit should not be obstructed OR should be easily accessed during intended use. • Minimum 10 cm (4 inches) distances around the unit for sufficient ventilations. • The ventilation should not be impeded by covering the ventilation openings with items such as newspaper, table-cloths, curtains, etc. • No naked flame sources such as lighted candles should be placed on the unit. On Safety • Should any objects or liquids fall into the unit, disconnect the power supply and have the unit checked by qualified personnel before any further operation. • The unit shall not be exposed to dripping or splashing and that no objects filled with liquid, such as vases, shall be placed on the unit. SAFety PReCAUtIONSLOCAtION OF CONtROLS ReMOte CONtROLSySteM CONNeCtIONSLINe IN CONNeCtION CHARGe yOUR SMARtPHONe/tABLet CLOCK SettING 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power plug from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightening storms or when unused for a long period of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. IMPORtANt SAFety INStRUCtIONS Portable Cart Warning WARNING: tO PReVeNt FIRe OR SHOCK HAZARD, DO NOt eXPOSe tHe UNIt tO RAIN OR MOIStURe. tO AVOID eLeCtRICAL SHOCK, DO NOt OPeN tHe CABINet. ReFeR SeRVICING tO QUALIFIeD PeRSONNeL ONLy. this product contains a low power laser device. 1. DISPLAy 2. FUNCtION button 3. StANDBy/ON button 4. / / tUNe – / + button 5. PROG/MeM button 6. PAIR button 7. Bluetooth® indicator 8. CD Door 9. timer indicator 10. VOLUMe button 11. StOP button 12. Line in jack 13. PLAy/PAUSe button 14. USB port (for charging only) 15. Remote sensor 1. StANDBy/ON button 2. SLeeP button 3. /PROG/MeM button 4. RANDOM button 5. /MeM.UP button 6. StOP button 7. PReSet eQ button 8. tIMeR button 9. FUNCtION button 10. PAIR button 11. / / tUNe – / + button 12. VOLUMe +/– buttons 13. PLAy/PAUSe button USING tHe ReMOte CONtROL CORReCtLy • Point the remote control at the REMOTE SENSOR located on the unit. • When there is a strong ambient light source, the performance of the infrared REMOTE SENSOR may be degraded, causing unreliable operation. • The recommended effective distance for remote operation is about 19 feet (6 meters). tO CHANGe ReMOte BAtteRy 1. Open the battery door. 7 8 9 10 11 12 13 1 2 3 4 5 6 2. Insert one CR2025 (3V) size battery. AtteNtION Take out the plastic sheet before operating the remote control. BAtteRy RePLACeMeNt When the battery becomes weak, the o…

Text truncated - open the document above for the full version.

Preliminary Datasheet IS1681S Version: 0.96 - 5 - 9/26/2011 3. Functional Diagram BT EDR Transceiver CPU Audio Engine Audio Codec IO RAM ROM Clock PMU Key EEPROM UART Adaptor LED Speaker Mic System Power Li-ion Battery

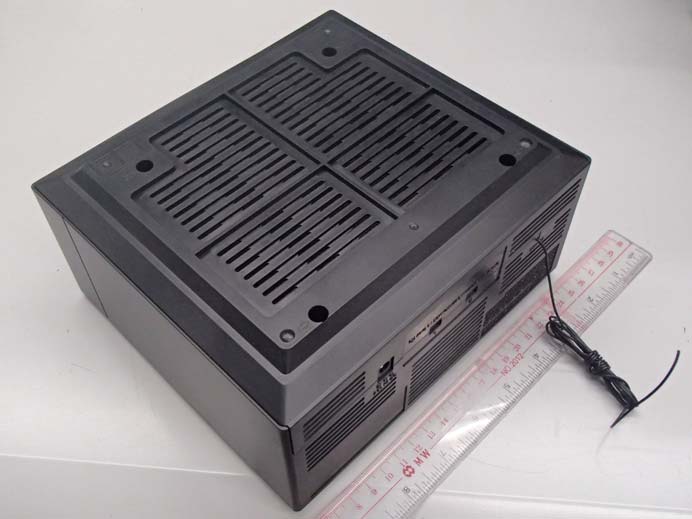

INTERTEK TESTING SERVICE Report No.: HK13011098-1 FCC ID: A2H-RS2929B IC:9903A-RS2929B Equipment Photographs Model : CD6929B (External) INTERTEK TESTING SERVICE Report No.: HK13011098-1 FCC ID: A2H-RS2929B IC:9903A-RS2929B Equipment Photographs Model : CD6929B (External) INTERTEK TESTING SERVICE Report No.: HK13011098-1 FCC ID: A2H-RS2929B IC:9903A-RS2929B Equipment Photographs Model : CD6929B (External)

THIS PRODUCT COMPLIES WITH DHHS RULES 21 SUBCHAPTER J PARTS 1040-10 AND 1040-11 AT DATE OF MANUFACTURED. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. ‘VENTURER / CD6929B ‘ ‘RCA / RS2929B’ SPEC LABEL POSITION DATE : 25-02-2013 RCA / RS2929BVENTURER / CD6929B CD MUSIC SYSTEMModel:RS2929B DC IN 12V 1.5A EXTERNAL DC SUPPLY CAN ICES-3 (B) / NMB-3 (B) MADE IN CHINA / FABRICADO EN CHINA AVC Multimedia Markham, Ontario L3R 1E3 WARNING : SHOCK HAZARD. DO NOT OPEN. NO USER SERVICEABLE PARTS INSIDE. DISCONNECT FROM THE MAINS WHEN NOT IN USE. FCC ID: A2H-RS2929B IC: 9903A-RS2929B CD MUSIC SYSTEMModel:CD6929B DC IN 12V 1.5A EXTERNAL DC SUPPLY CAN ICES-3 (B) / NMB-3 (B) MADE IN CHINA / FABRICADO EN CHINA AVC Multimedia Markham, Ontario L3R 1E3 WARNING : SHOCK HAZARD. DO NOT OPEN. NO USER SERVICEABLE PARTS INSIDE. DISCONNECT FROM THE MAINS WHEN NOT IN USE. FCC ID: A2H-RS2929B IC: 9903A-RS2929B THIS PRODUCT COMPLIES WITH DHHS RULES 21 SUBCHAPTER J PARTS 1040-10 AND 1040-11 AT DATE OF MANUFACTURED. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. ‘VENTURER / CD6928BE3’ ‘RCA / RS2928B’ LABEL POSITION REVISED DATE : 12-03-2013 RCA / RS2928BVENTURER / CD6928BE3 809-000009W210 SERIAL NO/DATE CODE LABEL CD MUSIC SYSTEM / CD CHAÎNE STÉRÉO Model/N° Modéle:RS2928B DC IN 12V 1.5A EXTERNAL DC SUPPLY ENTRÉE C.C. 12 V 1.5 A ALIMENTATION EXTERNE C.C. CAN ICES-3 (B) / NMB-3 (B) AVC Multimedia Markham, Ontario L3R 1E3 FCC ID: A2H-RS2929B IC: 9903A-RS2929B MADE IN CHINA/ FABRIQUÉ EN CHINE CD MUSIC SYSTEM / CD CHAÎNE STÉRÉO Model/N° Modéle:CD6928BE3 DC IN 12V 1.5A EXTERNAL DC SUPPLY ENTRÉE C.C. 12 V 1.5 A ALIMENTATION EXTERNE C.C. CAN ICES-3 (B) / NMB-3 (B) AVC Multimedia Markham, Ontario L3R 1E3 FCC ID: A2H-RS2929B IC: 9903A-RS2929B MADE IN CHINA/ FABRIQUÉ EN CHINE WARNING : SHOCK HAZARD. DO NOT OPEN. NO USER SERVICEABLE PARTS INSIDE. DISCONNECT FROM THE MAINS WHEN NOT IN USE. AVERTUSSEMENT : RISQUE DE CHOC ÉLECTRIQUE. NE PAS OUVRIR. AUCUNE PIÈCE À L’INTÉRIEUR NÉCESSITANT L’ENTRETIEN PAR L’UTILISATEUR. DÉBRANCHER DU SECTEUR QUAND L’APPAREIL N’EST PAS UTILISÉ.

INTERTEK TESTING SERVICE Report No.: HK13011098-1 FCC ID: A2H-RS2929B IC: 9903A-RS2929B Equipment Photographs Model: CD6929B (Internal) INTERTEK TESTING SERVICE Report No.: HK13011098-1 FCC ID: A2H-RS2929B IC: 9903A-RS2929B Equipment Photographs Model: CD6929B (Internal) INTERTEK TESTING SERVICE Report No.: HK13011098-1 FCC ID: A2H-RS2929B IC: 9903A-RS2929B Equipment Photographs Model: CD6929B (Internal) INTERTEK TESTING SERVICE Report No.: HK13011098-1 FCC ID: A2H-RS2929B IC: 9903A-RS2929B Equipment Photographs Model: CD6929B (Internal) INTERTEK TESTING SERVICE Report No.: HK13011098-1 FCC ID: A2H-RS2929B IC: 9903A-RS2929B Equipment Photographs Model: CD6929B (Internal) INTERTEK TESTING SERVICE Report No.: HK13011098-1 FCC ID: A2H-RS2929B IC: 9903A-RS2929B Equipment Photographs Model: CD6929B (Internal) INTERTEK TESTING SERVICE Report No.: HK13011098-1 FCC ID: A2H-RS2929B IC: 9903A-RS2929B Equipment Photographs Model: CD6929B (Internal) INTERTEK TESTING SERVICE Report No.: HK13011098-1 FCC ID: A2H-RS2929B IC: 9903A-RS2929B Equipment Photographs Model: CD6929B (Internal) INTERTEK TESTING SERVICE Report No.: HK13011098-1 FCC ID: A2H-RS2929B IC: 9903A-RS2929B Equipment Photographs Model: CD6929B (Internal) INTERTEK TESTING SERVICE Report No.: HK13011098-1 FCC ID: A2H-RS2929B IC: 9903A-RS2929B Equipment Photographs Model: CD6929B (Internal) INTERTEK TESTING SERVICE Report No.: HK13011098-1 FCC ID: A2H-RS2929B IC: 9903A-RS2929B Equipment Photographs Model: CD6929B (Internal)

CD6929B TECHNICAL DESCRIPTION This unit is powered by an AC-DC converter with 12V DC output. After some necessary regulator circuits, then distribute the power supply to MCU (IC602 GS3011), CD servo (IC601 SA5888), Bluetooth Module (BM81SPK01), Radio receiver (IC301 KT0830EG), Volume control IC (IC401 PT2314), Power amplifier (IC402 TDA8227), and USB charger (IC502 FP6115) respectively. 16.9344MHz crystal (X601) is clock for digital audio while 32.768kHz crystal (X602) is clock for MCU (IC602) and Radio receiver (IC301). Serial EEPROM 24C02 (U602) provides memory backup of MCU (IC602). CD mode: When starting up the unit, the software defaults to CD function. MCU issues a Command to start up CD and go into CD mode, also enables the Volume Control IC to work in CD Channel, through CD Mechanism to read and get the data of CD R/RW Disc, and after data processing by MCU, output L&R channel audio signals, and performing volume and EQ control by Volume Control IC, then output to Power Amplifier for amplifying the audio signal and drive the external Speakers. Radio mode: Input MCU command by Keyboard and turn to Radio Receiver, and turn on the power supply of Radio Receiver, also enables the Volume Control IC to work in Radio Channel. The clock frequency of Radio Receiver is 32.768kHz, which share the same clock signals with the MCU. It will convert the radio high frequency signals was received into audio signals, and output through the Radio channel of Volume Control IC, then via Power Amplifier to the external Speakers. Bluetooth mode: (BM81SPK01) 16MHz crystal (X1) provides clock for Bluetooth RF IC (U1 IS1681S). U2 (24C32) is serial EEPROM for parameter backup of Bluetooth RF IC (U1 IS1681S). Input MCU command by Keyboard, switch to Bluetooth mode, and enables MCU to issue a Command to start up the Bluetooth Module, Volume control IC, power supply of the Power amplifier, and make Volume control IC turn to work in Bluetooth Channel. The Bluetooth Module use a PCB antenna, the clock frequency is 16MHz, and works in the band of 2.4GHz, within the frequency range of 2.402GHz ～ 2.480GHz, Modulation type is GFSK, The Maximum Wireless communications distance up to 10M . The Bluetooth Module will demodulate the Bluetooth RF signals into to Audio signals, and output to the Power Amplifier for amplifying through the Bluetooth Channel of Volume Control IC, and then drives the Speakers by the Amplifier. Aux mode: Input the command into the MCU by keyboard, and switch to AUX mode. External Audio signal input to Volume Control IC via 3.5MM Jack for volume and EQ control, and output Audio Signal to Power Amplifier for amplifying, and then drives the Speakers by the Amplifier. USB Changer: Supply 5V (Maximum 500mA) from DC/DC converter, and charge to the external device through USB 2.0 Jack. BlueTooth Module Modulation Type: GFSK Antenna Type: Integral, Internal (PCB Trace) Frequency Range: 2402MHz - 2480MHz, 1MHz channel spacing, 79 channels Antenna Gain: 0dBi Nominal rated field strength: 94.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB Channel Frequency Table of Bluetooth Module Preliminary Datasheet IS1681S Bluetooth 3.0+EDR Multimedia SOC
