A2HCT9F08Tablet

Swipe up from the bottom of the screen to enter the ALL APPs menu. Faites glisser vers le haut à partir du bas de l’écran pour accéder au menu Toutes les applications. Deslice desde la parte inferior de la pantalla para entrar en el menú de TODAS LAS APLICACIONES. Get Started / Commencer/ Indroducción Swipe up to unlock the screen. Faites glisser vers le haut pour déverrouiller l’écran. Deslizar hacia arriba para desbloquear la pantalla. IMPORTANT! À lire. Nous vous recommandons de charger complètement votre tablette avant de l’utiliser pour la première fois. Pour assurer son fonctionnement optimal, raccordez l’adaptateur secteur fourni à votre tablette dès que la batterie est chargée à 20%. 810-9F0895Wxxx Get to know your Tablet / Apprenez à connaître votre tablette / Conociendo su tableta CT9F08 What's in the box Qu’y a-t-il dans la boite ¿Qué hay en la caja? Kick Stand Béquille Soporte de patada 123 Starting for the fi rst time Démarrage pour la première fois Inicio por primera vez When using the tablet for the fi rst time, you will be required to setup the following: Lors de la première utilisation, il faut confi gurer ce qui suit : Cuando use la tableta por primera vez, se le pedirá que haga las siguiente confi guraciones: Select the language, then tap START. Choisissez la langue, puis appuy ez sur DÉMARRER. Seleccione el idioma, a continuación, pulse COMENZAR. Set the Wi-Fi. Tap a network name to see more details or connect to it, and enter a password if necessary. Confi gur ez le Wi-Fi. Puis effl eurez le nom d’un réseau pour de plus amples renseignements ou vous y connecter, et entrez un mot de passe, si nécessaire. Confi gure la función Wi-Fi. A continuación, pulse un nombre deuna red para ver más detalles o conectarse a ella, e introduzca la clave si es necesario. When prompted, sign in using the email address and password for your Google Account. If you don’t have one yet, go ahead and create one. Quand un message-guide paraît, ouvr ez la session en entrant l’adresse de courriel et le mot de passe de votre compte Google. Si vous n’en avez pas encore, créez-en un. Cuando se le solicite, ingrese usando la dir ección de email y la clave de su cuenta de Google. Si todavía no la tiene, cree una. Fri, Oct 16 Press and hold the button 4~5 seconds until the logo appears. Abaissez et maintenez la touche 4 à 5 secondes jusqu’à ce que le logo s’affi che. Oprima y mantenga pulsado el botón por 4 ó 5 segundos hasta que el logo aparezca en pantalla. Charging the battery Use ONLY the included AC Adapter to charge the battery. Charging time will vary depending on remaining battery life. Charging from 0%, should take approximately 4-5 hours. You may not be able to turn on your tablet for at least 30 minutes if the battery was fully drained. Recharge de la pile Utilisez UNIQUEMENT l’adaptateur secteur fourni pour charger la batterie. La durée du chargement dépend de l’autonomie restante de la batterie. Il faut de 4 à 5 heures pour charger la tablette lorsqu’elle est totalement déchargée. Si la tablette était complètement déchargée, il se peut que vous deviez attendre au moins 30 minutes avant de pouvoir l’utiliser. IMPORTANT! Please Read. We recommend fully charging your tablet before using it for the fi rst time. For optimum performance, please connect the provided AC adapter to your tablet when it falls below 20% charge. Cargando la batería Utilice SOLAMENTE el incluido CA Adaptor para cargar la batería. El tiempo de carga variará dependiendo de vida de bater ía restante. Cargando a partir de la 0%, debe tardar aproximadamente 4-5 horas. Es posible que no pueda encender su Tablet durante al menos 30 minutos si la batería fue drenada completamente. ¡IMPORTANTE! Favor de leer. Le recomendamos que cargue su tableta completamente antes de usarla por primera vez. Para un rendimiento óptimo, conecte el adaptador de CA a su tableta cuando la batería alcanze el 20% dela carga. Printed in China Imprimé en Chine Impreso en China POUR TOUTE INFORMATION SUR LE SOUTIEN ET L’ENTRETIEN, COMMUNIQUEZ AVEC NOUS FOR SUPPORT AND SERVICE, PLEASE CONTACT US https://www.1800customersupport.com/ PARA ASISTENCIA Y SERVICIO, CONTÁCTENOS EN https://www.1800customersupport.com/ https://www.1800customersupport.com/ Front camera Appareil photo en façade Cámara frontal USB Type-C port Port USB de type C Puerto USB (Tipo C) M icrophone Microphone Micrófono V olume+/- Volume+/- Volumen +/- Rear camer a Appareil photo arrière Cámara trasero Change the wallpaper on the screen / Changer le papier peint sur l’écran / Cambiar el fondo en la pantalla A. Tap on the Disney Books icon. Appuyer sur l’icône Livres Disney. Pulse en el icono de libros de Disney. Or Ou O 1. Select the ebook on home screen by: Sélectionnez l’ebook en procédant comme suit : Seleccione el libro electrónico mediante: 2. Press to select the ebook you want to read. Appuyez pour sélectionner le livre que vous souhaitez lire. Pulse para seleccionar el libro que quiere leer. 3. Press one of the below to start reading. Appuyez sur comment voulez-vous que l’ebook soit lu. Pulse cómo le gustaría leer el libro electrónico. B. Tap on the ebook directly. Swipe up or down to select other ebooks. Appuyer directement sur l’ebook, ou glisser vers le haut et vers le bas pour sélectionner un autre ebook. Pulse en el libro electrónico directamente, o deslícese hacia arriba y hacia abajo para seleccionar otro libro electrónico. Reading the Disney ebooks / Lecture de l’ebook Disney / Leer el libro electrónico de Disney 1. Tap anywhere on the home screen. Appuyez n’importe où sur l’écran d’accueil. Pulse en cualquier lugar de la pantalla de inicio. 2. Tap on the WALLPAPERS to select a new one. Appuyez sur PAPIERS PEINTS pour en choisir un nouveau. Pulse en FONDOS DE PANTALLA para seleccionar uno nuevo. Hey Kids! / Salut les enfants! / ¡Hola, niños! You can change the wallpaper on the screen! Here’s how: Vous pouvez changer le papier peint sur l’écran! Voici comment: ¡Pueden cambi…

Text truncated - open the document above for the full version.

Differences Declaration To whom concern, We company Alco Electronics Ltd Here by declares: The product model(s) VCT9F08, CT9F0A, VCT9F0A are the same PCB layout, electronic schematic and Antenna with CT9F08, which tested in Shenzhen Huatongwei International Inspection Co., Ltd., only different for model number, all RF parameters remain the same as before. Sincerely yours, Name (in print): Peggy Suen Company name: Alco Electronics Ltd Company address: 11/F Metropole Square, 2 On Yiu Street, Sha Tin, New Territories, Hong Kong Tel: 852 2562-6121 E-Mail: [email protected]

Alco Electronics Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2021-05-31 Subject; Request for Long Term Confidentiality FCC ID: A2HCT9F08 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Peggy Suen Title: Secretary, Engineering Dept.

Alco Electronics Ltd Letter of Authorization Company: Alco Electronics Ltd Address: 11/F Metropole Square, 2 On Yiu Street, Sha Tin, New Territories, Hong Kong Product Name: Tablet Model Number: CT9F08, VCT9F08, CT9F0A, VCT9F0A FCC Identifier: A2HCT9F08 We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Peggy Suen Date: 2021-05-31 Title: Secretary, Engineering Dept.

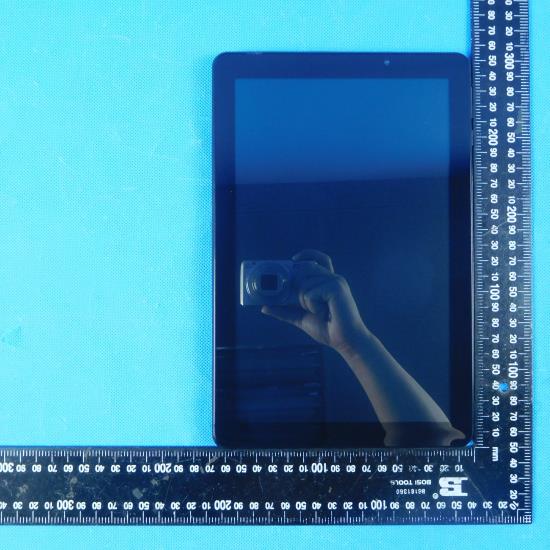

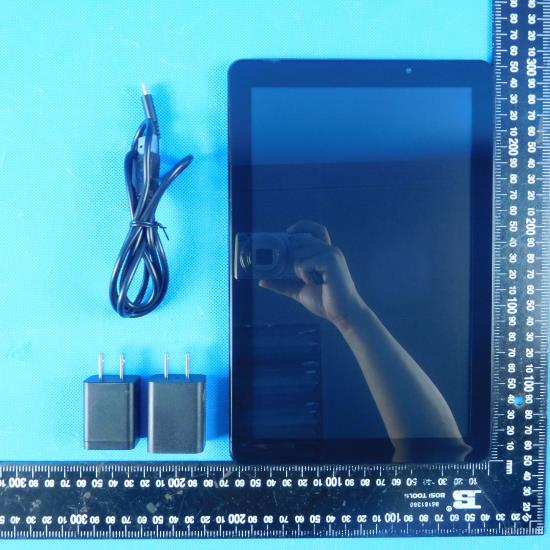

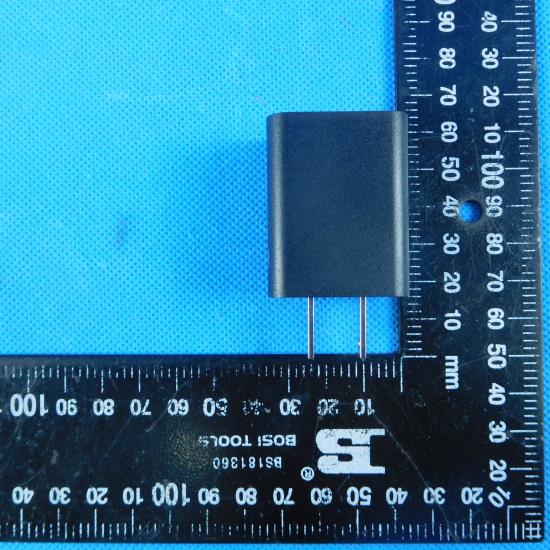

7.EXTERANAL AND INTERNAL PHOTOS EXTERANAL PHOTOS M odel:CT9F08

CT9F08 CPSIA/FCC application 13-Apr-2021 27-Apr-2021 (R1) VENTURER CT9F08 FCC ID: A2HCT9F08 MADE IN CHINA 5V 1.5A SN: 1234567890AB A9F08-0421DGCN VENTURER VCT9F08 FCC ID: A2HCT9F08 MADE IN CHINA 5V 1.5A SN: 1234567890AB A9F08-0421DGCN VENTURER CT9F0A FCC ID: A2HCT9F08 MADE IN CHINA 5V 1.5A SN: 1234567890AB A9F0A-0421DGCN VENTURER VCT9F0A FCC ID: A2HCT9F08 MADE IN CHINA 5V 1.5A SN: 1234567890AB A9F0A-0421DGCN Tracking no. format Example: A9F08 - 0421DGCN Laser engraved

INTERNAL PHOTO Model:CT9F08

Project No.: SHT2104093301EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 1 of 41 APPENDIX REPORT Project No. SHT2104093301EW Radio Specification Bluetooth EDR Test sample No. YPHT21040933013 Model No. CT9F08 Start test date 2021-05-07 Finish date 2021-05-07 Temperature 25.8°C Humidity 41% Test Engineer Hailey Chen Auditor Appendix clause Test item Result A Peak Output Power PASS B 20 dB Bandwidth PASS C 99% Occupied Bandwidth PASS D Carrier Frequencies Separation PASS E Hopping Channel Number PASS F Dwell Time PASS G Duty Cycle Correction Factor (DCCF) PASS H Band edge and Spurious Emissions(coducted) PASS Project No.: SHT2104093301EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 2 of 41 Appendix A：Peak Output Power Modulation type Channel Output power (dBm) Average Output power (dBm) Limit (dBm) Result GFSK 00 2.81 2.71 ≤ 30.00 Pass 39 3.28 3.27 78 3.61 3.59 π/4DQPSK 00 1.60 0.85 ≤ 21.00 Pass 39 2.40 2.36 78 3.40 3.32 8DPSK 00 1.26 1.23 ≤ 21.00 Pass 39 2.41 2.35 78 3.34 3.26 Project No.: SHT2104093301EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 3 of 41 Modulation Type: GFSK CH00 Date: 7.MAY.2021 14:33:12 CH39 Date: 7.MAY.2021 14:41:14 CH78 Date: 7.MAY.2021 14:50:08 Project No.: SHT2104093301EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 4 of 41 Modulation Type: π/4DQPSK CH00 Date: 7.MAY.2021 15:01:07 CH39 Date: 7.MAY.2021 15:06:29 CH78 Date: 7.MAY.2021 15:10:49 Project No.: SHT2104093301EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 5 of 41 Modulation Type: 8DPSK CH00 Date: 7.MAY.2021 15:20:46 CH39 Date: 7.MAY.2021 15:24:38 CH78 Date: 7.MAY.2021 15:29:31 Project No.: SHT2104093301EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 6 of 41 Appendix B : 20 dB Bandwidth Modulation type Channel 20 dB Bandwidth (kHz) Limit (kHz) Result GFSK 00 839.64 - Pass 39 838.20 78 842.50 π/4DQPSK 00 1275.00 - Pass 39 1275.00 78 1275.00 8DPSK 00 1262.50 - Pass 39 1282.50 78 1265.00 Project No.: SHT2104093301EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 7 of 41 Modulation Type: GFSK CH00 Date: 10.MAY.2021 13:37:25 CH39 Date: 10.MAY.2021 13:23:42 CH78 Date: 10.MAY.2021 13:34:29 Project No.: SHT2104093301EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 8 of 41 Modulation Type: π/4DQPSK CH00 Date: 7.MAY.2021 15:00:38 CH39 Date: 7.MAY.2021 15:06:00 CH78 Date: 7.MAY.2021 15:10:21 Project No.: SHT2104093301EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 9 of 41 Modulation Type: 8DPSK CH00 Date: 7.MAY.2021 15:20:18 CH39 Date: 7.MAY.2021 15:24:10 CH78 Date: 7.MAY.2021 15:29:03 Project No.: SHT2104093301EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 10 of 41 Appendix C：99% Occupied Bandwidth Modulation type Channel 99% Occupied Bandwidth (MHz) Limit (MHz) Result GFSK 00 0.76 - Pass 39 0.76 78 0.76 π/4DQPSK 00 1.15 - Pass 39 1.15 78 1.15 8DPSK 00 1.15 - Pass 39 1.15 78 1.15 Project No.: SHT2104093301EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 11 of 41 Modulation Type: GFSK CH00 Date: 7.MAY.2021 14:35:05 CH39 Date: 7.MAY.2021 14:41:00 CH78 Date: 7.MAY.2021 14:49:54 Project No.: SHT2104093301EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 12 of 41 Modulation Type: π/4DQPSK CH00 Date: 7.MAY.2021 15:00:52 CH39 Date: 7.MAY.2021 15:06:14 CH78 Date: 7.MAY.2021 15:10:34 Project No.: SHT2104093301EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 13 of 41 Modulation Type: 8DPSK CH00 Date: 7.MAY.2021 15:20:31 CH39 Date: 7.MAY.2021 15:24:24 CH78 Date: 7.MAY.2021 15:29:17 Project No.: SHT2104093301EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 14 of 41 Appendix D：Carrier Frequencies Separation Modulation type Channel Carrier Frequencies Separation (MHz) Limit (kHz) * Result GFSK 39 1.00 ≥842.50 Pass π/4DQPSK 39 1.00 ≥850.00 Pass 8DPSK 39 1.00 ≥855.00 Pass Note: *: GFSK limit = The maximum 20 dB Bandwidth for GFSK modulation on the appendix B. π/4DQPSK limit = 2/3 * The maximum 20 dB Bandwidth for π/4DQPSK modulation on the appendix B. 8DPSK limit = 2/3 * The maximum 20 dB Bandwidth for 8DPSK modulation on the appendix B Project No.: SHT2104093301EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 15 of 41 GFSK Date: 7.MAY.2021 14:54:30 π/4DQPSK Date: 7.MAY.2021 15:14:16 8DPSK Date: 7.MAY.2021 15:36:28 Project No.: SHT2104093301EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 16 of 41 Appendix E：Hopping Channel Number Modulation type Channel number Limit Result GFSK 79 ≥15.00 Pass π/4DQPSK 79 8DPSK 79 Project No.: SHT2104093301EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 17 of 41 GFSK Date: 7.MAY.2021 14:57:02 π/4DQPSK Date: 7.MAY.2021 15:17:09 8DPSK Date: 7.MAY.2021 15:41:03 Project No.: SHT2104093301EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 18 of 41 Appendix F：Dwell Time Modulation type Packet Burst Width [ms] Total Hops[hop*ch] Dwell time (Second) Limit (Second) Result GFSK DH1 0.38 314 0.12 ≤ 0.40 Pass DH3 1.63 150 0.25 DH5 2.88 11…

Text truncated - open the document above for the full version.

Page: 1 of 38 TEST REPORT Report No. ...................................... : CHTEW21050141 Report Verification: Project No.................................： SHT2104093301EW FCC ID ............................................. : A2HCT9F08 Applicant’s name ........................... : Alco Electronics Ltd Address ............................................. : 11/F Metropole Square, 2 On Yiu Street, Sha Tin, New Territories, Hong Kong Test item description .................... : Tablet Trade Mark ....................................... : VENTURER Model/Type reference ....................... : CT9F08 Listed Model(s) ................................. : VCT9F08, CT9F0A, VCT9F0A Standard ......................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of receipt of test sample..........: Apr. 26, 2021 Date of testing.............................: Apr. 27, 2021- May. 24, 2021 Date of issue...............................: May. 25, 2021 Result .................. ........................: PASS Compiled by ( Position+Printed name+Signature): File administrator Silvia Li Supervised by (Position+Printed name+Signature): Project Engineer Aaron Fang Approved by (Position+Printed name+Signature): RF Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW21050141 Page: 2 of 38 Issued: 2021-05-25 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) Contents 1. TEST S T AN D AR D S A N D R E P O R T V E R S I O N 3 1.1. Test Standards 3 1.2. Report version 3 2. TEST DESCRIPTION 4 3. SUMMARY 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Radio Specification Description 5 3.4. Testing Laboratory Information 6 4. TEST CONFIGURATION 7 4.1. Test frequency list 7 4.2. Descriptions of Test mode 7 4.3. Test mode 7 4.4. Support unit used in test configuration and system 8 4.5. Testing environmental condition 8 4.6. Measurement uncertainty 8 4.7. Equipment Used during the Test 9 5. TEST CONDITIONS AND RESULTS 11 5.1. Antenna Requirement 11 5.2. AC Conducted Emission 12 5.3. Peak Output Power 15 5.4. 20 dB Bandwidth 16 5.5. 99% Occupied Bandwidth 17 5.6. Carrier Frequencies Separation 18 5.7. Hopping Channel Number 19 5.8. Dwell Time 20 5.9. Duty Cycle Correction Factor (DCCF) 21 5.10. Pseudorandom Frequency Hopping Sequence 22 5.11. Conducted Band edge and Spurious Emission 23 5.12. Radiated Band edge Emission 24 5.13. Radiated Spurious Emission 26 6. TEST SETUP PHOTOS 30 7. EXTERANAL AND INTERNAL PHOTOS 32 8. APPENDIX REPORT 38 Report No.: CHTEW21050141 Page: 3 of 38 Issued: 2021-05-25 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 1. TEST STAND ARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: ‒ FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ‒ ANSI C63.10:2013: American National Standard for Testing Unlicensed Wireless Devices ‒ KDB 558074 D01 15.247 Meas Guidance v05r02: Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spread Spectrum System, and Hybrid System Devices Operating under Section 15.247 of The FCC Rules 1.2. Report version Revision No. Date of issue Description N/A 2021-05-25 Original Report No.: CHTEW21050141 Page: 4 of 38 Issued: 2021-05-25 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 2. TEST DESCRIPTION Report clause Test Items Standard Requirement Result 5.1 Antenna Requirement 15.203/15.247 (c) PASS 5.2 AC Conducted Emission 15.207 PASS 5.3 Peak Output Power 15.247 (b)(1) PASS 5.4 20 dB Bandwidth 15.247 (a)(1) PASS 5.5 99% Occupied Bandwidth - PASS *1 5.6 Carrier Frequency Separation 15.247 (a)(1) PASS 5.7 Hopping Channel Number 15.247 (a)(1) PASS 5.8 Dwell Time 15.247 (a)(1) PASS 5.9 Duty Cycle Correction Factor - PASS *1 5.10 Pseudorandom Frequency Hopping Sequence 15.247(b)(4) PASS 5.11 Conducted Band Edge and Spurious Emission 15.247(d)/15.205 PASS 5.12 Radiated Band Edge Emission 15.205/15.209 PASS 5.13 Radiated Spurious Emission 15.247(d)/15.205/15.209 PASS Note: ‒ The measurement uncertainty is not included in the test result. ‒ *1: No requirement on standard, only report these test data. Report No.: CHTEW21050141 Page: 5 of 38 Issued: 2021-05-25 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 3. SUMMARY 3.1. Client Information Applicant: Alco Electronics Ltd Address: 11/F Metropole Square, 2 On Yiu Street, Sha Tin, New Territories, Hong Kong Manufacturer: Alco Electronics Ltd Address: 11/F Metropole Square, 2 On Yiu Street, Sha Tin, New Territories, Hong Kong 3.2. Product Description Name of EUT: Tablet Trade Mark: VENTURER Model No.: CT9F08 Listed Model(s): VCT9F08 , CT9F0A , VCT9F0A Power supply: DC 3.7V Battery Information: DC 3.7V,14.8Wh Adapter Information 1: Model:DCT07W050150US-C1 Input: AC100-240V, 50/60Hz, 250mA Output: 5.0Vdc, 1.5A Adapter Information 2: Model:APS-M005050150W-G Input: AC100-240V, 50/60Hz, 0.3A Max Output: 5.0Vdc, 1.5A Hardware version: AL-…

Text truncated - open the document above for the full version.

6.TEST SETUP PHOTOS Radiated Emission M odel:CT9F08 AC Conducted Emission
