A2HCN6613Notebook

e-manual avita-americas.com CN6613 Laptop 2 CN6613_e-manual - V.00 IMPORTANT SAFETY INSTRUCTIONS Some of the following information may not apply to your particular product; however, as with any electronic product, precautions should be observed during handling and use. • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. • Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifi ers) that produce heat. • Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. • Only use attachments / accessories specifi ed by the manufacturer. • Unplug this apparatus during lightning storms or when unused for long periods of time. • Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 3 CN6613_e-manual - V.00 CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. Battery safety! This device contains a built-in battery, improper use of which may result in explosion. Do not heat, open, puncture, mutilate, or dispose of the product in fi re. Do not leave the device in direct sunlight for an extended period of time, which could cause melting or battery damage. The battery in this device is not user replaceable and should only be replaced by AVITA or a AVITA Authorized Service Provider. ADDITIONAL SAFETY INFORMATION • The AC adapter and apparatus shall not be exposed to dripping or splashing and no objects fi lled with liquids, such as vases, shall be placed on the apparatus. • Always leave suffi cient space around the product for ventilation. Do not place product in or on a bed, rug, in a bookcase or cabinet that may prevent air fl ow through vent openings. • Do not place lighted candles, cigarettes, cigars, etc. on the product. • Care should be taken so that objects do not fall into the product. • Do not attempt to disassemble the cabinet. This product does not contain customer serviceable components. • To prevent the risk of fi re or electric shock, do not expose this apparatus to rain or moisture. • Do not play your headset at high volume. Hearing experts warn against extended high-volume play. 4 CN6613_e-manual - V.00 FCC information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Warning: the AC adapter is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the mains plug from mains completely, the AC adapter should be disconnected from the mains socket outlet completely. The socket- outlet shall be installed near the equipment and shall be easily accessible. 5 CN6613_e-manual - V.00 SAR The radiated output power of this device is below the FCC radio frequency exposure limits. Nevertheless, the device should be used in such a manner that the potential for human contact is minimized during normal operation.The exposure standard for wireless devices employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/Kg. Tests for SAR are conducted using standard operating positions accepted by the FCC with the device transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating can be well below the maximum value. This is because the device is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. To avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna should be minimized. For body worn operation, this device has been tested and meets the FCC RF exposure. 6 CN6613_e-manual - V.00 Important Safety Instructions .................................................. 2 Getting Started ......................................................…

Text truncated - open the document above for the full version.

Electronics Limited A member of the ALCO group 11/F Metropole Square, 2 On Yiu Street, Sha Tin, New Territories, Hong Kong Tel: (852) 2562 6121, Fax: (852) 2811 1056 Confidentiality Request Letter Federal Communications Commission Authorization and Evaluation Division FCC ID: A2HCN6613 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Yours Sincerely, _________________ Name: Peggy Suen ALCO Electronics Limited Date: 2020-04-19

Electronics Limited A member of the ALCO group 11/F Metropole Square, 2 On Yiu Street, Sha Tin, New Territories, Hong Kong Tel: (852) 2562 6121, Fax: (852) 2811 1056 Declaration of Authorization We Name: ALCO Electronics Limited. Address: 1/F Metropole Square, 2 On Yiu Street, Sha Tin, New Territories, Hong Kong Declare that: Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone, City: Suzhou Country China is authorized to apply for Certification of the following product(s): Product: Notebook FCC ID: A2HCN6613 Model: NS13A2, CN6613 Yours Sincerely, __________________ Name: Peggy Suen ALCO Electronics Limited Date: 2020-04-19

Electronics Limited A member of the ALCO group 11/F Metropole Square, 2 On Yiu Street, Sha Tin, New Territories, Hong Kong Tel: (852) 2562 6121, Fax: (852) 2811 1056 Declaration letter For our business issue and marketing requirement, we would like to list different model number as following: Model No.: NS13A2, CN6613 Model Difference: We declare they are with same electrical, mechanical & constructional design except different product ID for sales and trading purpose only. Yours Sincerely, _____________________ Name: Peggy Suen ALCO Electronics Limited Date: 2020-04-19

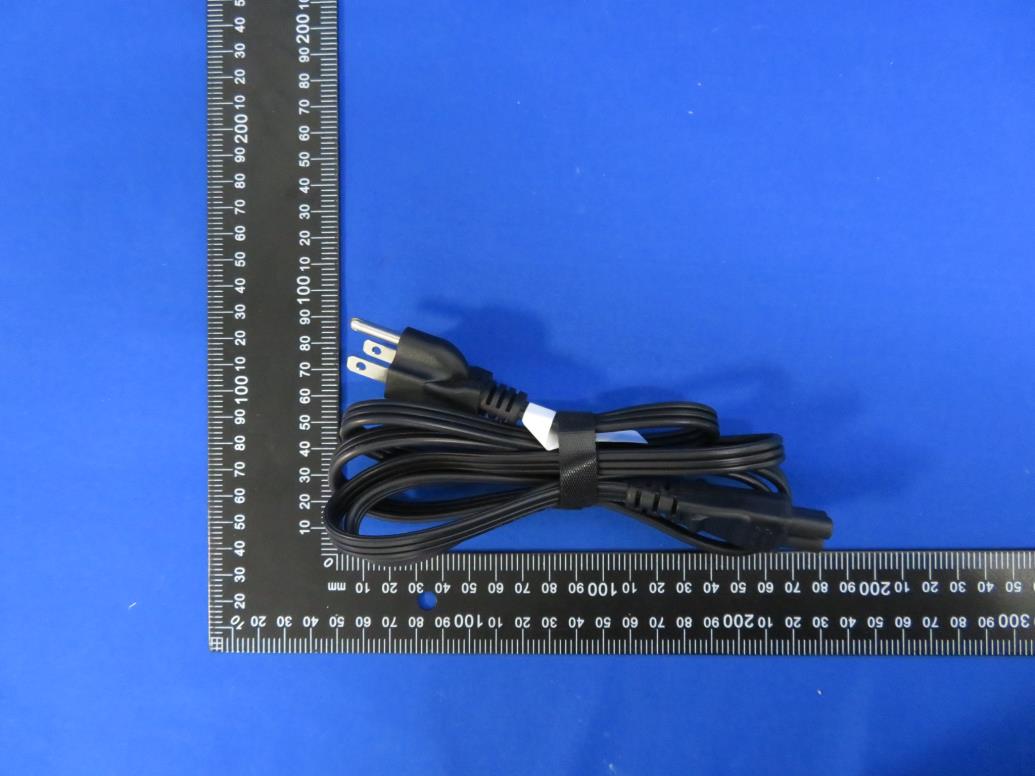

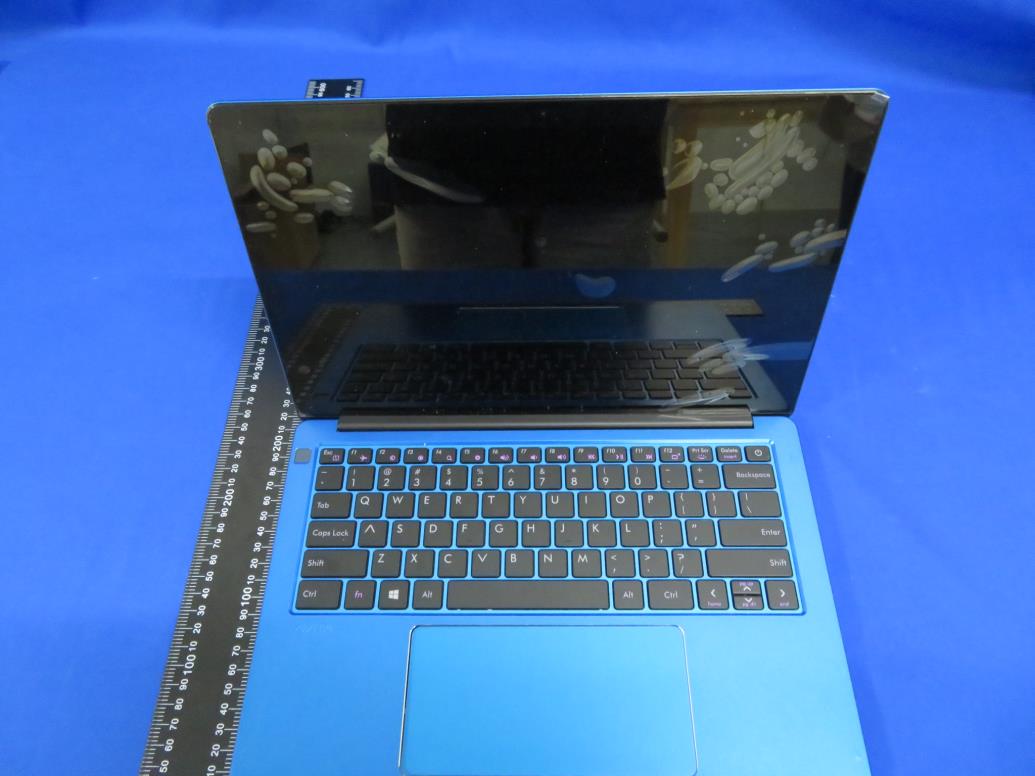

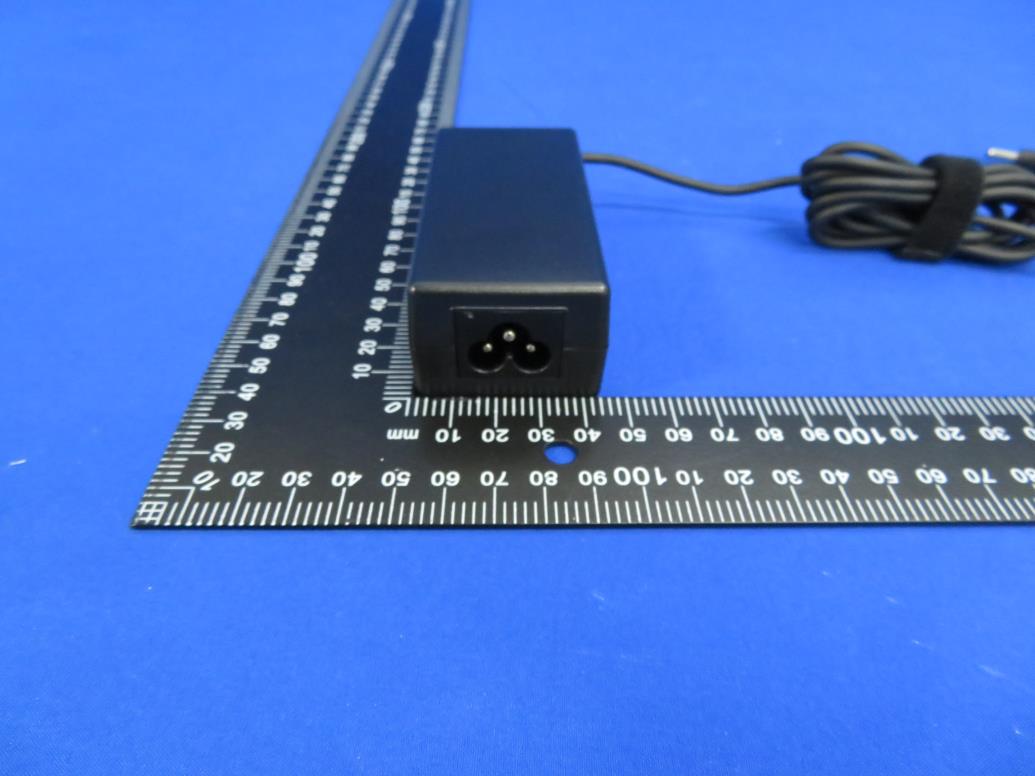

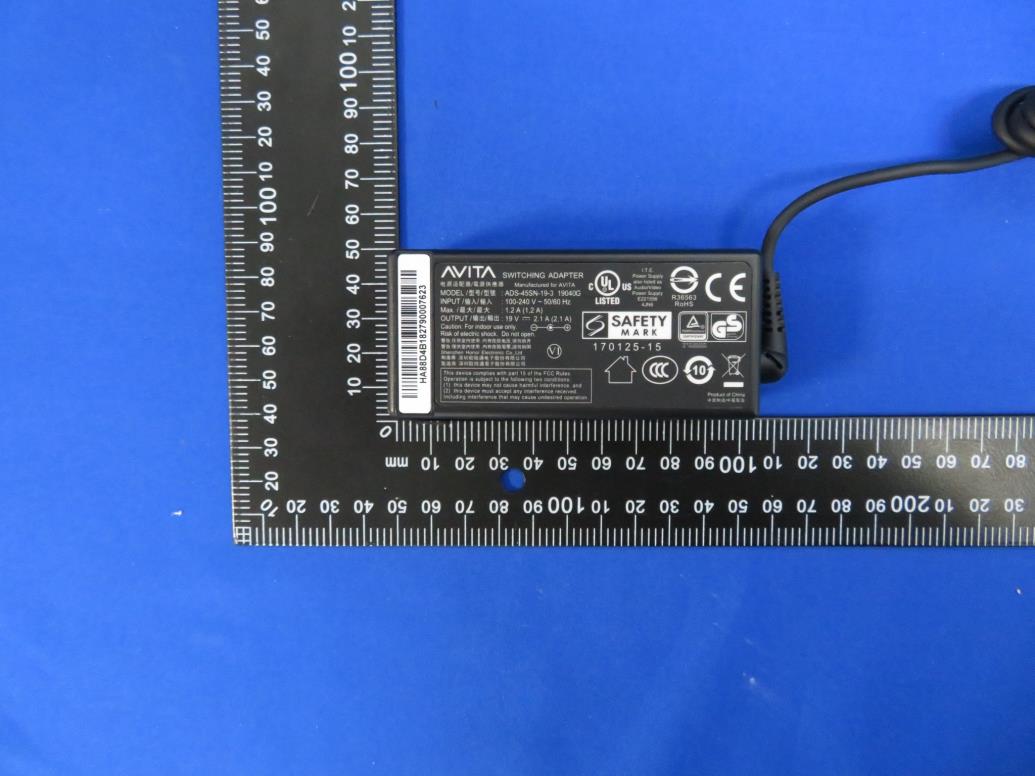

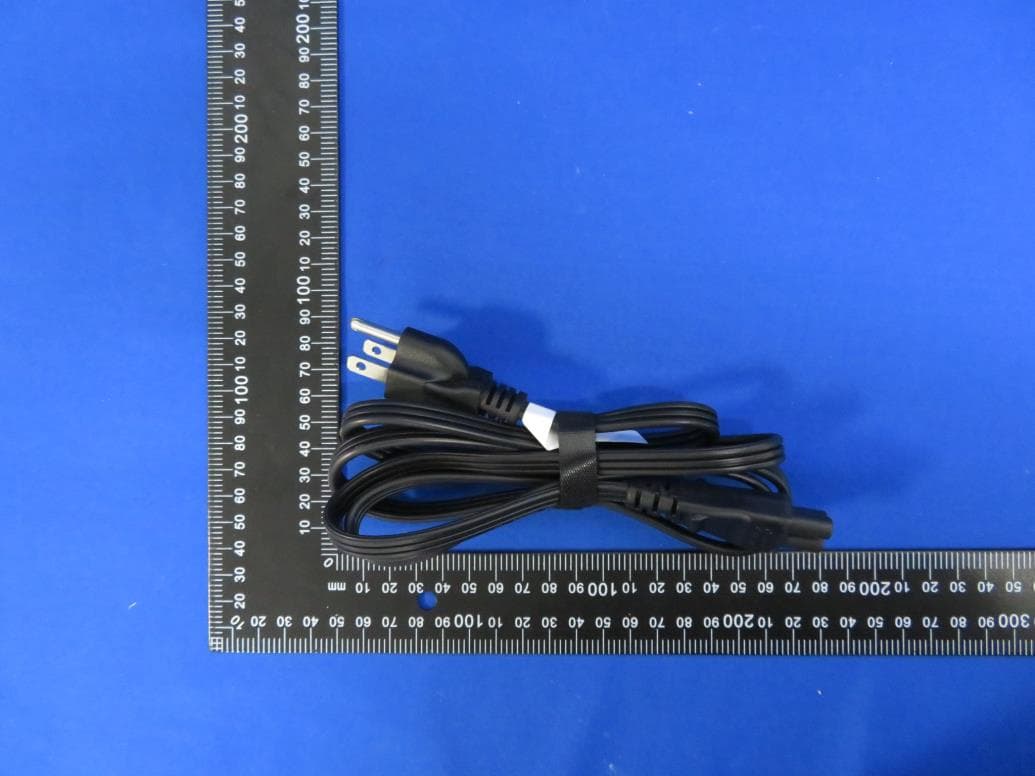

Report No.: 2004RSU032-UE 1 of 6 External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2004RSU032-UE 2 of 6 (3) EUT Photo (4) EUT Photo Report No.: 2004RSU032-UE 3 of 6 (5) EUT Photo (6) EUT Photo Report No.: 2004RSU032-UE 4 of 6 (7) EUT Photo (8) EUT Photo Report No.: 2004RSU032-UE 5 of 6 (9) EUT Photo (10) EUT Photo Report No.: 2004RSU032-UE 6 of 6 (11) EUT Photo (12) EUT Photo

. INTEL LABEL (CORE i5) (8th) 11mm 1.75mm 5.5 mm 20.5 mm 5.5 mm FINGERPRINT LABEL POP LABEL FULL HD LABEL HDMI LABEL SPEC LABEL ALCO MODEL#: CN6613 BUYER MODEL#: NS13A2 LABELS ON UNIT (US) GRAPHIC DESIGNER: ChristinaFung Large Touch Pad HD Webcam APPROVAL: 33.5 mm 6 mm 6 mm GML LABEL 2 mm 1.5 mm 2 mm Initial Setup Sheet Model: CN6613 S/No.: XXXXXXXXXXX MFG CODE: APRIL 2020 DC / C.C. 19V 2.1A FCC ID: A2HCN6613 Made in China / Fabriqué en Chine LAPTOP

Report No.: 2004RSU032-UE 1 of 15 Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2004RSU032-UE 2 of 15 (3) EUT Photo (4) EUT Photo Report No.: 2004RSU032-UE 3 of 15 (5) EUT Photo (6) EUT Photo Report No.: 2004RSU032-UE 4 of 15 (7) EUT Photo (8) EUT Photo Report No.: 2004RSU032-UE 5 of 15 (9) EUT Photo (10) EUT Photo Report No.: 2004RSU032-UE 6 of 15 (11) EUT Photo (12) EUT Photo Report No.: 2004RSU032-UE 7 of 15 (13) EUT Photo (14) EUT Photo Report No.: 2004RSU032-UE 8 of 15 (15) EUT Photo (16) EUT Photo Report No.: 2004RSU032-UE 9 of 15 (17) EUT Photo (18) EUT Photo Report No.: 2004RSU032-UE 10 of 15 (19) EUT Photo (20) EUT Photo Report No.: 2004RSU032-UE 11 of 15 (21) EUT Photo (22) EUT Photo Report No.: 2004RSU032-UE 12 of 15 (23) EUT Photo (24) EUT Photo Report No.: 2004RSU032-UE 13 of 15 (25) EUT Photo (26) EUT Photo Report No.: 2004RSU032-UE 14 of 15 (27) EUT Photo (28) EUT Photo Report No.: 2004RSU032-UE 15 of 15 (29) EUT Photo (30) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 2004RSU032-U2 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 04-20-2020 Page Number: 1 of 100 FCC ID: A2HCN6613 APPLICANT: ALCO Electronics Limited. Application Type: Certification Product: Notebook Model No.: NS13A2 Serial Model No.: CN6613 Brand Name: , FCC Classification: FCC Part 15 Spread Spectrum Transmitter (DSS) FCC Rule Part(s): Part 15 Subpart C (Section 15.247) Test Procedure(s): ANSI C63.10-2013 Test Date: April 14 ~ 19, 2020 MEASUREMENT REPORT FCC PART 15.247 Bluetooth Reviewed By: ( Kevin Guo ) Approved By: ( Robin Wu ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2013. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2004RSU032-U2 Page Number: 2 of 100 Revision History Report No. Version Description Issue Date Note 2004RSU032-U2 Rev. 01 Initial Report 04-20-2020 Valid Report No.: 2004RSU032-U2 Page Number: 3 of 100 CONTENTS Description Page General Information ....................................................................................................................... 6 1. INTRODUCTION ..................................................................................................................... 7 1.1. Scope ........................................................................................................................... 7 1.2. MRT Test Location ....................................................................................................... 7 2. PRODUCT INFORMATION ..................................................................................................... 8 2.1. Equipment Description .................................................................................................. 8 2.2. Product Specification Subjective to this Standard ......................................................... 8 2.3. Working Frequencies for this report .............................................................................. 9 2.4. Description of Available Antennas .............................................................................. 10 2.5. Pseudorandom Frequency Hopping Sequence ........................................................... 10 2.6. Test Mode ................................................................................................................... 11 2.7. Test Software .............................................................................................................. 11 2.8. Duty Cycle ................................................................................................................... 11 2.9. EMI Suppression Device(s)/Modifications ................................................................... 12 2.10. Labeling Requirements ............................................................................................... 12 3. DESCRIPTION of TEST ........................................................................................................ 13 3.1. Evaluation Procedure ................................................................................................. 13 3.2. AC Line Conducted Emissions ................................................................................... 13 3.3. Radiated Emissions .................................................................................................... 14 4. ANTENNA REQUIREMENTS ................................................................................................ 15 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................ 16 6. MEASUREMENT UNCERTAINTY ......................................................................................... 18 7. TEST RESULT ...................................................................................................................... 19 7.1. Summary .................................................................................................................... 19 7.2. 20dB Bandwidth Measurement ................................................................................... 20 7.2.1. Test Limit ................................................................................................................ 20 7.2.2. Test Procedure used ............................................................................................... 20 7.2.3. Test Setting ............................................................................................................. 20 7.2.4. Test Setup ............................................................................................................... 20 7.2.5. Test Result .............................................................................................................. 21 7.3. Output Power Measurement ....................................................................................... 25 7.3.1. Test Limit ................................................................................................................ 25 7.3.2. Test Procedure Used .............................................................................................. 25 Report No.: 2004RSU032-U2 Page Number: 4 of 100 7.3.3. Test Setting ............................................................................................................. 25 7.3.4. Test Setup ............................................................................................................... 25 7.3.5. Test Result .............................................................................................................. 26 7.4. Carrier Frequency Separ…

Text truncated - open the document above for the full version.

Report No.: 2004RSU032-U2 Page Number: 73 of 100 Site: AC1 Time: 2020/04/18 - 16:50 Limit: FCC_Part15.209_RE(3m) Engineer: Lewis Huang Probe: AC1_BBHA9120D_1-18GHz Polarity: Vertical EUT: Notebook Power: AC 120V/60Hz Test Mode: Transmit by DH5 at channel 2402MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 2346.143 58.294 26.161 -15.706 74.000 32.133 PK 2 2390.000 56.257 24.185 -17.743 74.000 32.072 PK 3 * 2402.120 87.884 55.809 N/A N/A 32.076 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) Report No.: 2004RSU032-U2 Page Number: 74 of 100 Site: AC1 Time: 2020/04/18 - 16:53 Limit: FCC_Part15.209_RE(3m) Engineer: Lewis Huang Probe: AC1_BBHA9120D_1-18GHz Polarity: Vertical EUT: Notebook Power: AC 120V/60Hz Test Mode: Transmit by DH5 at channel 2402MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.000 43.855 11.783 -10.145 54.000 32.072 AV 2 * 2401.838 87.117 55.042 N/A N/A 32.075 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) Report No.: 2004RSU032-U2 Page Number: 75 of 100 Site: AC1 Time: 2020/04/18 - 16:54 Limit: FCC_Part15.209_RE(3m) Engineer: Lewis Huang Probe: AC1_BBHA9120D_1-18GHz Polarity: Horizontal EUT: Notebook Power: AC 120V/60Hz Test Mode: Transmit by DH5 at channel 2480MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2480.079 93.804 61.761 N/A N/A 32.043 PK 2 2483.500 57.652 25.615 -16.348 74.000 32.037 PK 3 2485.139 58.804 26.770 -15.196 74.000 32.034 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) Report No.: 2004RSU032-U2 Page Number: 76 of 100 Site: AC1 Time: 2020/04/18 - 17:00 Limit: FCC_Part15.209_RE(3m) Engineer: Lewis Huang Probe: AC1_BBHA9120D_1-18GHz Polarity: Horizontal EUT: Notebook Power: AC 120V/60Hz Test Mode: Transmit by DH5 at channel 2480MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2480.079 93.400 61.357 N/A N/A 32.043 AV 2 2483.500 44.067 12.030 -9.933 54.000 32.037 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) Report No.: 2004RSU032-U2 Page Number: 77 of 100 Site: AC1 Time: 2020/04/18 - 17:01 Limit: FCC_Part15.209_RE(3m) Engineer: Lewis Huang Probe: AC1_BBHA9120D_1-18GHz Polarity: Vertical EUT: Notebook Power: AC 120V/60Hz Test Mode: Transmit by DH5 at channel 2480MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2479.947 89.119 57.075 N/A N/A 32.044 PK 2 2483.500 56.378 24.341 -17.622 74.000 32.037 PK 3 2485.128 57.670 25.636 -16.330 74.000 32.034 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) Report No.: 2004RSU032-U2 Page Number: 78 of 100 Site: AC1 Time: 2020/04/18 - 17:03 Limit: FCC_Part15.209_RE(3m) Engineer: Lewis Huang Probe: AC1_BBHA9120D_1-18GHz Polarity: Vertical EUT: Notebook Power: AC 120V/60Hz Test Mode: Transmit by DH5 at channel 2480MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2480.112 88.552 56.509 N/A N/A 32.043 AV 2 2483.500 43.938 11.901 -10.062 54.000 32.037 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) Report No.: 2004RSU032-U2 Page Number: 79 of 100 Site: AC1 Time: 2020/04/18 - 17:04 Limit: FCC_Part15.209_RE(3m) Engineer: Lewis Huang Probe: AC1_BBHA9120D_1-18GHz Polarity: Horizontal EUT: Notebook Power: AC 120V/60Hz Test Mode: Transmit by 2DH5 at channel 2402MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 2356.812 57.902 25.777 -16.098 74.000 32.125 PK 2 2390.000 56.648 24.576 -17.352 74.000 32.072 PK 3 * 2401.744 89.806 57.731 N/A N/A 32.075 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) Report No.: 2004RSU032-U2 Page Number: 80 of 100 Site: AC1 Time: 2020/04/18 - 17:09 Limit: FCC_Part15.209_RE(3m) Engineer: Lewis Huang Probe: AC1_BBHA9120D_1-18GHz Polarity: Horizontal EUT: Notebook Power: AC 120V/60Hz Test Mode: Transmit by 2DH5 at channel 2402MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.000 43.795 11.723 -10.205 54.000 32.072 AV 2 * 2401.979 87.284 55.209 N/A N/A 32.076 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) Report No.: 2004RSU032-U2 Page Number: 81 of 100 Site: AC1 Time: 2020/04/18 - 17:10 Limit: FCC_Part15.209_RE(3m) Engineer: Lewis Huang Probe: AC1_BBHA9120D_1-18GHz Polarity: Vertical EUT: Notebook Power: AC 120V/60Hz Test Mode: Transmit by 2DH5 at channel 2402MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 2368.656 58.787 26.688 -15.213 74.000 32.099 PK 2 2390.000 56.942 24.870 -17.058 74.000 32.072 PK 3 * 2402.073 85.782 53.707 N/A N/A 32.076 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) Report No.: 2004RSU032-U2 Page Number: 82 of 100 Site: AC1 Time: 2020/04/18 - 17:14 Limit: FCC_Part15.209_RE(3m) Engineer: Lewis Huang Probe: AC1_BBHA9120D_1-18GHz Polarity: Vertical EUT: Notebook Power: AC 120V/60Hz Test Mode: Transmit by 2DH5 at channel 2402MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 23…

Text truncated - open the document above for the full version.

Report No.: 2004RSU032-UT 1 of 2 RF Test Setup Photograph Description: Front View of Conducted Emission Test Setup for Power Port Description: Back View of Conducted Emission Test Setup for Power Port Report No.: 2004RSU032-UT 2 of 2 Description: Radiated Spurious Emission Test Setup for Below 1GHz Description: Radiated Spurious Emission Test Setup for Above 1GHz
