e-manual avita-americas.com CN6F14 Laptop 2 CN6F14_e-manual - V.00 IMPORTANT SAFETY INSTRUCTIONS Some of the following information may not apply to your particular product; however, as with any electronic product, precautions should be observed during handling and use. • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. • Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifi ers) that produce heat. • Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. • Only use attachments / accessories specifi ed by the manufacturer. • Unplug this apparatus during lightning storms or when unused for long periods of time. • Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 3 CN6F14_e-manual - V.00 CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. Battery safety This device contains a built-in battery, improper use of which may result in explosion. Do not heat, open, puncture, mutilate, or dispose of the product in fi re. Do not leave the device in direct sunlight for an extended period of time, which could cause melting or battery damage. The battery in this device is not user replaceable and should only be replaced by AVITA or a AVITA Authorized Service Provider. ADDITIONAL SAFETY INFORMATION • The AC adapter and apparatus shall not be exposed to dripping or splashing and no objects fi lled with liquids, such as vases, shall be placed on the apparatus. • Always leave suffi cient space around the product for ventilation. Do not place product in or on a bed, rug, in a bookcase or cabinet that may prevent air fl ow through vent openings. • Do not place lighted candles, cigarettes, cigars, etc. on the product. • Care should be taken so that objects do not fall into the product. • Do not attempt to disassemble the cabinet. This product does not contain customer serviceable components. • To prevent the risk of fi re or electric shock, do not expose this apparatus to rain or moisture. • Do not play your headset at high volume. Hearing experts warn against extended high-volume play. 4 CN6F14_e-manual - V.00 FCC information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Warning: the AC adapter is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the mains plug from mains completely, the AC adapter should be disconnected from the mains socket outlet completely. The socket- outlet shall be installed near the equipment and shall be easily accessible. 5 CN6F14_e-manual - V.00 SAR The radiated output power of this device is below the FCC radio frequency exposure limits. Nevertheless, the device should be used in such a manner that the potential for human contact is minimized during normal operation.The exposure standard for wireless devices employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/Kg. Tests for SAR are conducted using standard operating positions accepted by the FCC with the device transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating can be well below the maximum value. This is because the device is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. To avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna should be minimized. For body worn operation, this device has been tested and meets the FCC RF exposure. 6 CN6F14_e-manual - V.00 Important Safety Instructions ................................................ 2 Getting Started .........................................................…

Text truncated - open the document above for the full version.

Electronics Limited A member of the ALCO group 11/F Metropole Square, 2 On Yiu Street, Sha Tin, New Territories, Hong Kong Tel: (852) 2562 6121, Fax: (852) 2811 1056 Declaration of Authorization We Name: ALCO Electronics Limited. Address: 1/F Metropole Square, 2 On Yiu Street, Sha Tin, New Territories, Hong Kong Declare that: Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone, City: Suzhou Country China is authorized to apply for Certification of the following product(s): Product: Notebook FCC ID: A2HCN6F14 Model: NS14A5, CN6F14 Yours Sincerely, __________________ Name: Peggy Suen ALCO Electronics Limited Date: 2020-04-19

Electronics Limited A member of the ALCO group 11/F Metropole Square, 2 On Yiu Street, Sha Tin, New Territories, Hong Kong Tel: (852) 2562 6121, Fax: (852) 2811 1056 Declaration letter For our business issue and marketing requirement, we would like to list different model number as following: Model No.: NS14A5, CN6F14 Model Difference: We declare they are with same electrical, mechanical & constructional design except different product ID for sales and trading purpose only. _____________________ Name: Peggy Suen ALCO Electronics Limited Date: 2020-04-19

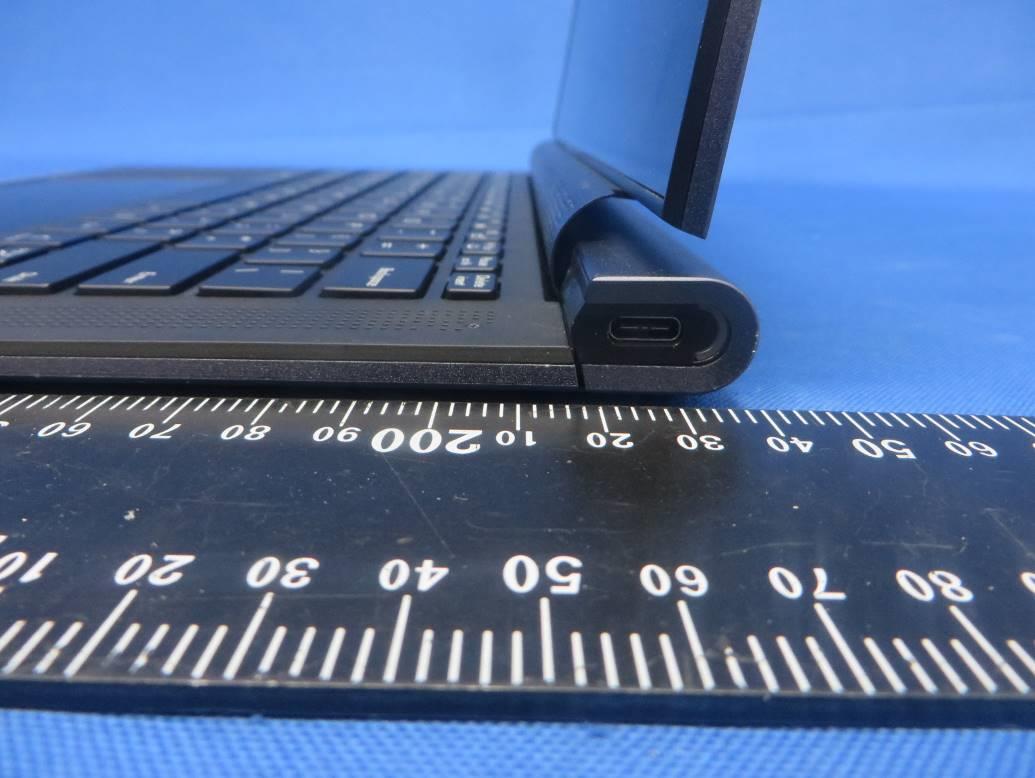

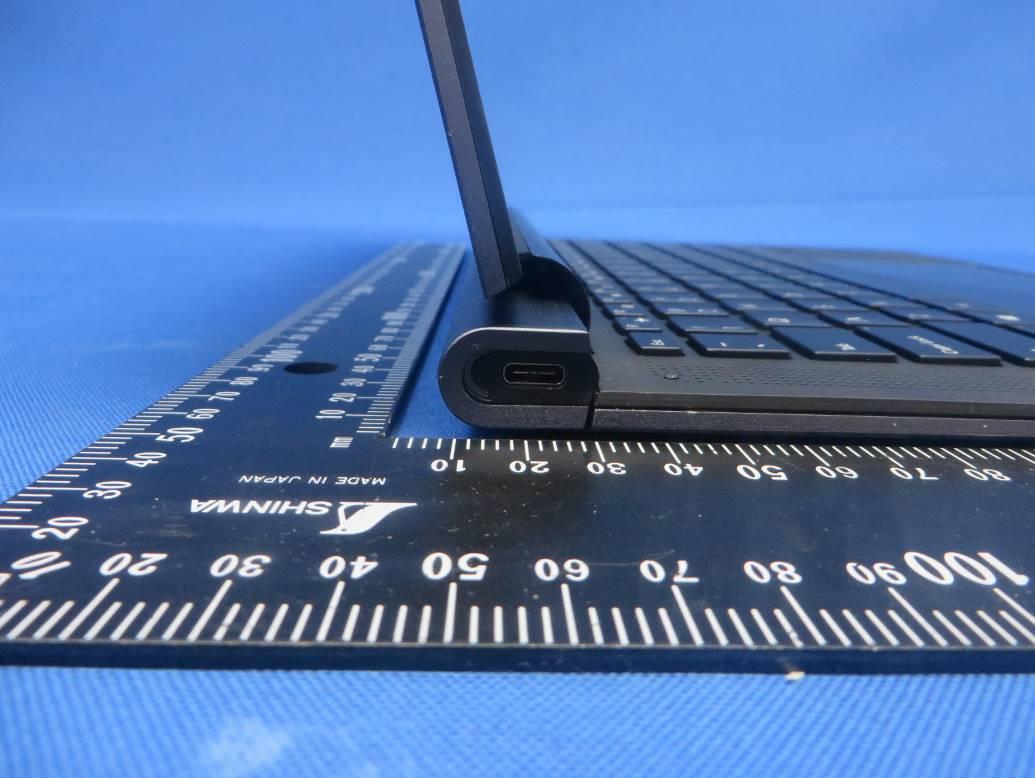

Report No.: 2004RSU019-UE 1 of 5 External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2004RSU019-UE 2 of 5 (3) EUT Photo (4) EUT Photo Report No.: 2004RSU019-UE 3 of 5 (5) EUT Photo (6) EUT Photo Report No.: 2004RSU019-UE 4 of 5 (7) EUT Photo (8) EUT Photo Report No.: 2004RSU019-UE 5 of 5 (9) EUT Photo (10) EUT Photo

02-APRIL-2020 Model: CN6F14 Made in China / Fabriqué en Chine FCC ID: A2HCN6F14 S/No.: XXXXXXXXXXX MFG CODE: APRIL 2020 Model: CN6F14 Made in China / Fabriqué en Chine FCC ID: A2HCN6F14 S/No.: XXXXXXXXXXX MFG CODE: APRIL 2020

Report No.: 2004RSU019-UE 1 of 9 Internal Photograph (1) EUT Photo (2) EUT Photo AUX Ant Location Main Ant Location Report No.: 2004RSU019-UE 2 of 9 (3) EUT Photo (4) EUT Photo Report No.: 2004RSU019-UE 3 of 9 (5) EUT Photo (6) EUT Photo Report No.: 2004RSU019-UE 4 of 9 (7) EUT Photo (8) EUT Photo Report No.: 2004RSU019-UE 5 of 9 (9) EUT Photo (10) EUT Photo Main Ant Port AUXAnt Port Report No.: 2004RSU019-UE 6 of 9 (11) EUT Photo (12) EUT Photo Report No.: 2004RSU019-UE 7 of 9 (13) EUT Photo (14) EUT Photo Report No.: 2004RSU019-UE 8 of 9 (15) EUT Photo (16) EUT Photo AUX Ant Location Main Ant Location Report No.: 2004RSU019-UE 9 of 9 (17) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 2004RSU019-U5 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 04-19-2020 Page Number: 1 of 60 FCC ID: A2HCN6F14 Applicant: ALCO Electronics Limited. Application Type: Certification Product: Notebook Model No.: NS14A5 Serial Model No.: CN6F14 Brand Name: , FCC Classification: Spread Spectrum Transmitter (DSS) Digital Transmission System (DTS) Unlicensed National Information Infrastructure (NII) FCC Rule Part(s): FCC 47 CFR Part 2.1093 Test Procedure(s): IEEE 1528:2013; IEEE C95.1- 2005; KDB 447498 D01v06; KDB 865664 D01v01r04; KDB 248227 D01v02r02; KDB 616217 D04v01r02 Test Date: April 14 ~ 15, 2020 SAR MEASUREMENT REPORT Reviewed By: ( Kevin Guo ) Approved By: ( Robin Wu ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in IEEE1528, KDB 447498 and KDB 865664. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2004RSU019-U5 Page Number: 2 of 60 Revision History Report No. Version Description Issue Date Note 2004RSU019-U5 Rev. 01 Initial Report 04-19-2020 Valid Report No.: 2004RSU019-U5 Page Number: 3 of 60 CONTENTS Description Page General Information ....................................................................................................................... 5 1. Introduction ............................................................................................................................ 6 1.1. Scope ........................................................................................................................... 6 1.2. MRT Test Location ....................................................................................................... 6 2. Product Information ............................................................................................................... 7 2.1. General Description for EUT ......................................................................................... 7 2.2. Product Specification Subjective to this Report ............................................................. 7 2.3. Description of Available Antennas ................................................................................ 8 2.4. Ancillary Equipment ...................................................................................................... 8 3. Summary of Test Result ........................................................................................................ 9 3.1. Test Standards ............................................................................................................. 9 3.2. Environment Condition ................................................................................................. 9 3.3. RF Exposure Limits ...................................................................................................... 9 3.4. Test Result Summary ................................................................................................. 10 4. Specific Absorption Rate (SAR).......................................................................................... 11 4.1. Introduction ................................................................................................................. 11 4.2. Definition .................................................................................................................... 11 5. DASY6 Measurement System ............................................................................................. 12 5.1. Introduction ................................................................................................................. 12 5.2. DASY6 Measurement System Diagram ...................................................................... 12 5.3. System Components Details ....................................................................................... 13 6. The SAR Measurement Procedure ..................................................................................... 24 6.1. Measurement Process Diagram.................................................................................. 24 6.2. Test Position Definition ............................................................................................... 25 6.3. Test Procedure ........................................................................................................... 28 7. System Verificaiton.............................................................................................................. 31 7.1. Tissue Check .............................................................................................................. 31 7.2. System Check ............................................................................................................ 34 8. Analysis and Results ........................................................................................................... 36 8.1. Antenna Location ........................................................................................................ 36 8.2. Conducted Power ....................................................................................................... 37 Report No.: 2004RSU019-U5 Page Number: 4 of 60 8.3. SAR Exclusion Analysis .............................................................................................. 39 8.4. Required Configurations of SAR Test ......................................................................... 40 8.5. SAR Test Results ....................................................................................................... 41 8.6. Estimated SAR Calculation .........................................................…

Text truncated - open the document above for the full version.

Return Loss and Impedance Indicated By Head Tissue Meas. Items Original Value Current Value Deviation Return Loss(dB) -28.040 -32.17 -14.73% Impedance 53.281Ω + 2.445jΩ 50.10Ω + 2.47jΩ -3.181Ω Real part 0.025Ω Imaginary part Test Date: 2019/05/13 Return Loss and Impedance Indicated By Body Tissue Meas. Items Original Value Current Value Deviation Return Loss(dB) -28.157 -28.15 -0.01% Impedance 49.783Ω + 3.897jΩ 47.56Ω + 2.96jΩ -2.223Ω Real part -0.937Ω Imaginary part Test Date: 2019/05/13

MRT Technology (Suzhou) Co., Ltd Report No.: 2004RSU019-U1 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 04-19-2020 Page Number: 1 of 107 FCC ID: A2HCN6F14 APPLICANT: ALCO Electronics Limited. Application Type: Certification Product: Notebook Model No.: NS14A5 Serial Model No.: CN6F14 Brand Name: , FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15 Subpart C (Section 15.247) Test Procedure(s): ANSI C63.10-2013, KDB 662911 D01v02r01 Test Date: April 10 ~ 15, 2020 MEASUREMENT REPORT FCC PART 15.247 WLAN 802.11b/g/n Reviewed By: ( Kevin Guo ) Approved By: ( Robin Wu ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2013. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2004RSU019-U1 Page Number: 2 of 107 Revision History Report No. Version Description Issue Date Note 2004RSU019-U1 Rev. 01 Initial Report 04-19-2020 Valid Report No.: 2004RSU019-U1 Page Number: 3 of 107 CONTENTS Description Page General Information ........................................................................................................................ 5 1. INTRODUCTION ...................................................................................................................... 6 1.1. Scope ........................................................................................................................... 6 1.2. MRT Test Location ....................................................................................................... 6 2. PRODUCT INFORMATION ...................................................................................................... 7 2.1. Feature of Equipment under Test ................................................................................. 7 2.2. Product Specification Subjective to this Report ............................................................ 7 2.3. Working Frequencies for this report .............................................................................. 8 2.4. Description of Available Antennas ................................................................................ 8 2.5. Test Mode .................................................................................................................... 9 2.6. Test Software ............................................................................................................... 9 2.7. Duty Cycle .................................................................................................................... 9 2.8. EMI Suppression Device(s)/Modifications ................................................................... 10 2.9. Labeling Requirements ............................................................................................... 10 3. DESCRIPTION of TEST ......................................................................................................... 11 3.1. Evaluation Procedure .................................................................................................. 11 3.2. AC Line Conducted Emissions .................................................................................... 11 3.3. Radiated Emissions .................................................................................................... 12 4. ANTENNA REQUIREMENTS................................................................................................. 13 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................. 14 6. MEASUREMENT UNCERTAINTY ......................................................................................... 16 7. TEST RESULT ....................................................................................................................... 17 7.1. Summary .................................................................................................................... 17 7.2. 6dB Bandwidth Measurement ..................................................................................... 18 7.2.1. Test Limit ................................................................................................................ 18 7.2.2. Test Procedure used ............................................................................................... 18 7.2.3. Test Setting ............................................................................................................. 18 7.2.4. Test Setup .............................................................................................................. 18 7.2.5. Test Result .............................................................................................................. 19 7.3. Output Power Measurement ....................................................................................... 24 7.3.1. Test Limit ................................................................................................................ 24 7.3.2. Test Procedure Used .............................................................................................. 24 7.3.3. Test Setting ............................................................................................................. 24 Report No.: 2004RSU019-U1 Page Number: 4 of 107 7.3.4. Test Setup .............................................................................................................. 25 7.3.5. Test Result .............................................................................................................. 26 7.4. Power Spectral Density Measurement ........................................................................ 29 7.…

Text truncated - open the document above for the full version.

Report No.: 2004RSU019-U1 Page Number: 49 of 107 Channel 09 (2452MHz) 100kHz PSD reference Level High Band Edge Spurious Emission Report No.: 2004RSU019-U1 Page Number: 50 of 107 7.6. Radiated Spurious Emission Measurement 7.6.1.Test Limit All out of band emissions appearing in a restricted band as specified in Section 15.205 of the Title 47 CFR must not exceed the limits shown in Table. FCC Part 15 Subpart C Paragraph 15.209 Frequency [MHz] Field Strength [V/m] Measured Distance [Meters] 0.009 - 0.490 2400/F (kHz) 300 0.490 - 1.705 24000/F (kHz) 30 1.705 - 30 30 30 30 - 88 100 3 88 - 216 150 3 216 - 960 200 3 Above 960 500 3 7.6.2.Test Procedure Used ANSI C63.10 Section 6.3 (General Requirements) ANSI C63.10 Section 6.4 (Standard test method below 30MHz) ANSI C63.10 Section 6.5 (Standard test method above 30MHz to 1GHz) ANSI C63.10 Section 6.6 (Standard test method above 1GHz) 7.6.3.Test Setting Table 1 - RBW as a function of frequency Frequency RBW 9 ~ 150 kHz 200 ~ 300 Hz 0.15 ~ 30 MHz 9 ~ 10 kHz 30 ~ 1000 MHz 100 ~ 120 kHz > 1000MHz 1MHz Report No.: 2004RSU019-U1 Page Number: 51 of 107 Quasi-Peak Measurements below 1GHz 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. Span was set greater than 1MHz 3. RBW = as specified in Table 1 4. Detector = CISPR quasi-peak 5. Sweep time = auto couple 6. Trace was allowed to stabilize Peak Measurements above 1GHz 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = 1MHz 3. VBW = 3MHz 4. Detector = peak 5. Sweep time = auto couple 6. Trace mode = max hold 7. Trace was allowed to stabilize Average Measurements above 1GHz 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = 1MHz 3. VBW; If the EUT is configured to transmit with duty cycle ≥ 98%, set VBW = 10 Hz. If the EUT duty cycle is < 98%, set VBW ≥ 1/T. T is the minimum transmission duration. 4. Detector = Peak 5. Sweep time = auto 6. Trace mode = max hold 7. Trace was allowed to stabilize Report No.: 2004RSU019-U1 Page Number: 52 of 107 7.6.4.Test Setup Below 1GHz Test Setup: Above 1GHz Test Setup: Report No.: 2004RSU019-U1 Page Number: 53 of 107 7.6.5.Test Result Product Notebook Temperature 23°C Test Engineer Lewis Huang Relative Humidity 53% Test Site AC1 Test Date 2020/04/11 Test Mode: 802.11b Test Channel: 01 Remark: 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization 4119.5 39.6 3.5 43.1 74.0 -30.9 Peak Horizontal 4825.0 38.7 6.1 44.8 74.0 -29.2 Peak Horizontal * 6542.0 38.2 9.5 47.7 84.5 -36.8 Peak Horizontal * 7851.0 38.6 11.9 50.5 84.5 -34.0 Peak Horizontal 4017.5 39.7 3.3 43.0 74.0 -31.0 Peak Vertical 4825.0 41.4 6.1 47.5 74.0 -26.5 Peak Vertical * 6508.0 37.4 9.7 47.1 84.5 -37.4 Peak Vertical * 7953.0 38.1 12.5 50.6 84.5 -33.9 Peak Vertical Note 1: “*” is not in restricted band, its limit is 20dBc of the fundamental emission level (104.5dBμV/m) or 15.209 which is higher. Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB) Report No.: 2004RSU019-U1 Page Number: 54 of 107 Product Notebook Temperature 23°C Test Engineer Lewis Huang Relative Humidity 53% Test Site AC1 Test Date 2020/04/11 Test Mode: 802.11b Test Channel: 06 Remark: 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization 4119.5 39.2 3.5 42.7 74.0 -31.3 Peak Horizontal 4723.0 39.5 5.5 45.0 74.0 -29.0 Peak Horizontal * 6550.5 37.7 9.5 47.2 84.7 -37.5 Peak Horizontal * 7927.5 37.6 12.4 50.0 84.7 -34.7 Peak Horizontal 4255.5 39.2 4.0 43.2 74.0 -30.8 Peak Vertical 4876.0 39.8 5.9 45.7 74.0 -28.3 Peak Vertical * 6542.0 37.6 9.5 47.1 84.7 -37.6 Peak Vertical * 7987.0 37.7 12.4 50.1 84.7 -34.6 Peak Vertical Note 1: “*” is not in restricted band, its limit is 20dBc of the fundamental emission level (104.7dBμV/m) or 15.209 which is higher. Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB) Report No.: 2004RSU019-U1 Page Number: 55 of 107 Product Notebook Temperature 23°C Test Engineer Lewis Huang Relative Humidity 53% Test Site AC1 Test Date 2020/04/11 Test Mode: 802.11b Test Channel: 11 Remark: 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization 3881.5 39.7 3.0 42.7 74.0 -31.3 Peak Horizontal 4927.0 39.7 6.1 45.8 74.0 -28.2 Peak Horizontal * 6372.0 37.9 8.8 46.7 85.9 -39.2 Peak Horizontal * 8616.0 37.3 13.5 50.8 85.9 -35.1 Peak Horizontal 3941.0 39.4 3.2 42.6 74.0 -31.4 Peak Vertical 4927.0 42.0 6.1 48.1 74.0 -25.9 Peak Vertical * 6533.5 37.7 9.5 47.2 85.9 -38.7 Peak Vertical * 8021.0 39.3 12.6 51.9 85.9 -34.0 Peak Vertical Note 1: “*” is not in restricted band, its limit is 20dBc of the fundamental emission level (105.9dBμV/m) or 15.209 which is higher. Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB) Report No.: 2004RSU019-U1 Page Number: 56 of 107 Product Notebook Temperature 23°C Test Engineer Lewis Huang Relative Humidity 53% Test Site AC1 Test Date 2020/04/11 Test Mode: 802.11g Test Channel: 01 Remark: 1. Average measurement was not performed if …

Text truncated - open the document above for the full version.

MRT Technology (Suzhou) Co., Ltd Report No.: 2004RSU019-U3 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 04-19-2020 Page Number: 1 of 52 FCC ID: A2HCN6F14 APPLICANT: ALCO Electronics Limited. Application Type: Certification Product: Notebook Model No.: NS14A5 Serial Model No.: CN6F14 Brand Name: , FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15 Subpart C (Section 15.247) Test Procedure(s): ANSI C63.10-2013 Test Date: April 10 ~ 15, 2020 MEASUREMENT REPORT FCC PART 15.247 Bluetooth-LE Reviewed By: ( Kevin Guo ) Approved By: ( Robin Wu ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2013. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2004RSU019-U3 Page Number: 2 of 52 Revision History Report No. Version Description Issue Date Note 2004RSU019-U3 Rev. 01 Initial Report 04-19-2020 Valid Report No.: 2004RSU019-U3 Page Number: 3 of 52 CONTENTS Description Page General Information ....................................................................................................................... 5 1. INTRODUCTION ..................................................................................................................... 6 1.1. Scope ........................................................................................................................... 6 1.2. MRT Test Location ....................................................................................................... 6 2. PRODUCT INFORMATION ..................................................................................................... 7 2.1. Feature of Equipment under Test ................................................................................. 7 2.2. Product Specification Subjective to this Report ............................................................. 7 2.3. Working Frequencies for this report .............................................................................. 8 2.4. Description of Available Antennas ................................................................................ 9 2.5. Test Mode .................................................................................................................... 9 2.6. Test Software ............................................................................................................... 9 2.7. Duty Cycle .................................................................................................................. 10 2.8. EMI Suppression Device(s)/Modifications .........................................................…

Text truncated - open the document above for the full version.
