A2HCN6Q14Notebook

e-manual The Notebook PC now in your hands has successfully completed the “AVITA CHECK”. For more information on the products and services, please visit www.avita.com/support NS14A6 PURA Notebook PC (14” ) 2 PURA_NS14A6_e-manual - V.00 Safety Precautions WARNING! Do not attempt to disassemble the cabinet. This device does not contain customer serviceable components. Refer servicing to qualifi ed personnel. CAUTIONS! • The apparatus and AC adapter shall not be exposed to dripping or splashing and no objects fi lled with liquids, such as vases, shall be placed on the apparatus. • Do not use the Notebook PC in the environment at too high or too low temperature, never expose the Notebook PC under strong sunshine or too wet environment. The suitable temperature for the Notebook PC and accessories is 0 °C ~ 35°C. • Always leave suffi cient space around the device for ventilation. Do not use or place the device on soft surface such as a bed or cushion which could make the device build up heat. • When charging, please place the Notebook PC in an environment that has a normal room temperature and good ventilation. It is recommended to charge the Notebook PC in an environment with a temperature that ranges from 5 °C ~ 25°C. Please ensure to use only the adapter off ered by the manufacturer. Using unauthorized adapter may cause danger and violate the authorization of the Notebook PC and the guarantee article. The maximum operating ambient temperature of the equipment declared by the manufacturer is 35 °C. 3 PURA_NS14A6_e-manual - V.00 CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. IMPORTANT! • The AC adapter shall be installed near the equipment and shall be easily accessible. • Unplug from the wall outlet during a storm. • No naked flame sources such as lighted candles should be placed on the device. • Do not pinch, bend, or put heavy or sharp objects on its electrical cord. • Do not use the device while driving a car or doing any other activities in which loss of concentration could lead to potential harm to self or others. • Excessive sound pressure from earphones and headphones can cause hearing loss. Battery safety! This device contains a built-in battery, improper use of which may result in explosion. Do not heat, open, puncture, mutilate, or dispose of the product in fi re. Do not leave the device in direct sunlight for an extended period of time, which could cause melting or battery damage. The battery in this device is not user replaceable and should only be replaced by AVITA or a AVITA Authorized Service Provider. 4 PURA_NS14A6_e-manual - V.00 CAUTION Excessive use of the device can cause your vision loss. 1. Do rest your eyes for 10 minutes if use the device for 30 minutes. 2. Do not watch the display for children under 2 years of age. Do not watch the display over 1 hour everyday for children above 2 years of age. R3B886 ROHS 5 PURA_NS14A6_e-manual - V.00 Safety Precautions .....................................................................1 Getting Started ....................................................................... 5 Getting to know PURA ...................................................................... 5 Charging PURA ..................................................................................... 10 Turning PURA on ...................................................................................12 Put PURA to Sleep ..................................................................................14 Power Management .............................................................................15 Basics ....................................................................................... 16 Start menu ............................................................................................... 16 Action center ......................................................................................... 19 Task view .................................................................................................. 22 Using the touchpad ............................................................................ 23 Using the keyboard ............................................................................. 26 Connections and Setup .......................................................... 29 Inserting a microSD card ................................................................... 29 External display ..................................................................................... 30 Connecting to a Wi-Fi network ....................................................... 32 Airplane mode ...................................................................................... 34 Bluetooth ...................................................................................... 35 Brightness ...................................................................................... 36 Volume ..................................................................................................... 37 Troubleshooting ...................................................................... 38 Specifications ........................................................................... 40 Legal and Safety Notices ......................................................... 41 Contents 6 PURA_NS14A6_e-manual - V.00 Getting Started Getting to know PURA Top view 7 PURA_NS14A6_e-manual - V.00 Camera The built-in camera allows you to take still photos and record videos. Camera indicator The camera indicator lights up when the built-in camera is in use. Power button Press and hold it to turn the Notebook PC on or off . Touchpad Move the cursor and selects options. Functions as a mouse. Microphone For voice input. Power indicator The power indicator lights up when the Notebook PC is powered on and blinks slowly when the Notebook PC is in Standby mode. 8 PURA_NS14A6_e-manual - V.00 Left side MicroSD card reader Ac…

Text truncated - open the document above for the full version.

Confidentiality Request Letter Federal Communications Commission Authorization and Evaluation Division FCC ID: A2HCN6Q14 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Name: Peggy Suen ALCO Electronics Limited. Date: 2020-02-05

Declaration of Authorization We Name: ALCO Electronics Limited. Address: 11/F Metropole Square, 2 On Yiu Street, Sha Tin, New Territories, Hong Kong Declare that: Name Representative of agent: Robin Wu Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone, City: Suzhou Country China is authorized to apply for Certification of the following product(s): Product: Notebook FCC ID: A2HCN6Q14 Model: NS14A6, CN6Q14 Name: Peggy Suen ALCO Electronics Limited. Date: 2020-02-05

Electronics Limited A member of the ALCO group 11/F Metropole Square, 2 On Yiu Street, Sha Tin, New Territories, Hong Kong Tel: (852) 2562 6121, Fax: (852) 2811 1056 19 Feb. 2020 To whom it may concern, Multiple Models Confirmation Letter I, the undersigned, hereby confirm that the family models are listed in the following table. These models are identical as follows: √ Electronics/electrical designs, including software & firmware √ Construction design/Physical design/Enclosure √ PCB layout □ (Others, please specify) The only differences between these models are the follows for marketing purpose: □ Color □ Cosmetic details √ Trade name √ Model Number □ (Others, please specify) Item No. New model Model Number Trade Name Remarks 1 √ YES CN6Q14 VENTURER 2 √ YES NS14A6 AVITA 3 √ YES CN6Q14 AVITA 4 5 6 The sample being submitted for conformity assessment is CN6Q14 (tested model) of the above list. Best Regards, Alco Electronics Ltd. PEGGY SUEN Secretary, Engineering Dept.

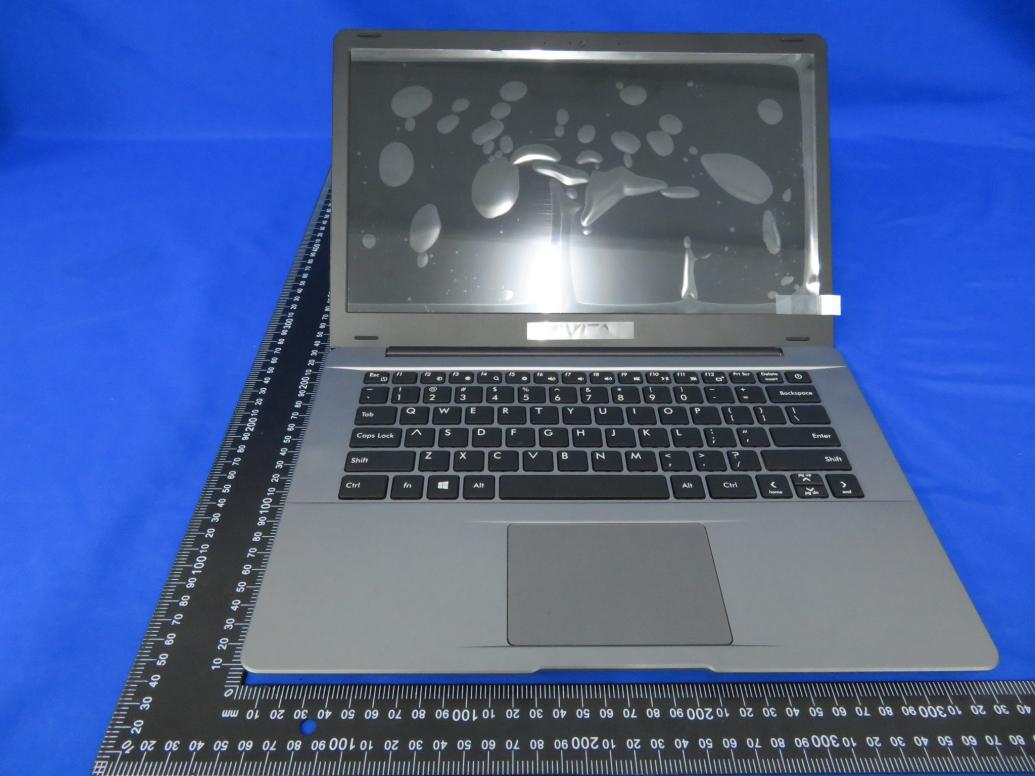

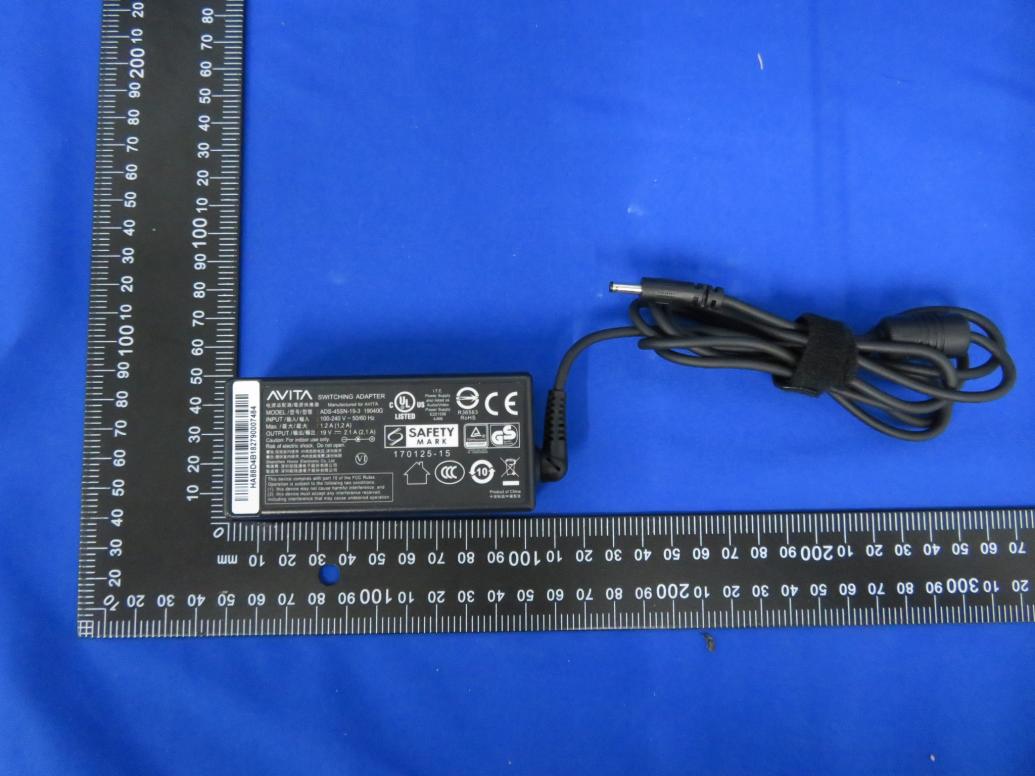

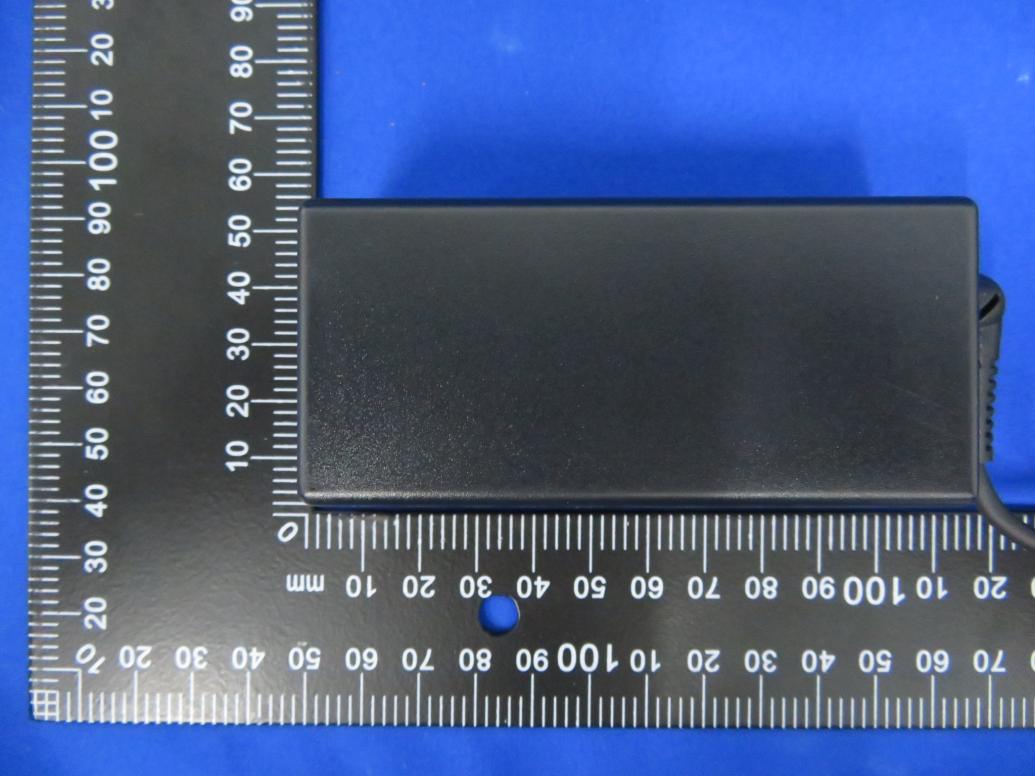

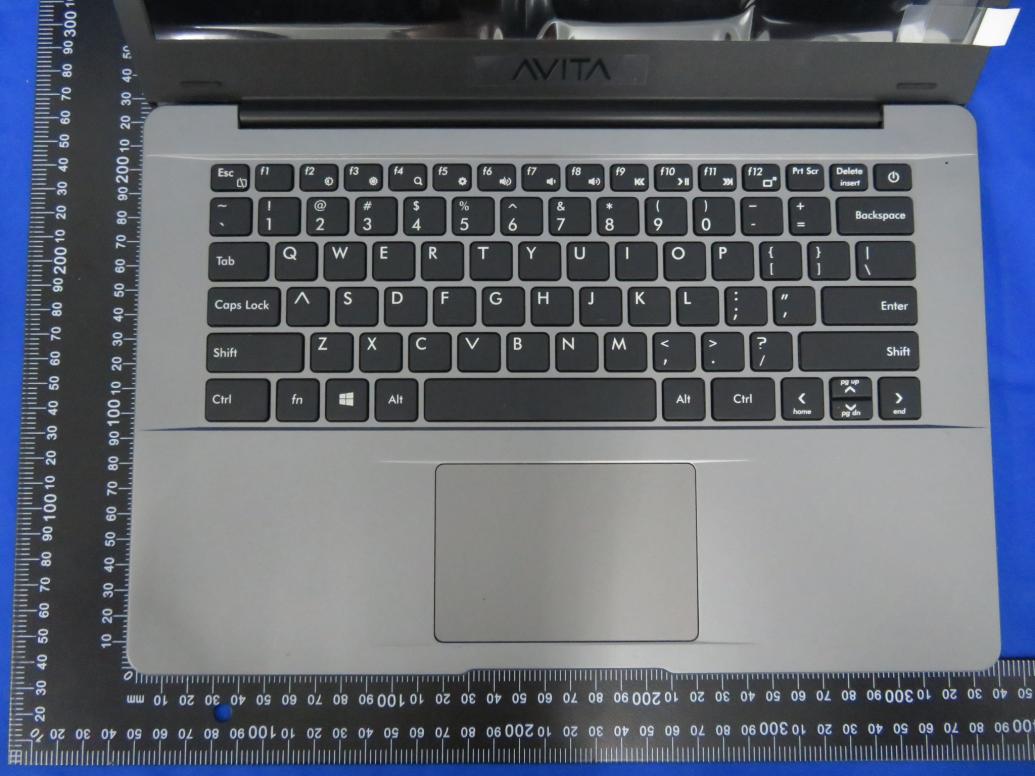

Report No.: 2002RSU005-UE 1 of 8 EUT External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2002RSU005-UE 2 of 8 (3) EUT Photo (4) EUT Photo Report No.: 2002RSU005-UE 3 of 8 (5) EUT Photo (6) EUT Photo Report No.: 2002RSU005-UE 4 of 8 (7) EUT Photo (8) EUT Photo Report No.: 2002RSU005-UE 5 of 8 (9) EUT Photo (10) EUT Photo Report No.: 2002RSU005-UE 6 of 8 (11) EUT Photo (12) EUT Photo Report No.: 2002RSU005-UE 7 of 8 (13) EUT Photo (14) EUT Photo Report No.: 2002RSU005-UE 8 of 8 (15) EUT Photo

DC / C.C. 12V 2.0A FCC ID: A2HCN6Q14 IC: 9903A-CN6Q14 CAN ICES-3(B) / NMB-3(B) Made in China / Fabriqué en Chine Model : NS14A6 S/No.: XXXXXXXXXXX Manufacture Date: February 2020 PURA LAPTOP SAMPLE DC / C.C. 12V 2.0A FCC ID: A2HCN6Q14 IC: 9903A-CN6Q14 CAN ICES-3(B) / NMB-3(B) Made in China / Fabriqué en Chine Model : NS14A6 S/No.: XXXXXXXXXXX Manufacture Date: February 2020 PURA LAPTOP SAMPLE 8.33MM 2 mm 3 mm 2.55 mm 2.4 mm DC / C.C. 12V 2.0A FCC ID: A2HCN6Q14 IC: 9903A-CN6Q14 CAN ICES-3(B) / NMB-3(B) Made in China / Fabriqué en Chine Model : CN6Q14 S/No.: XXXXXXXXXXX Manufacture Date: February 2020 PURA LAPTOP SAMPLE DC / C.C. 12V 2.0A FCC ID: A2HCN6Q14 IC: 9903A-CN6Q14 CAN ICES-3(B) / NMB-3(B) Made in China / Fabriqué en Chine Model : CN6Q14 S/No.: XXXXXXXXXXX Manufacture Date: February 2020 PURA LAPTOP SAMPLE NS14A6 & CN6Q14_LABEL LOCATION <1>DATE : 11-02-2020

MRT Technology (Suzhou) Co., Ltd Report No.: 2002RSU005-U5 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 04-17-2020 1 of 53 FCC ID: A2HCN6Q14 Applicant: ALCO Electronics Limited. Application Type: Certification Product: Notebook Model No.: NS14A6, CN6Q14 Brand Name: AVITA, VENTURER FCC Classification: Digital Transmission System (DTS) Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): FCC 47 CFR Part 2.1093 Test Procedure(s): IEEE 1528:2013; IEEE C95.1- 2005; KDB 447498 D01v06; KDB 865664 D01v01r04; KDB 248227 D01v02r02; KDB 616217 D04v01r02 Test Date: February 25 ~ 26, 2020 SAR MEASUREMENT REPORT Reviewed By: ( Sunny Sun ) Approved By: ( Robin Wu ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in IEEE1528, KDB 447498 and KDB 865664. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2002RSU005-U5 2 of 53 Revision History Report No. Version Description Issue Date Note 2002RSU005-U5 Rev. 01 Initial Report 04-17-2020 Valid Report No.: 2002RSU005-U5 3 of 53 CONTENTS Description Page 1. Introduction ............................................................................................................................... 6 1.1. Scope .............................................................................................................................. 6 1.2. MRT Test Location ........................................................................................................... 6 2. Product Information ................................................................................................................. 7 2.1. General Description for EUT ........................................................................................... 7 2.2. Product Specification Subjective to this Report ............................................................... 7 2.3. Description of Available Antennas ................................................................................... 8 2.4. Ancillary Equipment ......................................................................................................... 8 3. Summary of Test Result ........................................................................................................... 9 3.1. Test Standards ................................................................................................................ 9 3.2. Environment Condition .................................................................................................... 9 3.3. RF Exposure Limits ......................................................................................................... 9 3.4. Test Result Summary .................................................................................................... 10 4. Specific Absorption Rate (SAR) ............................................................................................ 11 4.1. Introduction .................................................................................................................... 11 4.2. Definition ....................................................................................................................... 11 5. DASY6 Measurement System ................................................................................................ 12 5.1. Introduction .................................................................................................................... 12 5.2. DASY6 Measurement System Diagram ........................................................................ 12 5.3. System Components Details ......................................................................................... 13 6. The SAR Measurement Procedure ........................................................................................ 24 6.1. Measurement Process Diagram .................................................................................... 24 6.2. Test Position Definition .................................................................................................. 25 6.3. Test Procedure .............................................................................................................. 28 7. System Verificaiton ................................................................................................................. 30 7.1. Tissue Check ................................................................................................................. 30 7.2. System Check ............................................................................................................... 32 8. Analysis and Results.............................................................................................................. 34 8.1. Antenna Location .......................................................................................................... 34 8.2. Conducted Power .......................................................................................................... 35 8.3. SAR Exclusion Analysis ................................................................................................ 37 8.4. Required Configurations of SAR Test ............................................................................ 38 Report No.: 2002RSU005-U5 4 of 53 8.5. SAR Test Results .......................................................................................................... 39 8.6. Estimated SAR Calculation ........................................................................................... 40 9. Simultaneous Transmission Analysis ..........................................................…

Text truncated - open the document above for the full version.

MRT Technology (Suzhou) Co., Ltd Report No.: 2002RSU005-U3 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 04-17-2020 1 of 102 FCC ID: A2HCN6Q14 Applicant: ALCO Electronics Limited. Application Type: Certification Product: Notebook Model No.: NS14A6, CN6Q14 Brand Name: AVITA, VENTURER FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15 Subpart C (Section 15.247) Test Procedure(s): ANSI C63.10-2013 Test Date: February 01 ~ 23, 2020 MEASUREMENT REPORT FCC PART 15.247 WLAN 802.11b/g/n Reviewed By: ( Sunny Sun ) Approved By: ( Robin Wu ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2013. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2002RSU005-U3 2 of 102 Revision History Report No. Version Description Issue Date Note 2002RSU005-U3 Rev. 01 Initial Report 04-17-2020 Valid Report No.: 2002RSU005-U3 3 of 102 CONTENTS Description Page General Information ......................................................................................................................... 5 1. INTRODUCTION ........................................................................................................................ 6 1.1. Scope .............................................................................................................................. 6 1.2. MRT Test Location .......................................................................................................... 6 2. PRODUCT INFORMATION ........................................................................................................ 7 2.1. Feature of Equipment under Test ................................................................................... 7 2.2. Product Specification Subjective to this Report .............................................................. 7 2.3. Working Frequencies for this report ................................................................................ 8 2.4. Test Mode ....................................................................................................................... 8 2.5. Test Software .................................................................................................................. 8 2.6. Duty Cycle ....................................................................................................................... 9 2.7. EMI Suppression Device(s)/Modifications ..................................................................... 10 2.8. Labeling Requirements ................................................................................................. 10 3. DESCRIPTION of TEST .......................................................................................................... 11 3.1. Evaluation Procedure .................................................................................................... 11 3.2. AC Line Conducted Emissions ..................................................................................... 11 3.3. Radiated Emissions ...................................................................................................... 12 4. ANTENNA REQUIREMENTS .................................................................................................. 13 5. TEST EQUIPMENT CALIBRATION DATE .............................................................................. 14 6. MEASUREMENT UNCERTAINTY ........................................................................................... 16 7. TEST RESULT ......................................................................................................................... 17 7.1. Summary ....................................................................................................................... 17 7.2. Occupied Bandwidth Measurement .............................................................................. 18 7.2.1. Test Limit ................................................................................................................... 18 7.2.2. Test Procedure used ................................................................................................. 18 7.2.3. Test Setting ............................................................................................................... 18 7.2.4. Test Setup ................................................................................................................. 18 7.2.5. Test Result ................................................................................................................ 19 7.3. Output Power Measurement ......................................................................................... 24 7.3.1. Test Limit ................................................................................................................... 24 7.3.2. Test Procedure Used ................................................................................................. 24 7.3.3. Test Setting ............................................................................................................... 24 Report No.: 2002RSU005-U3 4 of 102 7.3.4. Test Setup ................................................................................................................. 24 7.3.5. Test Result of Output Power ..................................................................................... 25 7.4. Power Spectral Density Measurement .......................................................................... 27 7.4.1. Test Limit ................................................................................................................... 27…

Text truncated - open the document above for the full version.

Report No.: 2002RSU005-U3 65 of 102 7.7.5.Test Result Site: AC2 Time: 2020/02/03 - 13:09 Limit: FCC_Part15.209_RE(3m) Engineer: Lewis Huang Probe: BBHA9120D_1-18GHz Polarity: Horizontal EUT: Notebook Power: AC 120V/60Hz Test Mode: Transmit by 802.11b at Channel 2412MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 2378.992 59.845 27.371 -14.155 74.000 32.474 PK 2 2390.000 58.513 26.028 -15.487 74.000 32.485 PK 3 * 2410.688 108.051 75.511 N/A N/A 32.540 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) Report No.: 2002RSU005-U3 66 of 102 Site: AC2 Time: 2020/02/03 - 14:23 Limit: FCC_Part15.209_RE(3m) Engineer: Lewis Huang Probe: BBHA9120D_1-18GHz Polarity: Horizontal EUT: Notebook Power: AC 120V/60Hz Test Mode: Transmit by 802.11b at Channel 2412MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 2385.376 46.249 13.769 -7.751 54.000 32.481 AV 2 2390.000 45.980 13.495 -8.020 54.000 32.485 AV 3 * 2411.024 104.075 71.534 N/A N/A 32.541 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) Report No.: 2002RSU005-U3 67 of 102 Site: AC2 Time: 2020/02/03 - 14:23 Limit: FCC_Part15.209_RE(3m) Engineer: Lewis Huang Probe: BBHA9120D_1-18GHz Polarity: Vertical EUT: Notebook Power: AC 120V/60Hz Test Mode: Transmit by 802.11b at Channel 2412MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 2383.080 58.128 25.650 -15.872 74.000 32.478 PK 2 2390.000 56.501 24.016 -17.499 74.000 32.485 PK 3 * 2410.968 95.360 62.819 N/A N/A 32.541 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) Report No.: 2002RSU005-U3 68 of 102 Site: AC2 Time: 2020/02/03 - 14:26 Limit: FCC_Part15.209_RE(3m) Engineer: Lewis Huang Probe: BBHA9120D_1-18GHz Polarity: Vertical EUT: Notebook Power: AC 120V/60Hz Test Mode: Transmit by 802.11b at Channel 2412MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.000 44.161 11.676 -9.839 54.000 32.485 AV 2 * 2411.024 91.590 59.049 N/A N/A 32.541 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) Report No.: 2002RSU005-U3 69 of 102 Site: AC2 Time: 2020/02/03 - 14:38 Limit: FCC_Part15.209_RE(3m) Engineer: Lewis Huang Probe: BBHA9120D_1-18GHz Polarity: Horizontal EUT: Notebook Power: AC 120V/60Hz Test Mode: Transmit by 802.11b at Channel 2462MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2460.928 108.387 76.068 N/A N/A 32.319 PK 2 2483.500 58.742 26.367 -15.258 74.000 32.375 PK 3 2486.344 61.330 28.962 -12.670 74.000 32.368 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) Report No.: 2002RSU005-U3 70 of 102 Site: AC2 Time: 2020/02/03 - 14:39 Limit: FCC_Part15.209_RE(3m) Engineer: Lewis Huang Probe: BBHA9120D_1-18GHz Polarity: Horizontal EUT: Notebook Power: AC 120V/60Hz Test Mode: Transmit by 802.11b at Channel 2462MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2462.800 105.015 72.694 N/A N/A 32.321 AV 2 2483.500 46.444 14.069 -7.556 54.000 32.375 AV 3 2486.248 47.281 14.913 -6.719 54.000 32.368 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) Report No.: 2002RSU005-U3 71 of 102 Site: AC2 Time: 2020/02/03 - 14:39 Limit: FCC_Part15.209_RE(3m) Engineer: Lewis Huang Probe: BBHA9120D_1-18GHz Polarity: Vertical EUT: Notebook Power: AC 120V/60Hz Test Mode: Transmit by 802.11b at Channel 2462MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2460.640 95.250 62.931 N/A N/A 32.319 PK 2 2483.500 56.679 24.304 -17.321 74.000 32.375 PK 3 2492.224 59.052 26.697 -14.948 74.000 32.355 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) Report No.: 2002RSU005-U3 72 of 102 Site: AC2 Time: 2020/02/03 - 14:40 Limit: FCC_Part15.209_RE(3m) Engineer: Lewis Huang Probe: BBHA9120D_1-18GHz Polarity: Vertical EUT: Notebook Power: AC 120V/60Hz Test Mode: Transmit by 802.11b at Channel 2462MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2461.072 91.587 59.268 N/A N/A 32.319 AV 2 2483.500 44.561 12.186 -9.439 54.000 32.375 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) Report No.: 2002RSU005-U3 73 of 102 Site: AC2 Time: 2020/02/03 - 14:41 Limit: FCC_Part15.209_RE(3m) Engineer: Lewis Huang Probe: BBHA9120D_1-18GHz Polarity: Horizontal EUT: Notebook Power: AC 120V/60Hz Test Mode: Transmit by 802.11g at Channel 2412MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 2389.856 65.115 32.630 -8.885 74.000 32.485 PK 2 2390.000 63.165 30.680 -10.835 74.000 32.485 PK 3 * 2415.000 110.554 78.047 N/A N/A 32.507 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) Report No.: 2002RSU005-U3 74 of 102 Site: AC2 Time: 2020/02/03 - 14:43 Limit: FCC_Part15.209_RE(3m) Engineer: Lewis Huang Probe: BBHA9120D_1-18GHz Polarity: Horizontal EUT: Notebook Power: AC 120V/60Hz Test Mode: Transmit by 802.11g at Channel 2412MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.000 50.251…

Text truncated - open the document above for the full version.

Return Loss and Impedance Indicated By Head Tissue Meas. Items Original Value Current Value Deviation Return Loss(dB) -28.040 -32.17 -14.73% Impedance 53.281Ω + 2.445jΩ 50.10Ω + 2.47jΩ -3.181Ω Real part 0.025Ω Imaginary part Test Date: 2019/05/13 Return Loss and Impedance Indicated By Body Tissue Meas. Items Original Value Current Value Deviation Return Loss(dB) -28.157 -28.15 -0.01% Impedance 49.783Ω + 3.897jΩ 47.56Ω + 2.96jΩ -2.223Ω Real part -0.937Ω Imaginary part Test Date: 2019/05/13

Report No.: 2002RSU005-UT 1 of 3 RF Test Setup Photograph Description: Front View of the Conducted Emission Test Setup for 0.15MHz ~ 30MHz Description: Back View of the Conducted Emission Test Setup for 0.15MHz ~ 30MHz Report No.: 2002RSU005-UT 2 of 3 Description: Radiated Emission Test Setup for below 1000MHz Description: Radiated Emission Test Setup for above 1000MHz Report No.: 2002RSU005-UT 3 of 3 SAR Test Setup Photograph Description: Body Bottom with 0mm gap
