A2HRS3965SB5 CD Mini System

CD2965SB 500W 5-CD Mini System with Bluetooth Receiver User manual It's important to read this instruction prior to using your new product for the fi rst time. WARNING: TO PREVENT FIRE OR ELECTRICAL SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED MAY RESULT IN HA ZARDOUS RADIATION EXPOSURE. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORREC TLY REPL ACED. REPL ACE ONLY WITH THE SAME OR EQUIVALENT TYPE. WARNING: MAINS PLUG IS USED AS DISCONNECT DEVICE AND IT SHOULD REMAIN READILY OPERABLE DURING INTENDED USE. IN ORDER TO DISCONNECT THE MAINS PLUG FROM MAINS CO M PLE T ELY, T H E M AI NS PLU G SH O U LD B E DISCONNECTED FROM THE MAINS SOCKET OUTLET COMPLETELY. Caution: This product utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified may result in hazardous radiation exposure. Do not open covers and do not repair yourself. Refer servicing to qualified personnel. This product contains a low power laser device. T H E LI G H T N I N G FL A S H A N D A R R OW H E A D W I T H I N T H E T R I A N G LE I S A WA R N I N G S I G N A LE R T I N G YO U O F "DANGEROUS VOLTAGE" INSIDE THE PRODUCT. SEE MARKING ON BOTTOM / BACK OF PRODUCT THE EXCLAMATION POINT WITHIN THE TRIANGLE I S A WA R N I N G S I G N A LE R T I N G YO U O F I M P O R TA N T INSTRUCTIONS ACCOMPANYING THE PRODUCT. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. FCC information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This Class B digital apparatus complies with Canadian ICES-003. Safety Precautions - 1 - IMPORTANT SAFETY INSTRUCTIONS Some of the following information may not apply to your particular product; however, as with any electronic product, precautions should be observed during handling and use. • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. • Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. • Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fi t into your outlet, consult an electrician for replacement of the obsolete outlet. • Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. • Only use attachments / accessories specifi ed by the manufacturer. • Use only with the cart, stand, tripod, bracket, or table specifi ed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. • Unplug this apparatus during lightning storms or when unused for long periods of time. • Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. ADDITIONAL SAFETY INFORMATION • Apparatus shall not be exposed to dripping or splashing and no objects fi lled with liquids, such as vases, shall be placed on the apparatus. • Always leave sufficient space around the product for ventilation. Do not place product in or on a bed, rug, in a bookcase or cabinet that may prevent air fl ow through vent openings. • Do not place lighted candles, cigarettes, cigars, etc. on the product. Portable Cart Warning • Connect power cord only to AC power source as marked on the product. • Care should be taken so that objects do not fall into the product. • Do not attempt to disassemble the cabinet. This product does not contain customer serviceable components. • Main plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should b…

Text truncated - open the document above for the full version.

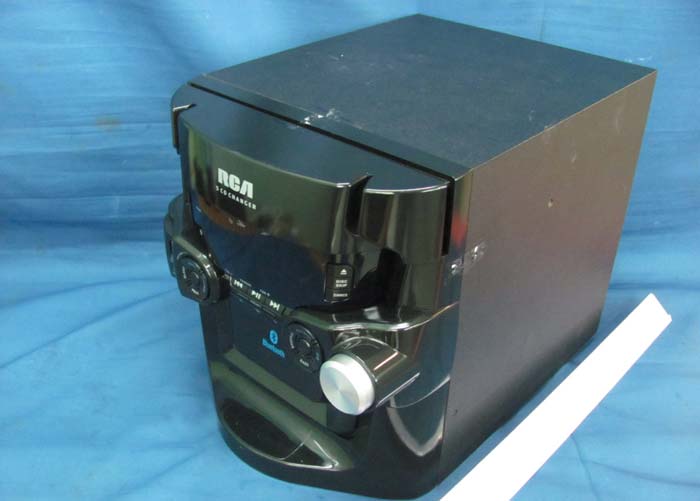

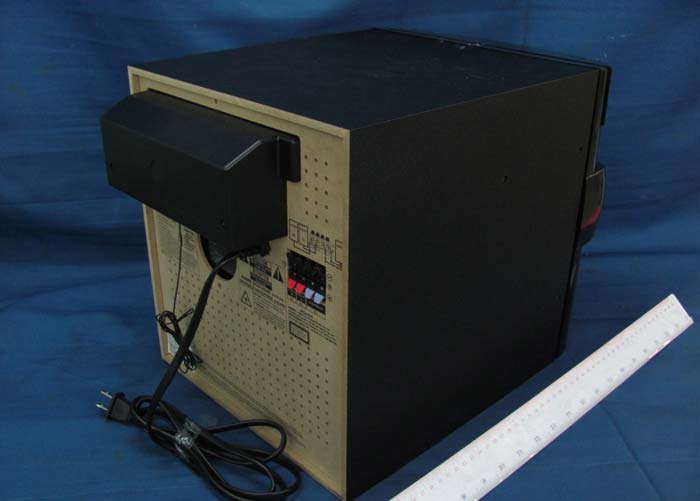

INTERTEK TESTING SERVICE Report No.: HK12060155-1 FCC ID: A2HRS3965SB Equipment Photographs Model : CD2965SB (External) INTERTEK TESTING SERVICE Report No.: HK12060155-1 FCC ID: A2HRS3965SB Equipment Photographs Model : CD2965SB (External)

ATTENTION: Radiation invisibles du laser en cas d'ouverture et de défaillance ou de mise hors service du dispositif de verrouillage. Eviter toute exposition directe au faisceau. CAUTION: Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam. AM LOOP CD2965SB(RS3965SB) Spec information for FCC ID application Date:2012-06-19 Revised CD2965SB SPEC INFORMATION SIZE: 67x56mm Print: Black on Wooden Scale: 100% RS3965SB This Class B digital apparatus complies with Canadian ICES-003. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. PRODUCT COMPLIES WITH DHHS RULES 21CFR SUBCHAPTER J , APPLICABLE AT DATE OF MANUFACTURE. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Made in China Fabriqué en Chine Fabricado en China AVC Multimedia Markham, Ontario L3R 1E3 AC 120V 60Hz 240W 5 CD Mini System USB terminal: 5V 500mA FCC ID: A2HRS3965SB FCC ID: A2HRS3965SB Scale: 100% This Class B digital apparatus complies with Canadian ICES-003. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. PRODUCT COMPLIES WITH DHHS RULES 21CFR SUBCHAPTER J , APPLICABLE AT DATE OF MANUFACTURE. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Made in China Fabriqué en Chine Fabricado en China Venturer Electronics Inc. Markham, Ontario L3R 1B8 AC 120V 60Hz 240W 5 CD Mini System USB terminal: 5V 500mA RS3965SB This Class B digital apparatus complies with Canadian ICES-003. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. PRODUCT COMPLIES WITH DHHS RULES 21CFR SUBCHAPTER J , APPLICABLE AT DATE OF MANUFACTURE. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Made in China Fabriqué en Chine Fabricado en China AVC Multimedia Markham, Ontario L3R 1E3 AC 120V 60Hz 240W 5 CD Mini System USB terminal: 5V 500mA FCC ID: A2HRS3965SB

INTERTEK TESTING SERVICE Report No.: HK12060155-1 FCC ID: A2HRS3965SB Equipment Photographs Model: CD2965SB (Internal) INTERTEK TESTING SERVICE Report No.: HK12060155-1 FCC ID: A2HRS3965SB Equipment Photographs Model: CD2965SB (Internal) INTERTEK TESTING SERVICE Report No.: HK12060155-1 FCC ID: A2HRS3965SB Equipment Photographs Model: CD2965SB (Internal) INTERTEK TESTING SERVICE Report No.: HK12060155-1 FCC ID: A2HRS3965SB Equipment Photographs Model: CD2965SB (Internal) INTERTEK TESTING SERVICE Report No.: HK12060155-1 FCC ID: A2HRS3965SB Equipment Photographs Model: CD2965SB (Internal) INTERTEK TESTING SERVICE Report No.: HK12060155-1 FCC ID: A2HRS3965SB Equipment Photographs Model: CD2965SB (Internal) INTERTEK TESTING SERVICE Report No.: HK12060155-1 FCC ID: A2HRS3965SB Equipment Photographs Model: CD2965SB (Internal) INTERTEK TESTING SERVICE Report No.: HK12060155-1 FCC ID: A2HRS3965SB Equipment Photographs Model: CD2965SB (Internal) INTERTEK TESTING SERVICE Report No.: HK12060155-1 FCC ID: A2HRS3965SB Equipment Photographs Model: CD2965SB (Internal) INTERTEK TESTING SERVICE Report No.: HK12060155-1 FCC ID: A2HRS3965SB Equipment Photographs Model: CD2965SB (Internal)

Technical Description The 5CD Mini System with Bluetooth function contains a pair of stereo speaker, a subwoofer, a AM/FM tuner and a 5 CD changer/player. The system also supports Aux (RCA) input and Line (3.5mm jack) input. The Mini System features Bluetooth wireless audio playback. The audio signal can be sent from Bluetooth devices such as mobile phone, when a Bluetooth device is pairing to the Mini System. A USB port is equipped for charging only (without USB connectivity function). The Mini System is powered by 120AC mains. Modulation Type: GFSK, π ππ π/4 –PSK and 8-DPSK Antenna Type: Integral Integral (PCB Trace) Frequency Range: 2402MHz - 2480MHz, 1MHz channel spacing, 79 channels The function of main IC is mentioned as below. 1. BT module: 1) BT1 (BM21SPK01) acts as Bluetooth module integrating with audio CODEC. 2) L1acts as antenna matching network. 3) X1 provides system clock (oscillation frequency 16MHz) . 2. module: 1) U002 (DSP M5671) and U001 (SDRAM) act as DSP module for the 5 CD changer. 2) U006 (AM5766) acts as the servo controller of the 5 CD changer. 3. D module 1) IC701 (PT6315) acts as VFD display (DS701) driver and keyboard control interface. 4. AM/FM module: 1) U10 (SI 4730) acts as AM/FM receiver 5. EQ module 1) IC401 (TDA7440D) acts as EQ / Volume preamplifier 2) IC402 (YD4052) acts as input channel selector. 6. Amplifier 1) IC 803 (TDA7292) acts as subwoofer power amplifier 2) IC501 and IC502 (TDA7296) act as stereo speaker power amplifiers Preliminary Datasheet BM21SPK01
4F,
No.8,
Dusing
Rd.,
Hsinchu
Science
Park,
Hsinchu
city
30078,
Taiwan,
R.O.C






























Version:0.9


































Phone:
886%3%577%8385

















































































5/23/2011


















































































Fax:
886%3%577%8501
BM21SPK01 Bluetooth 2.1+EDR Wireless Speaker Module Preliminary Datasheet BM21SPK01 Version: 0.9 - 2 - 5/23/2011 Product Description The
ISSC
BM21SPK01
is
a
highly
integrated
Bluetooth
2.0/2.1+EDR
stereo
module,
designed
for
high
data
rate,
short%range
wireless
communication
in
the
2.4
GHz
ISM
band.
With
ISSC
Bluetooth
stack
and
profile,
the
ISSC
BM21SPK01
provides
a
low
power
and
ultra%low
cost
Bluetooth
2.1+EDR
solution
for
wireless
voice/audio
applications.
Features

Main
Chip:
ISSC
IS1621N


Bluetooth
2.1+EDR
compliant


Typical
+2dBm
Class
2
output
power


Receiver
Sensitivity:
GFSK
typical
%90dBm,
π/4
PSK
typical
%90dBm,
8DPSK
typical
%83dBm



Piconet
and
Scatter
net
support


HCI
UART
interface


CVSD,
A%law,
μ%law
CODEC
algorithms
for
voice
applications


SBC
decode
for
Bluetooth
stereo
streaming


Build%in
High
performance
stereo
codec


Cap%less
headphone
driver


Audio
DAC:
93dB
SNR



HSP,
HFP,
A2DP,
AVRCP
profile
support


3.3V
operating
voltage


ROM
version:
32Kb
EEPROM
/
Flash
version:
Build
in
4Mb
Flash



Size:
17mm
x
23.3mm


External
Antenna


RoHS
compliant

Preliminary Datasheet BM21SPK01 Version: 0.9 - 3 - 5/23/2011 Device Pinout Diagram
P16 39 P12 20 AOHPM 8 RST 19 VDD_IO 22 P23 17 MIC1_P 14 P20 2 SPKL+ 9 P00 3 EAN 6 MIC2_N 13 P31 1 HCI_RXD 38 P24 32 +3V3 28 SYS_PWR 26 P22 33 BAT_IN 25 AUDIO
GND 10 P05 36 P04 4 P13 21 P30 40 P35 5 BK_OUT 23 ADAP_IN 24 MFB 29 MIC1_N 15 MIC2_P 12 GND 41 BT_RF 42 SPKR+ 7 MIC_BIAS 16 HCI_TXD 37 P27 35 LED1 30 P15 18 P02 34 GND 27 3V1_C 11 LED2 31 Preliminary Datasheet BM21SPK01 Version: 0.9 - 4 - 5/23/2011 Pin Definition Pin
No.
Pin
Name
Description
1
P31
Programmable
I/O
line
2
P20
Programmable
I/O
line
3
P00
Programmable
I/O
line
4
P04
Programmable
I/O
line
5
P35
Programmable
I/O
line
6
EAN
Embedded
ROM/External
Flash
enable
H:
Embedded;
L:
External
Flash
7
SPKR+
Speaker
output
right
channel
+
8
AOHPM
Virtual
ground
for
SPKR+
and
SPKL+
9
SPKL+
Speaker
output
left
channel
+
10
AUDIO
GND
Audio
ground
11
3V1_C
Internal
LDO
3.1V
output
voltage
for
Audio
12
MIC2_P
MIC
2
input
+
13
MIC2_N
MIC
2
input
%
14
MIC1_P
MIC
1
input
+
15
MIC1_N
MIC
1
input
%
16
MIC_BIAS
MIC
bias
voltage
output
17
P23
Programmable
I/O
line
18
P15
Programmable
I/O
line
19
RST
Reset
20
P12
Programmable
I/O
line
21
P13
Programmable
I/O
line
Preliminary Datasheet BM21SPK01 Version: 0.9 - 5 - 5/23/2011 Pin
No.
Pin
Name
Description
22
VDD_IO
3V1
IO
input

23
BK_OUT
Internal
voltage

24
ADAP_IN
5V
Adapter
input
25
BAT_IN
Li
–
Battery
Input

26
SYS_PWR
System
Power
Output
Voltage
27
GND
GROUND
28
+3V3
3V3
Input
Voltage
29
MFB
Multi
Function
Key
30
LED1
LED
output
31
LED2
LED
output
32
P24
Programmable
I/O
line
33
P22
Programmable
I/O
line
34
P02
Programmable
I/O
line
35
P27
Programmable
I/O
line
36
P05
Programmable
I/O
line
37
HCI_TXD
UART
data
output
38
HCI_RXD
UART
data
input
39
P16
Programmable
I/O
line
40
P30
Programmable
I/O
line
41
GND
Ground
42
BT_RF
RF
port
Preliminary Datasheet BM21SPK01 Version: 0.9 - 6 - 5/23/2011 Outline Dimension Preliminary Datasheet BM21SPK01 Version: 0.9 - 7 - 5/23/2011 AMP_L+ C29 0.1u/16V + C36 100u/16V 1 2 ADAP_IN P15 P20 C10 220p/50V Play/Pause FB2 GSMA201209 1 2 BAT_IN MFB MIC1_N AMP_R+ Audio Amp. Enable VDD_IO SW1PT%6038N 1 2 C1939p/50V APPLICATION ISET MFB R200R5 1 2 VBUS D-D+ID GND P2MINI%B 1 2 3 4 5 6 7 8 9 C20 0.047u/25V TP8 1 3V3 HCI_RXD APPLICATION BAT_IN D2LED%HR 1 2 P16 AMP_L+ ISET MAIN CIRCUIT ISSC
BT
STEREO
SPEAKER
PHONE
APPLICATION ISSC
Technologies
Corp. ADD.


4F,
No.8,
Dusing
Rd.,
Hsinchu
Science
Park, Hsinchu
City
30078,
Taiwan TEL.


886%3%5778385 C 1 1 Thursday,
May
12,
2011 Board
Name Size Title Rev Date: Sheet of P/N C5 10u/6.3V MIC_P1 P23 SW3PT%6038N 1 2 SPKL+ SW4PT%6038N 1 2 TP10 1 Volume - P27 SW5PT%6038N 1 2 P15 SPEAKER OUTPUT PATH MFB P23 C240.1u/16V C14 4.7u/10V D3 SPE0572 2 1 P00 P35 R253K3 1 2 C2 NP%0402 TP5 1 BAT_IN C324.7u/10V D13 SPE0572 2 1 P2_0 *Charge Curr…

Text truncated - open the document above for the full version.

AMP PORTION 2/3 CD2965SB MAIN PP120221A CD2965SB 1;1 A4 1 W.H WongK.L Cheung Li Lin COMPANY CHOP: PREPARED BY:CHECKED BY:APPROVED BY:RELEASED DATE: DATE:DATE:DATE: TITLE: MODEL NO.:CUSTOMER&MODEL NO.:SHEET: DRAWING NO.:PRODUCT NAME: REV:SIZE:SCALE: ALCO ELECTRONICS LIMTIED ALCO CONFIDENTIAL 2012/02/212012/02/212012/02/21 SPEAKER SYSTEM RS3965SB CD2787iE10 OPEN 50mA 1 STAND-BYGND 2 INV-INPUT 3 NON-INV-INPUT 4 SUR 5 N.C.5 6 BOOTSTRAP 7 +VS(SINGNAL) 8 -VS(SINGNAL) 9 STAND-BY 10 MUTE 11 N.C.11 12 N.C.12 13 +VS(POWER) 14 OUT 15 -VS(POWER) IC501 TDA7296 1 STAND-BYGND 2 INV-INPUT 3 NON-INV-INPUT 4 SUR 5 N.C.5 6 BOOTSTRAP 7 +VS(SINGNAL) 8 -VS(SINGNAL) 9 STAND-BY 10 MUTE 11 N.C.11 12 N.C.12 13 +VS(POWER) 14 OUT 15 -VS(POWER) IC502 TDA7296 R500L 10K0 R520L 10K0 C522L 1N0F C915 470P0F R521L 18K0 C550L 470P0F C502L 100F R507L 22K0 C914 10N0F C913 10N0F + C509L 10V 100U0F R503L 620R0 R521R 18K0 R500R 10K0 R520R 10K0 C550R 470P0F C500R 4N7F C502R 100F R507R22K0 C500L 4N7F + C537 25V 22U0F ES1 100N0F ES2 100N0F R501L 22K0 D502R IN4148 R501R 22K0 C501L3P0F C501R 3P0F C520 100N0F EC2 470N0F RE23R9 C909 10N0F + C540 50V 220U0F R510L10R0 L510L 1MM C505L 1N0F R512L 4R7 C518L 100N0F C518R100N0F C505R1N0F R512R 4R7 C910 10N0F + C53950V 220U0F C521R220N0F EC1 470N0F RE13R9 C521L 220N0F R90222K0 R90122K0 R506R22K0 D901 IN4148 Q901 KTC3875GR Q902 KTC3875GR R904 4K7 R506L 22K0 D502L IN4148 D806 IN4148 D805 IN4148 R80122K0 R80322K0 R503 10K0 R504 1K0 R50510K0 R509 10R0 Q503 KTC3875GR Q502 KTA1271Y R517 3K0 R51682R0 R51839K0 Q507 KTC3875GR C525R 10N0F C525L10N0F C878R10N0F C878L10N0F 12 N502 15263748 NJ501 R511 2K2 D515 IN4148 R502 470R0 D504 IN5221B D501 IN5231B C502 100P0F R510 1K0 Q501 KTC3875GR D513 BZX55C7V5 R534 4K7 Q509 KTC3875GR R53312K0 R532 1K5 D503 IN4148 R890 2K2 R52533K0 R52910K0 + C53450V10U0F + C536 50V 10U0F EC3 100U0F C916 470P0F C522R 1N0F + C509R 10V 100U0F R503R 620R0 C912 10N0F C911 10N0F + C538 25V 22U0F ES4 100N0F 1 IN 3 ADJ/GND 2 OUT IC503 LM317P D510 IN5392 C807100N0F + C516 25V 22U0F R521 300R0 R520 2K0 + C515 25V 47U0F + C514 25V 2MI2F D512 IN5392 D821 IN4001 D509 IN5392 D511 IN5392 1 2 F505 D820 BZX85C27 D885 BZX55C7V5 R885 10K0 + C806 35V 100U0F R886 100R0 R888 1R0 + C805 35V 100U0F R889 1R0 D822 IN4001 12345 N801B R530 4K7 C541 100N0F D505 6A4 C544 100N0F D507 6A4 C545 100N0F D506 6A4 C543 100N0F D508 6A4 C546 100N0F + C513 50V 3300MFD 1 2 F504 T5AL/250V C841 100N0F C842 100N0F D803 IN5402 D804 IN5402 12 F801 T4AL/250V 12 F802 T4AL/250V 1 2 F503 T5AL/250V C843 100N0F C844 100N0F D801 IN5402 D802 IN5402 + C813 35V 2MI2F + C812 35V 2MI2F C846 100N0F C845100N0F J2 J1 R510R 10R0 L501R 1MM R58010K0 D516 IN4148 R38710K0 R531 4K7 12345 CN801 1 23 Q504 DTC323TK 1 23 Q508 DTC3237K 1 23 Q506 DTC323TK + C901 25V 47U0F + C50325V47U0F R90622K0 R90522K0 + C512 50V 3300MFD D8802 D8804 D8801 D8803 + C8804 47U0F 1 2 4 3 RLY801 + C8803470UF 1 L 1 R Q8801 KTC3203 R8801 10K0 D8805 R8804 4K7 R8803 4K7 Q8802 KTC3203 C8802 4N7F JP802 C8801 4N7F D8806 JP801 85 14 6 T801 3 4 1 2 L801 R8802 0 12 CN802 D814L Q811 KRC107S R800 0 R528 10K + C810L C906L 100NF 7 IN+(2) 9 GND 11 IN+(1) 1 -VS1 6 -VS6 8 IN-(2) 4 OUT(2) 10 IN-(1) 2 OUT(1) 3 +VS 5 MUTE IC803 TDA7292 R805L1 22K C840L1 331 L801L1 6U5H R807L1 10E R805R1 22K C840R1 331 + C804L1 25V 22UF + C62 25V2200UF C80 103 R804L1 621 L801R1 6U5H R807R1 10E + C804R1 25V 22UF R804R1 621 R806L1 4R7 C877L1 224 C805L1 104 R806R1 4R7 C877R1 224 C805R1 104 C802L1 105 C802R1 105 C803R1 471 R803R1 33K C803L1 471 R803L1 33K R24 3K9 R25 3K9 + C83 25V 2200UF C85 471 R43 15K + C86 25V 1UF R59 100k R698K2 Q3 KCT3875 R92 33K C878R1 103 C878L1 103 ES3 104 AGND AUDIO-R AUDIO-L AGND DNG2 DNG2 DNG2 DNG2 DNG2 AGND DNG2 AGND H/P_IN MUTE AMP_MUTE MUTE_A +8V AGND DNG2 FIL+ -30V FIL- AGND +8V DGN2 AGND 8C_R PROTECT 8C +12V +8V AMP_MUTE AGND L R MAIN_R MAIN_L DNG2 AGND DNG2 AGND +VCC-VCC MAIN-L MAIN-R DNG2 7C AGND DC-PROTECTION +8V DNG2 AGND +15V GND GND GND AGND AGND ECO/STBLED DSP+8V +8V MAIN-L -VCC MAIL-R AUDIO-R AUDIO-L +VCC MUTE-A 3/3 SERVO PORTION RS3965SB SPEAKER SYSTEM 2012/02/212012/02/212012/02/21 ALCO CONFIDENTIAL ALCO ELECTRONICS LIMTIED SCALE:SIZE:REV: PRODUCT NAME:DRAWING NO.: SHEET:CUSTOMER&MODEL NO.:MODEL NO.: TITLE: DATE:DATE:DATE: RELEASED DATE:APPROVED BY:CHECKED BY:PREPARED BY: COMPANY CHOP: Li Lin K.L CheungW.H Wong 1 A4 1;1 CD2965SB CD2965SB MAIN PP120221A TPDDAUS1 CN002 CN005 SDRAM RAB 1 0 LCM IS LOW LCM IS HIGH ACTIVE ACTIVE Ipod interfarce 5 RF PUH CHOOSE SANYO SONY SAMSUNG R086 R087 33KR086 R087 0 Internal flash only(default) External flash only both Internal and External serial flashExternal flash major INTERNAL MCU MODE RA6 RA5 1 1 0 00 0 1 1 1 FOO 2 TRC 3 MDI 4 LDO 5 TP1 6 TP2 7 MC 8 MB 9 MD 10 MA 11 AVDD33-2 12 HAVC 13 V12 14 AVSS33-2 15 TELP 16 MPXOUT1 17 MPXOUT2 18 MPXOUT3 19 COSP 20 COSN 21 AVDD33-3 22 VTB 23 VTP 24 AVSS33-3 25 AVDD33-DC 26 DC-L 27 ADVSS33-DC 28 V18-GD 29 AVDD33-CKG 30 XYALI 31 XTALO 32 AVSS33-CKG 33 AVDD10-1 34 AVSS18-1 35 ALOUT 36 AVDD18-PA 37 AVSS18-PA 38 AROUT 102 PRSTB 101 LCDRS 100 LCDDB[7] 99 LCDDB[6] 98 LCDDB[5] 97 LCDDB[4] 96 LCDDB[3] 95 LCDDB[2] 94 LCDDB[1] 93 LCDDB[0] 92 RA[4] 91 RA[5] 90 RA[6] 89 RA[7] 88 DVDD18-2 87 DVSS18-2 86 RA[8] 85 RA[9] 84 RA[11] 83 RCKE 82 RSDCLK 81 RD[3] 80 RD[2] 79 RD[1] 78 RD[0] 77 RD[4] 76 RD[5] 75 RD[6] 74 RD[7] 73 ROQMH 72 ROQML 71 RCSB 70 RWEB 69 PCASB 68 RRASB 67 RA[10] 66 RA[0] 65 RA[1] 103 DVSS33-1 104 DVDD33-1 105 LCDCS 106 LCDRD-SID 107 LCDWR-SCLK 108 LEDCTRL 109 BTCHK[0] 110 BTCHK[1]/UP1-4 111 BTCK[2]/UP1-5 112 BTCK[3]/UP1-6 113 PD-MUTE3/UP3-5 114 PD-MUTE2/UP3-4 115 PD-MUTE1/UP3-3 116 PD-OFF/UP1-7 117 DVDD18-1 118 DVSS18-1 119 AVDD-D33 120 BTNADIN1 121 BTNADIN2 122 BTNADIN3 123 BRY-ADIN 124 FM0 125 AVDD33-1 126 DM0 127 AVSS33-1 128 GPWM 64 DVSS33-2 63 DVDD33-2 62 RA[2] 61 RA[3] 60 URTX/UP3-0 59 URTX/UP3-1 58 SFSCK 57 SFDB 56 SFD1 55 SFD0 54 DVDD18-3 53 DVSS18-3 52 12SWCK 51 12SSD 50 12SBCK 49 IICCK 48 IICSD 47 ADG0 46 JLOADB 45 FMINL 44 AVSS33-AUD 43 FMINR 42 DACVREF 41 ADACLOUT 40 AVDD33-AUD 39 A…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Report No.: HK12060155-1 Sample No.: 1/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 249 Requirement (Pass/Fail)

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK12060155-1 ALCO Electronics Ltd. Application For Certification (Original Grant (FCC ID: A2HRS3965SB) Transceiver Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Engineer Chan Chi Hung, Terry Assistant Supervisor Date: June 20, 2012 INTERTEK TESTING SERVICES Report No.: HK12060155-1 FCC ID: A2HRS3965SB i GENERAL INFORMATION ALCO Electronics Ltd. BRAND NAME: VENTURER / RCA MODEL: CD2965SB / RS3965SB FCC ID: A2HRS3965SB Grantee: ALCO Electronics Ltd. Grantee Address: 11/F., Zung Fu Industrial Building, 1067 King’s Road, Quarry Bay, Hong Kong. Contact Person: Peggy Suen Tel: 852-2562 6121 Fax: 852-2597 5201 e-mail: [email protected] Manufacturer: Dongguan Houjie Alco Electronics General Factory Manufacturer Address: The 3 rd Industrial District, Houjie, Dongguan, Guangdong, P.R.C. Brand Name: VENTURER / RCA Model: CD2965SB / RS3965SB Type of EUT: Transceiver Description of EUT: 5 CD Mini System Serial Number: N/A FCC ID: A2HRS3965SB Date of Sample Submitted: June 04, 2012 Date of Test: June 11, 2012 Report No.: HK12060155-1 Report Date: June 20, 2012 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK12060155-1 FCC ID: A2HRS3965SB ii SUMMARY OF TEST RESULT ALCO Electronics Ltd. BRAND NAME: VENTURER / RCA MODEL: CD2965SB / RS3965SB FCC ID: A2HRS3965SB TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Antenna Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.6 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.4 N/A Transmitter Field Strength 15.227 / RSS-310 3.8 N/A Transmitter Field Strength 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 Pass Transmitter Field Strength and Bandwidth Requirement 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Emissions 15.109 / RSS-210 2.5 N/A Digital Device Conducted Emissions 15.107 / ICES-003 Pass Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK12060155-1 FCC ID: A2HRS3965SB iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification................................................................................................... 2 2.2 EUT Exercising Software .............................................................................. 2 2.3 Special Accessories...................................................................................... 2 2.4 Equipment Modification................................................................................. 2 2.5 Measurement Uncertainty ............................................................................. 2 2.6 Support Equipment List and Description........................................................ 2 3.0 Emission Results ........................................................................................... 3 3.1 Field Strength Calculation ............…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Report No.: HK12060155-1 Sample No.: 1/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Conducted Emission Plot – Pursuant to FCC Part 15 Requirement (Pass/Fail)

INTERTEK TESTING SERVICE Report No: HK12060155-1 FCC ID: A2HRS3965SB i Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) Model: CD2965SB INTERTEK TESTING SERVICE Report No: HK12060155-1 FCC ID: A2HRS3965SB ii Configuration Photographs Worst-Case Line-Conducted Emissions (Side View) Model: CD2965SB INTERTEK TESTING SERVICE Report No: HK12060155-1 FCC ID: A2HRS3965SB iii Configuration Photographs Worst-Case Line-Conducted Emissions (Rear View) Model: CD2965SB

INTERTEK TESTING SERVICE Report No: HK12060155-1 FCC ID: A2HRS3965SB Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: CD2965SB HK12060155-1 CD2965SB side A INTERTEK TESTING SERVICE Report No: HK12060155-1 FCC ID: A2HRS3965SB Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: CD2965SB HK12060155-1 CD2965SB side B
