A2HRTS7220BSound Bar with Bluetooth

Home Theater Sound Bar RTS7220B User Manual Safety Precautions It is important to read this user manual prior to using your new product for the first time. FCC InFormatIon This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. For CuStomerS In Canada This apparatus complies with the Class B limits for radio noise emission set out in radio interference regulations. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Warning: • The AC adapter is used as disconnect device and it should remain readily operable during intended used. In order to disconnect the unit from the mains completely, the AC adapter should be disconnected from the mains socket outlet completely. • The AC adapter of unit should not be obstructed OR should be easily accessed during intended use. • Minimum 10 cm (4 inches) distances around the unit for sufficient ventilations. • The ventilation should not be impeded by covering the ventilation openings with items such as newspaper, table-cloths, curtains, etc. • No naked flame sources such as lighted candles should be placed on the unit. on SaFety • Should any objects or liquids fall into the unit, disconnect the power supply and have the unit checked by qualified personnel before any further operation. • The unit shall not be exposed to dripping or splashing and that no objects filled with liquid, such as vases, shall be placed on the unit. on uSe Never use the unit where it would be subject to: - Heat sources such as radiators or air ducts. - Direct sunlight. remote Control 1 . MUTE button 2. BLUETOOTH button 3. VOL / button / / button 4. AUX 1 button 5. BASS / button 6 . button 7. LINE IN button 8. AUX 2 button 9. TREBLE / button 10 SOURCE / button accessories Remote control (with 2 x AAA batteries) ..........................................................................x 1 AC power adapter .....................................................................................................................x 1 Audio Cable ................................................................................................................................ x 1 Please locate the included accessories. To order replacement units, visit http://www.RCAav.com remote Control Sound bar location of Controls 1. STANDBY/ON button 2. SOURCE button 3. BLUETOOTH / LEVEL indicator 4. AUX 1 / LEVEL indicator 5. AUX 2 / LEVEL indicator 6. LINE IN / LEVEL indicator 7. VOLUME / button 8. LINE IN 3.5mm jack 9. AUX 2 L / R jack 10. AUX 1 L / R jack 11. DC IN jack 12. Remote Sensor Placement Connections basic operation bluetooth Pairing AVC MULTIMEDIA (“AVC”) makes the following limited warranty. This limited warranty extend to the original consumer purchaser and is limited to non-commercial use of the product. one year Parts & labor Warranty AVC products purchased in the United States are warranted to be free from defects in materials or workmanship for a period of one year from the date of their original retail purchase. If the unit fails to conform to this warranty, we will service the product using new or refurbished parts and products, at AVC’s sole discretion. During a period of one year from the effective warranty date, AVC will provide, when needed, service labor to repair a manufacturing defect at its designated Service Center. To obtain warranty service in the United States, you must first call our Customer Support Center at 1-800-506-5746 or 1-877-252-6873, during the hours listed in the box below. The determination of service will be made by AVC Customer Support. PLEASE DO NOT RETURN YOUR UNIT TO AVC WITHOUT PRIOR AUTHORIZATION. New or remanufactured replacements for defective parts or products will be used for repairs by AVC at its designated Service Center for one year from the effective warranty date. Such replacement parts or products are warranted for an additional one year from the date of repair or replacement. The Customer will be required to ship the unit to the Service Center indicated at the time Customer Support is contacted to make the necessary repairs. The customer is responsible for all transportation charges to the service facility. Packaging and Shipping Instruction When you send the product to the AVC service facility you must use the original carton box and packing material or an equivalent as designated by AVC. lImIted Warranty your responsibility (1) You must retain the original sale receipt to provide proof of purchase. (2) These war…

Text truncated - open the document above for the full version.

SBT17220B(20120612).sch-2 - Wed Jul 25 12:59:53 2012 WLINK TECHNOLOGY LTD. Product Specification __________________________________________________________________________________ Page 2 of 10 Taiwan H/Q Add.: No.46, Aly. 108-3 , Ln. 445 , Sec. 2, Meishi Rd., Yangmei City, Taoyuan County 326, Taiwan (R.O.C.) Tel: +886-3-4811534 and cost and performance-optimized stereo headsets. The BT3GMD-A30P supports Bluetooth SIG-compliant wideband speech implementation to greatly enhance the audio quality with both PCs and cell phones. The BT3GMD-A30P supports the Bluetooth 3.0 standard, adding enhanced power control, simple and secure pairing, and enhanced inquiry response as value-added features for Bluetooth headsets. All major functional blocks required for a Bluetooth stereo headset, including switcher, charger, and stereo audio codec are The module includes EEPROM, crystal, and PCB antenna. Applications: ● High-End Stereo Wireless Headsets ● High-END Mono Headsets ● Hands-Free Car Kits ● Wireless Speakers Functional Block Diagram: Figure 1: BT3GMD-A30P Block Diagram

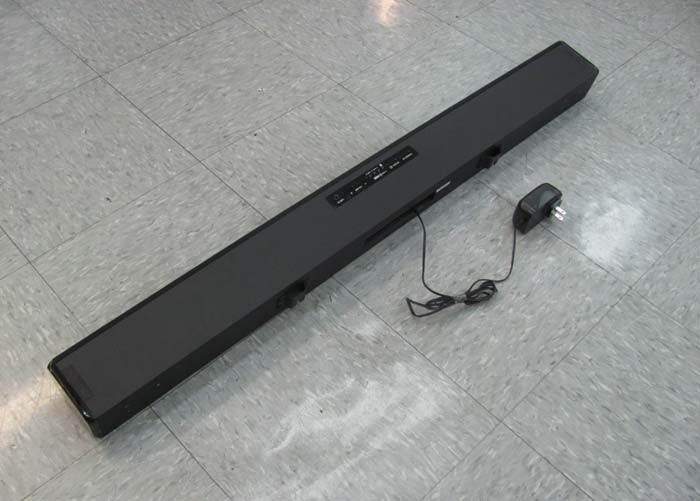

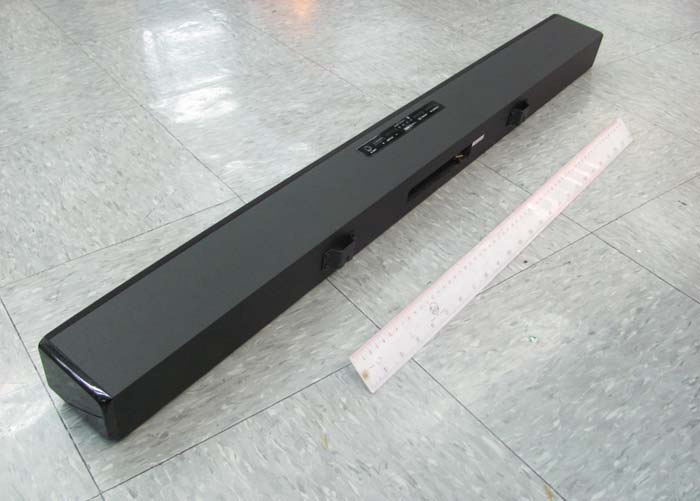

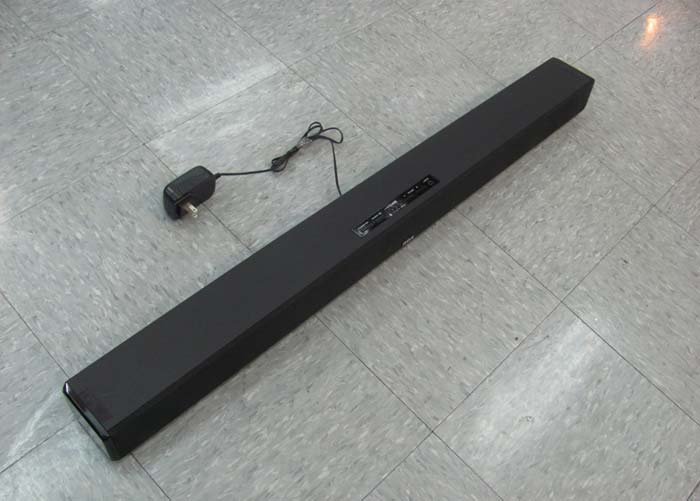

INTERTEK TESTING SERVICE Report No.: HK12061622-1 FCC ID: A2HRTS7220B IC: 9903A-RTS7220B Equipment Photographs Model : SBT17220B (External) INTERTEK TESTING SERVICE Report No.: HK12061622-1 FCC ID: A2HRTS7220B IC: 9903A-RTS7220B Equipment Photographs Model : SBT17220B (External) INTERTEK TESTING SERVICE Report No.: HK12061622-1 FCC ID: A2HRTS7220B IC: 9903A-RTS7220B Equipment Photographs Model : SBT17220B (External)

Letter size 1mm Letter size 1.5mm Label size 8cmX2.5cm Labels for FCC applicationJune 26, 2012June 27, 2012 (Rev.1)July 25, 2012 (Rev.2)July 28, 2012 (Rev.3) Label position spec label CARB label VENTURER SBT17220BRCA RTS7220B VENTURER SBT17110BRCA RTS7110B at the bottom of the unit RTS7110B SBT17110B Letter size1mm Letter size 1.5mm Letter size 1.5mm Label size 8cmX2.5cm

INTERTEK TESTING SERVICE Report No.: HK12061622-1 FCC ID: A2HRTS7220B IC: 9903A-RTS7220B Equipment Photographs Model: SBT17220B (Internal) INTERTEK TESTING SERVICE Report No.: HK12061622-1 FCC ID: A2HRTS7220B IC: 9903A-RTS7220B Equipment Photographs Model: SBT17220B (Internal) INTERTEK TESTING SERVICE Report No.: HK12061622-1 FCC ID: A2HRTS7220B IC: 9903A-RTS7220B Equipment Photographs Model: SBT17220B (Internal) INTERTEK TESTING SERVICE Report No.: HK12061622-1 FCC ID: A2HRTS7220B IC: 9903A-RTS7220B Equipment Photographs Model: SBT17220B (Internal) INTERTEK TESTING SERVICE Report No.: HK12061622-1 FCC ID: A2HRTS7220B IC: 9903A-RTS7220B Equipment Photographs Model: SBT17220B (Internal) INTERTEK TESTING SERVICE Report No.: HK12061622-1 FCC ID: A2HRTS7220B IC: 9903A-RTS7220B Equipment Photographs Model: SBT17220B (Internal)

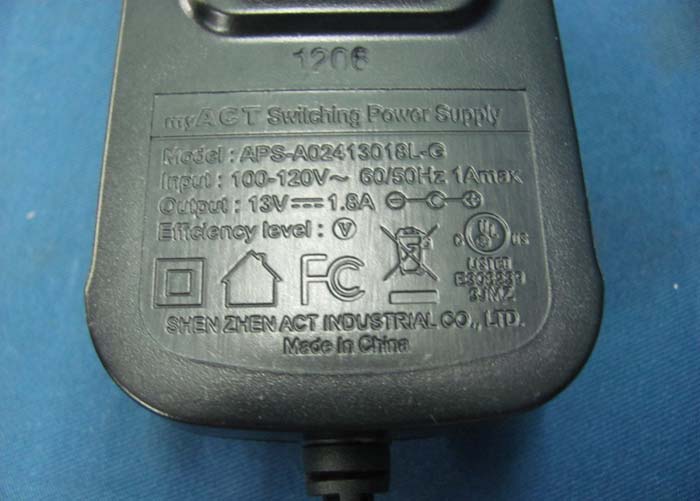

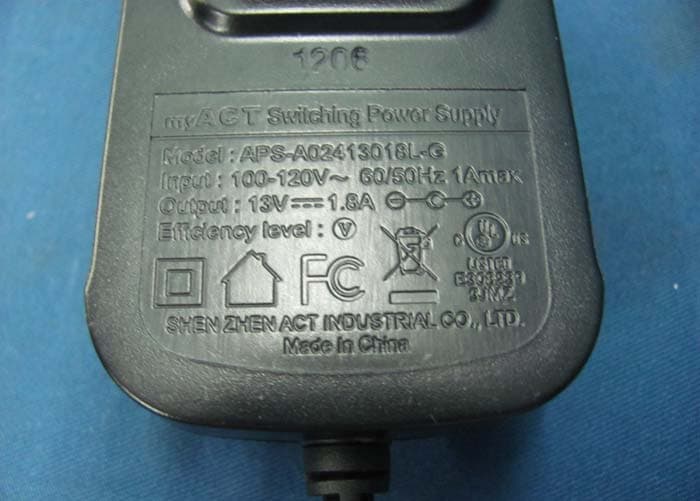

Technical Description The Equipment Under Test (EUT) is Sound Bar with Bluetooth which contains a pair of built-in stereo loudspeaker and power amplifier. It can accept both analog input sources (RCA aux-in and 3.5mm phone-jack line-in) and wireless Bluetooth device. The Bluetooth module in the EUT operating in the frequency range from 2402MHz to 2480MHz (79 channels with 1MHz channel spacing). The EUT is powered by 13VDC from an AC/DC adaptor. The AC/DC adaptor can accept 120VAC only. Bluetooth Module Modulation Type: GFSK RF output power setting = -8dBm Antenna Type: Integral, Internal (PCB Trace) Frequency Range: 2402MHz - 2480MHz, 1MHz channel spacing, 79 channels The functions of main ICs are mentioned below. 1. BlueTooth module (BT3GMD-A30P): 1) U100 (BCM20771) acts as the 2.4GHz radio core of Bluetooth module (BT3GMD-A30P) which is integrating with audio CODEC. 2) C6, C5, L4, C3, L2, C1 and C7 act as antenna matching network. 3) Y2 provides system clock (oscillation frequency 26MHz). 2. Pre-amplifier Module: 1) IC3 (CSC2314) acts as the pre-amplifier which manipulate/control the input audio signals for the power amplifier. The pre-amplifier has the features of: - input selector for switching audio sources (RCA, line-in and Bluetooth) - Volume control - 2 Band Tone control (bass, treble) 3. Amplifier Module: 1) IC1 (TDA7491) acts as the 2X10W class-D power amplifier for the built-in stereo speakers. 4. MCU module : 1) IC6 (BJ8F101M20A) acts as main MCU for system control. Channel Frequency Table of Bluetooth Module WLINK TECHNOLOGY LTD. Product Specification __________________________________________________________________________________ Page 1 of 10 Taiwan H/Q Add.: No.46, Aly. 108-3 , Ln. 445 , Sec. 2, Meishi Rd., Yangmei City, Taoyuan County 326, Taiwan (R.O.C.) Tel: +886-3-4811534 Features： Bluetooth 3.0 Audi o Module, Class 2 The BT3GMD-A30P offers the following features: ● A2DP1.2 using SBC decoder for streaming audio over Version: V1.0 Bluetooth and AVRCP 1.4 for remote control functionality Mar 2012 ● Configurable seven-band speaker equalization as well as ten presets allowing multiple music listening styles ● High quality 96 dB SNR DACs with 44.1 and 48 kHz sample rates for high-fidelity playback ● Single-chip Bluetooth 3.0 transceiver supporting Bluetooth 2.1 + Enhanced Data Rate (EDR) and Bluetooth 2.0, 1.2, and 1.1 backward compatibility ● Best-in -class Bluetooth radio with up to 8 dBm transmit power and -91dBm receive sensitivity ● Support for side tone and digital microphones ● Supports microphone and speaker HW equalization ● automatic volume control (AVC) ● Switching regulator, battery charger, and power management unit ● Supports fast charging, power dissipation monitoring, and optional charger voltage regulation ● Dual high quality 8 kHz and 16 kHz audio MIC inputs ● Multilanguage voice prompt ● Voice command recognition Product Description: The BT3GMD-A30P is a Bluetooth 3.0 Module solution integrating common components required for cost and performance-optimized stereo headset designs. The BT3GMD-A30P also delivers differentiating features including enhanced audio quality, reduced charging times, A2DP, and multipoint connections through the integration of various noise suppression technologies, noise and echo reduction headset, for high-end WLINK TECHNOLOGY LTD. Product Specification __________________________________________________________________________________ Page 2 of 10 Taiwan H/Q Add.: No.46, Aly. 108-3 , Ln. 445 , Sec. 2, Meishi Rd., Yangmei City, Taoyuan County 326, Taiwan (R.O.C.) Tel: +886-3-4811534 and cost and performance-optimized stereo headsets. The BT3GMD-A30P supports Bluetooth SIG-compliant wideband speech implementation to greatly enhance the audio quality with both PCs and cell phones. The BT3GMD-A30P supports the Bluetooth 3.0 standard, adding enhanced power control, simple and secure pairing, and enhanced inquiry response as value-added features for Bluetooth headsets. All major functional blocks required for a Bluetooth stereo headset, including switcher, charger, and stereo audio codec are The module includes EEPROM, crystal, and PCB antenna. Applications: ● High-End Stereo Wireless Headsets ● High-END Mono Headsets ● Hands-Free Car Kits ● Wireless Speakers Functional Block Diagram: Figure 1: BT30MD-A30P Block Diagram WLINK TECHNOLOGY LTD. Product Specification __________________________________________________________________________________ Page 3 of 10 Taiwan H/Q Add.: No.46, Aly. 108-3 , Ln. 445 , Sec. 2, Meishi Rd., Yangmei City, Taoyuan County 326, Taiwan (R.O.C.) Tel: +886-3-4811534 Physical Description: The BT30MD-A30P is a 13.5mm×22mm FR4 PCB with 30 pads located around the perimeter. Table 1 shows the pinout diagram of the module. Table 1 Pin Location Figure 2: Module PCB Top View WLINK TECHNOLOGY LTD. Product Specification __________________________________________________________________________________ Page 4 of 10 Taiwan H/Q Add.: No.46, Aly. 108-3 , Ln. 445 , Sec. 2, Meishi Rd., Yangmei City, Taoyuan County 326, Taiwan (R.O.C.) Tel: +886-3-4811534 Table 2 Pin Function Descriptions WLINK TECHNOLOGY LTD. Product Specification __________________________________________________________________________________ Page 5 of 10 Taiwan H/Q Add.: No.46, Aly. 108-3 , Ln. 445 , Sec. 2, Meishi Rd., Yangmei City, Taoyuan County 326, Taiwan (R.O.C.) Tel: +886-3-4811534 Supporting Documentions: Reference Schematic: The most recent schematic , bill of materil ,and layout file are available from the ITON Technology Limit. Contact your ITON representative for details. Layout Considerations: The BT30MD-A30P module is placed at the location where the antenna is away from the power supply(i.e.,BT1 Battery contacts)and any digital signal traces.. The antenna keep-out area which is 5mm around the parameter of the module region is shown in the red dotted box. PCB material and signal traces should not be placed within the antenna keep-out area t…

Text truncated - open the document above for the full version.

SBT17220B(20120612).sch-1 - Tue Jun 26 19:06:12 2012 1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA Product Name Schematic Name Revision Page Date Drawing byAuthorize by WLINK Auditing by Li Mei Hai BT3 GMD -A30P BT3 GMD -A30P 1 of 1 1.0 20120308 C2 2.2uF C5 10nF C7 10pF C10 10pF C8 2.2uF C11 0.01uF R1 5.1R L2 3.9nH C1 1.5pF C3 3pF 1P2VC VDDRF HVLDO 1 2 3 4 Y 2 26MHZ C12 12pF C14 10pF R3 10K C17 0.01uF 1 2 FB1 600@ 100Mhz 1P2VC C18 0.1uF C19 0.1uF R5 4.7K R6 4.7K R7 4.7K E0 1 E1 2 E2 3 VSS 4 SDA 5 SCL 6 WP 7 VCC 8 U2 24C256 C20 0.1uF C4 10uF VBATT L1 10uH C3 10uF C6 1uF C9 1uF HVLDO C13 1uF VDD_AUDIO C151uF C16 2.2uF MICREF R215K LED1LED2 VDD_SPK HVLDO HVLDO HVLDO GPIO8_VOL+GPIO9_VOL-GPIO10_MFBGPIO11_LED3 VCHGAUX A4 NPNCNTL C7 VCHG A5 VBAT A7 VBAT_AU_AVDD D9 VLXSWG A9 VFSW A10 VIOMLDO B9 LED1 A6 LED2 B6 SPK_AVDD G10 SPKOUTN1 J9 SPKOUTP1 H9 SPKOUTN2 J10 SPKOUTP2 H10 SPKAVSS H8 MICBIAS H7 AUD_RXP1 H5 AUD_RXN1 J5 AUD_RXP2 H6 AUD_RXN2 J6 MICREF J7 VSSP A8 AVSS B8 AUD_AVSS H4 AUD_AVSS J4 AUD_AVSS G5 AUD_AVSS J8 HVLDO C10 WAKEB B7 AUD_AVDD F6 U 100( C ) BCM20771 RFP F1 V12 B10 VDDPX J1 VDDIF D1 VDDLNA G1 VDDRF H1 VDDTF E1 VDDXO J2 TM1 D2 TM2 C1 XIN J3 XOUT H3 RES H2 U 100( B ) BCM20771 RST_N G9 VDDC A3 VDDC D10 VDDO A2 VDDO E10 GPIO_0 F8 GPIO_1 E7 GPIO_2 C8 GPIO_3 F10 GPIO_4 E9 GPIO_5 D5 GPIO_6 D7 GPIO_7 F9 GPIO_8 D4 GPIO_9 C4 GPIO_10 A1 GPIO_11 B2 GPIO_12 B3 GPIO_13 B5 GPIO_14 E5 GPIO_15 E6 GPIO_16 B1 GPIO_17 F4 VSS G2 VSS E2 VSS F3 VSS C9 VSS E8 U1 00( A ) BCM20771 SPKL_NSPKL_PSPKR_NSPKR_P MIC1_PMIC1_NMIC2_PMIC2_N R8 220K R9 220K RXDTXD HVLDO GPIO16_PLAY MIC1_PMIC1_NMIC2_PMIC2_N MICBIAS MICBIASSPKL_NSPKL_PSPKR_NSPKR_PGPIO10_MFBGPIO9_VOL-GPIO8_VOL+ VCHGAUX NPNCNTL VCHG VCHGAUXVCHGNPNCNTLWKUPLED2LED1GPIO16_PLAYTXDRXD C7 NC L4 1.5nH C5 10pF C 6 NC 123456789 101112131415161718192021222324252627282930 J1 BT3 GMD -A30P RST RSTGPI015_REVGPI014_FWDVOUTVBATTGPIO13_ShutdownGNDGND WKUP 1 ANT1 2402MHz - 2480MHz C21 33pF C22 33pF C23 33pF C24 33pF VOUT GPIO11_LED3 GPI015_REVGPI014_FWDGPIO13_Shutdown SO 2 CE/ 1 WP/ 3 HOLD/ 7 SCK 6 VSS 4 SI 5 VDD 8 VSS H U3 MX25L4006E R11 4.7K R10 4.7K HVLDO Alternative: A or B A B C25 0.1uF WLINK TECHNOLOGY ABCD DCBA SIGNATURE DATE DESIGN: APPROVED: SHENZHEN ACT INDUSTRIAL CO. , LTDVER: PAGE: 1 OF 1 MODEL:TITLE: -SCH-1 A/0 VER BY REASON APS-A 0241 3 0 18L -G V0. 1 APS-A 0241 3 0 18L -G V0. 1 A/0 V+ V- 25134 EE25 817C TL431 NC L N T2.5AL 250V 1 23 4 1 50uH 51 4 23 RIFB GND ISET VDD GATE 12 34 20mH NC NC 1N4007 ! ! ! 1.5M 100R/0805 1 20100 1 3 3 2 2 1 . 5 R 1 . 5 R 2 00K 2 00K + 10UF/50V NC ! ! ! ! LED D11NC

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK12061622-1 ALCO Electronics Ltd. Application For Certification (Original Grant (FCC ID: A2HRTS7220B) (IC: 9903A-RTS7220B) Transceiver Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Engineer Wong Kwok Yeung, Kenneth Lead Engineer Date: July 30, 2012 INTERTEK TESTING SERVICES Report No.: HK12061622-1 FCC ID: A2HRTS7220B IC: 9903A-RTS7220B i GENERAL INFORMATION ALCO Electronics Ltd. BRAND NAME: VENTURER, MODEL: SBT17220B / SBT17110B BRAND NAME: RCA, MODEL: RTS7220B / RTS7110B FCC ID: A2HRTS7220B IC: 9903A-RTS7220B Grantee: ALCO Electronics Ltd. Grantee Address: 11/F., Zung Fu Industrial Building, 1067 King’s Road, Quarry Bay, Hong Kong. Contact Person: Peggy Suen Tel: 852-2562 6121 Fax: 852-2597 5201 e-mail: [email protected] Manufacturer: Dongguan Houjie Alco Electronics General Factory Manufacturer Address: The 3 rd Industrial District, Houjie, Dongguan, Guangdong, P.R.C. Brand Name: VENTURER / RCA Model: SBT17220B / SBT17110B / RTS7220B / RTS7110B Type of EUT: Transceiver Description of EUT: Sound Bar with Bluetooth Serial Number: N/A FCC ID / IC: A2HRTS7220B / 9903A-RTS7220B Date of Sample Submitted: June 29, 2012 Date of Test: July 17, 2012 Report No.: HK12061622-1 Report Date: July 30, 2012 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK12061622-1 FCC ID: A2HRTS7220B IC: 9903A-RTS7220B ii SUMMARY OF TEST RESULT ALCO Electronics Ltd. BRAND NAME: VENTURER, MODEL: SBT17220B / SBT17110B BRAND NAME: RCA, MODEL: RTS7220B / RTS7110B FCC ID: A2HRTS7220B IC: 9903A-RTS7220B TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Antenna Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.6 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.4 Pass Transmitter Field Strength 15.227 / RSS-310 3.8 N/A Transmitter Field Strength 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 Pass Transmitter Field Strength and Bandwidth Requirement 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Emissions 15.109 / RSS-210 2.5 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK12061622-1 FCC ID: A2HRTS7220B IC: 9903A-RTS7220B iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification................................................................................................... 2 2.2 EUT Exercising Software .............................................................................. 2 2.3 Special Accessories...................................................................................... 2 2.4 Equipment Modification................................................................................. 2 2.5 Measurement Uncertainty ............................................................................. 2 2.6 Suppor…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Report No.: HK12061622-1 Sample No.: 1/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 249 Requirement (Pass/Fail)

INTERTEK TESTING SERVICES Report No.: HK12061622-1 Sample No.: 1/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average555 kHz 35.70 N gnd -10.29 1 Quasi Peak 559.5 kHz 47.90 N gnd -8.09 1 Quasi Peak 568.5 kHz 46.99 N gnd -9.00 2 CISPR Average568.5 kHz 34.69 N gnd -11.30 1 Quasi Peak 1.3245 MHz 33.50 L1 gnd -22.49 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Conducted Emission – Pursuant to FCC Part 15 Requirement (Pass/Fail)

INTERTEK TESTING SERVICE Report No: HK12061622-1 FCC ID: A2HRTS7220B IC: 9903A-RTS7220B Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: SBT17220B HK12061622-1 SBT17220B side A INTERTEK TESTING SERVICE Report No: HK12061622-1 FCC ID: A2HRTS7220B IC: 9903A-RTS7220B Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: SBT17220B HK12061622-1 SBT17220B side B

INTERTEK TESTING SERVICE Report No: HK12061622-1 FCC ID: A2HRTS7220B IC: 9903A-RTS7220B Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) Model: RTS7220B INTERTEK TESTING SERVICE Report No: HK12061622-1 FCC ID: A2HRTS7220B IC: 9903A-RTS7220B Configuration Photographs Worst-Case Line-Conducted Emissions (Rear View) Model: RTS7220B INTERTEK TESTING SERVICE Report No: HK12061622-1 FCC ID: A2HRTS7220B IC: 9903A-RTS7220B Configuration Photographs Worst-Case Line-Conducted Emissions (Side View) Model: RTS7220B
