A2HRTS7220B2Home Theater Sound Bar

Alco Electronics Ltd

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Apr 11, 2013
Application Purpose: Original Equipment
Date of Application: Apr 11, 2013
Equipment Note: Home Theater Sound Bar
Frequency Range: 2402.00000000 - 2480.00000000
Company: Alco Electronics Ltd
Country: Hong Kong

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Home Theater Sound Bar RTS7220B-2 User Manual It is important to read this user manual prior to using your new product for the first time. FCC InFormaTIon This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. For CuSTomerS In Canada This apparatus complies with the Class B limits for radio noise emission set out in radio interference regulations. CAN ICES-3 (B) / NMB-3 (B) Warning: • The AC adapter is used as disconnect device and it should remain readily operable during intended used. In order to disconnect the unit from the mains completely, the AC adapter should be disconnected from the mains socket outlet completely. • The AC adapter of unit should not be obstructed OR should be easily accessed during intended use. • Minimum 10 cm (4 inches) distances around the unit for sufficient ventilations. • The ventilation should not be impeded by covering the ventilation openings with items such as newspaper, table-cloths, curtains, etc. • No naked flame sources such as lighted candles should be placed on the unit. on SaFeTy • Should any objects or liquids fall into the unit, disconnect the power supply and have the unit checked by qualified personnel before any further operation. • The unit shall not be exposed to dripping or splashing and that no objects filled with liquid, such as vases, shall be placed on the unit. on uSe Never use the unit where it would be subject to: - Heat sources such as radiators or air ducts. - Direct sunlight. 1. MUTE button 2. BLUETOOTH button 3. VOL / button / / button 4. AUX button 5. BASS / button 6. button 7. LINE IN button 8. OPTICAL button 9. TREBLE / button 10 SOURCE / button Remote control (with 2 x AAA batteries)...........................................x 1 AC power adapter .............................................................................x 1 Audio Cable ..................................................................................... x 1 Rubber Pad.......................................................................................x 2 Please locate the included accessories. To order replacement units, visit http://www.RCAav.com remoTe ConTrol 1. STANDBY/ON button 2. SOURCE button 3. BLUETOOTH / LEVEL indicator 4. AUX IN / LEVEL indicator 5. OPTICAL IN / LEVEL indicator 6. LINE IN / LEVEL indicator 7. VOLUME / button 8. LINE IN 3.5mm jack 9. OPTICAL IN jack 10. AUX IN L / R jack 11. DC IN jack 12. Remote Sensor AVC MULTIMEDIA (“AVC”) makes the following limited warranty. This limited warranty extend to the original consumer purchaser and is limited to non- commercial use of the product. one year ParTS & laBor WarranTy AVC products purchased in the United States are warranted to be free from defects in materials or workmanship for a period of one year from the date of their original retail purchase. If the unit fails to conform to this warranty, we will service the product using new or refurbished parts and products, at AVC’s sole discretion. During a period of one year from the effective warranty date, AVC will provide, when needed, service labor to repair a manufacturing defect at its designated Service Center. To obtain warranty service in the United States, you must first call our Customer Support Center at 1-800-506-5746 or 1-877-252-6873, during the hours listed in the box below. The determination of service will be made by AVC Customer Support. PLEASE DO NOT RETURN YOUR UNIT TO AVC WITHOUT PRIOR AUTHORIZATION. New or remanufactured replacements for defective parts or products will be used for repairs by AVC at its designated Service Center for one year from the effective warranty date. Such replacement parts or products are warranted for an additional one year from the date of repair or replacement. The Customer will be required to ship the unit to the Service Center indicated at the time Customer Support is contacted to make the necessary repairs. The customer is responsible for all transportation charges to the service facility. PaCkagIng and SHIPPIng InSTruCTIon When you send the product to the AVC service facility you must use the original carton box and packing material or an equivalent as designated by AVC. lImITed WarranTy your reSPonSIBIlITy (1) You must retain the original sale receipt to provide proof of purchase. (2) These warranties are effective only if the product is purchased and operated in the U.S.A. or Canada. (3) Warranties extend only to defects in material or workmanship, and do not extend to any product or parts which have been lost or discarded, or damage to product o…

Text truncated - open the document above for the full version.

Block Diagram

SBT17220B(20130105)+Optical+ISSC BM81.sch-2 - Tue Jan 22 17:26:48 2013 Preliminary Datasheet IS1681S Version: 0.96 - 5 - 9/26/2011 3. Functional Diagram BT EDR Transceiver CPU Audio Engine Audio Codec IO RAM ROM Clock PMU Key EEPROM UART Adaptor LED Speaker Mic System Power Li-ion Battery

External Photos

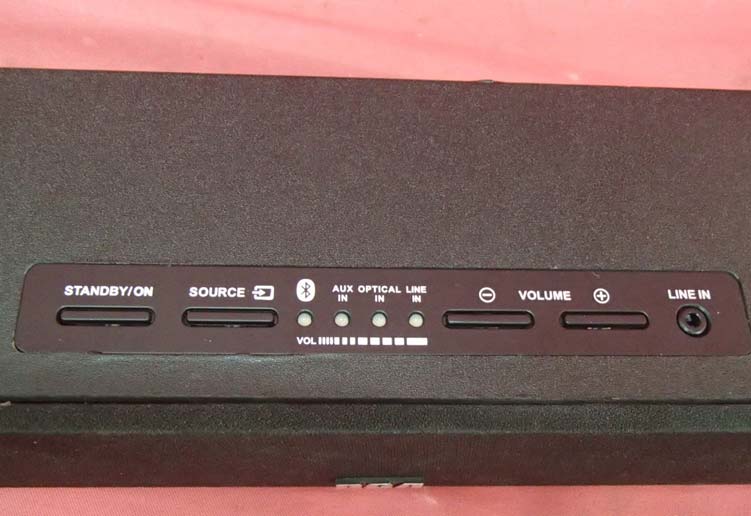

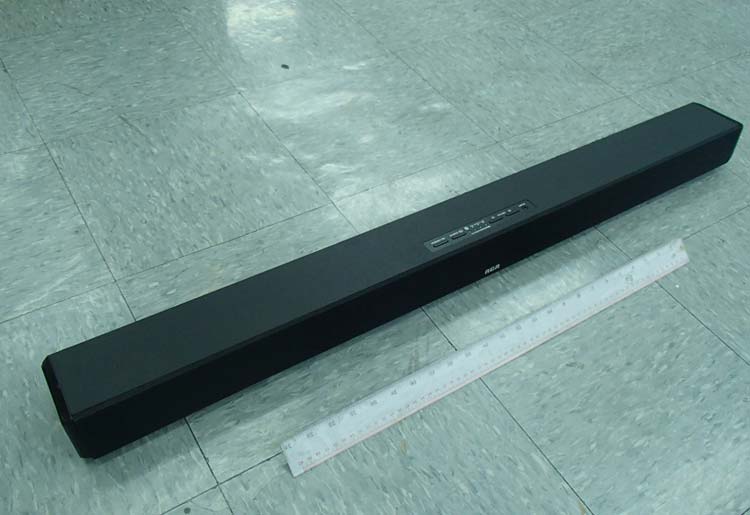

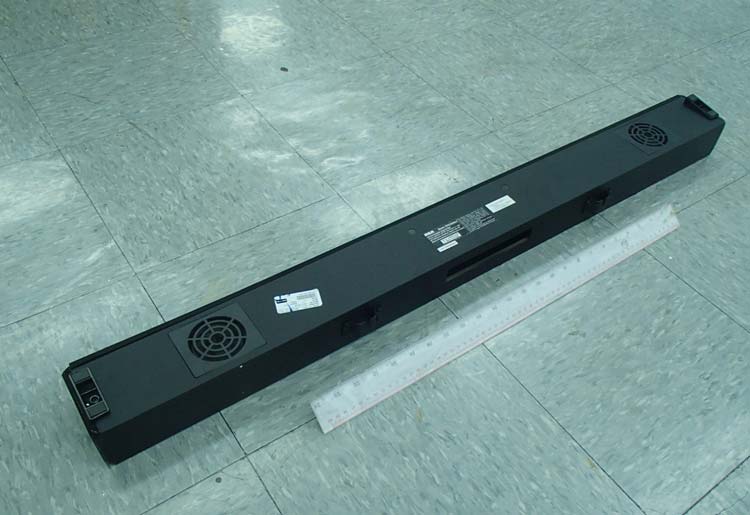

INTERTEK TESTING SERVICE Report No.: HK13010821-3 FCC ID: A2HRTS7220B2 IC: 9903A-RTS7220B2 Equipment Photographs Model : SBT17220BG1 (External) INTERTEK TESTING SERVICE Report No.: HK13010821-3 FCC ID: A2HRTS7220B2 IC: 9903A-RTS7220B2 Equipment Photographs Model : SBT17220BG1 (External) INTERTEK TESTING SERVICE Report No.: HK13010821-3 FCC ID: A2HRTS7220B2 IC: 9903A-RTS7220B2 Equipment Photographs Model : SBT17220BG1 (External)

ID Label/Location Info

Labels for FCC application Feb 5, 2013 Label position spec label CARB label at the bottom of the unit VENTURER SBT17220BG1 RCA RTS7220B-2 RTS7220B-2 SBT17220BG1 DC IN 13V-13.5V 1.8A CAN ICES-3 (B) / NMB-3 (B) CAN ICES-3 (B) / NMB-3 (B) VENTURER SBT17110BG1 RCA RTS7110B-2 RTS7110B-2 SBT17110BG1 DC IN 13V-13.5V 1.8A CAN ICES-3 (B) / NMB-3 (B) CAN ICES-3 (B) / NMB-3 (B)

Internal Photos

INTERTEK TESTING SERVICE Report No.: HK13010821-3 FCC ID: A2HRTS7220B2 IC: 9903A-RTS7220B2 Equipment Photographs Model: SBT17220BG1 (Internal) INTERTEK TESTING SERVICE Report No.: HK13010821-3 FCC ID: A2HRTS7220B2 IC: 9903A-RTS7220B2 Equipment Photographs Model: SBT17220BG1 (Internal) INTERTEK TESTING SERVICE Report No.: HK13010821-3 FCC ID: A2HRTS7220B2 IC: 9903A-RTS7220B2 Equipment Photographs Model: SBT17220BG1 (Internal) INTERTEK TESTING SERVICE Report No.: HK13010821-3 FCC ID: A2HRTS7220B2 IC: 9903A-RTS7220B2 Equipment Photographs Model: SBT17220BG1 (Internal) INTERTEK TESTING SERVICE Report No.: HK13010821-3 FCC ID: A2HRTS7220B2 IC: 9903A-RTS7220B2 Equipment Photographs Model: SBT17220BG1 (Internal) INTERTEK TESTING SERVICE Report No.: HK13010821-3 FCC ID: A2HRTS7220B2 IC: 9903A-RTS7220B2 Equipment Photographs Model: SBT17220BG1 (Internal) INTERTEK TESTING SERVICE Report No.: HK13010821-3 FCC ID: A2HRTS7220B2 IC: 9903A-RTS7220B2 Equipment Photographs Model: SBT17220BG1 (Internal) INTERTEK TESTING SERVICE Report No.: HK13010821-3 FCC ID: A2HRTS7220B2 IC: 9903A-RTS7220B2 Equipment Photographs Model: SBT17220BG1 (Internal) INTERTEK TESTING SERVICE Report No.: HK13010821-3 FCC ID: A2HRTS7220B2 IC: 9903A-RTS7220B2 Equipment Photographs Model: SBT17220BG1 (Internal) INTERTEK TESTING SERVICE Report No.: HK13010821-3 FCC ID: A2HRTS7220B2 IC: 9903A-RTS7220B2 Equipment Photographs Model: SBT17220BG1 (Internal)

Operational Description

Technical Description The Equipment Under Test (EUT) is a Home Theater Sound Bar. It can accept analog input sources: RCA aux-in and 3.5mm phone jack line-in; and digital input sources: optical and wireless Bluetooth device. The Bluetooth module in the EUT is operating in the frequency range from 2402MHz to 2480MHz (79 channels with 1MHz channel spacing). The audio signal is amplified and fed to the built-in stereo loudspeakers. The EUT is powered by 13VDC from an AC/DC adaptor. The AC/DC adaptor can accept only 120AC input voltage (100V-120VAC). The EUT is using non-adaptive frequency hopping as declared by applicant. 2.4GHz Bluetooth Module: Modulation Type: GFSK Antenna Type: Integral, Internal (PCB Trace) Frequency Range: 2402MHz - 2480MHz, 1MHz channel spacing, 79 channels Nominal field strength is 93.8dB μV/m @ 3m Production Tolerance of field strength is +/- 3dB Antenna gain is 0dBi The functions of main ICs are mentioned below. 1. BlueTooth module BM81SPK01NB2 (BT1): 1) U1 (IS1681S) acts as the 2.4GHz radio core of Bluetooth module BT1 (BM81SPK01NB2), which is integrating with audio CODEC. 2) 16MHz crystal (X1) provides clock for Bluetooth RF IC IS1681S (U1). 3) U2 (24C32) is serial EEPROM for parameter backup of U1 (IS1681S). 4) IC17 (4558) acts as buffering amplifier driving the input of IC3 (CSC2314). 2. Digital Audio Portion: 1) U6 (CS8416) acts as digital audio receiver which accepts SPDIF input. 2) JK5 (DLR1180) is optical receiver of TOSLINK optical input. 3) X2 (12.288MHz) provides 256Xfs (fs=48kHz) digital audio clock for U6. 4) U3 (DA1134) is 24bit/192kHz digital-to-analog converter for audio output. 3. Analog audio processor module: 1) IC3 (CSC2314) acts as analog audio function including input selection, Volume, loudness, level, balance, bass and treble control. 4. Power Amplifier portion: 1) IC1 (TDA7491P) is 2X10W power amplifier driving internal stereo speaker. 5. MCU portion: 1) IC6 (BJ8F101M20A) is 8-bit MCU for system control. Channel Frequency Table of Bluetooth Module Preliminary Datasheet BM81SPK01 4F,No.8,DusingRd.,HsinchuSciencePark,Hsinchucity30078,Taiwan,R.O.C Version:0.92 Phone:886%3%577%8385 9/20/2011 Fax:886%3%577%8501 BM81SPK01 Bluetooth 3.0+EDR Wireless Speaker Module Preliminary Datasheet BM81SPK01 Version: 0.92 - 2 - 9/20/2011 Product Description The ISSC BM81SPK01 is a highly integrated Bluetooth 3.0+EDR stereo module,designedforhighdatarate,short%rangewirelesscommunicationin the2.4GHzISMband.WithISSCBluetoothstackandprofile,theISSC BM81SPK01providesalowpowerandultra%lowcostBluetooth3.0+EDR solutionforwirelessvoice/audioapplications. Features MainChip:ISSCIS1681S Bluetooth3.0+EDRcompliant Typical+2dBmClass2outputpower Receiver Sensitivity: GFSK typical %91dBm, π/4 PSK typical %92dBm, 8DPSKtypical%84dBm PiconetandScatternetsupport HCIUARTinterface CVSD,A%law,μ%lawCODECalgorithmsforvoiceapplications SBCdecodeforBluetoothaudiostreaming Build%inHighperformancestereoaudiocodec Cap%less/singleendheadphonedriver AudioDAC:94dBSNR BuildinMax.350mAHLi%ionbatterycharger HSP,HFP,A2DP,AVRCPprofilesupport 3Voperatingvoltage ROMversion:32KbEEPROM 34pinsforDIPmodule,35pinsforSMTmodule(withadditional35thpin antennaportforexternalantennaoption) Size:15mmx29mm Build%inPCBAntenna RoHScompliant Preliminary Datasheet BM81SPK01 Version: 0.92 - 3 - 9/20/2011 Device Pinout Diagram P02 27 AIL 13 P27 28 MIC_BIAS 11 SPKR 5 P30 1 P00 3 AGND 8 P20 2 SYS_PWR 19 MIC1_P 9 GND 21 VDD_IO 15 P24 25 RST 14 P01 33 P16 32 P22 26 P05 29 HCI_TXD 30 P04 4 HCI_RXD 31 MFB 22 SPKL 6 BT_RF 35 VDDA 7 GND 34 BAT_IN 17 MIC1_N 10 LED1 23 ADAP_IN 16 AIR 12 SK1/P03 18 LED2 24 BK_OUT 20 Preliminary Datasheet BM81SPK01 Version: 0.92 - 4 - 9/20/2011 Pin Definition Pin No. I/O Name Description 1 P P30 GPIO,defaultpull%highinput Line%indetection,1:noline%indetected;0:line%in detected 2 I/O P20 GPIO,defaultpull%highinput SystemConfiguration,H:ApplicationL: Baseband(IBDKMode) 3 I/O P00 GPIO,defaultpull%lowinput. SlideSwitchDetector 4 I/O P04 GPIO,defaultpull%highinput AudioAMPEnable 5 AO SPKR R%channelanalogheadphoneoutput,single% ended applicationonly 6 AO SPKL L%channelanalogheadphoneoutput,single%ended applicationonly 7 AP VDDA Reserve for external cap to fine tune audio frequencyresponse 8 AP AGND Audioground 9 AI MIC1_P Mic1monodifferentialanalogpositiveinput 10 AI MIC1_N Mic1monodifferentialanalognegativeinput 11 AP MIC_BIAS Microphonebiasingvoltage 12 AI AIR Stereoanaloglinein,R%channel 13 AI AIL Stereoanaloglinein,L%channel 14 I/O RST_N SystemResetPin 15 P VDDIO VDDIOpin,forcalibrationonly Donotaddexternalpowertothispin 16 P ADAP_IN Poweradaptorinput 17 P BAT_IN Batteryinput 18 I/O SK1/P03 DefaultSARinputforbatterydetection Thispincanbere%definedasGPIOP03 19 P SYS_PW SystemPowerOutput 20 P BK_OUT Buckfeedbacksensepin 21 P GND Digitalground Preliminary Datasheet BM81SPK01 Version: 0.92 - 5 - 9/20/2011 22 P MFB Multi%FunctionPushButtonkey CombinedPlay/PausekeywhenA2DPenabled. 23 P LED1 LEDDriver1 24 P LED2 LEDDriver2 25 I/O P24 GPIO,defaultpull%highinput SystemConfiguration,H:BootMode 26 I/O P22 GPIO,defaultpull%lowinput. ExternalLDOenable 27 I/O P02 GPIO,defaultpull%highinput PLAY/PAUSEbutton 2…

Text truncated - open the document above for the full version.

RF Exposure Info

Analysis Report Report No.: HK13010821-3 The Equipment Under Test (EUT) is a Home Theater Sound Bar. It can accept analog input sources: RCA aux-in and 3.5mm phone jack line-in; and digital input sources: optical and wireless Bluetooth device. The Bluetooth module in the EUT is operating in the frequency range from 2402MHz to 2480MHz (79 channels with 1MHz channel spacing). The audio signal is amplified and fed to the built-in stereo loudspeakers. The EUT is powered by 13VDC from an AC/DC adaptor. The AC/DC adaptor can accept only 120AC input voltage (100V-120VAC). Antenna Type: Internal integral antenna Antenna Gain: 0dBi Nominal rated field strength: 93.8dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 96.8dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 1.436mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 1.436mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing. Note: The EUT is using non-adaptive frequency hopping as declared by applicant.

Schematics

SBT17220B(20130105)+Optical+ISSC BM81.sch-1 - Tue Jan 22 17:26:47 2013 5 5 4 4 3 3 2 2 1 1 DD CC BB AA P12 P13 MIC_BIAS MFB P00 P27 P05 P02 HCI_RXD HCI_TXD SPKL MIC_P1 MIC_N1 RST_N P24 LED2 LED1 EAN P20 BT_RF AIR AIL P04 P16 P22 P30 SK1 SPKR P03P01 SPKR P04 P00 P20 P30 RST_N MIC_BIAS MIC_N1 AIR AIL MIC_P1 SPKL P01 BT_RF MFB LED1 P16 HCI_RXD HCI_TXD P05 LED2 P24 P22 P02 P27 SK1/P03SK1 P03 P13P12 P30 P20 P00 P04 SPKR SPKL MIC_P1 MIC_N1 MIC_BIAS AIR AIL RST_N P01 P16 HCI_RXD HCI_TXD P05 P27 P02 P22 P24 LED2 LED1 MFB SK1/P03 VDD_IO VDD_IO 1V8 SYS_PWR 1V8 BAT_IN ADAP_IN 1V8 BK_OUT 1V8 BK_OUT SYS_PWR CODEC_VO VDD_IO VDD_IO VDD_IO CODEC_VO CODEC_VIN CODEC_VIN VDD_IO SYS_PWR ADAP_IN BAT_IN BK_OUT CODEC_VIN VDD_IO ADAP_IN BAT_IN BK_OUT SYS_PWR Board Name Size TitleRev Date:Sheetof P/N SCH_BM81SPK01NB2_V1_20110809 BM81SPK01NB2 / BM81SPK01NB3 ISSC Technologies Corp. ADD. 4F, No.8, Dusing Rd., Hsinchu Science Park, Hsinchu City 30078, Taiwan TEL. 886-3-5778385 B 11Monday, November 07, 2011 Board Name Size TitleRev Date:Sheetof P/N SCH_BM81SPK01NB2_V1_20110809 BM81SPK01NB2 / BM81SPK01NB3 ISSC Technologies Corp. ADD. 4F, No.8, Dusing Rd., Hsinchu Science Park, Hsinchu City 30078, Taiwan TEL. 886-3-5778385 B 11Monday, November 07, 2011 Board Name Size TitleRev Date:Sheetof P/N SCH_BM81SPK01NB2_V1_20110809 BM81SPK01NB2 / BM81SPK01NB3 ISSC Technologies Corp. ADD. 4F, No.8, Dusing Rd., Hsinchu Science Park, Hsinchu City 30078, Taiwan TEL. 886-3-5778385 B 11Monday, November 07, 2011 EEPROM 24C32 PIN DEFINATION GPIO Description P00 P22 P04 P27 P16 P24 P05 P20 Slide Switch Detect/TX_IND REV Audio AMP Enable FWD Play/Pause System Configuration System Configuration Keep alive for external LDO V1 P01 P02 Volume up Volume down P03 P30 RX_IND Line-in detect BOM_BM81SPK01NB2_V1_20110809 BOM_BM81SPK01NB3_V1_20110809 R3R4BOM NAME 0 OHMNP 0 OHMNP SCH_BM81SPK01NB3_V1_20110809 Pin 18 = SK1 Pin 18 = P03 NOTE C13 1u/6.3V C13 1u/6.3V IS1681N U1 IS1681N IS1681N U1 IS1681N VDDAO 1 AOHPM 2 VSSAO 3 AOHPL 4 VDDA 5 VSSA 6 VCOM 7 MICP1 8 MICN1 9 MIC_BIAS 10 VDD_IO 13 RST_N 14 P1_2 15 P1_3 16 CODEC_VO 19 3V1_IN 20 ADAP_IN 21 BAT_IN 22 SAR_VDD 24 SYS_PWR 25 BK_VDD 26 BK_LX 27 XO_N 42 XO_P 41 VDD_IO 40 HCI_RXD 38 HCI_TXD 37 1V8 17 P0_5 36 P0_2 34 P2_4 32 LED2 31 LED1 30 MFB 29 BK_OUT 28 AOHPR 56 1V8 55 EAN 54 VDD_IO 52 P0_0 50 P2_0 49 P3_0 48 P0_3 47 P0_1 46 RTX 45 VCC_RF 43 P3_5 53 P2_7 35 3V1_O 18 GND 57 AIR 11 AIL 12 SK1 23 P1_6 39 RX_CLS1 44 P0_4 51 P2_2 33 2402MHz - 2480MHz PCB trace ANT ANT-MP8 ANT1 ANT-MP8 1 C11 1u/10V C11 1u/10V C15 10u/16V C15 10u/16V R1 0 R1 0 1 2 C6 1u/6.3V C6 1u/6.3V C5 1p/50V C5 1p/50V TP1 RF-TP2 TP1 RF-TP2 R3 0 R3 0 12 C16 10u/16V C16 10u/16V R2 NP-0402 R2 NP-0402 L1 1.8nHL1 1.8nH C12 1u/6.3V C12 1u/6.3V C10 10u/16V C10 10u/16V C9 NP-0402 C9 NP-0402 C19 0.1u/16V C19 0.1u/16V R8 1K R8 1K 1 2 C18 10u/16V C18 10u/16V FB1 FB-0402 FB1 FB-0402 12 R5 1K R5 1K 1 2 C8 8p/50V C8 8p/50V R4 NP-0402 R4 NP-0402 R7 1R R7 1R 12 C7 8p/50V C7 8p/50V C1 1.8p/50V C1 1.8p/50V JP1 JP 1X17-1 JP1 JP 1X17-1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 C4 1u/10V C4 1u/10V R6 1R R6 1R 12 C2 1.5p/50V C2 1.5p/50V FP1 BM81SPK01NB2 FP1 BM81SPK01NB2 P04 4 P30 1 HCI_TXD 30 SPKR 5 SPKL 6 AGND 8 VDDA 7 SYS_PWR 19 BAT_IN 17 GND 21 LED1 23 P24 25 LED2 24 P22 26 P02 27 P05 29 P27 28 HCI_RXD 31 MIC_BIAS 11 MFB 22 P00 3 BT_RF 35 P20 2 GND 34 MIC1_P 9 MIC1_N 10 VDD_IO 15 ADAP_IN 16 RST 14 BK_OUT 20 P16 32 AIR 12 AIL 13 P01 33 SK1/P03 18 C3 1p/50V C3 1p/50V C14 0.1u/16V C14 0.1u/16V JP2 JP 1X17-1 JP2 JP 1X17-1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 U2 ACE24C32 U2 ACE24C32 A0 1 A1 2 A2 3 GND 4 SDA 5 SCL 6 WP 7 VCC 8 L2 NP-0402 L2 NP-0402 12 C17 1u/10V C17 1u/10V L3 L22uH L3 L22uH X1 X4P-16MHZ X1 X4P-16MHZ 4 1 3 2 R9 4K7 R9 4K7 12 5. SCHEMATIC of AC/DC ADAPTOR 规格书 SPECIFICATION THESE SPECIFICATION ARE THE PROPERTY OF GENESIS SCIENCE TECHNOLOGY LIMITED ,AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SELL OF APPARATUSES OR DEVICES WITHOUT PERMISSION. GT-WAAL13000180-302 P/N:2012-000017 Model No.: 启创科技股份有限公司 Genesis Science Technology Limited DESCRIPTION: 机密 2012-7-26 第 6 页

Test Report

INTERTEK TESTING SERVICES Report No.: HK13010821-3 Sample No.: 1/1 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average168 kHz 36.26 N gnd -18.79 1 Quasi Peak 177 kHz 43.63 L1 gnd -20.99 2 CISPR Average316.5 kHz 33.12 N gnd -16.66 1 Quasi Peak 726 kHz 37.92 L1 gnd -18.07 2 CISPR Average726 kHz 29.54 L1 gnd -16.45 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Conducted Plot – Pursuant to FCC Part 15 Requirement (Pass/Fail)

Test Report

Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: HK13010821-3 i FCC ID: A2HRTS7220B2 IC: 9903A-RTS7220B2 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION ALCO Electronics Ltd. BRAND NAME: VENTURER MODEL: SBT17220BG1, SBT17110BG1 BRAND NAME: RCA MODEL: RTS7220B-2, RTS7110B-2 FCC ID: A2HRTS7220B2 IC: 9903A-RTS7220B2 Grantee: ALCO Electronics Ltd. Grantee Address: 11/F., Zung Fu Industrial Building, 1067 King’s Road, Quarry Bay, Hong Kong. Contact Person: Peggy Suen Tel: 852-2562 6121 Fax: 852-2597 5201 e-mail: [email protected] Manufacturer: Dongguan Houjie Alco Electronics General Factory Manufacturer Address: The 3 rd Industrial District, Houjie, Dongguan, Guangdong, P.R.C. Brand Name: VENTURER / RCA Model: SBT17220BG1, SBT17110BG1 / RTS7220B-2, RTS7110B-2 Type of EUT: Transceiver Description of EUT: Home Theater Sound Bar Serial Number: N/A FCC ID / IC: A2HRTS7220B2 / 9903A-RTS7220B2 Date of Sample Submitted: January 22, 2013 Date of Test: March 12, 2013 Report No.: HK13010821-3 Report Date: April 09, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: HK13010821-3 ii FCC ID: A2HRTS7220B2 IC: 9903A-RTS7220B2 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT ALCO Electronics Ltd. BRAND NAME: VENTURER MODEL: SBT17220BG1, SBT17110BG1 BRAND NAME: RCA MODEL: RTS7220B-2, RTS7110B-2 FCC ID: A2HRTS7220B2 IC: 9903A-RTS7220B2 TEST SPECIFICATION REFERENCE RESULTS Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.4 Pass Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 Pass Receiver / Digital Device Radiated Emissions 15.109 / RSS-210 2.5 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2011 Edition RSS-210 Issue 8, December 2010 RSS-Gen Issue 3, December 2010 Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: HK13010821-3 iii FCC ID: A2HRTS7220B2 IC: 9903A-RTS7220B2 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification................................................................................................... 2 2.2 EUT Exercising Software .............................................................................. 2 2.3 Special Accessories...................................................................................... 2 2.4 Equipment Modification................................................................................. 2 2.5 Measurement Uncertainty ............................................................................. 3 2.6 Support Equipment List and Description....................................................... .2 3.0 Emission Results........................................................................................... 4 3.1 Field Strength Calculation ............................................................................. 4 3.2 Radiated Emission Configuration Photograph ............................................... 5 3.3 Radiated Emission Data ............................................................................... 5 3.4 Conducted Emission Configuration Photograph ............................................ 5 3.5 Conducted Emiss…

Text truncated - open the document above for the full version.

Test Setup Photos

INTERTEK TESTING SERVICE Report No: HK13010821-3 FCC ID: A2HRTS7220B2 IC: 9903A-RTS7220B2 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: SBT17220BG1 HK13010821-3 SBT17220BG1 Side A INTERTEK TESTING SERVICE Report No: HK13010821-3 FCC ID: A2HRTS7220B2 IC: 9903A-RTS7220B2 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: SBT17220BG1 HK13010821-3 SBT17220BG1 Side B

Test Setup Photos

INTERTEK TESTING SERVICE Report No: HK13010821-3 FCC ID: A2HRTS7220B2 IC: 9903A-RTS7220B2 i Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) Model: SBT17220BG1 INTERTEK TESTING SERVICE Report No: HK13010821-3 FCC ID: A2HRTS7220B2 IC: 9903A-RTS7220B2 ii Configuration Photographs Worst-Case Line-Conducted Emissions (Rear View) Model: SBT17220BG1 INTERTEK TESTING SERVICE Report No: HK13010821-3 FCC ID: A2HRTS7220B2 IC: 9903A-RTS7220B2 iii Configuration Photographs Worst-Case Line-Conducted Emissions (Side View) Model: SBT17220BG1
