A2HRTS7340SBHome Theater Sound Bar with Subwoofer

Home Theater Sound Bar with Subwoofer It is important to read this user manual prior to using your new product for the first time. FCC InFormaTIon This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. For CuSTomerS In Canada This apparatus complies with the Class B limits for radio noise emission set out in radio interference regulations. CAN ICES-3 (B) / NMB-3 (B) Warning: • The AC adapter is used as disconnect device and it should remain readily operable during intended used. In order to disconnect the unit from the mains completely, the AC adapter should be disconnected from the mains socket outlet completely. • The AC adapter of unit should not be obstructed OR should be easily accessed during intended use. • Minimum 10 cm (4 inches) distances around the unit for sufficient ventilations. • The ventilation should not be impeded by covering the ventilation openings with items such as newspaper, table-cloths, curtains, etc. • No naked flame sources such as lighted candles should be placed on the unit. on SaFeTy • Should any objects or liquids fall into the unit, disconnect the power supply and have the unit checked by qualified personnel before any further operation. • The unit shall not be exposed to dripping or splashing and that no objects filled with liquid, such as vases, shall be placed on the unit. on uSe Never use the unit where it would be subject to: - Heat sources such as radiators or air ducts. - Direct sunlight. 1. MUTE button 2. BLUETOOTH button 3. VOL / button / / button 4. AUX button 5. BASS / button 6. button 7. LINE IN button 8. OPTICAL button 9. TREBLE / button 10 SOURCE / button Remote control (with 2 x AAA batteries)...........................................x 1 AC power adapter .............................................................................x 1 Audio Cable ..................................................................................... x 1 Please locate the included accessories. To order replacement units, visit http://www.RCAav.com remoTe ConTrol 1. STANDBY/ON button 2. SOURCE button 3. BLUETOOTH / LEVEL indicator 4. AUX IN / LEVEL indicator 5. OPTICAL IN / LEVEL indicator 6. LINE IN / LEVEL indicator 7. VOLUME / button 8. LINE IN 3.5mm jack 9. OPTICAL IN jack 10. AUX IN L / R jack 11. DC IN jack 12. Subwoofer speaker terminal 13. Remote Sensor AVC MULTIMEDIA (“AVC”) makes the following limited warranty. This limited warranty extend to the original consumer purchaser and is limited to non- commercial use of the product. one year ParTS & laBor WarranTy AVC products purchased in the United States are warranted to be free from defects in materials or workmanship for a period of one year from the date of their original retail purchase. If the unit fails to conform to this warranty, we will service the product using new or refurbished parts and products, at AVC’s sole discretion. During a period of one year from the effective warranty date, AVC will provide, when needed, service labor to repair a manufacturing defect at its designated Service Center. To obtain warranty service in the United States, you must first call our Customer Support Center at 1-800-506-5746 or 1-877-252-6873, during the hours listed in the box below. The determination of service will be made by AVC Customer Support. PLEASE DO NOT RETURN YOUR UNIT TO AVC WITHOUT PRIOR AUTHORIZATION. New or remanufactured replacements for defective parts or products will be used for repairs by AVC at its designated Service Center for one year from the effective warranty date. Such replacement parts or products are warranted for an additional one year from the date of repair or replacement. The Customer will be required to ship the unit to the Service Center indicated at the time Customer Support is contacted to make the necessary repairs. The customer is responsible for all transportation charges to the service facility. PaCkagIng and SHIPPIng InSTruCTIon When you send the product to the AVC service facility you must use the original carton box and packing material or an equivalent as designated by AVC. lImITed WarranTy your reSPonSIBIlITy (1) You must retain the original sale receipt to provide proof of purchase. (2) These warranties are effective only if the product is purchased and operated in the U.S.A. or Canada. (3) Warranties extend only to defects in material or workmanship, and do not extend to any product or parts which have been lost or discarded, or damage to product or parts caused by misuse, accident, improper operation or maintenance, or use …

Text truncated - open the document above for the full version.

SW AUDIO L/R AUDIO BM81SPK01NB2 8 OHM/5W R SPEAKER 8 OHM/5W L SPEAKER 6 OHM/10W SW SPEAKER TDA7491P 16MHz ALCO CONFIDENTIAL ALCO ELECTRONICS LIMTIED SCALE:SIZE:REV: PRODUCT NAME:DRAWING NO.: SHEET:CUSTOMER&MODEL NO.:MODEL NO.: TITLE: DATE:DATE:DATE: RELEASED DATE:APPROVED BY:CHECKED BY:PREPARED BY: COMPANY CHOP: Li Lin K.L CheungW.H Wong 1/2 1 A4 SBT17340SBG1 ' SBT17340SBG1 SCH ES130205A SOUND BAR BLOCK DIAGRAM 2013/02/05 1:1 POWER ON/OFF L/R AUDIO D4558 BLOCK DIAGRAM AUX 1 BT Blue Tooth Module L/R AUDIO TPA3110 LDO(3.7V) Adapter LINE IN L/R AUDIO L/R AUDIO L/R AUDIO OPTICAL IN TM2314 MCU DC 9V DC 5V I2C KEY & IR 2013/02/05 2013/02/05 2013/02/05 POWER POWER POWER BJ8F101M20A CS8416 12.288MHz Preliminary Datasheet IS1681S Version: 0.96 - 5 - 9/26/2011 3. Functional Diagram BT EDR Transceiver CPU Audio Engine Audio Codec IO RAM ROM Clock PMU Key EEPROM UART Adaptor LED Speaker Mic System Power Li-ion Battery

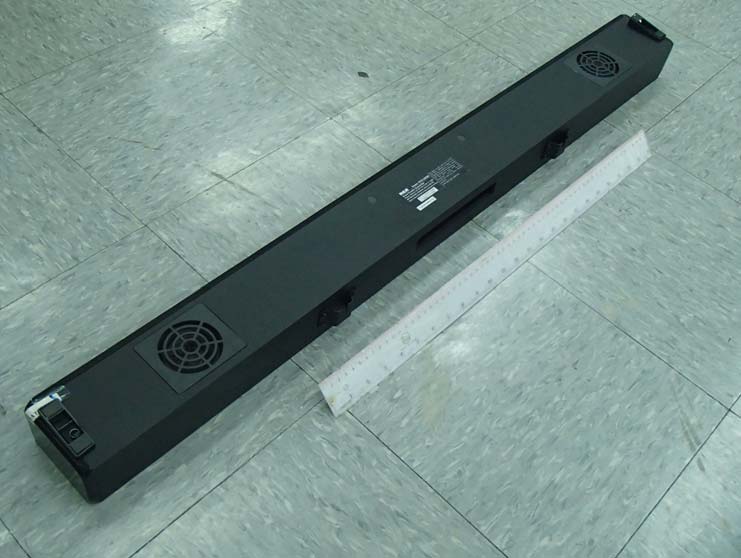

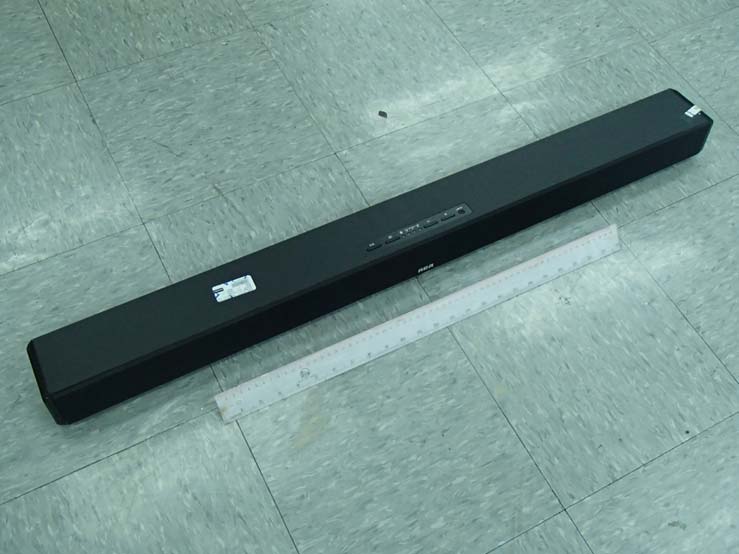

INTERTEK TESTING SERVICE Report No.: HK13020273-3 FCC ID: A2HRTS7340SB IC: 9903A-RTS7340SB Equipment Photographs Model : SBT17340SBG1 (External) INTERTEK TESTING SERVICE Report No.: HK13020273-3 FCC ID: A2HRTS7340SB IC: 9903A-RTS7340SB Equipment Photographs Model : SBT17340SBG1 (External) INTERTEK TESTING SERVICE Report No.: HK13020273-3 FCC ID: A2HRTS7340SB IC: 9903A-RTS7340SB Equipment Photographs Model : SBT17340SBG1 (External)

Labels for FCC application VENTURER SBT17340SBG1 RCA RTS7340SB Feb 6, 2013 Label position spec label at the bottom of the unit VENTURER SBT17340SBG1RCA RTS7340SB RTS7340SB SBT17340SBG1 DC IN 13V-13.5V 3.0A CAN ICES-3 (B) / NMB-3 (B) CAN ICES-3 (B) / NMB-3 (B) DC IN 13V-13.5V 3.0A 03/2013 03/2013 Production month/year SUBWOOFER CAISSON EXTREMES GRAVES IMPEDANCE/IMPEDANCE 4 ohm MADE IN CHINA FABRIQUE EN CHINE FCC ID: A2HRTS7340SB IC: 9903A-RTS7340SB FCC ID: A2HRTS7340SB IC: 9903A-RTS7340SB

INTERTEK TESTING SERVICE Report No.: HK13020273-3 FCC ID: A2HRTS7340SB IC: 9903A-RTS7340SB Equipment Photographs Model: SBT17340SBG1 (Internal) INTERTEK TESTING SERVICE Report No.: HK13020273-3 FCC ID: A2HRTS7340SB IC: 9903A-RTS7340SB Equipment Photographs Model: SBT17340SBG1 (Internal) INTERTEK TESTING SERVICE Report No.: HK13020273-3 FCC ID: A2HRTS7340SB IC: 9903A-RTS7340SB Equipment Photographs Model: SBT17340SBG1 (Internal) INTERTEK TESTING SERVICE Report No.: HK13020273-3 FCC ID: A2HRTS7340SB IC: 9903A-RTS7340SB Equipment Photographs Model: SBT17340SBG1 (Internal) INTERTEK TESTING SERVICE Report No.: HK13020273-3 FCC ID: A2HRTS7340SB IC: 9903A-RTS7340SB Equipment Photographs Model: SBT17340SBG1 (Internal) INTERTEK TESTING SERVICE Report No.: HK13020273-3 FCC ID: A2HRTS7340SB IC: 9903A-RTS7340SB Equipment Photographs Model: SBT17340SBG1 (Internal) INTERTEK TESTING SERVICE Report No.: HK13020273-3 FCC ID: A2HRTS7340SB IC: 9903A-RTS7340SB Equipment Photographs Model: SBT17340SBG1 (Internal) INTERTEK TESTING SERVICE Report No.: HK13020273-3 FCC ID: A2HRTS7340SB IC: 9903A-RTS7340SB Equipment Photographs Model: SBT17340SBG1 (Internal) INTERTEK TESTING SERVICE Report No.: HK13020273-3 FCC ID: A2HRTS7340SB IC: 9903A-RTS7340SB Equipment Photographs Model: SBT17340SBG1 (Internal) INTERTEK TESTING SERVICE Report No.: HK13020273-3 FCC ID: A2HRTS7340SB IC: 9903A-RTS7340SB Equipment Photographs Model: SBT17340SBG1 (Internal)

Technical Description The Equipment Under Test (EUT) is a Home Theater Sound Bar with Subwoofer. It can accept analog input sources: RCA aux-in and 3.5mm phone jack line-in; and digital input sources: optical and wireless Bluetooth device. The Bluetooth module in the EUT is operating in the frequency range from 2402MHz to 2480MHz (79 channels with 1MHz channel spacing). The audio signal is amplified and fed to the built-in stereo loudspeakers and a separate passive subwoofer. The EUT is powered by 13VDC from an AC/DC adaptor. The AC/DC adaptor can accept only 120AC input voltage (100V-120VAC). The EUT is using non-adaptive frequency hopping as declared by the applicant. 2.4GHz Bluetooth Module: Modulation Type: GFSK Antenna Type: Integral, Internal (PCB Trace) Frequency Range: 2402MHz - 2480MHz, 1MHz channel spacing, 79 channels Nominal field strength is 94.0B μV/m @ 3m Production Tolerance of field strength is +/- 3dB Antenna gain is 0dBi The functions of main ICs are mentioned below. 1. BlueTooth module BM81SPK01NB2 (BT1): 1) U1 (IS1681S) acts as the 2.4GHz radio core of Bluetooth module BT1 (BM81SPK01NB2), which is integrating with audio CODEC. 2) 16MHz crystal (X1) provides clock for Bluetooth RF IC IS1681S (U1). 3) U2 (24C32) is serial EEPROM for parameter backup of U1 (IS1681S). 2. Digital Audio Portion: 1) U6 (CS8416) acts as digital audio receiver which accepts SPDIF input. 2) JK5 (DLR1180) is optical receiver of TOSLINK optical input. 3) X2 (12.288MHz) provides 256Xfs (fs=48kHz) digital audio clock for U6. 4) U3 (DA1134) is 24bit/192kHz digital-to-analog converter for audio output. 3. Analog audio processor module: 1) IC3 (TM2314) acts as analog audio function including input selection, Volume, loudness, level, balance, bass and treble control. 4. Power Amplifier portion: 1) IC1 (TDA7491P) is 2X10W power amplifier driving internal stereo speaker. 2) IC801 (TPA3110) is 15W power amplifier driving external passive subwoofer. 3) IC802 (4558) is low-pass filter for mixing stereo into mono subwoofer signal. 5. MCU portion: 1) IC6 (BJ8F101M20A) is 8-bit MCU for system control. Channel Frequency Table of Bluetooth Module Preliminary Datasheet BM81SPK01
4F,
No.8,
Dusing
Rd.,
Hsinchu
Science
Park,
Hsinchu
city
30078,
Taiwan,
R.O.C






























Version:0.92


































Phone:
886%3%577%8385

















































































9/20/2011


















































































Fax:
886%3%577%8501
BM81SPK01 Bluetooth 3.0+EDR Wireless Speaker Module Preliminary Datasheet BM81SPK01 Version: 0.92 - 2 - 9/20/2011 Product Description The
ISSC
BM81SPK01
is
a
highly
integrated
Bluetooth
3.0+EDR
stereo
module,
designed
for
high
data
rate,
short%range
wireless
communication
in
the
2.4
GHz
ISM
band.
With
ISSC
Bluetooth
stack
and
profile,
the
ISSC
BM81SPK01
provides
a
low
power
and
ultra%low
cost
Bluetooth
3.0+EDR
solution
for
wireless
voice/audio
applications.
Features

Main
Chip:
ISSC
IS1681S


Bluetooth
3.0+EDR
compliant


Typical
+2dBm
Class
2
output
power


Receiver
Sensitivity:
GFSK
typical
%91dBm,
π/4
PSK
typical
%92dBm,
8DPSK
typical
%84dBm



Piconet
and
Scatter
net
support


HCI
UART
interface


CVSD,
A%law,
μ%law
CODEC
algorithms
for
voice
applications


SBC
decode
for
Bluetooth
audio
streaming


Build%in
High
performance
stereo
audio
codec


Cap%less/single
end
headphone
driver


Audio
DAC:
94dB
SNR



Build
in
Max.
350mAH
Li%ion
battery
charger


HSP,
HFP,
A2DP,
AVRCP
profile
support


3V
operating
voltage


ROM
version:
32Kb
EEPROM



34
pins
for
DIP
module,
35pins
for
SMT
module
(with
additional
35th
pin
antenna
port
for
external
antenna
option)



Size:
15mm
x29mm


Build%in
PCB
Antenna


RoHS
compliant

Preliminary Datasheet BM81SPK01 Version: 0.92 - 3 - 9/20/2011 Device Pinout Diagram P02 27 AIL 13 P27 28 MIC_BIAS 11 SPKR 5 P30 1 P00 3 AGND 8 P20 2 SYS_PWR 19 MIC1_P 9 GND 21 VDD_IO 15 P24 25 RST 14 P01 33 P16 32 P22 26 P05 29 HCI_TXD 30 P04 4 HCI_RXD 31 MFB 22 SPKL 6 BT_RF 35 VDDA 7 GND 34 BAT_IN 17 MIC1_N 10 LED1 23 ADAP_IN 16 AIR 12 SK1/P03 18 LED2 24 BK_OUT 20 Preliminary Datasheet BM81SPK01 Version: 0.92 - 4 - 9/20/2011 Pin Definition Pin No. I/O Name Description 1
P
P30
GPIO,
default
pull%high
input
Line%in
detection,
1:
no
line%in
detected;
0:
line%in
detected
2
I/O
P20
GPIO,
default
pull%high
input
System
Configuration,
H:
Application
L:
Baseband(IBDK
Mode)
3
I/O
P00
GPIO,
default
pull%low
input.
Slide
Switch
Detector
4
I/O
P04
GPIO,
default
pull%high
input
Audio
AMP
Enable
5
AO
SPKR
R%channel
analog
headphone
output,
single% ended
application
only
6
AO
SPKL
L%channel
analog
headphone
output,
single%ended
application
only
7
AP
VDDA
Reserve
for
external
cap
to
fine
tune
audio
frequency
response
8
AP
AGND
Audio
ground
9
AI
MIC1_P
Mic
1
mono
differential
analog
positive
input
10
AI
MIC1_N
Mic
1
mono
differential
analog
negative
input
11
AP
MIC_BIAS
Microphone
biasing
voltage
12
AI
AIR
Stereo
analog
line
in,
R%channel
13
AI
AIL
Stereo
analog
line
in,
L%channel
14
I/O
RST_N
System
Reset
Pin
15
P
VDDIO
VDDIO
pin,
for
calibration
only
Do
not
add
external
power
to
this
pin
16
P
ADAP_IN
Power
adaptor
input
17
P
BAT_IN
Battery
input
18
I/O
SK1/P03
Default
SAR
input
for
battery
detection
This
pin
can
be
re%defined
as
GPIO
P03
19
P
SYS_PW
System
Power
Output
20
P
BK_OUT
Buck
feedback
sense
pin
21
P
GND
Digital
ground
Preliminary Datasheet BM81SPK01 Version: 0.92 - 5 - 9/20/2011 22
P
MFB
Multi%Function
Push
Button
key
Combined
Play/Pause
key
when
A2DP
enabled.
23
P
LED1
LED
Driver
1
24
P
LED2
LED
Driver
2
25
I/O
P24
GPIO,
default
pull%high
input
System
Configuration,
H:
Boot
Mode
26
…

Text truncated - open the document above for the full version.

Analysis Report Report No.: HK13020273-3 The Equipment Under Test (EUT) is a Home Theater Sound Bar with Subwoofer. It can accept analog input sources: RCA aux-in and 3.5mm phone jack line-in; and digital input sources: optical and wireless Bluetooth device. The Bluetooth module in the EUT is operating in the frequency range from 2402MHz to 2480MHz (79 channels with 1MHz channel spacing). The audio signal is amplified and fed to the built-in stereo loudspeakers and a separate passive subwoofer. The EUT is powered by 13VDC from an AC/DC adaptor. The AC/DC adaptor can accept only 120AC input voltage (100V- 120VAC). Antenna Type: Internal integral antenna Antenna Gain: 0dBi Nominal rated field strength: 94.0dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 97.0dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 1.504mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 1.504mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing. Note: The EUT is using non-adaptive frequency hopping as declared by the applicant.

LINE_IN AUX1 AUX2 BT GND 3V3 KEY Optical in OPT_L OPT_R BM81 MODULE UPGRADE BT ON/OFF MUTE ON 1MUTE OFF 0 LINE-IN AUX1 AUX2 BT ALCO CONFIDENTIAL ALCO ELECTRONICS LIMTIED SCALE:SIZE:REV: PRODUCT NAME:DRAWING NO.: SHEET:CUSTOMER&MODEL NO.:MODEL NO.: TITLE: DATE:DATE:DATE: RELEASED DATE:APPROVED BY:CHECKED BY:PREPARED BY: COMPANY CHOP: Li Lin K.L CheungW.H Wong 2/2 1 A4 SBT17340SBG1 ' SBT17340SBG1 SCH ES130205A SOUND BAR MCU&AMP&BT&OPTICAL 2013/02/05 1:1 2013/02/05 2013/02/05 2013/02/05 C2 104 4 OUTO 2 OUT 3 IN 1 GND IC10 CD1117(ADJ) 3 AUU_R 2 GND 1 AUX_L LINE IN R1 22K R5 22K R6 3.9K R9 3.9K C10102 C11102 R31 22K R45 22K R46 3.9K R47 3.9K C16 102 C18 102 R30 1K C9 104 C96 105 1 VDD 2 SWIM 3 GND 4 NRST CN9 R40 10K C32 102 C119 104 R19 100 GNDVCCOUT IR1 REMOTE R74 100 C80 104 R23 1K R24 1K R20 10K 11 PB5/SDA 12 PB4/SCL 13 PC3 14 PC4 15 PC5 16 PC6 17 PC7 18 PD1/SWIM 19 PD2/AN3 20 PD3 10 PA3 9 VDD 8 VCAP 7 VSS 6 PA2 5 PA1 4 NRST 3 PD6/RX 2 PD5/TX 1 PD4 IC6 BJ8F101M20A C206 104 D1 SK34 1 S 2 S 3 S 4 G 8 D 7 D 6 D 5 D Q5 CEM9435A C48104 R26 75K R27 10K C20 106 231 J201 DC-IN 13V C4 1000uF/16V 1 SUB_GND 22 INPA 23 INNA 27 SGND 26 VDDS 28 DIGA 19 VDDPW 18 PGND 25 SYNCLK 24 ROSC 30 GAIN0 31 GAIN1 35 SVCC 36 VSS 32 INPB 33 INNB 21 MUTE 20 STBY 16 OUTPA 17 OUTPA. 14 PGNDA 15 PGNDA. 12 PVCCA 13 PVCCA. 10 OUTNA 11 OUTNA. 3 OUTPB 2 OUTPB. 7 PVCCB 6 PVCCB. 5 PGNDB 4 PGNDB. 9 OUTNB 8 OUTNB. 34 VREF 29 SVR IC1 TDA7491P C63 474 C59 474 C67 474 C68 474 C62 104 R62 100K R56 22R C57 104 R55 39K C61 104 C69 104 R59 33K R61 33K C55 105 C56 105 C70 105 C64 105 C74 104 R65 22 C71 330pF L13 33uH L16 33uH C77 0.47uF C78 474 C79 474 R64 22 C73 330pF L12 33uH L11 33uH C82 0.47uF C75 474 C83 474 C72 104 C7 100uF Q6 3904 R57 47K C46 102 C29 102 C14 102 C19 102 C184 102 C52 102 CL5 47uF CR2 47uF CL6 47uF CR4 47uF R50 3K3 C99 104 C100 334 1 VDD 2 AGND 3 TREB_L 4 TREB_R 5 RIN 6 ROUT 7 LOUD_R 8 RIN4 9 RIN3 10 RIN2 11 RIN1 12 LOUD_L 13 LIN4 14 LIN3 15 LIN2 16 LIN1 17 LIN 18 LOUT 19 BIN_L 20 BOUT_L 21 BIN_R 22 BOUT_R 23 OUT_R 24 OUT_L 25 DGND 26 SDA 27 SCK 28 REF IC3 CSC2314 R51 3K3 C101 104 C102334 C103 272 C104 272 C105 104 C106 22uF C17 104 R52 2.2k R53 2.2k R28 100 C58 100uF C6 104 C65 105 C30 105 C24 105 C76 105 C37 105 C41105 C23 105 C31 105 C45 105 C66 105 C242 105 C243 105 R125 0R R126 0R R127 NC R128 NC R84 4.7K R178 47K R189 100R R190 100R R191100R R193 100K R195 1K Q7 9014 R85 1K 1 2 3 4 5 6 7 1234567 CON1 7 PINS C81 106 R7 120 R4 240 R29 1K R182 4K7 R15 10K R22 10K C5102 C22 102 C21 105 C25 105 R21 30K R13 30K 1 RXP3 2 RXP2 3 RXP1 4 RXP0 5 RXN 6 VA+ 7 AGND 8 FILT 9 RST 10 RXSEL1 11 RXSEL0 12 TXSEL1 13 TXSEL0 14 NV/RERR 15 AUDIO 16 96KHZ 17 RCBL 18 U 19 C 20 TX 21 VL+ 22 DGND 23 VD+ 24 RMCK 25 OMCK 26 SDOUT 27 OSCLK 28 OLRCK U6 CS8416 C90 0.01u C91 0.01u C95 0.1u C92 0.1U C93 0.1U C94 0.1U R67 1K C107 0.22U C108 0.01u R75 47K R76 47K R94 47K R102 47K R103 47K R105 47K R118 47K R119 47K R120 47K R121 47K C84 0.1U C85 0.1U R122 100 R123 100 R124 100 R129 100 R130 1K R131 1K R132 1K R133 1K C88 6800P C89 6800P C39 2200P C97 2200P L25 FB R138 10K L26 FB L27 FB C109 0.1U R36 47K 1 OUT 2 GND 3 VCC JK5 DLR1180_1 R117 330R R83 330R C50 104 1 SDATA 2 SCLK 3 LRCK 4 CLKIN 5 AOUTR 6 GND 7 VDD 8 AOUTL U3 DA1134 C114100uF R38 100R C40 10UF R42 2K2 R43 2K2 Q9 3904 R39 4.7K R41 47K 4 OUTO 2 OUT 3 IN 1 GND IC2 NE6118 R44 100 C43 106 R48 10R D3 8V2 C44 104 D8 5V1 1 1A 2 GND 3 2A 6 1Y 5 VCC 4 2Y IC4 SN74LV2G04 R35 1M X2 12.288MHz C49 15pF C47 15pF C3 0.1uF + C38 2.2uF R49 27K D6IN4148 R54 2K7 R5810K R8 33R C35 10UF C36 100PF Q12 9015 Q14 3904 R60 10K R63 10K R66100 C253 0.1UF 4 P04 1 P30 30 HCI_TXD 5 SPKR 6 SPKL 8 AGND 7 VDDA 19 SYS_PWR 17 BAT_IN 21 GND 23 LED1 25 P24 24 LED2 26 P22 27 P02 29 P05 28 P27 31 HCI_RXD 11 MIC_BIAS 22 MFB 3 P00 35 BT_RF 2 P20 34 GND 9 MIC1_P 10 MIC1_N 15 VDD_IO 16 ADAP_IN 14 RST 20 BK_OUT 32 P16 12 AIR 13 AIL 33 P01 18 SK1/P03 BT1 BM81SPK01NB2 C832104 C833104 C834104 C827 10UF C826 0.1UF Q801 3904 C824 10UF R822 2K 1234567 WH1 NC D4 BAV70 C33 100uF/16V C1 106 R12 1K Q8 3904 R182K2 R16 10K Q13 3904 R32 10K R25 10K 123 WH2 3 PINS 123 WH3 3 PINS C830 105 C829 105 R821 100K R820 100K R819 33K R818 22K R815 68K R813 22K R811 100 + C822 100uF/16V R814 10K R812 10K 5 IN2+ 6 IN2- 7 OUT2 8 VCC 4 VEE 3 IN1+ 2 IN1- 1 OUT1 IC802 YD4558 C823 10u/10V C825 104 C821104 R817 22K R810 1K C12 104 C819 475 C828 103 C820 223 R805 100K R807100KR806 NC R808 NC R809100K 1 SD 2 FAULT 3 LINP 4 LINN 5 GAIN0 6 GAIN1 7 AVCC 8 AGND 9 GVDD 10 PLIMIT 11 RINN 12 RINP 13 NC 14 PBTL 28 PVCC` 27 PVCC, 26 BSN. 25 OUTN. 24 PGND, 23 OUTN 22 BSN 21 BSP. 20 OUTP. 19 PGND 18 OUTP 17 BSP 16 PVCC. 15 PVCC IC801 TPA3110 C811 105 C812104 C807 105 C808105 C813 104 C815 105 R804 4K7 C817 105 C814 104 C816 104 R803 10K C805 330p R802 10 C806 105 L802 33UH C804 105 C802 330p R801 10 C803 105 L801 33UH C801 105 R816 22K C818 104 12 3 4 J801 118-040236W000 + C809 100uF/16V Q805 3904 R823 4.7K 3 AUU_R 2 GND 1 AUX_L AUX-2 R10 22K R11 22K R17 3.9K R14 3.9K C8102 C13102 12 3 4 J1 AUX-1 LED1 Q1 9014 R3 2K2 K1 POWER K2 SOURCE K3 VOL+ K4 VOL- KR12 1K KR13 1.2K KR15 1.5K LED2 Q2 9014 KR21 2K2 LED3 Q3 9014 KR22 2K2 1234567 CON2 7 PINS LED4 R37 2K2 AUX-1 AUX-1 SCL M_POWER AUX1_R AUX1_L LINE_IN_RLINE_IN_L SDA BT+3V7 BT_PLAY BT_POWER +VS AUX-2 BT_NEXT BT_PREV AUX-2 VDDS M_POWER +VS +VS INRP INLP SCLSDA +VS LINE_IN_L LINE_IN_R AUX2_L AUX2_R AUX1_L BT_L AUX1_R BT_R INLPINRP BT_PREV BT_NEXT BT_PLAY BT_L BT+3V7 BT_POWER B+A BT_LED_IN BT_LED_IN BT_R AUX2_L AUX2_R +3V3E +3V3E +3V3E PGND PGND PGND AGND PGND PGND AGND PGND PGND PGND M_POWER +3V3E +VS AGND +3V3E OPT_MCLK BT+3V7GND BT+3V7 B_MUTE M_MUTE B_MUTE M_MUTE BT_DET BT_DET MCU_3V3 MCU_3V3 2314_L 2314_R 2314_L 2314_R +VS M_POWER SW_MUTE SW_MUTE BT_MUTE AUX2_LAUX2_R SPKR SPKL      ' ' & & % % $ $ 33 0,&B%,$6 0)% 3 333+&,B5;'+&,B7;' 63./ 0,&B30,&B1567B1 3/('/(' ($1 3 %7B5) $,5$,/ 3 33 36. 63.5 3 3 63.53333567B10,&B%,$60,&B1$,5$,/0,&B363./ 3 %7B5) 0)%/('3 +&,B5;'+&,B7;…

Text truncated - open the document above for the full version.

Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: HK13020273-3 i FCC ID: A2HRTS7340SB IC: 9903A-RTS7340SB Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION ALCO Electronics Ltd. BRAND NAME: VENTURER, MODEL: SBT17340SBG1 BRAND NAME: RCA, MODEL: RTS7340SB FCC ID: A2HRTS7340SB IC: 9903A-RTS7340SB Grantee: ALCO Electronics Ltd. Grantee Address: 11/F., Zung Fu Industrial Building, 1067 King’s Road, Quarry Bay, Hong Kong. Contact Person: Peggy Suen Tel: 852-2562 6121 Fax: 852-2597 5201 e-mail: [email protected] Manufacturer: Dongguan Houjie Alco Electronics General Factory Manufacturer Address: The 3 rd Industrial District, Houjie, Dongguan, Guangdong, P.R.C. Brand Name: VENTURER / RCA Model: SBT17340SBG1 / RTS7340SB Type of EUT: Transceiver Description of EUT: Home Theater Sound Bar with Subwoofer Serial Number: N/A FCC ID / IC: A2HRTS7340SB / 9903A-RTS7340SB Date of Sample Submitted: February 06, 2013 Date of Test: March 11, 2013 Report No.: HK13020273-3 Report Date: April 09, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: HK13020273-3 ii FCC ID: A2HRTS7340SB IC: 9903A-RTS7340SB Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT ALCO Electronics Ltd. BRAND NAME: VENTURER, MODEL: SBT17340SBG1 BRAND NAME: RCA, MODEL: RTS7340SB FCC ID: A2HRTS7340SB IC: 9903A-RTS7340SB TEST SPECIFICATION REFERENCE RESULTS Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.4 Pass Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 Pass Receiver / Digital Device Radiated Emissions 15.109 / RSS-210 2.5 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2011 Edition RSS-210 Issue 8, December 2010 RSS-Gen Issue 3, December 2010 Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: HK13020273-3 iii FCC ID: A2HRTS7340SB IC: 9903A-RTS7340SB Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification................................................................................................... 2 2.2 EUT Exercising Software .............................................................................. 2 2.3 Special Accessories...................................................................................... 2 2.4 Equipment Modification................................................................................. 2 2.5 Measurement Uncertainty ............................................................................. 3 2.6 Support Equipment List and Description........................................................ 3 3.0 Emission Results........................................................................................... 4 3.1 Field Strength Calculation ............................................................................. 4 3.2 Radiated Emission Configuration Photograph ............................................... 5 3.3 Radiated Emission Data ............................................................................... 5 3.4 Conducted Emission Configuration Photograph ............................................ 5 3.5 Conducted Emission Data...............................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Report No.: HK13020273-3 Sample No.: 1/1 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 177 kHz 47.79 L1 gnd -16.83 1 Quasi Peak 222 kHz 42.17 N gnd -20.56 1 Quasi Peak 316.5 kHz 36.22 L1 gnd -23.57 2 CISPR Average316.5 kHz 32.71 L1 gnd -17.08 2 CISPR Average708 kHz 27.67 L1 gnd -18.32 1 Quasi Peak 735 kHz 37.20 L1 gnd -18.79 1 Quasi Peak 1.086 MHz 18.62 L1 gnd -37.37 1 Quasi Peak 1.9905 MHz 28.92 L1 gnd -27.07 1 Quasi Peak 2.6655 MHz 25.68 N gnd -30.31 1 Quasi Peak 3.237 MHz 28.13 N gnd -27.86 1 Quasi Peak 4.9785 MHz 32.36 N gnd -23.63 1 Quasi Peak 8.3445 MHz 33.57 N gnd -26.42 150kHz30MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Conducted Plot – Pursuant to FCC Part 15 Requirement (Pass/Fail)

INTERTEK TESTING SERVICE Report No: HK13020273-3 FCC ID: A2HRTS7340SB IC: 9903A-RTS7340SB Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: SBT17340SBG1 HK13020273-3 SBT17340SBG1 Side A INTERTEK TESTING SERVICE Report No: HK13020273-3 FCC ID: A2HRTS7340SB IC:…

Text truncated - open the document above for the full version.
