A2HRTS739BWSHome Theater Sound Bar

Home Theater Sound Bar RTS739BWS User Manual Safety Precautions It is important to read this user manual prior to using your new product for the first time. Remote Control Accessories Remote control (with 2 x AAA batteries) ..........................................................................x 1 AC power adapter .....................................................................................................................x 1 Wall Mount Bracket (with screws x 4).................................................................................x 2 Please locate the included accessories. To order replacement units, visit http://www.RCAav.com Location of Controls Placement Connections Basic Operation Bluetooth Pairing Troubleshooting Power Supply USing The AC AdAPTeR Using an AC adapter other than the one supplied with the unit may damage the unit. Caution: • Before use, ensure the rated voltage of the adapter matches your local voltage. • The included AC adapter is for use with this unit only. Do not use it with other equipment. • If you are not going to use the unit for a long time, disconnect the AC adapter from the wall outlet. • Whenever the AC adapter is plugged in to a wall outlet, the AC adapter will draw some power, even when the Sound Bar is turned off. USing The RemOTe COnTROL • Point the remote control at the REMOTE SENSOR located on the unit (see Front Panel illustration for precise location). • When there is a strong ambient light source, the perform ance of the infrared REMOTE SENSOR may be degraded, causing unreliable operation. • The recommended effective distance for remote operation is about 16 feet (5 meters). TO ChAnge RemOTe BATTeRieS 1. Open the battery door. 2. Insert two AAA batteries. BATTeRy RePLACemenT When the batteries become weak, the operating distance of the remote control is greatly reduced and you will need to replace them. Notes: • If the remote control is not going to be used for a long time, remove the batteries to avoid corrosion damage caused by battery leakage. • Do not mix old and new batteries. Do not mix ALKALINE, standard (CARBON- ZINC) or rechargeable (NICKEL- CADMIUM) batteries. • Always remove batteries as soon as they become weak. • Weak batteries can leak and severely damage the remote control. • WARNING: Do not dispose of batteries in a fire. batteries may explode or leak. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. FCC inFORmATiOn This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. WARNING: • Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. • The AC adapter is used as disconnect device and it should remain readily operable during intended used. In order to disconnect the unit from the mains completely, the AC adapter should be disconnected from the mains socket outlet completely. • The AC adapter of unit should not be obstructed OR should be easily accessed during intended use. • Minimum 10 cm (4 inches) distances around the unit for sufficient ventilations. • The ventilation should not be impeded by covering the ventilation openings with items such as newspaper, table- cloths, curtains, etc. • No naked flame sources such as lighted candles should be placed on the unit. On SAFeTy • Should any objects or liquids fall into the unit, disconnect the power supply and have the unit checked by qualified personnel before any further operation. • The unit shall not be exposed to dripping or splashing and that no objects filled with liquid, such as vases, shall be placed on the unit. On USe Never use the unit where it would be subject to: - Heat sources such as radiators or air ducts. - Direct sunlight. 1 . MUTE button 2. BLUETOOTH button 3. VOL / button / / button 4. AUX button 5. BASS / button 6 . button 7. LINE IN button 8. SOURCE button 9. OPTICAL button 10. TREBLE / button 11. SURROUND button RemOTe COnTROL 1 . Standby/ON button 2. SOURCE button 3. BLUETOOTH / LEVEL indicator 4. AUX IN / LEVEL indicator 5. OPTICAL IN / LEVEL indicator 6. LINE IN / LEVEL indicator 7 . / VOLUME button 8. DC IN jack 9. AUX IN R / L jack 10. LINE IN 3.5mm jack 11. OPTICAL IN jack 12. Remote Sensor Plug one end of a 3.5mm Audio Cable (not included) into the LINE IN jack and other end into your iPad®, iPhone®, iPod® or other audio devices. Before Bluetooth pairing, you should turn on the Bluetooth function of your other device (such as, mobile phone with Bluetooth function). 1. Press SOURCE button on the unit or button on the remote control to select BT (Bluetooth) mode. The Bluetooth indicator light on the s…

Text truncated - open the document above for the full version.

Electronics Limited A member of the ALCO group 11/F Zung Fu Industrial Building,1067 King’s Road, Quarry Bay, Hong Kong Tel: (852) 2562 6121, Fax: (852) 2597 5201 , (852) 2811 1056 Letter of Agency "I, an officer of Alco Electronics Ltd., do hereby authorize Intertek Testing Services (Mr. Terry Chan / Koo Wai Ip / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this 2 nd day of March, 2015 By _____________ ____ Signature _ Peggy Suen_____ _ ____ Printed Name _ Secretary, Engineering Dept. __ Title Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base.

Electronics Limited A member of the ALCO group 11/F Zung Fu Industrial Building,1067 King’s Road, Quarry Bay, Hong Kong Tel: (852) 2562 6121, Fax: (852) 2597 5201 , (852) 2811 1056 Attention: Application Examiner Re: Request for confidentiality Applicant: Alco Electronics Ltd. FCC ID: A2H576%:6 To whom it may concern, Permanent Confidentiality [Complete this section if permanent confidentiality is requested] Request is hereby submitted by Alco Electronics Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: [Select one or more of items below, as appropriate] ၨ
Schematics ၨ
Detailed Block diagrams ၨ
Detailed Operational/Functional Description Short-term Confidentiality [Complete this section if short-term confidentiality is requested] Request is hereby submitted by Alco Electronics Ltd. to withhold from public review for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing, certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) of the FCC Rules. In particular, the following sections of the application are to be kept confidential for a period of 180 days from the date of Authorization: [Select one or more of items below that are not selected in the list above, as appropriate] ၨ
Schematics ၨ
Detailed Block diagrams ၨ
Detailed Operational/Functional Description ၨ
Test setup photos ၨ
External photos ၨ
Internal photos ၨ
User manual Rationale for request for confidentiality: Alco Electronics Ltd. has invested considerable time and materials in research and development to produce the referenced product. [Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us.][Short term confidentiality: Disclosure of the short term confidential portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development.] [For FCC certification; delete for TCB certification: The fee for confidentiality has been submitted along with the fee for certification.] If you have questions or need further information, please contact the undersigned. Sincerely, [Signature] Secretary, Engineering Dept. [Title] Alco Electronics Ltd. [Company name] Peggy Suen 22 APR, 2015

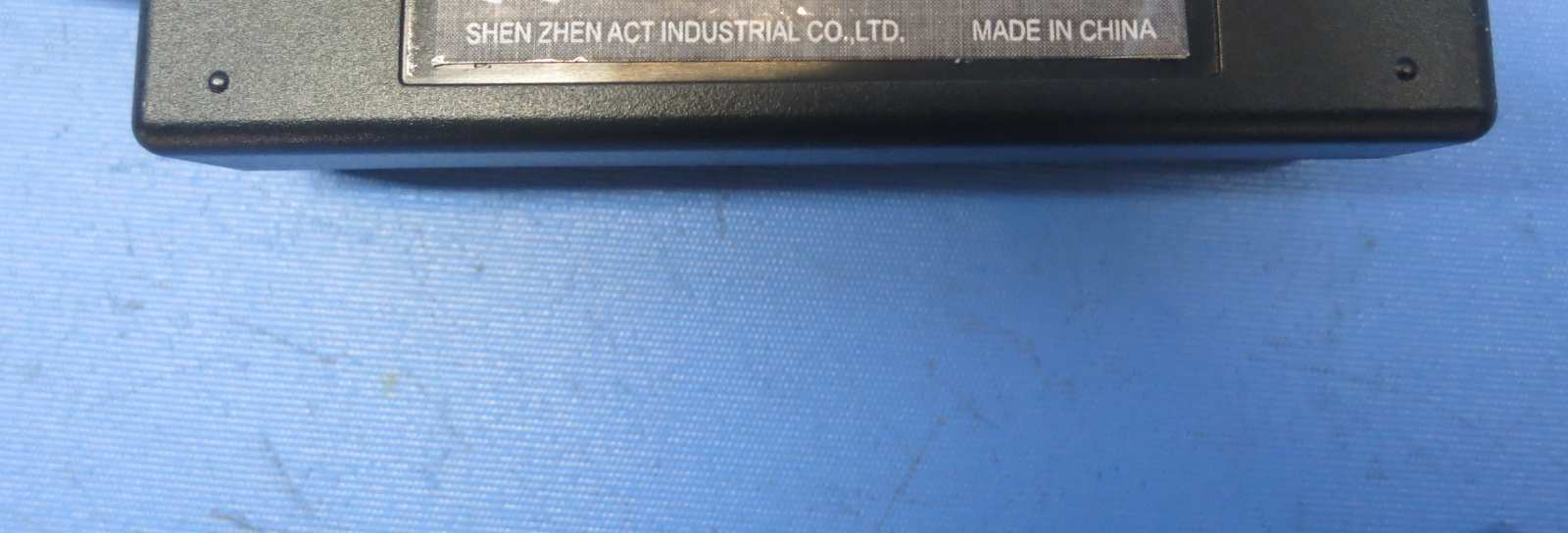

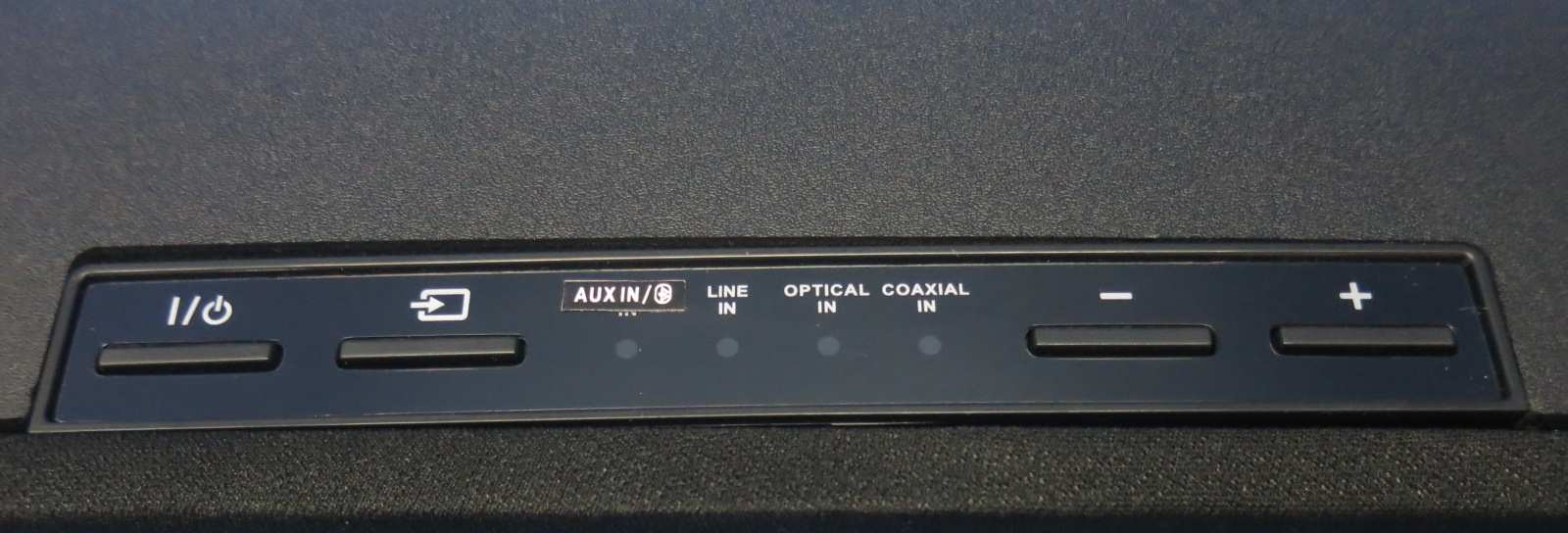

INTERTEK TESTING SERVICE Report No.: 15030653HKG-001 FCC ID: A2HRTS739BWS Equipment Photographs Model: SBT1739BWS (External) INTERTEK TESTING SERVICE Report No.: 15030653HKG-001 FCC ID: A2HRTS739BWS Equipment Photographs Model: SBT1739BWS (External) INTERTEK TESTING SERVICE Report No.: 15030653HKG-001 FCC ID: A2HRTS739BWS Equipment Photographs Model: SBT1739BWS (External)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. CAN ICES-3 (B) / NMB-3 (B)FCC ID: A2HRTS739BWS Model : SBT1739BWSPower Source : DC27.5V 2.35A Venturer Electronics Inc. Markham, Ontario L3R 1B3 Made in China/Fabriqué en Chine/Fabricado en China WIRELESS LINK SL SR WARNING: SHOCK HAZARD - DO NOT OPEN AVERTISSEMENT: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURENE PAS EXPOSER CET APPAREIL À DE LA PLUIE OU DE L’HUMIDITÉ 8 8 REAR OF SOUNDBAR REAR OF SUBWOOFER BOTTOM OF SURROUND SPEAKERS AVC MultimediaMM/2015CARB 93120 Compliantfor Formaldehyde MM = production month MM = production month SUBWOOFER AVC Multimedia Markham, Ontario L3R 1E3 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. CAN ICES-3 (B) / NMB-3 (B) Contains FCC ID: QEC-GWNO Model : SBT1739-SWPower Source : 120V 60 Hz Made in China/Fabriqué en Chine/Fabricado en China Power Consumption : 48W SUBWOOFER Venturer Electronics Inc. Markham, Ontario L3R 1B3 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. CAN ICES-3 (B) / NMB-3 (B)Contains FCC ID: QEC-GWNOModel : SBT1739-SWPower Source : 120V 60 Hz Made in China/Fabriqué en Chine/Fabricado en China Power Consumption : 48W HOME THEATER SOUND BAR HOME THEATER SOUND BAR This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. CAN ICES-3 (B) / NMB-3 (B)FCC ID: A2HRTS739BWS Model : RTS739BWSPower Source : DC27.5V 2.35A AVC Multimedia Markham, Ontario L3R 1E3 Made in China/Fabriqué en Chine/Fabricado en China AVC MultimediaMM/2015CARB 93120 Compliantfor Formaldehyde 10mm 10mm RTS739BWS/SBT1739BWSSBT1739-SWLabels/markings for applicationMar 13, 2015Mar 20, 2015 (Rev.1) Letter size 2mm Letter size 3mm

INTERTEK TESTING SERVICE Report No.: 15030653HKG-001 FCC ID: A2HRTS739BWS Equipment Photographs Model: SBT1739BWS (Internal) INTERTEK TESTING SERVICE Report No.: 15030653HKG-001 FCC ID: A2HRTS739BWS Equipment Photographs Model: SBT1739BWS (Internal) INTERTEK TESTING SERVICE Report No.: 15030653HKG-001 FCC ID: A2HRTS739BWS Equipment Photographs Model: SBT1739BWS (Internal) INTERTEK TESTING SERVICE Report No.: 15030653HKG-001 FCC ID: A2HRTS739BWS Equipment Photographs Model: SBT1739BWS (Internal) INTERTEK TESTING SERVICE Report No.: 15030653HKG-001 FCC ID: A2HRTS739BWS Equipment Photographs Model: SBT1739BWS (Internal) INTERTEK TESTING SERVICE Report No.: 15030653HKG-001 FCC ID: A2HRTS739BWS Equipment Photographs Model: SBT1739BWS (Internal) INTERTEK TESTING SERVICE Report No.: 15030653HKG-001 FCC ID: A2HRTS739BWS Equipment Photographs Model: SBT1739BWS (Internal) INTERTEK TESTING SERVICE Report No.: 15030653HKG-001 FCC ID: A2HRTS739BWS Equipment Photographs Model: SBT1739BWS (Internal) INTERTEK TESTING SERVICE Report No.: 15030653HKG-001 FCC ID: A2HRTS739BWS Equipment Photographs Model: SBT1739BWS (Internal) INTERTEK TESTING SERVICE Report No.: 15030653HKG-001 FCC ID: A2HRTS739BWS Equipment Photographs Model: SBT1739BWS (Internal) INTERTEK TESTING SERVICE Report No.: 15030653HKG-001 FCC ID: A2HRTS739BWS Equipment Photographs Model: SBT1739BWS (Internal) INTERTEK TESTING SERVICE Report No.: 15030653HKG-001 FCC ID: A2HRTS739BWS Equipment Photographs Model: SBT1739BWS (Internal)

Analysis Report Report No.: 15030653HKG-001 The Equipment Under Test (EUT) is a Home Theatre Sound Bar. It can accept analog input sources (RCA aux-in and 3.5mm phone jack line-in), digital input source and wireless Bluetooth device. The Bluetooth module in the EUT is operating in the frequency range from 2402MHz to 2480MHz (79 channels with 1MHz channel spacing). The audio signal is amplified and fed to the built-in passive loudspeakers. The EUT can also transmit audio signal to a separate active subwoofer via a 2.4GHz Wireless link. This 2.4G Wireless Module is operating in the frequency range from 2404MHz to 2479MHz (16 channels with 5MHz channel spacing). The EUT is powered by a 27.5V AC/DC adaptor. The adaptor can accept 100-240VAC input. For Bluetooth Module: Modulation Type: GFSK Antenna Type: Integral, Internal (PCB Trace) Frequency Range: 2402MHz - 2480MHz, 1MHz channel spacing, 79 channels Nominal field strength is 96.8dBμV/m @ 3m Production Tolerance of field strength is +/- 3dB Antenna gain is 0dBi For 2.4G Wireless Module: Modulation Type: GFSK Antenna Type: Integral, Internal (PCB Trace) Frequency Range: 2404MHz - 2479MHz, 5MHz channel spacing, 16 channels Nominal field strength is 89.2dBμV/m @ 3m Production Tolerance of field strength is +/- 3dB Antenna gain is 0dBi According to the KDB 447498: For Bluetooth Module: Based on the Maximum allowed field strength of production tolerance was 99.8dBμV/m at 3m in frequency 2.480GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 2.865mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 2.865mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW For Bluetooth 2.4G Wireless Module: Based on the Maximum allowed field strength of production tolerance was 92.2dBμV/m at 3m in frequency 2.479GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.498mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.498mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.479) mW = 9.53 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing. Simultaneous Transmission SAR exclusion considerations Since the Bluetooth Module and 2.4G Wireless Module transmitters of this device may operate simultaneously, simultaneous transmission analysis is required. Per KDB 447498, simultaneous transmission SAR test exclusion can be applied when the sum of 1-g SAR of all simultaneously transmitting antennas in an operating mode and exposure condition combination is within the SAR limit (≤ 1.6W/kg). When the standalone SAR test exclusion is applied, the standalone 1-g SAR must be estimated according to the following equation, Estimated SAR = )max/()5.7/)((TDPxGHzF where F(GHz) is the RF channel transmit frequency in GHz Pmax is the max. power of channel, including tune-up tolerance, mW TD is the min. test separation distance, mm For Bluetooth Module, Maximum Time-averaged Conducted Power of this device = 2.865 mW Therefore, the Estimated SAR will be determined as follow, Estimated SAR = )max/()5.7/)((TDPxGHzF = 0.12 W/kg where Pmax = 2.865 mW, TD = 5 mm and F(GHz) = 2.480 GHz For 2.4G Wireless Module, Maximum Time-averaged Conducted Power of this device = 0.498 mW Therefore, the Estimated SAR will be determined as follow, Estimated SAR = )max/()5.7/)((TDPxGHzF = 0.02 W/kg where Pmax = 0.498mW, TD = 5 mm and F(GHz) = 2.479 GHz Simultaneous Transmission Analysis Bluetooth Module SAR (W/kg) 2.4G Wirelss Module SAR (W/kg) Σ ΣΣ Σ SAR (W/kg) Simultaneous SAR Required 0.12 0.02 0.14 No Conclusion Since the above summed SAR result for all simultaneous transmission conditions were below the SAR limit (1.6 W/kg), SAR evaluation for simultaneous transmission configuration are not required.

- Intertek's standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. - The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: 15030653HKG-002 Alco Electronics Ltd Application For Certification (Original Grant) (FCC ID: A2HRTS739BWS) Transceiver Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Lead Engineer Chan Chi Hung, Terry Senior Supervisor Date: April 21, 2015 INTERTEK TESTING SERVICES Report No.: 15030653HKG-002 i FCC ID: A2HRTS739BWS GENERAL INFORMATION Grantee: Alco Electronics Ltd Grantee Address: 11/F., Zung Fu Industrial Building, 1067 King’s Road, Quarry Bay, Hong Kong. Contact Person: Peggy Suen Tel: (852) 2562 6121 Fax: (852) 2597 5201 e-mail: [email protected] Manufacturer: Alco Electronics (Dongguan) Limited Manufacturer Address: Gong Ye Xi Road, Houjie Technology Industrial Park, Houjie, Dongguan, Guangdong P.R.C. 523960 China Brand Name: VENTURER / RCA Model: SBT1739BWS / RTS739BWS Type of EUT: Transceiver Description of EUT: Home Theater Sound Bar Serial Number: N/A FCC ID: A2HRTS739BWS Date of Sample Submitted: March 16, 2015 Date of Test: March 16, 2015 to April 16, 2015 Report No.: 15030653HKG-002 Report Date: April 21, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: 15030653HKG-002 ii FCC ID: A2HRTS739BWS SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Power Line Conducted Emissions 15.207 Pass Radiated Emission Radiated Emission on the Bandedge 15.249, 15.209 Pass Radiated Emission in Restricted Bands 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: 15030653HKG-002 iii FCC ID: A2HRTS739BWS Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification................................................................................................... 2 2.2 EUT Exercising Software .............................................................................. 3 2.3 Special Accessories...................................................................................... 3 2.4 Measurement Uncertainty ............................................................................. 3 2.5 Support Equipment List and Description........................................................ 3 3.0 Emission Results ........................................................................................... 4 3.1 Field Strength Calculation ............................................................................. 4 3.2 Radiated Emission Configuration Photograph ............................................... 5 3.3 Radiated Emission Data ............................................................................... 5 3.4 Conducted Emission Configuration Photograph ............................................ 5 3.5 Conducted Emission Data............................................................................. 5 4.0 Equipment Photographs .............................................................................. 14 5.0 Product Labelling......................................................................................... 14 6.0 Technical Specifications.............................................................................. 14 7.0 Instruction Manual ....................................................................................... 14 8.0 Miscellaneous Information.......................................................................... 15 8.1 Radiated Emission on th…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 15030653HKG-001 FCC ID: A2HRTS739BWS Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: SBT1739BWS INTERTEK TESTING SERVICE Report No: 15030653HKG-001 FCC ID: A2HRTS739BWS Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: SBT1739BWS

INTERTEK TESTING SERVICE Report No: 15030653HKG-001 FCC ID: A2HRTS739BWS i Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) Model: SBT1739BWS INTERTEK TESTING SERVICE Report No: 15030653HKG-001 FCC ID: A2HRTS739BWS ii Configuration Photographs Worst-Case Line-Conducted Emissions (Rear View) Model: SBT1739BWS INTERTEK TESTING SERVICE Report No: 15030653HKG-001 FCC ID: A2HRTS739BWS iii Configuration Photographs Worst-Case Line-Conducted Emissions (Side View) Model: SBT1739BWS
