A2HSBX4250KNSound Bar Speaker System

1 For more information see “Troubleshooting” on page 17 in this guide. Owner’s Record The model number and serial number are on the back and underside of your Sound Bar. Record these numbers in the spaces below. Refer to these numbers whenever you communicate with your Toshiba dealer about this Sound Bar. Model name____________________________ Serial number___________________________ Sound Bar Speaker System User’s Guide: SBX4250KN If you need assistance: Toshiba’s Support Web site support.toshiba.com Toshiba Canada Support Web site : www.toshiba.ca/support/ceg Call Toshiba Customer Support Center: Within the United States at (800) 631-3811 Outside the United States at (949) 583-3050 From Canada at (800) 268-3404 SBX4250KN_IB.indd 12012/6/19 12:32:50 2 Contents Introduction .......................................................................................... 6 Safety icons used in this manual............................................................ 6 Sound Bar speaker system controls ...................................................... 7 Remote control ................................................................................... 10 Sound Bar speaker system placement ................................................. 12 Sound Bar speaker system connections .............................................. 13 Troubleshooting .................................................................................. 17 Maintenance ....................................................................................... 18 Specifications ..................................................................................... 19 SBX4250KN_IB.indd 22012/6/19 12:32:50 3 Safety Precautions Important Safety Instructions The lightning flash with an arrowhead symbol, within the equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in this User’s Guide. 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any of the ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Unplug this apparatus during lightning storms or when unused for long periods of time. 13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 14. Do not overload wall outlets; extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. 15. Never expose the apparatus to dripping or splashing or place items such as vases, aquariums, any other item filled with liquid, or candles on top of the unit. To ensure proper use of this product, please read this User’s Guide carefully and retain for future reference. Should the unit require maintenance, contact an authorized service location. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Warnings: • The mains plug is used as disconnect device and it should remain readily operable during intended used. In order to disconnect the apparatus from the mains completely, the main plug should be disconnected from the mains socket outlet completely. • The use of apparatus in moderate climates. The symbol for Class II (Double lnsulation) WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY. TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT OF AC POWER UTLET, THEN FULLY INSERT. CHANGES OR MODIFICATIONS MADE TO THIS EQUIPMENT, NOT EXPRESSLY APPROVED BY TOSHIBA, OR PARTIES AUTHORIZED BY TOSHIBA, COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. SBX4250KN_IB.indd 32012/6/19 12:32:51 4 Additional Safety Instructions 16. Do not place anything on top of this unit. 17. Do not place the apparatus on amplifiers or equipment that may produce heat. 18. Never block or cover the slots or openings in the unit. Never place the unit: • on a bed, sofa, rug or similar surface; • too close to drapes, curtains, or walls; or • in a confined space such as a bookcase, built-in cabinet, or any other place with poor ventilation. The slots and openings are provided to protect the unit from overheating and to help maintain reliable operation. 19. If the apparatus should emit smoke or an unusual odor, immediately disconnect the power cord from the wall outlet. Wait until the smoke or smell stops, then ask your dealer for a check and repair. Neglecting to do so may cause fire. 20. Durin…

Text truncated - open the document above for the full version.

5 5 4 4 3 3 2 2 1 1 D D C C B B A A Size: Rev: Sheet: of Title:MODEL: COMPANY: ALCO Electronics Limited Date: Data:Date: Drawn:Checked: Approved: LAST SAVED DATE: 1.0 Monday, June 04, 2012 5 5 Custom YY-MM-DD Drawn by Checked by Approved by SB93719BLOCK YY-MM-DD YY-MM-DD Size: Rev: Sheet: of Title:MODEL: COMPANY: ALCO Electronics Limited Date: Data:Date: Drawn:Checked: Approved: LAST SAVED DATE: 1.0 Monday, June 04, 2012 5 5 Custom YY-MM-DD Drawn by Checked by Approved by SB93719BLOCK YY-MM-DD YY-MM-DD Size: Rev: Sheet: of Title:MODEL: COMPANY: ALCO Electronics Limited Date: Data:Date: Drawn:Checked: Approved: LAST SAVED DATE: 1.0 Monday, June 04, 2012 5 5 Custom YY-MM-DD Drawn by Checked by Approved by SB93719BLOCK YY-MM-DD YY-MM-DD ALCO SB93719 +HDMI-IN-1.4 (300W) BLOCK DIAGRAM WITH HD-AUDIO V1.3A RECEUVER IC EPF02 5 A(64-LQFP) EP HDMI CONTROL UP HDMI SIGNAL HDMI SIGNAL UART BUS/RESET MCU CLK/DATA I2C BUS RX INT VCC+34V P+12V STB5V P+5V DDC HPDTMX POWER SUPPLY AMP SIGNAL VALUE STB-CT RX/TX MAP5602M DOWN LOAD /SD LR LINE-IN AUX-IN LR FLASH 8M HDMI-IN-1 OUTPUT OPT-IN HDMI DIGITAL-IN SOCKET LPC1114 MCU FR TAS5352 DIGITAL AMP PT6315 VFD DRIVER IR VFD DISPLAY KEY VFD-DATA FL TX 2404.5MHz - 2479.5MHz 2.4G DIGITAL wireless STREAMING VIDEO BOX 2402MHz - 2480MHz I2C_DATA/CLK 3-CHANNEL INPUT EP94A3K EP-HDMI 1.4 MFB/LED DIGITAL-IN TX/RX D/A SUB-OUT WM8730 RX 2.4G DIGITAL wireless SUB TAS5611 DIGITAL AMP VCC+34V P+12V STB5V POWER SUPPLY VCC+28V DC-JACK STB-VCC-CT Bluetooth KEY FR/FL WLINK TECHNOLOGY LTD. Product Specification __________________________________________________________________________________ Page 2 of 10 Taiwan H/Q Add.: No.46, Aly. 108-3 , Ln. 445 , Sec. 2, Meishi Rd., Yangmei City, Taoyuan County 326, Taiwan (R.O.C.) Tel: +886-3-4811534 The BT3GMD-A30P supports Bluetooth SIG-compliant wideband speech implementation to greatly enhance the audio quality with both PCs and cell phones. The BT3GMD-A30P supports the Bluetooth 3.0 standard, adding enhanced power control, simple and secure pairing, and enhanced inquiry response as value-added features for Bluetooth headsets. All major functional blocks required for a Bluetooth stereo headset, including switcher, charger, and stereo audio codec are The module includes EEPROM, crystal, and PCB antenna. Applications: ● High-End Stereo Wireless Headsets ● High-END Mono Headsets ● Hands-Free Car Kits ● Wireless Speakers Functional Block Diagram: Figure 1: BT30MD-A30P Block Diagram A7125 2.4GHz FSK Transceiver Jul., 2011, v1.3AMICCOM Electronics Corporation 8 6. Block Diagram GIO1GIO2 SDIOBP_BG RFI RFO RFC CKO REGI VDD_VCO XI GND SCS VDD_D BP_RSSI SCK VDD_PLL VDD_A CPXO LNA VCOPAPLL MODEM Packet Handler BSP RXFIFO SPI 1 3 2 4 5 687910 15 13 14 12 11 20 18 19 17 16 XOSC Regulator/ Thermal sensor Radio Control ADC TXFIFO Figure 6.1 A7125 Block Diagram

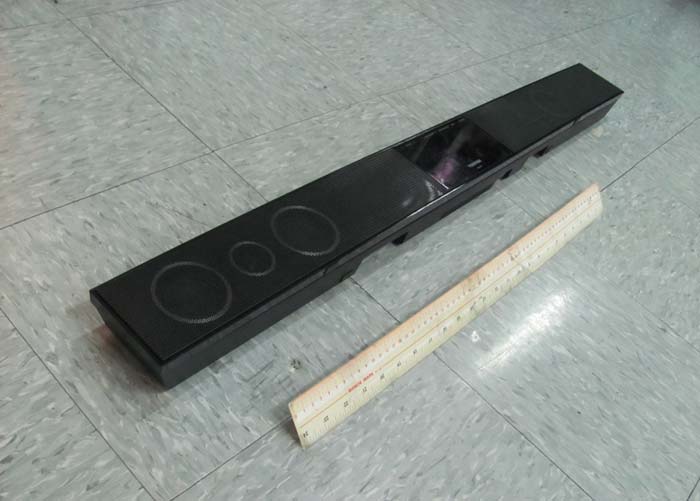

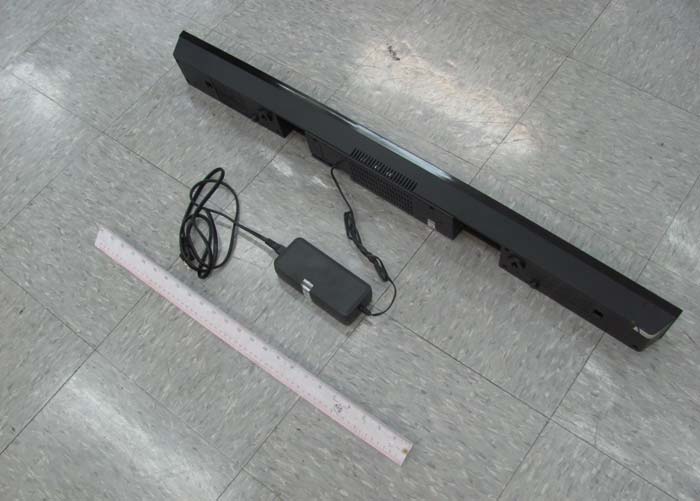

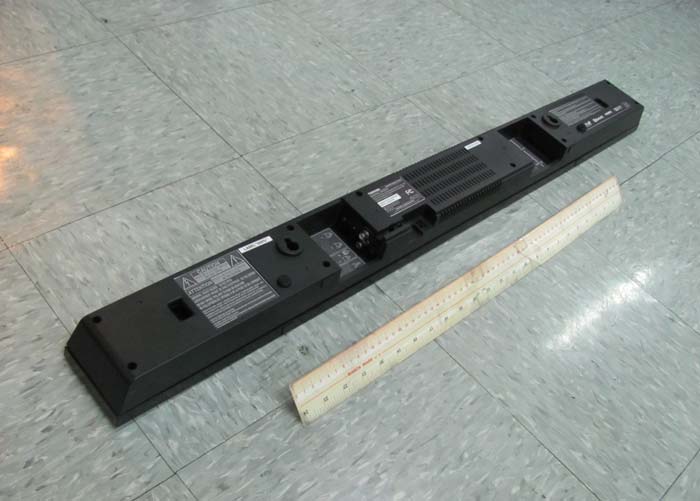

INTERTEK TESTING SERVICE Report No.: HK12051434-2 FCC ID: A2HSBX4250KN IC: 9903A-SBX4250KN Equipment Photographs Model : SBX4250KN (External) INTERTEK TESTING SERVICE Report No.: HK12051434-2 FCC ID: A2HSBX4250KN IC: 9903A-SBX4250KN Equipment Photographs Model : SBX4250KN (External) INTERTEK TESTING SERVICE Report No.: HK12051434-2 FCC ID: A2HSBX4250KN IC: 9903A-SBX4250KN Equipment Photographs Model : SBX4250KN (External)

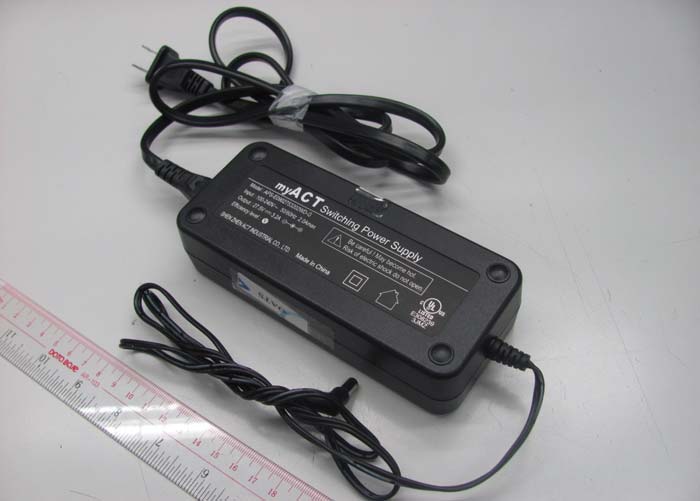

• USE THE SUPPLIED SWITCHING POWER SUPPLY. • DO NOT OPEN THE COVER, REFER SERVICING ONLY TO QUALIFIED SERVICE PERSONNEL. • UTILISEZ L'ALIMENTATION DE COMMUTATION COMPRISE. • NE PAS OUVRIR LE COUVERCLE, POUR TOUTE RÉPARATION S’ADRESSER UNIQUEMENT À UN PERSONNEL QUALIFIÉ. MANUFACTURED UNDER LICENSE FROM DOLBY LABORATORIES. DOLBY AND THE DOUBLE-D SYMBOL ARE TRADEMARKS OF DOLBY LABORATORIES. FABRIQUÉ SOUS LICENCE DE DOLBY LABORATORIES. DOLBY ET LA SYMBOLE À DEUX D SONT DES MARQUES DE COMMERCE DE DOLBY LABORATORIES. RATING LABEL SIZE : 57 x 41MM, R=1MM COLOR : BLACK B/G with WHITE WORDS <200% OF ACTUAL SIZE> C01A 0001 PN18 00 TOSHIBA S/N: Vender S/N:RS110GD010002 Power Source/Source d’alimentation: DC 27.5V 3.2A Power Consumption/Consommation de Courant: 27W Impedance/Impédance: 4 Barre de son à haut-parleurs Sound Bar Speaker System Model/Modèle : SBX4250KN Made in China / Fabriqué en Chine FCC ID: A2HSBX4250KN IC: 9903A-SBX4250KN Power Source/Source d’alimentation: DC 27.5V 3.2A Power Consumption/Consommation de Courant: 27W Impedance/Impédance: 4 Barre de son à haut-parleurs Sound Bar Speaker System Model/Modèle : SBX4250KN Made in China / Fabriqué en Chine FCC ID: A2HSBX4250KN IC: 9903A-SBX4250KN SBX4250KN ‘TOSHIBA’ DATE : 27 JUNE, 2012

INTERTEK TESTING SERVICE Report No.: HK12051434-2 FCC ID: A2HSBX4250KN IC: 9903A-SBX4250KN Equipment Photographs Model: SBX4250KN (Internal) INTERTEK TESTING SERVICE Report No.: HK12051434-2 FCC ID: A2HSBX4250KN IC: 9903A-SBX4250KN Equipment Photographs Model: SBX4250KN (Internal) INTERTEK TESTING SERVICE Report No.: HK12051434-2 FCC ID: A2HSBX4250KN IC: 9903A-SBX4250KN Equipment Photographs Model: SBX4250KN (Internal) INTERTEK TESTING SERVICE Report No.: HK12051434-2 FCC ID: A2HSBX4250KN IC: 9903A-SBX4250KN Equipment Photographs Model: SBX4250KN (Internal) INTERTEK TESTING SERVICE Report No.: HK12051434-2 FCC ID: A2HSBX4250KN IC: 9903A-SBX4250KN Equipment Photographs Model: SBX4250KN (Internal) INTERTEK TESTING SERVICE Report No.: HK12051434-2 FCC ID: A2HSBX4250KN IC: 9903A-SBX4250KN Equipment Photographs Model: SBX4250KN (Internal) INTERTEK TESTING SERVICE Report No.: HK12051434-2 FCC ID: A2HSBX4250KN IC: 9903A-SBX4250KN Equipment Photographs Model: SBX4250KN (Internal) INTERTEK TESTING SERVICE Report No.: HK12051434-2 FCC ID: A2HSBX4250KN IC: 9903A-SBX4250KN Equipment Photographs Model: SBX4250KN (Internal)

Technical Description The Equipment Under Test (EUT) is the Soundbar Unit of Sound Bar Speaker System. The EUT has a built-in stereo speaker. It can accept digital audio input from HDMI, optical and Bluetooth device. The EUT can also support Aux (RCA) and Line (3.5mm jack) analog input. The Soundbar features Bluetooth wireless audio playback. The audio signal can be sent from Bluetooth device, such as a mobile phone, when a Bluetooth device is pairing to the System. A separate wireless subwoofer is bundling with the Soundbar in the product package. The audio signal can be sent via the 2.4GHz Digital wireless modules, which are incorporated in both soundbar unit and subwoofer unit. The EUT is powered by 27.5VDC from an AC/DC adaptor which accepts universal input (100-240VAC). 2.4GHz Digital Wireless Module: Modulation Type: FSK Antenna Type: Integral, Internal Frequency Range: 2404.5MHz - 2479.5MHz, 5MHz channel spacing, 16 channels BlueTooth Module Modulation Type: GFSK Antenna Type: Integral, Internal (PCB Trace) Frequency Range: 2402MHz - 2480MHz, 1MHz channel spacing, 79 channels The functions of main ICs are mentioned below. 1. BlueTooth module: 1) U100 (BCM20771) acts as the 2.4GHz radio core of Bluetooth module (BT3GMD-A03P) which is integrating with audio CODEC. 2) C6, C5, L4, C3, L2, C1 and C7 act as antenna matching network. 3) Y2 provides system clock (oscillation frequency 26MHz). 2. 2.4GHz Digital Wireless module: 1) U6 (A7125) acts as the FSK transceiver of the digital wireless module. 2) U1 (XL9618) is the MCU (RISC) of the digital wireless module. 3) Y1 provides system clock (oscillation frequency 16MHz) for U1 3. DSP and analog interface: 1) U302 (MAP5602M) acts as audio DSP core. 2) U300 (EN25T80) acts as 8Mbit flash memory for the DSP core (U302). 3) U304 (WM8738) acts as analog-to-digital converter. 4. Display and Key module : 1) AIC901 (PT6315) acts as VFD display (VFD901) driver and keyboard control interface. RF output power is set at -12dBm RF output power is set at -8dBm 5. HDMI module: 1) HIC1 (EP94A3K) acts as HDMI repeater and port switcher. 2) HIC2 (EPF021A) acts as the HDMI interface controller. 6. MCU module: 1) IC302 (LPC1114) acts as the MCU of the Soundbar Unit. 7. Amplifier Module: 1) TU7 (TAS5352) acts as the power amplifier for the built-in stereo speakers. 8. AC/DC Adaptor (external): The 27.5VDC Output AC/DC adaptor employs switching-mode PWM technology. 1) U101 (FAN6921) is a PWM controller. 2) T1 (PQ3220) is high frequency transformer. 3) Q2 (MDF13N65B) is 650V, 14A, 460mohm power MOSFET as the switching element. 4) U201 (EL817C) is an optocoupler providing isolated-ground feedback signal. Channel Frequency Table of Bluetooth Module 2.4GHz Digital wirless module (channel table) Channel Frequency  12.4045GHz  22.4095GHz  32.4145GHz  42.4195GHz  52.4245GHz  62.4295GHz  72.4345GHz  82.4395GHz  92.4445GHz  102.4495GHz  112.4545GHz  122.4595GHz  132.4645GHz  142.4695GHz  152.4745GHz  162.4795GHz  WLINK TECHNOLOGY LTD. Product Specification __________________________________________________________________________________ Page 1 of 10 Taiwan H/Q Add.: No.46, Aly. 108-3 , Ln. 445 , Sec. 2, Meishi Rd., Yangmei City, Taoyuan County 326, Taiwan (R.O.C.) Tel: +886-3-4811534 Features˖ Bluetooth 3.0 Audio Module, Class 2 The BT3GMD-A30P offers the following features: Ɣ A2DP1.2 using SBC decoder for streaming audio over Version: V1.0 Bluetooth and AVRCP 1.4 for remote control functionality Mar 2012 Ɣ Configurable seven-band speaker equalization as well as ten presets allowing multiple music listening styles Ɣ High quality 96 dB SNR DACs with 44.1 and 48 kHz sample rates for high-fidelity playback Ɣ Single-chip Bluetooth 3.0 transceiver supporting Bluetooth 2.1 + Enhanced Data Rate (EDR) and Bluetooth 2.0, 1.2, and 1.1 backward compatibility Ɣ Best-in-class Bluetooth radio with up to 8 dBm transmit power and -91dBm receive sensitivity Ɣ Support for side tone and digital microphones Ɣ Supports microphone and speaker HW equalization Ɣ automatic volume control (AVC) Ɣ Switching regulator, battery charger, and power management unit Ɣ Supports fast charging, power dissipation monitoring, and optional charger voltage regulation Ɣ Dual high quality 8 kHz and 16 kHz audio MIC inputs Ɣ Multilanguage voice prompt Ɣ Voice command recognition Product Description: The BT3GMD-A30P is a Bluetooth 3.0 Module solution integrating common components required for cost and performance-optimized stereo headset designs. The BT3GMD-A30P also delivers differentiating features including enhanced audio quality, reduced charging times, A2DP, and multipoint connections through the integration of various noise suppression technologies, noise and echo reduction headset, for high-end WLINK TECHNOLOGY LTD. Product Specification __________________________________________________________________________________ Page 2 of 10 Taiwan H/Q Add.: No.46, Aly. 108-3 , Ln. 445 , Sec. 2, Meishi Rd., Yangmei City, Taoyuan County 326, Taiwan (R.O.C.) Tel: +886-3-4811534 and cost and performance-optimized stereo headsets. The BT3GMD-A30P supports Bluetooth SIG-compliant wideband speech implementation to greatly enhance the audio quality with both PCs and cell phones. The BT3GMD-A30P supports the Bluetooth 3.0 standard, adding enhanced power control, simple and secure pairing, and enhanced inquiry response as value-added features for Bluetooth headsets. All major functional blocks required for a Bluetooth stereo headset, including switcher, charger, and stereo audio codec are The module includes EEPROM, crystal, and PCB antenna. Applications: Ɣ High-End Stereo Wireless Headsets Ɣ High-END Mono Headsets Ɣ Hands-Free Car Kits Ɣ Wireless Speakers Functional Block Diagram: Figure 1: BT30MD-A30P Block Diagram ©2008-2011 Gigawit Electronics Ltd. Version 1.01 Page 1 of 14 GWK5NO_SW Datasheet GWK5NO_SW 2.4GHz Wireless Subwoofer Module 1. General Description GWK5NO_SW is the optimized …

Text truncated - open the document above for the full version.

WLINK TECHNOLOGY LTD. Product Specification __________________________________________________________________________________ Page 1 of 10 Taiwan H/Q Add.: No.46, Aly. 108-3 , Ln. 445 , Sec. 2, Meishi Rd., Yangmei City, Taoyuan County 326, Taiwan (R.O.C.) Tel: +886-3-4811534 Features： Bluetooth 3.0 Audio Module, Class 2 The BT3GMD-A30P offers the following features: ● A2DP1.2 using SBC decoder for streaming audio over Version: V1.0 Bluetooth and AVRCP 1.4 for remote control functionality Mar 2012 ● Configurable seven-band speaker equalization as well as ten presets allowing multiple music listening styles ● High quality 96 dB SNR DACs with 44.1 and 48 kHz sample rates for high-fidelity playback ● Single-chip Bluetooth 3.0 transceiver supporting Bluetooth 2.1 + Enhanced Data Rate (EDR) and Bluetooth 2.0, 1.2, and 1.1 backward compatibility ● Best-in-class Bluetooth radio with up to 8 dBm transmit power and -91dBm receive sensitivity ● Support for side tone and digital microphones ● Supports microphone and speaker HW equalization ● automatic volume control (AVC) ● Switching regulator, battery charger, and power management unit ● Supports fast charging, power dissipation monitoring, and optional charger voltage regulation ● Dual high quality 8 kHz and 16 kHz audio MIC inputs ● Multilanguage voice prompt ● Voice command recognition Product Description: The BT3GMD-A30P is a Bluetooth 3.0 Module solution integrating common components required for cost and performance-optimized stereo headset designs. The BT3GMD-A30P also delivers differentiating features including enhanced audio quality, reduced charging times, A2DP, and multipoint connections through the integration of various noise suppression technologies, noise and echo reduction headset, for high-end WLINK TECHNOLOGY LTD. Product Specification __________________________________________________________________________________ Page 2 of 10 Taiwan H/Q Add.: No.46, Aly. 108-3 , Ln. 445 , Sec. 2, Meishi Rd., Yangmei City, Taoyuan County 326, Taiwan (R.O.C.) Tel: +886-3-4811534 and cost and performance-optimized stereo headsets. The BT3GMD-A30P supports Bluetooth SIG-compliant wideband speech implementation to greatly enhance the audio quality with both PCs and cell phones. The BT3GMD-A30P supports the Bluetooth 3.0 standard, adding enhanced power control, simple and secure pairing, and enhanced inquiry response as value-added features for Bluetooth headsets. All major functional blocks required for a Bluetooth stereo headset, including switcher, charger, and stereo audio codec are The module includes EEPROM, crystal, and PCB antenna. Applications: ● High-End Stereo Wireless Headsets ● High-END Mono Headsets ● Hands-Free Car Kits ● Wireless Speakers Functional Block Diagram: Figure 1: BT30MD-A30P Block Diagram WLINK TECHNOLOGY LTD. Product Specification __________________________________________________________________________________ Page 3 of 10 Taiwan H/Q Add.: No.46, Aly. 108-3 , Ln. 445 , Sec. 2, Meishi Rd., Yangmei City, Taoyuan County 326, Taiwan (R.O.C.) Tel: +886-3-4811534 Physical Description: The BT30MD-A30P is a 13.5mm×22mm FR4 PCB with 30 pads located around the perimeter. Table 1 shows the pinout diagram of the module. Table 1 Pin Location Figure 2: Module PCB Top View WLINK TECHNOLOGY LTD. Product Specification __________________________________________________________________________________ Page 4 of 10 Taiwan H/Q Add.: No.46, Aly. 108-3 , Ln. 445 , Sec. 2, Meishi Rd., Yangmei City, Taoyuan County 326, Taiwan (R.O.C.) Tel: +886-3-4811534 Table 2 Pin Function Descriptions WLINK TECHNOLOGY LTD. Product Specification __________________________________________________________________________________ Page 5 of 10 Taiwan H/Q Add.: No.46, Aly. 108-3 , Ln. 445 , Sec. 2, Meishi Rd., Yangmei City, Taoyuan County 326, Taiwan (R.O.C.) Tel: +886-3-4811534 Supporting Documentions: Reference Schematic: The most recent schematic , bill of materil ,and layout file are available from the ITON Technology Limit. Contact your ITON representative for details. Layout Considerations: The BT30MD-A30P module is placed at the location where the antenna is away from the power supply(i.e.,BT1 Battery contacts)and any digital signal traces.. The antenna keep-out area which is 5mm around the parameter of the module region is shown in the red dotted box. PCB material and signal traces should not be placed within the antenna keep-out area to assure optimum antenna performance. Figure 3: Design reference Electrical Characteristics: Table 3: Maximum Electrical Rating WLINK TECHNOLOGY LTD. Product Specification __________________________________________________________________________________ Page 6 of 10 Taiwan H/Q Add.: No.46, Aly. 108-3 , Ln. 445 , Sec. 2, Meishi Rd., Yangmei City, Taoyuan County 326, Taiwan (R.O.C.) Tel: +886-3-4811534 Table 4:Power Supply Current (with a Nominal 3.7V Battery Voltage) Table 5: Audio DAC Path Performance Specifications, 8 kHz and 16 kHz Sample Rate WLINK TECHNOLOGY LTD. Product Specification __________________________________________________________________________________ Page 7 of 10 Taiwan H/Q Add.: No.46, Aly. 108-3 , Ln. 445 , Sec. 2, Meishi Rd., Yangmei City, Taoyuan County 326, Taiwan (R.O.C.) Tel: +886-3-4811534 RF Specification: Table 6 : Receiver RF Specifications WLINK TECHNOLOGY LTD. Product Specification __________________________________________________________________________________ Page 8 of 10 Taiwan H/Q Add.: No.46, Aly. 108-3 , Ln. 445 , Sec. 2, Meishi Rd., Yangmei City, Taoyuan County 326, Taiwan (R.O.C.) Tel: +886-3-4811534 Table7: Transmitter RF Specifications WLINK TECHNOLOGY LTD. Product Specification __________________________________________________________________________________ Page 9 of 10 Taiwan H/Q Add.: No.46, Aly. 108-3 , Ln. 445 , Sec. 2, Meishi Rd., Yangmei City, Taoyuan County 326, Taiwan (R.O.C.) Tel: +886-3-4811534 Application Examples: ·Stereo Headphones ·Wireless stereo speakers ·Soun…

Text truncated - open the document above for the full version.

©2008-2011 Gigawit Electronics Ltd. Version 1.01 Page 1 of 14 GWK5NO_SW Datasheet GWK5NO_SW 2.4GHz Wireless Subwoofer Module 1. General Description GWK5NO_SW is the optimized module dedicated for the wireless subwoofer application, it balance well between the cost and performance by utilizing the fact of subwoofer limited frequency response bandwidth. The narrow bandwidth enables GWK5NO_SW to transmit enough redundant data to combat with the 2.4GHz interference thus maintain the good co-existence performance in the 2.4GHz ISM band. Inheriting from its GWK5 family, GWK5NO_SW features both good wireless performance and audio performance. GWK5NO_SW has good RF co-existence and robust link quality, can combat the most interference from the crowded 2.4G ISM band. GWK5NO_SW uses non-compression PCM signal and 24bit high precision thus delivering very low THD audio. By adopting advance forward error correction and error concealment algorithm, GWK5NO_SW can reach <15ms latency, this makes it ideal for the Video synchronization, Home Theater applications. GWK5NO_SW is ideal for the subwoofer application not only by its competitive cost, but also by its flexibility for customized functions. The SW crossover frequency can be adjusted easily by the digital filter, and the general purpose I2C can be used to control customer peripheral unit to eliminate an extra microcontroller. 2. Applications  5.1 Subwoofer Speaker  2.1 Subwoofer Speaker  Soundbar Subwoofer  DVD 3. Features  2.4GHz AFH Solution  24bit high precision digital audio，SNR>115dB  I2S digital audio interface support most audio ADCs, DACs, DSPs. Supporting Sample rate32/44.1/48/88.2/96KHz  Optimized for subwoofer application, 20~600Hz bandwidth  Co-existence: small foot-print(2MHz bandwidth) enabling better 2.4GHz co-existence  Low Power: TX: 55mA/3.3V @ +5dBm RF Output, RX: 55mA/3.3V  RF Range: 20m+ indoor  Pairing function to support multi TX/RX operating simultaneously  Power management function and control for green power policy  General purpose I2C for digital amplifier control  Flexible design, custom functions supported ©2008-2011 Gigawit Electronics Ltd. Version 1.01 Page 2 of 14 GWK5NO_SW Datasheet 4. Electrical Specification Description Min/Typical/Max General Supply voltage T/RX:3.3V Supply current T/RX: 55mA Operation temperature -10 ~ +60°C RF RF Frequency 2400 ~ 2483MHZ Modulation GFSK Data rate 2M bps TX Power 5dBm RX Sensitivity -90dBm RF Channels 16 RF Range 20m+ indoor Output/input gain 1:1 Frequency response 20Hz ~ 600Hz (-3dB) Latency <15ms S/N ratio 115dB THD < 0.1% @ 100Hz Dynamic range 90dB Table [1]: Electrical Specification ©2008-2011 Gigawit Electronics Ltd. Version 1.01 Page 3 of 14 GWK5NO_SW Datasheet 5. GWK5NO_SW Pin Assignment Pin # Pin name Type Description 1 GND P Ground 2 3.3V P +3.3V Power Input 3 MFB I/O press long than 10s to enter pairing mode. 4 LED I/O Status LED output 5 MCLK O I2S Master Clock Output 6 MOSI I/O I2S Data Output 7 MISO I/O I2S Data Input 8 SCLK I/O I2S Bit Clock Output 9 LRCK I/O I2S Left and Right Clock Output 10 SDA I/O I2C Clock or MUTE Control, firmware configurable. When used as I2C, External 4.7K pull-up resister required. 11 SCL I/O I2C Data or Standby Control, firmware configurable. When used as I2C, External 4.7K pull-up resister required. 12 GND P Ground 13 NC NA Not Connected 14 GP5 P General purpose IO 15 GP4 I/O General purpose IO 16 GP3 I/O General purpose IO 17 GP2 I/O General purpose IO 18 GP8 I/O General purpose IO 19 TXD I/O UART TX ©2008-2011 Gigawit Electronics Ltd. Version 1.01 Page 4 of 14 GWK5NO_SW Datasheet 20 RXD I/O UART RX 21 RST I Reset input, active low 22 KEY I/O Built-in ADC for KEY 23 NC NA Not Connected 24 NC NA Not Connected Table [2]. GWK5NO_SW Pin Description ©2008-2011 Gigawit Electronics Ltd. Version 1.01 Page 5 of 14 GWK5NO_SW Datasheet 6. I2S Digital Audio Interface GWK5NO_SW supports 3 digital audio interface modes: Left justify mode, I2S mode and Right justify mode. Figure [1]. Left Justify Mode Figure [2]. Default I2S Mode Figure [3]. Right Justify Mode ©2008-2011 Gigawit Electronics Ltd. Version 1.01 Page 6 of 14 GWK5NO_SW Datasheet 7. I2C Control Interface GWK5A3T/R features a standard I2C Control interface. The I2C can work as a master or a slave, It can be used to control the peripheral devices or be controlled by the external MCU / DSP. GWK5A3T/R features a two way wireless logical data channel; The I2C can also be used to exchange the control information between the TX and RX side. I2C Address is 0x0e, it is configurable by firmware. Register Bit R/W ResetDescription 0x00: Control 0: Mute R/W 0 0: Mute off 1: Mute on 1: Power R/W 1 0: Power Off 1: Power On 2; Link Status R 0 0: Not Linked 1: Linked 3: Standby R/W 0: Standby off 1: Standby on 4-5: Pairing R/W 0 Write 1 to Enter pairing mode Read back: 0: Normal Mode 1: Pairing in progress, pairing will be timeout in 30 seconds. 2: Paired with success 3: Pairing failed, time is out 6-7: Reserved R/W 0 0x01: Volume 0-7 R/W 0 Volume 0dB to -48dB 0x00: 0dB 0xd0: -48dB 0x02: Treble 0-7 R/W 0 Treble -14dB to + 14dB 0xf2: -14dB 0x00: 0dB 0x0e: +14dB 0x03: Bass 0-7 R/W 0 Bass -14dB to + 14dB 0xf2: -14dB 0x00: 0dB 0x0e: +14dB 0x04: Balance 0-7 R/W 0 Balance -12dB to + 12dB 0xf4: -12dB 0x00: 0dB 0x0c: +12dB Table[4] I2C Registers ©2008-2011 Gigawit Electronics Ltd. Version 1.01 Page 7 of 14 GWK5NO_SW Datasheet GWK5NO_SW I2S interface can work as master or slave mode, the IO pin function is described below. The default configuration is GWK5NO_SW Tx in I2S slave mode, and GWK5NO_SW RX in left justify master mode. Other configurations are available upon customer request. Master Mode Slave Mode MCLK Output, Driving the external DSP or Codec Non function, can be left open BCLK Output, Driving the external DSP or Codec Input, Driven by the external DSP or Codec LRCK Output, Driving the external DSP or Codec Input, Driven by the external DSP or Codec MISO PCM Data Input PCM Data Output MOSI…

Text truncated - open the document above for the full version.

A7125 2.4GHz FSK Transceiver Jul., 2011, v1.3AMICCOM Electronics Corporation 1 Document Title A7125 Data Sheet, 2.4GHz FSK Transceiver with 2M / 1Mbps data rate Revision History Rev. No.HistoryIssue DateRemark 0.0Initial issue.Aug. 31, 2007Preliminary 0.1Logo change.Oct. 18, 2007Preliminary 0.2Modify PIN Configuration and Description, Block Diagra…
