A3LGTN8013APortable Tablet PC with WLAN and Bluetooth

Using this guide 2 Using this guide Congratulations on your purchase of the Samsung GT-N8013. This powerful, “go anywhere” device, puts the best of the web and mobile computing at your fingertips in a lightweight, highly versatile platform that fits your active lifestyle. Built on the Google Android operating system, the GT-N8013 gives you access to thousands of useful and entertaining applications to enrich y our mobile web experience. With integrated wireless access and a responsive touch screen, you can keep in touch with versatile messaging and video calling applications; read books and newspapers on the go; stay up-to-date on the latest news, sports, and weather; manage your multimedia and business files; and browse the web for maps, business locations, and more. Read me first Please read all safety precautions and this guide carefully before using your device to ensure ‡ safe and proper use. The descriptions in this guide are based on the default settings of your device. ‡ Images and screenshots used in this guide may differ in appearance from the actual product.‡ Content in this guide may differ from the product, or from software provided by service ‡ providers or carriers, and is subject to change without prior notice. Using this guide 3 Available features and additional services may vary by device, software, or service provider.‡ Formatting and delivery of this guide is based on Google Android operating systems and may ‡ vary depending on the user’s operating system. Applications and their functions may vary by country, region, or hardware specifications. ‡ Samsung is not liable for performance issues caused by third-party applications. Samsung is not liable for performance issues or incompatibilities caused by user editing of ‡ registry settings. You may upgrade your mobile device’s software by accessing www.samsungmobile.com. ‡ Sound sources, wallpapers, and images provided in this device are licenced for limited use ‡ between Samsung and their respective owners. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Samsung is not liable for such copyright infringement by the user. Please keep this guide for future reference. ‡ Using this guide 4 Instructional icons Before you start, familiarise yourself with the icons you will see in this guide: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your device or other equipment Note—notes, usage tips, or additional information Ź Refer to—pages with related information; for example: Ź p.12 (represents “see page 12”) ĺ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Settings ĺ Wireless and network (represents Settings, followed by Wireless and network) []Square brackets—device keys; for example: [ ] (represents the Power key) Using this guide 5 Copyright Copyright © 2011 Samsung Electronics This user manual is protected under international copyright laws. No part of this user manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. Trademarks SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics.‡ The Android logo, Google Search‡ ™ , Google Maps ™ , Google Mail ™ , YouTube ™ , Android Market ™ , and Google Talk ™ are trademarks of Google, Inc. Bluetooth ‡ ® is a registered trademark of the Bluetooth SIG, Inc. worldwide. Oracle and Java are registered trademarks of Oracle and/or its affiliates. Other names may be ‡ trademarks of their respective owners. Windows Media Player ‡ ® is a registered trademark of Microsoft Corporation. Wi-Fi ‡ ® , the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. Using this guide 6 DivX‡ ® , Divx Certified ® , and associated logos are trademarks of DivX, Inc. and are used under license. Covered by one or more of the following U.S. patents: Pat. 7,295,673; 7,460,668; 7,515,710; 7,519,274 All other trademarks and copyrights are the property of their respective owners. ‡ Using this guide 7 ABOUT DIVX VIDEO DivX ® is a digital video format created by DivX, Inc. This is an official DivX Certified ® device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video. DivX Certified ® to play DivX ® video up to HD 720p, including premium content May play DivX ® video up to HD 1080p (LCD resolution : 1024x600) ABOUT DIVX VIDEO-ON-DEMAND This DivX Certified ® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. Contents 8 Assembling ...........................................................................................11 Unpack ............................................................................................................................... 11 Charge the battery .......................................................................................................... 12 Insert the SIM or USIM card ........................................................................................... 13 Insert a memory card (optional) .................................................................................. 15 Getting started .....................................................................................18 Turn your device on and off .......................................................................................... 18 Get to know your device ................................................................................................ 20 Use the touch s…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: April 30, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LGTN8013A To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

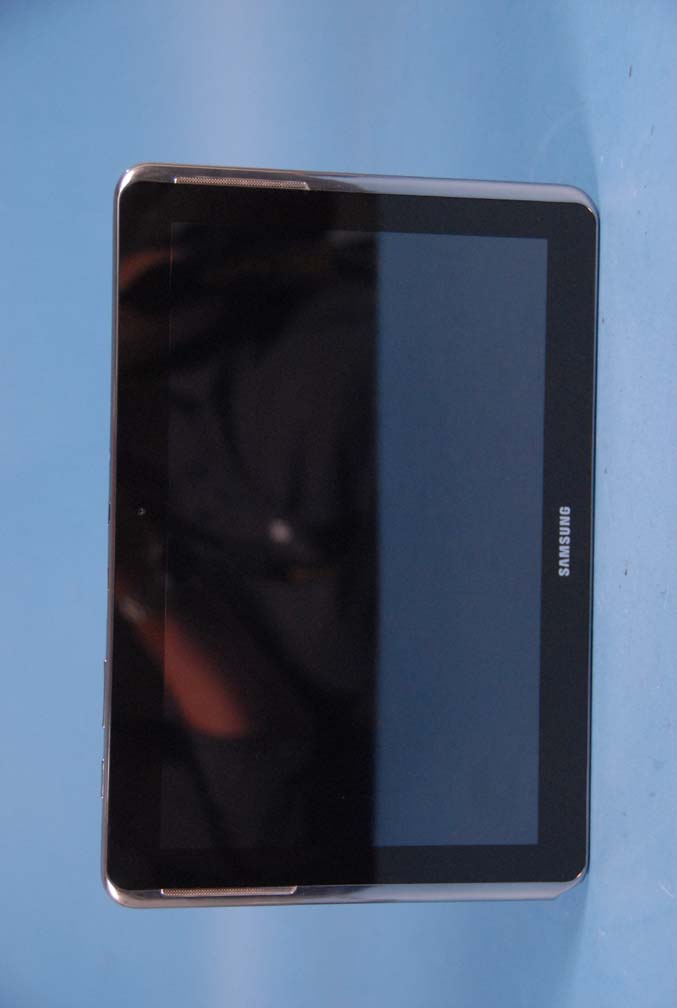

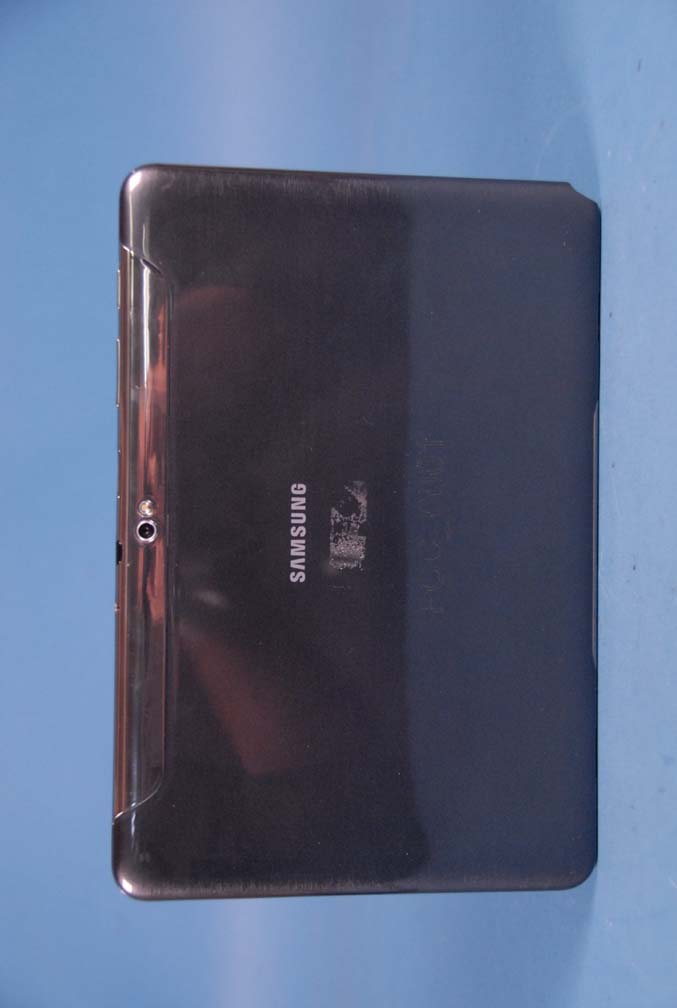

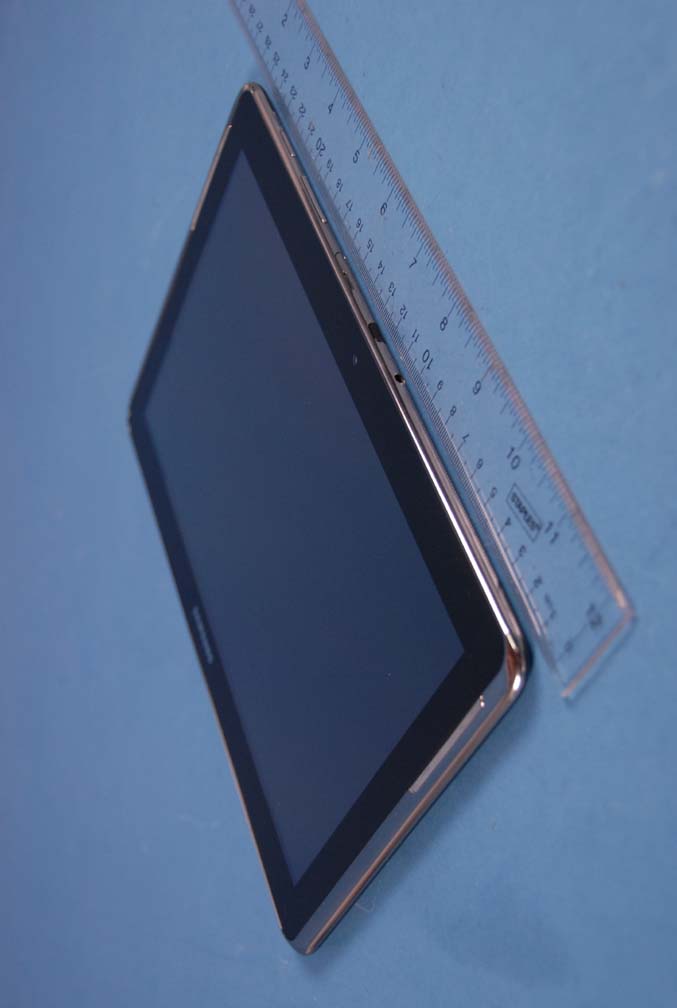

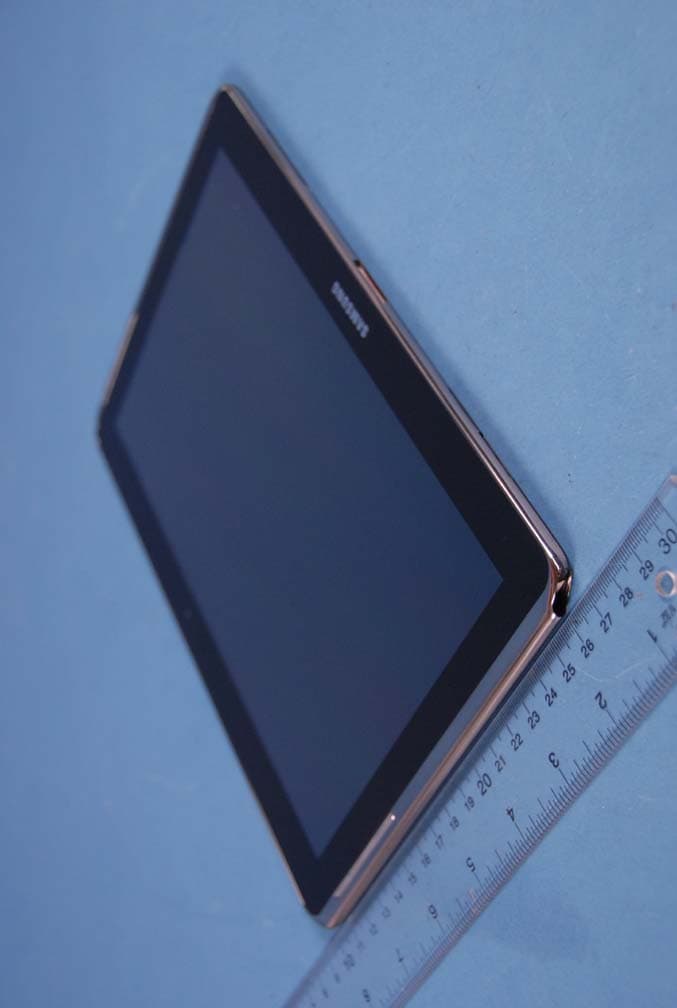

Samsung Electronics Co., Ltd. FCC ID: A3LGTN8013A Model: GT-N8013 External Photos EUT Type: Portable Tablet Computer Page 1 of 4 © 2012 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS Samsung Electronics Co., Ltd. FCC ID: A3LGTN8013A Model: GT-N8013 External Photos EUT Type: Portable Tablet Computer Page 2 of 4 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LGTN8013A Model: GT-N8013 External Photos EUT Type: Portable Tablet Computer Page 3 of 4 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LGTN8013A Model: GT-N8013 External Photos EUT Type: Portable Tablet Computer Page 4 of 4 © 2012 PCTEST Engineering Laboratory Inc.

Label and Location Samsung Tablet Model : GT-N8013 FCC ID : A3LGTN8013A Label : Location : Top Back plate of GT-N8013 Tablet: FCC ID is printed on the bottom of device. Back

Samsung Electronics Co., Ltd. FCC ID: A3LGTN8013A Model: GT-N8013 Internal Photos EUT Type: Portable Tablet Computer Page 1 of 7 Samsung Electronics Co., Ltd. FCC ID: A3LGTN8013A Model: GT-N8013 Internal Photos EUT Type: Portable Tablet Computer Page 2 of 7 Samsung Electronics Co., Ltd. FCC ID: A3LGTN8013A Model: GT-N8013 Internal Photos EUT Type: Portable Tablet Computer Page 3 of 7 Samsung Electronics Co., Ltd. FCC ID: A3LGTN8013A Model: GT-N8013 Internal Photos EUT Type: Portable Tablet Computer Page 4 of 7 Samsung Electronics Co., Ltd. FCC ID: A3LGTN8013A Model: GT-N8013 Internal Photos EUT Type: Portable Tablet Computer Page 5 of 7 Samsung Electronics Co., Ltd. FCC ID: A3LGTN8013A Model: GT-N8013 Internal Photos EUT Type: Portable Tablet Computer Page 6 of 7 Samsung Electronics Co., Ltd. FCC ID: A3LGTN8013A Model: GT-N8013 Internal Photos EUT Type: Portable Tablet Computer Page 7 of 7

FCC ID: A3LGTN8013A SAR EVALUATION REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 1 of 20 0Y1203280348.A3L 03/28/12 Portable Tablet Computer © 2012 PCTEST Engineering Laboratory, Inc. REV 10M 11/14/2011 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 03/28/12 416, Maetan 3-dong, Yeongtong-gu, Suwon-si Test Site/Location: Gyeonggi-do, 443-742 PCTEST Lab, Columbia, MD, USA Republic of Korea Document Serial No.: 0Y1203280348.A3L FCC ID: A3LGTN8013A APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Tablet Computer Application Type: Certification FCC Rule Part(s): Model(s): CFR §2.1093 GT-N8013 Test Device Serial No.: Pre-Production [S/N: FCC RAD SAMPLE #2] 1 gm Body (W /kg) 2.4 GHz WLAN2412 - 2462 MHz12.670.67 5.8 GHz WLAN5745 - 5825 MHz9.67 5.2 GHz WLAN5180 - 5240 MHz9.86 5.3 GHz WLAN5260 - 5320 MHz9.92 5.5 GHz WLAN5500 - 5700 MHz10.10 Bluetooth2402 - 2480 MHz10.61N/A SAR Band & ModeTx Frequency Conducted Power [dBm] Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LGTN8013A SAR EVALUATION REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 2 of 20 0Y1203280348.A3L 03/28/12 Portable Tablet Computer © 2012 PCTEST Engineering Laboratory, Inc. REV 10M 11/14/2011 TABLE OF CONTENTS 1 DEVICE UNDER TEST ....................................................................................................................3 2 INTRODUCTION ..............................................................................................................................5 3 SAR MEASUREMENT SETUP ........................................................................................................6 4 DOSIMETRIC ASSESSMENT .........................................................................................................7 5 FCC RF EXPOSURE LIMITS ...........................................................................................................8 6 SAR TABLET TESTING ...................................................................................................................9 7 FCC MEASUREMENT PROCEDURES ........................................................................................ 10 8 RF CONDUCTED POWERS ......................................................................................................... 11 9 SYSTEM VERIFICATION .............................................................................................................. 13 10 SAR DATA SUMMARY ................................................................................................................. 15 11 EQUIPMENT LIST ......................................................................................................................... 16 12 MEASUREMENT UNCERTAINTIES ............................................................................................ 17 13 CONCLUSION ............................................................................................................................... 18 14 REFERENCES .............................................................................................................................. 19 FCC ID: A3LGTN8013A SAR EVALUATION REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 3 of 20 0Y1203280348.A3L 03/28/12 Portable Tablet Computer © 2012 PCTEST Engineering Laboratory, Inc. REV 10M 11/14/2011 1 DEVICE UNDER TEST 1.1 Device Overview 2.4 GHz WLAN2412 - 2462 MHz 5.8 GHz WLAN5745 - 5825 MHz 5.2 GHz WLAN5180 - 5240 MHz 5.3 GHz WLAN5260 - 5320 MHz 5.5 GHz WLAN5500 - 5700 MHz Bluetooth2402 - 2480 MHz Band & ModeTx Frequency 1.2 DUT Antenna Locations Figure 1-1 Front View of Device FCC ID: A3LGTN8013A SAR EVALUATION REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 4 of 20 0Y1203280348.A3L 03/28/12 Portable Tablet Computer © 2012 PCTEST Engineering Laboratory, Inc. REV 10M 11/14/2011 Figure 1-2 Front View of Device 1.3 SAR Test Exclusions Applied Per KDB Publication 447498 4) b), SAR is not required when the maximum average output power rounded to the nearest mW is less than 60/f(GHz). Therefore, Bluetooth SAR was not required since the maximum conducted power of Bluetooth Tx is 11.508 mW (please refer to the DSS EMC report filed for this EUT for a complete set of Bluetooth powers). WLAN SAR was additionally not required since the maximum 2.4GHz WIFI conducted power is 19.543 mW, and 5GHz WIFI conducted power is 10.233 mW. 2.4GHz WIFI SAR was tested per manufacturer’s request. 1.4 Power Reduction for SAR There is no power reduction for any band/mode implemented in this device for SAR purposes. 1.5 FCC Guidance Applied • FCC KDB 248227 (802.11) • FCC KDB 447498…

Text truncated - open the document above for the full version.

© 2012 PCTEST Engineering Laboratory, Inc. APPENDIX A: SAR TEST DATA DUT: A3LGTN8013A; Type: Portable Tablet Computer; Serial: FCC RAD SAMPLE #2 Communication System: IEEE 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: 2450 Body Medium parameters used (interpolated): f = 2462 MHz; σ = 2.064 mho/m; ε r = 50.156; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 0.0 cm Test Date: 03-28-2012; Ambient Temp: 22.9°C; Tissue Temp: 22.8°C Probe: ES3DV2 - SN3022; ConvF(4.01, 4.01, 4.01); Calibrated: 8/25/2011 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn859; Calibrated: 5/19/2011 Phantom: SAM with CRP; Type: SAM 4.0; Serial: TP1375 Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Mode: IEEE 802.11b, Body SAR, Ch 11, 1 Mbps, Back Side Area Scan (8x20x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 19.108 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 1.7060 SAR(1 g) = 0.673 mW/g; SAR(10 g) = 0.286 mW/g 0 dB = 0.830mW/g = -1.62 dB mW/g A1 DUT: A3LGTN8013A; Type: Portable Tablet Computer; Serial: FCC RAD SAMPLE #2 Communication System: 2.4GHz WLAN; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: 2450 Body Medium parameters used (interpolated): f = 2462 MHz; σ = 2.064 mho/m; ε r = 50.156; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 0.0 cm Test Date: 03-28-2012; Ambient Temp: 22.9°C; Tissue Temp: 22.8°C Probe: ES3DV2 - SN3022; ConvF(4.01, 4.01, 4.01); Calibrated: 8/25/2011 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn859; Calibrated: 5/19/2011 Phantom: SAM with CRP; Type: SAM 4.0; Serial: TP1375 Measurement SW: DASY4, Version 4.7 (80); SEMCAD X Version 14.6.4 (4989) Mode: IEEE 802.11b, Body SAR, Ch 11, 1 Mbps, Top Edge Area Scan (5x20x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.669 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.1920 SAR(1 g) = 0.076 mW/g; SAR(10 g) = 0.025 mW/g 0 dB = 0.110mW/g = -19.17 dB mW/g A2 DUT: A3LGTN8013A; Type: Portable Tablet Computer; Serial: FCC RAD SAMPLE #2 Communication System: 2.4GHz WLAN; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: 2450 Body Medium parameters used (interpolated): f = 2462 MHz; σ = 2.064 mho/m; ε r = 50.156; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 0.0 cm Test Date: 03-28-2012; Ambient Temp: 22.9°C; Tissue Temp: 22.8°C Probe: ES3DV2 - SN3022; ConvF(4.01, 4.01, 4.01); Calibrated: 8/25/2011 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn859; Calibrated: 5/19/2011 Phantom: SAM with CRP; Type: SAM 4.0; Serial: TP1375 Measurement SW: DASY4, Version 4.7 (80); SEMCAD X Version 14.6.4 (4989) Mode: IEEE 802.11b, Body SAR, Ch 11, 1 Mbps, Left Edge Area Scan (5x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.488 V/m; Power Drift = -0.21 dB Peak SAR (extrapolated) = 0.1620 SAR(1 g) = 0.088 mW/g; SAR(10 g) = 0.044 mW/g 0 dB = 0.110mW/g = -19.17 dB mW/g A3 © 2012 PCTEST Engineering Laboratory, Inc. APPENDIX B: SYSTEM VERIFICATION PCTEST ENGINEERING LABORATORY, INC. DUT: SAR Dipole 2450 MHz; Type: D2450V2; Serial: 719 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: 2450 Body Medium parameters used: f = 2450 MHz; σ = 2.05 mho/m; ε r = 50.2; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.0 cm Test Date: 03-28-2012; Ambient Temp: 22.9 ° C ; Tissue Temp: 22.8 ° C Probe: ES3DV2 - SN3022; ConvF(4.01, 4.01, 4.01); Calibrated: 8/25/2011 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn859; Calibrated: 5/19/2011 Phantom: SAM with CRP; Type: SAM 4.0; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 2450MHz System Verification Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 16.0 dBm (40 mW) SAR(1 g) = 2.19 mW/g; SAR(10 g) = 0.984 mW/g Deviation = 6.73 % 0 dB = 2.84mW/g B1 PCTEST ENGINEERING LABORATORY, INC. DUT: SAR Dipole 2450 MHz; Type: D2450V2; Serial: 719 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: 2450 Body Medium parameters used: f = 2450 MHz; σ = 2.05 mho/m; ε r = 50.2; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.0 cm Test Date: 03-28-2012; Ambient Temp: 22.9 ° C ; Tissue Temp: 22.8 ° C Probe: ES3DV2 - SN3022; ConvF(4.01, 4.01, 4.01); Calibrated: 8/25/2011 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn859; Calibrated: 5/19/2011 Phantom: SAM with CRP; Type: SAM 4.0; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 2450MHz System Verification Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 16.0 dBm (40 mW) SAR(1 g) = 2.19 mW/g; SAR(10 g) = 0.984 mW/g Deviation = 6.73 % B2 © 2012 PCTEST Engineering Laboratory, Inc. APPENDIX C: PROBE CALIBRATION

Reviewed by: FCC ID:A3LGTN8013A FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N:Test Dates:EUT Type: 0Y1204170517.A3LApr. 16- 20, 2012Portable Tablet Computer Page1 of58 ©2012 PCTEST Engineering Laboratory, Inc.REV 2.5WN 02/13/2012 Applicant Name:Date of Testing: Samsung Electronics Co LtdApr. 16- 20, 2012 416 Maetan 3-Dong, Yeongtong-gu Test Site/Location: Suwon-si, Gyeonggi-doPCTEST Lab, Columbia, MD, USA 443-742 , Republic of Korea Test Report Serial No.: 0Y1204170517.A3L FCC ID:A3LGTN8013A APPLICANT:Samsung Electronics CoLtd Application Type: Certification Model(s): GT-N8013 EUT Type: Portable Tablet Computer FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 IC Specification(s): RSS-210 Issue 8 Test Procedure(s): ANSI C63.4-2003/2009 Max. Power (mW) Max. Power (dBm) Max. Power (mW) Max. Power (dBm) 802.11b 2412 - 246219.09912.8136.81315.66 802.11g 2412 - 246219.54312.91127.64421.06 802.11n 2412 - 246215.56011.92108.39320.35 802.11a 5745 - 58259.2689.6758.88417.70 802.11n 5745 - 58258.7109.4053.33317.27 Avg Conducted Mode Tx Frequency (MHz) Peak Conducted This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and wastested in accordance with the measurement procedures specified in ANSI C63.4-2003/2009.Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has beensubject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247/ IC RSS-210 WLAN 802.11a/b/g/n Reviewed by: FCC ID:A3LGTN8013A FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N:Test Dates:EUT Type: 0Y1204170517.A3LApr. 16- 20, 2012Portable Tablet Computer Page2 of58 ©2012 PCTEST Engineering Laboratory, Inc.REV 2.5WN 02/13/2012 T A B L E O F C O N T E N T S FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0INTRODUCTION......................................................................................................................................4 1.1SCOPE.......................................................................................................................................................4 1.2PCTEST TEST LOCATION........................................................................................................................4 2.0PRODUCT INFORMATION.....................................................................................................................5 2.1EQUIPMENT DESCRIPTION.....................................................................................................................5 2.2DEVICE CAPABILITIES.............................................................................................................................5 2.3TEST CONFIGURATION...........................................................................................................................5 2.4EMI SUPPRESSION DEVICE(S)/MODIFICATIONS..................................................................................5 2.5LABELING REQUIREMENTS....................................................................................................................5 3.0DESCRIPTION OF TEST........................................................................................................................6 3.1EVALUATION PROCEDURE.....................................................................................................................6 3.2AC LINE CONDUCTED EMISSIONS.........................................................................................................6 3.3RADIATED EMISSIONS............................................................................................................................7 4.0ANTENNAREQUIREMENTS..................................................................................................................8 5.0TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0TEST RESULTS....................................................................................................................................10 6.1SUMMARY...............................................................................................................................................10 6.26DB BANDWIDTH MEASUREMENT– 802.11A/B/G/N...........................................................................11 6.3OUTPUT POWER MEASUREMENT– 802.11B/G/N (2.4GHZ)...............................................................20 6.4OUTPUT POWER MEASUREMENT– 802.11A/N (5GHZ)......................................................................21 6.5POWER SPECTRAL DENSITY (802.11A/B/G/N)....................................................................................22 6.6CONDUCTED EMISSIONSAT THE BAND EDGE..................................................................................31 6.7CONDUCTED SPURIOUS EMISSIONS..................................................................................................37 6.8RADIATED SPURIOUS EMISSION MEASUREMENTS..........................................................................45 6.9RADIATED RESTRICTED BAND EDGE MEASUREMENTS..................................................…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LGTN8013A FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1205010628.A3L May 4 - 8, 2012 Portable Tablet Computer Page 1 of 30 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.0BTLE 04/26/2012 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. May 4 - 8, 2012 416 Maetan 3-Dong, Yeongtong-gu Test Site/Location: Suwon-si, Gyeonggi-do PCTEST Lab, Columbia, MD, USA 443-742 , Republic of Korea Test Report Serial No.: 0Y1205010628.A3L FCC ID: A3LGTN8013A APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model: GT-N8013A EUT Type: Portable Tablet Computer Max. RF Output Power: 4.287 mW (6.32 dBm) Peak Conducted Frequency Range: 2402 - 2480 MHz FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 IC Specification(s): RSS-210 Issue 8 Test Procedure(s): ANSI C63.4-2003/2009, ANSI C63.10-2009, KDB 589074 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2003/2009. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 / IC RSS-210 Bluetooth (Low Energy) Reviewed by: FCC ID: A3LGTN8013A FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1205010628.A3L May 4 - 8, 2012 Portable Tablet Computer Page 2 of 30 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.0BTLE 04/26/2012 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 DEVICE CAPABILITIES ............................................................................................................................. 5 2.3 TEST CONFIGURATION ...........................................................................................................................…
