A3LSCHI905Cellular/PCS CDMA and Band 13 LTE Tablet with WLAN and Bluetooth

Using this guide 2 Using this guide Congratulations on your purchase of the Samsung SCH-I905. This powerful, “go anywhere” device, puts the best of the web and mobile computing at your fingertips in a lightweight, highly versatile platform that fits your active lifestyle. Built on the Google Android operating system, the SCH-I905 giv es you access to thousands of useful and entertaining applications to enrich your mobile web experience. With integrated wireless access and a responsive touch screen, you can keep in touch with versatile messaging applications; read books and newspapers on the go; stay up-to-dat e on the latest news, sports, and weather; manage your multimedia and business files; and browse the web for maps, business locations, and more. Read me first Please read all safety precautions and this guide carefully before using your device to ensure ‡ safe and proper use. The descriptions in this guide are based on the default settings of your device. ‡ Images and screenshots used in this guide may differ in appearance from the actual product.‡ Content in this guide may differ from the product, or from software provided by service ‡ providers or carriers, and is subject to change without prior notice. Using this guide 3 Available features and additional services may vary by device, software, or service provider.‡ Formatting and delivery of this guide is based on Google Android operating systems and may ‡ vary depending on the user’s operating system. Applications and their functions may vary by country, region, or hardware specifications. ‡ Samsung is not liable for performance issues caused by third-party applications. Samsung is not liable for performance issues or incompatibilities caused by user editing of ‡ registry settings. You may upgrade your mobile device’s software by accessing www.samsungmobile.com. ‡ Sound sources, wallpapers, and images provided in this device are licenced for limited use ‡ between Samsung and their respective owners. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Samsung is not liable for such copyright infringement by the user. Please keep this guide for future reference. ‡ Using this guide 4 Instructional icons Before you start, familiarise yourself with the icons you will see in this guide: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your device or other equipment Note—notes, usage tips, or additional information Ź Refer to—pages with related information; for example: Ź p.12 (represents “see page 12”) ĺ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Settings ĺ Wireless and network (represents Settings, followed by Wireless and network) []Square brackets—device keys; for example: [ ] (represents the Power key) Using this guide 5 Copyright Copyright © 2011 Samsung Electronics This user manual is protected under international copyright laws. No part of this user manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. Trademarks SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics.‡ The Android logo, Google Search‡ ™ , Google Maps ™ , Google Mail ™ , YouTube ™ , Android Market ™ , and Google Talk ™ are trademarks of Google, Inc. Bluetooth ‡ ® is a registered trademark of the Bluetooth SIG, Inc. worldwide. Oracle and Java are registered trademarks of Oracle and/or its affiliates. Other names may be ‡ trademarks of their respective owners. Windows Media Player ‡ ® is a registered trademark of Microsoft Corporation. Wi-Fi ‡ ® , the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. Using this guide 6 DivX‡ ® , Divx Certified ® , and associated logos are trademarks of DivX, Inc. and are used under license. Covered by one or more of the following U.S. patents: Pat. 7,295,673; 7,460,668; 7,515,710; 7,519,274 All other trademarks and copyrights are the property of their respective owners. ‡ Using this guide 7 ABOUT DIVX VIDEO DivX ® is a digital video format created by DivX, Inc. This is an official DivX Certified ® device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video. DivX Certified ® to play DivX ® video up to HD 720p, including premium content May play DivX ® video up to HD 1080p (LCD resolution : 1024x600) ABOUT DIVX VIDEO-ON-DEMAND This DivX Certified ® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. Contents 8 Assembling ...........................................................................................11 Unpack ............................................................................................................................... 11 Charge the battery .......................................................................................................... 12 Insert the SIM or USIM card ........................................................................................... 13 Insert a memory card (optional) .................................................................................. 15 Getting started .....................................................................................18 Turn your device on and off .......................................................................................... 18 Get to know your device ................................................................................................ 20 Use the touch screen ...........…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: June 21, 2011 Attestation Letter: FCC ID: A3LSCHI905 We, Samsung Electronics Co., Ltd., hereby attest that the attached Samsung sensor activation and deactivation distances and corresponding levels of power reduction as shown in this filing and the SAR report are correct and true and will be implemented in all production units. We attest the CS voice is not supported in all wireless modes but VoIP (through third party user application) is possible in data connections only. Hotspot mode is not available in all 5GHz bands. We, attest to the following information regarding the operation of the above mentioned device in the 5GHz U-NII Band. The SCH-I905 supports the following frequency ranges and is only client device in 5GHz bands WLAN: 5745 – 5825MHz, 2412 – 2462MHz UNII: 5180 – 5240MHz, 5260 – 5320MHz, 5500 – 5700MHz The following table lists the actual channel/frequency plan for the 2.4GHz and 5GHz operation in USA. This device only supports Active scanning on non-DFS frequencies. Channel Freq.(MHz) Scanning Channel Freq.(MHz) Scanning 1 2412 Active 7 2442 Active 2 2417 Active 8 2447 Active 3 2422 Active 9 2452 Active 4 2427 Active 10 2457 Active 5 2432 Active 11 2462 Active 6 2437 Active Channel Freq. (MHz) Scanning Channel Freq. (MHz) ScanningChannel Freq. (MHz) Scanning 36 5180 Active 64 5320 Passive 140 5700 Passive 40 5200 Active 100 5500 Passive 149 5745 Active 44 5220 Active 104 5520 Passive 153 5765 Active 48 5240 Active 108 5540 Passive 157 5785 Active 52 5260 Passive 112 5560 Passive 161 5805 Active 56 5280 Passive 116 5580 Passive 165 5825 Active 60 5300 Passive 136 5680 Passive Ad-hoc or peer-to-peer modes are not supported operating in the UNII bands. This NII transmitter is a client-only device without radar detection capability. The client software and associated drivers can not initiate any transmission on DFS frequencies, which includes transmissions for beacon, ad-hoc, and peer-to- peer modes. Operation as an access point on non-DFS legancy frequencies is also not supported. The software is locked by the module manufacturer such that there is no access and the settings can not be changed by the integrator of the module or the end user of the device. When hotspot mode is enabled by the user, all 5GHz bands are disabled. Sincerely, Sang Kyung, Ra/General Manager American QA Lab SAMSUNG Electronics America INC. E-mail : [email protected] Telephone : 310-900-5250

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: May 12, 2011 PCTEST TCB/CB Div. of PCTEST Engineering Lab., Inc. 6660-B Dobbin Road Columbia, MD 21045 SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSCHI905 To Whom It May Concern: We attest to the following for this application: 1. MPR is permanently implemented for all channel BWs, modulations, frequency bands and RB sizes: Supported channel BWs, modulations, frequency bands: a. LTE Band 13 (Channel BW 10 MHz)/QPSK & 16QAM 2. MPR is implemented per 3GPP TS 36.101. With the MPR permanently implemented, this device will never operate at higher power levels than that indicated in the Tune up procedure. 3. We confirm the specific MPR targets shown in the SAR Report. 4. A-MPR was disabled for all SAR test samples for SAR testing purposes only. 5. This device does not support voice over LTE via software set at the factory. This is a requirement of our buyer. 6. We attest to the Simultaneous Tx listed on PCTEST SAR Report Table 17-1 to be accurate and furthermore, any other simultaneous Tx combinations not listed on the SAR report are not supported by software/hardware design. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Chang Kyun Kang, Senior Engineer Samsung Electronics,.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: June 1, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, http Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSCHI905 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

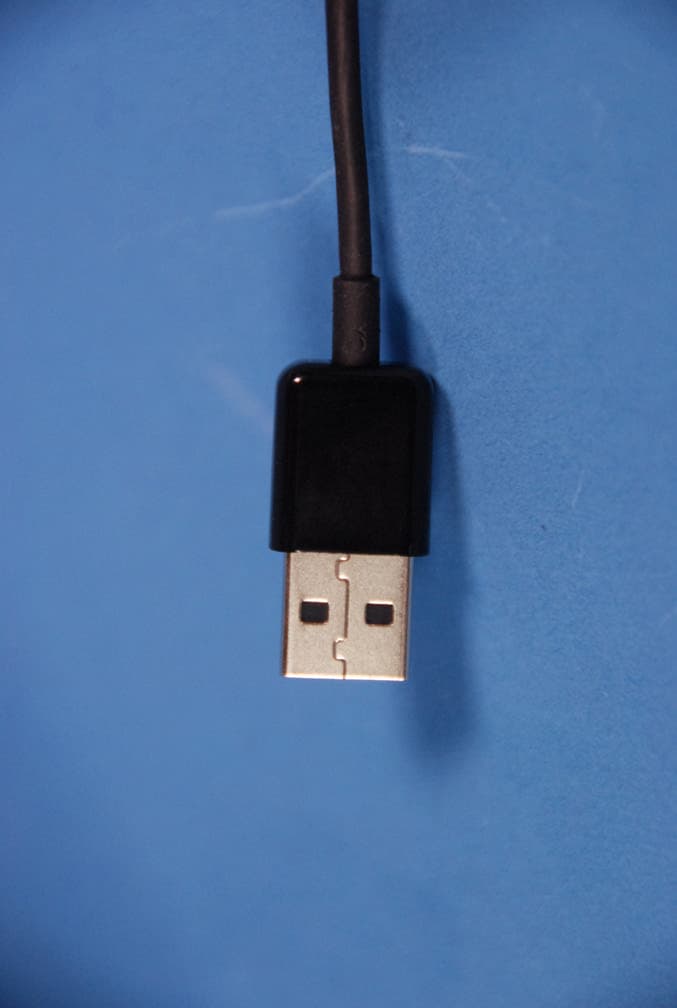

SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSCHI905 Model: SCH-I905 External Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Tablet with BT and WLAN Page 1 of 4 © 2011 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSCHI905 Model: SCH-I905 External Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Tablet with BT and WLAN Page 2 of 4 © 2011 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSCHI905 Model: SCH-I905 External Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Tablet with BT and WLAN Page 3 of 4 © 2011 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSCHI905 Model: SCH-I905 External Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Tablet with BT and WLAN Page 4 of 4 © 2011 PCTEST Engineering Laboratory Inc. Reviewed by: FCC ID: A3LSCHI905 FCC Pt. 15B MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1104190781.A3L April 28-29, 2011 Cellular/PCS CDMA/EvDO and Band 13 LTE Tablet with BT and WLAN Page 19 of 20 © 2011 PCTEST Engineering Laboratory, Inc. REV 6.0CT 10/22/10 10.0 EUT PHOTOGRAPHS Reviewed by: FCC ID: A3LSCHI905 FCC Pt. 15B MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1104190781.A3L April 28-29, 2011 Cellular/PCS CDMA/EvDO and Band 13 LTE Tablet with BT and WLAN Page 20 of 20 © 2011 PCTEST Engineering Laboratory, Inc. REV 6.0CT 10/22/10

SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSCHI905 Model: SCH-I905 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Tablet with BT and WLAN Page 1 of 11 © 2011 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSCHI905 Model: SCH-I905 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Tablet with BT and WLAN Page 2 of 11 © 2011 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSCHI905 Model: SCH-I905 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Tablet with BT and WLAN Page 3 of 11 © 2011 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSCHI905 Model: SCH-I905 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Tablet with BT and WLAN Page 4 of 11 © 2011 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSCHI905 Model: SCH-I905 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Tablet with BT and WLAN Page 5 of 11 © 2011 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSCHI905 Model: SCH-I905 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Tablet with BT and WLAN Page 6 of 11 © 2011 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSCHI905 Model: SCH-I905 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Tablet with BT and WLAN Page 7 of 11 © 2011 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSCHI905 Model: SCH-I905 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Tablet with BT and WLAN Page 8 of 11 © 2011 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSCHI905 Model: SCH-I905 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Tablet with BT and WLAN Page 9 of 11 © 2011 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSCHI905 Model: SCH-I905 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Tablet with BT and WLAN Page 10 of 11 © 2011 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSCHI905 Model: SCH-I905 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Tablet with BT and WLAN Page 11 of 11 © 2011 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID: A3LSCHI905 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1104190774-R1.A3L 05/02/11 - 05/04/11 Cellular/PCS CDMA/EVDO and LTE Tablet with Bluetooth and WLAN Page 1 of 50 © 2011 PCTEST Engineering Laboratory, Inc. REV 8.9.1M 04/07/2011 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 05/02/11 - 05/04/11 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1104190774-R1.A3L FCC ID: A3LSCHI905 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. EUT Type: Cellular/PCS CDMA/EVDO and LTE Tablet with Bluetooth and WLAN Application Type: Certification FCC Rule Part(s): Model(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] SCH-I905 Tx Frequency: 782 MHz (LTE) 824.70 - 848.31 MHz (Cellular CDMA) / 1851.25 - 1908.75 MHz (PCS CDMA) 2412 - 2462 MHz (WLAN 802.11b/g/n) 5180 - 5240 MHz (WLAN 802.11a/n) / 5260 - 5320 MHz (WLAN 802.11a/n) 5500 - 5700 MHz (WLAN 802.11 a/n) / 5745 - 5825 MHz (WLAN 802.11a/n) Conducted Power: 23.00 dBm LTE 24.33 dBm Cell. CDMA / 24.47 dBm PCS CDMA 13.30 dBm 2.4 GHz WLAN 12.57 dBm 5.2 GHz WLAN / 13.01 dBm 5.3 GHz WLAN 12.83 dBm 5.5 GHz WLAN / 13.32 dBm 5.8 GHz WLAN Max. SAR Measurement: 1.05 W/kg LTE Body SAR 0.67 W/kg Cell. CDMA Body SAR / 0.76 W/kg PCS CDMA Body SAR 1.18 W/kg 2.4 GHz WLAN Body SAR 0.26 W/kg 5.2 GHz WLAN Body SAR / 0.29 W/kg 5.3 GHz WLAN Body SAR 0.65 W/kg 5.5 GHz WLAN Body SAR / 0.72 W/kg 5.8 GHz WLAN Body SAR Test Device Serial No.: Pre-Production [S/N: FCC #1, FCC #2, FCC #3] Note: This revised Test Report (S/N: 0Y1104190774-R1.A3L) supersedes and replaces the previously issued test report on the same subject EUT for the same type of testing as indicated. Please discard or destroy the previously issued test report and dispose of it accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT Reviewed by: FCC ID: A3LSCHI905 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1104190774-R1.A3L 05/02/11 - 05/04/11 Cellular/PCS CDMA/EVDO and LTE Tablet with Bluetooth and WLAN Page 2 of 50 © 2011 PCTEST Engineering Laboratory, Inc. REV 8.9.1M 04/07/2011 1 LTE SPECIFICATIONS PER KDB 941225 1) 2) LowMidHigh NA782 MHz (CH:23230)NA 4)(a) 5) 6) 7) 8) RF Output Power 24.33 dBm 24.47 dBm 8.81 dBm 13.30 dBm 13.32 dBm 11) 12) 13) 14) 15) A3LSCHI905 See Section 17 of the SAR Report Yes 10 MHz BW Band 13: 782 MHz SAR Test Plan Proposal Discussed in KDB inquiry 450108 & April 2011 TCB-Workshop Notes SAR Test Data for Power Reduction Power Reduction only for proximity sensors. See Section 16 Yes No 1 TX/RX Antenna and 1 Rx Antenna See Operational Description LTE Transmitter and Antenna Implementation 10.1" LCD Color Tablet QPSK, 16QAM 3 No Channel Bandwidths H, M, L channel numbers and frequencies UE Category Band 13 10MHz BW: KDB 941225 Pub LTE Information Body 2.4 GHz Bluetooth LTE Voice over IMS available? FCC ID Form Factor Frequency Range of each LTE transmission band 3) Body Conducted power Table provided for 1RB (low and high offset), 50% RB (centered), 100% RB Body RF Exposure Configurations A-MPR (Additional MPR) disabled for SAR Testing? Non-LTE US Wireless Operating Modes/Band Description of LTE Tx and Ant. Implementation LTE MPR Permanently implemented per 3GPP TS 36.101 section 6.2.3~6.2.5? (manufacturer attestation to be provided) 835 MHz CDMA 9-10) (b) 1900 MHz CDMA Power Reduction used for SAR Compliance? Hotspot with LTE+WIFI Modulations Supported in UL Simultaneous Tx conditions Description of SAR Test See Section 16 2.4 GHz WI-FI Body 5 GHz WI-FI Body Hotspot with LTE+WIFI active with 1XVoice sessions? Yes Yes Yes Reviewed by: FCC ID: A3LSCHI905 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1104190774-R1.A3L 05/02/11 - 05/04/11 Cellular/PCS CDMA/EVDO and LTE Tablet with Bluetooth and WLAN Page 3 of 50 © 2011 PCTEST Engineering Laboratory, Inc. REV 8.9.1M 04/07/2011 TABLE OF CONTENTS 1 LTE SPECIFICATIONS PER KDB 941225 ..................................................................................... 2 2 INTRODUCTION ............................................................................................................................. 4 3 TEST SITE LOCATION ................................................................................................................... 5 4 SAR MEASUREMENT SETUP ....................................................................................................... 6 5 DASY E-FIELD PROBE SYSTEM .................................................................................................. 8 6 PROBE CALIBRATION PROCESS ................................................................................................ 9 7 PHANTOM AND EQUIVALENT TISSUES......................…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSCHI905 FCC Pt. 22/24 CDMA / EvDO MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1104190775.A3L March 24 - April 28, 2011 Cellular/PCS CDMA/EvDO and Band 13 LTE Tablet with BT and WLAN Page 1 of 37 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.3CFI 10/26/2010 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. March 24 - April 28, 2011 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0Y1104190775.A3L FCC ID: A3LSCHI905 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §2; §22(H), §24(E) IC Specification(s): RSS-132 Issue 2; RSS-133 Issue 5 EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Tablet with BT and WLAN Model(s): SCH-I905 Tx Frequency Range: 824.70 - 848.31MHz (Cell. CDMA) / 1851.25 - 1908.75MHz (PCS CDMA) Max. RF Output Power: 0.185 W ERP Cell. CDMA (22.67 dBm), 0.298 W EIRP PCS CDMA (24.74 dBm) Emission Designator(s): 1M27F9W (CDMA) / 1M28F9W (PCS) Test Device Serial No.: identical prototype [S/N: FCC #1] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 & 24 / IC RSS-132/RSS-133 Reviewed by: FCC ID: A3LSCHI905 FCC Pt. 22/24 CDMA / EvDO MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1104190775.A3L March 24 - April 28, 2011 Cellular/PCS CDMA/EvDO and Band 13 LTE Tablet with BT and WLAN Page 2 of 37 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.3CFI 10/26/2010 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT...........................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.3 LABELING REQUIREMENTS.............................................................................................................. 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 MEASUREMENT PROCEDURE......................................................................................................... 6 3.2 OCCUPIED BANDWIDTH ................................................................................................................... 6 3.3 CELLULAR - BASE FREQUENCY BLOCKS....................................................................................... 6 3.4 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 7 3.5 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 7 3.6 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.7 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 7 3.8 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................ 8 3.9 PEAK-AVERAGE RATIO ..................................................................................................................... 8 3.10 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 8 4.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................9 5.0 SAMPLE CALCULATIONS ............................................................................................................10 6.0 TEST RESULTS .............................................................................................................................11 6.1 SUMMARY......................................................................................................................................... 11 6.2 EFFECTIVE RADIATED POWER OUTPUT DATA ........................................................................... 12 6.3 EQUIVALENT ISOTROPIC RADIATED POWER OUTPUT DATA .................................................... 13 6.4 CELLULAR CDMA RADIATED MEASUREMENTS..................................................................…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSCHI905 FCC Pt. 27 LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1104190776.A3L March 24 - April 28, 2011 Cellular/PCS CDMA/EvDO and Band 13 LTE Tablet with BT and WLAN Page 1 of 22 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.0LTE 06/03/09 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. March 24 - April 28, 2011 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0Y1104190776.A3L FCC ID: A3LSCHI905 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §2; §27 EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Tablet with BT and WLAN Model(s): SCH-I905 Tx Frequency Range: 782MHz (LTE - Band 13) Max. RF Output Power: 0.112W (20.48dBm) ERP (QPSK) 0.1W (20.02dBm) ERP (16-QAM) Emission Designator(s): 8M98G7D (QPSK) / 8M99W7D (16-QAM) Test Device Serial No.: identical prototype [S/N: FCC #1] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 27. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 27 LTE Reviewed by: FCC ID: A3LSCHI905 FCC Pt. 27 LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1104190776.A3L March 24 - April 28, 2011 Cellular/PCS CDMA/EvDO and Band 13 LTE Tablet with BT and WLAN Page 2 of 22 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.0LTE 06/03/09 TABLE OF CONTENTS FCC PART 27 MEASUREMENT REPORT..................................................................................3 1.0 INTRODUCTION ..................................................…
