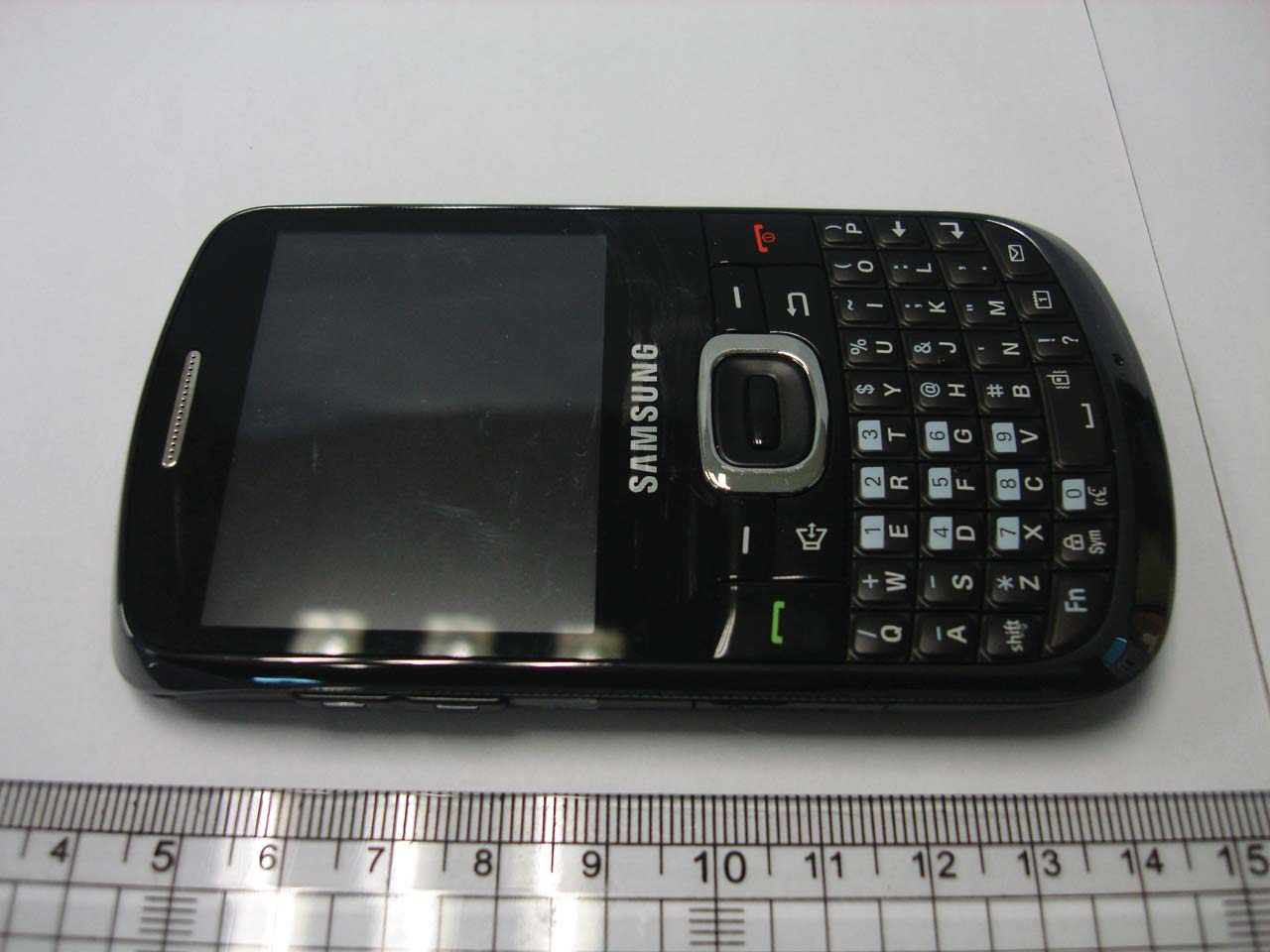

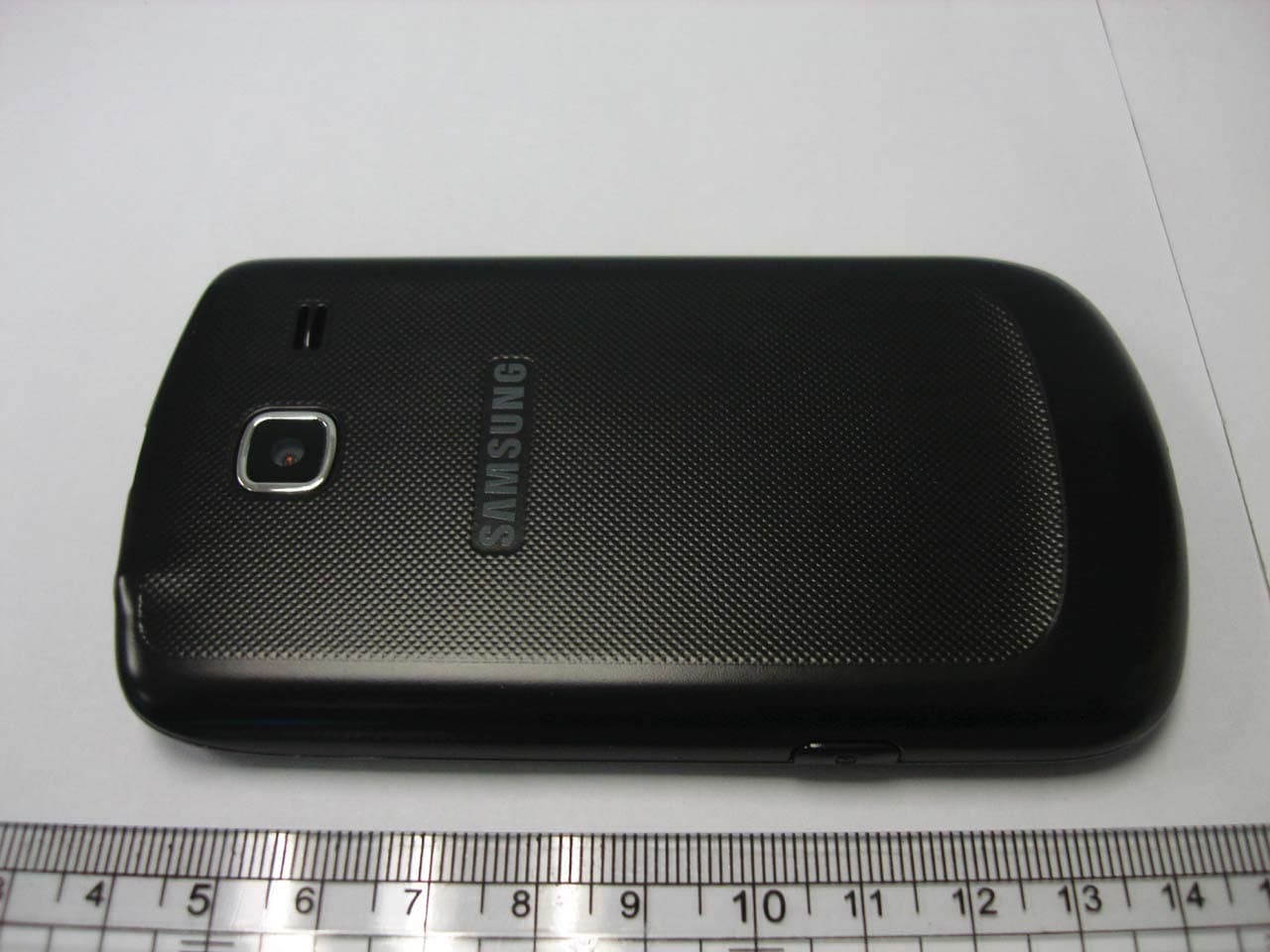

A3LSCHR390Cellular/PCS/AWS CDMA Phone with Bluetooth

User manual SCH-R390 Draft 6 2011-12-23 Only for Marketing using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone, Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information X Refer to—pages with related information; for example: X p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners: z Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide z Java™ is a trademark of Sun Microsystems, Inc. z Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care z Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone. z Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones. z Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated. z Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or perm…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: April 2, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSCHR390 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS CO., LTD 416,Maetan-3dong,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea April 2, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSCHR390 Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the device will be marketed without the battery installed. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

Mar 21, 2012 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG ELECTRONICS CO.,LTD FCC ID: A3LSCHR390 Part 20.19 Certification To Whom It May Concern: The following are the model designations and their associated key features for this FCC ID, according to require ment in the TCB Guidance issued on july 08, 2011. We, Samsung Electronics, hereby declare the samples evaluated in this application are equivalent to production samples. FCC ID: A3LSCHR390 Model(s): SCH-R390 Air Interfaces: Cellular/AWS/PCS CDMA Radio Services: Cellular/AWS/PCS CDMA Key Features: Bluetooth SMS Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, authorized signature Name: chunyan cui Title: Group leader Conpany: Samsung Electronics Phone:86-13714614685

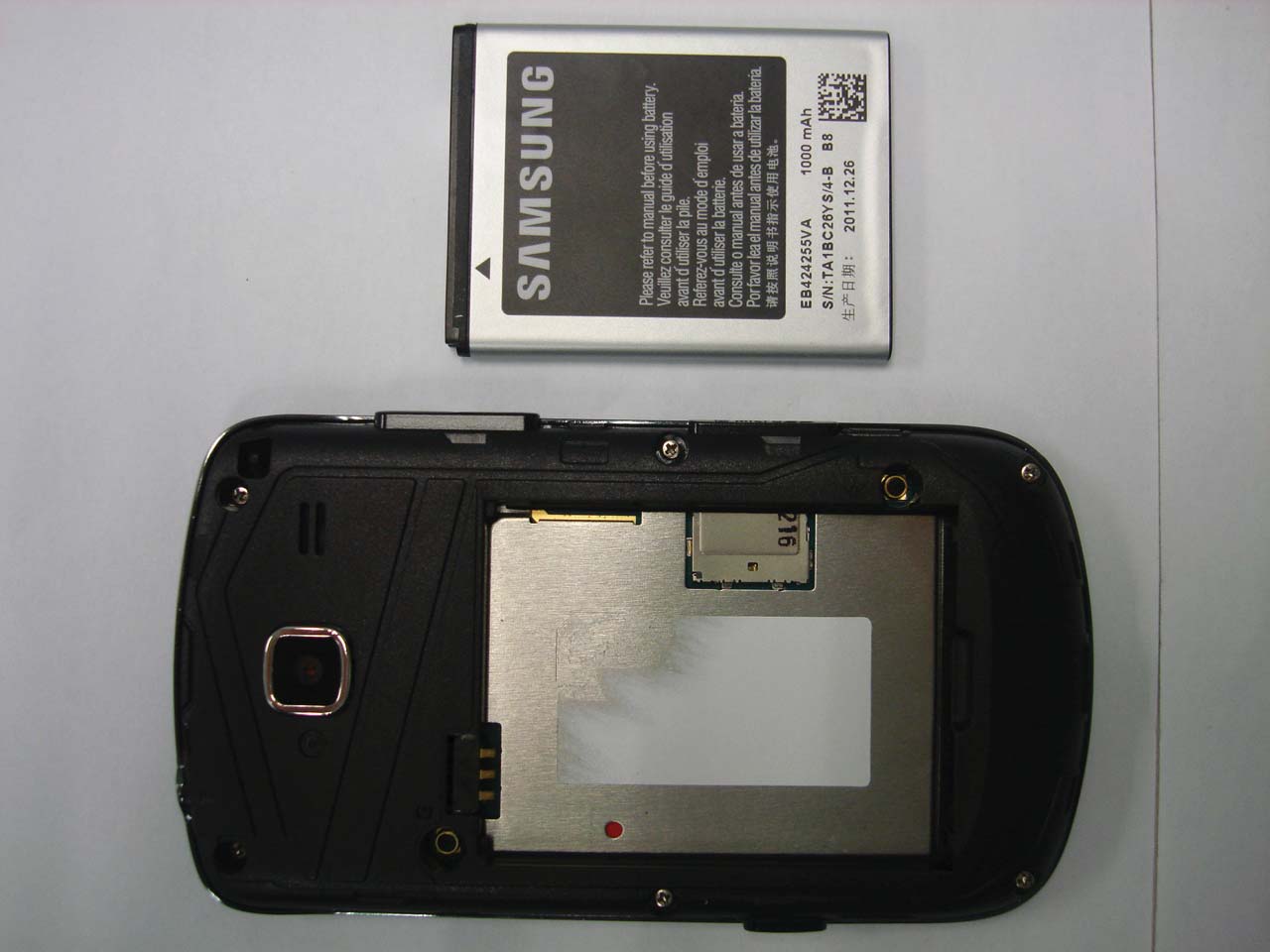

Label and Location Samsung Phone Model: SCH-R390 FCC ID: A3LSCHR390 Label: Location: Top Back plate Bottom of device Phone: Label is placed inside of the battery compartment. Tablet : FCC ID is printed on bottom of the device

FCC ID: A3LSCHR390 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 27 0Y1203140289.A3L 03/13/12 - 03/26/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.1 M 02/20/2012 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 03/13/12 - 03/26/12 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Document Serial No.: 0Y1203140289.A3L FCC ID: A3LSCHR390 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): Model(s): CFR §2.1093 SCH-R390 Test Device Serial No.: Pre-Production [S/N: FJ-060-A] 1 gm Head (W/kg) 1 gm Body-Worn (W/kg) Cell. CDMA824.70 - 848.31 MHz24.520.971.07 AWS CDMA1711.25 - 1753.75 MHz24.380.600.63 PCS CDMA1851.25 - 1908.75 MHz24.350.660.56 Bluetooth2402 - 2480 MHz11.16N/A0.00 1.07 SAR Band & ModeTx Frequency Conducted Power [dBm] Simulta ne ous SAR pe r KDB 690783 D01: Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSCHR390 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 27 0Y1203140289.A3L 03/13/12 - 03/26/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.1 M 02/20/2012 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 INTRODUCTION ............................................................................................................................. 5 3 SAR MEASUREMENT SETUP ....................................................................................................... 6 4 DOSIMETRIC ASSESSMENT ........................................................................................................ 7 5 DEFINITION OF REFERENCE POINTS ........................................................................................ 8 6 TEST CONFIGURATION POSITIONS FOR HANDSETS .............................................................. 9 7 FCC RF EXPOSURE LIMITS ........................................................................................................ 12 8 FCC MEASUREMENT PROCEDURES ........................................................................................ 13 9 RF CONDUCTED POWERS ......................................................................................................... 15 10 SYSTEM VERIFICATION .............................................................................................................. 16 11 SAR DATA SUMMARY ................................................................................................................. 18 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 21 13 EQUIPMENT LIST ......................................................................................................................... 22 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 24 15 CONCLUSION ............................................................................................................................... 25 16 REFERENCES .............................................................................................................................. 26 FCC ID: A3LSCHR390 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 27 0Y1203140289.A3L 03/13/12 - 03/26/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.1 M 02/20/2012 1 DEVICE UNDER TEST 1.1 Device Overview Cell. CDMA824.70 - 848.31 MHz AWS CDMA1711.25 - 1753.75 MHz PCS CDMA1851.25 - 1908.75 MHz Bluetooth2402 - 2480 MHz Band & ModeTx Frequency 1.2 DUT Antenna Locations Figure 1-1 DUT Antenna Locations FCC ID: A3LSCHR390 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 4 of 27 0Y1203140289.A3L 03/13/12 - 03/26/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.1 M 02/20/2012 1.3 SAR Test Exclusions Applied (A) BT The separation between the main antenna and the Bluetooth Antenna is 7.5 mm. Maximum Average RF Conducted Power of Bluetooth Tx is 13.06 mW. Per KDB Publication 648474, Bluetooth SAR was required based on the maximum average conducted power, the Bluetooth to main antenna separation distance and Body-SAR of the main antenna. (B) Licensed Transmitter(s) For head RC1 SAR tests were not required since the average output power was not more than 0.25 dB than the SO55 RC3 powers. For body TDSO / SO32 FCH+SCH SAR tes…

Text truncated - open the document above for the full version.

© 2012 PCTEST Engineering Laboratory, Inc. APPENDIX C: PROBE CALIBRATION

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 22 & 24 SUBPART CERTIFICATION REPORT Model Tested: SCH-R390 FCC ID (Requested): A3LSCHR390 Report No: FJ-060-R1 Job No: FJ-060 Date issued: March 26, 2012 - Abstract – All measurement reported here in accordance with FCC Rules, 47CFR Part2, Part22, Part24 Prepared By HK LEE - Test Engineer Authorized By WT JANG – Technical Manager © Copyright SAMSUNG Electronics 2012 Report Number : FJ-060-R1 2 of 50 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC Certification Information ....................................................................................... 3 1.1 §2.1033 General Information ................................................................................... 3 2. INTRODUCTION ............................................................................................................. 4 2.1 General .................................................................................................................... 4 3. MEASURING INSTRUMENT CALIBRATION ................................................................. 5 4. TEST EQUIPMENT LIST ................................................................................................. 6 5. DESCRIPTION OF TESTS .............................................................................................. 7 5.1 Output Power Variation ............................................................................................ 7 5.2 Effective Radiated Power / Equivalent Isotropic Radiated Power ............................ 9 5.3 Radiated Spurious & Harmonic Emission .............................................................. 10 5.4 Peak-Average Ratio ............................................................................................... 11 5.5 Occupied Bandwidth .............................................................................................. 12 5.6 Spurious and Harmonic Emissions at Antenna Terminal ........................................ 12 5.6.1 Occupied Bandwidth Emission Limits ........................................................... 12 5.6.2 Conducted Spurious Emission ...................................................................... 13 5.7 Frequency Stability / Temperature Variation ........................................................... 14 6. TEST DATA ................................................................................................................... 15 6.1 Effective Radiated Power(E.R.P.) .......................................................................... 15 6.2 Equivalent Isotropic Radiated Power(E.I.R.P.) ....................................................... 16 6.3 Cellular CDMA Radiated Spurious & Harmonic measurement ............................... 17 6.4 PCS CDMA Radiated Spurious & Harmonic measurement ................................... 18 6.5 CDMA Radiated Spurious & Harmonic Conversion Table ...................................... 19 6.6 PCS Radiated Spurious & Harmonic Conversion Table ......................................... 20 6.7 Frequency Stability ................................................................................................. 21 6.7.1 CDMA Frequency Stability Table ................................................................... 21 6.7.2 PCS Frequency Stability Table ...................................................................... 22 6.7.3 CDMA Frequency Stability Graph ................................................................. 23 6.7.4 PCS Frequency Stability Graph .................................................................... 25 7. SAMPLE CALCULATION ............................................................................................. 27 7.1 Emission Designator .............................................................................................. 27 8. CONCLUSION ............................................................................................................... 28 9. TEST PLOTS ................................................................................................................. 29 Report Number : FJ-060-R1 3 of 50 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1 §2.1033 General Information • Applicant Name: SAMSUNG ELECTRONICS CO., LTD. • Address: 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 • FCC ID: • Model: A3LSCHR390 SCH-R390 • Quantity: Quantity production is planned • Emission Designators: 1M27F9W(CDMA), 1M28F9W(PCS CDMA) • Tx Freq. Range: 824.70-848.31MHz (CDMA) 1851.25-1908.75MHz (PCS CDMA) • Rx Freq. Range: 869.70-893.31MHz (CDMA) 1931.25-1988.75MHz (PCS CDMA) • Max. Power Rating: 0.082 W ERP CDMA (19.15 dBm) 0.157 W EIRP PCS (21.97 dBm) • FCC Classification(s): PCS Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Cellular/AWS/PCS CDMA Phone with Bluetooth • Modulation(s): CDMA • Frequency Tolerance: ±0.00025% (2.5ppm) • FCC Rule Part(s): §24(E), §22(H), §2. • Dates of Test: February 29 – March 2, 2012 • Place of Test: SAMSUNG Lab, • Test Report S/N: FJ-060-R1 Report Number : FJ-060-R1 4 of 50 2. INTRODUCTION 2.1 General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 443-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on the rotating device at the same height and at a distance of 3-meters from the receive antenna. The rotating device which can rotate horizontal axis was mounted on the turn unit to facilitate rotation around a vertical axis. T…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 27 SUBPART CERTIFICATION REPORT Model Tested: SCH-R390 FCC ID (Requested): A3LSCHR390 Report No: FJ-060-R2 Job No: FJ-060 Date issued: March 26, 2012 - Abstract – All measurement reported here in accordance with FCC Rules, 47CFR Part2, Part27 Prepared By HK LEE - Test Engineer Authorized By WT JANG – Technical Manager © Copyright SAMSUNG Electronics 2012 Report Number : FJ-060-R2 2 of 35 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC Certification Information ....................................................................................... 3 1.1 §2.1033 General Information ................................................................................... 3 2. INTRODUCTION ............................................................................................................. 4 2.1 General .................................................................................................................... 4 3. MEASURING INSTRUMENT CALIBRATION ................................................................. 5 4. TEST EQUIPMENT LIST ................................................................................................. 6 5. DESCRIPTION OF TESTS .............................................................................................. 7 5.1 Output Power Variation ............................................................................................ 7 5.2 Effective Radiated Power / Equivalent Isotropic Radiated Power ............................ 8 5.3 Radiated Spurious & Harmonic Emission ................................................................ 9 5.4 Peak-Average Ratio ............................................................................................... 10 5.5 Occupied Bandwidth .............................................................................................. 11 5.6 Spurious and Harmonic Emissions at Antenna Terminal ........................................ 11 5.6.1 Occupied Bandwidth Emission Limits ........................................................... 11 5.6.2 Conducted Spurious Emission ...................................................................... 12 5.7 Frequency Stability / Temperature Variation ........................................................... 13 6. TEST DATA ................................................................................................................... 14 6.1 Equivalent Isotropic Radiated Power(E.I.R.P.) ....................................................... 14 6.2 AWS CDMA Radiated Spurious & Harmonic measurement ................................... 15 6.3 AWS Radiated Spurious & Harmonic Conversion Table ......................................... 16 6.4 Frequency Stability ................................................................................................. 17 6.4.1 AWS Frequency Stability Table ..................................................................... 17 6.4.2 AWS Frequency Stability Graph .................................................................... 18 7. SAMPLE CALCULATION ............................................................................................. 20 7.1 Emission Designator .............................................................................................. 20 8. CONCLUSION ............................................................................................................... 21 9. TEST PLOTS ................................................................................................................. 22 Report Number : FJ-060-R2 3 of 35 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1 §2.1033 General Information • Applicant Name: SAMSUNG ELECTRONICS CO., LTD. • Address: 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 • FCC ID: • Model: A3LSCHR390 SCH-R390 • Quantity: Quantity production is planned • Emission Designators: 1M27F9W(AWS CDMA) • Tx Freq. Range: 1711.25 – 1753.75MHz (AWS CDMA) • Rx Freq. Range: 2111.25 – 2153.75MHz (AWS CDMA) • Max. Power Rating: 0.114 W EIRP AWS (20.55dBm) • FCC Classification(s): PCS Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Cellular/AWS/PCS CDMA Phone with Bluetooth • Modulation(s): CDMA • Frequency Tolerance: ±0.00025% (2.5ppm) • FCC Rule Part(s): §27(L), §2. • Dates of Test: February 29 – March 2, 2012 • Place of Test: SAMSUNG Lab, • Test Report S/N: FJ-060-R2 Report Number : FJ-060-R2 4 of 35 2. INTRODUCTION 2.1 General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 443-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on the rotating device at the same height and at a distance of 3-meters from the receive antenna. The rotating device which can rotate horizontal axis was mounted on the turn unit to facilitate rotation around a vertical axis. The measurement was made for each horizontal/vertical position combination with receive antenna horizontally polarized. This measurement was repeated with receive antenna vertically polarized. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above proce…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSCHR390 HAC (RF EMISSIONS) TEST REPORT Quality Manager HAC Filename: Test Dates: EUT Type: 0Y1203140290.A3L March 14-19, 2012 Portable Handset Page 1 of 81 © 2012 PCTEST Engineering Laboratory, Inc. REV 8.4C 08/10/10 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. March 14-19, 2012 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1203140290.A3L FCC ID: A3LSCHR390 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification FCC Rule Part(s): § 20.19(b) HAC Standard: ANSI C63.19-2007 §6.3(v), §7.3(v); EUT Type: Portable Handset Model(s): SCH-R390 Test Device Serial No.: Pre-Production Sample [S/N: AJ-009-B] Cell. CDMA824.70 - 848.31 MHz AWS CDMA1711.25 - 1753.75 MHz PCS CDMA1851.25 - 1908.75 MHz Bluetooth2402 - 2480 MHz C63.19-2007 HAC Category: M4 (RF EMISSIONS CATEGORY) Band & ModeTx Frequency This wireless portable device has been shown to be hearing-aid compatible under the above rated category, specified in ANSI/IEEE Std. C63.19-2007 and had been tested in a ccordance with the specified measurement procedures. Hearing-Aid Compatibility is based on the assumption that all production units will be designed electrically identical to the device tested in this report. Test results reported herein relate only to the item(s) tested and are for North American Bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com HEARING …

Text truncated - open the document above for the full version.
