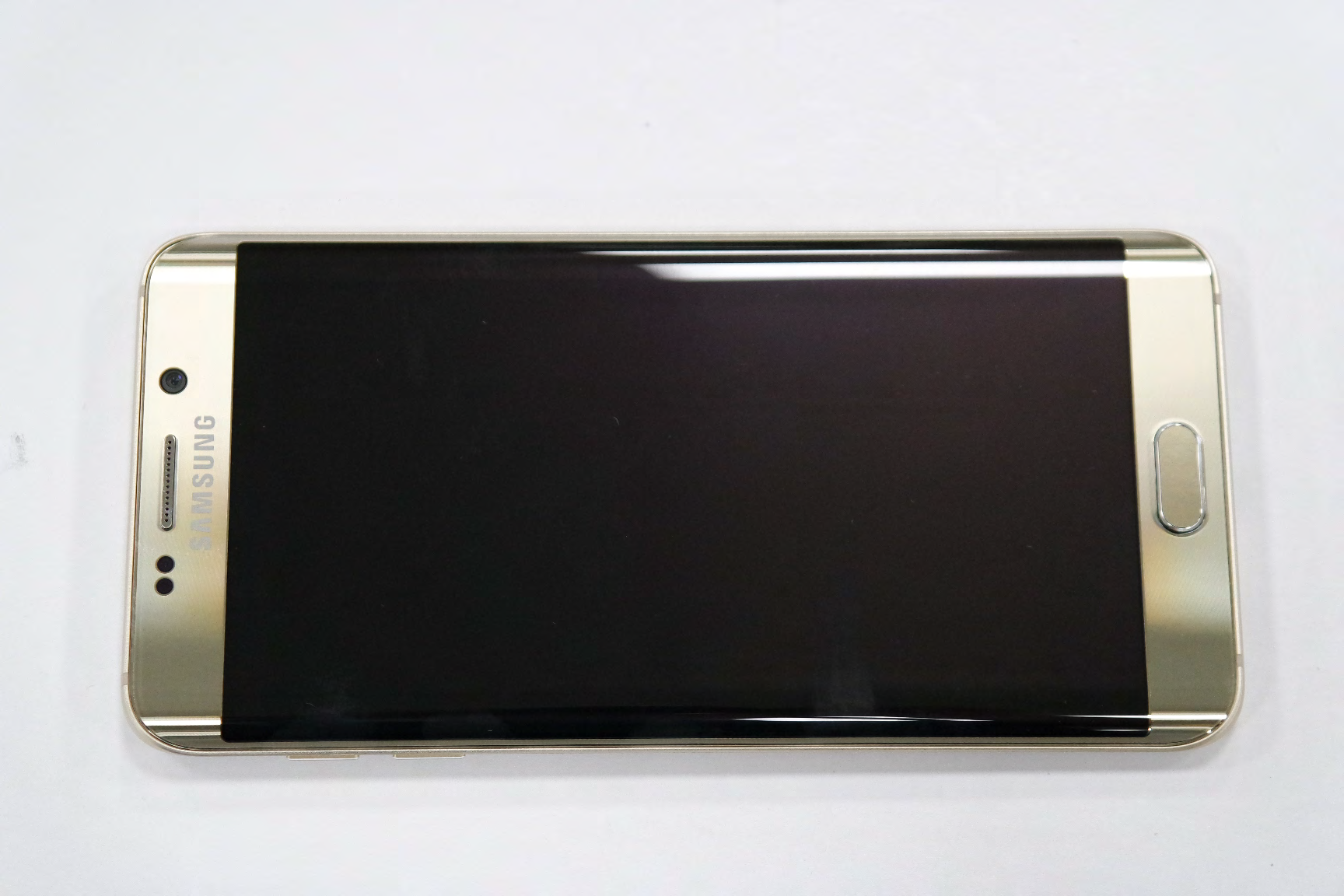

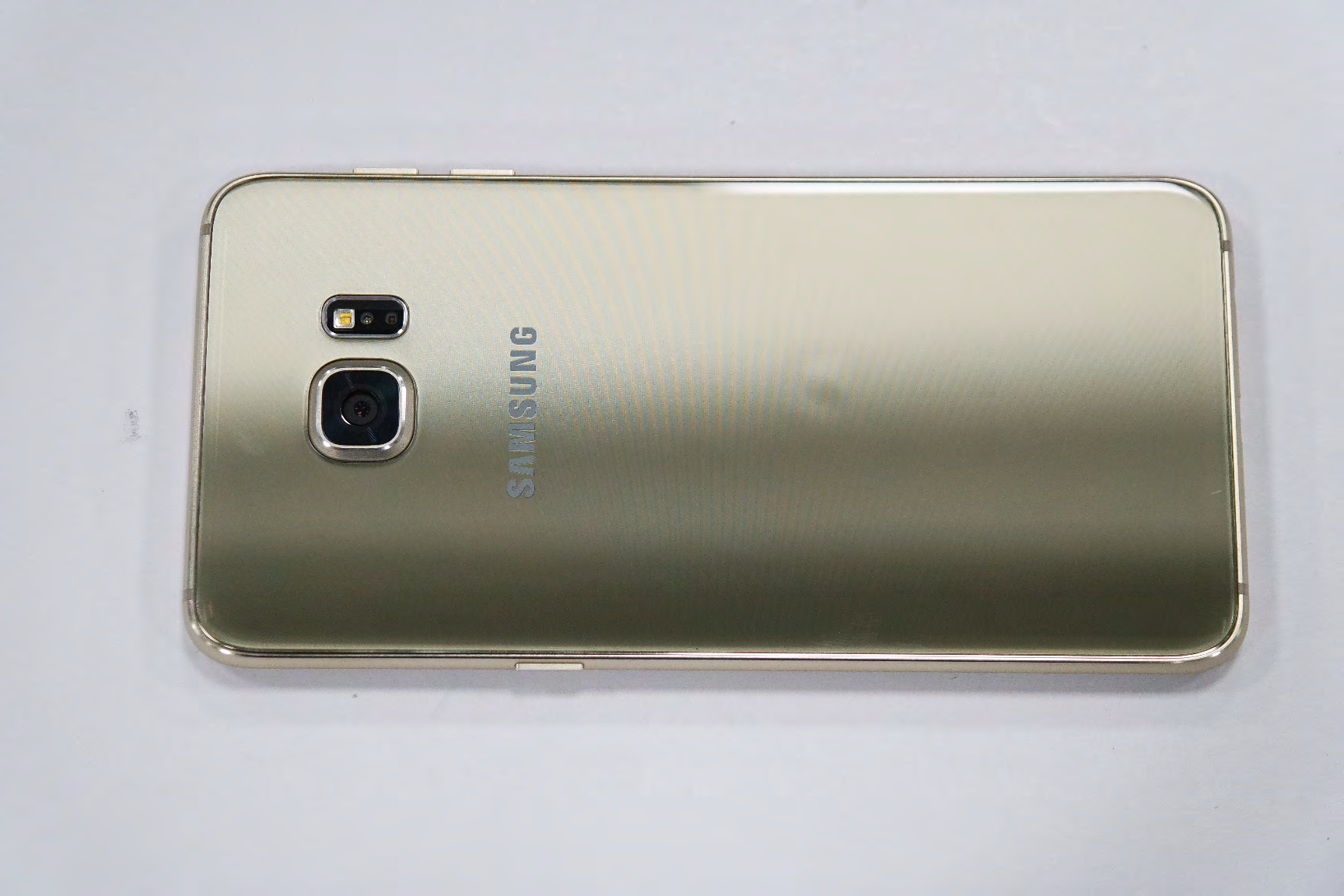

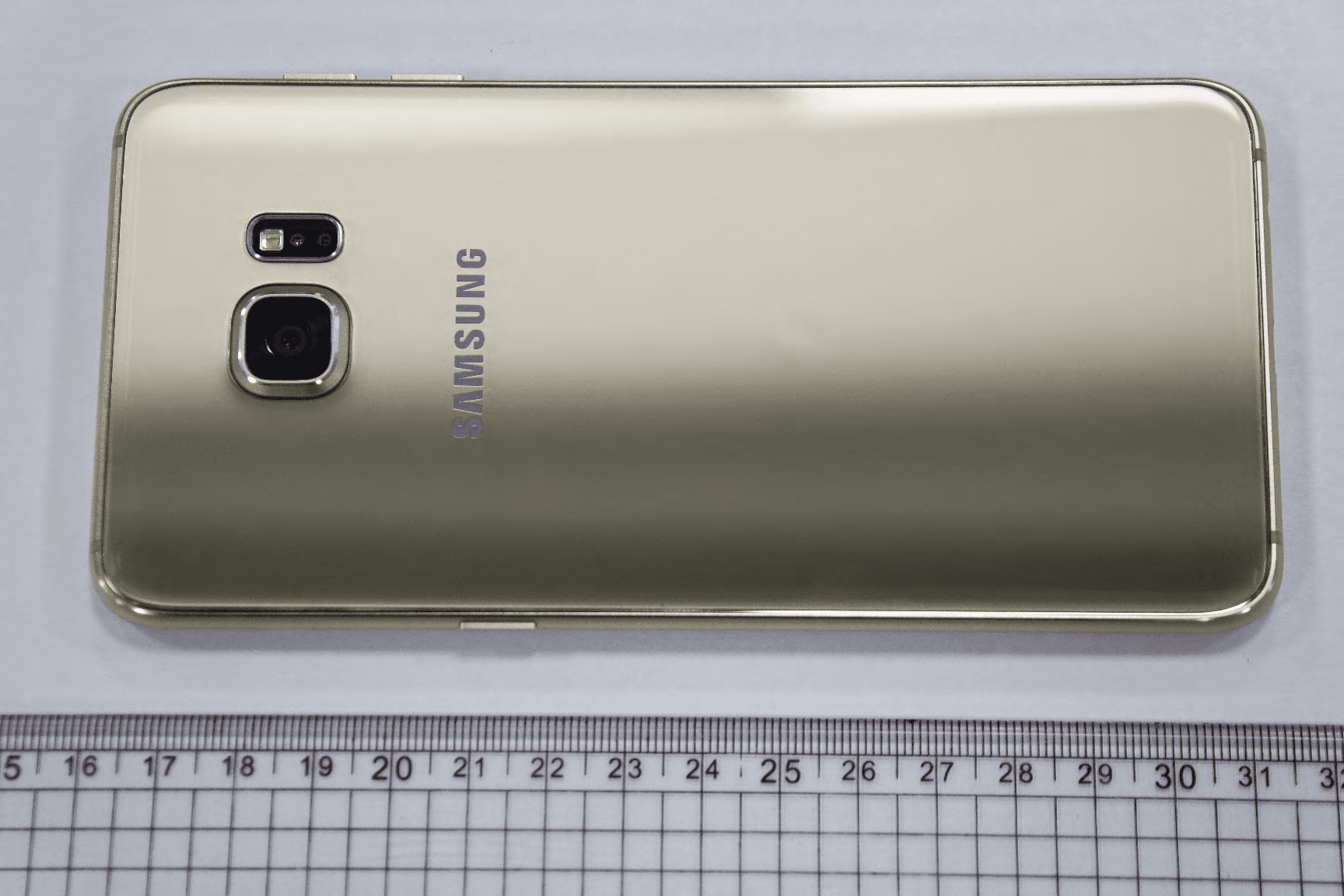

A3LSMG928AMulti-Band GSM/EDGE/UMTS/LTE Phone with WLAN, Bluetooth, RFID and ANT+

www.samsung.com User Manual English (EU). 01/2015. Rev.1.0 'UaIW 0anXaO 7KH 0anXaO LV SUHOLPLnaU\ and VRPH IHaWXUHV dLVFXVVHd Pa\ nRW EH aSSOLFaEOH RU FRPSOHWH and aUH nRW ILnaO LH 0RdHO 1aPHV and ,WHPV VXFK aV EaWWHU\ 6,0 &aUd 6RIWNH\ dLVFXVVLRn HWF SM-G928A DRAFT, Not FINAL 2 Table of Contents Basics 4 Read me first 5 Package contents 6 Device layout 8 SIM or USIM card 11 Battery 15 Turning the device on and off 16 Touchscreen 19 Home screen 25 Lock screen 27 Notification panel 30 Entering text 33 Screen capture 33 Opening apps 34 Multi window 38 Device and data management 44 Connecting to a TV 46 Emergency mode Settings 47 Introduction 47 Wi-Fi 49 Bluetooth 51 Tethering and Mobile hotspot 52 Flight mode 52 Data usage 53 Mobile networks 53 More 58 Sound and notification 58 Display 59 Motions & gestures 59 Applications 60 Wallpaper 60 Themes 60 Lock screen & security 65 Privacy & safety 68 Easy mode 68 Accessibility 69 Accounts 70 Backup and reset 70 Language and input 71 Battery 71 Storage 72 Date and time 72 User manual 72 About device Applications 73 Installing or uninstalling apps 74 Phone 77 Contacts 79 Messages 80 Internet 81 Email DRAFT, Not FINAL Table of Contents 3 82 Camera 98 Gallery 99 Smart Manager 100 S Planner 102 S Health 105 S Voice 106 Music 107 Video 107 Voice Recorder 110 My Files 110 Memo 111 Clock 112 Calculator 113 Google apps 115 Microsoft apps Appendix 116 Accessibility 131 Troubleshooting 136 Removing the battery (non-removable type) DRAFT, Not FINAL 4 Basics Read me first Please read this manual before using the device to ensure safe and proper use. • Descriptions are based on the device’s default settings. • Some content may differ from your device depending on the region, service provider, model specifications, or device’s software. • Content (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Apps related to the content may not work properly depending on the device’s specifications and the environment that it is used in. • Samsung is not liable for performance issues caused by apps supplied by providers other than Samsung. • Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or apps to work improperly. • Software, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media. • You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services depending on your data plan. For large data transfers, it is recommended to use the Wi-Fi feature. • Default apps that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an app provided with the device, contact a Samsung Service Centre. For user-installed apps, contact service providers. • Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty. DRAFT, Not FINAL Basics 5 • Depending on the region or model, some devices are required to receive approval from the Federal Communications Commission (FCC). If your device is approved by the FCC, you can view the FCC ID of the device. To view the FCC ID, tap Apps → Settings → About device. Instructional icons Warning: situations that could cause injury to yourself or others Caution: situations that could cause damage to your device or other equipment Notice: notes, usage tips, or additional information Package contents Check the product box for the following items: • Device • Quick start guide • The items supplied with the device and any available accessories may vary depending on the region or service provider. • The supplied items are designed only for this device and may not be compatible with other devices. • Appearances and specifications are subject to change without prior notice. • You can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase. • Use only Samsung-approved accessories. Using unapproved accessories may cause the performance problems and malfunctions that are not covered by the warranty. • Availability of all accessories is subject to change depending entirely on manufacturing companies. For more information about available accessories, refer to the Samsung website. DRAFT, Not FINAL Basics 6 Device layout Microphone Microphone Loud speaker Back key Multipurpose jack Front camera Speaker Power key Touchscreen Recents key Headset jack Home key (Fingerprint recognition sensor) LED indicator Proximity/Light sensor SIM card tray Main antenna Infrared port Flash Volume key NFC antenna/Wireless charging coil Rear camera Microphone GPS antenna DRAFT, Not FINAL Basics 7 • Do not cover the antenna area with your hands or other objects. This may cause connectivity problems or drain the battery. • Using a Samsung-approved screen protector is recommended. Unapproved screen protectors may cause the sensors to malfunction. • Do not allow water to contact the touchscreen. The touchscreen may malfunction in humid conditions or when exposed to water. Keys KeyFunction Power • Press and hold to turn the device on or off. • Press to turn on or lock the screen. Recents • Tap to open the list of recent apps. • Tap and hold to launch the split screen view. Home • Press to turn on the screen while the screen is locked. • Press to return to the Home screen. • Press and hold to launch Google. Back • Tap to return to the previous screen. Volume • Press to adjust t…

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: June 26, 2015 FCC ID: A3LSMG928A To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

Date: Dec 10, 2014 PCTEST T CB/CB Div. of PCTEST Engineering Lab., Inc. 66 60-B Dobbin Road Columbia, MD 21045 S amsung Electronics Co., LTD. 129, Samsung-ro, Yeongtong-gu Su won- City, Gyeong gi-do, 443-742, Korea Subject: Samsung Electronics Co., Ltd. FCC ID: A3LSMG928A To Whom it May Concern We attest the following regarding FCC ID: A3LSMG928A 1.MPR is permanently implemented for all channel BWs, modulations, frequency ban ds and RB sizes. 2. A-MPR was disabled for all SAR test samples f or SAR testing p urposes only. 3. We confirm the specific MPR targ ets and toler anc es sho wn in the SAR Report. 4. LTE Rel 10 implementation is limited. The uplink does not support carrier aggregation nor enhanced SC-FDMA. Features such as CoMP, HetNet, Relay, SON, cross carrier scheduling, eICIC, enhanced downlink MIMO, MBMS, M2M/D2 are also not supported. SVLTE is not supported as described in the operational description. Should you have any q uestions or comments concerning the a bove, please contact the unde rsigned. Sincerely, Engineer Dongwon Kim Samsung Electronics CO. LTD TEL:+82-10-9494-1548 E-mail: [email protected]

Date: June 24, 2015 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: The following are the model designations and th eir associated ke y features for this FCC ID , according to require ment in th e TCB Guidance issued on June 20, 2008. We, Samsung Electronics, hereby declare the samples evaluated in this application are equivalent to production samples. This device features a HAC mode software setting which activates audio gains and shaping during HAC operation to improve audio performance for users with hearing loss. Held-to-ear modes do not include Wifi and Bluetooth profiles. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, FCC ID: A3LSMG928A Model(s): SM-G928A Air Interfaces: GSM850/1900 WCDMA B2/5 LTE B2/4/5/12/17/30/29 (DL Only) Radio Services: GSM/GPRS/EGPRS, WCDMA/HSDPA/HSUPA/ HSPA+(DL ONLY), LTE FDD GPS NFC & MST SMS,MMS Bluetooth WIFI Key Features ANT+ VoLTE per GSMA PRD IR.92: Yes Special Voice Interfaces: VoWIFI: No SUBJECT: SAMSUNG ELECTRONICS CO.,LTD. FCC ID: A3LSMG928A Part 20.19 Ce rtification Engineer Dongwon Kim Samsung Electronics CO. LTD TEL:+82-10 -9494-1548 E-mail: [email protected]

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: June 26, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMG928A To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 Parts List & Tune-Up Procedure SHORT-TERM 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, CHANHO, YOUN General Manager American QA Lab SAMSUNG Electronics America INC.

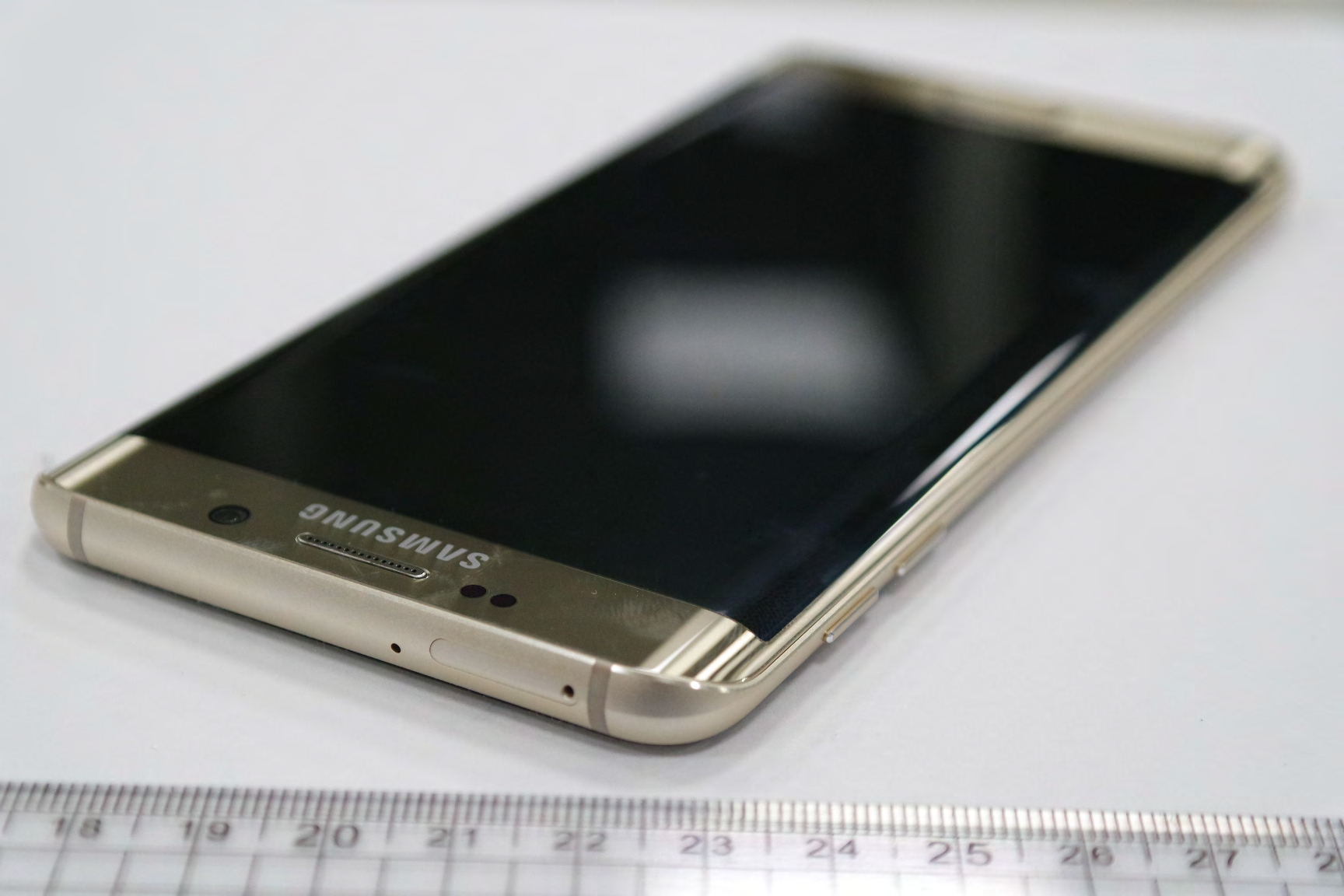

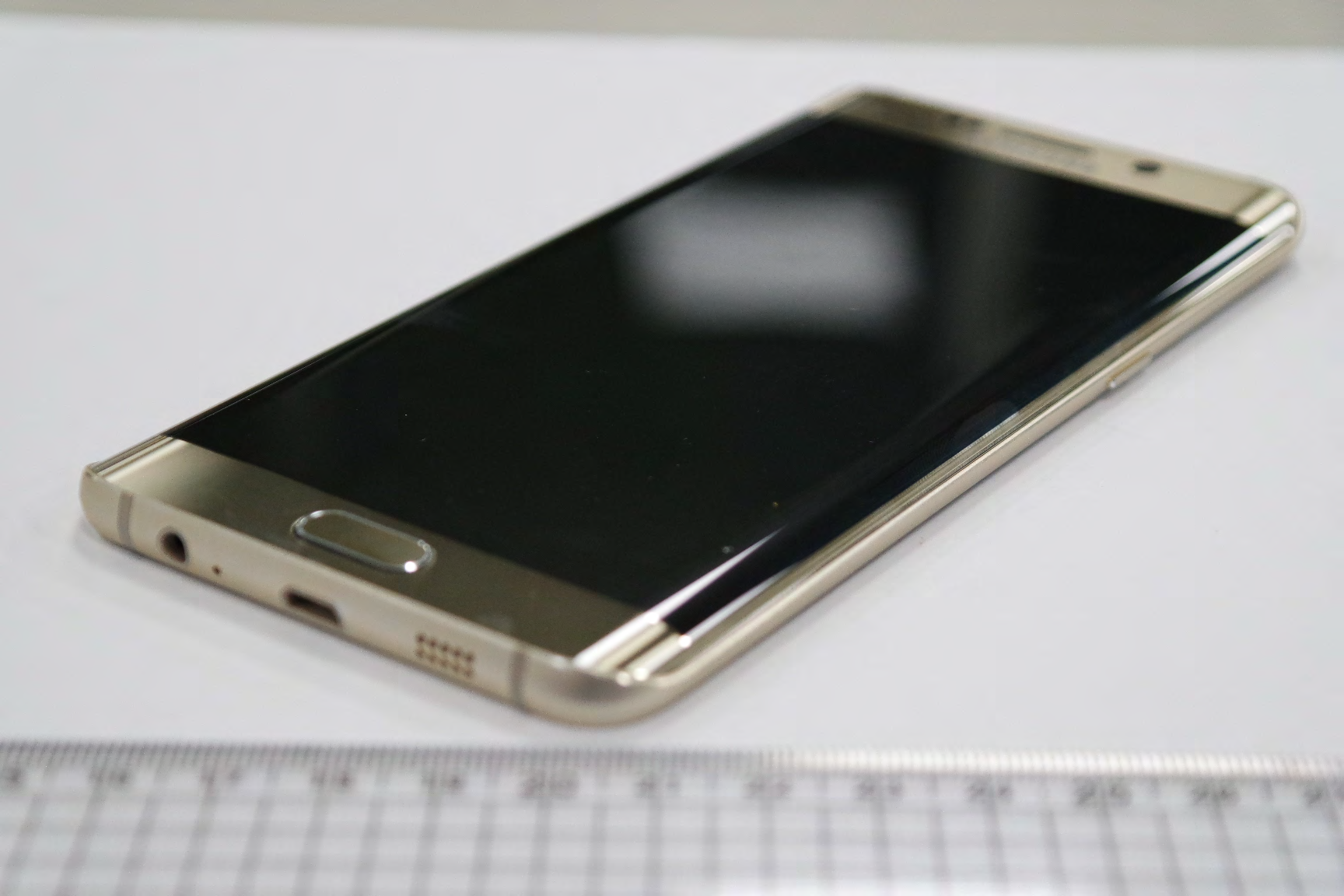

Label and Location Model: SM-G928A FCC ID: A3LSMG928A Label: Location: Top Back of device Bottom FCC ID is engraved on bottom of the device

FCC ID:A3LSMG928A SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 102 0Y1506101108.A3L 06/10/15 - 06/26/15 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. REV 16.0 M 06/12/2015 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 06/10/15 - 06/26/15 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1506101108.A3L FCC ID: A3LSMG928A APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-G928A This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.8 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. The SAR Tick is an initiative of the Mobile Manufacturers Forum (MMF). While a product may be considered eligible, use of the SAR Tick logo requires an agreement with the MMF. Further details can be obtained by emailing: [email protected]. 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W/kg) 10 gm Extremity (W/kg) PCEGSM/GPRS/EDGE 850824.20 - 848.80 MHz0.230.320.64< 0.1 PCEUMTS 850826.40 - 846.60 MHz0.190.390.66< 0.1 PCEGSM/GPRS/EDGE 1900 1850.20 - 1909.80 MHz< 0.10.370.591.70 PCEUMTS 19001852.4 - 1907.6 MHz0.130.651.002.68 PCELTE Band 12699.7 - 715.3 MHz0.140.320.62< 0.1 PCELTE Band 5 (Cell)824.7 - 848.3 MHz0.200.410.59< 0.1 PCELTE Band 4 (AWS)1710.7 - 1754.3 MHz0.191.030.742.07 PCELTE Band 2 (PCS)1850.7 - 1909.3 MHz< 0.10.590.992.86 PCELTE Band 302307.5 - 2312.5 MHz0.130.451.05< 0.1 DTS2.4 GHz WLAN2412 - 2462 MHz0.430.230.26 NIIU-NII-15180 - 5240 MHz NIIU-NII-2A5260 - 5320 MHz0.33< 0.10.56 NIIU-NII-2C5500 - 5720 MHz0.49< 0.10.42 NIIU-NII-35745 - 5825 MHz0.43< 0.10.10 DSS/DTSBluetooth2402 - 2480 MHz 1.141.381.453.56 Band & ModeTx Frequency Equipment Class Simultaneous SAR per KDB 690783 D01v01r03: N/A SAR PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID:A3LSMG928A SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 102 0Y1506101108.A3L 06/10/15 - 06/26/15 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. REV 16.0 M 06/12/2015 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 LTE INFORMATION ...................................................................................................................... 12 3 INTRODUCTION ........................................................................................................................... 13 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 14 5 DEFINITION OF REFERENCE POINTS ...................................................................................... 15 6 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 16 7 RF EXPOSURE LIMITS ................................................................................................................ 19 8 FCC MEASUREMENT PROCEDURES ........................................................................................ 20 9 RF CONDUCTED POWERS ......................................................................................................... 26 10 SYSTEM VERIFICATION .............................................................................................................. 68 11 SAR DATA SUMMARY ................................................................................................................. 72 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 87 13 SAR MEASUREMENT VARIABILITY ........................................................................................... 96 14 EQUIPMENT LIST ......................................................................................................................... 97 15 MEASUREMENT UNCERTAINTIES ............................................................................................ 98 16 CONCLUSION ............................................................................................................................. 100 17 REFERENCES ............................................................................................................................ 101 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: DUT ANTENNA DIAGRAM & SAR TEST SETUP PHOTOGRAPHS APPENDIX G: SENSOR TRIGGERING DATA SUMMARY FCC ID:A3LSMG928A SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 102 0Y1506101108.A3L 06/10/15 - 06/26/15 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. REV 16.0 M 06/12/2015 1 DEVICE UNDER TEST 1.1 Device Overview 1.2 Power Reduction for SAR This device utilizes independent power reduction mechanisms for SAR compliance for the licensed transmitter and the WLAN transmitter. For the main transmitter, the device utilizes power reduction for some…

Text truncated - open the document above for the full version.

© 2015 PCTEST Engineering Laboratory, Inc. APPENDIX C: PROBE CALIBRATION

FCC ID: A3LSMG928A FCC Pt. 22 & 24 GSM / GPRS / EDGE / WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 67 0Y1506101109.A3L 6/10 - 6/30/2015 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. V 2.9 06/10/2015 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 6/10 - 6/30/2015 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab., Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1506101109.A3L F C C I D : A3 LS MG928 A AP P L I C AN T : S AMS UN G ELE CT RONI CS CO., LT D. Application Type: Certification Model(s): SM-G928A EUT Type: Portable Handset FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2 §22(H) §24(E) Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 v02r02, KDB 648474 D03 v01r02 Test Device Serial No.: identical prototype [S/N: 95C02] GSM850824.2 - 848.8244KGXW0.61127.86 EDGE850824.2 - 848.8247KG7W0.08219.12 GSM19001850.2 - 1909.8244KGXW0.92129.64 EDGE19001850.2 - 1909.8240KG7W0.27024.32 WCDMA850826.4 - 846.64M14F9W0.06017.77 WCDMA19001852.4 - 1907.64M14F9W0.12721.03 ERP/EIRP Max. Power (W) Max. Power (dBm) Tx Frequency (MHz) Mode Emission Designator This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 & 24 FCC ID: A3LSMG928A FCC Pt. 22 & 24 GSM / GPRS / EDGE / WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 67 0Y1506101109.A3L 6/10 - 6/30/2015 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. V 2.9 06/10/2015 T A B L E O F C O N T E N T S FCC PART 22 & 24 MEASUREMENT REPORT .......................................................................................... 3 1.0 INTRODUCTION .............................................................................................................................. 4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY ............................................................................................................................. 4 2.0 PRODUCT INFORMATION .............................................................................................................. 5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES ....................................................................................................................... 5 2.3 TEST CONFIGURATION ..................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 3.0 DESCRIPTION OF TESTS .............................................................................................................. 6 3.1 EVALUATION PROCEDURE .............................................................................................................. 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS ....................................................................................... 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 6 3.4 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 6 3.5 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.6 RADIATED MEASUREMENTS ............................................................................................................ 7 4.0 TEST EQUIPMENT CALIBRATION DATA ...................................................................................... 8 5.0 SAMPLE CALCULATIONS .............................................................................................................. 9 6.0 TEST RESULTS ............................................................................................................................. 10 6.1 SUMMARY ......................................................................................................................................... 10 6.2 OCCUPIED BANDWIDTH ................................................................................................................. 11 6.3 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL ............................................ 15 6.4 BAND EDGE EMISSIONS AT ANTENNA TERMINAL ...................................................................... 34 6.5 PEAK-AVERAGE RATIO ................................................................................................................... 41 6.6 RADIATED POWER (ERP/EIRP) ...................................................................................................... 44 6.7 RADIATED SPURIOUS EMISSIONS MEASUREMENTS ................................................................. 48 6.8 FREQUENCY STABILITY / TEMPERATURE VARIATION ............................................................... 58 7.0 CONCLUSION .......…

Text truncated - open the document above for the full version.

FCC ID: A3LSMG928A FCC Pt. 22, 24, & 27 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 137 0Y1506101110.A3L 6/10 - 6/30/2015 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. V 2.9 06/10/2015 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 6/10 - 6/30/2015 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab., Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1506101110.A3L F C C I D : A3 L SM G 9 2 8 A AP P L I C AN T : S AM S UNG E L E C TR O NI CS CO . , L T D. Application Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22; §24; §27 Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 v02r02, KDB 648474 D03 v01r02 EUT Type: Portable Handset Model(s): SM-G928A Test Device Serial No.: identical prototype [S/N: 95C02] LTE Band 12699.7 - 715.31M13G7DQPSK0.05817.60 LTE Band 12699.7 - 715.31M14W7D16QAM0.04216.23 LTE Band 12700.5 - 714.52M73G7DQPSK0.05317.28 LTE Band 12700.5 - 714.52M74W7D16QAM0.04216.28 LTE Band 12701.5 - 713.54M52G7DQPSK0.06017.81 LTE Band 12701.5 - 713.54M50W7D16QAM0.04716.68 LTE Band 12704 - 7118M98G7DQPSK0.06918.39 LTE Band 12704 - 7118M98W7D16QAM0.04916.94 LTE Band 5824.7 - 848.31M12G7DQPSK0.06117.86 LTE Band 5824.7 - 848.31M13W7D16QAM0.04616.58 LTE Band 5825.5 - 847.52M74G7DQPSK0.05817.62 LTE Band 5825.5 - 847.52M73W7D16QAM0.04516.58 LTE Band 5826.5 - 846.54M51G7DQPSK0.06518.12 LTE Band 5826.5 - 846.54M52W7D16QAM0.04916.88 LTE Band 5829 - 8449M00G7DQPSK0.07218.59 LTE Band 5829 - 8448M95W7D16QAM0.05617.46 LTE Band 41710.7 - 1754.31M14G7DQPSK0.09419.74 LTE Band 41710.7 - 1754.31M13W7D16QAM0.07618.83 LTE Band 41711.5 - 1753.52M73G7DQPSK0.11120.47 LTE Band 41711.5 - 1753.52M74W7D16QAM0.09019.53 LTE Band 41712.5 - 1752.54M54G7DQPSK0.11220.50 LTE Band 41712.5 - 1752.54M53W7D16QAM0.10020.02 LTE Band 41715 - 17509M02G7DQPSK0.16222.10 LTE Band 41715 - 17509M03W7D16QAM0.12621.01 LTE Band 41717.5 - 1747.513M5G7DQPSK0.14421.60 LTE Band 41717.5 - 1747.513M5W7D16QAM0.11420.58 LTE Band 41720 - 174518M0G7DQPSK0.13421.27 LTE Band 41720 - 174518M0W7D16QAM0.11020.40 LTE Band 21850.7 - 1909.31M12G7DQPSK0.22623.54 LTE Band 21850.7 - 1909.31M14W7D16QAM0.17722.48 LTE Band 21851.5 - 1908.52M74G7DQPSK0.27824.45 LTE Band 21851.5 - 1908.52M74W7D16QAM0.23523.71 LTE Band 21852.5 - 1907.54M54G7DQPSK0.15221.81 LTE Band 21852.5 - 1907.54M54W7D16QAM0.10620.26 LTE Band 21855 - 19058M99G7DQPSK0.12220.87 LTE Band 21855 - 19058M99W7D16QAM0.09719.87 LTE Band 21857.5 - 1902.513M5G7DQPSK0.19122.80 LTE Band 21857.5 - 1902.513M5W7D16QAM0.14921.74 LTE Band 21860 - 190017M9G7DQPSK0.19422.87 LTE Band 21860 - 190017M9W7D16QAM0.15521.91 LTE Band 302307.5 - 2312.54M54G7DQPSK0.18222.61 LTE Band 302307.5 - 2312.54M54W7D16QAM0.14521.63 LTE Band 3023109M03G7DQPSK0.14221.52 LTE Band 3023109M01W7D16QAM0.11620.65 Modulation ERP/EIRP Max. Pow er (W) Max. Pow er (dBm) Mode Tx Frequency (MHz) Emission Designator This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22, 24, & 27 LTE FCC ID: A3LSMG928A FCC Pt. 22, 24, & 27 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 137 0Y1506101110.A3L 6/10 - 6/30/2015 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. V 2.9 06/10/2015 T A B L E O F C O N T E N T S FCC PART 22, 24, & 27 MEASUREMENT REPORT ................................................................................... 3 1.0 INTRODUCTION .............................................................................................................................. 4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY ............................................................................................................................. 4 2.0 PRODUCT INFORMATION .............................................................................................................. 5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES ....................................................................................................................... 5 2.3 TEST CONFIGURATION ..................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 3.0 DESCRIPTION OF TESTS .............................................................................................................. 6 3.1 MEASUREMENT PROCEDURE ......................................................................................................... 6 3.2 BLOCK A FREQUENCY RANGE ........................................................................................................ 6 3.3 CELLULAR - BASE FREQUENCY BLOCKS ....................................................................................... 6 3.4 CELLULAR - MOBILE FREQUENCY BLOCKS .............................................…

Text truncated - open the document above for the full version.

FCC ID: A3LSMG928A FCC Pt. 22, 24, & 27 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 56 of 137 0Y1506101110.A3L 6/10 - 6/30/2015 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. V 2.9 06/10/2015 6.4 Band Edge Emissions at Antenna Terminal §2.1051 §22.917(a) §24.238(a) §27.53(g) §27.53(h)§27.53(a.4) Test Overview All out of band emissions are measured with a spectrum analyzer connected to the antenna terminal of the EUT while the EUT is operating at its maximum duty cycle, at maximum power, and at the appropriate frequencies. All data rates were investigated to determine the worst case configuration. All modes of operation were investigated and the worst case configuration results are reported in this section. The minimum permissible attenuation level for Band 30 is > 43 + 10log10 (P[Watts] at 23…
