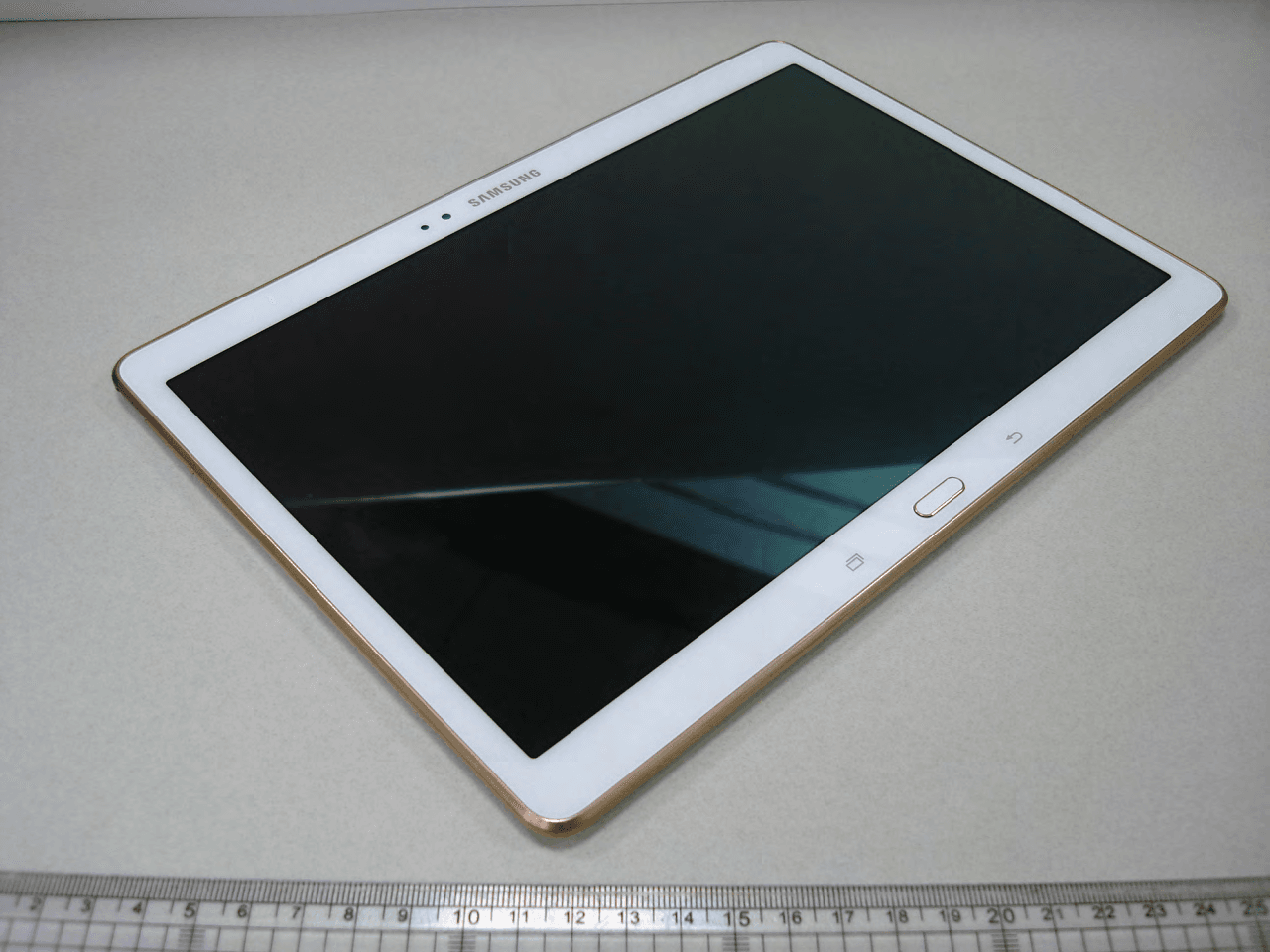

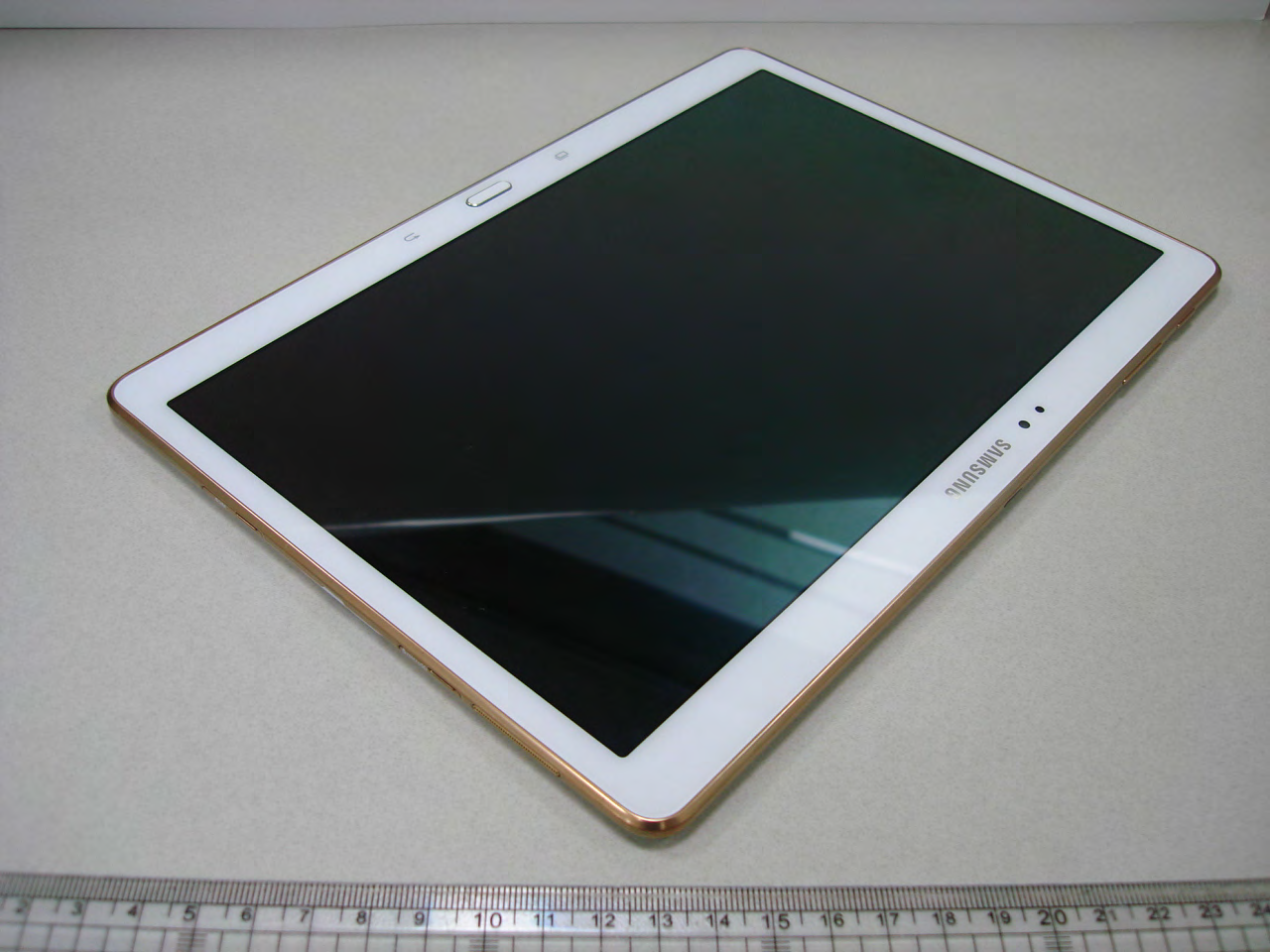

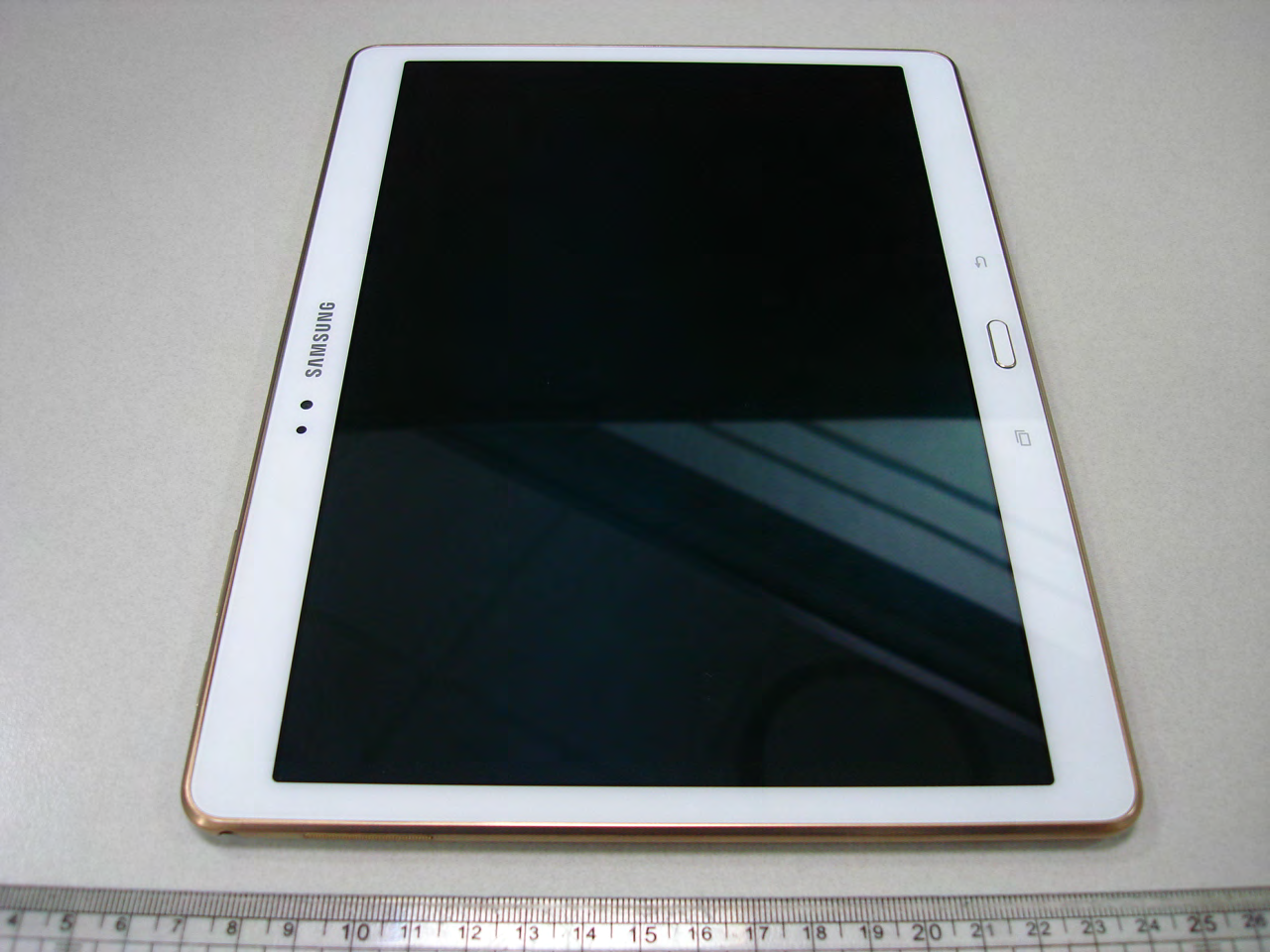

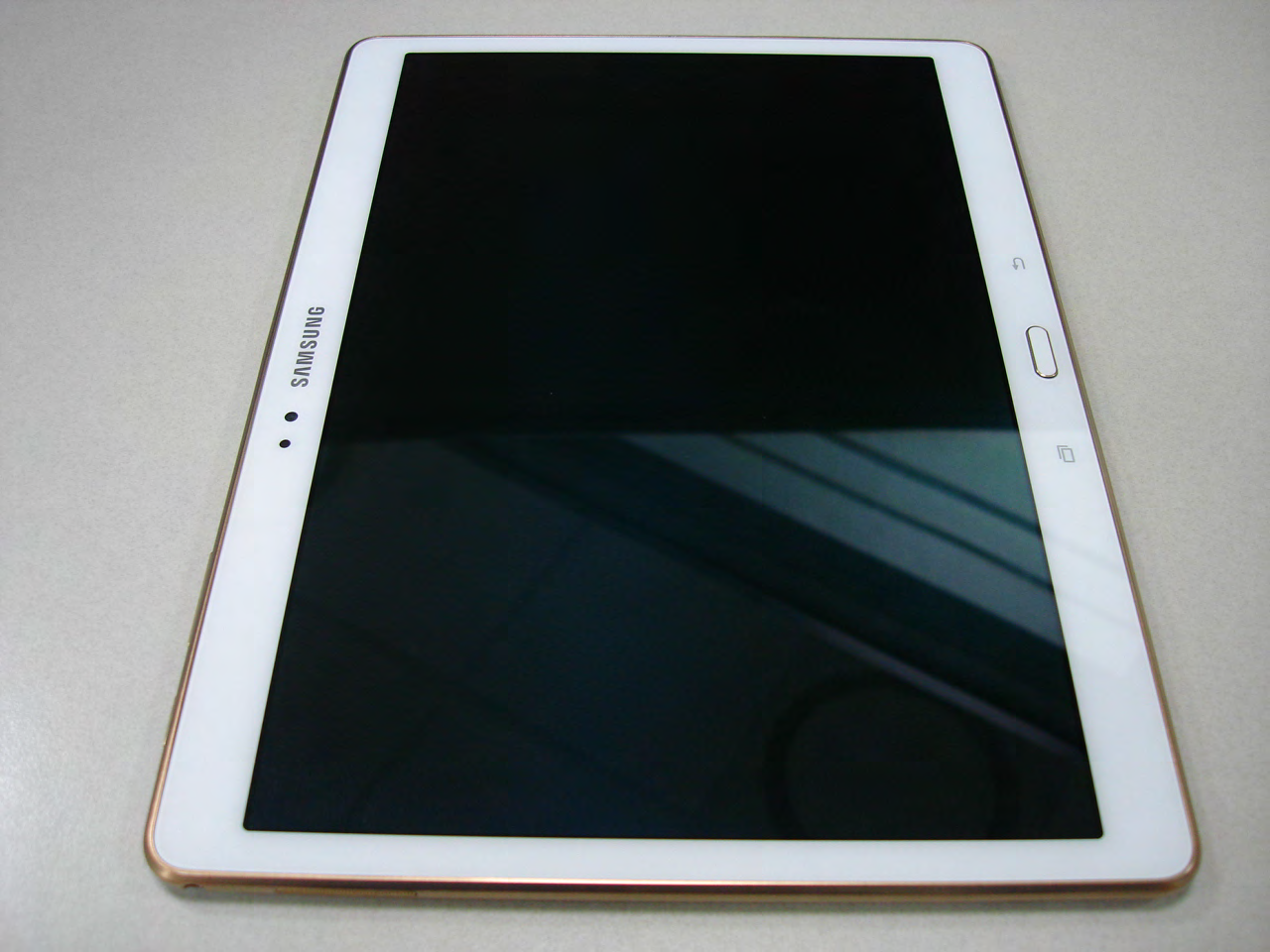

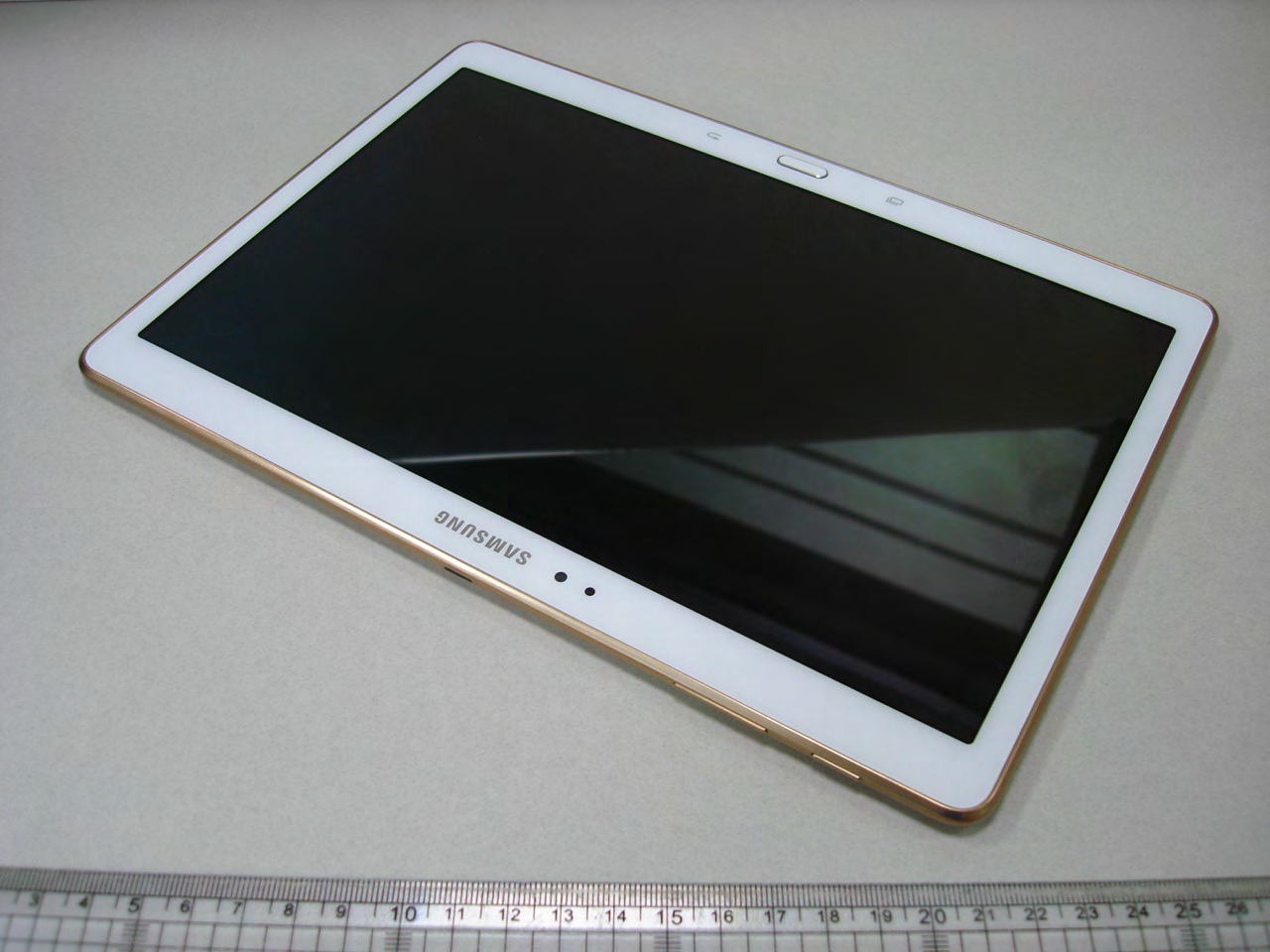

A3LSMT807R4Multi-band CDMA/LTE Portable Tablet with WLAN, Bluetooth, and ANT+

Table of Contents Device Functions ...........................................4 Setting Up Your Device ................................6 Turning Your Device On and Off ..........................9 Locking and Unlocking Screen ............................9 Initial Device Configuration ....................................9 Home Screen ................................................10 Contacts ........................................................11 Creating a New Contact .......................................11 Adding a Number to an Existing Contact .........11 Deleting an Existing Contact ...............................12 Messages ......................................................13 Create and Send a Message ..............................13 Connections .................................................14 Connecting to Bluetooth.......................................14 Connecting to Wi-Fi ...............................................15 2 Apps & More .................................................16 Installing Apps ........................................................16 Samsung Smart Switch ........................................16 Gmail (Google Account) .......................................16 Setting Up Your Email Accounts .......................17 Internet ......................................................................18 Multi Window ...........................................................19 Camera .....................................................................20 Lock Screen ............................................................21 3 4 Device Functions FPO microSD Slot SIM card Slot Volume Power/Lock Front-Facing Camera Home Back Recent 5 FPO Headset Flash Camera Lens IR Transmitter Charging/USB Port 6 Setting Up Your Device Caution! Do not attempt to remove the back cover as it can not be removed. Step 1. Install the SIM ●Remove the slot cover (1) and slide the SIM card into the SIM card slot until it is secured into place (2). ●Replace the slot cover once the card is securely inserted. 7 Step 2. Install the optional microSD card ●Remove the slot cover (1) and slide the microSD™ card into the card slot until it is secured into place (2). ●Replace the slot cover once the card is securely inserted. 8 Step 3. Charging the Device ●Before turning on your device, charge it fully. Be sure to use the charger that came with the device. Warning! Please use only an approved charging accessory to charge your device. Improper handling of the charging port, as well as the use of an incompatible charger, may cause damage to your device and void the warranty. 9 Turning Your Device On and Off 1. To turn ON, press and hold the Power/Lock key. 2. To turn OFF, press and hold Power/Lock key and follow the prompts. Locking and Unlocking Screen 1. To Lock, press the Power/Lock key. 2. To Unlock, press the Power/Lock key then swipe your finger across the screen. Initial Device Configuration 1. Select a language and tap Next or tap Accessibility if you are visually impaired or hard of hearing. 2. Follow the on-screen instruction to complete the set up process. Note: If you do not set up or log into your Gmail account during this process, you can later access Gmail from within the Applications page. 10 Home Screen Swipe your fingers left or right to view the entire Home screen. Customize the screen with widgets and shortcuts to your favorite applications. Status Bar The Status bar appears at the top of your Home screen. Icons indicating your device’s status and new notification alerts appear on the Status bar. Notification Area Status Bar Status Area Notification Screen The Notification area indicates new message events (data sync status, new messages, calendar events, call status, etc). 11 Contacts Creating a New Contact 1. From the Home screen, tap Apps g Contacts g Save Contact to. 2. Tap a destination type (Device, SIM, Google, or Add new account) (depending on where you want to save the new contact information). 3. Enter the desired information. 4. Tap Save to store the new entry. Adding a Number to an Existing Contact 1. From the Home screen, tap Apps g Contacts. 2. Tap a contact name from the list and tap Edit. 3. Tap within the phone number area and enter a new phone number. ●If you make a mistake while dialing, tap to clear the last digit. Touch and hold to clear the entire sequence. 4. Tap Save to complete and store the new entry. 12 Deleting an Existing Contact 1. From the Home screen, tap Contacts. 2. Tap a contact name from the list and select Delete g OK. 13 Messages Create and Send a Message 1. From the Home screen, tap Apps g Messages g New message. 2. Enter either the recipient’s phone number or e-mail address. Note: If adding a recipient from among Groups, Favorites, or Contacts, tap the contact to place a check mark alongside the entry and tap Done. The contact will be placed in the recipient field. 3. Tap the Enter message field and use the on-screen keypad to enter a message. 4. Add more recipients by tapping the recipient field. 5. Tap Attach to insert various file types to your message (such as images, videos, audio files, etc..). 6. Select the file and complete the on-screen instructions to insert it to the current message. 7. Review your message and tap Send. 14 Connections Connecting to Bluetooth 1. From the Home screen, tap Apps g Settings g Connections tab. 2. In a single motion touch and slide the Bluetooth slider to the right to turn it on ( ON ON ). 3. If necessary, tap Scan. Review the list of discovered in-range Bluetooth ® devices. 4. Tap a device from the list to initiate pairing. 5. Enter the passkey/PIN code, if needed, and tap OK. 6. The external device will then have to also accept the connection and enter your device’s PIN code. Once successfully paired to an external device, appears within the Status area. 15 Connecting to Wi-Fi 1. From the Home screen, tap Apps g Settings g Connections tab. 2. In a single motion touch and slide the Wi-…

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: September 3rd, 2014 FCC ID: A3LSMT807R4 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, Signature Sang Kyung (Peter), Ra General Manager Samsung Electronics America, Inc

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea August 19, 2014 Federal Communications Commission 7435 Oakland Mills Road Co lumbia, MD 21046 S UBJECT : Label Statement FCC ID : A3LSMT807R4 Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy of KDB 784748 D01.. The label statement is as follows: The FCC ID label is located on the rear of the device with the battery installed. At this time the FCC ID is readily visible to the user. The label is permanently engraved by laser and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: September 3, 2014 Fe deral Communica tions Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3L SMT807R4 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3Schematics SHORT-TERM 4External Photos 5Internal Photos 6 Test-Setup Photos 7Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, CHANHO, YOUN General Manager American QA Lab SAMSUNG Electronics America INC.

Label and Location Samsung Phone Model: SM-T807R4 FCC ID: A3LSMT807R4 Label: Location: Bottom (backside of device) : FCC ID is printed on rear of the device

FCC ID: A3LSMT807R4 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 67 0Y1408121689.A3L 06/23/14 - 06/24/14 and 08/12/14 - 08/28/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.5 M 04/28/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 129, Samsung-ro, Maetan dong, 06/23/2014 - 06/24/2014 and 08/12/2014 - 08/28/2014 Yeongtong-gu, Suwon-si Test Site/Location: Gyeonggi-do 443-742, Korea PCTEST Lab, Columbia, MD, USA Document Serial No.: 0Y1408121689.A3L FCC ID: A3LSMT807R4 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Tablet Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-T807R4 1 gm Body (W/kg) PCBCell. CDMA/EVDO824.70 - 848.31 MHz 0.37 PCBPCS CDMA/EVDO1851.25 - 1908.75 MHz 0.74 PCBLTE Band 12701.5 - 713.5 MHz 0.34 PCBLTE Band 5 (Cell)826.5 - 846.5 MHz 0.32 PCBLTE Band 4 (AWS)1712.5 - 1752.5 MHz 0.24 PCBLTE Band 2 (PCS)1852.5 - 1907.5 MHz 1.10 DTS2.4 GHz WLAN2412 - 2462 MHz 0.59 DTSBluetooth LE 2402 - 2480 MHz DTS5.8 GHz WLAN5745 - 5825 MHz0.78 NII5.2 GHz WLAN5180 - 5240 MHz0.58 NII5.3 GHz WLAN5260 - 5320 MHz0.55 NII5.5 GHz WLAN5500 - 5700 MHz0.64 DSSBluetooth2402 - 2480 MHz 1.59 < 0.1 SAR Band & ModeTx Frequency Equipment Class Simultaneous SAR per KDB 690783 D01v01r03: N/A This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSMT807R4 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 67 0Y1408121689.A3L 06/23/14 - 06/24/14 and 08/12/14 - 08/28/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.5 M 04/28/2014 TABLE OF CONTENTS 1 DEVICE UNDER TEST ....................................................................................................................3 2 LTE INFORMATION .........................................................................................................................8 3 INTRODUCTION ..............................................................................................................................9 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 10 5 SAR TESTING PROCEDURES .................................................................................................... 11 6 RF EXPOSURE LIMITS ................................................................................................................ 12 7 FCC MEASUREMENT PROCEDURES ........................................................................................ 13 8 RF CONDUCTED POWERS ......................................................................................................... 17 9 SYSTEM VERIFICATION .............................................................................................................. 37 10 SAR DATA SUMMARY ................................................................................................................. 39 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 46 12 SAR MEASUREMENT VARIABILITY ........................................................................................... 61 13 EQUIPMENT LIST ......................................................................................................................... 62 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 63 15 CONCLUSION ............................................................................................................................... 65 16 REFERENCES .............................................................................................................................. 66 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS APPENDIX G: SENSOR TRIGGERING DATA SUMMARY FCC ID: A3LSMT807R4 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 67 0Y1408121689.A3L 06/23/14 - 06/24/14 and 08/12/14 - 08/28/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.5 M 04/28/2014 1 DEVICE UNDER TEST 1.1 Device Overview Cell. CDMA/EVDOData824.70 - 848.31 MHz PCS CDMA/EVDOData1851.25 - 1908.75 MHz LTE Band 12Data701.5 - 713.5 MHz LTE Band 17Data706.5 - 713.5 MHz LTE Band 5 (Cell)Data826.5 - 846.5 MHz LTE Band 4 (AWS)Data1712.5 - 1752.5 MHz LTE Band 2 (PCS)Data1852.5 - 1907.5 MHz 2.4 GHz WLANData2412 - 2462 MHz Bluetooth LE Data2402 - 2480 MHz 5.8 GHz WLANData5745 - 5825 MHz 5.2 GHz WLANData 5180 - 5240 MHz 5.3 GHz WLAN Data5260 - 5320 MHz 5.5 GHz WLANData5500 - 5700 MHz BluetoothData2402 - 2480 MHz ANT+ Data 2402 - 2480 MHz Band & ModeTx FrequencyOperating Modes 1.2 Power Reduction for SAR This device uses a proximity sensor for SAR compliance. The proximity sensor is activated when used in close proximity to the user’s body. The proximity sensor triggers power reduction for al…

Text truncated - open the document above for the full version.

© 2014 PCTEST Engineering Laboratory, Inc. APPENDIX C: PROBE CALIBRATION

FCC ID: A3LSMT807R4 FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 181 0Y1408121693.A3L 6/10-6/20/2014, 7/3/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 1.3 06/10/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 6/10-6/20/2014, 7/3/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1408121693.A3L FCC ID: A3LSMT807R4 APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model(s): SM-T807R4 EUT Type: Portable Tablet FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407 Test Procedure(s): KDB 789033 v01r04, KDB 644545 v01r02, KDB 662911 v02r01 1205180 - 52408.5909.348.5119.30-- 2A205260 - 53208.5519.328.5519.32-- 2C205500 - 57008.5709.338.5709.33-- 1205180 - 52408.8729.488.4729.2812.79411.07 2A205260 - 53208.6509.378.6309.3612.38810.93 2C205500 - 57008.4149.258.7109.4012.38810.93 1205180 - 52407.9439.007.7808.9113.12211.18 2A205260 - 53207.7278.887.6038.8112.44510.95 2C205500 - 57007.7098.877.9078.9813.58311.33 1405190 - 52308.8929.498.5709.3312.41710.94 2A405270 - 53108.7109.408.5909.3412.33110.91 2C405510 - 56708.8319.468.6109.3512.79411.07 1405190 - 52308.6709.388.4149.2513.64611.35 2A405270 - 53108.4729.288.7509.4213.27411.23 2C405510 - 56708.8519.478.6509.3712.76411.06 180 5210 8.1859.137.3798.6813.30511.24 2A80 5290 7.7628.907.6918.8612.94211.12 2C80 5530 8.1479.117.6918.8612.76411.06 ANT 1ANT 2MIMOTx Ant Conducted Power Max. Power (mW) Max. Power (dBm) Conducted Power Max. Power (mW ) Max. Power (dBm) 802.11a 802.11n 802.11ac 802.11n 802.11ac 802.11ac ModeUNII Band Channel Bandwidth (MHz) Tx Frequency (MHz) Conducted Power Max. Power (mW ) Max. Power (dBm) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 789033 v01r04 and KDB 644545 v01r02. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 15.407 UNII 802.11a/n/ac FCC ID: A3LSMT807R4 FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 181 0Y1408121693.A3L 6/10-6/20/2014, 7/3/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 1.3 06/10/2014 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 6 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 6 2.5 LABELING REQUIREMENTS ........................................................................................................................ 6 3.0 DESCRIPTION OF TEST ........................................................................................................................ 7 3.1 EVALUATION PROCEDURE ......................................................................................................................... 7 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................. 7 3.3 RADIATED EMISSIONS ................................................................................................................................ 8 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 9 5.0 TEST EQUIPMENT CALIBRATION DATA ............................................................................................ 10 6.0 TEST RESULTS .................................................................................................................................... 11 6.1 SUMMARY ................................................................................................................................................... 11 6.2 26DB BANDWIDTH MEASUREMENT – 802.11A/N/AC .............................................................................. 12 6.3 UNII OUTPUT POWER MEASUREMENT – 802.11A/N/AC ........................................................................ 48 6.4 PEAK POWER SPECTRAL DENSITY …

Text truncated - open the document above for the full version.

FCC ID: A3LSMT807R4 FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 55 of 181 0Y1408121693.A3L 6/10-6/20/2014, 7/3/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 1.3 06/10/2014 6.4 Peak Power Spectral Density – 802.11a/n/ac §15.407(a.1)(2.5) Test Overview and Limit The spectrum analyzer was connected to the antenna terminal while the EUT was operating at its maximum duty cycle (>98%), at its maximum power control level, as defined in KDB 789033 v01r04, and at the appropriate frequencies. Method SA-1, as defined in KDB 789033 v01r04, was used to measure the power spectral density. In the 5.15 – 5.25GHz band, the maximum permissible power spectral density is 4dBm/MHz. In the 5.25 – 5.35GHz and the 5.47 – 5.725GHz bands, the maximum permissible power spectral density is 11dBm/MHz. Test Procedure Used KDB 789033 v01r04 – Section F KDB 662911 v02r01 – Section E)2) Measure-and-Sum Technique Test Settings 1. Analyzer was set to the center frequency of the UNII channel under investigation 2. Span was set to encompass the entire emission bandwidth of the signal 3. RBW = 1MHz 4. VBW = 3MHz 5. Number of sweep points > 2 x (span/RBW) 6. Sweep time = auto 7. Detector = power averaging (RMS) 8. Trigger was set to free run since the EUT was operating at a duty cycle > 98% 9. Trace was averaged over 100 sweeps 10. The peak search function of the spectrum analyzer was used to find the peak of the spectrum. Test Setup The EUT and measurement equipment were set up as shown in the diagram below. Figure 6-3. Test Instrument & Measurement Setup Test Notes None FCC ID: A3LSMT807R4 FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 56 of 181 0Y1408121693.A3L 6/10-6/20/2014, 7/3/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 1.3 06/10/2014 Antenna-1 Peak Power Spectral Density – 802.11a/n/ac 518036a6-0.304.0-4.30Pass 520040a6-0.184.0-4.18Pass 524048a6-0.494.0-4.49Pass 518036n (20MHz) 6.5/7.2 (MCS0) -1.614.0-5.61Pass 520040n (20MHz) 6.5/7.2 (MCS0) -1.534.0-5.53Pass 524048n (20MHz) 6.5/7.2 (MCS0) -1.554.0-5.55Pass 519038n (40MHz) 13.5/15 (MCS0) -4.184.0-8.18Pass 523046n (40MHz) 13.5/15 (MCS0) -3.934.0-7.93Pass 521042 ac (80MHz) 29.3/32.5 (MCS0) -7.364.0-11.36Pass 526052a6-0.0111.0-11.01Pass 528056a6-0.1711.0-11.17Pass 532064a60.0011.0-11.00Pass 526052n (20MHz) 6.5/7.2 (MCS0) -1.9211.0-12.92Pass 528056n (20MHz) 6.5/7.2 (MCS0) -1.9511.0-12.95Pass 532064n (20MHz) 6.5/7.2 (MCS0) -1.7811.0-12.78Pass 527054n (40MHz) 13.5/15 (MCS0) -3.8911.0-14.89Pass 531062n (40MHz) 13.5/15 (MCS0) -4.2511.0-15.25Pass 529058 ac (80MHz) 29.3/32.5 (MCS0) -7.0911.0-18.09Pass 5500100a6-0.5111.0-11.51Pass 5580116a6-0.7611.0-11.76Pass 5700140a6-0.9811.0-11.98Pass 5500100n (20MHz) 6.5/7.2 (MCS0) -1.4511.0-12.45Pass 5580116n (20MHz) 6.5/7.2 (MCS0) -1.4911.0-12.49Pass 5700140n (20MHz) 6.5/7.2 (MCS0) -1.3811.0-12.38Pass 5510102n (40MHz) 13.5/15 (MCS0) -4.7511.0-15.75Pass 5550110n (40MHz) 13.5/15 (MCS0) -3.7511.0-14.75Pass 5670134n (40MHz) 13.5/15 (MCS0) -4.0711.0-15.07Pass 5530106 ac (80MHz) 29.3/32.5 (MCS0) -8.4711.0-19.47Pass Band 1 Band 2A Band 2C Channe l No. 802.11 Mode Frequency [MHz] Margin [dB] Measured Power Density [dBm] Max Permissible Power Density [dBm/MHz] Data Rate [Mbps] Pass / Fail Table 6-29. Conducted Power Spectral Density Measurements FCC ID: A3LSMT807R4 FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 57 of 181 0Y1408121693.A3L 6/10-6/20/2014, 7/3/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 1.3 06/10/2014 Plot 6-67. Peak Power Spectral Density Plot (802.11a (UNII Band 1) – Ch. 36) Plot 6-68. Peak Power Spectral Density Plot (802.11a (UNII Band 1) – Ch. 40) FCC ID: A3LSMT807R4 FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 58 of 181 0Y1408121693.A3L 6/10-6/20/2014, 7/3/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 1.3 06/10/2014 Plot 6-69. Peak Power Spectral Density Plot (802.11a (UNII Band 1) – Ch. 48) Plot 6-70. Peak Power Spectral Density Plot (20MHz BW 802.11n (UNII Band 1) – Ch. 36) FCC ID: A3LSMT807R4 FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 59 of 181 0Y1408121693.A3L 6/10-6/20/2014, 7/3/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 1.3 06/10/2014 Plot 6-71. Peak Power Spectral Density Plot (20MHz BW 802.11n (UNII Band 1) – Ch. 40) Plot 6-72. Peak Power Spectral Density Plot (20MHz BW 802.11n (UNII Band 1) – Ch. 48) FCC ID: A3LSMT807R4 FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 60 of 181 0Y1408121693.A3L 6/10-6/20/2014, 7/3/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 1.3 06/10/2014 Plot 6-73. Peak Power Spectral Density Plot (40MHz BW 802.11n (UNII Band 1) – Ch. 38) Plot 6-74. Peak Power Spectral Density Plot (40MHz BW 802.11n (UNII Band 1) – Ch. 46) FCC ID: A3LSMT807R4 FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 61 of 181 0Y1408121693.A3L 6/10-6/20/2014, 7/3/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 1.3 06/10/2014 Plot 6-75. Peak Power Spectral Density Plot (80MHz BW 802.11ac (UNII Band 1) – Ch. 42) Plot 6-76. Peak Power Spectral Density Plot (802.11a (UNII Band 2A) – Ch. 52) FCC ID: A3LSMT807R4 FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 62 of 181 0Y1408121693.A3L 6/10-6/20/2014, 7/3/2014 Portable Tablet © 2014 PCTEST Engineerin…

Text truncated - open the document above for the full version.

FCC ID: A3LSMT807R4 FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 14 0Y1408121694.A3L 6/10-6/20/2014, 7/2/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 1.3 06/10/2014 Company Name: Date of Testing: Samsung Electronics, Co. Ltd. 6/10-6/20/2014, 7/2/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab. Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1408121694.A3L FCC ID: A3LSMT807R4 COMPANY: Samsung Electronics, Co. Ltd. Model(s): SM-T807R4 EUT Type: Portable Tablet Type of Device: Client Only Device, No Radar Detection Capability Frequency Range: 5260 – 5320 MHz (UNII-2A Band) 5500 – 5700 MHz (UNII-2C Band) Output Power: 8.65 mW (9.37 dBm) Conducted (802.11n UNII Band 2A) 8.57 mW (9.33 dBm) Conducted (802.11a UNII Band 2C) FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407(UNII) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 06-96 Appendix B Compliance Measurement Procedures for Unlicensed-National Information Infrastructure Devices Operating in the 5.25 – 5.35 GHz and 5.47 – 5.725 GHz Bands Incorporating Dynamic Frequency Selection. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 DFS FCC ID: A3LSMT807R4 FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 14 0Y1408121694.A3L 6/10-6/20/2014, 7/2/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 1.3 06/10/2014 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT ........…

Text truncated - open the document above for the full version.
