A3LSMT817TMulti-band UMTS/LTE Tablet with WLAN, Bluetooth and ANT+

Table of Contents My Carrier .......................................................3 Service .............................................................4 Device Functions ...........................................5 Setting Up Your Device ................................7 Turning Your Device On and Off ........................10 Locking and Unlocking Screen ..........................10 Initial Device Configuration ..................................10 Home Screen ................................................11 Contacts ........................................................12 Creating a New Contact .......................................12 Adding a Number to an Existing Contact .........12 Deleting an Existing Contact ...............................13 Messages ......................................................14 Create and Send a Message ..............................14 Connections .................................................15 Connecting to Bluetooth ® .....................................15 Connecting to Wi-Fi ...............................................15 Mobile HotSpot .......................................................16 USB Tethering .........................................................18 Apps & More .................................................20 Installing Apps ........................................................20 Samsung Smart Switch ........................................20 Gmail (Google Account) .......................................20 Setting Up Your Email Accounts .......................21 Internet ......................................................................22 Multi Window ...........................................................23 Camera .....................................................................24 Lock Screen ............................................................25 Legal ...............................................................26 APPROVED FIRMWARE VERSIONS .................26 INFORMATION ABOUT SAFEGUARDING HANDSETS ..............................................................26 ADDITIONAL INFORMATION...............................27 3 My Carrier This guide provides you with the information you need to get started. For more information and additional support, please visit www.t-mobile.com/support/ where you can: ●Register at my.t-mobile.com/ to manage your account and change your rate plan. ●Review your device’s User Manual and troubleshooting FAQs. ●View the latest troubleshooting solutions in the Support Forums or ask a question of your own. Access account information from: 1. From the Home screen, tap Apps g T-Mobile My Account. 2. If prompted, follow the on-screen information for support and what’s new in the app. 3. Choose from an available category such as: Account Info, Device Support, Notifications, and others. Note: Devices and software are constantly evolving—the screen images and icons you see here are for reference only. 4 Service If you are a new T-Mobile ® customer and your service has not yet been activated, call Customer Care at 1-800-937-8997 and a T-Mobile Activations representative will assist you. You will need the following information when activating service: ●Your Service Agreement and the agent code on your Agreement ●Your name, home address, home phone number, and billing address Note: For business and government accounts, please provide the name of the organization, the address, and the tax ID. ●Your Social Security number, current driver’s license number, and date of birth for credit check purposes ●Your choice of T-Mobile rate plan and services (see www.t-mobile.com for the latest plan information) ●SIM serial number and IMEI number (located on the box barcode label) Note: Service or use is your agreement to T-Mobile’s Terms and Conditions. T-Mobile requires ARBITRATION of disputes UNLESS YOU OPT OUT WITHIN 30 DAYS OF ACTIVATION. See T-Mobile’s Terms and Conditions for details at www.T-Mobile.com/ terms-conditions. 5 Device Functions Home/Fingerprint Scanner Recent Apps Back Front Camera Headset Jack Power/Lock Key Volume Key microSD™ Card Slot SIM Card Slot FPO 6 S Pen USB/Charger Port Rear camera IR Blaster Flash FPO 7 Setting Up Your Device Caution! Do not attempt to remove the back cover as it cannot be removed. Step 1. Install the SIM 1. Hold the device securely. 2. Use the SIM/SD card removal tool that came with your phone to open the SIM card tray. 3. Carefully place the new SIM card into the tray with the logo facing up. 4. Gently push the tray into the slot. FPO 8 Step 2. Install the optional microSD card 1. Hold the device securely. 2. Use the SIM/SD card removal tool that came with your device to open the SD card tray. 3. Carefully place the new SD card into the tray with the logo facing up. 4. Gently push the tray into the slot FPO 9 Step 3. Charging the Device ●Before turning on your device, charge it fully. Be sure to use the charger that came with the device. Warning! Please use only an approved charging accessory to charge your device. Improper handling of the charging port, ane the use of an incompatible charger, may cause damage to your device and void the warranty. FPO 10 Turning Your Device On and Off 1. To turn ON, press and hold the Power/Lock key. 2. To turn OFF, press and hold Power/Lock key and follow the prompts. Locking and Unlocking Screen 1. To Lock, press the Power/Lock key. 2. To Unlock, press the Power/Lock key then swipe your finger across the screen. Initial Device Configuration 1. Select a language and tap or tap ACCESSIBILITY if you are visually impaired or hard of hearing. 2. Follow the prompts to complete setup. 11 Home Screen Swipe your fingers left or right to view the entire Home screen. You can customize the screen with widgets and shortcuts to your favorite applications. Status Bar The Status bar appears at the top of your Home screen. Icons indicating your device’s status and new notification alerts appear on the Status bar. Notific…

Text truncated - open the document above for the full version.

DRAFT Internal Use Only ANDROID TABLET Health and Safety and Warranty Guide Please read this manual before operating your device and keep it for future reference. This document is watermarked because certain important information in the document has not yet been verified. This document has been sent to you as a draft and for informational purposes only. The document should only be used for internal purposes and may not be distributed outside of Samsung, except to Samsung's carrier customer for testing purposes. Distributing the document outside of Samsung, except to Samsung's carrier customer for testing purposes could result in legal exposure to the company if the preliminary, unverified information in the draft turns out to be inaccurate. DRAFT Internal Use Only T817T_HS_ENG_PS_050515_R1 Warning! This product contains chemicals known to the State of California to cause cancer and reproductive toxicity. For more information, please call 1-800-SAMSUNG (726-7864). Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG mobile device, including but not limited to, accessories, parts, or software relating thereto (the “mobile device”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. DRAFT Internal Use Only Open Source Software Some software components of this product incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit: http://opensource.samsung.com. DRAFT Internal Use Only Disclaimer of Warranties; Exclusion of Liability EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. DRAFT Internal Use Only Modification of Software SAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS, OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE. USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY. YOUR CARRIER MAY NOT PERMIT USERS TO DOWNLOAD CERTAIN SOFTWARE, SUCH AS CUSTOM OS. Samsung KNOX™ Samsung Knox™ is Samsung’s security platform and is a mark for a Samsung device tested for security with enterprise use in mind. Additional licensing fee may be required. For more information about Knox, please refer to: www.samsung.com/us/knox. [030115] DRAFT Internal Use Only Samsung Electronics America (SEA), Inc Address: 85 Challenger Road Ridgefield Park, New Jersey 07660 Phone: 1-800-SAMSUNG (726-7864) Internet Address: www.samsung.com DRAFT Internal Use Only © 2015 Samsung Electronics America, Inc. Samsung is a registered trademark of Samsung Electronics Co., Ltd. Do you have questions about your Samsung Mobile Device? For 24 hour information and assistance, we offer a new FAQ/ARS System (Automated Response System) at: www.samsung.com/us/support Legal Information Important legal information can be accessed in writing on the mobile device or on samsung.com. Read this information before using your mobile device. Samsung Limited Warranty - This product is covered under the applicable Samsung Limited Warranty. Full written terms and detailed information about the warranty and obtaining service are available on the device at: Settings ➔ About device ➔ Legal Information ➔ Samsung legal or at samsung.com. The online version of the Health/Safety and Warranty guide for your device can be found at: English: www.samsung.com/us/Legal/Tablet-HSGuide Spanish: www.samsung.com/us/Legal/Tablet-HSGuide-SP DRAFT Internal Use Only Location of Legal Information on the device: Health and Safety Information • Settings ➔ About device ➔ Legal information ➔ Samsung legal ➔ Health and Safety Warranty • Settings ➔ About device ➔ Legal information ➔ Samsung legal ➔ Warranty EULA • Settings ➔ About device ➔ Legal information ➔ Samsung legal ➔ End User License Agreement DRAFT Internal Use Only DRAFT Internal Use Only 1 Table of Contents Section 1: Health and Safety Information ....................................... 2 Specific Absorption Rate (SAR) Certification Information . . . . . . . . . . 3 FCC Part 15 Information to U…

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: May 28, 2015 FCC ID: A3LSMT817T To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea May 9, 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMT817T Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy of KDB 784748 D01.. The label statement is as follows: The FCC ID label is located on the rear of the device with the battery installed. At this time the FCC ID is readily visible to the user. The label is permanently engraved by laser and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

Date: May. 18, 2015 PCTEST TCB/CB Div. of PCTEST Engineering Lab., Inc. 66 60-B Dobbin Road Columbia, MD 21045 Samsung Electronics Co., LTD. 129, Samsung-ro, Yeongtong-gu Suwon- City, Gyeonggi-do, 443-742, Korea Subject: Samsung Electronics Co., Ltd. FCC ID: A3LSMT817T To Whom it May Concern We attest the following regarding FCC ID: A3LSMT817T 1.MPR is permanently implemented for all channel BWs, modulations, frequency bands and RB sizes. 4. LTE Rel 10 implementation is limited. The uplink does not support carrier aggregation nor enhanced SC-FDMA. Features such as CoMP, HetNet, Relay, SON, cross carrier scheduling, eICIC, enhanced downlink MIMO, MBMS, M2M/D2 are also not supported. SVLTE is not supported as described in the operational description. 2.A-MPR was disabled for all SAR test samples f or SAR testing p urposes only. 3.We co nfirm the specific MPR targets and tolerances shown in the SAR Report. Should you have any q uestions or comments concerning the above, please contact the undersigned. Sincerely, Engineer : SungJin Kim Samsung Electronics CO. LTD TEL: +82-31-301-5096 E-mail: [email protected]

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: May 28, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMT817T To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 Parts List & Tune-Up Procedure SHORT-TERM 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, CHANHO, YOUN General Manager American QA Lab SAMSUNG Electronics America INC.

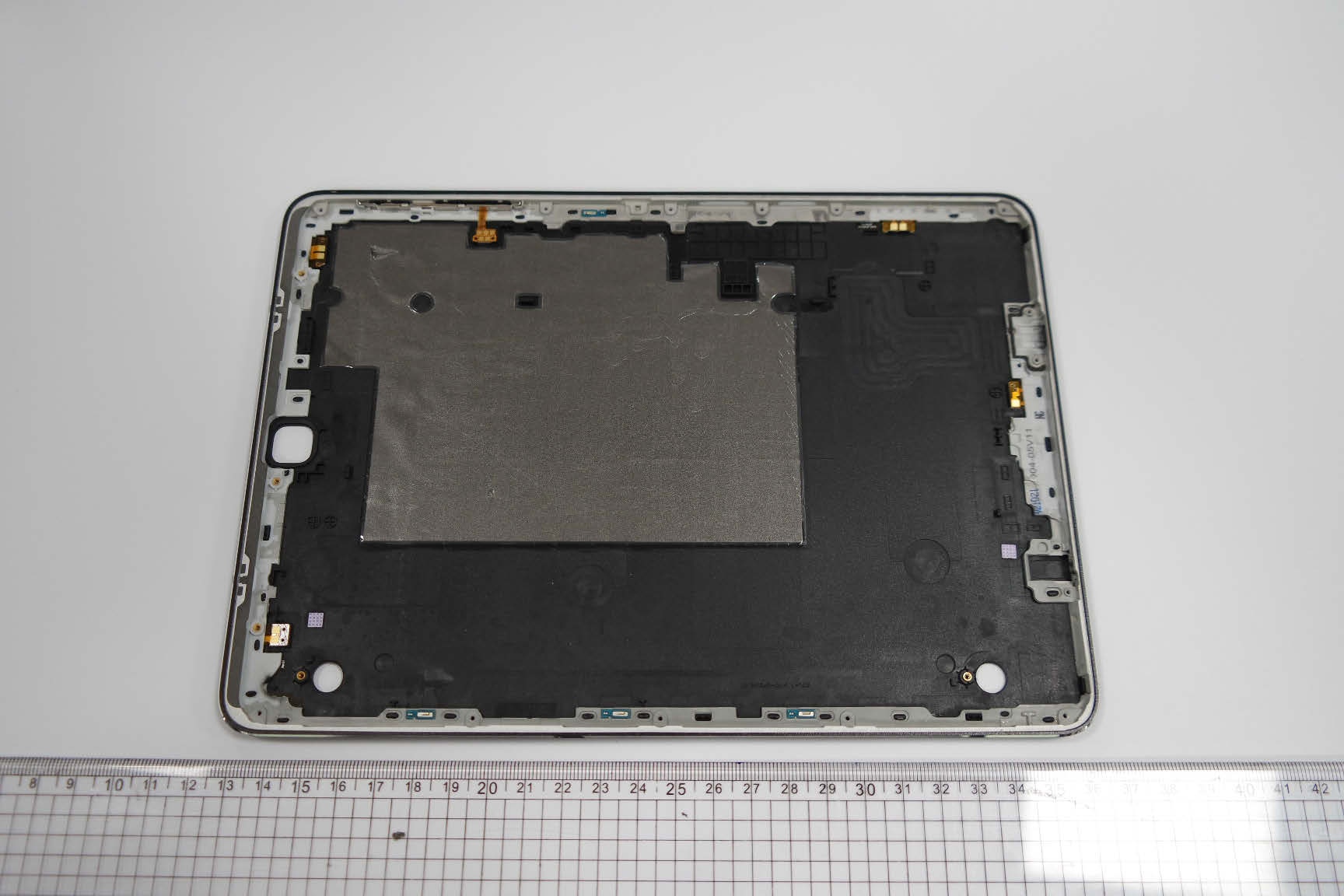

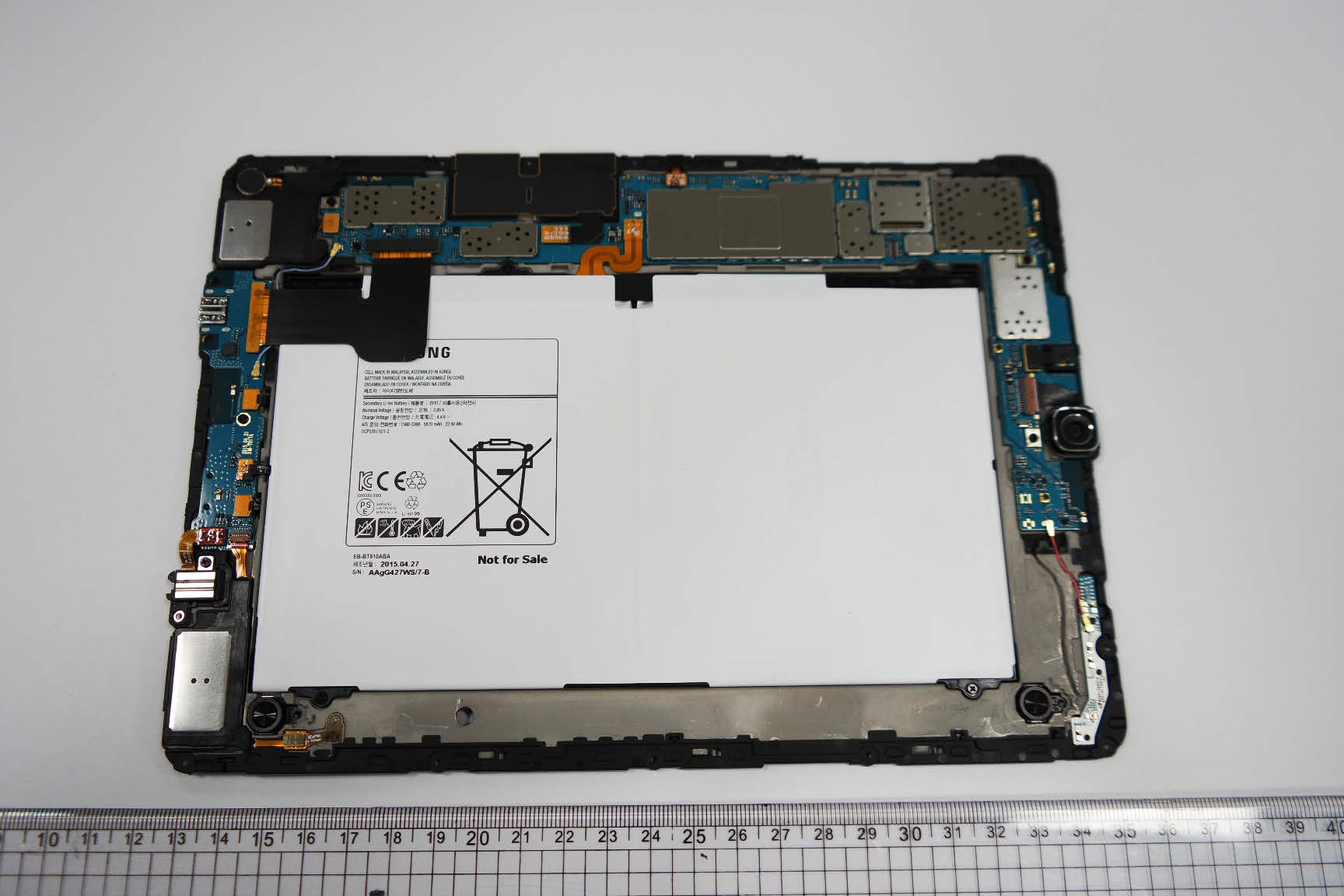

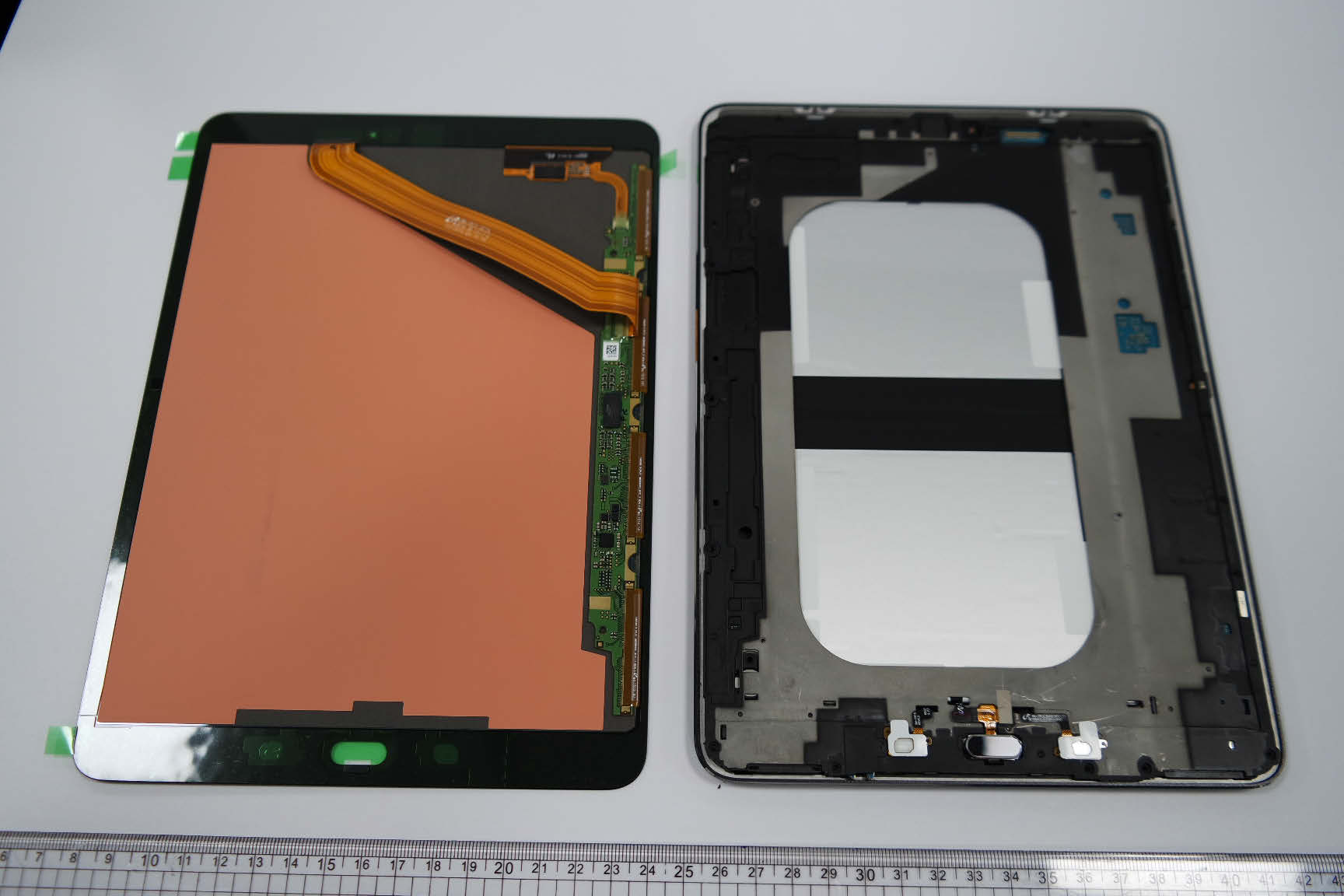

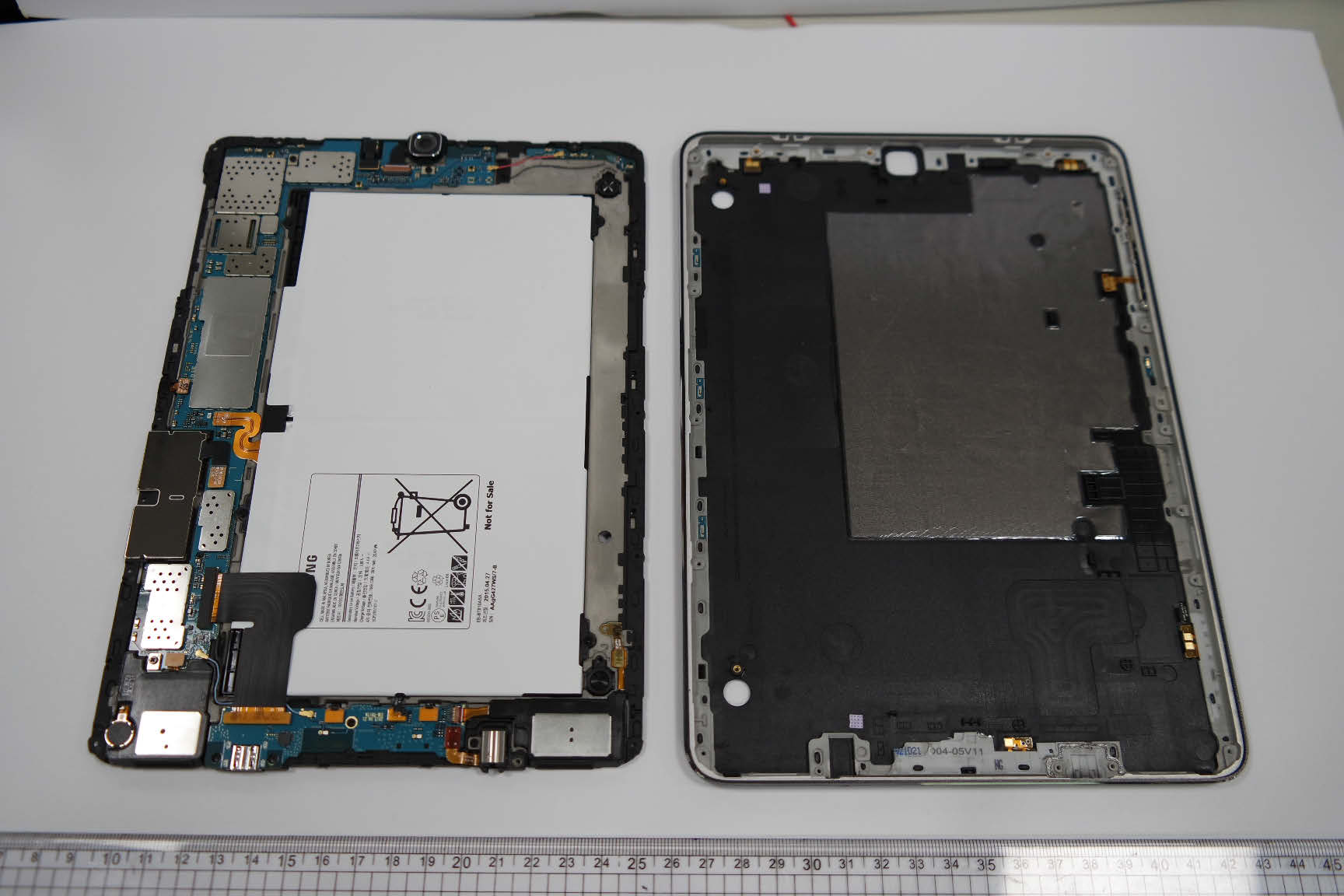

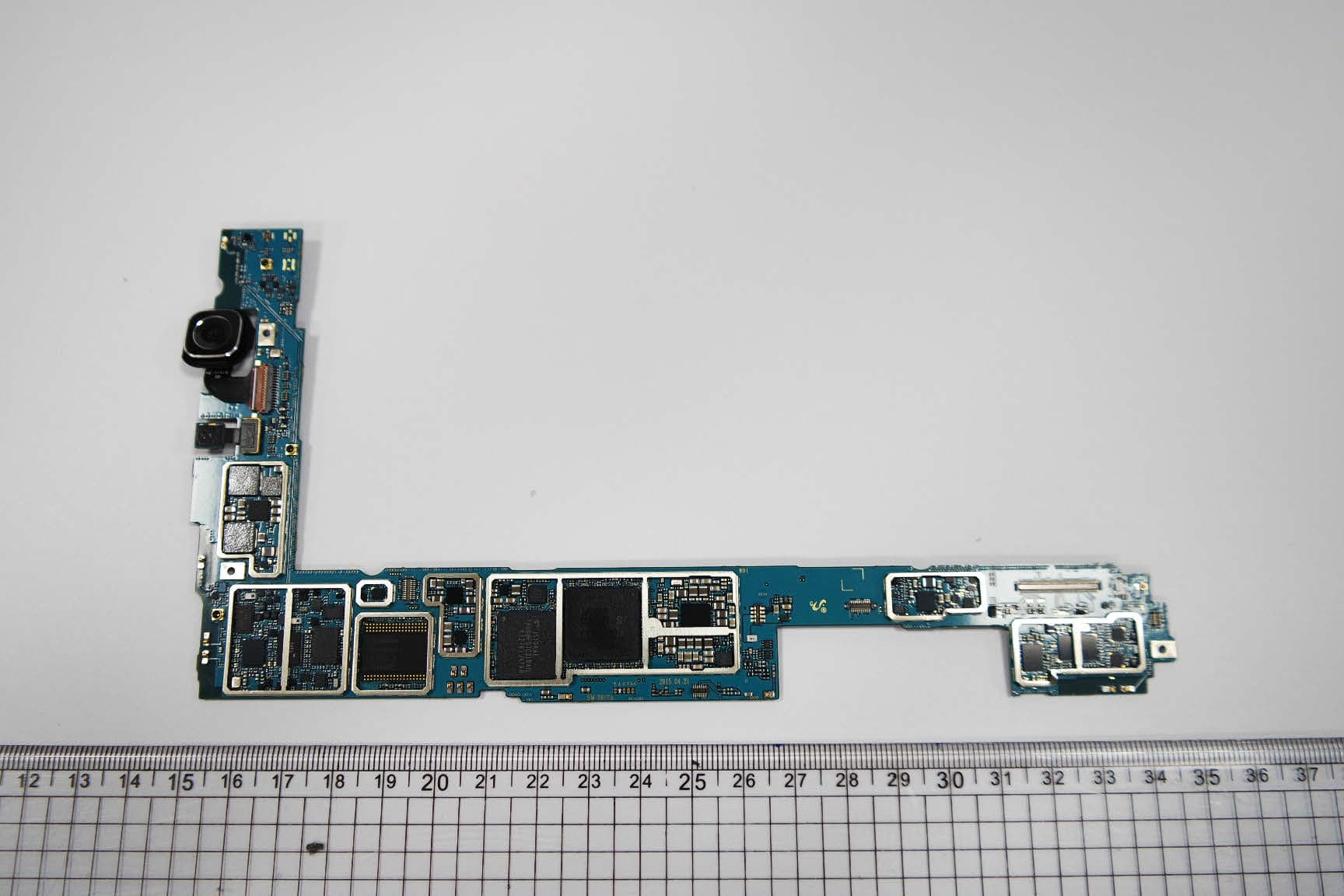

Label and Location Model : FCC ID : SM-T817T A3LSMT817T Label: Locatio n: Top Back of device Bottom Tablet : Label is placed on the rear compartment.

FCC ID: A3LSMT817T SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 94 0Y1504300824.A3L 04/27/15 - 05/04/15 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. REV 15.0 M 01/27/2015 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 04/27/15 - 05/04/15 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1504300824.A3L FCC ID: A3LSMT817T APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Tablet Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-T817T This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. The SAR Tick is an initiative of the Mobile Manufacturers Forum (MMF). While a product may be considered eligible, use of the SAR Tick logo requires an agreement with the MMF. Further details can be obtained by emailing: [email protected]. 1 gm Body (W /kg) PCBUMTS 850826.40 - 846.60 MHz1.03 PCBUMTS 17501712.4 - 1752.5 MHz1.08 PCBUMTS 19001852.4 - 1907.6 MHz1.09 PCBLTE Band 12699.7 - 715.3 MHz1.07 PCBLTE Band 5 (Cell)824.7 - 848.3 MHz1.04 PCBLTE Band 4 (AWS)1710.7 - 1754.3 MHz1.02 PCBLTE Band 2 (PCS)1850.7 - 1909.3 MHz1.10 DTSBluetooth LE2402 - 2480 MHzN/A DTS2.4 GHz WLAN2412 - 2462 MHz1.07 NIIU-NII-15180 - 5240 MHz-1.00 NIIU-NII-2A5260 - 5320 MHz1.01 NIIU-NII-2C5500 - 5720 MHz0.94 NIIU-NII-35745 - 5825 MHz0.88 DSSBluetooth2402 - 2480 MHz 1.56 0.11 SAR Band & ModeTx Frequency Equipment Class Simultaneous SAR per KDB 690783 D01v01r03: PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSMT817T SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 94 0Y1504300824.A3L 04/27/15 - 05/04/15 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. REV 15.0 M 01/27/2015 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 LTE INFORMATION ........................................................................................................................ 9 3 INTRODUCTION ........................................................................................................................... 10 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 11 5 SAR TESTING PROCEDURES .................................................................................................... 12 6 RF EXPOSURE LIMITS ................................................................................................................ 13 7 FCC MEASUREMENT PROCEDURES ........................................................................................ 14 8 RF CONDUCTED POWERS ......................................................................................................... 19 9 SYSTEM VERIFICATION .............................................................................................................. 65 10 SAR DATA SUMMARY ................................................................................................................. 67 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 74 12 SAR MEASUREMENT VARIABILITY ........................................................................................... 88 13 EQUIPMENT LIST ......................................................................................................................... 89 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 90 15 CONCLUSION ............................................................................................................................... 92 16 REFERENCES .............................................................................................................................. 93 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: DUT ANTENNA DIAGRAM & SAR TEST SETUP PHOTOGRAPHS APPENDIX G: SENSOR TRIGGERING DATA SUMMARY FCC ID: A3LSMT817T SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 94 0Y1504300824.A3L 04/27/15 - 05/04/15 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. REV 15.0 M 01/27/2015 1 DEVICE UNDER TEST 1.1 Device Overview 1.2 Power Reduction for SAR This device uses independent power reduction mechanisms for WLAN and PCB SAR compliance. The power reduction mechanisms are activated when the device is used in close proximity to the user’s body. Since the device is a full sized tablet, the Body SAR was evaluated per FCC KDB Publication 616217 D04 for full sized tablets. UMTS 850Data826.40 - 846.60 MHz UMTS 1750Data1712.4 - 1752.5 MHz UMTS 1900Data1852.4 - 1907.6 MHz LTE Band 12Data699.7 - 715.3 MHz LTE Band 5 (Cell)Data824.7 - 848.3 MHz LTE Band 4 (AWS)Data1710.7 - 1754.3 MHz LTE Band 2 (PCS)Data1850.7 - 1909.3 MHz Bluetooth LEData240…

Text truncated - open the document above for the full version.

© 2015 PCTEST Engineering Laboratory, Inc. APPENDIX C: PROBE CALIBRATION Calibration Laboratory of Schmid & Partner Engineering AG Zeughausstrasse 43, 8004 Zurich, Switzerland Accredited by the Swiss Accreditation Service (SAS) The Swiss Accreditation Service is one of the signatories to the EA Multilateral Agreement for the recognition of calibration certificates s c s Schweizerischer Kalibrierdienst Service suisse d'9talonnage Servizio svizzero di taratura Swiss Calibration Service Accreditation No.: SCS 0108 Client PC Test Certificate No: D750V3·1046_Feb15 CALIBRATION CERTIFICATE Object D750V3 - SN: 1046 Calibration procedure(s) QA CAL-05.v9 '1171\J / Calibration procedure for dipole validation kits above 700 MHz ol 612,l) Calibration date: February 19, 2015 This calib ration certificate documents the tra ceability to national standards, which realize the physical units of meas urements (SI). The measurements an d the uncertainties with confidence probability are given on the following p a ges and are part of the certifica te. All calibrations have been conducted in the closed laboratory facility: environment temperature (22 ± 3) ° C and humidity< 70 ° /o. Calibration Equipment used (M&TE critical for calibration) Primary Standards ID# Cal Oate (Certificate No.) Scheduled Calibration Powe r meter EPM-442A GB37480704 07-0ct-14 (No. 217-02020) Oct-15 Power sensor HP 8481A US37292783 07-0ct-14 (No. 217-02020) Oct-15 Power sensor HP 8481A MY41092317 07-0ct-14 (No. 217-02021) Oct-15 Reference 20 dB Attenuator SN: 5058 (20k) 03-Apr-14 (No. 217-01918) Apr-15 Type-N mismatch combination SN: 5047.2 / 06327 03-Apr-14 (No. 217-01921) Apr-15 Reference Pr obe ES3DV3 SN: 3205 30-Dec-14 (No. ES3-3205_Dec14) Dec-15 DAE4 SN: 601 18-Aug-14 (No. DAE4-601_Aug14) Aug-15 Secondary Standards ID# Check Date (in house) Scheduled Check RF generator R&S SMT-06 100005 04-Aug-99 (in house check Oct-13) In house check: Oct-16 Network Analyzer HP 8753E US37390585 54206 18 -0ct-01 (in house check Oct-14) In house check: Oct-15 Name Function Signature Calibrated by: Jeton Kastratl Laboratory Technician p Approved by: Katja Pokov ic Technical Manager ��� Iss ued: February 19, 2015 This calibration certificate sh all not be reproduced except in full without written approval of the laboratory. Certificate No: D750V3-1046_Feb15 Page 1 of 8 I/ '?

FCC ID: A3LSMT817T FCC Pt. 22, 24, & 27 WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 56 0Y1504300825.A3L 4/27 - 6/2/15 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. V 2.5 03/20/2015 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 4/27 - 6/2/15 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab., Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1504300825.A3L FCC ID: A3LSMT817T APPLICANT: SAMSUNG ELECTRONICS CO., LTD. Application Type: Certification Model(s): SM-T817T EUT Type: Portable Tablet FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §2 §22(H) §24(E) §27(L) Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 v02r02 Test Device Serial No.: identical prototype [S/N: UMTS MAX, LTE/UMTS MAX, R32G301FWWM] WCDMA850 826.4 - 846.6 4M14F9W 0.11320.53 WCDMA1700 1712.4 - 1752.5 4M14F9W 0.08619.37 WCDMA1900 1852.4 - 1907.6 4M15F9W 0.14821.71 Emission Designator Tx Frequency (MHz) Mode ERP/EIRP Max. Power (W) Max. Power (dBm) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22, 24, & 27 FCC ID: A3LSMT817T FCC Pt. 22, 24, & 27 WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 56 0Y1504300825.A3L 4/27 - 6/2/15 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. V 2.5 03/20/2015 TABLE OF CONTENTS FCC PART 22, 24, & 27 MEASUREMENT REPORT ................................................................................... 3 1.0 INTRODUCTION .............................................................................................................................. 4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY ............................................................................................................................. 4 2.0 PRODUCT INFORMATION .............................................................................................................. 5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 TEST CONFIGURATION ..................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 3.0 DESCRIPTION OF TESTS .............................................................................................................. 6 3.1 EVALUATION PROCEDURE .............................................................................................................. 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS ....................................................................................... 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 6 3.4 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 6 3.5 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.6 AWS - BASE FREQUENCY BLOCKS ................................................................................................. 7 3.7 AWS - MOBILE FREQUENCY BLOCKS ............................................................................................. 7 3.8 RADIATED MEASUREMENTS ............................................................................................................ 8 4.0 TEST EQUIPMENT CALIBRATION DATA ...................................................................................... 9 5.0 SAMPLE CALCULATIONS .............................................................................................…

Text truncated - open the document above for the full version.
