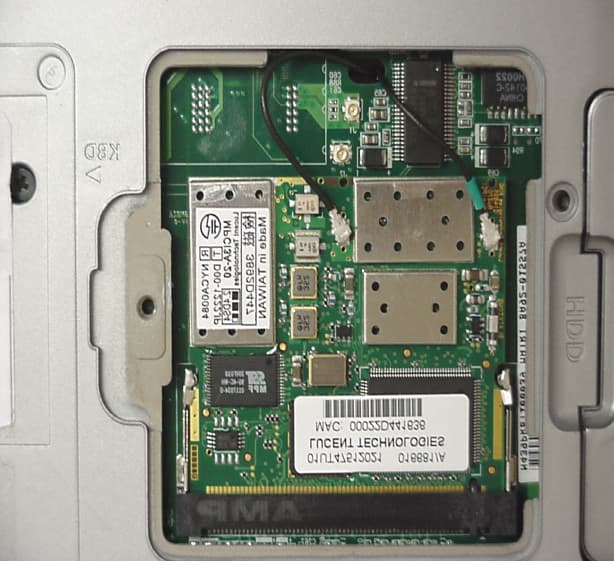

A3LST10WLMPCI3A-20

Notices i Notices No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, mechanical photocopying, recording or otherwise, without the prior written permission of the manufacturer. The information within this manual is subject to change without notice. The manufacturer shall not be held liable for technical or editorial errors or omissions contained in herein; nor for incidental or consequential damages resulting from the furnishing, performance or use of this material. Microsoft Windows is a registered trademark of the Microsoft Corporation. Product names mentioned herein are for identification purposes only, and may be trademarks and/or registered trademarks of their respective companies. Macrovision Statement If your computer has a DVD drive and an analog TV Out port, the following paragraph applies: This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. Copyright 2002 All rights are reserved ii Users Manual Important Safety Information Safety Instructions Your system is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that the safety instructions marked on the product and in the documentation are followed. Always follow these instructions to help guard against personal injury and damage to your system. i Setting Up your System • Read and follow all instructions marked on the product and in the documentation before you operate your system. Retain all safety and operating instructions for future use. •Do not use this product near water or a heat source such as a radiator. •Set up the system on a stable work surface. •The product should be operated only with the type of power source indicated on the rating label. •Ensure that the electrical outlet you are using to power your equipment is easily accessible in case of fire or short circuit. •If your computer has a voltage selector switch, make sure that the switch is in the proper position for your area. •Openings in the computer case are provided for ventilation. Do not block or cover these openings. Make sure you provide adequate space, at least 6 inches (15 cm), around the system for ventilation when you set up your work area. Never insert objects of any kind into the computer ventilation openings. •Ensure that the fan vents on the bottom of the casing are clear at all times. Do not place the computer on a soft surface, doing so will block the bottom vents. •If you use an extension cord with this system, make sure that the total ampere rating on the products plugged into the extension cord does not exceed the extension cord ampere rating. Important Safety Information iii Care During Use • Do not walk on the power cord or allow anything to rest on it. •Do not spill anything on the system. The best way to avoid spills is to not eat or drink near your system. •Some products have a replaceable CMOS battery on the system board. There is a danger of explosion if the CMOS battery is replaced incorrectly. Replace the battery with the same or equivalent type recommended by the manufacturer. Dispose of batteries according to the manufacturer’s instructions. If the CMOS battery requires replacement insure that a qualified technician performs the task •When the computer is turned off, a small amount of electrical current still flows through the computer. To avoid electrical shock, always unplug all power cables, remove the battery and modem cables from the wall outlets before cleaning the system. •Unplug the system from the wall outlet and refer servicing to qualified personnel if: – The power cord or plug is damaged. – Liquid has been spilled into the system. – The system does not operate properly when the operating instructions are followed. – The system was dropped or the casing is damaged. – The system performance changes. Replacement Parts and Accessories Use only replacement parts and accessories recommended by manufacturer. To reduce the risk of fire, use only No. 26 AWG or larger telecommunications line cord. Writtenby:DarylL.Osden Do not use this product in areas classified as hazardous. Such areas include patient care areas of medical and dental facilities, oxygen rich environments, or industrial areas. iv Users Manual Battery Disposal Do not put rechargeable batteries or products powered by non-removable rechargeable batteries in the garbage. Contact the Samsung Helpline for information on how to dispose of batteries that you cannot use or recharge any longer. Follow all local regulations when disposing of old batteries. Regulatory Compliance Statements v Regulatory Compliance Statements Wireless Guidance Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz Band, may be present (embedded) in your notebook system. The following section is a general overview of considerations while operating a wireless device. Additional limitations, cautions, and concerns for specific countries are listed in the specific country sections (or country group sections). The wireless devices in your system are only qualified for use in the countries identified by the Radio Approval Marks on the system rating label. If the country you will be using the wireless device in, is not listed, please contact your local Radio Approval agency for requirements. Wireless devices are closely regulated and use may not be allowed. The power output of the wireless device or devices that may be embedded in your notebook is well below t…

Text truncated - open the document above for the full version.

34 Users Manual Dolby Digital & Dolby Theater System Your computer supports Dolby Digital & Dolby Theater System through a SPDIF connector, located next to the volume control wheel on the left side of the computer. You must have a 3.5 mm (mono)- to RCA cable to use this port. Volume Control Using the Wheel Volume Control Simply turn the wheel located on the left side of the computer. Using the Keyboard Changing the volume with your keyboard. Use <Fn+F9> to decrease the volume or <Fn+F10> to increase the volume. Using the Volume Control Icon Double-Click icon in the active program tray. The Volume Control window pops up. Use this window to adjust the volume. You can pop up a simple volume slider by a single click icon. Wheel Volume Control Using the Battery 35 Using the Battery Your computer uses a smart rechargeable Lithium-ion (Li-ion) battery pack for power when the AC adapter is not attached to an electrical outlet. The smart battery gives a accurate measurement of the current battery capacity which helps extend operating time by enabling effective power management in operating systems that take advantage of the accurate information supplied by the battery. Charging the Battery Your computer’s battery starts charging automatically when you connect the power to the computer and to an electrical outlet. If the computer is off, the battery charges faster than if the computer’s power is on. Approximate charging times for the Li-Ion battery are •3 hours with the computer off. •6 hours with the computer on. While the battery is charging normally, the battery charge light on the computer is red. When the battery is fully charged, the light changes to green. When you use a new battery pack for the first time or use a battery after a long period of storage, the initial battery life is shorter than normal. Normal battery life resumes after a few discharge-recharge cycles. Follow these rules for charging your battery: •A battery normally discharges power when not used for long periods of time. Be sure to recharge the battery every two months when it is not in use. •Make it a practice to discharge your battery fully before recharging the battery. This can help extend the life of the battery. •Do not attempt to charge the battery in temperatures of under 5 o C or over 35 o C All batteries eventually wear out and lose the ability to hold a charge. You may need to replace your battery pack after a year of average usage. 36 Users Manual Safely Using the Battery Follow these guidelines to safely use the battery: •Turn off your computer and unplug it if you accidentally: – Expose the equipment to liquid. – Drop, jar, or damage the computer. •Use only approved battery chargers. •Do not disassemble the battery, heat it above 100°C, or burn it. The battery used in this computer may cause a fire or chemical burn if mistreated. •Your computer's rechargeable battery may be considered hazardous waste. If you replace your battery with a new one: – Keep the old battery out of the reach of children. – Dispose of the old battery promptly. – Make sure that you follow all local requirements when you dispose of the old battery. Removing the Battery Your computer comes with the battery pack inserted in the computer. To remove the battery from the computer: 1.Turn the computer’s power off. 2.Close the LCD panel, and turn the computer over so that the bottom of the unit faces up. 3.Slide the battery compartment cover straight up and off the computer. 4.Grasp the tab on the battery and pull the battery out of the compartment. Using the Battery 37 Installing the Battery To install the battery pack: 1.With the computer’s power off, close the LCD panel and turn the computer over so the bottom of the unit faces up. 2.Slide the battery compartment cover straight up and off the computer. Insert the battery into the battery compartment, ensuring the correct orientation so that the battery fits in its slot properly. 3.Slide the battery pack into the compartment. Make sure the battery is fully inserted into the compartment. 4.Align the tabs on the battery compartment cover with the slots on the battery compartment. 5.Push the cover straight down until it snaps into place. Monitoring the Battery Charge Battery life is affected by factors such as the power-management settings in System Setup, the applications you use, and the brightness settings of the LCD. Under normal usage, the battery charge lasts approximately 3 hours. Battery life estimates are subject to variation. The actual life of your battery may be less than the estimates given in the manual. You can monitor the charge of the battery pack installed in your computer by using the Power Meter or Battery Gauge. 38 Users Manual Power Meter The Power Meter displays the charge of the batteries and the current source of computer power, AC or batteries. You may monitor the battery charge or usage by using the “Power Meter”. To access the power meter click icon on the task bar or click Start > Settings > Control Panel > Power Options > Power Meter Tab. You may also check battery charge by moving the cursor to the icon, a small dialog box will display the % of charge. Battery Gauge You may display the battery gauge while you are in any program by pressing <Fn+F6>. While the battery gauge is being displayed, all keys except <Esc> are disabled. The battery gauge is only displayed for a few seconds. Power Source: •Indicates that the computer is powered by the AC adapter. •Indicates that the computer is powered by the battery. Battery Level: •The top/right section indicates the approximate amount of the primary battery charge remaining. The Power Status icons shown below are displayed during Battery Charging Operations At ~15% and 10% remaining battery power the current power source and the battery Icons respectively change to the icon shown below and you should follow the instructions in “Battery Warnings” section below Using the Battery 39 Battery Warnings If the battery charge is …

Text truncated - open the document above for the full version.

Notices i Notices No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, mechanical photocopying, recording or otherwise, without the prior written permission of the manufacturer. The information within this manual is subject to change without notice. The manufacturer shall not be held liable for technical or editorial errors or omissions contained in herein; nor for incidental or consequential damages resulting from the furnishing, performance or use of this material. Microsoft Windows is a registered trademark of the Microsoft Corporation. Product names mentioned herein are for identification purposes only, and may be trademarks and/or registered trademarks of their respective companies. Macrovision Statement If your computer has a DVD drive and an analog TV Out port, the following paragraph applies: This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. Copyright 2002 All rights are reserved Notice and Safety With Wireless - English.fm Page i Monday, April 1, 2002 11:58 AM ii Users Manual Important Safety Information Safety Instructions Your system is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that the safety instructions marked on the product and in the documentation are followed. Always follow these instructions to help guard against personal injury and damage to your system. i Setting Up your System •Read and follow all instructions marked on the product and in the documentation before you operate your system. Retain all safety and operating instructions for future use. •Do not use this product near water or a heat source such as a radiator. •Set up the system on a stable work surface. •The product should be operated only with the type of power source indicated on the rating label. •Ensure that the electrical outlet you are using to power your equipment is easily accessible in case of fire or short circuit. •If your computer has a voltage selector switch, make sure that the switch is in the proper position for your area. •Openings in the computer case are provided for ventilation. Do not block or cover these openings. Make sure you provide adequate space, at least 6 inches (15 cm), around the system for ventilation when you set up your work area. Never insert objects of any kind into the computer ventilation openings. •Ensure that the fan vents on the bottom of the casing are clear at all times. Do not place the computer on a soft surface, doing so will block the bottom vents. •If you use an extension cord with this system, make sure that the total ampere rating on the products plugged into the extension cord does not exceed the extension cord ampere rating. Notice and Safety With Wireless - English.fm Page ii Monday, April 1, 2002 11:58 AM Important Safety Information iii Care During Use •Do not walk on the power cord or allow anything to rest on it. •Do not spill anything on the system. The best way to avoid spills is to not eat or drink near your system. •Some products have a replaceable CMOS battery on the system board. There is a danger of explosion if the CMOS battery is replaced incorrectly. Replace the battery with the same or equivalent type recommended by the manufacturer. Dispose of batteries according to the manufacturer’s instructions. If the CMOS battery requires replacement insure that a qualified technician performs the task •When the computer is turned off, a small amount of electrical current still flows through the computer. To avoid electrical shock, always unplug all power cables, remove the battery and modem cables from the wall outlets before cleaning the system. •Unplug the system from the wall outlet and refer servicing to qualified personnel if: – The power cord or plug is damaged. – Liquid has been spilled into the system. – The system does not operate properly when the operating instructions are followed. – The system was dropped or the casing is damaged. – The system performance changes. Replacement Parts and Accessories Use only replacement parts and accessories recommended by manufacturer. To reduce the risk of fire, use only No. 26 AWG or larger telecommunications line cord. Written by: Daryl L. Osden Do not use this product in areas classified as hazardous. Such areas include patient care areas of medical and dental facilities, oxygen rich environments, or industrial areas. Notice and Safety With Wireless - English.fm Page iii Monday, April 1, 2002 11:58 AM iv Users Manual Battery Disposal Do not put rechargeable batteries or products powered by non-removable rechargeable batteries in the garbage. Contact the Samsung Helpline for information on how to dispose of batteries that you cannot use or recharge any longer. Follow all local regulations when disposing of old batteries. Notice and Safety With Wireless - English.fm Page iv Monday, April 1, 2002 11:58 AM Regulatory Compliance Statements v Regulatory Compliance Statements Wireless Guidance Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz Band, may be present (embedded) in your notebook system. The following section is a general overview of considerations while operating a wireless device. Additional limitations, cautions, and concerns for specific countries are listed in the specific country sections (or country group sections). The wireless devices in your system are only qualified for use in the countries identified by the Radio Approval Marks…

Text truncated - open the document above for the full version.

Using the Keyboard 13 Using the Keyboard Your computer has an 87/88-key keyboard. By pressing designated key combinations, you can have access to all the key functions of a full-sized keyboard. Although the layout of the keys on your computer’s keyboard is different from that on a desktop computer’s keyboard, the keyboard feels like a full-sized keyboard when you use it. The keys on the keyboard can be grouped into the following categories: •Full-sized Alphanumeric typewriter keys are arranged like a standard typewriter keyboard and are used for text entry. The Windows keys on either side of the spacebar open Windows menus and perform other special functions. •Function keys, when pressed together with the <Fn> key, enable special functions. •Cursor and Screen control keys move the cursor. They may perform other functions, depending on your software. To clean the computer keyboard, use slightly damp cotton swabs. Scrub the keys and the surface around the keys. Gauge Gauge Function & Special Purpose Keys Embedded Numeric Keypad Application Key Cursor/Screen Control Keys Windows KeyFunction Key Matrix 3 Plus (Windows 2000) - English.fm Page 13 Thursday, April 18, 2002 10:35 AM 14 Users Manual Do not allow liquid to drip into the keyboard or you may damage the keyboard. Using the Numeric Keypad Your keyboard includes a numeric keypad, which is a group of keys that you can set to type numbers and mathematical symbols, such as the plus sign. A number or symbol on the right corner of each keypad key shows its numeric function. Press to turn on the embedded numeric keypad. The numeric functions of the keypad are enabled and the Num Lock LED turns on. (See ”Reading the System Status Lights” on page 20 for the location of the Num Lock LED.) While the numeric functions are enabled, you can temporarily return a key to its normal function by pressing and the key. For example to type the letter m, press + , this operation displays the letter m. To turn the numeric keypad off, press again. The Num Lock LED turns off. Num Lock LED Matrix 3 Plus (Windows 2000) - English.fm Page 14 Thursday, April 18, 2002 10:35 AM Using the Keyboard 15 Using Special Function Keys The function key activates special functions when it is pressed in combination with another keys. Table 2 shows the special key combinations. Table 2. Description of Special Function Key Combinations When you press a function key combination, the system sound may be temporarily muted. Key Combinations Key Name Key Function F1 Prt Sc Print screen:Takes a picture of the open screen, which you can paste into many graphics programs. F2 Sys Rq System request: Reserved for use in software programs. F5 CRT/LCD CRT/LCD:Switches the display between the LCD, the external monitor, and simultaneous display on both the LCD and the external monitor. F6 Gauge GaugeDisplays the battery gauge in the upper-right corner of your screen. The gauge closes in a few seconds, or you can press <Esc> to close the gauge. (See ”Monitoring the Battery Charge” on page 43 for more information on the battery gauge.) F8 Mute Mute: Increases the audio volume. F9 Volume down: Volume down: Decreases the audio volume. F10 Volume up: Volume up:Increases the audio volume. F11 Rest: Rest:Puts the computer into Suspend mode. To resume normal operation from rest, press the power button. (See ”Using Power Management Options” on page 52 for more information about the rest mode.) F12 Scroll Scroll: In some applications, sets the cursor-control keys to scroll the page up or down while the cursor position does not change. Pressing key combination again turns off the scrolling function. Left Arrow Brightness Down: Decreases the LCD brightness. Right Arrow Brightness Up: Increases the LCD brightness. + + + + Gauge + + + + + + + Matrix 3 Plus (Windows 2000) - English.fm Page 15 Thursday, April 18, 2002 10:35 AM 16 Users Manual User Defined Buttons (SENS Keyboard) You may program the three buttons to the right of the power button to start any program you have installed on your computer. The default settings for these buttons are: To reprogram the Sens Keyboard, follow the steps below: 1.Double-Click icon on the Windows taskbar, the Key Setting window is displayed. 2.Select Button you wish to reprogram from the drop down menus in the Key Setting window. 3.Use the Browse button to locate the program you wish to assign to the SENS Keyboard button selected. 4.Click on your program choice to select it. 5.Click Open. 6.Click OK to close window and complete programming the Sens Keyboard. Internet E-Mail - Outlook Windows Calculator Internet Explorer Outlook Express User defined program E-Mail: Matrix 3 Plus (Windows 2000) - English.fm Page 16 Thursday, April 18, 2002 10:35 AM Using the Touchpad 17 Using the Touchpad Your computer is equipped with a touchpad, which is an integrated-pointing device that is used to perform standard mouse functions. The touchpad is an advanced and reliable pointing device that works with a touch of your finger. Press on the touchpad gently. The touchpad responds to light pressure. Table 3. Using the Touchpad ActionProcess and Comment Click/Tap Process Depress the touchpad left button and release or position the pointer over the object and Quickly tap the touchpad once with your finger. This action is called clicking. Comment This will cause a process to begin or select an object on the screen. Touchpad Mouse Buttons Scroll Button Matrix 3 Plus (Windows 2000) - English.fm Page 17 Thursday, April 18, 2002 10:35 AM 18 Users Manual PS/2 Mouse: You may change the setup in Setup > Advanced Menu Disabled prevents both the touchpad and external PS/2 port from functioning. Single mouse (default) enables the external PS/2 port or the touchpad, and external PS/2 port has priority. Dual Mouse allows the use of both the touchpad and PS/2 port. Double-Click/Tap Process Quickly click the left touchpad button two times or position the pointer over the object and Quickly tap the touchpad tw…

Text truncated - open the document above for the full version.

52 Users Manual Using Power Management Options Your computer includes Power Management options that can help the battery charge last longer and extend the life of the battery. Power-management options will slow down or shut off system components when the components are not being used. Power management may slow down system performance. Your computer runs fastest with the power cord attached, when power management is disabled. In the next sections, basic and advanced methods of power management will be discussed. Intel ® SpeedStep ™ Intel SpeedStep will control the CPU speed on your system according to the kind of power supply as part of power saving management. To use this function, your system must meet the conditions below: •Intel SpeedStep supporting CPU •BIOS and OS Support Matrix 3 Plus (Windows 2000) - English.fm Page 52 Thursday, April 18, 2002 10:35 AM Using Power Management Options 53 Basic Power Management Schemes This section discusses the basic schemes of power management when the computer is operating on battery power or using AC power. Standby vs. Hibernation Standby unlike hibernation mode does not store unsaved information on your hard disk; it's stored only in the computer memory. If there is an interruption in power, the information is lost. So before putting your computer on standby, you should save your files. Changing Devices: Do not change PC Cards while in standby or hibernate modes. To enter the power management window complete the following: 1.Click Start > Settings > Control Panel. 2.Click Power Options icon to display the Power Options Properties window. 3.Click the Power Schemes tab to display the basic power management options. 4.Select the time that you wish each of the following actions to occur in Battery and AC power mode. •Turn off monitor: •Turn off hard disks: •System standby: •System hibernates: Power Schemes Tab Matrix 3 Plus (Windows 2000) - English.fm Page 53 Thursday, April 18, 2002 10:35 AM 54 Users Manual Turning off the monitor and HDDs will save a substantial battery power, therefore when in battery only mode select the shortest time practical. a Hibernate Mode (Power Management or Manual Method) When hibernation is used, your computer turns off and when you power up again, everything is restored exactly as you left it—including programs and documents you may not have saved or closed. Everything in memory gets saved to the HDD, and the monitor and hard disk get turned off. If You Reinstall Windows: You should re-establish hibernate in power options by opening Power Options Properties window and click on the Hibernate tab then click “Enable Hibernation”. Frequent Interruptions: If you experience frequent interruptions, you might also consider putting your computer into automatic hibernation after a specified number of minutes using the power management options. a Standby Mode (Power Management or Manual Method) Standby is used mainly for conserving battery power in your notebook computer. It also gives you the benefit of getting right back to your work without waiting for the computer to restart. Standby turns off your monitor and hard disks, placing your entire system in a low-power state. When you return to your computer, restores your desktop exactly as you left it. It is recommended that you do not enter standby mode with less than 20% battery power. 5.Click OK to set your power management options and close the window. Hibernate Tab Matrix 3 Plus (Windows 2000) - English.fm Page 54 Thursday, April 18, 2002 10:35 AM Using Power Management Options 55 Rest Key: The manual <Fn+F11> key combination will not activate Standby or Hibernate modes whilst you are playing a multimedia program or have an active USB device connected. Advanced Power Management Schemes This section discusses the advanced power management schemes. There are two buttons that you can use to manually conserve power. To enter the power management window complete the following: 1.Click Start > Settings > Control Panel. 2.Click Power Options icon to display the Power Options Properties window. 3.Click the Advanced tab to display the advanced power management options. 4.Select the mode (Do nothing/Ask me what to do/Standby/Hibernate/Shut down) assigned to the Power button and/or Rest <F11> key. Also select the action (Do nothing/Standby/Hibernate) associated with closing the computer lid. The “Rest” key is assigned to the <Fn+F11> key combination. See ”Basic Power Management Schemes” on page 53 for a better understanding of Standby and Hibernate modes. 5.Click OK to set your power management options and close the window. You can return to normal operation after you have used one of the “Power Management” buttons by quickly pushing and releasing the Power button. + Advanced Tab Power & Sleep Button Programming Windows + Matrix 3 Plus (Windows 2000) - English.fm Page 55 Thursday, April 18, 2002 10:35 AM 56 Users Manual Using the Hard Drive Your computer includes a removable IDE (integrated drive electronics) hard drive. The IDE hard drive can store the data and programs your computer uses. The drive plugs into a connector on the system board. The hard drive that comes with your computer has already been formatted. Do not format the hard drive. Doing so destroys all data contained on the drive. If you need to format a new drive, or want to erase all data on your existing hard drive, refer to the manual for your operating system. Removing the Hard Drive To prevent loss of data and damage to the disk, do not remove the hard drive while the computer’s power is on and do not drop or jar the hard drive. To remove the hard drive from the computer: 1.If you are installing a new hard drive, backup the application and data files on the old hard drive before removing it from the computer. 2.Turn the computer’s power off. 3.Close the LCD panel, and turn the computer over so that the bottom of the unit faces up. 4.Remove the screw that holds the hard drive in place. 5.Pull the hard drive out of t…

Text truncated - open the document above for the full version.
