A4R-CAP1Smart BLE Device

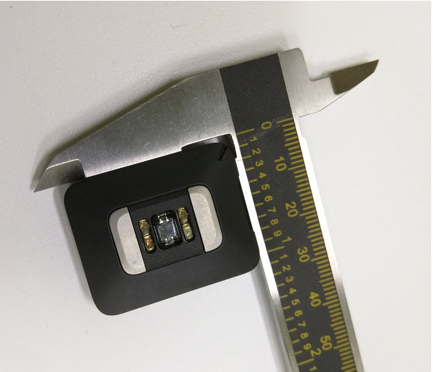

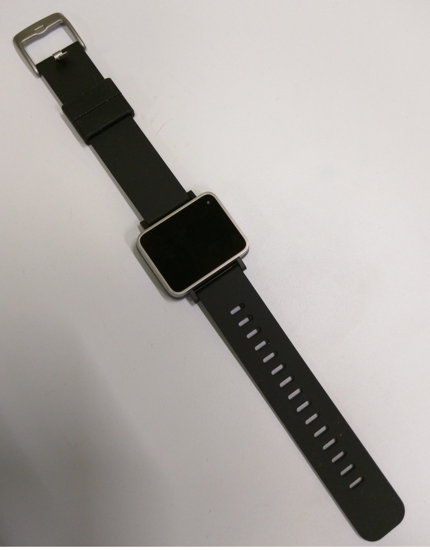

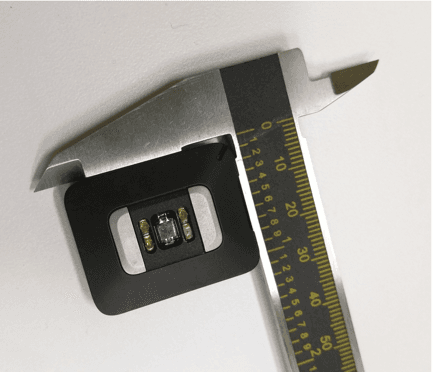

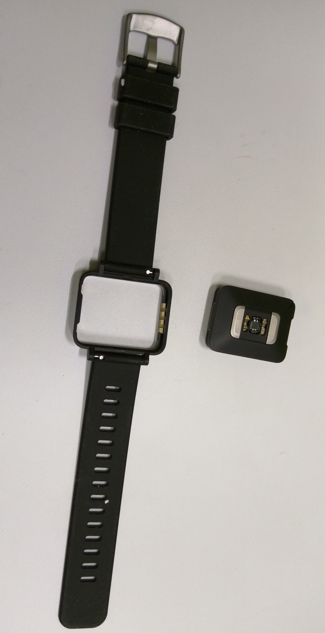

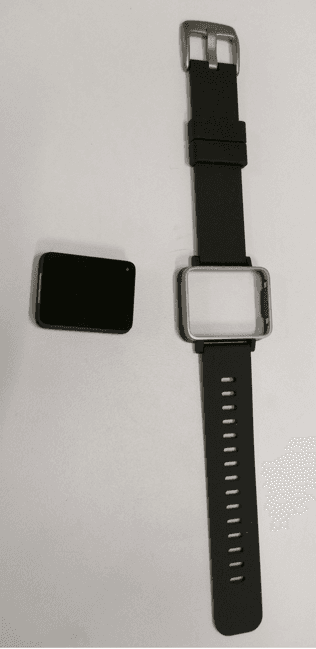

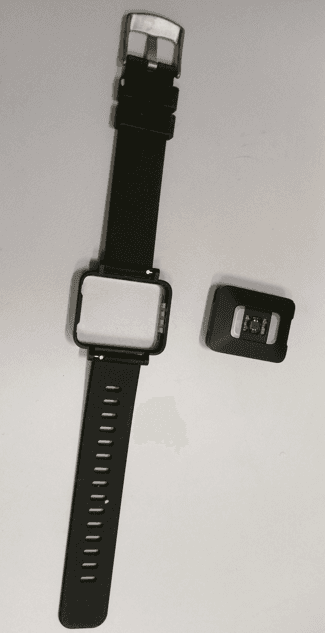

Device User Manual Product info Last updated: 2015-04-15 This page applies to the following Google hardware: Hardware Model Smart BLE Device CAP1 DEVICE USER MANUAL OPERATING INSTRUCTIONS 1.Remove the device from the box 2.Charge your device using enclosed equipment 3.Wear your device, it will start to work automatically CHARGING INSTRUCTIONS 1.Take the device and strap off. 2.Push gently on the glass front of the device to pop it out of the metal frame. 3.Use the supplied cable to plug the device into the charger. To access e-label information, including the device’s FCC ID: 1.When device is in “off wrist”/”sleep” mode, tap to wake device 2.Swipe right (left-to-right) to get to device details (will show battery icon) 3.Swipe up (bottom-to-top) to get to e-label information When device is in “on wrist mode”, repeat Step 2-3 to access e-label information SAFETY INFORMATION Restrictions of use: • ​Keep the wearable device away from small children. • The device has glass that may break under substantial impact. Battery The device contains a lithium–ion battery (nominal capacity 110 mAh). If it’s not handled properly, there’s a risk of explosion, fire and burns. What exactly is improper handling? Puncturing, incinerating, deforming, bending, modifying, attempting to insert foreign objects into the battery, shorting the contacts, trying to disassemble, or exposing the battery to water or high temperatures, among other things that are even more obvious. Repair Neither device nor any of its accessories contain any parts that you or a friend could service yourselves - repairs should only be made by an authorized technician. Unauthorized repairs or modifications could result in permanent damage to the equipment, and may void the user’s authority to operate the device. MANUFACTURER This device was designed by Google, Inc. of 1600 Amphitheatre Parkway, Mountain View, California 94043 and assembled in China. INTERNATIONAL RESTRICTIONS Device is currently authorized for use in the United States. You are responsible for complying with all applicable laws, including with limitation export and import laws and regulations. U.S. REGULATORY NOTICES This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly authorized by the manufacturer express approval could void the user’s authority to operate the device.

A. Information to be displayed 1. The information that will be displayed on the e­label and information that will remain in the user manual is shown below: Information on E­label In Manual FCC ID number X DoC logo n/a 15.19 statement (“​This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation​.”) X Class A / B Digital Device user manual statements​ 1 X DoC declaration​ 1 n/a Caution to the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment​ 1 X Describe any other FCC regulatory information included in e­label ​ 1 n/a 1​ If the e­label includes information typically included in the manual then the e­label shall clearly differentiate between information required to be on the device’s surface and information required to be in the manual – refer to 784748 D02 e labelling v01 section II D 3(b) Images of the e­label screen are provided below: B. Access to the required information on the e­label 1. Users are able to access the information in no more than three steps in a device’s menu. The actual steps are: To access e­label information, including the device’s FCC ID: 1.Make sure the device is not in sleep mode. If it is, wake up the device; 2.Swipe right (left­to­right) to get device details (will show battery icon); 3.Swipe up (bottom­to­top) to get to e­label information No special access codes or permissions are required to go through the above steps. 2. The information is stored on the device, no special accessories or supplemental plug­ins ​(e.g., ​a SIM/USIM card) are required to access the information. 3. Users are provided specific instructions on how to access the information. The information is provided on the first page in the draft user manual. C. Labeling for Importation and Purchasing Products utilizing e­labels are required to have a physical label on the product at the time of importation, marketing and sales. For devices imported in bulk and not packaged individually, a removable adhesive label or, for devices in protective bags, a label on the bags is acceptable for this purpose. Any removable label shall be of a type intended to survive normal shipping and handling and must only be removed by the customer after purchase. For devices imported already in individual packages ready for sale, the information may alternatively be provided on the package. It shall contain: 1. The FCC ID and/or the DoC logo (if applicable); and 2. Any other information required by specific rule to be provided on the surface of the product unless such information is permitted to be included in the User’s manual or other packaging inserts. At the time of importation, marketing, and sale, the device will have the required physical label, which will include the device’s FCC ID. D. Other considerations 1. The above information must be programmed by the responsible party and the information must be secured in such a manner that third­parties cannot modify it. The e­label of the device is programmed by the responsible party and secured in such a manner that it cannot be modified by third­parties. 2. All the applicable regulatory information required on the packaging or user instructions must be provided according to the rules even if it is displayed electronically. For example, hearing aid compatibility (HAC) ratings for the phones as specified in 47 C.F.R. § 20.19. Applicable regulatory information not found in the e­label is contained in the user manual, as set forth in the response to Question A.1 above.

FCC Part 1 Subpart I FCC Part 2 Subpart J RF EXPOSURE REPORT FOR SMART BLE DEVICE MODEL NUMBER: CAP1 FCC ID: A4R-CAP1 REPORT NUMBER: 15U20041-3 Revision A ISSUE DATE: April 20, 2015 Prepared for GOOGLE 1600 AMPHITHEATRE PARKWAY MOUNTAIN VIEW CA, 94043, US Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 15U20041-3A DATE: APRIL 20, 2015 FCC ID: A4R-CAP1 Page 2 of 14 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By -- 3/30/15 Initial Issue F. de Anda A 4/20/15 Initial Issue F. de Anda REPORT NO: 15U20041-3A DATE: APRIL 20, 2015 FCC ID: A4R-CAP1 Page 3 of 14 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. REFERENCES ................................................................................................................... 5 4. FACILITIES AND ACCREDITATION ................................................................................. 5 5. MAXIMUM PERMISSIBLE RF EXPOSURE ....................................................................... 6 5.1. FCC RULES ................................................................................................................ 6 5.2. IC RULES .................................................................................................................... 7 5.3. EQUATIONS ................................................................................................................ 8 5.4. LIMITS AND IC EXEMPTION .....................................................................................10 6. RF EXPOSURE RESULTS ................................................................................................11 7. STANDALONE SAR TEST EXCLUSION CONSIDERATIONS .........................................13 7.1. FCC ............................................................................................................................13 7.2. INDUSTRY CANADA ..................................................................................................14 REPORT NO: 15U20041-3A DATE: APRIL 20, 2015 FCC ID: A4R-CAP1 Page 4 of 14 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: GOOGLE 1600 AMPITHEATER PARKWAY MOUNTAIN VIEW, CA 94043 EUT DESCRIPTION: BLE SMART DEVICE MODEL: CAP1 SERIAL NUMBER: JHPP41504000111 (RADIATED), JHPP41504000301 (RADIATED), PROTO 1 (CONDUCTED) DATE TESTED: MARCH 11, 2015 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 1 SUBPART I & PART 2 SUBPART J Pass UL Verification Services Inc. calculated the RF Exposure of the above equipment in accordance with the requirements set forth in the above standards, using test results reported in the test report documents referenced below and/or documentation furnished by the applicant. All indications of Pass/Fail in this report are opinions expressed by UL Verification Services Inc. based on interpretations of these calculations. The results show that the equipment is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL Verification Services Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL Verification Services Inc. will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government. Approved & Released For UL Verification Services Inc. By: Calculated By: FRANCISCO DE ANDA JOSEPH GOMEZ PROJECT LEAD EMC ENGINEER UL Verification Services Inc. UL Verification Services Inc. REPORT NO: 15U20041-3A DATE: APRIL 20, 2015 FCC ID: A4R-CAP1 Page 5 of 14 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. 2. TEST METHODOLOGY All calculations were made in accordance with FCC OET Bulletin 65 Edition 97-01. 3. REFERENCES Measurements were made as documented in test report UL Verification Services Inc. Document 15U20041-1 FCC IC BLE Report for operation in the 2.4 GHz band. Output power, Duty cycle and Antenna gain data is excerpted from the applicable test reports. Antenna gain data is excerpted from product documentation provided by the applicant. 4. FACILITIES AND ACCREDITATION The test sites and measurement facilities used to collect data are located at 47173 Benicia Street, Fremont, California, USA. UL Verification Services Inc. is accredited by NVLAP, Laboratory Code 200065-0. The full scope of accreditation can be viewed at http://ts.nist.gov/standards/scopes/2000650.htm. REPORT NO: 15U20041-3A DATE: APRIL 20, 2015 FCC ID: A4R-CAP1 Page 6 of 14 UL VERIFICATION S…

Text truncated - open the document above for the full version.

FCC 47 CFR PART 15 SUBPART C BLUETOOTH LOW ENERGY CERTIFICATION TEST REPORT FOR SMART BLE DEVICE MODEL NUMBER: CAP1 FCC ID: A4R-CAP1 REPORT NUMBER: 15U20041-1, Revision B ISSUE DATE: April 20, 2015 Prepared for GOOGLE 1600 AMPHITHEATRE PARKWAY MOUNTAIN VIEW CA, 94043, US Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 15U20041-1B DATE: April 20, 2015 FCC ID: A4R-CAP1 Page 2 of 54 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By -- 3/16/15 Initial Issue F. de Anda A 4/13/15 Correction to product description G. Rincand B 4/20/15 Update -Section 5.2 with PK power data F. de Anda REPORT NO: 15U20041-1B DATE: April 20, 2015 FCC ID: A4R-CAP1 Page 3 of 54 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 5 2. TEST METHODOLOGY ..................................................................................................... 6 3. FACILITIES AND ACCREDITATION ................................................................................. 6 4. CALIBRATION AND UNCERTAINTY ................................................................................ 6 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 6 4.2. SAMPLE CALCULATION ............................................................................................ 6 4.3. MEASUREMENT UNCERTAINTY ............................................................................... 7 5. EQUIPMENT UNDER TEST ............................................................................................... 8 5.1. DESCRIPTION OF EUT .............................................................................................. 8 5.2. MAXIMUM OUTPUT POWER...................................................................................... 8 5.3. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 8 5.4. SOFTWARE AND FIRMWARE .................................................................................... 8 5.5. WORST-CASE CONFIGURATION AND MODE .......................................................... 8 5.6. DESCRIPTION OF TEST SETUP ................................................................................ 9 6. TEST AND MEASUREMENT EQUIPMENT ......................................................................13 7. MEASUREMENT METHODS ............................................................................................14 8. ANTENNA PORT TEST RESULTS ...................................................................................15 8.1. ON TIME, DUTY CYCLE AND MEASUREMENT METHODS .....................................15 8.1.1. ON TIME AND DUTY CYCLE RESULTS .............................................................15 8.1.2. 91.95 ...................................................................................................................15 8.1.3. 1111DUTY CYCLE PLOTS ..................................................................................15 8.1.4. 6 dB BANDWIDTH ...............................................................................................16 8.1.5. AVERAGE POWER .............................................................................................20 8.1.6. OUTPUT POWER ...............................................................................................21 8.1.7. POWER SPECTRAL DENSITY ...........................................................................25 8.1.8. CONDUCTED SPURIOUS EMISSIONS ..............................................................29 9. RADIATED TEST RESULTS .............................................................................................33 9.1. LIMITS AND PROCEDURE ........................................................................................33 9.2. TRANSMITTER ABOVE 1 GHz ..................................................................................34 9.3. TX ABOVE 1 GHz FOR BLUETOOTH LOW ENERGY MODE IN THE 2.4 GHz BAND 34 9.4. WORST-CASE BELOW 1 GHz ...................................................................................44 9.5. WORST-CASE 18 to 26 GHz ......................................................................................46 10. AC POWER LINE CONDUCTED EMISSIONS ..............................................................48 REPORT NO: 15U20041-1B DATE: April 20, 2015 FCC ID: A4R-CAP1 Page 4 of 54 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 11. SETUP PHOTOS ...........................................................................................................52 REPORT NO: 15U20041-1B DATE: April 20, 2015 FCC ID: A4R-CAP1 Page 5 of 54 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: GOOGLE 1600 AMPITHEATER PARKWAY MOUNTAIN VIEW, CA 94043 EUT DESCRIPTION: SMART BLE DEVICE MODEL: CAP1 SERIAL NUMBER: JHPP41504000111 (RADIATED), JHPP41504000301 (RADIATED), PROTO 1 (CONDUCTED) DATE TESTED: MARCH 11, 2015 A…

Text truncated - open the document above for the full version.

REPORT NO: 15U20041-1B DATE: April 20, 2015 FCC ID: A4R-CAP1 Page 52 of 54 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 11. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP RADIATED RF MEASUREMENT SETUP (BELOW 1 GHz) ANTENNA PORT CONDUCTED PHOTO RADIATED PHOTO (BELOW 1 GHz) REPORT NO: 15U20041-1B DATE: April 20, 2015 FCC ID: A4R-CAP1 Page 53 of 54 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. RADIATED RF MEASUREMENT SETUP (ABOVE 1 GHz) RADIATED FRONT PHOTO (ABOVE 1 GHz) RADIATED BACK PHOTO (ABOVE 1 GHz) REPORT NO: 15U20041-1B DATE: April 20, 2015 FCC ID: A4R-CAP1 Page 54 of 54 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP END OF REPORT LINE CONDUCTED FRONT PHOTO LINE CONDUCTED BACK PHOTO
