A4RG025EPhone

f)using the certification only to indicate that the products are certified as being in conformity with specified standards; g)endeavoring to ensure that no certificate or report or any part thereof is used in a misleading manner; h)ensuring that any reference to the product certification in communication media such as documents, brochures, or advertising, complies with Sporton’s requirements; i)keeping a record of all complaints made known to Google relating to the product’s compliance with the requirements of the relevant standard and making these records available to the applicable authorities when requested; j)taking appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; and k)documenting the actions taken. This authorization is valid until further written notice from Google. Sincerely Yours, John McNulty Head of Safety and Compliance Engineering Google LLC 1600 Amphitheatre Parkway Mountain View, CA 94043 T: 650-253-0646 E: [email protected] 2

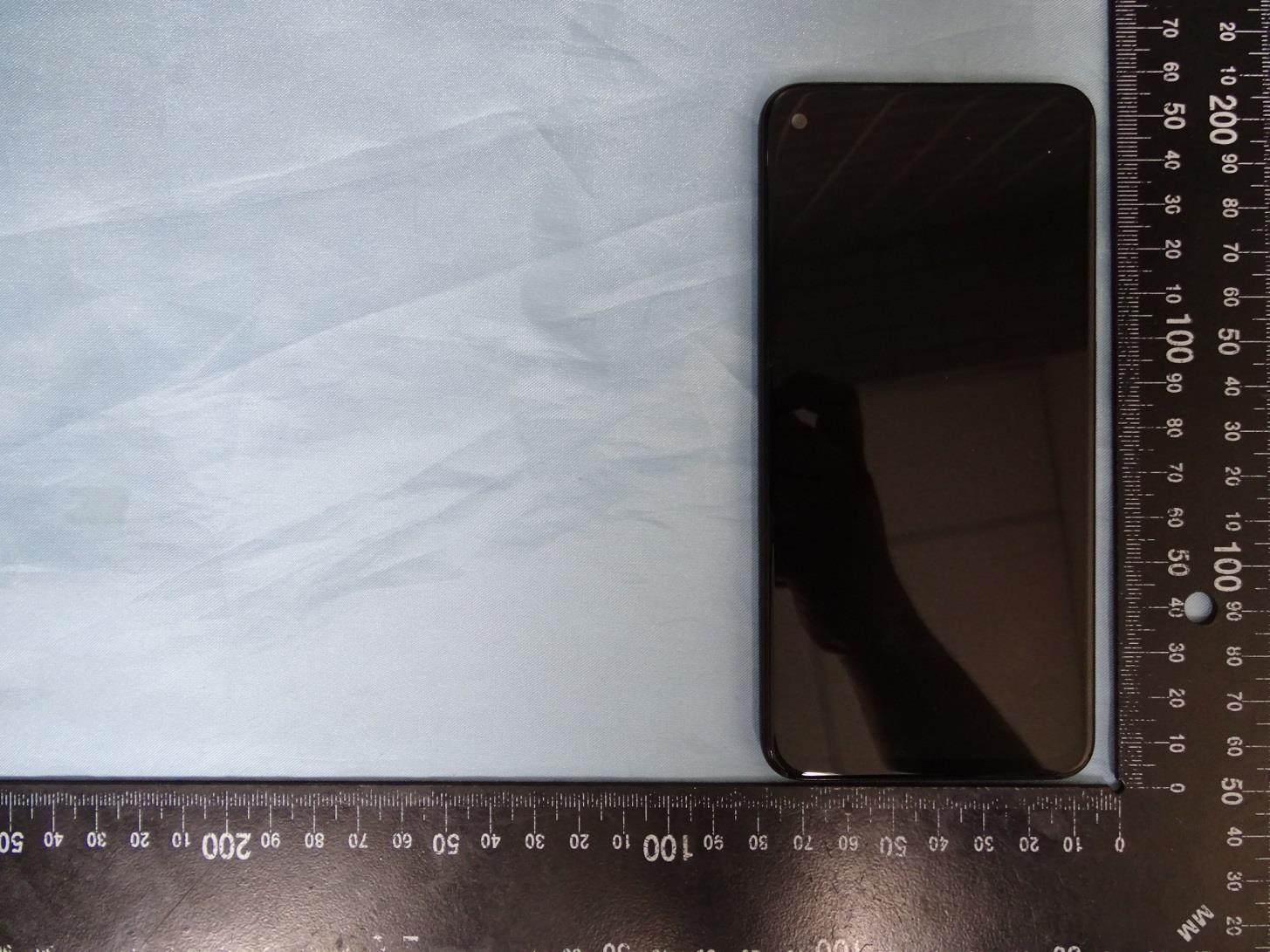

PHOTOGRAPHS OF EUT Report No.: EP022521-02 Model Name: G025E TEL : 886-3-327-3456 Page Number : 1 of 6 FAX : 886-3-328-4978 Issued Date : Jul. 01, 2020 Report Version : 02 External Photograph of EUT PHOTOGRAPHS OF EUT Report No.: EP022521-02 Model Name: G025E TEL : 886-3-327-3456 Page Number : 2 of 6 FAX : 886-3-328-4978 Issued Date : Jul. 01, 2020 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP022521-02 Model Name: G025E TEL : 886-3-327-3456 Page Number : 3 of 6 FAX : 886-3-328-4978 Issued Date : Jul. 01, 2020 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP022521-02 Model Name: G025E TEL : 886-3-327-3456 Page Number : 4 of 6 FAX : 886-3-328-4978 Issued Date : Jul. 01, 2020 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP022521-02 Model Name: G025E TEL : 886-3-327-3456 Page Number : 5 of 6 FAX : 886-3-328-4978 Issued Date : Jul. 01, 2020 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP022521-02 Model Name: G025E TEL : 886-3-327-3456 Page Number : 6 of 6 FAX : 886-3-328-4978 Issued Date : Jul. 01, 2020 Report Version : 02 ─────THE END──── 720510

E-label Declaration FCC ID: A4RG025E FCC §2.935 Electronic labeling of radiofrequency devices. (a) Any radiofrequency device equipped with an integrated electronic display screen, or a radiofrequency device without an integrated screen that can only operate in conjunction with a device that has an electronic display screen, may display on the electronic display the FCC Identifier, any warning statements, or other information that the Commission’s rules would otherwise require to be shown on a physical label attached to the device. Information On e-label In Manual FCC ID number Yes No 15.19 Statement ​(“This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.”) No Yes Class B Digital Device user manual statement No Yes Caution to the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment No Yes Image of the e-label screen is provided below: (b) Devices displaying their FCC Identifier, warning statements, or other information electronically must make this information readily accessible on the electronic display. Users must be provided with prominent instructions on how to access the information in the operating instructions, inserts in packaging material, or other easily accessible format at the time of purchase. The access instructions may also be provided via the product-related website, if such a web site exists; the packaging material must provide specific instructions on how to locate the website information, and a copy of these instructions must be included in the application for equipment certification. The instruction on how to access the information is in the box in the Safety/Warranty/Regulatory booklet, and in the online version of the Safety/Warranty/Regulatory booklet: “​Regulatory information, certification, and compliance marks can be found with the following steps from the Home screen:​ Settings > About phone > Regulatory labels​.” (c) Devices displaying their FCC Identifier, warning statements, or other information electronically must permit access to the information without requiring special codes, accessories or permissions and the access to this information must not require more than three steps from the device setting menu. The number of steps does not include those steps for use of screen locks, passcodes or similar security protection designed to control overall device access. No special accessories or supplemental plug-ins are required to access the information. To access the e-label information, in the device from the Home screen: Select: Settings > About phone > Regulatory labels (d) The electronically displayed FCC Identifier, warning statements, or other information must be displayed electronically in a manner that is clearly legible without the aid of magnification; Yes (e) The necessary label information must be programmed by the responsible party and must be secured in such a manner that third-parties cannot modify it. The e-label information is pre-programmed by the grantee. The user cannot modify the e-label information. (f) Devices displaying their FCC Identifier, warning statements, or other information electronically must also be labeled, either on the device or its packaging, with the FCC Identifier or other information (such as a model number and identification of a webpage that hosts the relevant regulatory information) that permits the devices to be identified at the time of importation, marketing, and sales as complying with the FCC’s equipment authorization requirements. Devices can be labeled with a stick-on label, printing on the packaging, a label on a protective bag, or by similar means. Any removable label shall be of a type intended to survive normal shipping and handling and must only be removed by the customer after purchase. The FCC ID is present on the product packaging.

PHOTOGRAPHS OF EUT Report No.: EP022521-02 Model Name: G025E TEL : 886-3-327-3456 Page Number : 1 of 5 FAX : 886-3-328-4978 Issued Date : Jun. 26, 2020 Report Version : 01 Internal Photograph of EUT PHOTOGRAPHS OF EUT Report No.: EP022521-02 Model Name: G025E TEL : 886-3-327-3456 Page Number : 2 of 5 FAX : 886-3-328-4978 Issued Date : Jun. 26, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP022521-02 Model Name: G025E TEL : 886-3-327-3456 Page Number : 3 of 5 FAX : 886-3-328-4978 Issued Date : Jun. 26, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP022521-02 Model Name: G025E TEL : 886-3-327-3456 Page Number : 4 of 5 FAX : 886-3-328-4978 Issued Date : Jun. 26, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP022521-02 Model Name: G025E TEL : 886-3-327-3456 Page Number : 5 of 5 FAX : 886-3-328-4978 Issued Date : Jun. 26, 2020 Report Version : 01 ─────THE END──── 720510

TEL : 886-3-327-3456 Page : 1 of 13 FAX : 886-3-328-4978 Issued Date : Jun. 30, 2020 Form version: 180516 RF EXPOSURE EVALUATION REPORT Report No. : FA022521-02B RF EXPOSURE EVALUATION REPORT FCC ID : A4RG025E Equipment : Phone Model Name : G025E Applicant : Google LLC 1600 Amphitheatre Parkway, Mountain View, California, 94043 USA Standard : 47 CFR Part 2.1091 We, SPORTON INTERNATIONAL INC has been evaluated in accordance with 47 CFR Part 2.1091 for the device and pass the limit. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any agency of government. The results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) Approved by: Cona Huang / Deputy Manager TEL : 886-3-327-3456 Page : 2 of 13 FAX : 886-3-328-4978 Issued Date : Jun. 30, 2020 Form version: 180516 RF EXPOSURE EVALUATION REPORT Report No. : FA022521-02B Table of Contents 1. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ............................................................................. 4 2. MAXIMUM TUNE-UP LIMIT ........................................................................................................................ 5 3. RF EXPOSURE LIMIT INTRODUCTION .................................................................................................. 11 4. RADIO FREQUENCY RADIATION EXPOSURE EVALUATION ............................................................. 12 4.1. Power Density Calculation ............................................................................................................... 12 TEL : 886-3-327-3456 Page : 3 of 13 FAX : 886-3-328-4978 Issued Date : Jun. 30, 2020 Form version: 180516 RF EXPOSURE EVALUATION REPORT Report No. : FA022521-02B History of this test report Report No. Version Description Issued Date FA022521-02B Rev. 01 Initial issue of report Jun. 30, 2020 TEL : 886-3-327-3456 Page : 4 of 13 FAX : 886-3-328-4978 Issued Date : Jun. 30, 2020 Form version: 180516 RF EXPOSURE EVALUATION REPORT Report No. : FA022521-02B 1. Description of Equipment Under Test (EUT) Product Feature & Specification EUT Type Phone Model Name G025E FCC ID A4RG025E Wireless Technology and Frequency Range GSM850: 824.2 MHz ~ 848.8 MHz GSM1900: 1850.2 MHz ~ 1909.8 MHz WCDMA Band II: 1852.4 MHz ~ 1907.6 MHz WCDMA Band IV: 1712.4 MHz ~ 1752.6 MHz WCDMA Band V: 826.4 MHz ~ 846.6 MHz CDMA2000 BC0: 824.7 MHz ~ 848.31 MHz CDMA 2000 BC1: 1851.25 MHz ~ 1908.75 MHz CDMA 2000 BC10: 817.9 MHz ~ 823.1 MHz LTE Band 2: 1850.7 MHz ~ 1909.3 MHz LTE Band 4: 1710.7 MHz ~ 1754.3 MHz LTE Band 5: 824.7 MHz ~ 848.3 MHz LTE Band 7: 2502.5 MHz ~ 2567.5 MHz LTE Band 12: 699.7 MHz ~ 715.3 MHz LTE Band 13: 779.5 MHz ~ 784.5 MHz LTE Band 14: 790.5 MHz ~ 795.5 MHz LTE Band 17: 706.5 MHz ~ 713.5 MHz LTE Band 25: 1850.7 MHz ~ 1914.3 MHz LTE Band 26: 821.5 MHz ~ 841.5 MHz LTE Band 30: 2307.5 MHz ~ 2312.5 MHz LTE Band 38: 2572.5 MHz ~ 2617.5 MHz LTE Band 41: 2498.5 MHz ~ 2687.5 MHz LTE Band 48: 3550 MHz ~ 3700 MHz LTE Band 66: 1710.7 MHz ~ 1779.3 MHz LTE Band 71: 665.5 MHz ~ 695.5 MHz 5G NR n2 : 1850 MHz ~ 1910 MHz 5G NR n5 : 824 MHz ~ 849 MHz 5G NR n12 : 699 MHz ~ 716 MHz 5G NR n25 : 1850 MHz ~ 1915 MHz 5G NR n41 : 2496 MHz ~ 2690 MHz 5G NR n66 : 1710 MHz ~ 1780 MHz 5G NR n71 : 663 MHz ~ 698 MHz WLAN 2.4GHz Band: 2412 MHz ~ 2462 MHz WLAN 5.2GHz Band: 5180 MHz ~ 5240 MHz WLAN 5.3GHz Band: 5260 MHz ~ 5320 MHz WLAN 5.5GHz Band: 5500 MHz ~ 5720 MHz WLAN 5.8GHz Band: 5745 MHz ~ 5825 MHz Bluetooth: 2402 MHz ~ 2480 MHz NFC: 13.56 MHz Mode GSM/GPRS/EDGE AMR / RMC 12.2Kbps HSDPA HSUPA DC-HSDPA CDMA2000 : 1xRTT/1xEv-Do(Rev.0)/1xEv-Do(Rev.A) LTE: QPSK, 16QAM, 64QAM 5G NR: DFT-s-OFDM/CP-OFDM, Pi/2 BPSK/QPSK/16QAM/64QAM/256QAM WLAN: 802.11a/b/g/n/ac HT20 / HT40 / VHT20 / VHT40 / VHT80 Bluetooth BR/EDR/LE NFC:ASK Remark: The above EUT's information was declared by manufacturer. Please refer to the specifications or user's manual for more detailed description. Reviewed by: Jason Wang Report Producer: Wan Liu TEL : 886-3-327-3456 Page : 5 of 13 FAX : 886-3-328-4978 Issued Date : Jun. 30, 2020 Form version: 180516 RF EXPOSURE EVALUATION REPORT Report No. : FA022521-02B 2. Maximum Tune-up Limit General Note: 1. For each cellular band, the device has 5 antennas, the antenna selection is based on the connection quality condition, and only one antenna will transmit at a time. 2. The maximum power of the WWAN antenna will be selected to evaluate the power density <WWAN Maximum Power> Config0 Primary Transmitter Maximum Transmit Power Level (dBm) Radio Tech Band Number Antenna name DSI_0 Default GSM1Tx 850 ANT0 33.5 GSM2Tx 850 ANT0 32.5 GSM3Tx 850 ANT0 30.5 GSM4Tx 850 ANT0 29.5 GSM1Tx 1900 ANT2 30.5 GSM2Tx 1900 ANT2 29.7 GSM3Tx 1900 ANT2 28.0 GSM4Tx 1900 ANT2 27.0 WCDMA B2 ANT2 25.7 WCDMA B4 ANT2 25.7 WCDMA B5 ANT0 25.0 CDMA BC0 ANT0 25.5 CDMA BC1 ANT2 25.5 CDMA BC10 ANT0 25.5 LTE B2 ANT2 25.7 LTE B4 ANT2 25.7 LTE B5 ANT0 25.7 LTE B7 ANT2 25.7 LTE B12 ANT0 25.7 LTE B13 ANT0 25.2 LTE B14 ANT0 25.7 LTE B17 ANT0 25.7 LTE B25 ANT2 25.7 LTE B26 ANT0 25.7 LTE B30 ANT2 23.7 LTE B38 ANT2 25.7 LTE B41 ANT2 25.7 LTE B41_HPUE ANT2 27.0 LTE B48 ANT7 24.2 LTE B66 ANT2 25.7 LTE B71 ANT0 25.7 5G FR1 n2 ANT2 25.7 5G FR1 n5 ANT0 25.0 5G FR1 n12 ANT0 24.7 5G FR1 n25 ANT2 25.7 5G FR1 n41 ANT2 25.7 5G FR1 n41 ANT5 25.7 5G FR1 n41_HPUE ANT5 27.5 5G FR1 n66 ANT2 25.7 5G FR1 n71 ANT0 25.7 TEL : 886-3-327-3456 Page : 6 of 13 FAX : 886-3-328-4978 Issued Date : Jun. 30, 2020 Form version: 180516 RF EXPOSURE EVALUATION REPORT Report No. : FA022521-02B Config1 Secondary Transmitter Maximum Transmit Power Level (dBm) Radio Tech Band Number Antenna name DSI_0 Default GSM1Tx 850 ANT1 33.5 GSM2Tx 850 ANT1 32.5 GSM3Tx 850 ANT1 30.…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/5/11 System Check_Head_750MHz DUT: D750V3-1107 Communication System: CW ; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750_200511 Medium parameters used: f = 750 MHz; σ = 0.905 S/m; ε r = 40.878; ρ = 1000 kg/m 3 23.3 22.3 DASY5 Configuration: - Probe: ES3DV3 - SN3169; ConvF(6.68, 6.68, 6.68) @ 750 MHz; Calibrated: 2019/5/24 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn699; Calibrated: 2020/2/26 - Phantom: SAM_Left; Type: SAM; Serial: 1796 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.34 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 52.84 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 2.86 W/kg SAR(1 g) = 2 W/kg; SAR(10 g) = 1.33 W/kg Maximum value of SAR (measured) = 2.32 W/kg 0 dB = 2.32 W/kg = 3.65 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/5/12 System Check_Head_750MHz DUT: D750V3-1107 Communication System: CW ; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750_200512 Medium parameters used: f = 750 MHz; σ = 0.89 S/m; ε r = 40.696; ρ = 1000 3 kg/m Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: ES3DV3 - SN3184; ConvF(6.61, 6.61, 6.61) @ 750 MHz; Calibrated: 2019/9/25 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn916; Calibrated: 2019/12/17 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1684 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.32 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 52.28 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 2.73 W/kg SAR(1 g) = 1.99 W/kg; SAR(10 g) = 1.37 W/kg Maximum value of SAR (measured) = 2.28 W/kg 0 dB = 2.28 W/kg = 3.58 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/5/13 System Check_Head_750MHz DUT: D750V3-1107 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750_200513 Medium parameters used: f = 750 MHz; σ = 0.902 S/m; ε r = 41.754; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(9.88, 9.88, 9.88) @ 750 MHz; Calibrated: 2019/10/22 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn853; Calibrated: 2019/7/18 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1477 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.74 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 56.16 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 3.22 W/kg SAR(1 g) = 2.24 W/kg; SAR(10 g) = 1.5 W/kg Maximum value of SAR (measured) = 2.78 W/kg 0 dB = 2.78 W/kg = 4.44 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/5/24 System Check_Head_750MHz DUT: D750V3-1107 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750_200524 Medium parameters used: f = 750 MHz; σ = 0.917 S/m; ε r = 43.723; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(9.88, 9.88, 9.88) @ 750 MHz; Calibrated: 2019/10/22 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn853; Calibrated: 2019/7/18 - Phantom: SAM-Middle; Type: SAM; Serial: TP-1503 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.78 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 56.16 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 3.28 W/kg SAR(1 g) = 2.28 W/kg; SAR(10 g) = 1.53 W/kg Maximum value of SAR (measured) = 2.83 W/kg 0 dB = 2.83 W/kg = 4.52 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/6/7 System Check_Head_750MHz DUT: D750V3-1107 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750_200607 Medium parameters used: f = 750 MHz; σ = 0.893 S/m; ε r = 42.411; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(9.88, 9.88, 9.88) @ 750 MHz; Calibrated: 2019/10/22 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn853; Calibrated: 2019/7/18 - Phantom: SAM-Middle; Type: SAM; Serial: TP-1503 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.71 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 56.16 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 3.19 W/kg SAR(1 g) = 2.22 W/kg; SAR(10 g) = 1.49 W/kg Maximum value of SAR (measured) = 2.75 W/kg 0 dB = 2.75 W/kg = 4.39 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/6/7 System Check_Head_750MHz DUT: D750V3-1107 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750_200607 Medium parameters used: f = 750 MHz; σ = 0.891 S/m; ε r = 41.321; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(9.88, 9.88, 9.88) @ 750 MHz; Calibrated: 2019/10/22 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn853; Calibrated: 2019/7/18 - Phantom: SAM-Middle; Type: SAM; Serial: TP-1503 - Measurement SW: D…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/5/29 #01_GSM850_GPRS (4 Tx slots)_Right Cheek_Ch251 Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:2.08 Medium: HSL_850_200529 Medium parameters used: f = 849 MHz; σ = 0.901 S/m; ε r = 40.521; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: ES3DV3 - SN3184; ConvF(6.41, 6.41, 6.41) @ 848.8 MHz; Calibrated: 2019/9/25 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn916; Calibrated: 2019/12/17 - Phantom: SAM_Right; Type: QD000P40CD; Serial: TP:1683 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (71x71x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.11 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 31.20 V/m; Power Drift = -0.19 dB Peak SAR (extrapolated) = 1.22 W/kg SAR(1 g) = 0.871 W/kg; SAR(10 g) = 0.579 W/kg Maximum value of SAR (measured) = 0.975 W/kg 0 dB = 0.975 W/kg = -0.11 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/5/26 #02_GSM1900_GPRS (4 Tx slots)_Right Cheek_Ch810 Communication System: PCS; Frequency: 1909.8 MHz;Duty Cycle: 1:2.08 Medium: HSL_1900_200526 Medium parameters used: f = 1910 MHz; σ = 1.378 S/m; ε r = 39.655; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: ES3DV3 - SN3184; ConvF(5.23, 5.23, 5.23) @ 1909.8 MHz; Calibrated: 2019/9/25 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn916; Calibrated: 2019/12/17 - Phantom: SAM_Right; Type: QD000P40CD; Serial: TP:1683 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (71x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.395 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.36 V/m; Power Drift = -0.18 dB Peak SAR (extrapolated) = 0.410 W/kg SAR(1 g) = 0.312 W/kg; SAR(10 g) = 0.201 W/kg Maximum value of SAR (measured) = 0.343 W/kg 0 dB = 0.343 W/kg = -4.65 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/5/7 #03_WCDMA ll_RMC12.2Kbps_Right Cheek_Ch9538 Communication System: WCDMA; Frequency: 1907.6 MHz;Duty Cycle: 1:1 Medium: HSL_1900_200507 Medium parameters used: f = 1908 MHz; σ = 1.415 S/m; ε r = 40.417; ρ = 1000 kg/m 3 23.5 22.5 DASY5 Configuration: - Probe: ES3DV3 - SN3169; ConvF(5.14, 5.14, 5.14) @ 1907.6 MHz; Calibrated: 2019/5/24 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn699; Calibrated: 2020/2/26 - Phantom: SAM_Left; Type: SAM; Serial: 1796 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (61x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.793 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.70 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.949 W/kg SAR(1 g) = 0.637 W/kg; SAR(10 g) = 0.401 W/kg Maximum value of SAR (measured) = 0.746 W/kg 0 dB = 0.746 W/kg = -1.27 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/5/7 #04_WCDMA lV_RMC12.2Kbps_Right Cheek_Ch1513 Communication System: WCDMA; Frequency: 1752.6 MHz;Duty Cycle: 1:1 Medium: HSL_1750_200507 Medium parameters used: f = 1753 MHz; σ = 1.368 S/m; ε r = 39.699; ρ = 1000 kg/m 3 23.5 22.5 DASY5 Configuration: - Probe: ES3DV3 - SN3169; ConvF(5.34, 5.34, 5.34) @ 1752.6 MHz; Calibrated: 2019/5/24 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn699; Calibrated: 2020/2/26 - Phantom: SAM_Left; Type: SAM; Serial: 1796 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (71x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.523 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.33 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.675 W/kg SAR(1 g) = 0.455 W/kg; SAR(10 g) = 0.290 W/kg Maximum value of SAR (measured) = 0.526 W/kg 0 dB = 0.526 W/kg = -2.79 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/5/29 #05_WCDMA V_RMC 12.2Kbps_Right Cheek_Ch4233 Communication System: WCDMA; Frequency: 846.6 MHz;Duty Cycle: 1:1 Medium: HSL_850_200529 Medium parameters used: f = 847 MHz; σ = 0.899 S/m; ε r = 40.544; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: ES3DV3 - SN3184; ConvF(6.41, 6.41, 6.41) @ 846.6 MHz; Calibrated: 2019/9/25 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn916; Calibrated: 2019/12/17 - Phantom: SAM_Right; Type: QD000P40CD; Serial: TP:1683 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (71x71x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.03 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.482 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 1.13 W/kg SAR(1 g) = 0.827 W/kg; SAR(10 g) = 0.554 W/kg Maximum value of SAR (measured) = 0.905 W/kg 0 dB = 0.905 W/kg = -0.43 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/5/12 #06_CDMA BC0_1xRTT RC3 SO55_Right Cheek_Ch777 Communication System: CDMA; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium: HSL_850_200512 Medium parameters used: f = 848.31 MHz; σ = 0.905 S/m; ε r = 41.776; ρ = 1000 kg/m 3 23.3 22.3 DASY5 Configuration: - Probe: ES3DV3 - SN3169; ConvF(6.42, 6.42, 6.42) @ 848.31 MHz; Calibrated: 2019/5/24 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn699; Calibrated: 2020/2/26 - Phantom: SAM_Left; Type: SAM; Serial: 1796 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (71x131x1): Interp…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/5/22 #56_WLAN2.4GHz_820.11b 1Mbps_Back_10mm_Ch6 Communication System: 802.11b; Frequency: 2437 MHz;Duty Cycle: 1:1.011 Medium: HSL_2450_200522 Medium parameters used : f = 2437 MHz; σ = 1.824 S/m; ε r = 39.499; ρ = 3 1000 kg/m Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: ES3DV3 - SN3184; ConvF(4.69, 4.69, 4.69) @ 2437 MHz; Calibrated: 2019/9/25 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn916; Calibrated: 2019/12/17 - Phantom: SAM_Right; Type: QD000P40CD; Serial: TP:1683 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (91x101x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.563 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.75 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 0.807 W/kg SAR(1 g) = 0.436 W/kg; SAR(10 g) = 0.211 W/kg Maximum value of SAR (measured) = 0.567 W/kg Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.75 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 0.634 W/kg SAR(1 g) = 0.335 W/kg; SAR(10 g) = 0.172 W/kg Maximum value of SAR (measured) = 0.426 W/kg 0 dB = 0.426 W/kg = -3.71 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/5/21 #57_WLAN5GHz_802.11n-HT40 MCS0_Left Side_10mm_Ch46 Communication System: 802.11n; Frequency: 5230 MHz;Duty Cycle: 1:1.042 Medium: HSL_5G_200521 Medium parameters used: f = 5230 MHz; σ = 4.636 S/m; ε r = 37.482; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3925; ConvF(5.49, 5.49, 5.49) @ 5230 MHz; Calibrated: 2019/9/20 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn376; Calibrated: 2019/12/6 - Phantom: SAM_Right; Type: SAM; Serial: TP:1681 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (61x101x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.06 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 11.13 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 1.69 W/kg SAR(1 g) = 0.444 W/kg; SAR(10 g) = 0.139 W/kg Maximum value of SAR (measured) = 1.07 W/kg 0 dB = 1.07 W/kg = 0.29 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/5/21 #58_WLAN5GHz_802.11ac-VHT80 MCS0_Left Side_10mm_Ch155 Communication System: 802.11ac; Frequency: 5775 MHz;Duty Cycle: 1:1.087 Medium: HSL_5G_200521 Medium parameters used: f = 5775 MHz; σ = 5.189 S/m; ε r = 36.702; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3925; ConvF(5.22, 5.22, 5.22) @ 5775 MHz; Calibrated: 2019/9/20 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn376; Calibrated: 2019/12/6 - Phantom: SAM_Right; Type: SAM; Serial: TP:1681 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (61x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.661 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 8.609 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 1.54 W/kg SAR(1 g) = 0.370 W/kg; SAR(10 g) = 0.111 W/kg Maximum value of SAR (measured) = 0.916 W/kg 0 dB = 0.916 W/kg = -0.38 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/5/22 #59_Bluetooth_1Mbps_Back_10mm_Ch0 Communication System: Bluetooth; Frequency: 2402 MHz;Duty Cycle: 1:1.297 Medium: HSL_2450_200522 Medium parameters used : f = 2402 MHz; σ = 1.784 S/m; ε r = 39.592; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: ES3DV3 - SN3184; ConvF(4.69, 4.69, 4.69) @ 2402 MHz; Calibrated: 2019/9/25 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn916; Calibrated: 2019/12/17 - Phantom: SAM_Right; Type: QD000P40CD; Serial: TP:1683 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (91x101x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.389 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.10 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.537 W/kg SAR(1 g) = 0.294 W/kg; SAR(10 g) = 0.140 W/kg Maximum value of SAR (measured) = 0.385 W/kg 0 dB = 0.385 W/kg = -4.15 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/5/29 #60_GSM850_GPRS (4 Tx slots)_Back_10mm_Ch251 Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:2.08 Medium: HSL_850_20052…

Text truncated - open the document above for the full version.
