A4RG1F8FPhone

Google LLC 1600 Amphitheatre Parkway Mountain View, CA 94043 650 253-0000 main Google.com Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 March 31, 2021 Subject: Request for Confidentiality FCC ID: A4RG1F8F To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 C.F.R. §§ 0.457, 0.459), we request that the Commission withhold the following attachments as confidential documents from public disclosure indefinitely. ●Schematic Diagram ●Block Diagram ●Theory of Operation (Operational and Technical Descriptions) ●Tune Up Procedure In support of this request, we provide the following information: 1.Identification of the specific information for which confidential treatment is sought (§ 0.459(b)(1)): We request that all of the information contained in the above-referenced exhibits to the certification application be withheld from routine public disclosure. 2.Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission (§ 0.459(b)(2)):The material is being submitted in connection with our certification application for the above-captioned FCC ID. 3.Explanation of the degree to which the information is commercial, or financial or contains a trade secret or is privileged (§ 0.459(b)(3)):The market for the technology that is the subject of the certification application is highly competitive, with numerous companies competing for the business of potential customers. Were competitors to become aware of the facts set forth in the above-referenced exhibits to the application at this time, it could have an adverse impact on our competitive standing and deprive us of the marketplace benefit we otherwise might achieve by virtue of having the product available before other competitors. If any of the information for which confidential treatment is sought was made publicly available, competitors could reasonably determine the scope and status of our activities. 4.Explanation of the degree to which the information concerns a service that is competitive (§ 0.459(b)(4)):The technology that is the subject of the certification application is subject to intense competition from other manufacturers and service providers that are developing competing services and technology. 5.Explanationofhowdisclosureoftheinformationcouldresultinsubstantialcompetitiveharm(§ 0.459(b)(5)):Asnotedabove,wereourcompetitorstobecomeawareofthefactssetforthinthe above-referencedexhibitstotheapplication,itcouldhaveanadverseimpactonourcompetitive standinganddepriveusofthemarketplacebenefitweotherwisewouldachievebyvirtueofhavingthe product available before other providers. 6.Identificationofanymeasurestakenbytherequestingpartytopreventunauthorizeddisclosure(§ 0.459(b)(6)):Theinformationcontainedintheabove-referencedexhibitstothecertificationapplication hasbeenstrictlycontrolledbyus,withdistributionlimitedtointernaluseonlyandforthespecific purpose of conducting research, development, and testingof the technology. 7.Identificationofwhethertheinformationisavailabletothepublicandtheextentofanyprevious disclosuresoftheinformationtoanythirdparties(§0.459(b)(7)):Theinformationthatwerequest bemaintainedasconfidentialisnotavailablepublicly.Theinformationhasbeenprotectedandkept confidential by limiting external contacts to privilegedand confidential communications. 8.Justificationoftheperiodduringwhichthesubmittingpartyassertsthatmaterialshouldnotbe availableforpublicdisclosure(§0.459(b)(8)):Giventhecompetitivenatureofthemarketplace,any disclosurethatwehavedevelopedthetechnologydiscussedintheabove-referencedexhibitstothe certificationapplicationwouldharmourcompetitiveposition.Theinformationsubjecttothisrequest for confidentiality should not be made available forpublic disclosure at any time. In addition, pursuant to Public Notice DA 04-1705,and in order to comply with the marketing regulationsin 47 C.F.R. §2.803 and the importation rules in 47 C.F.R.§2.1204 while ensuring that business-sensitive information remains confidential until the actual marketing ofnewly authorized devices, we also request that the Commission grant temporary confidential treatmentand not release the following attachments for routinepublic disclosure until 180 days after the grant date. ●External Photos ●Internal Photos ●Test Setup Photos ●User Manual It is our understanding that test measurement reportsand correspondence during the certification reviewprocess cannot be granted confidential treatment, and suchinformation will be available for public review oncethe grant of equipment authorization is issued. Sincerely yours, John McNulty Head of Safety and Compliance Engineering Google LLC 1600 Amphitheatre Parkway Mountain View, CA 94043 T: 415-806-7704 E: [email protected] 2

Google LLC 1600 Amphitheatre Parkway Mountain View, CA 94043 650 253-0000 main Google.com Date: March 31, 2021 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: A4RG1F8F To Whom It May Concern: I, the undersigned, hereby authorize Sporton International Inc. (Sporton) to act on Google LLC’s (Google) behalf in all manners relating to the above-captioned application for equipment authorization, including signing of all documents relating to this matter. Any and all acts carried out by Sporton on Google’s behalf shall have the same effect as acts of Google’s own. I, the undersigned, hereby certify that Google is not subject to a denial of federal benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.§ 853(a). In authorizing Sporton as Google’s representative, Google recognizes that it is still responsible for: a) complying with the relevant provisions of the certification program; b) making all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) making claims regarding certification only in respect of the scope for which certification has been granted; d) not using the product certification in such a manner as to bring Sporton into disrepute and not making any statement regarding the product certification that Sporton may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinuing the use of all advertising matter that contains any reference thereto and return any certification documents as required by Sporton; f)using the certification only to indicate that theproducts are certified as being in conformity with specified standards; g)endeavoring to ensure that no certificate or reportor any part thereof is used in a misleading manner; h)ensuring that any reference to the product certificationin communication media such as documents, brochures, or advertising, complieswith Sporton’s requirements; i)keeping a record of all complaints made known to Googlerelating to the product’s compliance with the requirements of therelevant standard and making these records available to the applicable authoritieswhen requested; j)taking appropriate action with respect to such complaintsand any deficiencies found in products or services that affect compliancewith the requirements for certification; and k)documenting the actions taken. This authorization is valid until further writtennotice from Google. Sincerely Yours, John McNulty Head of Safety and Compliance Engineering Google LLC 1600 Amphitheatre Parkway Mountain View, CA 94043 T: 415-806-7704 E: [email protected] 2

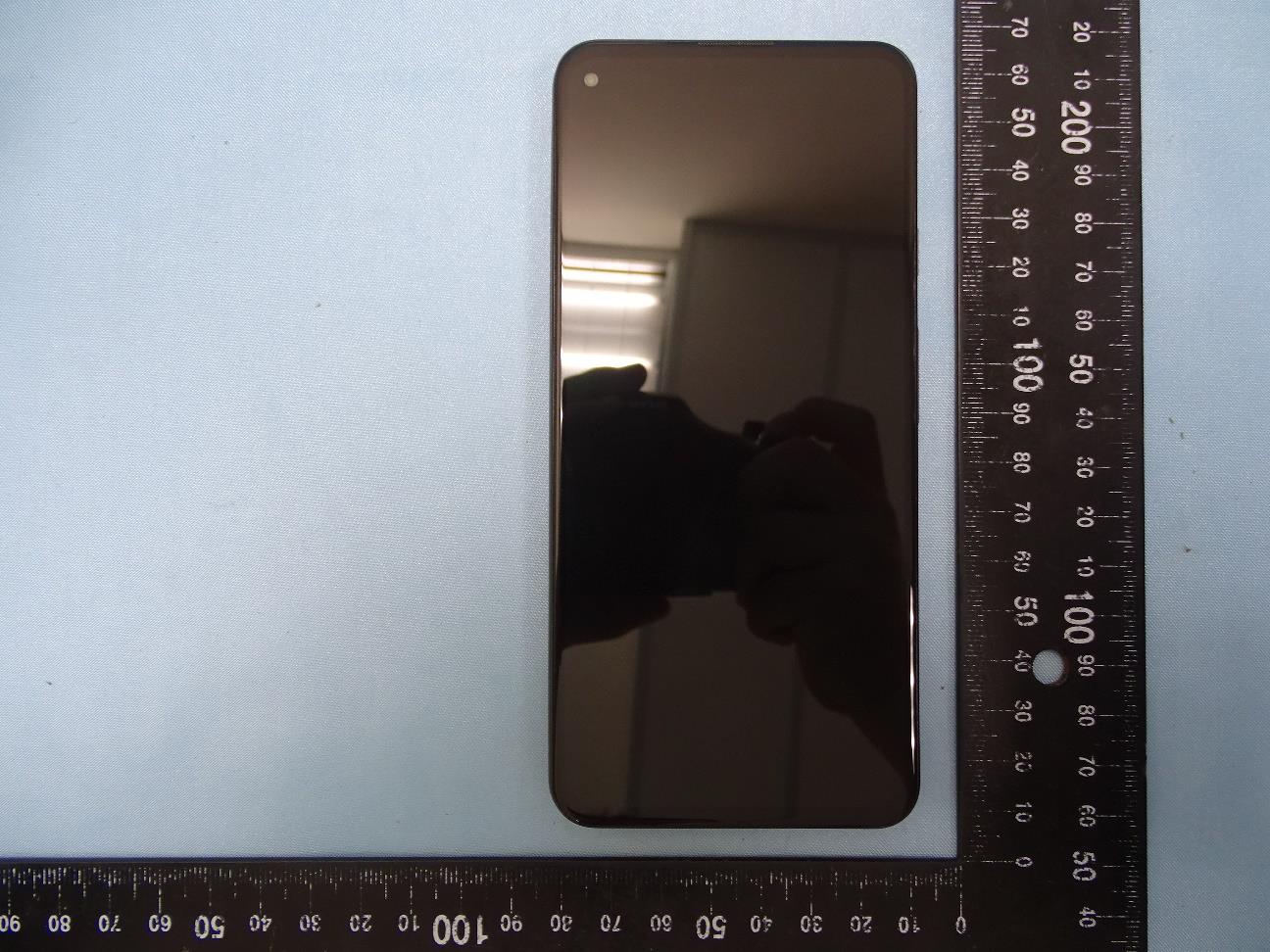

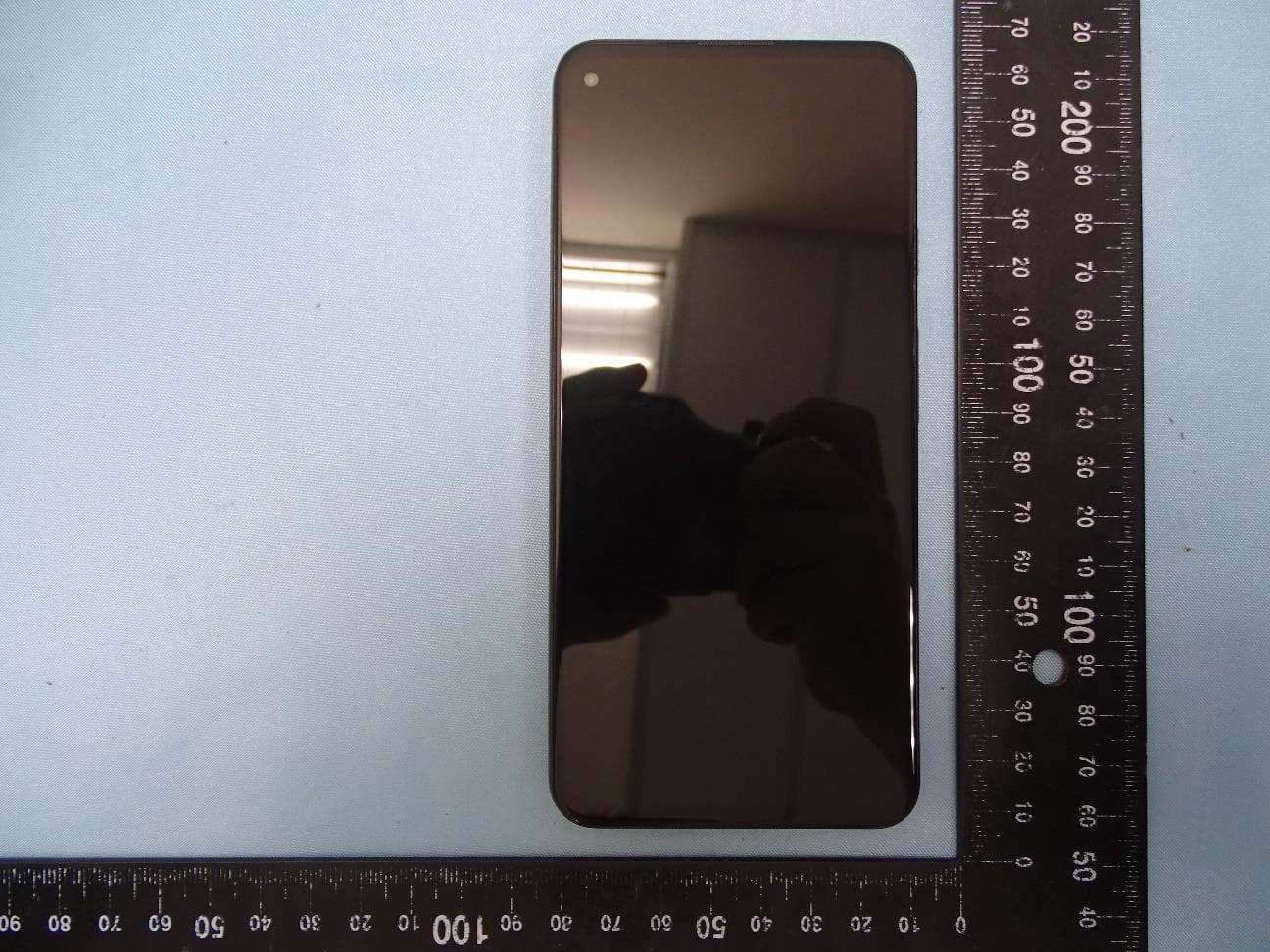

PHOTOGRAPHS OF EUT Report No.: EP0O1507-01 TEL : 886-3-327-3456 Page Number : 1 of 6 FAX : 886-3-328-4978 Issued Date : Mar. 24, 2021 Report Version : 01 External Photograph of EUT Model Name: G1F8F PHOTOGRAPHS OF EUT Report No.: EP0O1507-01 TEL : 886-3-327-3456 Page Number : 2 of 6 FAX : 886-3-328-4978 Issued Date : Mar. 24, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O1507-01 TEL : 886-3-327-3456 Page Number : 3 of 6 FAX : 886-3-328-4978 Issued Date : Mar. 24, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O1507-01 TEL : 886-3-327-3456 Page Number : 4 of 6 FAX : 886-3-328-4978 Issued Date : Mar. 24, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O1507-01 TEL : 886-3-327-3456 Page Number : 5 of 6 FAX : 886-3-328-4978 Issued Date : Mar. 24, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O1507-01 TEL : 886-3-327-3456 Page Number : 6 of 6 FAX : 886-3-328-4978 Issued Date : Mar. 24, 2021 Report Version : 01 ─────THE END────

E-label Declaration FCC ID: A4RG1F8F FCC §2.935 Electronic labeling of radiofrequency devices. (a) Any radiofrequency device equipped with an integratedelectronic display screen, or a radiofrequency device without an integrated screenthat can only operate in conjunction with a device that has an electronic display screen, maydisplay on the electronic display the FCC Identifier, any warning statements, or other informationthat the Commission’s rules would otherwise require to be shown on a physical labelattached to the device. InformationOn e-labelIn Manual FCC ID numberYesNo 15.19 Statement(“This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.”) NoYes Class B Digital Device user manual statementNoYes Caution to the user that changes or modificationsnot expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment NoYes Image of the e-label screen is provided below: (b) Devices displaying their FCC Identifier, warningstatements, or other information electronically must make this information readilyaccessible on the electronic display. Users must be provided with prominent instructions on howto access the information in the operating instructions, inserts in packaging material,or other easily accessible format at the time of purchase. The access instructions may alsobe provided via the product-related website, if such a web site exists; the packagingmaterial must provide specific instructions on how to locate the website information, and a copyof these instructions must be included in the application for equipment certification. The instruction on how to access the information is in the box in the Safety/Warranty/Regulatory booklet, and in the onlineversion of the Safety/Warranty/Regulatory booklet: “ Regulatory information, certification, and compliancemarks can be found with the following steps from the Home screen:Settings > About phone> Regulatory labels.” (c) Devices displaying their FCC Identifier, warningstatements, or other information electronically must permit access to the informationwithout requiring special codes, accessories or permissions and the access to thisinformation must not require more than three steps from the device setting menu. The number ofsteps does not include those steps for use of screen locks, passcodes or similar security protectiondesigned to control overall device access. No special accessories or supplemental plug-ins arerequired to access the information. To access the e-label information, in the device fromthe Home screen: Select: Settings > About phone > Regulatory labels (d) The electronically displayed FCC Identifier, warningstatements, or other information must be displayed electronically in a manner thatis clearly legible without the aid of magnification; Yes (e) The necessary label information must be programmedby the responsible party and must be secured in such a manner that third-parties cannotmodify it. The e-label information is pre-programmed by the grantee.The user cannot modify the e-label information. (f) Devices displaying their FCC Identifier, warningstatements, or other information electronically must also be labeled, either on thedevice or its packaging, with the FCC Identifier or other information (such as a model numberand identification of a webpage that hosts the relevant regulatory information) that permitsthe devices to be identified at the time of importation, marketing, and sales as complyingwith the FCC’s equipment authorization requirements. Devices can be labeled with a stick-onlabel, printing on the packaging, a label on a protective bag, or by similar means. Any removablelabel shall be of a type intended to survive normal shipping and handling and must onlybe removed by the customer after purchase. The FCC ID is present on the product packaging.

PHOTOGRAPHS OF EUT Report No.: EP0O1507-01 TEL : 886-3-327-3456 Page Number : 1 of 5 FAX : 886-3-328-4978 Issued Date : Mar. 24, 2021 Report Version : 01 Internal Photograph of EUT Model Name: G1F8F PHOTOGRAPHS OF EUT Report No.: EP0O1507-01 TEL : 886-3-327-3456 Page Number : 2 of 5 FAX : 886-3-328-4978 Issued Date : Mar. 24, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O1507-01 TEL : 886-3-327-3456 Page Number : 3 of 5 FAX : 886-3-328-4978 Issued Date : Mar. 24, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O1507-01 TEL : 886-3-327-3456 Page Number : 4 of 5 FAX : 886-3-328-4978 Issued Date : Mar. 24, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0O1507-01 TEL : 886-3-327-3456 Page Number : 5 of 5 FAX : 886-3-328-4978 Issued Date : Mar. 24, 2021 Report Version : 01 ─────THE END────

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/12/22 System Check_Head_750MHz DUT: D750V3-1107 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750_201222 Medium parameters used: f = 750 MHz; σ = 0.893 S/m; ε r = 41.376; ρ 3 = 1000 kg/m 23.3 22.3 DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(6.44, 6.44, 6.44) @ 750 MHz; Calibrated: 2020/9/23 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2020/7/21 - Phantom: SAM_Left; Type: SAM; Serial: 1796 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.57 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 58.57 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 3.10 W/kg SAR(1 g) = 2.04 W/kg; SAR(10 g) = 1.36 W/kg Maximum value of SAR (measured) = 2.59 W/kg 0 dB = 2.59 W/kg = 4.13 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/12/24 System Check_Head_750MHz DUT: D750V3-1107 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750_201224 Medium parameters used: f = 750 MHz; σ = 0.894 S/m; ε r = 43.582; ρ = 1000 kg/m 3 23.5 22.5 DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(6.44, 6.44, 6.44) @ 750 MHz; Calibrated: 2020/9/23 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2020/7/21 - Phantom: SAM_Left; Type: SAM; Serial: 1796 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.67 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 58.85 V/m; Power Drift = -0.17 dB Peak SAR (extrapolated) = 3.34 W/kg SAR(1 g) = 2.25 W/kg; SAR(10 g) = 1.49 W/kg Maximum value of SAR (measured) = 2.64 W/kg 0 dB = 2.64 W/kg = 4.22 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/12/27 System Check_Head_750MHz DUT: D750V3-1107 Communication System: CW ; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750_201227 Medium parameters used: f = 750 MHz; σ = 0.885 S/m; ε r = 42.251; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(10.19, 10.19, 10.19) @ 750 MHz; Calibrated: 2020/10/22 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn699; Calibrated: 2020/2/26 - Phantom: SAM-Middle; Type: SAM; Serial: TP-1503 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.02 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 61.72 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 3.24 W/kg SAR(1 g) = 2.22 W/kg; SAR(10 g) = 1.49 W/kg Maximum value of SAR (measured) = 2.88 W/kg 0 dB = 2.88 W/kg = 4.59 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/12/29 System Check_Head_750MHz DUT: D750V3-1107 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750_201229 Medium parameters used: f = 750 MHz; σ = 0.893 S/m; ε r = 41.547; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: ES3DV3 - SN3184; ConvF(6.64, 6.64, 6.64) @ 750 MHz; Calibrated: 2020/9/23 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1424; Calibrated: 2020/1/24 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1684 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.31 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 52.17 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 2.82 W/kg SAR(1 g) = 1.98 W/kg; SAR(10 g) = 1.34 W/kg Maximum value of SAR (measured) = 2.28 W/kg 0 dB = 2.28 W/kg = 3.58 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/12/31 System Check_Head_750MHz DUT: D750V3-1107 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750_201231 Medium parameters used: f = 750 MHz; σ = 0.903 S/m; ε r = 41.845; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: ES3DV3 - SN3184; ConvF(6.64, 6.64, 6.64) @ 750 MHz; Calibrated: 2020/9/23 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1424; Calibrated: 2020/1/24 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1684 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.63 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 56.39 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 3.24 W/kg SAR(1 g) = 2.23 W/kg; SAR(10 g) = 1.47 W/kg Maximum value of SAR (measured) = 2.61 W/kg 0 dB = 2.61 W/kg = 4.17 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/1/3 System Check_Head_750MHz DUT: D750V3-1107 Communication System: CW ; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750_210103 Medium parameters used: f = 750 MHz; σ = 0.907 S/m; ε r = 41.719; ρ = 1000 3 kg/m Ambient Temperature：23.9 °C; Liquid Temperature：22.9 °C DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(10.19, 10.19, 10.19) @ 750 MHz; Calibrated: 2020/10/22 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn699; Calibrated: 2020/2/26 - Phantom: SAM-Middle; Type: SAM; Serial: TP-1503 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Versi…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/1/2 #01_GSM 850_GPRS (4 Tx slots)_Right Cheek_Ch251 Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:2.08 Medium: HSL_850_210102 Medium parameters used: f = 849 MHz; σ = 0.946 S/m; ε r = 42.684; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: ES3DV3 - SN3184; ConvF(6.52, 6.52, 6.52) @ 848.8 MHz; Calibrated: 2020/9/23 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1424; Calibrated: 2020/1/24 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1684 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (71x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.880 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 27.86 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 1.27 W/kg SAR(1 g) = 0.681 W/kg; SAR(10 g) = 0.437 W/kg Maximum value of SAR (measured) = 0.756 W/kg 0 dB = 0.756 W/kg = -1.21 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/1/21 #02_GSM1900_GPRS (4 Tx slots)_Left Cheek_Ch810 Communication System: PCS; Frequency: 1909.8 MHz;Duty Cycle: 1:2.08 Medium: HSL_1900_210121 Medium parameters used: f = 1910 MHz; σ = 1.456 S/m; ε r = 41.185; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(8.15, 8.15, 8.15) @ 1909.8 MHz; Calibrated: 2020/10/22 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn699; Calibrated: 2020/2/26 - Phantom: SAM-Middle; Type: SAM; Serial: TP-1503 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (81x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.216 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.00 V/m; Power Drift = -0.18 dB Peak SAR (extrapolated) = 0.234 W/kg SAR(1 g) = 0.147 W/kg; SAR(10 g) = 0.088 W/kg Maximum value of SAR (measured) = 0.203 W/kg 0 dB = 0.203 W/kg = -6.93 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/1/4 #03_WCDMA II_RMC 12.2Kbps_Left Cheek_Ch9262 Communication System: WCDMA; Frequency: 1852.4 MHz;Duty Cycle: 1:1 Medium: HSL_1900_210104 Medium parameters used: f = 1852.4 MHz; σ = 1.381 S/m; ε r = 39.762; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(8.15, 8.15, 8.15) @ 1852.4 MHz; Calibrated: 2020/10/22 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn699; Calibrated: 2020/2/26 - Phantom: SAM-Middle; Type: SAM; Serial: TP-1503 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.333 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.003 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.395 W/kg SAR(1 g) = 0.254 W/kg; SAR(10 g) = 0.155 W/kg Maximum value of SAR (measured) = 0.345 W/kg 0 dB = 0.345 W/kg = -4.62 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/1/10 #04_WCDMA IV_RMC 12.2Kbps_Left Cheek_0mm_Ch1513 Communication System: WCDMA; Frequency: 1752.6 MHz;Duty Cycle: 1:1 Medium: HSL_1750_210110 Medium parameters used: f = 1753 MHz; σ = 1.38 S/m; ε r = 40.814; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(8.61, 8.61, 8.61) @ 1752.6 MHz; Calibrated: 2020/10/22 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn699; Calibrated: 2020/2/26 - Phantom: SAM-Middle; Type: SAM; Serial: TP-1503 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (71x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.562 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.92 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.641 W/kg SAR(1 g) = 0.418 W/kg; SAR(10 g) = 0.261 W/kg Maximum value of SAR (measured) = 0.555 W/kg 0 dB = 0.555 W/kg = -2.56 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/1/2 #05_WCDMA V_RMC 12.2Kbps_Right Cheek_Ch4132 Communication System: WCDMA; Frequency: 826.4 MHz;Duty Cycle: 1:1 Medium: HSL_850_210102 Medium parameters used : f = 826.4 MHz; σ = 0.931 S/m; ε r = 42.814; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: ES3DV3 - SN3184; ConvF(6.52, 6.52, 6.52) @ 826.4 MHz; Calibrated: 2020/9/23 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1424; Calibrated: 2020/1/24 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1684 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (71x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.898 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 28.00 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 1.35 W/kg SAR(1 g) = 0.696 W/kg; SAR(10 g) = 0.447 W/kg Maximum value of SAR (measured) = 0.796 W/kg 0 dB = 0.796 W/kg = -0.99 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/1/19 #06_CDMA BC0_1xRTT RC3 SO55_Right Cheek_Ch1013 Communication System: CDMA ; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: HSL_850_210119 Medium parameters used: f = 825 MHz; σ = 0.9 S/m; ε r = 41.994; ρ = 1000 kg/m 3 Ambient Temperature：23.7 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(9.81, 9.81, 9.81) @ 824.7 MHz; Calibrated: 2020/10/22 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn699; Calibrated: 20…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/12/28 #57_FR1 n77_100M_BPSK_1_271_Back_10mm_Ch656000 Communication System: FR1; Frequency: 3840 MHz;Duty Cycle: 1:4 Medium: HSL_3900_201228 Medium parameters used: f = 3840 MHz; σ = 3.335 S/m; ε r = 37.382; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(6.52, 6.52, 6.52) @ 3840 MHz; Calibrated: 2020/10/22 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn699; Calibrated: 2020/2/26 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1477 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (91x91x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.889 W/kg Zoom Scan (7x7x8)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=1.4mm Reference Value = 12.39 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 1.24 W/kg SAR(1 g) = 0.478 W/kg; SAR(10 g) = 0.193 W/kg Maximum value of SAR (measured) = 0.885 W/kg 0 dB = 0.885 W/kg = -0.53 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/1/18 #58_WLAN2.4GHz_802.11b 1Mbps_Back_10mm_Ch11;Ant 4+3 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: HSL_2450_210118 Medium parameters used: f = 2462 MHz; σ = 1.775 S/m; ε r = 38.8; ρ = 1000 kg/m 3 Ambient Temperature：23.7 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3925; ConvF(7.64, 7.64, 7.64) @ 2462 MHz; Calibrated: 2020/9/24 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2020/6/4 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1682 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (101x121x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.551 W/kg Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.72 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.441 W/kg SAR(1 g) = 0.215 W/kg; SAR(10 g) = 0.117 W/kg Maximum value of SAR (measured) = 0.353 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.72 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.785 W/kg SAR(1 g) = 0.357 W/kg; SAR(10 g) = 0.170 W/kg Maximum value of SAR (measured) = 0.617 W/kg 0 dB = 0.617 W/kg = -2.10 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/1/19 #59_WLAN5GHz_802.11n-HT40 MCS0_Right Side_10mm_Ch46;Ant 4 Communication System: 802.11n; Frequency: 5230 MHz;Duty Cycle: 1:1.043 Medium: HSL_5G_210119 Medium parameters used: f = 5230 MHz; σ = 4.565 S/m; ε r = 36.96; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3925; ConvF(5.5, 5.5, 5.5) @ 5230 MHz; Calibrated: 2020/9/24 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2020/6/4 - Phantom: SAM_Right; Type: SAM; Serial: TP:1681 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (61x111x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.741 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 6.826 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 1.15 W/kg SAR(1 g) = 0.314 W/kg; SAR(10 g) = 0.107 W/kg Maximum value of SAR (measured) = 0.735 W/kg 0 dB = 0.735 W/kg = -1.34 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/1/21 #60_WLAN5GHz_802.11a 6Mbps_Top Side_10mm_Ch157;Ant 4 Communication System: 802.11a; Frequency: 5785 MHz;Duty Cycle: 1:1.021 Medium: HSL_5G_210121 Medium parameters used: f = 5785 MHz; σ = 5.138 S/m; ε r = 35.493; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3925; ConvF(5.18, 5.18, 5.18) @ 5785 MHz; Calibrated: 2020/9/24 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2020/6/4 - Phantom: SAM_Right; Type: SAM; Serial: TP:1681 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (61x101x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.83 W/kg Zoom Scan (7x7x7)/Cub…

Text truncated - open the document above for the full version.
