A4RGB7N6

Google LLC

Phone

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Sep 19, 2021
Application Purpose: Original Equipment
Date of Application: Aug 08, 2021
Equipment Note: Phone
Frequency Range: 3455.01000000 - 3544.99800000
Company: Google LLC
Country: United States

Documents & Files

Select a file to view

Users Manual

Attestation Statements

Cover Letter(s)

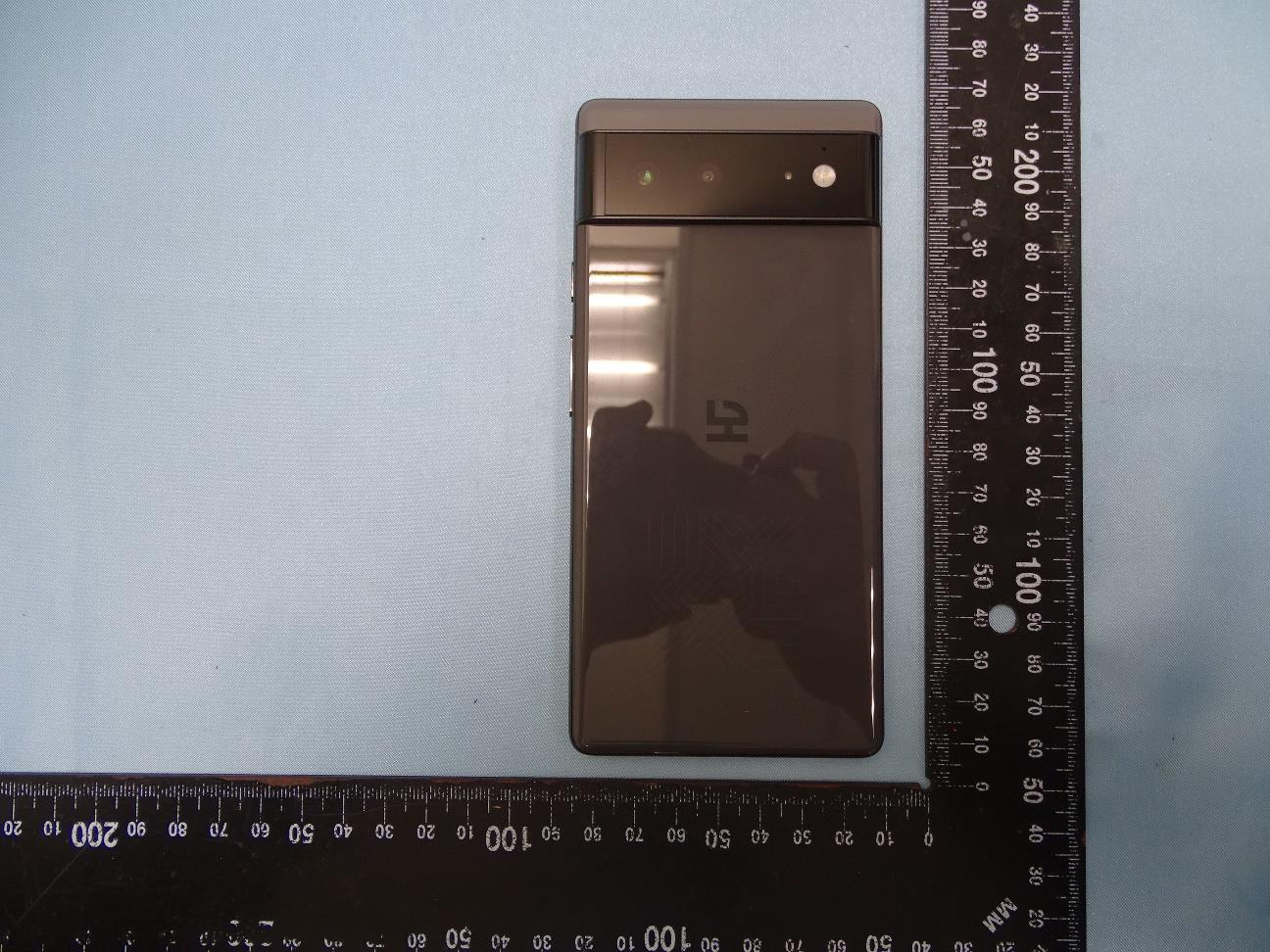

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Contact Information

Applicant

John McNulty

[email protected]650-203-0646Fax: 650-253-8006

Technical Contact

Sporton International Inc. Wensan LaboratoryAlex Chen

[email protected]886-3-327-3456

No.58, Aly. 75, Ln. 564 Wenhua 3rd Rd. Guishan Dis · Taoyuan · Taiwan

Test Firm

Sporton International Inc. Wensan LaboratoryAlex CHEN

[email protected]+886-3-327-3456Fax: +886-3-327-0978

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
106	27	3.46 GHz - 3.54 GHz	423.60 mW	8M59W7D	2.5 ppm

Confidentiality

Long Term

Grant Notes

Output power listed is ERP for operations below 1 GHz, EIRP for operations above 1 GHz and conducted power for Part 90S (814-824 MHz). LTE supports 5/10 MHz bandwidths in Band 13, Band 14, Band 17, and Band 30; 5/10/15/20 MHz bandwidths in Band 7, Band 71, Band 38, and Band 41; 1.4/3/5/10 MHz bandwidths in Band 5, and Band 12; 1.4/3/5/10/15 MHz bandwidths in Band 26; 1.4/3/5/10/15/20 MHz bandwidths in Band 2, Band 4, Band 25, and Band 66. 5GNR Sub 6GHz supports 5/10/15/20 MHz bandwidths in n2/n5/n7/n25/n71; 5/10/15 MHz bandwidths in n12; 5/10 MHz bandwidths in n30; 10/15/20 MHz bandwidths in n38; 5/10/15/20/30/40 MHz bandwidths in n66; 10/15/20/30/40/50/60/80/90/100 MHz bandwidths in n41; 10/15/20/30/40/50/60/70/80/90/100 MHz bandwidths in n77. This device supports downlink carrier aggregation for inter-band and intra-band, uplink carrier aggregation for intra-band in LTE Band 5/66/7/41. Powers listed are for the highest power and widest bandwidth within each band for QPSK and QAM modulations for single carrier operations and, where applicable, widest bandwidth and highest power for intra-band uplink carrier aggregation. For satisfying FCC RF exposure compliance requirements, body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 10 mm separation between the device and the user's body. The highest reported SAR values for head, body-worn accessory, product specific (wireless router), simultaneous transmission, and product specific (phablet) use conditions are 1.20 W/kg, 1.20 W/kg, 0.91 W/kg, 1.59 W/kg, and 2.82 W/kg (10g) respectively. T-coil 5G sub 6 bands appraised as equivalent LTE connections. HAC Rating M3 / T3 - 2011
