A4RGFMN100WIFI Access Point

Fiber Help FIBER FORUM CONTACT US About your Mini Network Box (GFMN100) If you subscribe to the Basic Internet package, your package includes a Mini Network Box (GFMN100). The Google Fiber Mini Network Box connects by Ethernet cable directly to your Fiber Jack. The dimensions of the Mini Network Box are 3.8" W x 3.8" D x 0.94" H. When the Mini Network Box is properly connected, the LED on the front lights up solid blue. If the LED does not light up solid blue about 2 minutes after being connected to power, contact Google Fiber customer support. The Mini Network Box serves as a router, which provides Internet service for your home network. You can connect computers and other devices to the Mini Network Box using an Ethernet cable or wirelessly over Wi-Fi. Only one device can be wired directly to the Mini Network Box at a time. Connecting directly to the Mini Network Box provides the fastest speeds on your network. You can manage your network settings on the Network tab of My Fiber. The Mini Network Box supports a maximum of 16 wireless devices. As the number of connected devices approaches 16, however, performance degrades dramatically. DRAFT Fiber Help FIBER FORUM CONTACT US Got an idea to make Google Fiber even better? Share it here. Mini Network Box product info (GFMN100) Introduction This Google Fiber Mini Network Box Product Information Guide contains important safety, recycling, warranty, and license information. For more details about your Mini Network Box (GFMN100), refer to About your Mini Network Box (GFMN100). Safety first! Please read these instructions before using your Mini Network Box. We do not want you to get hurt or your Mini Network Box to get damaged. Do not use your Mini Network Box near water. If you need to clean it, do not use a wet towel. Keep your Mini Network Box dry. Do not place your Mini Network Box near any heat sources, such as hot appliances like heaters and radiators, other electronics like computers and stereos, or inside your fireplace. Your Mini Network Box is cool, and you should help it to stay that way. The Mini Network Box is for indoor use only. Please do not try to use it outside. Only plug in cables and accessories specified and as directed by Google Fiber. Protect your Mini Network Box's power cord by allowing it to loosely rest between the device and the power outlet. Do not stretch it or compress it between objects. Do not try to open, modify, or repair your Mini Network Box. This could cause electric shock or injury to you. Any customer modification not expressly approved by Google voids your authority to operate the equipment and will void your device warranty. If you think something is wrong with your Mini Network Box, please contact Google Fiber customer support. If your Mini Network Box gets wet, its power cord appears damaged, or it is generally not behaving properly, please contact Google Fiber customer support. The Mini Network Box does not have an on/off switch. If you want to turn it off, unplug it. Safekeeping Handle your Mini Network Box with care. Do not drop or shake your Mini Network Box. It is expected that your Mini Network Box will get warm, but it needs ventilation to continue to function properly. Do not block the vents. Your Mini Network Box may bring cool air in from the bottom and push warm air out the back. It is important that the Mini Network Box is placed on a unobstructed, solid • • • • • • • • • • Draft surface. Do not place the Mini Network Box on a soft surface, such as a carpeted floor, which may block the airflow. Choking hazards The Mini Network Box packaging may include plastic bags and tie-wraps. Please dispose of these properly and keep them out of reach of children, as they could present a choking hazard. Keep the Mini Network Box, its cords, and its accessories out of the reach of small children. Regulatory compliance information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. To satisfy FCC exposure requirements, a separation distance of at least 20 cm should be maintained between the antenna of this device and persons during device operation. Operations at closer than this distance are not recommended. Google clean and green We care about your Mini Network Box, your service, your home, your fiberhood, and the container for all these things—planet Earth. Our sustainability commitments are available at google.com/green . WARNINGS: Failure to follow these safety instructions could result in fire, electric shock, or other injury or damage to the Mini Network Box or your property. Do not attempt to open or modify the Mini Network Box. If you do so, you run the risk of electric shock or injury. There are no user-serviceable parts inside the…

Text truncated - open the document above for the full version.

1600 Amphitheatre Parkway Tel: 650.623.4000 Mountain View, California 94043 Fax: 650.618.1806 www.google.com Federal Communications Commission Laboratory Division 7435 Oakland Mills Road Columbia MD 21046 Date: September 3, 2015 Subject: Request for Confidentiality FCC ID: A4R-GFMN100 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), Google Inc. (Google) requests that the Commission indefinitely withhold from public disclosure the following attachments associated with the certification application for the above-referenced FCC ID:  Theory of Operation (Operational and Technical Description)  Block Diagram  Schematic Diagrams In support of this request, Google provides the following information: 1. Identification of the specific information for which confidential treatment is sought (§ 0.459(b)(1)): Google requests that all of the information contained in the above-referenced exhibits to the certification application be withheld from routine public disclosure. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission (§ 0.459(b)(2)): The material is being submitted in connection with Google’s certification application for FCC ID A4R-GFMN100. 3. Explanation of the degree to which the information is commercial, or financial or contains a trade secret or is privileged (§ 0.459(b)(3)): The market for the technology that is the subject of the certification application is highly competitive, with numerous companies competing for the business of potential customers. Were Google’s competitors to become aware of the facts set forth in the above-referenced exhibits to the application at this time, it could have an adverse impact on Google’s competitive standing and deprive Google of the marketplace benefit it otherwise might achieve by virtue of having the product available before other competitors. If any of the information for which confidential treatment is sought were to be made publicly available, Google’s competitors could reasonably determine the scope and status of our activities. 1600 Amphitheatre Parkway Tel: 650.623.4000 Mountain View, California 94043 Fax: 650.618.1806 www.google.com 4. Explanation of the degree to which the information concerns a service that is competitive (§ 0.459(b)(4)): The technology that is the subject of the certification application is subject to intense competition from other manufacturers and service providers that are developing competing services and technology. 5. Explanation of how disclosure of the information could result in substantial competitive harm (§ 0.459(b)(5)): As noted above, were Google’s competitors to become aware of the facts set forth in the above-referenced exhibits to the application, it could have an adverse impact on Google’s competitive standing and deprive Google of the marketplace benefit it otherwise would achieve by virtue of having the product available before other providers. 6. Identification of any measures taken by the requesting party to prevent unauthorized disclosure (§ 0.459(b)(6)): The information contained in the above-referenced exhibits to the certification application has been strictly controlled by Google, with distribution limited to internal use only and for the specific purpose of conducting research, development, and testing of the technology. 7. Identification of whether the information is available to the public and the extent of any previous disclosures of the information to any third parties (§ 0.459(b)(7)): The information that Google requests be maintained as confidential is not available publicly. The information has been protected and kept confidential by limiting external contacts to privileged and confidential communications. 8. Justification of the period during which the submitting party asserts that material should not be available for public disclosure (§ 0.459(h)(8)): Given the competitive nature of the marketplace, any disclosure that Google has developed the technology discussed in the above-reference exhibits to the certification application would harm Google’s competitive position. The information subject to this request for confidentiality should not be made available for public disclosure at any time. In addition, pursuant to Public Notice DA 04-1705 of the Commission’s policy, and in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204 while ensuring that business-sensitive information remains confidential until the actual marketing of newly authorized devices, Google also requests that the Commission grant temporary confidential treatment and not release the following attachments for routine public disclosure until 180 days following the grant of this certification application:  External Photos  Internal Photos  Test Setup Photos 1600 Amphitheatre Parkway Tel: 650.623.4000 Mountain View, California 94043 Fax: 650.618.1806 www.google.com  User Manual It is our understanding that test measurement reports and correspondence during the certification review process cannot be granted confidential treatment, and such information will be available for public review once the grant of equipment authorization is issued. Sincerely yours, ___________________________ Warwick Wong Regulatory & Compliance Specialist Google Inc. 1600 Amphitheatre Parkway Mountain View, CA 94043 Tel: 408.425.6290 Email: [email protected]

Google Inc. 1600 Amphitheatre Parkway Mountain View, CA 94043 Main 650 253.0000 Fax 650 253.0001 www.google.com Federal Communications Commission Laboratory Division 7435 Oakland Mills Road Columbia, MD 21046 Date: September 3, 2015 Subject: Authority to Act as an Agent FCC ID: A4R-GFMN100 To Whom It May Concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; Google Inc. 1600 Amphitheatre Parkway Mountain View, CA 94043 Main 650 253.0000 Fax 650 253.0001 www.google.com f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely yours, __________________________________ Warwick Wong Regulatory Compliance Specialist Google Inc. 1600 Amphitheatre Parkway Mountain View, CA 94043 Tel 408.425.6290 Email [email protected] cc: UL Verification Services Inc.

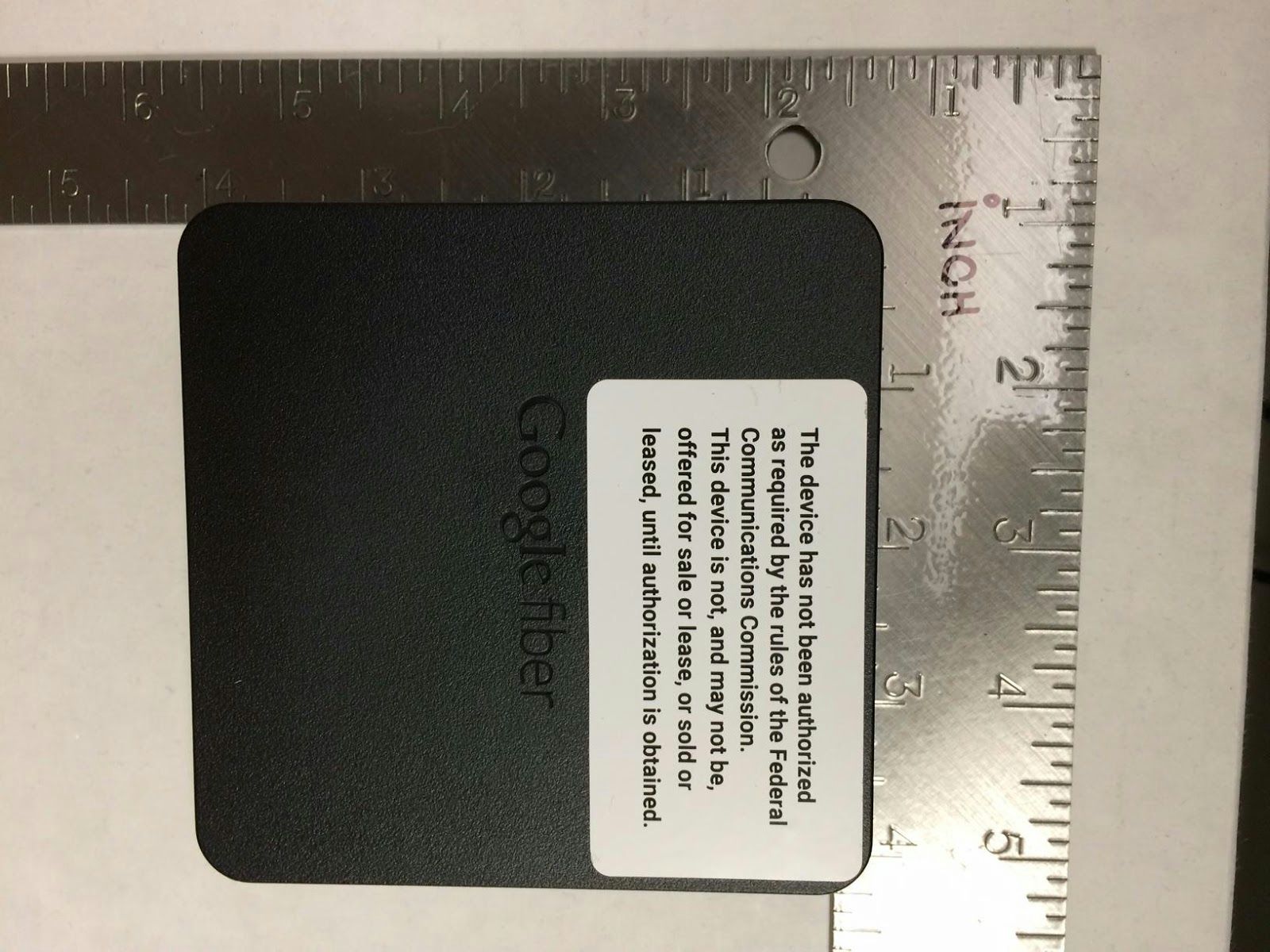

External Photos ­ Top External Photos ­ Bottom External Photos ­ Rear External Photos ­ Front

Label Location

FCC 47 CFR § 2.1093 RF EXPOSURE REPORT FOR WIFI ACCESS POINT MODEL NUMBER: GFMN100 FCC ID: A4RGFMN100 REPORT NUMBER: 15U20617-E3V1 ISSUE DATE: SEPTEMBER 8, 2015 Prepared for GOOGLE 1600 AMPHITEATRE PARKWAY MOUNTAIN VIEW, CA 94043, U.S.A. Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 15U20617-E3V1 DATE: SEPTEMBER 8, 2015 FCC ID: A4RGFMN100 Page 2 of 12 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By V1 9/8/15 Initial Issue F. de Anda REPORT NO: 15U20617-E3V1 DATE: SEPTEMBER 8, 2015 FCC ID: A4RGFMN100 Page 3 of 12 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. REFERENCES ................................................................................................................... 5 4. FACILITIES AND ACCREDITATION ................................................................................. 5 5. MAXIMUM PERMISSIBLE RF EXPOSURE ....................................................................... 6 5.1. FCC RULES ................................................................................................................ 6 5.2. IC RULES .................................................................................................................... 7 5.3. EQUATIONS ................................................................................................................ 8 5.4. LIMITS AND IC EXEMPTION .....................................................................................10 6. RF EXPOSURE RESULTS ................................................................................................11 REPORT NO: 15U20617-E3V1 DATE: SEPTEMBER 8, 2015 FCC ID: A4RGFMN100 Page 4 of 12 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: GOOGLE 1600 AMPHITEATRE PARKWAY MOUNTAIN VIEW, CA 94043, U.S.A. EUT DESCRIPTION: WIFI ACCESS POINT MODEL: GFMN100 SERIAL NUMBER: BWAFNS1524E0004 DATE TESTED: N/A APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47 CFR § 2.1093 Published RF exposure KDB procedures Exempt from SAR testing UL Verification Services Inc. calculated the RF Exposure of the above equipment in accordance with the requirements set forth in the above standards, using test results reported in the test report documents referenced below and/or documentation furnished by the applicant. All indications of Pass/Fail in this report are opinions expressed by UL Verification Services Inc. based on interpretations of these calculations. The results show that the equipment is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL Verification Services Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL Verification Services Inc. will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government. Approved & Released For UL Verification Services Inc. By: FRANCISCO DE ANDA PROJECT LEAD UL Verification Services Inc. REPORT NO: 15U20617-E3V1 DATE: SEPTEMBER 8, 2015 FCC ID: A4RGFMN100 Page 5 of 12 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. 2. TEST METHODOLOGY All calculations were made in accordance with FCC OET Bulletin 65 Edition 97-01. 3. REFERENCES All measurements were made as documented in test report 15U20617-E1V1 FCC DTS Report for operation in the 2.4 GHz band. Duty cycle data is excerpted from the applicable test reports. Output power and Antenna gain data is excerpted from product documentation provided by the applicant. 4. FACILITIES AND ACCREDITATION The test sites and measurement facilities used to collect data are located at 47173 Benicia Street, Fremont, California, USA. UL Verification Services Inc. is accredited by NVLAP, Laboratory Code 200065-0. The full scope of accreditation can be viewed at http://ts.nist.gov/standards/scopes/2000650.htm. REPORT NO: 15U20617-E3V1 DATE: SEPTEMBER 8, 2015 FCC ID: A4RGFMN100 Page 6 of 12 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. 5. MAXIMUM PERMISSIBLE RF EXPOSURE 5.1. FCC RULES §1.1310 The criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be eval…

Text truncated - open the document above for the full version.

FCC 47 CFR PART 15 SUBPART C CERTIFICATION TEST REPORT FOR WIFI ACCESS POINT MODEL NUMBER: GFMN100 FCC ID: A4RGFMN100 REPORT NUMBER: 15U20617-E1V3 ISSUE DATE: SEPTEMBER 17, 2015 Prepared for GOOGLE 1600 AMPHITEATRE PARKWAY MOUNTAIN VIEW, CA 94043, U.S.A. Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 15U20617-E1V3 DATE: SEPTEMBER 17, 2015 FCC ID: A4RGFMN100 Page 2 of 282 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By V1 9/4/15 Initial Issue F. de Anda V2 9/15/15 Added reference to KDB 662911 D01 in section 2 F. de Anda V3 9/17/15 Update- Sections 7, 9.1 and 9.4 F. de Anda REPORT NO: 15U20617-E1V3 DATE: SEPTEMBER 17, 2015 FCC ID: A4RGFMN100 Page 3 of 282 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 5 2. TEST METHODOLOGY ..................................................................................................... 6 3. FACILITIES AND ACCREDITATION ................................................................................. 6 4. CALIBRATION AND UNCERTAINTY ................................................................................ 7 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 7 4.2. SAMPLE CALCULATION ............................................................................................ 7 4.3. MEASUREMENT UNCERTAINTY ............................................................................... 7 5. EQUIPMENT UNDER TEST ............................................................................................... 8 5.1. DESCRIPTION OF EUT .............................................................................................. 8 5.2. MAXIMUM OUTPUT POWER...................................................................................... 8 5.3. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 8 5.4. SOFTWARE AND FIRMWARE .................................................................................... 8 5.5. WORST-CASE CONFIGURATION AND MODE .......................................................... 9 5.6. DESCRIPTION OF TEST SETUP ...............................................................................10 6. TEST AND MEASUREMENT EQUIPMENT ......................................................................13 7. MEASUREMENT METHODS ............................................................................................14 8. ANTENNA PORT TEST RESULTS ...................................................................................15 8.1. ON TIME AND DUTY CYCLE .....................................................................................15 8.2. 802.11b 2TX MODE IN THE 2.4 GHz BAND ..............................................................18 8.2.1. 6 dB BANDWIDTH ...............................................................................................18 8.2.2. 99% BANDWIDTH ...............................................................................................22 8.2.3. OUTPUT POWER ...............................................................................................26 8.2.1. POWER SPECTRAL DENSITY ...........................................................................28 8.2.2. OUT-OF-BAND EMISSIONS ...............................................................................32 8.3. 802.11g 2TX MODE IN THE 2.4 GHz BAND ..............................................................41 8.3.1. 6 dB BANDWIDTH ...............................................................................................41 8.3.2. 99% BANDWIDTH ...............................................................................................50 8.3.3. OUTPUT POWER ...............................................................................................59 8.3.4. POWER SPECTRAL DENSITY ...........................................................................61 8.3.5. OUT-OF-BAND EMISSIONS ...............................................................................70 8.4. 802.11n HT20 2TX MODE IN THE 2.4 GHz BAND .....................................................89 8.4.1. 6 dB BANDWIDTH ...............................................................................................89 8.4.2. 99% BANDWIDTH ...............................................................................................98 8.4.3. OUTPUT POWER ............................................................................................. 107 8.4.4. POWER SPECTRAL DENSITY ......................................................................... 109 8.4.5. OUT-OF-BAND EMISSIONS ............................................................................. 118 REPORT NO: 15U20617-E1V3 DATE: SEPTEMBER 17, 2015 FCC ID: A4RGFMN100 Page 4 of 282 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 8.5. 802.11n HT40 2TX MODE IN THE 2.4 GHz BAND ................................................... 135 8.5.1. 6 dB BANDWIDTH ............................................................................................. 135 8.5.2. 99% BANDWIDTH .......................................................…

Text truncated - open the document above for the full version.

REPORT NO: 15U20617-E1V3 DATE: SEPTEMBER 17, 2015 FCC ID: A4RGFMN100 Page 151 of 282 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 99% BANDWIDTH Chain 1 CH 7 99% BANDWIDTH Chain 1 CH 8 REPORT NO: 15U20617-E1V3 DATE: SEPTEMBER 17, 2015 FCC ID: A4RGFMN100 Page 152 of 282 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 99% BANDWIDTH Chain 1 HIGH CH REPORT NO: 15U20617-E1V3 DATE: SEPTEMBER 17, 2015 FCC ID: A4RGFMN100 Page 153 of 282 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 8.5.3. OUTPUT POWER LIMITS FCC §15.247 For systems using digital modulation in the 902–928 MHz, 2400–2483.5 MHz, and 5725–5850 MHz bands: 1 Watt, based on the use of antennas with directional gains that do not exceed 6 dBi. If transmitting antennas of directional gain greater than 6 dBi are used, the conducted output power from the intentional radiator shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi. DIRECTIONAL ANTENNA GAIN The TX chains are uncorrelated and the antenna gain is unequal among the chains. The directional gain is: Chain 0 Chain 1 Uncorrelated Chains Antenna AntennaDirectional GainGainGain (dBi)(dBi)(dBi) 3.702.503.14 REPORT NO: 15U20617-E1V3 DATE: SEPTEMBER 17, 2015 FCC ID: A4RGFMN100 Page 154 of 282 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. RESULTS Limits Channel Frequency DirectionalFCCICICMax GainPowerPowerEIRPPower LimitLimitLimit (MHz)(dBi)(dBm)(dBm)(dBm)(dBm) Low24223.1430.00303630.00 424273.1430.00303630.00 524323.1430.00303630.00 Mid24373.1430.00303630.00 824423.1430.00303630.00 824473.1430.00303630.00 High24523.1430.00303630.00 Duty Cycle CF (dB)0.35Included in Calculations of Corr'd Power Results Channel FrequencyChain 0Chain 1TotalPowerMargin MeasMeasCorr'dLimit PowerPowerPower (MHz)(dBm)(dBm)(dBm)(dBm)(dB) Low242213.5613.35 16.82 30.00 -13.18 4242714.1713.51 17.21 30.00 -12.79 5243214.5314.28 17.77 30.00 -12.23 Mid243718.0517.39 21.09 30.00 -8.91 7244213.6213.52 16.93 30.00 -13.07 8244712.5811.81 15.57 30.00 -14.43 High245212.6612.38 15.88 30.00 -14.12 REPORT NO: 15U20617-E1V3 DATE: SEPTEMBER 17, 2015 FCC ID: A4RGFMN100 Page 155 of 282 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 8.5.4…

Text truncated - open the document above for the full version.
