Regulatory Information Regulatory information, certification, and compliance marks specific to your device can be found on your phone under Settings > About phone > Regulatory labels. EMC compliance statement Important: This device and in-box accessories have demonstrated Electromagnetic Compatibility (EMC) compliance under conditions that included the use of compliant peripheral devices and shielded cables between system components. It is important that you use compliant peripheral devices and shielded cables between system components to reduce the possibility of causing interference to radios, televisions, and other electronic devices. Regulatory Information: United States FCC Regulatory Compliance Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ●Reorient or relocate the receiving antenna. ●Increase the separation between the equipment and receiver. ●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ●Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by Google could void your authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following 2 conditions: 1. These devices may not cause harmful interference. 2. These devices must accept any interference received, including interference that may cause undesired operation. Model number: GX7AS, GB17L Responsible Party Google LLC 1600 Amphitheatre Parkway Mountain View, CA 94043 g.co/pixel/support Hearing Aid Compatibility (HAC) Your device has been evaluated and certified to be compatible with hearing aids per technical specification ANSI C63.19. There are two measures of hearing aid compatibility: ●M rating, which is a measure of immunity to radio frequency interference for acoustic coupling hearing aids; ●T rating, which is a measure of performance when used with an inductive coupling (telecoil) hearing aid. Your device is rated M3/T4, according to the FCC hearing aid compatibility regulations for wireless devices. Per FCC rules, a mobile phone is considered hearing aid compatible if rated M3 or M4 for acoustic coupling or T3 or T4 for inductive coupling. This device has been tested and rated for use with hearing aids for some of the wireless technologies that they use. However, there may be some newer wireless technologies used in these phones that have not yet been tested for use with hearing aids. It is important to try the different features of your phone thoroughly and in different locations, using your hearing aid or cochlear implant, to determine if you hear any interfering noise. Consult your service provider or Google for information on hearing aid compatibility. If you have questions about return or exchange policies, consult your service provider or phone retailer. Radio Frequency Exposure This device has been evaluated and meets the applicable regulatory requirements for exposure to radio waves and is designed and manufactured not to exceed the applicable emission limits for exposure to radio frequency (RF) energy. You can learn more about RF exposure at g.co/pixel/RFE and on your device under Settings > About phone > Safety & regulatory manual Your phone complies with RF specifications when used near your ear or at a distance of 0.4 in (1.0 cm) from your body. To reduce exposure to RF energy, use a hands-free option, such as the built-in speakerphone, the supplied headphones, or other similar accessories. Ensure that the device accessories, such as a device case and device holster, are not composed of metal components. Keep the device away from your body to meet the distance requirement. You can find the SAR values applicable to each of those jurisdictions on your phone: Settings > About phone > Regulatory labels.

GoogleLLC 1600AmphitheatreParkway MountainView,CA94043 650253-0000main Google.com FederalCommunicationsCommission 7435OaklandMillsRoad ColumbiaMD21046 February22,2023 Subject:Certificationsconcerning“covered”equipmentpursuanttoPart2.911(d)(5)(i)and(ii) FCCID:A4RGX7AS Towhomitmayconcern, GoogleLLC(“theapplicant”)certifiesthattheequipmentforwhichauthorizationissoughtisnot “covered”equipmentprohibitedfromreceivinganequipmentauthorizationpursuanttosection2.903 oftheFCCrules.Theapplicantalsocertifiesthat,asofthedateofthefilingoftheapplication,the applicantisnotidentifiedontheCoveredListasanentityproducing“covered”equipment,andis notanaffiliateorsubsidiaryofanentityidentifiedontheCoveredList. Sincerelyyours, ____________________________ AngieDu Director,ComplianceEngineering GoogleLLC 1600AmphitheatreParkway MountainView,CA94043USA

GoogleLLC 1600AmphitheatreParkway MountainView,CA94043 650253-0000main Google.com FederalCommunicationsCommission 7435OaklandMillsRoad ColumbiaMD21046 February22,2023 Subject:CertificationdesignatingaU.S.agentforserviceofprocesspursuanttoPart2.911(d)(7) FCCID:A4RGX7AS FRN:0020499539 Towhomitmayconcern, GoogleLLC(“theapplicant”)designatesitselfastheagentforserviceofprocess.Hereby,weacknowledge theapplicant’sconsentandthedesignatedagent’sobligationtoacceptserviceofprocess;wealso acknowledgetheapplicant’sacceptancetomaintainanagentfornolessthanoneyearafterthegranteehas terminatedallmarketingandimportationortheconclusionofanyCommission-relatedproceedinginvolving theequipment. Sincerelyyours, ____________________________ AngieDu Director,ComplianceEngineering GoogleLLC Address:1600AmphitheatreParkway MountainView,CA94043USA Email:[email protected]

Google LLC 1600 Amphitheatre Parkway Mountain View, CA 94043 650 253-0000 main Google.com Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 November 11, 2022 Subject:Request for Confidentiality FCC ID:A4RGX7AS To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 C.F.R. §§ 0.457, 0.459), we request that the Commission withhold the following attachments as confidential documents from public disclosure indefinitely. ● Schematic Diagram ● Block Diagram ● Theory of Operation (Operational and Technical Descriptions) ● Tune Up Procedure In support of this request, we provide the following information: 1.Identificationofthespecificinformationforwhichconfidentialtreatmentissought(§0.459(b)(1)):We requestthatalloftheinformationcontainedintheabove-referencedexhibitstothecertificationapplicationbe withheld from routine public disclosure. 2.IdentificationoftheCommissionproceedinginwhichtheinformationwassubmittedoradescriptionofthe circumstancesgivingrisetothesubmission(§0.459(b)(2)):Thematerialisbeingsubmittedinconnectionwith our certification application for the above-captioned FCC ID. 3.Explanationofthedegreetowhichtheinformationiscommercial,orfinancialorcontainsatradesecretor isprivileged(§0.459(b)(3)):Themarketforthetechnologythatisthesubjectofthecertificationapplicationis highlycompetitive,withnumerouscompaniescompetingforthebusinessofpotentialcustomers.Were competitorstobecomeawareofthefactssetforthintheabove-referencedexhibitstotheapplicationatthistime, itcouldhaveanadverseimpactonourcompetitivestandinganddepriveusofthemarketplacebenefitwe otherwisemightachievebyvirtueofhavingtheproductavailablebeforeothercompetitors.Ifanyofthe informationforwhichconfidentialtreatmentissoughtwasmadepubliclyavailable,competitorscouldreasonably determine the scope and status of our activities. 4.Explanationofthedegreetowhichtheinformationconcernsaservicethatiscompetitive(§0.459(b)(4)): Thetechnologythatisthesubjectofthecertificationapplicationissubjecttointensecompetitionfromother manufacturers and service providers that are developing competing services and technology. 5.Explanationofhowdisclosureoftheinformationcouldresultinsubstantialcompetitiveharm(§ 0.459(b)(5)):Asnotedabove,wereourcompetitorstobecomeawareofthefactssetforthinthe above-referencedexhibitstotheapplication,itcouldhaveanadverseimpactonourcompetitivestandingand depriveusofthemarketplacebenefitweotherwisewouldachievebyvirtueofhavingtheproductavailablebefore other providers. 6.Identificationofanymeasurestakenbytherequestingpartytopreventunauthorizeddisclosure(§ 0.459(b)(6)):Theinformationcontainedintheabove-referencedexhibitstothecertificationapplicationhasbeen strictlycontrolledbyus,withdistributionlimitedtointernaluseonlyandforthespecificpurposeofconducting research, development, and testing of the technology. 7.Identificationofwhethertheinformationisavailabletothepublicandtheextentofanyprevious disclosuresoftheinformationtoanythirdparties(§0.459(b)(7)):Theinformationthatwerequestbe maintainedasconfidentialisnotavailablepublicly.Theinformationhasbeenprotectedandkeptconfidentialby limiting external contacts to privileged and confidential communications. 8.Justificationoftheperiodduringwhichthesubmittingpartyassertsthatmaterialshouldnotbeavailable forpublicdisclosure(§0.459(b)(8)):Giventhecompetitivenatureofthemarketplace,anydisclosurethatwe havedevelopedthetechnologydiscussedintheabove-referencedexhibitstothecertificationapplicationwould harmourcompetitiveposition.Theinformationsubjecttothisrequestforconfidentialityshouldnotbemade available for public disclosure at any time. In addition, pursuant to Public Notice DA 04-1705, and in order to comply with the marketing regulations in 47 C.F.R. §2.803 and the importation rules in 47 C.F.R. §2.1204 while ensuring that business-sensitive information remains confidential until the actual marketing of newly authorized devices, we also request that the Commission grant temporary confidential treatment and not release the following attachments for routine public disclosure until 180days after the grant date. ● External Photos ● Internal Photos ● Test Setup Photos ● User Manual It is our understanding that test measurement reports and correspondence during the certification review process cannot be granted confidential treatment, and such information will be available for public review once the grant of equipment authorization is issued. Sincerely yours, ________________________________ Angie Du Director, Compliance Engineering Google LLC 1600 Amphitheatre Parkway Mountain View, CA 94043 USA 2

Google LLC 1600 Amphitheatre Parkway Mountain View, CA 94043 650 253-0000 main Google.com Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 November 11, 2022 FCC ID: A4RGX7AS To Whom It May Concern: I, the undersigned, hereby authorize Sporton International Inc. (Sporton) to act on Google LLC’s (Google) behalf in all manners relating to the above-captioned application for equipment authorization, including signing of all documents relating to this matter. Any and all acts carried out by Sporton on Google’s behalf shall have the same effect as acts of Google’s own. I,theundersigned,herebycertifythatGoogleisnotsubjecttoadenialoffederalbenefits,includingFCCbenefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21U.S.C.§853(a). In authorizing Sporton as Google’s representative, Google recognizes that it is still responsible for: a) complying with the relevant provisions of the certification program; b) making all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) making claims regarding certification only in respect of the scope for which certification has been granted; d) not using the product certification in such a manner as to bring Sporton into disrepute and not making any statement regarding the product certification that Sporton may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinuing the use of all advertising matter that contains any reference thereto and return any certification documents as required by Sporton; f) using the certification only to indicate that the products are certified as being in conformity with specified standards; g) endeavoring to ensure that no certificate or report or any part thereof is used in a misleading manner; h) ensuring that any reference to the product certification in communication media such as documents, brochures, or advertising, complies with Sporton’s requirements; i) keeping a record of all complaints made known to Google relating to the product’s compliance with the requirements of the relevant standard and making these records available to the applicable authorities when requested; j)takingappropriateactionwithrespecttosuchcomplaintsandanydeficienciesfoundinproductsorservicesthat affect compliance with the requirements for certification; and k) documenting the actions taken. This authorization is valid until further written notice from Google. Sincerely yours, ____________________________________ Angie Du Director, Compliance Engineering Google LLC 1600 Amphitheatre Parkway Mountain View, CA 94043 USA 2

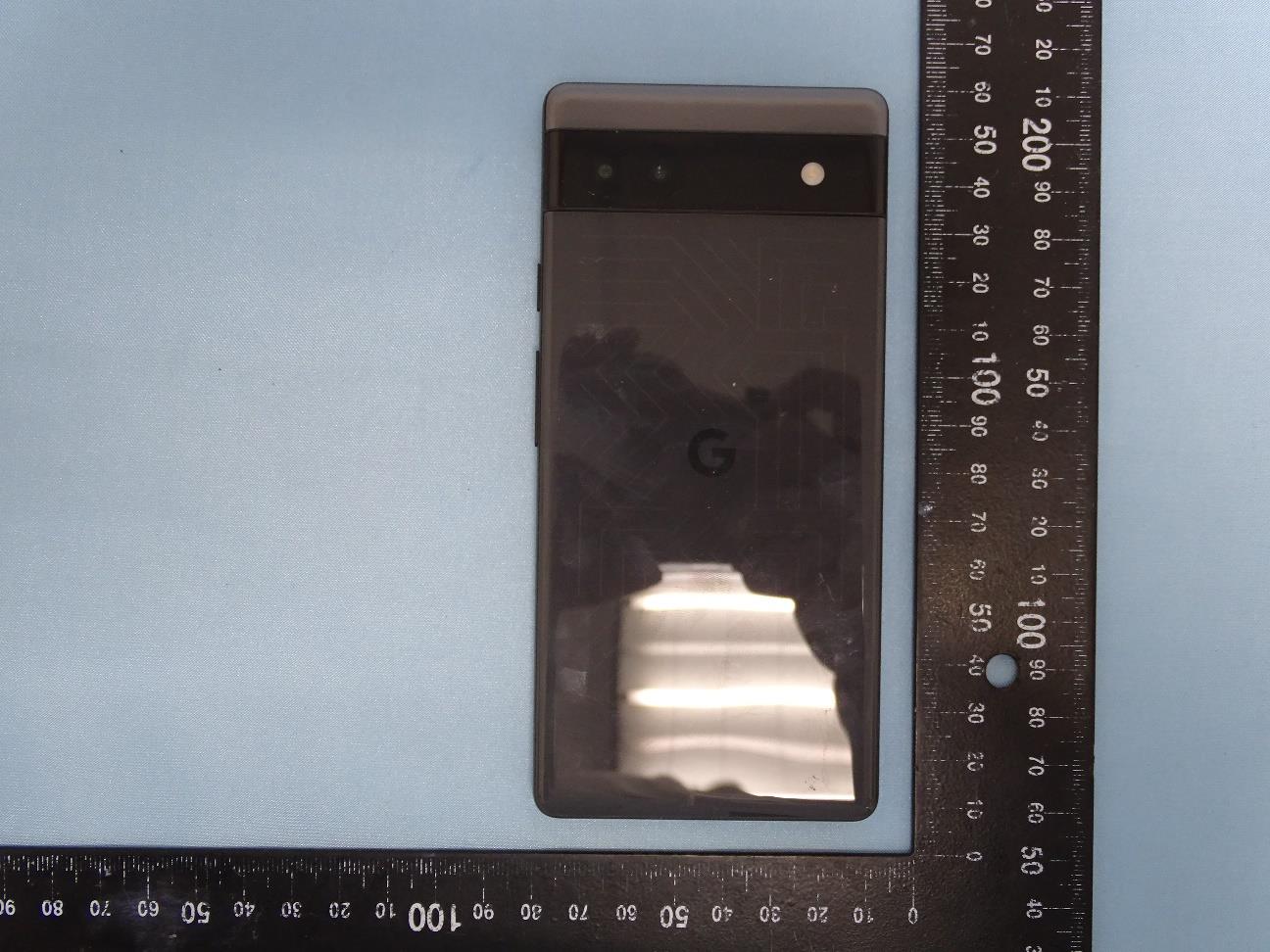

PHOTOGRAPHS OF EUT Report No.: EP161608-05 TEL : 886-3-327-3456 Page Number : 1 of 6 FAX : 886-3-328-4978 Issued Date : Jan. 24, 2022 Report Version : 01 1. External Photograph of EUT Model Name: GX7AS, GB17L PHOTOGRAPHS OF EUT Report No.: EP161608-05 TEL : 886-3-327-3456 Page Number : 2 of 6 FAX : 886-3-328-4978 Issued Date : Jan. 24, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP161608-05 TEL : 886-3-327-3456 Page Number : 3 of 6 FAX : 886-3-328-4978 Issued Date : Jan. 24, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP161608-05 TEL : 886-3-327-3456 Page Number : 4 of 6 FAX : 886-3-328-4978 Issued Date : Jan. 24, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP161608-05 TEL : 886-3-327-3456 Page Number : 5 of 6 FAX : 886-3-328-4978 Issued Date : Jan. 24, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP161608-05 TEL : 886-3-327-3456 Page Number : 6 of 6 FAX : 886-3-328-4978 Issued Date : Jan. 24, 2022 Report Version : 01 ─────THE END──── 720510

E-label Declaration FCC ID: A4RGX7AS FCC §2.935 Electronic labeling of radiofrequency devices. (a) Any radiofrequency device equipped with an integrated electronic display screen, or a radiofrequency device without an integrated screen that can only operate in conjunction with a device that has an electronic display screen, may display on the electronic display the FCC Identifier, any warning statements, or other information that the Commission’s rules would otherwise require to be shown on a physical label attached to the device. InformationOn e-labelIn Manual FCC ID numberYesNo 15.19 Statement(“This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.”) NoYes Class B Digital Device user manual statementNoYes Caution to the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment NoYes Image of the e-label screen is provided below: (b) Devices displaying their FCC Identifier, warning statements, or other information electronically must make this information readily accessible on the electronic display. Users must be provided with prominent instructions on how to access the information in the operating instructions, inserts in packaging material, or other easily accessible format at the time of purchase. The access instructions may also be provided via the product-related website, if such a web site exists; the packaging material must provide specific instructions on how to locate the website information, and a copy of these instructions must be included in the application for equipment certification. The instruction on how to access the information is in the box in the Safety/Warranty/Regulatory booklet, and in the online version of the Safety/Warranty/Regulatory booklet: “Regulatory information, certification, and compliance marks can be found with the following steps from the Home screen:Settings > Aboutphone > Regulatory labels.” (c) Devices displaying their FCC Identifier, warning statements, or other information electronically must permit access to the information without requiring special codes, accessories or permissions and the access to this information must not require more than three steps from the device setting menu. The number of steps does not include those steps for use of screen locks, passcodes or similar security protection designed to control overall device access. No special accessories or supplemental plug-ins are required to access the information. To access the e-label information, in the device from the Home screen: Select: Settings > About phone > Regulatory labels (d) The electronically displayed FCC Identifier, warning statements, or other information must be displayed electronically in a manner that is clearly legible without the aid of magnification; Yes (e) The necessary label information must be programmed by the responsible party and must be secured in such a manner that third-parties cannot modify it. The e-label information is pre-programmed by the grantee. The user cannot modify the e-label information. (f) Devices displaying their FCC Identifier, warning statements, or other information electronically must also be labeled, either on the device or its packaging, with the FCC Identifier or other information (such as a model number and identification of a webpage that hosts the relevant regulatory information) that permits the devices to be identified at the time of importation, marketing, and sales as complying with the FCC’s equipment authorization requirements. Devices can be labeled with a stick-on label, printing on the packaging, a label on a protective bag, or by similar means. Any removable label shall be of a type intended to survive normal shipping and handling and must only be removed by the customer after purchase. The FCC ID is present on the product packaging.

PHOTOGRAPHS OF EUT Report No.: EP161608-05 TEL : 886-3-327-3456 Page Number : 1 of 5 FAX : 886-3-328-4978 Issued Date : Jan. 24, 2022 Report Version : 01 1. Internal Photograph of EUT Model Name: GX7AS, GB17L PHOTOGRAPHS OF EUT Report No.: EP161608-05 TEL : 886-3-327-3456 Page Number : 2 of 5 FAX : 886-3-328-4978 Issued Date : Jan. 24, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP161608-05 TEL : 886-3-327-3456 Page Number : 3 of 5 FAX : 886-3-328-4978 Issued Date : Jan. 24, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP161608-05 TEL : 886-3-327-3456 Page Number : 4 of 5 FAX : 886-3-328-4978 Issued Date : Jan. 24, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP161608-05 TEL : 886-3-327-3456 Page Number : 5 of 5 FAX : 886-3-328-4978 Issued Date : Jan. 24, 2022 Report Version : 01 ─────THE END────

TEL : 886-3-327-3456 Page : 1 of 15 FAX : 886-3-328-4978 Issued Date : Nov. 25, 2022 Form version: 180516 FCC RF EXPOSURE REPORT Report No. : FA161608-16 RF Exposure Evaluation (Mobile Condition) FCC ID : A4RGX7AS Equipment : Phone Model Name : GX7AS, GB17L Applicant : Google LLC 1600 Amphitheatre Parkway, Mountain View, California, 94043 USA Standard : 47 CFR Part 2.1091 We, SPORTON INTERNATIONAL INC has been evaluated in accordance with 47 CFR Part 2.1091 for the device and pass the limit. The results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) Approved by: Cona Huang / Deputy Manager TEL : 886-3-327-3456 Page : 2 of 15 FAX : 886-3-328-4978 Issued Date : Nov. 25, 2022 Form version: 180516 FCC RF EXPOSURE REPORT Report No. : FA161608-16 Table of Contents 1. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ............................................................................. 4 2. MAXIMUM TUNE-UP LIMIT (UNIT: DBM) .................................................................................................. 5 3. RF EXPOSURE LIMIT INTRODUCTION .................................................................................................. 13 4. RADIO FREQUENCY RADIATION EXPOSURE EVALUATION ............................................................. 14 4.1. Power Density Calculation ............................................................................................................... 14 TEL : 886-3-327-3456 Page : 3 of 15 FAX : 886-3-328-4978 Issued Date : Nov. 25, 2022 Form version: 180516 FCC RF EXPOSURE REPORT Report No. : FA161608-16 History of this test report Report No. Version Description Issued Date FA161608-16 Rev. 01 Initial issue of report Nov. 25, 2022 TEL : 886-3-327-3456 Page : 4 of 15 FAX : 886-3-328-4978 Issued Date : Nov. 25, 2022 Form version: 180516 FCC RF EXPOSURE REPORT Report No. : FA161608-16 1. Description of Equipment Under Test (EUT) Product Feature & Specification Equipment Name Phone Model Name GX7AS, GB17L FCC ID A4RGX7AS Wireless Technology and Frequency Range GSM850: 824.2 MHz ~ 848.8 MHz GSM1900: 1850.2 MHz ~ 1909.8 MHz WCDMA Band II: 1850 MHz ~ 1910 MHz WCDMA Band IV: 1710 MHz ~ 1755 MHz WCDMA Band V: 824 MHz ~ 849 MHz LTE Band 2: 1850 MHz ~ 1910 MHz LTE Band 4: 1710 MHz ~ 1755 MHz LTE Band 5: 824 MHz ~ 849 MHz LTE Band 7: 2500 MHz ~ 2570 MHz LTE Band 12: 699 MHz ~ 716 MHz LTE Band 13: 777 MHz ~ 787 MHz LTE Band 14: 788 MHz ~ 798 MHz LTE Band 17: 704 MHz ~ 716 MHz LTE Band 25: 1850 MHz ~ 1915 MHz LTE Band 26: 814 MHz ~ 849 MHz LTE Band 30: 2305 MHz ~ 2315 MHz LTE Band 38: 2570 MHz ~ 2620 MHz LTE Band 41: 2496 MHz ~ 2690 MHz LTE Band 48: 3550 MHz ~ 3700 MHz LTE Band 66: 1710 MHz ~ 1780 MHz LTE Band 71: 663 MHz ~ 698 MHz 5G NR n2 : 1850 MHz ~ 1910 MHz 5G NR n5 : 824 MHz ~ 849 MHz 5G NR n7 : 2500 MHz ~ 2570 MHz 5G NR n12 : 699 MHz ~ 716 MHz 5G NR n25 : 1850 MHz ~ 1915 MHz 5G NR n30 : 2305 MHz ~ 2315 MHz 5G NR n38 : 2570 MHz ~ 2620 MHz 5G NR n41 : 2496 MHz ~ 2690 MHz 5G NR n66 : 1710 MHz ~ 1780 MHz 5G NR n71 : 663 MHz ~ 698 MHz 5G NR n77: 3700 MHz ~ 3980 MHz, 3450 MHz ~ 3550 MHz WLAN 2.4 GHz Band: 2400 MHz ~ 2483.5 MHz WLAN 5.2 GHz Band: 5150 MHz ~ 5250 MHz WLAN 5.3 GHz Band: 5250 MHz ~ 5350 MHz WLAN 5.6 GHz Band: 5470 MHz ~ 5725 MHz WLAN 5.8 GHz Band: 5725 MHz ~ 5850 MHz WLAN 5.8G UNII4 Band: 5850 MHz ~ 5895 MHz WLAN 6E: 5925 MHz ~ 6425 MHz, 6425 MHz ~ 6525 MHz, 6525 MHz ~ 6875 MHz, 6875 MHz ~ 7125 MHz Bluetooth: 2400 MHz ~ 2483.5 MHz NFC: 13.56 MHz Mode GSM/GPRS/EGPRS RMC/AMR 12.2Kbps HSDPA HSUPA LTE: QPSK, 16QAM, 64QAM, 256QAM 5G NR: DFT-s-OFDM/CP-OFDM, Pi/2 BPSK/QPSK/16QAM/64QAM/256QAM WLAN: 802.11a/b/g/n/ac/ax HT20/HT40/VHT20/VHT40/VHT80/VHT160/HE20/HE40/HE80/HE160 Bluetooth BR/EDR/LE NFC: ASK Remark: 1. Enable SP mode for UNII-5 and UNII-7. Reviewed by: Jason Wang Report Producer: Paula Chen TEL : 886-3-327-3456 Page : 5 of 15 FAX : 886-3-328-4978 Issued Date : Nov. 25, 2022 Form version: 180516 FCC RF EXPOSURE REPORT Report No. : FA161608-16 2. Maximum Tune-up Limit (unit: dBm) General Note: 1. For each cellular band, the device has 5 antennas, the antenna selection is based on the connection quality condition, and only one antenna will transmit at a time. 2. The maximum power of the WWAN antenna will be selected to evaluate the power density 3. For MPE calculation is using the highest output among 2Tx switching antennas for each frequency band. <WWAN Maximum Power> Maximum Transmit Burst Average Power (dBm) Band Config Antenna Duty cycle Default Index 1 GSM850 GSM/GPRS 1TX TX0 0 12.50% 33.50 GSM850 GPRS 2TX TX0 0 25.00% 32.50 GSM850 GPRS 3TX TX0 0 37.50% 31.50 GSM850 GPRS 4TX TX0 0 50.00% 30.50 GSM850 EDGE 1TX TX0 0 12.50% 28.00 GSM850 EDGE 2TX TX0 0 25.00% 27.50 GSM850 EDGE 3TX TX0 0 37.50% 27.50 GSM850 EDGE 4TX TX0 0 50.00% 25.50 GSM1900 GSM/GPRS 1TX TX0 2 12.50% 30.85 GSM1900 GPRS 2TX TX0 2 25.00% 29.35 GSM1900 GPRS 3TX TX0 2 37.50% 28.85 GSM1900 GPRS 4TX TX0 2 50.00% 27.85 GSM1900 EDGE 1TX TX0 2 12.50% 26.35 GSM1900 EDGE 2TX TX0 2 25.00% 24.85 GSM1900 EDGE 3TX TX0 2 37.50% 24.85 GSM1900 EDGE 4TX TX0 2 50.00% 23.85 WCDMA B2 TX0 2 100.00% 25.25 WCDMA B4 TX0 2 100.00% 25.25 WCDMA B5 TX0 0 100.00% 25.30 LTE B7 TX0 2 100.00% 25.20 LTE B12/17 TX0 0 100.00% 25.30 LTE B13 TX0 0 100.00% 25.30 LTE B14 TX0 0 100.00% 25.50 LTE B25/2 TX0 2 100.00% 25.50 LTE B26/5 TX0 0 100.00% 25.50 LTE B30 TX0 2 100.00% 24.60 LTE B41/B38 PC3 TX0 2 63.30% 25.40 LTE B38 PC2 TX0 2 43.30% 27.20 LTE B41 PC2 TX0 2 43.30% 27.70 LTE B48 TX0 6 63.30% 24.00 LTE B66/4 TX0 2 100.00% 25.25 LTE B71 TX0 0 100.00% 25.30 FR1 n5 TX0 0 100.00% 25.50 FR1 n7 TX0 2 100.00% 25.20 FR1 n12 TX0 0 100.00% 25.30 FR1 n25/2 TX0 2 100.00% 25.70 FR1 n30 TX0 2 100.00% 24.60 FR1 n38 TX0 5 100…

Text truncated - open the document above for the full version.

FDD-LTE_TX1(Index 1)Report No.:FA161608-05C BW [MHz]ModulationRB SizeRB Offset Power Low Ch. / Freq. Power Middle Ch. / Freq. Power High Ch. / Freq. 204502052520600 829836.5844 10QPSK1024.3924.4024.26 10QPSK12524.3624.2724.25 10QPSK14924.3024.2624.24 10QPSK25023.6223.6323.45 10QPSK251223.6023.4923.38 10QPSK252523.5523.4523.34 10QPSK50023.5623.6023.45 1016QAM1023.8023.6123.71 1016QAM12523.7023.5723.59 1016QAM14923.7223.7223.50 1016QAM25022.5822.4322.47 1016QAM251222.6022.4022.40 1016QAM252522.5822.4122.42 1016QAM50022.6522.4622.44 1064QAM1022.7522.6822.72 1064QAM12522.7722.6222.73 1064QAM14922.6922.7322.54 1064QAM25021.5921.5021.49 1064QAM251221.5621.5121.41 1064QAM252521.5921.4521.45 1064QAM50021.6121.5421.57 10256QAM1019.7419.6419.69 10256QAM12519.5919.7019.57 10256QAM14919.5719.6019.50 10256QAM25019.6319.6919.66 10256QAM251219.6619.6419.52 10256QAM252519.6419.5419.54 10256QAM50019.6219.6219.61 204252052520625 826.5836.5846.5 5QPSK1024.3124.3124.29 5QPSK11224.3024.2824.27 5QPSK12424.3424.1824.15 5QPSK12023.4123.2323.35 5QPSK12723.4123.2323.30 5QPSK121323.3523.3123.31 5QPSK25023.4123.2723.36 516QAM1023.5423.4823.63 516QAM11223.6123.5823.59 516QAM12423.6123.5823.45 516QAM12022.4222.3522.40 516QAM12722.4522.4222.32 516QAM121322.3822.3722.34 516QAM25022.4022.3422.29 564QAM1022.5622.5222.56 564QAM11222.3822.3722.39 564QAM12422.5822.4522.48 564QAM12021.5021.4021.40 564QAM12721.5021.4521.36 564QAM121321.3921.4921.39 564QAM25021.3821.3921.31 5256QAM1019.7119.5719.64 5256QAM11219.4819.7519.45 5256QAM12419.5519.6219.46 5256QAM12019.6619.6319.70 5256QAM12719.6119.5219.51 5256QAM121319.5519.4619.52 5256QAM25019.7119.5819.49 204152052520635 825.5836.5847.5 3QPSK1024.3424.2724.30 3QPSK1824.2424.2624.19 3QPSK11424.3224.2724.22 3QPSK8023.3523.2423.35 3QPSK8423.4123.3223.24 3QPSK8723.3523.3323.30 3QPSK15023.3423.2623.33 316QAM1023.6723.5423.60 316QAM1823.5923.5023.51 316QAM11423.6523.5623.46 316QAM8022.4522.3922.40 316QAM8422.4122.3522.44 316QAM8722.4522.5022.49 316QAM15022.4322.3422.42 364QAM1022.6722.6022.59 364QAM1822.5322.5522.53 364QAM11422.5222.5722.51 364QAM8021.3821.4221.45 364QAM8421.3721.4321.45 364QAM8721.4821.5121.47 364QAM15021.4121.4621.48 3256QAM1019.7019.6619.61 3256QAM1819.5519.7719.60 3256QAM11419.6119.5719.44 3256QAM8019.5619.6019.63 3256QAM8419.6019.5919.49 3256QAM8719.4919.5619.44 3256QAM15019.6619.6219.52 204072052520643 824.7836.5848.3 1.4QPSK1024.3224.2624.30 1.4QPSK1324.2224.3124.18 1.4QPSK1524.2324.3224.20 1.4QPSK3024.2424.2924.28 1.4QPSK3124.2724.2524.22 1.4QPSK3324.2324.2624.22 1.4QPSK6023.2123.3023.2724.2 1.416QAM1023.5623.5423.48 1.416QAM1323.4423.4623.34 1.416QAM1523.5523.5123.44 1.416QAM3023.3323.4623.33 1.416QAM3123.4323.4423.33 1.416QAM3323.4223.4423.37 1.416QAM6022.3722.3322.3823.2 1.464QAM1022.4322.4922.47 1.464QAM1322.4122.5222.48 1.464QAM1522.5322.6022.55 1.464QAM3022.3822.4722.41 1.464QAM3122.3622.4922.46 1.464QAM3322.4222.4622.39 1.464QAM6021.3921.3721.3322.2 1.4256QAM1019.5519.5719.59 1.4256QAM1319.4919.7019.41 1.4256QAM1519.4419.5819.43 1.4256QAM3019.6419.6019.71 1.4256QAM3119.6819.5119.53 1.4256QAM3319.5319.5619.51 1.4256QAM6019.6719.5819.5220.2 82420400 849 20.2 23.2 24.2 25.2 Frequency (MHz) 20.2 Channel Tune-up limit (dBm) 20.2 22.2 23.2 23.2 24.2 24.2 25.2 Frequency (MHz) Channel Tune-up limit (dBm) 20.2 20.2 22.2 23.2 23.2 24.2 24.2 25.2 Frequency (MHz) Channel Tune-up limit (dBm) 20.2 20.2 22.2 23.2 23.2 24.2 25.2 24.2 Frequency (MHz) Channel Tune-up limit (dBm) Band 5_Ant 1 D1 of D952022/3/7 FDD-LTE_TX1(Index 1)Report No.:FA161608-05C BW [MHz]ModulationRB SizeRB Offset Power Low Ch. / Freq. Power Middle Ch. / Freq. Power High Ch. / Freq. 230602309523130 704707.5711 10QPSK1023.8723.9423.89 10QPSK12523.8023.9323.89 10QPSK14923.8623.9323.93 10QPSK25023.0223.0723.02 10QPSK251223.0023.0323.00 10QPSK252523.0222.9922.94 10QPSK50023.0123.0922.98 1016QAM1023.2623.3023.26 1016QAM12523.2523.2523.20 1016QAM14923.3323.2423.28 1016QAM25022.0022.0321.94 1016QAM251221.9622.1021.98 1016QAM252522.0322.0222.07 1016QAM50022.0222.0622.06 1064QAM1022.1622.1622.19 1064QAM12522.2622.2622.16 1064QAM14922.3222.1922.18 1064QAM25021.0621.0321.05 1064QAM251221.0921.1421.04 1064QAM252521.0521.1321.04 1064QAM50021.0821.1621.05 10256QAM1019.3719.2619.35 10256QAM12519.2319.3219.31 10256QAM14919.2219.1619.24 10256QAM25019.52…
