Chromecast safety, regulatory and warranty information CHROMECAST MODEL ​NC2­6A5 WHAT YOU’LL FIND IN YOUR CHROMECAST BOX: 1.Chromecast: Your Chromecast plugs into any HDMI port on your TV, and uses your existing Wi­Fi network to stream video from the internet to your TV. A Chromecast is controlled from devices on the same Wi­Fi network, such as smart phones, tablets, or computers, and is powered using the USB cable (#2). 2.USB cable: The USB cable provides power to your Chromecast. One end plugs into your Chromecast, and the other end plugs into either a USB port on your TV, or the power supply (#3). DO NOT PLUG THE USB CABLE INTO A PORT LABELED “SERVICE”; IT MUST BE LABELED “USB” OR DISPLAY THIS SYMBOL: 3.Power supply: The power supply is optional, and can be used with the USB cable to power your Chromecast if your TV does not have a USB port. 4.HDMI extender: The HDMI extender is optional, and can be used if your Chromecast does not fit directly into your TV. The Chromecast app may also recommend using it to improve your Wi­Fi reception. Attach between your Chromecast and TV. MORE HELP WITH SETTING UP CHROMECAST CAN BE FOUND ​HERE​. WARNINGS TO USERS Chromecast may get hot to the touch; this is normal. Unplug Chromecast’s power source and let it cool before removing it from your television. Use only the cables and plugs provided with your device to plug Chromecast into a power source. Using other cables or plugs may damage Chromecast and/or your television. Do not expose Chromecast or the power supply to water or extreme conditions (moisture, heat, cold, dust), as Chromecast or the power supply may malfunction or cease to work when exposed to such elements. Do not attempt to disassemble or repair Chromecast yourself. Doing so voids the limited warranty and could harm you, your television, and/or Chromecast. Chromecast is an entertainment device; it is not designed, manufactured or intended for use in hazardous environments requiring fail­safe performance in which the failure of Chromecast could lead directly to death, personal injury, or severe physical or environmental damage. Take care when handling the power supply to avoid electric shock. Caution: Risk of electric shock. Dry location use only. Pacemaker Notice The device contains radios that emit electromagnetic fields. These electromagnetic fields may interfere with pacemakers or other medical devices. If you wear a pacemaker, maintain at least 20 cm (8 inches) of separation between your pacemaker and your device. If you suspect your device is interfering with your pacemaker or any other medical device, stop using it and consult your physician for information specific to your medical device. Do not carry the device in the front pocket of your shirt or coat. For information about other active medical implants, please contact the producer or a doctor to ensure that your product's magnetic field will not interfere with the implant. Device with Magnet Avoid placing any media that contains magnets or is sensitive to magnetism, such as credit cards, bank cards, audio/video, tapes, or magnetic memory devices, near this product. Media containing information sensitive to magnets should be kept at least 5 cm away from the product. For example, if you carry your wallet or billfold containing magnetic cards next to this product, information stored on those cards could be destroyed. Similarly, magnet sensitive devices, such as a mechanical watch or measuring device, can be damaged if they come too close to this product. WARRANTY INFORMATION IS AVAILABLE ​HERE​. LICENSING INFORMATION IS AVAILABLE ​HERE​. REGULATORY INFORMATION NOTE ON INTERFERENCE IN A RESIDENTIAL INSTALLATION This device has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Chromecast generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If Chromecast does cause harmful interference to radio or television reception, which can be determined by plugging in, then unplugging, Chromecast, the user is encouraged to try to correct the interference by reorienting or relocating the receiving antenna and/or consulting the dealer or an experienced radio/TV technician for help. Chromecast complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) the device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate Chromecast or warranty. Model: ​NC2­6A5 FCC ID: ​A4RNC2­6A5​ ­­ your Chromecast’s FCC ID is printed on its back To satisfy FCC exposure requirements, a separation distance of at least 20 cm should be maintained between the antenna of this device and persons during device operation. Operations at closer than this distance are not recommended. The antenna used for this transmitter must not be co­located in conjunction with any other antenna or transmitter. Chromecast was designed by Google Inc. of 1600 Amphitheatre Parkway, Mountain View, California 94043 and assembled in China.

Google Inc. Main Phone 650 253.0000 1600 Amphitheatre Parkway Main Fax 650 253.0001 Mountain View, CA 94043 www.google.com Federal Communications Commission Laboratory Division 7435 Oakland Mills Road Columbia, MD 21046 Date: June 22, 2015 Subject: Request for Confidentiality FCC ID: A4RNC2-6A5 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), Google Inc. (Google) requests that the Commission indefinitely withhold from public disclosure the following attachments associated with the certification application for the above-referenced FCC ID: • Theory of Operation (Operational and Technical Description) • Block Diagram • Schematic Diagram In support of this request, Google provides the following information: 1. Identification of the specific information for which confidential treatment is sought (§ 0.459(b)(1)): Google requests that all of the information contained in the above- referenced exhibits to the certification application be withheld from routine public disclosure. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission (§ 0.459(b)(2)): The material is being submitted in connection with Google’s certification application for FCC ID A4RNC2-6A5. 3. Explanation of the degree to which the information is commercial, or financial or contains a trade secret or is privileged (§ 0.459(b)(3)): The market for the technology that is the subject of the certification application is highly competitive, with numerous companies competing for the business of potential customers. Were Google’s competitors to become aware of the facts set forth in the above-referenced exhibits to the application at this time, it could have an adverse impact on Google’s competitive standing and deprive Google of the marketplace benefit it otherwise might achieve by virtue of having the product available before other competitors. If any of the information for which confidential treatment is sought were to be made publicly available, Google’s competitors could reasonably determine the scope and status of our activities. Google Inc. Main Phone 650 253.0000 1600 Amphitheatre Parkway Main Fax 650 253.0001 Mountain View, CA 94043 www.google.com 2 4. Explanation of the degree to which the information concerns a service that is competitive (§ 0.459(b)(4)): The technology that is the subject of the certification application is subject to intense competition from other manufacturers and service providers that are developing competing services and technology. 5. Explanation of how disclosure of the information could result in substantial competitive harm (§ 0.459(b)(5)): As noted above, were Google’s competitors to become aware of the facts set forth in the above-referenced exhibits to the application, it could have an adverse impact on Google’s competitive standing and deprive Google of the marketplace benefit it otherwise would achieve by virtue of having the product available before other providers. 6. Identification of any measures taken by the requesting party to prevent unauthorized disclosure (§ 0.459(b)(6)): The information contained in the above- referenced exhibits to the certification application has been strictly controlled by Google, with distribution limited to internal use only and for the specific purpose of conducting research, development, and testing of the technology. 7. Identification of whether the information is available to the public and the extent of any previous disclosures of the information to any third parties (§ 0.459(b)(7)): The information that Google requests be maintained as confidential is not available publicly. The information has been protected and kept confidential by limiting external contacts to privileged and confidential communications. 8. Justification of the period during which the submitting party asserts that material should not be available for public disclosure (§ 0.459(h)(8)): Given the competitive nature of the marketplace, any disclosure that Google has developed the technology discussed in the above-reference exhibits to the certification application would harm Google’s competitive position. The information subject to this request for confidentiality should not be made available for public disclosure at any time. In addition, pursuant to Public Notice DA 04-1705, and in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204 while ensuring that business-sensitive information remains confidential until the actual marketing of newly authorized devices, Google also requests that the Commission grant temporary confidential treatment and not release the following attachments for routine public disclosure until 180 days following the grant of this certification application: • External Photos • Internal Photos • Test Setup Photos • User Manual (Important Product Information) Google Inc. Main Phone 650 253.0000 1600 Amphitheatre Parkway Main Fax 650 253.0001 Mountain View, CA 94043 www.google.com 3 It is our understanding that test measurement reports and correspondence during the certification review process cannot be granted confidential treatment, and such information will be available for public review once the grant of equipment authorization is issued. Sincerely yours, Warwick Wong Regulatory Compliance Specialist Google Inc. 1600 Amphitheatre Parkway Mountain View, CA 94043 Tel 408.425.6290 Email [email protected]

Google Inc. Main Phone 650 253.0000 1600 Amphitheatre Parkway Main Fax 650 253.0001 Mountain View, CA 94043 www.google.com Federal Communications Commission Equipment Authorization branch 7435 Oakland Mills Road Columbia, MD 21046 Date: June 22, 2015 Subject: FCC Agent Authentication Letter FCC ID: A4RNC2-6A5 To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; Google Inc. Main Phone 650 253.0000 1600 Amphitheatre Parkway Main Fax 650 253.0001 Mountain View, CA 94043 www.google.com e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Warwick Wong Regulatory Compliance Specialist Google Inc. Google Inc. Main Phone 650 253.0000 1600 Amphitheatre Parkway Main Fax 650 253.0001 Mountain View, CA 94043 www.google.com REMARK: 1. This authorization letter will be sent along with your application when filing with UL Verification Services Inc. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database and Industry Canada contact information.

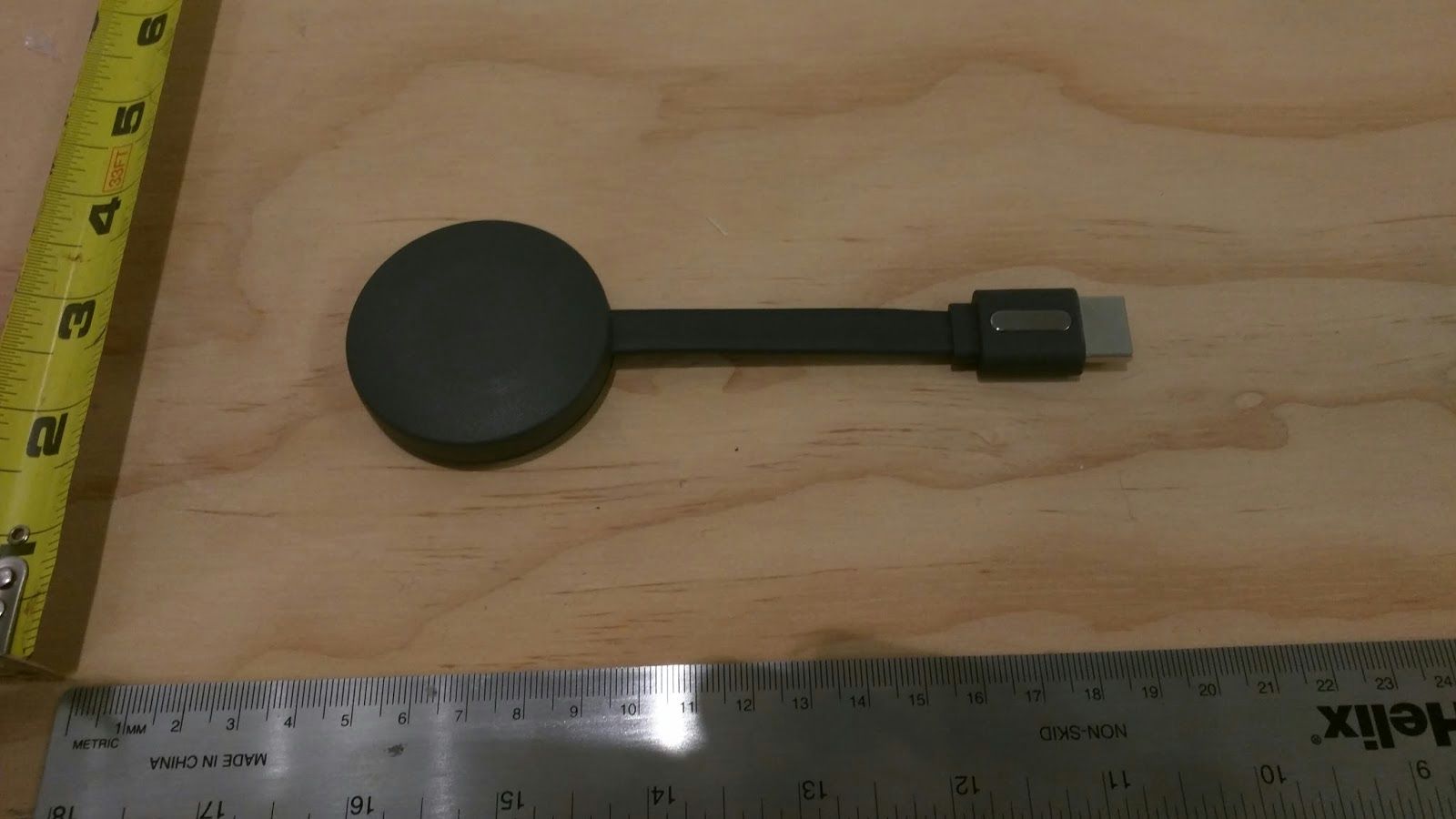

A4RNC2­6A5 Confidential External Pictures Front Back

Label Artwork and Location FCC ID: A4RNC2­6A5 Bottom View

A4RNC2­6A5 Confidential Internal Pictures Front: No Shields Back: No Shields A4RNC2­6A5 Confidential Internal Pictures Front: Back:

FCC 47 CFR § 2.1093 INDUSTRY CANADA RSS 102 ISSUE 5 RF EXPOSURE REPORT FOR Multimedia Device with BLE, 2.4Ghz and 5GHz WLAN Radios MODEL NUMBER: NC2-6A5 FCC ID: A4RNC2-6A5 IC ID: 10395A-NC26A5 REPORT NUMBER: 15U20917-E10 ISSUE DATE: JULY 29, 2015 Prepared for GOOGLE 1600 AMPHITEATRE PARKWAY MOUNTAIN VIEW, CA 94043, U.S.A. Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 15U20917-E10 DATE: JULY 28, 2015 FCC ID: A4RNC2-6A5 IC: 10395A-NC26A5 Page 2 of 13 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By -- 7/14/15 Initial Issue F. de Anda A 7/29/15 added multiple chain transmitter tables F. de Anda REPORT NO: 15U20917-E10 DATE: JULY 28, 2015 FCC ID: A4RNC2-6A5 IC: 10395A-NC26A5 Page 3 of 13 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. REFERENCES ................................................................................................................... 5 4. FACILITIES AND ACCREDITATION ................................................................................. 5 5. MAXIMUM PERMISSIBLE RF EXPOSURE ....................................................................... 6 5.1. FCC RULES ................................................................................................................ 6 5.2. IC RULES .................................................................................................................... 7 5.3. EQUATIONS ................................................................................................................ 8 5.4. LIMITS AND IC EXEMPTION .....................................................................................10 6. RF EXPOSURE RESULTS ................................................................................................11 REPORT NO: 15U20917-E10 DATE: JULY 28, 2015 FCC ID: A4RNC2-6A5 IC: 10395A-NC26A5 Page 4 of 13 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: GOOGLE 1600 AMPHITEATRE PARKWAY MOUNTAIN VIEW, CA 94043, U.S.A. MODEL: NC2-6A5 SERIAL NUMBER: NA DATE TESTED: NA APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47 CFR § 2.1093 Published RF exposure KDB procedures Exempt from SAR testing INDUSTRY CANADA RSS 102 ISSUE 5 Exempt from SAR testing UL Verification Services Inc. calculated the RF Exposure of the above equipment in accordance with the requirements set forth in the above standards, using test results reported in the test report documents referenced below and/or documentation furnished by the applicant. All indications of Pass/Fail in this report are opinions expressed by UL Verification Services Inc. based on interpretations of these calculations. The results show that the equipment is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL Verification Services Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL Verification Services Inc. will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government. Approved & Released For UL Verification Services Inc. By: Tested By: FRANCISCO DE ANDA CHRIS XIONG PROJECT LEAD EMC ENGINEER UL Verification Services Inc. UL Verification Services Inc. REPORT NO: 15U20917-E10 DATE: JULY 28, 2015 FCC ID: A4RNC2-6A5 IC: 10395A-NC26A5 Page 5 of 13 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. 2. TEST METHODOLOGY All calculations were made in accordance with FCC OET Bulletin 65 Edition 97-01 and IC Safety Code 6. 3. REFERENCES All measurements were made as documented in test report UL Verification Services Inc. Document 15U20917-E4 FCC_IC BLE Report and 15U20917-E1 FCC_IC DTS WLAN Report for operation in the 2.4 GHz band and UL Verification Services Inc. Document 15U20917-E2 FCC UNII WLAN Report for operation in the 5 GHz bands. Duty cycle data is excerpted from the applicable test reports. Output power and Antenna gain data is excerpted from product documentation provided by the applicant. 4. FACILITIES AND ACCREDITATION The test sites and measurement facilities used to collect data are located at 47173 Benicia Street, Fremont, California, USA. UL Verification Services Inc. is accredited by NVLAP, Laboratory Code 200065-0. The full scope of accreditation can be viewed at http://ts.nist.gov/standards/scopes/2000650.htm. REPORT NO: 15U20917-E10 DATE: JULY 28, 2015 FCC ID: A4RNC2-6A5 IC: 10395A-NC26A5 Page 6 of 13 UL VERIFICATION SERVICES INC. FORM…

Text truncated - open the document above for the full version.

REPORT NO: 15U20917-E2 DATE: JULY 8, 2015 FCC ID: A4RNC2-6A5 Page 191 of 385 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . 8.16.5. Maximum Power Spectral Density (PSD) LIMITS FCC §15.407 (a) (3) For the band 5.725-5.85 GHz, the maximum conducted output power over the frequency band of operation shall not exceed 1 W. In addition, the maximum power spectral density shall not exceed 30 dBm in any 500-kHz band. If transmitting antennas of directional gain greater than 6 dBi are used, both the maximum conducted output power and the maximum power spectral density shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi. DIRECTIONAL ANTENNA GAIN There is only one transmitter output therefore the directional gain is equal to the antenna gain. REPORT NO: 15U20917-E2 DATE: JULY 8, 2015 FCC ID: A4RNC2-6A5 Page 192 of 385 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . RESULTS Antenna Gain and Limits Channel Frequency DirectionalPSD GainLimit (MHz)(dBi)(dBm) Low57552.1030.00 High57952.1030.00 Duty Cycle CF (dB)0.00Included in Calculations of Corr'd PSD PSD Results Channel Frequency Chain 0TotalPSDPSD MeasCorr'dLimitMargin PSDPSD (MHz)(dBm)(dBm)(dBm)(dB) Low5755-5.88-5.8830.00-35.88 High5795-2.53-2.5330.00-32.53 REPORT NO: 15U20917-E2 DATE: JULY 8, 2015 FCC ID: A4RNC2-6A5 Page 193 of 385 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . PSD, Chain 0 PSD, Chain 0 LOW CH PSD, Chain 0 HIGH CH REPORT NO: 15U20917-E2 DATE: JULY 8, 2015 FCC ID: A4RNC2-6A5 Page 194 of 385 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . 8.17. 802.11ac VHT80 MODE IN THE 5.8 GHz BAND 8.17.1. 6 dB BANDWIDTH LIMITS FCC §15.407 (e) The minimum 6 dB bandwidth shall be at least 500 kHz. RESULTS Channel Frequency 6 dB BandwidthMinimum Limit (MHz)(MHz)(MHz) Mid577576.36000.5 REPORT NO: 15U20917-E2 DATE: JULY 8, 2015 FCC ID: A4RNC2-6A5 Page 195 of 385 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . 6 dB BANDWIDTH 6 dB BANDWIDTH MID CH REPORT NO: 15U20917-E2 DATE: JULY 8, 2015 FCC ID: A4RNC2-6A5 Page 196 of 385 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . 8.17.2. 26 dB BANDWIDTH LIMITS None; for reporting purposes only. RESULTS ChannelFrequency26 dB Bandwidth (MHz)(MHz) Mid577582.68 REPORT NO: 15U20917-E2 DATE: JULY 8, 2015 FCC ID: A4RNC2-6A5 Page 197 of 385 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . 26 dB BANDWIDTH BANDWIDTH MID CH REPORT NO: 15U20917-E2 DATE: JULY 8, 2015 FCC ID: A4RNC2-6A5 Page 198 of 385 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . 8.17.3. 99% BANDWIDTH LIMITS None; for reporting purposes only. RESULTS ChannelFrequency99% Bandwidth (MHz)(MHz) Mid577576.3170 REPORT NO: 15U20917-E2 DATE: JULY 8, 2015 FCC ID: A4RNC2-6A5 Page 199 of 385 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . 99% BANDWIDTH BANDWIDTH MID CH REPORT NO: 15U20917-E2 DATE: JULY 8, 2015 FCC ID: A4RNC2-6A5 Page 200 of 385 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . 8.17.4. OUTPUT POWER LIMITS FCC §15.407 (a) (3) For the band 5.725-5.85 GHz, the maximum conducted output power over the frequency band of operation shall not exceed 1 W. In addition, the maximum power spectral density shall not exceed 30 dBm in any 500-kHz band. If transmitting antennas of directional gain greater than 6 dBi are used, both the maximum conducted output power and the maximum power spectral density shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi. DIRECTIONAL ANTENNA GAIN There is only one transmitter output therefore the directional gain is equal to the antenna gain. REPORT NO: 15U20917-E2 DATE: JULY 8, 2015 FCC ID: A4RNC2-6A5 Page 201 of 385 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . RESULTS Antenna Gain and Limit Channel Frequency Directional Power GainLimit (MHz)(dBi)(dBm) Mid57752.1030…

Text truncated - open the document above for the full version.

REPORT NO: 15U20917-E2 DATE: JULY 8, 2015 FCC ID: A4RNC2-6A5 Page 377 of 385 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . 12. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 15U20917-E2 DATE: JULY 8, 2015 FCC ID: A4RNC2-6A5 Page 378 of 385 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . RADIATED RF MEASUREMENT SETUP (BELOW 1 GHz) RADIATED FRONT PHOTO (BELOW 1 GHz) RADIATED BACK PHOTO (BELOW 1 GHz) REPORT NO: 15U20917-E2 DATE: JULY 8, 2015 FCC ID: A4RNC2-6A5 Page 379 of 385 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . RADIATED RF MEASUREMENT SETUP (ABOVE 1 GHz) RADIATED FRONT PHOTO (ABOVE 1 GHz) RADIATED BACK PHOTO (ABOVE 1 GHz) REPORT NO: 15U20917-E2 DATE: JULY 8, 2015 FCC ID: A4RNC2-6A5 Page 380 of 385 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . RADIATED RF MEASUREMENT SETUP FOR PORTABLE CONFIGURATION X-AXIS FRONT PHOTO X-AXIS BACK PHOTO REPORT NO: 15U20917-E2 DATE: JULY 8, 2015 FCC ID: A4RNC2-6A5 Page 381 of 385 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . Y-AXIS FRONT PHOTO Y-AXIS BACK PHOTO REPORT NO: 15U20917-E2 DATE: JULY 8, 2015 FCC ID: A4RNC2-6A5 Page 382 of 385 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . Z-AXIS FRONT PHOTO Z-AXIS BACK PHOTO REPORT NO: 15U20917-E2 DATE: JULY 8, 2015 FCC ID: A4RNC2-6A5 Page 383 of 385 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO LINE CONDUCTED BACK PHOTO REPORT NO: 15U20917-E2 DATE: JULY 8, 2015 FCC ID: A4RNC2-6A5 Page 384 of 385 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approv…
