A5UXPWG3WiFi Gen3 Module

DRAFT To be added at a later date To be added at a later date

166 South Carter Street, Genoa City, WI 53128 Request for Confidentiality Date: March 23, 2015 FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 RE: Certification Application FCC ID: A5UXPWG3 Pursuant to 47 CFR Section 0.459 Whirlpool Corporation understands that requests for non disclosure and confidential treatment is being made for the following information as stated under the Code of Federal Regulations Chapter 47, Part 0.459:  Block Diagram  Schematics  Operational Description The above materials contain trade secrets, proprietary and technical information that would customarily be guarded from competitors under 47 CFR section 0.457(d)(2). Disclosure or publication of any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Whirlpool Corporation understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Thank you for your attention to this matter. Signatory William M. Stumpf OATS Manager D.L.S. Electronic Systems, Inc.

166 South Carter Street, Genoa City, WI 53128 Letter of Agency Date: March 23, 2015 FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 To Whom It May Concern: Please be advised that Whirlpool Corporation authorizes D.L.S. Electronic Systems, Inc. to act on their behalf, until otherwise notified, for applications submitted to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Signatory, William M. Stumpf OATS Manager D.L.S. Electronic Systems, Inc. 166 South Carter Street, Genoa City, WI 53128 FCC Labeling Requirements and Information Date: March 23, 2015 FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 RE: FCC Labeling Requirements FCC ID: A5UXPWG3 The following label information is required by the FCC Rules and Regulations for certified devices. Thank you for your attention to these matters. Sincerely, William M. Stumpf OATS Manager D.L.S. Electronic Systems, Inc. 166 South Carter Street, Genoa City, WI 53128 Modification Letter Date: March 23, 2015 FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 RE: Certification Application FCC ID: A5UXPWG3 Please be advised that the following information is a list of modifications that will be included in the production process for the above-referenced equipment. Change 1: The output power settings were set during testing. The output power setting is not related to the output power level in dBm. Change 2: Change 3: Change 4: Change 5: Thank you for your attention to this matter. Signatory William M. Stumpf OATS Manager D.L.S. Electronic Systems, Inc.

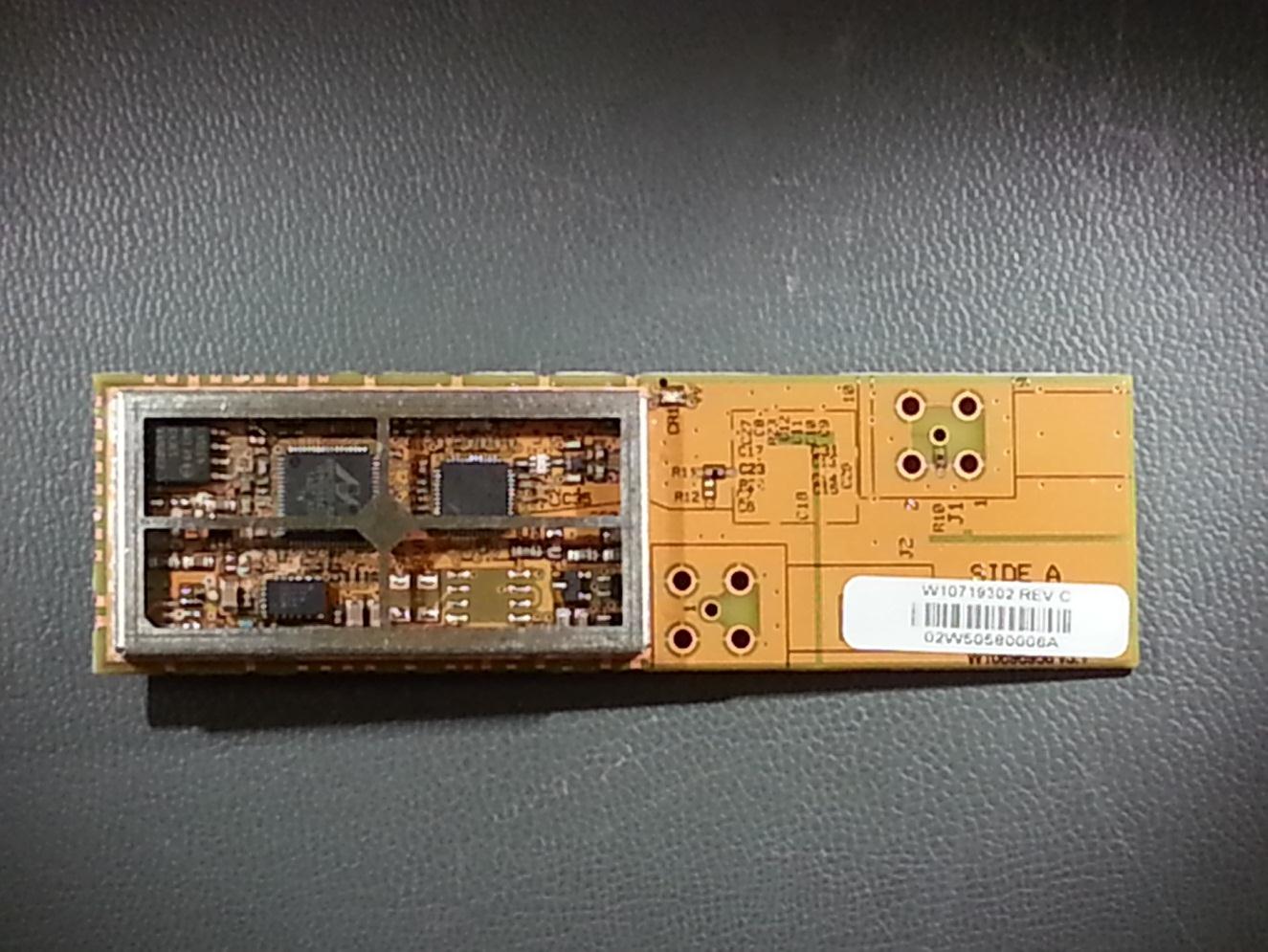

Internal/External Photos Company: Whirlpool Corporation Model: XPWG3 XPWG3 PC Board - Top with Shield - showing label location (not label information) Company: Whirlpool Corporation Model: XPWG3 XPWG3 PC Board - Top with Shield Removed Company: Whirlpool Corporation Model: XPWG3 XPWG3 PC Board - Top with Shield Frame Visible Company: Whirlpool Corporation Model: XPWG3 XPWG3 PC Board - Bottom

A B C D E F G H A B C D E F G H 1 2 3 4 5 67 8 9 10 11 12 1 2 3 4 5 67 8 9 10 11 12 Format Rev: C EN 685373 REV DESCRIPTION OF CHANGE LOC BY E.N. DATE CREATION DATE DRAWN BY DESCRIPTION (ENGLISH) DESCRIPTION (LOCAL) DRAWING SIZE SHEET DRAWING NUMBER DRAWING REV DEFAULT SCALE DO NOT SCALE PRINT METRIC DIMENSIONS IN mm = SPECIAL CHARACTERISTIC 1 OF 2 A1 THIRD ANGLE PROJECTION INTERPRETATION PER ASME Y14.5M-1994 PROJECTION THIS DRAWING IS THE PROPERTY OF WHIRLPOOL CORP. IT CONTAINS CONFIDENTIAL INFORMATION BELONGING TO AND/OR ENTRUSTED TO WHIRLPOOL. IT IS DISCLOSED IN CONFIDENCE AND SHALL NOT BE HELD, REPRODUCED, DISCLOSED OR USED EXCEPT IN A MANNER AND FOR A PURPOSE EXPRESSLY PERMITTED BY WHIRLPOOL IN WRITING. VENDORS SHALL NOT REVISE ANY PHYSICAL, DIMENSIONAL, OR PERFORMANCE CHARACTERISTICS UNLESS AUTHORIZED IN WRITING BY WHIRLPOOL ENGINEERING GROUP. WHIRLPOOL TEST SPECIFICATIONS, IF ANY, ARE NOT INTENDED TO ASSUME ANY RESPONSIBILITY FOR SUBSEQUENT PROBLEMS WITH OR CAUSED BY THE PART, COMPONENT, OR ASSEMBLY PROVIDED BY THE SUPPLIER, AND DO NOT RELIEVE THE SUPPLIER OF ITS OBLIGATIONS INCLUDING, BUT NOT LIMITED TO, THE NEED TO PERFORM ITS OWN TESTING, INSPECTION AND ONGOING QUALITY CONTROL, AND ASSURING FITNESS FOR USE. ANY WHIRLPOOL RECOMMENDED TEST AND ITS OUTCOME DO NOT IN ANYWAY LIMIT OR CHANGE THE WARRANTY CONTAINED IN WHIRLPOOL'S PURCHASE ORDER OR SUPPLY AGREEMENT. B C A C B C A B 44.45
#0.40 19.05
#0.40 1.57
#0.15 91.29
#0.15 25.91
#0.15 5.70
#0.25 10.75
#0.30 EMI/RF SHIELD PART OF PCA BUILD WITH W10721306 FRAME AND W10721307 COVER 3.80
#0.30 22-SEP-2014 THIMAMF W10719300C 1:1 PCA, WIFI MODULE, GEN3 A RELEASE P/N W10719302H1-1THIMAMF 77717522-SEP-2014 CHECKED BY---ELSTOWJ B P/N W10719302 TO REV BH1-1 ENGELKN 77864212-DEC-2014 W10696956(C) WAS W10696956 IN LAYOUT FOR W10719302 IN CHART H3-1 W10696957(C) WAS W10696957 IN SCHEMATIC FOR W10719302 IN CHART H3-1 W10732728(C) WAS W10732728 IN HW CONFIG. FOR W10719302 IN CHART H4-1 CHECKED BY---THIMAMF C "TEST SCRIPT LITEPOINT" WAS "PROCESSOR TEST SCRIPT" IN CHART 1 H9-1 THIMAMF 78573625-FEB-2015 "COMMUNICATION PROTOCOL" COLUMN ADDED TO CHART 1 H8-1 "POWER SUPPLY" COLUMN WAS "J7 CONNECTOR POPULATED (Y/N)" IN CHART 1 H7-1 W10732728(D) WAS W10732728(C) IN HARDWARE CONFIG P/N COLUM FOR W10719302 ROW H3-1 FCC ID: "A5UXPWG3" WAS "--------" IN CERTIFICATION LABEL B9-1 IC: "10248A-XPWG3" WAS "--------" IN CERTIFICATION LABEL B9-1 W10732728(E) WAS W10732728 (C) IN HW CONFIG. FOR W10719302 ROW IN CHART 1 H4-1 ADDED SHEET 2--- ADDED CHART 2A1-2 "ECM LABEL, SEE CHART 2, SHEET 2" WAS "SEE DETAIL A" C9-1 RELEASE W10779015, W10779016, W10779017, W10784959 AND W10719303 H1-1 W10719302 TO REV CH1-1 CHECKED BY---ELSTOWJ CHART 1 PE20 ECM TEST REQUIREMENTS MFG IMAGE TEST CODE TEST SCRIPT LITEPOINT APPLICATION SOFTWARE FILE COMMUNICATION PROTOCOL POWER SUPPLY J2 CONNECTOR POPULATED (Y/N) J1 CONNECTOR POPULATED (Y/N) J3 CONNECTOR POPULATED (Y/N) J4 CONNECTOR POPULATED (Y/N) CONFORMAL COATING REQUIRED HARDWARE CONFIG P/N SCHEMATICLAYOUTDESCRIPTIONREVPART NO. W10779038W10778697W10779037 W10778694WIN5VNNNY NO W10732728(E) W10696957(C)W10696956(C) PCA, WIFI MODULE, GEN3, V13CW10719302 W10778695WIDE12VNNNYW10696970(A)PCA, WIFI MODULE, GEN3, V11AW10779015 W10778693AIWI5VNNNNW10696966(A)PCA, WIFI MODULE, GEN3, V07AW10779016 W10778694WIN12VNNNYW10696969(A)PCA, WIFI MODULE, GEN3, V10AW10779017 W10778694WIN5VYNNYW10784813(A)PCA, WIFI MODULE, GEN3, V15AW10719303 W10778695WIDE12VNYNYW10784821(A)PCA, WIFI MODULE, GEN3, V16AW10784959 NOTES: 1.01. APPROVED SOURCE: JABIL® (GDL, MEXICO) (JABIL® IS A REGISTERED TRADEMARK OF JABIL CIRCUIT, INC.). 1.02. ELECTRONIC DESIGN SOURCE: SJTC CONTROLS AND ELECTRONICS . 1.03. PCB TO BE 1.57
#0.15 (0.62
#0.006") THICK, DOUBLE SIDED FR4, WITH 56.7 (2 OZ) COPPER. PCB MUST COMPLY WITH C044. SEE CAD DATA FILE PART NUMBER IN HARDWARE CONFIG. PART NUMBER COLUMN IN CHART 1. 1.04. TOOLED SAMPLES OF NEW OR REVISED PARTS MUST BE SUBMITTED TO ENGINEERING FOR TESTING AND APPROVALS. 1.05. NO REVISION OF ANY PHYSICAL, DIMENSIONAL, OR PERFORMANCE CHARACTERISTICS CAN BE MADE UNLESS AUTHORIZED IN WRITING BY WHIRLPOOL ENGINEERING. 1.06. NO MANUAL SOLDERING ALLOWED EXCEPT IN THE CASE OF REWORK. 1.07. SUPPLIER MUST VERIFY THE PCA ASSEMBLY PROCESS UTILIZING IPC GUIDELINES IPC-610 AND IPC/JEDEC 9704- PRINTED WIRE BOARD STRAIN GUAGE TEST GUIDELINE. 1.08. PART REVISION REQUIRES WHIRLPOOL EVALUATION OF ELECTROSTATIC DISCHARGE, LINE SURGE, AND BURST TESTING. WHIRLPOOL C & E ENGINEERING WILL CREATE TEST PLAN FOR REQUALIFYING THE CONTROL BASED ON REVISIONS BEING MADE PART REVISIONS REQUIRE CODES APPROVAL. 1.09. UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE RELATED TO DATUM A (PRIMARY), DATUM B (SECONDARY) AND DATUM C (TERTIARY). 1.10. FOR INSPECTION RESTRAIN DATUM A. 1.11. VENDOR MUST BE COMPLIANT WITH GES0168. 1.12. THE PRINTED CIRCUIT ASSEMBLIES ON THIS DRAWING AND THEIR COMPONENT PARTS MUST BE HANDLED WITH CONSIDERATION TO DAMAGE FROM ELECTROSTATIC DISCHARGE ESD . ESD LEVELS SHOULD BE MAINTAINED BELOW 500 VOLTS DURING HUMAN HANDLING. THESE LIMITS ARE BASED ON THE STANDARD ANSI/ESD 20.20-1999 OR LATEST REVISION. AND, BELOW 200 VOLTS DURING MACHINES HANDLING (PER GES0168 SECTION 6.1.2 OR IT'S EQUIVALENT). 1.13. PRINTED BOARD DIMENSIONS AND TOLERANCES PER IPC-2615 STANDARD. 1.14. CIRCUIT BOARDS TO BE LABELED PER WHIRLPOOL SPEC. C033 AS A "CATEGORY 1" PART IN THE "ELECTRICAL COMPONENTS OR ASSEMBLIES", PER PARAGRAPHS 3.3 AND 3.4, AND WITH THIS INFORMATION: A) FORMAT FOR DATE CODE: YY IS THE LAST TWO DIGITS OF THE JULIAN YEAR DDD IS THE THREE DIGIT JULIAN DAY CODE xx IS THE MANUFACTURER AND LOCATION B) FORMAT FOR 12-DIGIT SERIAL NUMBER: NNN = PREFIX, CONTROL ASSEMBLY ID Y = LAST DIGIT OF THE JULIAN YEAR DDD = JULIAN DAY OF THE YEAR XXXX = SEQUENTIAL SERIAL NUMBER BASE 36 WITH EACH DIGIT HAVING A VALUE OF 0-9 AND A-Z A = PANEL LOCATION IDENTIFIER (A, B, C, OR D) 1.15. VENDOR SHALL ENSURE USE OF THE PROPER ARTWORK REVISION. LATEST REVISION APPEARS ADJACENT TO P…

Text truncated - open the document above for the full version.

Internal/External Photos Company: Whirlpool Corporation Model: XPWG3 XPWG3 PC Board - Top with Shield - showing label location (not label information) Company: Whirlpool Corporation Model: XPWG3 XPWG3 PC Board - Top with Shield Removed Company: Whirlpool Corporation Model: XPWG3 XPWG3 PC Board - Top with Shield Frame Visible Company: Whirlpool Corporation Model: XPWG3 XPWG3 PC Board - Bottom

166 South Carter, Genoa City, WI 53128 Page 1 of 3 Company: Whirlpool Corporation Model Tested: XPWG3 DLS Project: 7037 FCC Code of Federal Regulations 47 Part 1.1307(b) (1) RF Exposure Statement of Compliance THE FOLLOWING MEETS THE ABOVE TEST SPECIFICATION Formal Name: Wifi Gen3 Kind of Equipment: 802.11b/g/n Wi-Fi appliance module Frequency Range: 2412-2462 MHz Test Configuration: DC powered transceiver module Model Number(s): XPWG3 Model(s) Tested: XPWG3 Serial Number(s): RF Conducted SN: GW95013003GG Radiated SN: GW95013003IC Date of Tests: February 27 th through March 19 th , 2015 Test Conducted For: Whirlpool Corporation 750 Monte Rd Benton Harbor, MI 49022, USA 166 South Carter, Genoa City, WI 53128 Page 2 of 3 Company: Whirlpool Corporation Model Tested: XPWG3 DLS Project: 7037 Transmitter Information: Maximum Conducted Output Power: 25.08 dBm Maximum Effective Isotropic Radiated Power 26.84 dBm Frequency: 2412 MHz Antenna Type: PCB slot antenna Antenna Gain: 1.76 dBi Exposure Limit: Maximum Permissible Exposure (MPE) limit for General Population / Uncontrolled Exposure in the frequency range 1500 – 100,000 MHz (ref: 47 CFR Part 1.1310 Table 1(b)) Limit: (S) (mW/cm 2 ) = 1.0 mW/cm 2 MPE Calculation: Power Density (mW/cm 2 ): 푆= 푃퐺 4휋푅 2 S = Power Density (mW/cm 2 ) P = Power Input to the antenna (mW) G = Numeric Power Gain of the antenna R = Distance to the center of the radiation of the antenna (cm) 166 South Carter, Genoa City, WI 53128 Page 3 of 3 Company: Whirlpool Corporation Model Tested: XPWG3 DLS Project: 7037 Results: Input Frequency = 2412MHz P = 26.84dBm G = 1.76dBi R = 20cm π 3.14159 Transmit Frequency (MHz) Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Antenna Gain (numeric) Distance (cm) Power Density (mW/cm²) Power Density Limit (mW/cm²) Margin 241226.84483.058801.761.49968200.14411.00.856 RF Exposure Calculation Summary of Results: With a minimum separation distance of 20 centimeters as defined by FCC 2.1091(b), for a mobile device, the Whirlpool Inc. Wifi Gen3 model XPWG3 meets the RF exposure evaluation requirements for maximum permissible exposure to any radiating structure and the general population / uncontrolled exposure. Conclusion: The Whirlpool Inc Wifi Gen3 model XPWG3 operating under FCC part 15.247 complies with the requirements of FCC Part 1.1307(b)(1) for RF Exposure Evaluation.

166 South Carter, Genoa City, WI 53128 Page 1 of 294 Company: Whirlpool Corporation Model Tested: XPWG3 Report Number: 20850 DLS Project: 7037 i. Cover Page Code of Federal Regulations 47 Part 15 – Radio Frequency Devices Subpart C – Intentional Radiators Section 15.247 Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz. THE FOLLOWING MEETS THE ABOVE TEST SPECIFICATION Formal Name: Wifi Gen3 Kind of Equipment: 802.11b/g/n Wi-Fi appliance module F requency Range: 2412-2462 MHz Test Configuration: DC powered transceiver module Model Number (s): XPWG3 Model(s) Tested: XPWG3 Serial Number(s): RF Conducted SN: GW95013003GG Radiated SN: GW95013003IC Date of Tests: February 27 th through March 19 th , 2015 Test Conducted For: Whirlpool Corporation 750 Monte Rd Benton Harbor, MI 49022, USA NOTICE: “This test report relates only to the items tested and must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government”. Please see the "Description of Test Sample" page listed inside of this report. © Copyright 1983 - 2015 D.L.S. Electronic Systems, Inc. COPYRIGHT NOTICE This report must not be reproduced (except in full), without the approval of D.L.S. Electronic Systems, Inc. 166 South Carter, Genoa City, WI 53128 Page 2 of 294 Company: Whirlpool Corporation Model Tested: XPWG3 Report Number: 20850 DLS Project: 7037 ii. Signature Page SIGNATURE PAGE Tested By: Craig Brandt Senior Test Engineer Reviewed By: William Stumpf OATS Manager Approved By: Brian Mattson General Manager 166 South Carter, Genoa City, WI 53128 Page 3 of 294 Company: Whirlpool Corporation Model Tested: XPWG3 Report Number: 20850 DLS Project: 7037 iii. Table of Contents Table of Contents i. Cover Page .......................................................................................................................................1 ii. S ignature Page .................................................................................................................................2 iii. Table of Contents .............................................................................................................................3 iv. NVLAP Certificate of Accreditation ...............................................................................................4 1.0 Summary of Test Report ..................................................................................................................5 2.0 Introduction ......................................................................................................................................6 3.0 Test Facilities ...................................................................................................................................6 4.0 Description of Test Sample ..............................................................................................................6 5.0 Test Equipment ................................................................................................................................8 6.0 Test Arrangements .........................................................................................................................10 7.0 Test Conditions ..............................................................................................................................10 8.0 Modifications Made To EUT For Compliance ..............................................................................10 9.0 Additional Descriptions .................................................................................................................11 10.0 Final Settings .................................................................................................................................11 11.0 Results ............................................................................................................................................11 12.0 Conclusion .....................................................................................................................................11 Appendix A – Test Photos .........................................................................................................................12 Appendix B – Measurement Data ..............................................................................................................17 B1.0 DTS Bandwidth ...................................................................................................................17 B2.0 F undamental Emission Output Power .................................................................................21 B 3.0 Maximum Power Spectral Density (PSD) ...........................................................................31 B4.0 Emissions in Non-Restricted Frequency Bands - RF Conducted ........................................35 _802.11b...........................................................................................................................................36 _802.11g...........................................................................................................................................51 _802.11n................................ ...........................................................................................................66 B5.0 Emissions in Restricted Frequency Bands – Radiated with on-board slot antennas ...........81 B6.0 Band -Edge Measurements – RF Conducted ........................................................................89 B7.0 Band -Edge Measurements – Radiated .................................................................................92 _Lower Band-Edge - 802.11b ..........................................................................................................93 _ Lower Band-Edge - 802.11g ........................................................................................................109 _Lower Band-Edge - 802.11n ...........…

Text truncated - open the document above for the full version.

166 South Carter, Genoa City, WI 53128 Page 1 of 294 Company: Whirlpool Corporation Model Tested: XPWG3 Report Number: 20850 DLS Project: 7037 i. Cover Page Code of Federal Regulations 47 Part 15 – Radio Frequency Devices Subpart C – Intentional Radiators Section 15.247 Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz. THE FOLLOWING MEETS THE ABOVE TEST SPECIFICATION Formal Name: Wifi Gen3 Kind of Equipment: 802.11b/g/n Wi-Fi appliance module F requency Range: 2412-2462 MHz Test Configuration: DC powered transceiver module Model Number (s): XPWG3 Model(s) Tested: XPWG3 Serial Number(s): RF Conducted SN: GW95013003GG Radiated SN: GW95013003IC Date of Tests: February 27 th through March 19 th , 2015 Test Conducted For: Whirlpool Corporation 750 Monte Rd Benton Harbor, MI 49022, USA NOTICE: “This test report relates only to the items tested and must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government”. Please see the "Description of Test Sample" page listed inside of this report. © Copyright 1983 - 2015 D.L.S. Electronic Systems, Inc. COPYRIGHT NOTICE This report must not be reproduced (except in full), without the approval of D.L.S. Electronic Systems, Inc. Test Date: 03-16-2015 Company: Whirlpool Corporation EUT: XPWG3 RF module Test: Lower Restricted Band-Edge Radiated Rule part: FCC Part 15.247(d) and FCC Part 15.205 Operator: Craig B Antenna: 2 Channel: 2432 MHz, channel 5 Modulation: 802.11-g, OFDM, 54 Mbps Power setting: 18 VERTICAL: PEAK: Limit = 74 dBμV/m @ 3 meters Test Date: 03-18-2015 Company: Whirlpool Corporation EUT: XPWG3 RF module Test: Lower Restricted Band-Edge Radiated Rule part: FCC Part 15.247(d) and FCC Part 15.205 Operator: Craig B Antenna: 1 Channel: 2412 MHz, channel 1 Modulation: 802.11-n, MCS7, 72.2 Mbps Power setting: 10 HORIZONTAL: AVERAGE: Limit = 54 dBμV/m @ 3 meters Using procedure 13.3.3, T = 230 μS, VBW = 4.7 kHz Test Date: 03-18-2015 Company: Whirlpool Corporation EUT: XPWG3 RF module Test: Lower Restricted Band-Edge Radiated Rule part: FCC Part 15.247(d) and FCC Part 15.205 Operator: Craig B Antenna: 1 Channel: 2412 MHz, channel 1 Modulation: 802.11-n, MCS7, 72.2 Mbps Power setting: 10 HORIZONTAL: PEAK: Limit = 74 dBμV/m @ 3 meters Test Date: 03-18-2015 Company: Whirlpool Corporation EUT: XPWG3 RF module Test: Lower Restricted Band-Edge Radiated Rule part: FCC Part 15.247(d) and FCC Part 15.205 Operator: Craig B Antenna: 1 Channel: 2412 MHz, channel 1 Modulation: 802.11-n, MCS7, 72.2 Mbps Power setting: 10 VERTICAL: AVERAGE: Limit = 54 dBμV/m @ 3 meters Using procedure 13.3.3, T = 230 μS, VBW = 4.7 kHz Test Date: 03-18-2015 Company: Whirlpool Corporation EUT: XPWG3 RF module Test: Lower Restricted Band-Edge Radiated Rule part: FCC Part 15.247(d) and FCC Part 15.205 Operator: Craig B Antenna: 1 Channel: 2412 MHz, channel 1 Modulation: 802.11-n, MCS7, 72.2 Mbps Power setting: 10 VERTICAL: PEAK: Limit = 74 dBμV/m @ 3 meters Test Date: 03-18-2015 Company: Whirlpool Corporation EUT: XPWG3 RF module Test: Lower Restricted Band-Edge Radiated Rule part: FCC Part 15.247(d) and FCC Part 15.205 Operator: Craig B Antenna: 1 Channel: 2417 MHz, channel 2 Modulation: 802.11-n, MCS7, 72.2 Mbps Power setting: 14 HORIZONTAL: AVERAGE: Limit = 54 dBμV/m @ 3 meters Using procedure 13.3.3, T = 230 μS, VBW = 4.7 kHz Test Date: 03-18-2015 Company: Whirlpool Corporation EUT: XPWG3 RF module Test: Lower Restricted Band-Edge Radiated Rule part: FCC Part 15.247(d) and FCC Part 15.205 Operator: Craig B Antenna: 1 Channel: 2417 MHz, channel 2 Modulation: 802.11-n, MCS7, 72.2 Mbps Power setting: 14 HORIZONTAL: PEAK: Limit = 74 dBμV/m @ 3 meters Test Date: 03-18-2015 Company: Whirlpool Corporation EUT: XPWG3 RF module Test: Lower Restricted Band-Edge Radiated Rule part: FCC Part 15.247(d) and FCC Part 15.205 Operator: Craig B Antenna: 1 Channel: 2417 MHz, channel 2 Modulation: 802.11-n, MCS7, 72.2 Mbps Power setting: 14 VERTICAL: AVERAGE: Limit = 54 dBμV/m @ 3 meters Using procedure 13.3.3, T = 230 μS, VBW = 4.7 kHz Test Date: 03-18-2015 Company: Whirlpool Corporation EUT: XPWG3 RF module Test: Lower Restricted Band-Edge Radiated Rule part: FCC Part 15.247(d) and FCC Part 15.205 Operator: Craig B Antenna: 1 Channel: 2417 MHz, channel 2 Modulation: 802.11-n, MCS7, 72.2 Mbps Power setting: 14 VERTICAL: PEAK: Limit = 74 dBμV/m @ 3 meters Test Date: 03-18-2015 Company: Whirlpool Corporation EUT: XPWG3 RF module Test: Lower Restricted Band-Edge Radiated Rule part: FCC Part 15.247(d) and FCC Part 15.205 Operator: Craig B Antenna: 1 Channel: 2422 MHz, channel 3 Modulation: 802.11-n, MCS7, 72.2 Mbps Power setting: 15 HORIZONTAL: AVERAGE: Limit = 54 dBμV/m @ 3 meters Using procedure 13.3.3, T = 230 μS, VBW = 4.7 kHz Test Date: 03-18-2015 Company: Whirlpool Corporation EUT: XPWG3 RF module Test: Lower Restricted Band-Edge Radiated Rule part: FCC Part 15.247(d) and FCC Part 15.205 Operator: Craig B Antenna: 1 Channel: 2422 MHz, channel 3 Modulation: 802.11-n, MCS7, 72.2 Mbps Power setting: 15 HORIZONTAL: PEAK: Limit = 74 dBμV/m @ 3 meters Test Date: 03-18-2015 Company: Whirlpool Corporation EUT: XPWG3 RF module Test: Lower Restricted Band-Edge Radiated Rule part: FCC Part 15.247(d) and FCC Part 15.205 Operator: Craig B Antenna: 1 Channel: 2422 MHz, channel 3 Modulation: 802.11-n, MCS7, 72.2 Mbps Power setting: 15 VERTICAL: AVERAGE: Limit = 54 dBμV/m @ 3 meters Using procedure 13.3.3, T = 230 μS, VBW = 4.7 kHz Test Date: 03-18-2015 Company: Whirlpool Corporation EUT: XPWG3 RF module Test: Lower Restricted Band-Edge Radiated Rule part: FCC Part 15.247(d) and FCC Part 15.205 Operator: Craig B Antenna: 1 Channel: 2422 MHz, channel 3 Modulation: 802.11-n, MCS7, 72.2 Mbps Power setting: 15 VERTICAL: PEAK: Limit = 74 dBμV/m @ 3 meters Test Date: 03-18-2015 Company: Whirlpool Corporation EUT: XPWG3 RF module Test: Lower Restricted Band-Edge Radiated Rule part: FCC Part 15.247(d) and FCC Part 15.205 Operator…

Text truncated - open the document above for the full version.

Test Setup Photos Photo Information and Test Setup: Item: Whirlpool Corporation Model XPWG3 Radiated Emissions Below 1 GHz Position X Position Y Position Z Radiated Emissions Above 1 GHz Photo Information and Test Setup: Item0: Whirlpool Corporation Model XPWG3 Item1: 7.5 Volt rechargeable battery (not part of the EUT) Radiated Emissions Above 1 GHz Position X Position Y Position Z RF Conducted AC Line Conducted
