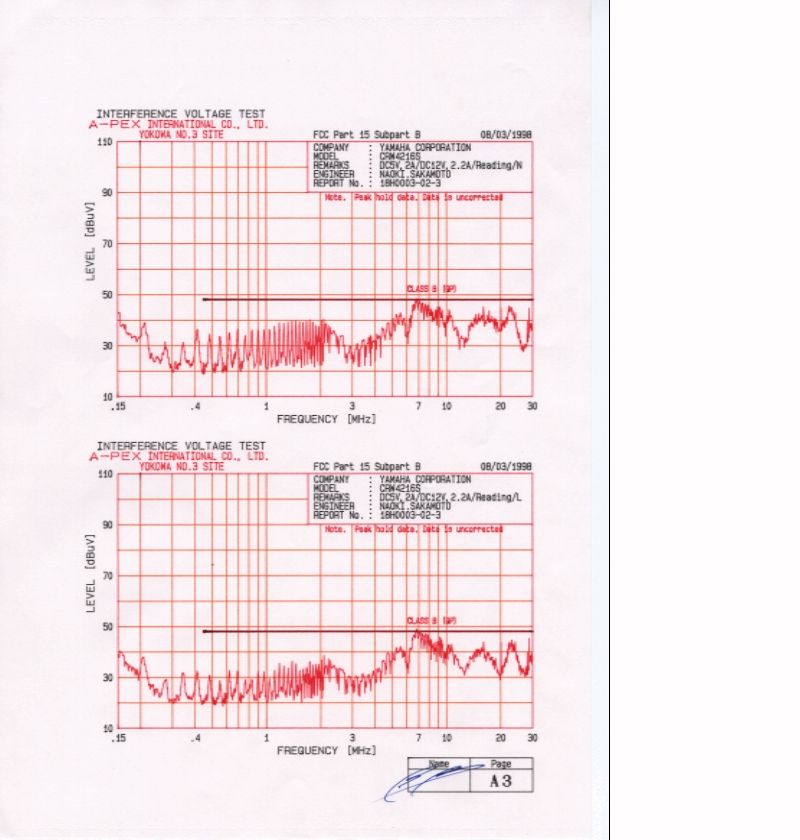

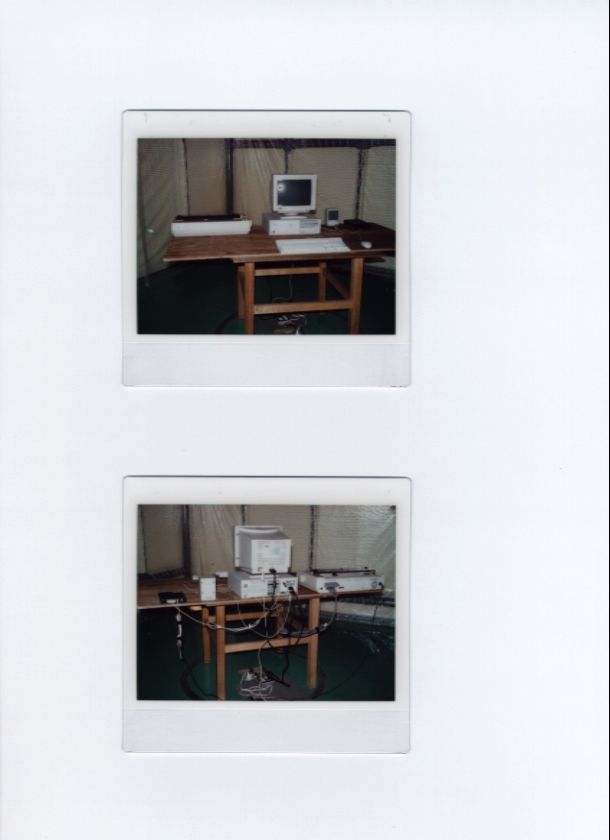

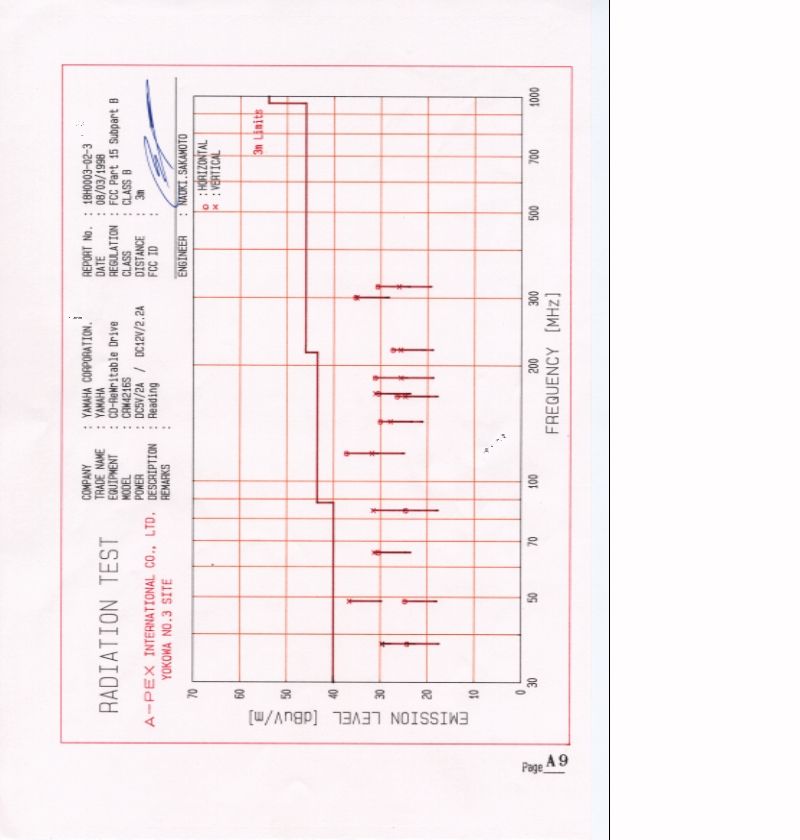

User Guide Guide de l’utilisateur Bedienungsanleitung CRW4416S SERIES ON/ DISC READ / WRITE English Français Deutsch * This manual applies to the CRW4416S and CRW4416S-NB. The CRW4416S front panel displays the YAMAHA brand name. The CRW4416S-NB front panel does not display a brand name. FCC INFORMATION (U.S.A.) 1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT! This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product. 2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA. 3. NOTE: This product has been tested and found to comply with the requirements listed in FCC Regulations, Part 15 for Class ì Bî digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices. This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices. Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the product ì OFFî and ì ONî , please try to eliminate the problem by using one of the following measures: Relocate either this product or the device that is being affected by the interference. Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s. In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to coaxial type cable. If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Systems Technology, Inc. 100 Century Center Court, San Jose, CA95112, U.S.A. Responsible Party:Yamaha Systems Technology, Inc. Address:100 Century Center Court San Jose, California 95112 Telephone:(408) 467-2330 FAX:(408) 437-8791 This output is value measured at a distance 200mm from the objective lens surface on the optical pick-up block. ANSI Class : Class 1 Material : GaAlAs Wavelength : 783-789 nm Emission Duration : Continuous Laser Output Power : Less than 44.6 μW* * Laser Diode Properties CLASS 1 LASER PRODUCT LASER KLASSE 1 PRODUKT This compact disc player is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT label must be located on the exterior. Varningsanvisning för laserstrålning. VORSICHT : UNSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GEOFFNET. NICHT DEM STRAHL AUSSETZEN. VARNING : OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD OCH SPÄRREN ÄR URKOPPLAD. BETRAKTA EJ STRÅLEN ÄR FARLIG. VARO! : AVATAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTINA NÄKYMÄTTÖMÄLLE LASERS TEILYLLE. ÄLÄ KATSO SÄTESSEN. ADVARSEL : USYNLIG LASERSTRALNING VED ÅBNING NÄR SIKKERHETSAF- BYDERE ER UDE AF FUNKTION. UNDGÅ UDSETTELS FOR STRÅLING. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. WARNING i WARNING ¢ WARNING ¢ • The temperature where CRW4416S is located should be between 5ºC and 40ºC (41ºF – 104ºF), when used in a fan-cooled system. • Do not disassemble the CRW4416S cover to reduce the risk of electric shock. • Always remove the disc before transporting CRW4416S. Important Precautions ii Important Precautions Please read the following precautions before attempting to operate the CRW4416S. • Before recording a disc, be sure to clean the disc and tray using an air aerosol-type dust remover. A dust particle on the disc may cause recording to fail, producing an unusable disc. • Always record in a dust-free environment. If the disc must be removed from the CRW4416S before recording is finished, store the disc in a clean, dust- free environment. • The CRW4416S contains no user serviceable parts. Refer all servicing to qualified personnel. • If any of the following should occur, the CRW4416S should be serviced by qualified personnel: Metal objects or liquids get inside the CRW4416S. The CRW4416S does not operate normally or a marked change in performance is noticed. • Do not place heavy objects on the CD-RW discs. • Do not subject the CRW4416S and computer to impact or shock when in use, as this may impair recording or playback. • Yamaha is not responsible for any data or informa- tion losses resulting from the operation of the CRW4416S. Table of Contents iii Table of Contents Introduction ...............................................................................1 CRW4416S Features .......................................................1 Orange Book Compatible Recording ..............................2 Chapter 1 - System Configuration ......................................3 Computer .........................................................................3 Software ...........................................................................3 Tools ................................................................................4 Discs ................................................................................4 Chapter 2 - Installing the Yamaha CRW4416S Drive ........... 5 CRW4416S drive settings ...............................................5 Installing the CRW4416S drive .......................................8 Chapter 3 - Operation ............................................................1…

Text truncated - open the document above for the full version.

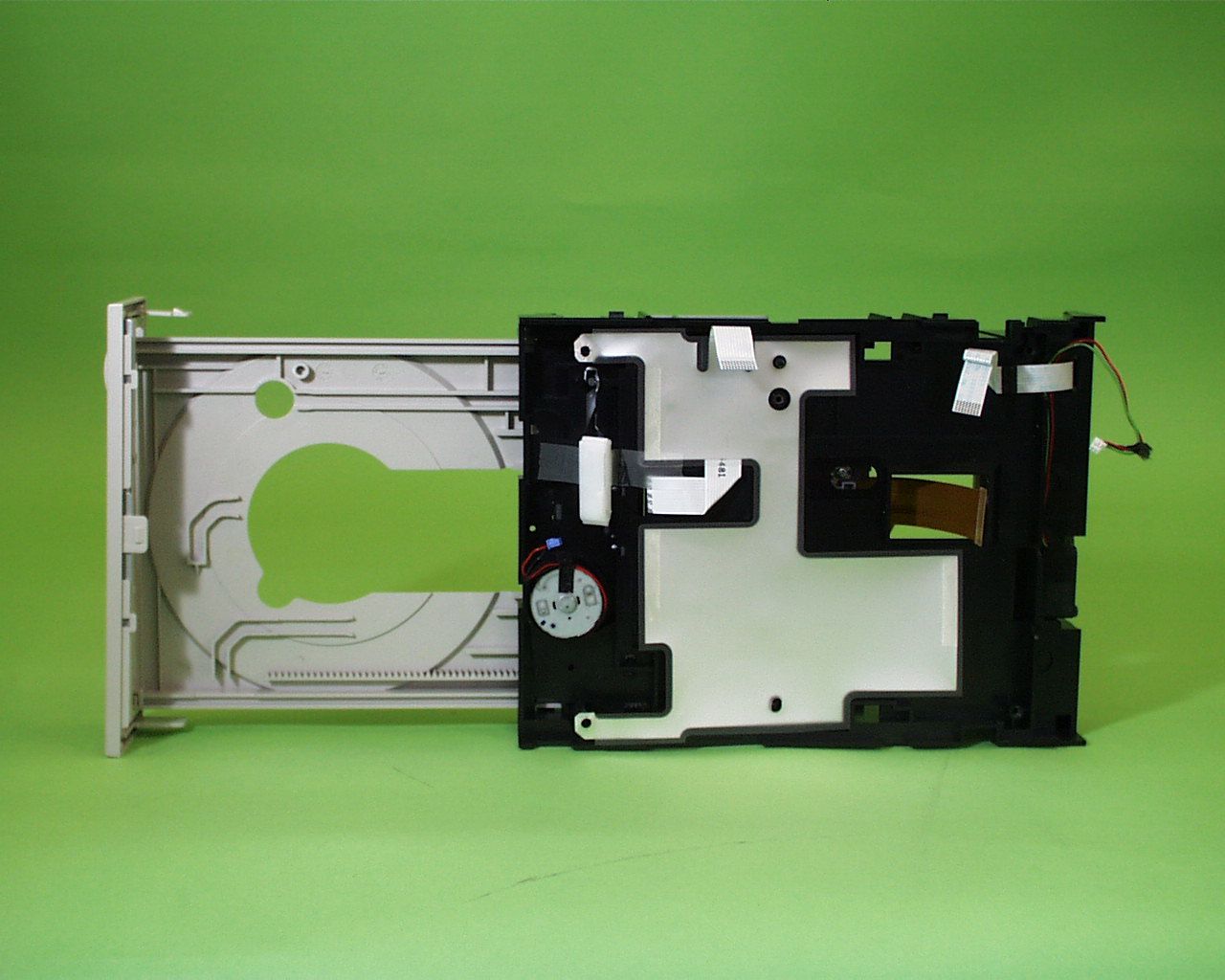

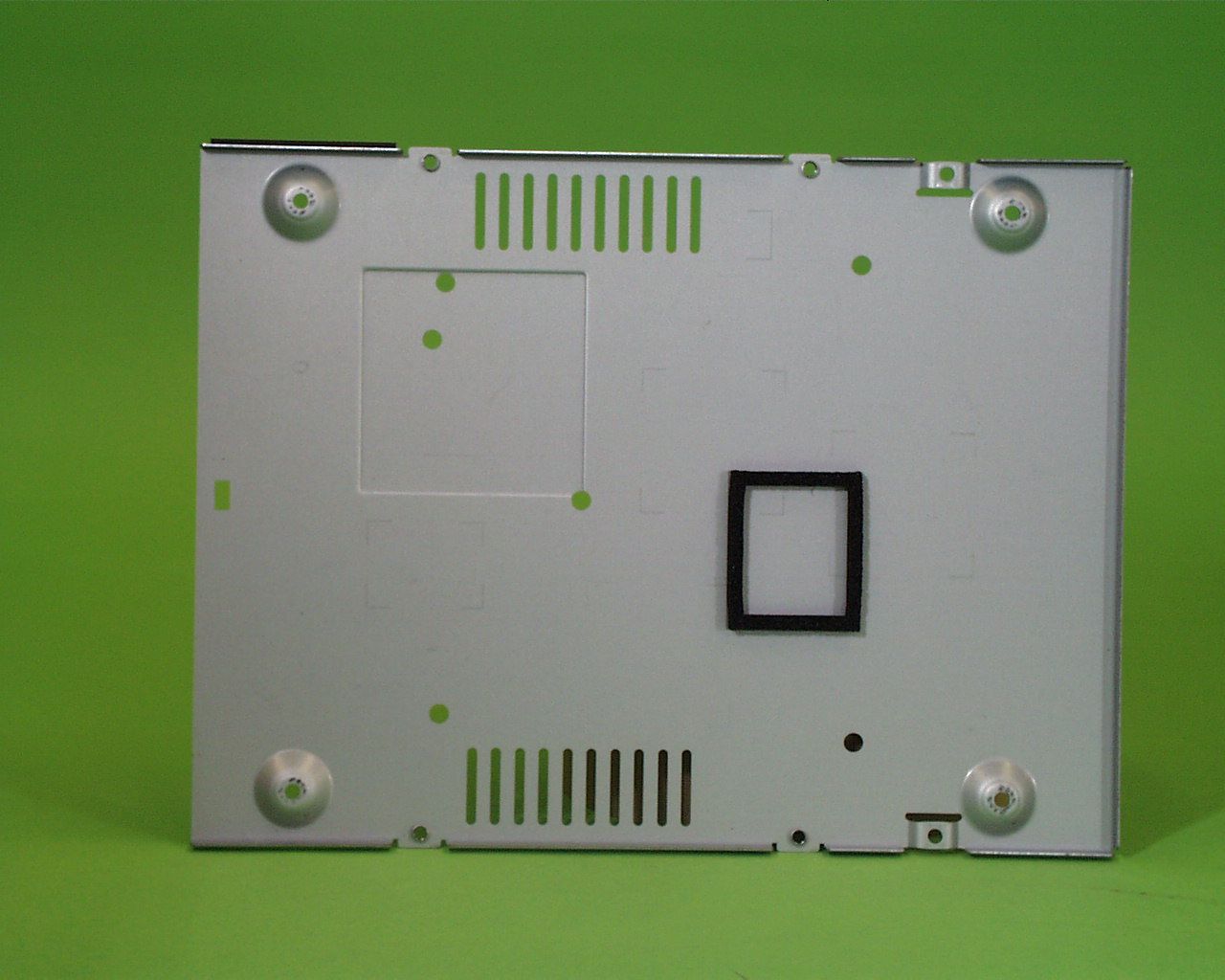

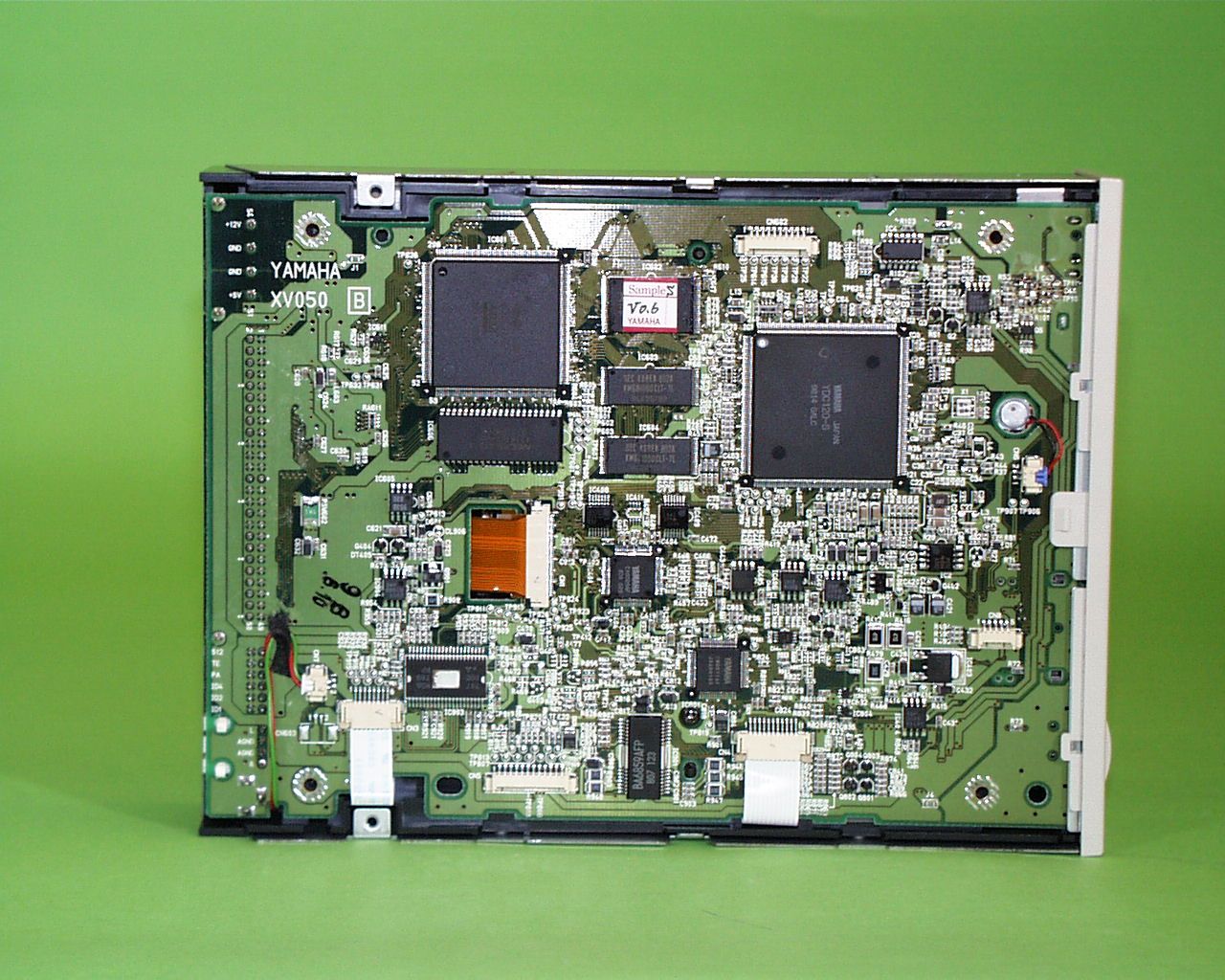

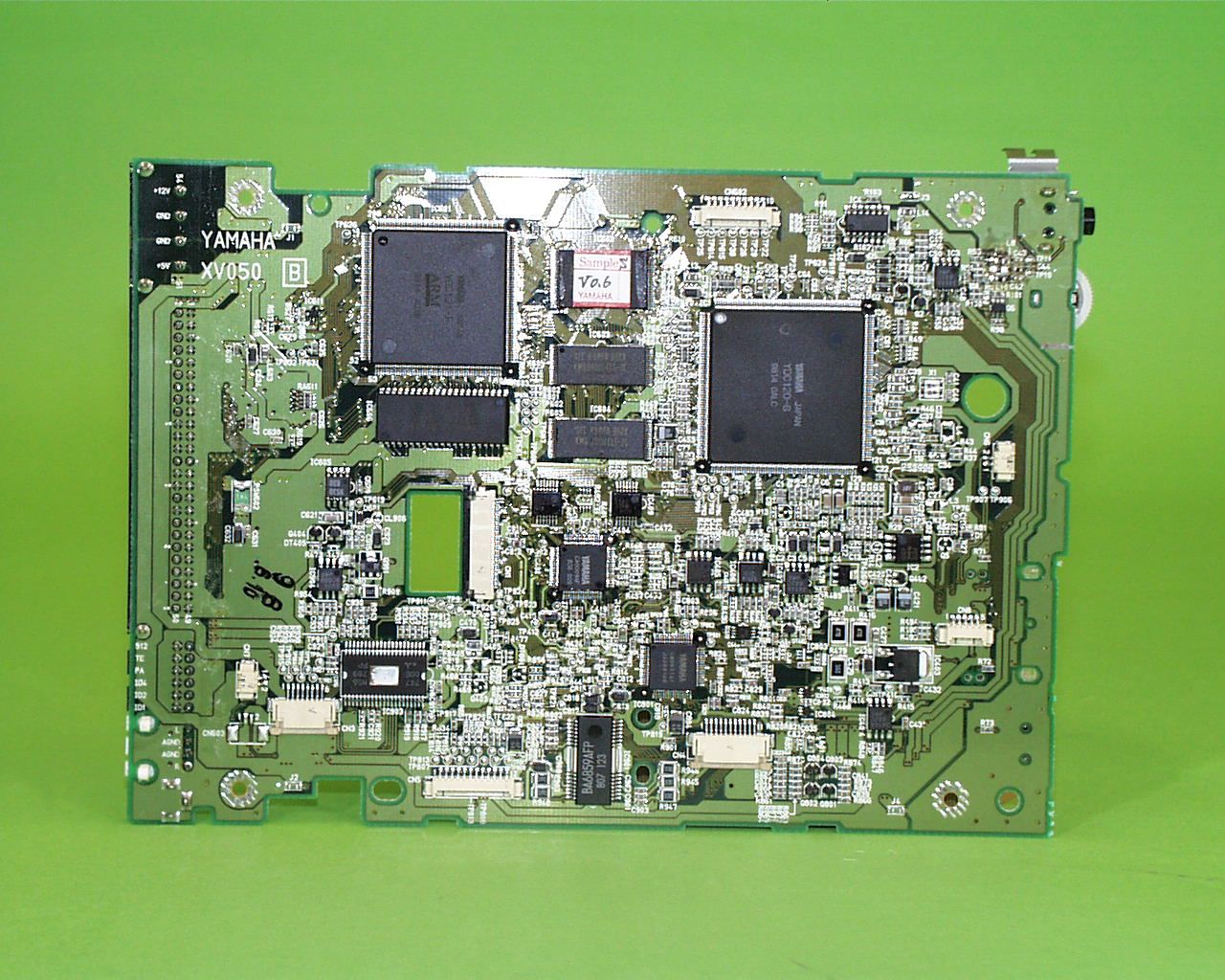

IC1 YDC120-S SCSI-2 Interface Audio Out SERVO Focus Tracking Feed Loading RED Wobble EFM Focus Tracking Spindle(DSV,Wobble,BCLK) Auto Adjust OPC,ROPC IC401 CA0009AF(A2) ALPC ROPC HF OW OPC RF Feed Motor Loading Motor IC901 BA6859A Spindle Driver Spindle Motor Optical Head Module Laser Driver OEIC I-V PPD Laser Over Drive Detect IC903 M56759FP Actuater Driver Disc Micro-COM I/F IC601 YDC121-F CPU ( ARM7 ) CDROM ENC/DEC Subcode R-W ENC/DEC DRAM Controller IDE Controller Audio Processer IC4 PCM1725U DAC IC406 M5201A Gain Select Linear Encoder ALPC IN ALPC OUT IC609 MCCS142236 SCSI Terminator Spindle RED ENC/DEC Subcode P,Q ENC/DEC IC801 CM0011AF(A1) Focus Tracking Wobble EQ. 33.8688MHz IC606 M5M418160/65(FP/EDO) DRAM (1M x16) IC608 AIC-33C94C SCSI Controller IC602 MBM29F400 FLASH (256K x16) IC603,604 HM62864 SRAM (64K x16) FCC ID : A6R11F56 CRW4461S Series BLOCK DIAGRAM

FCC ID : A6R11F56 CRW4416S Series FCC ID Label FCC ID : A6R11F56

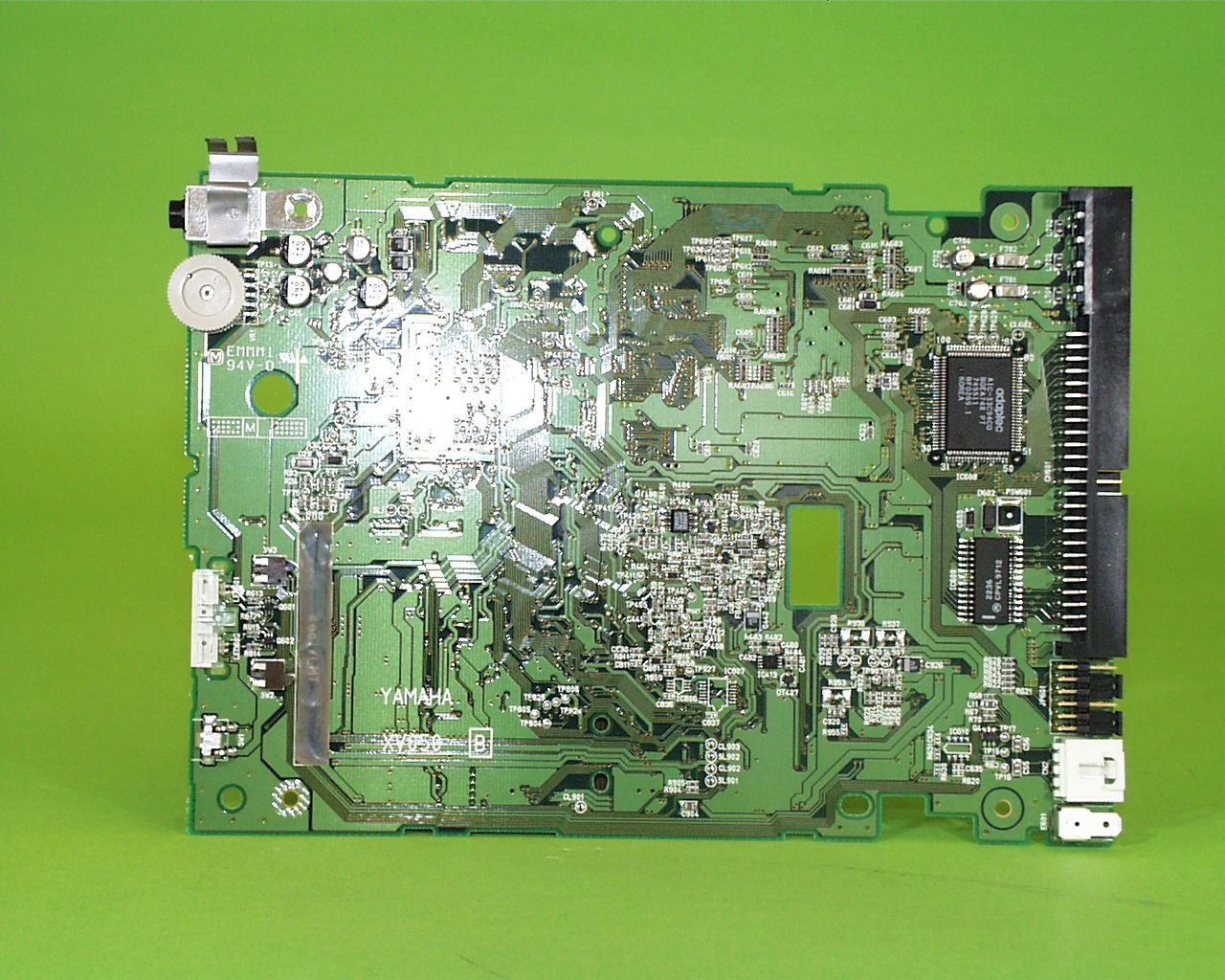

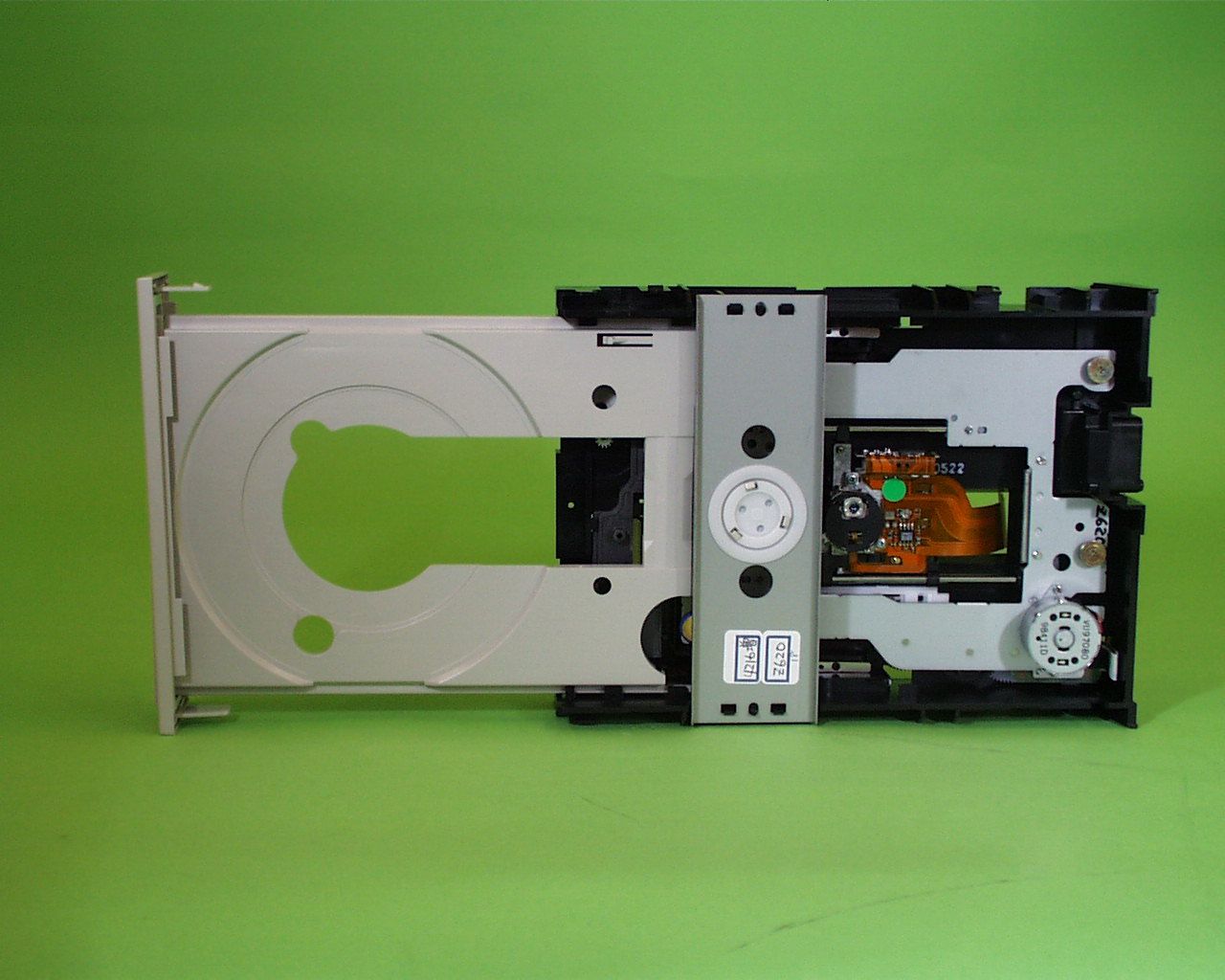

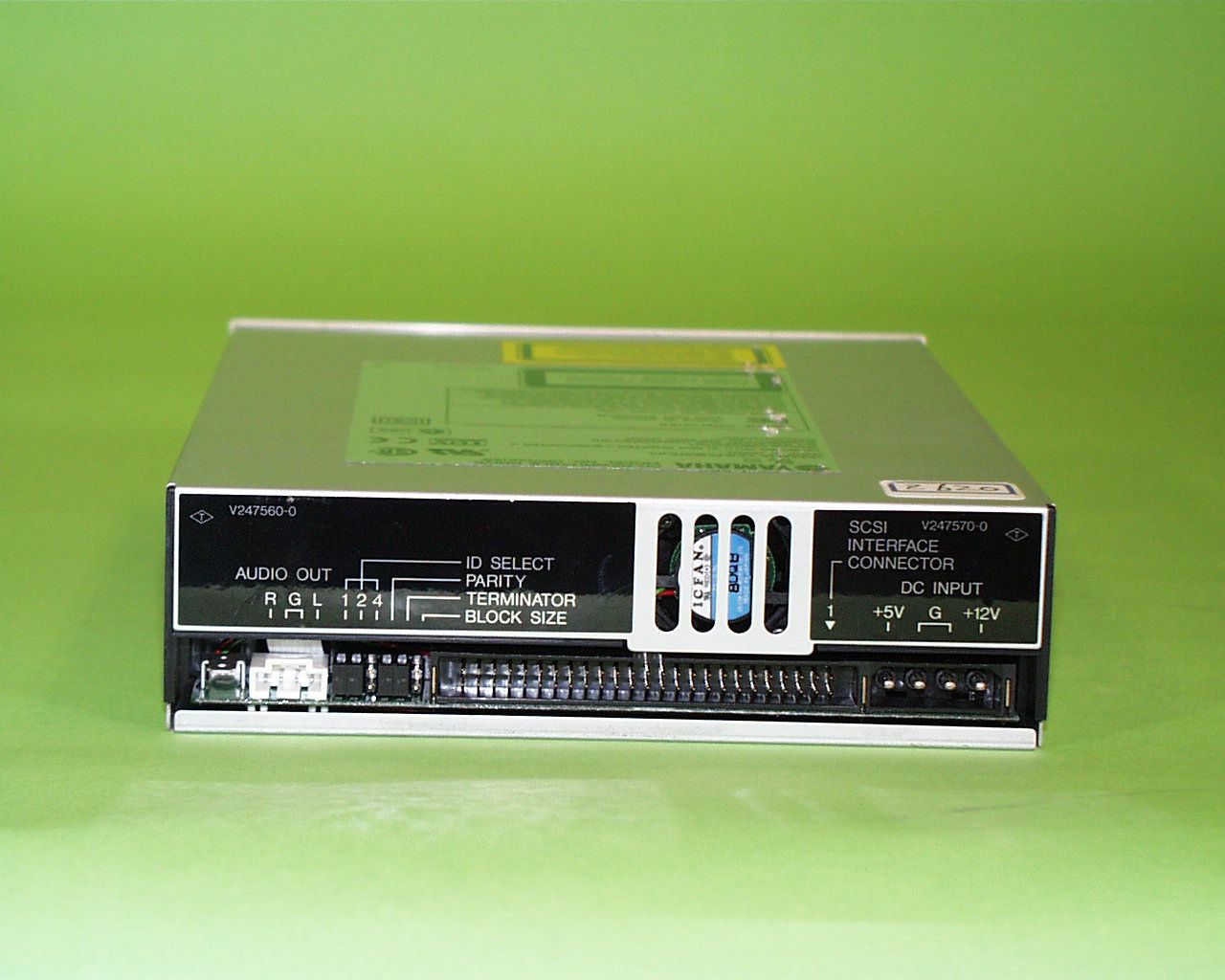

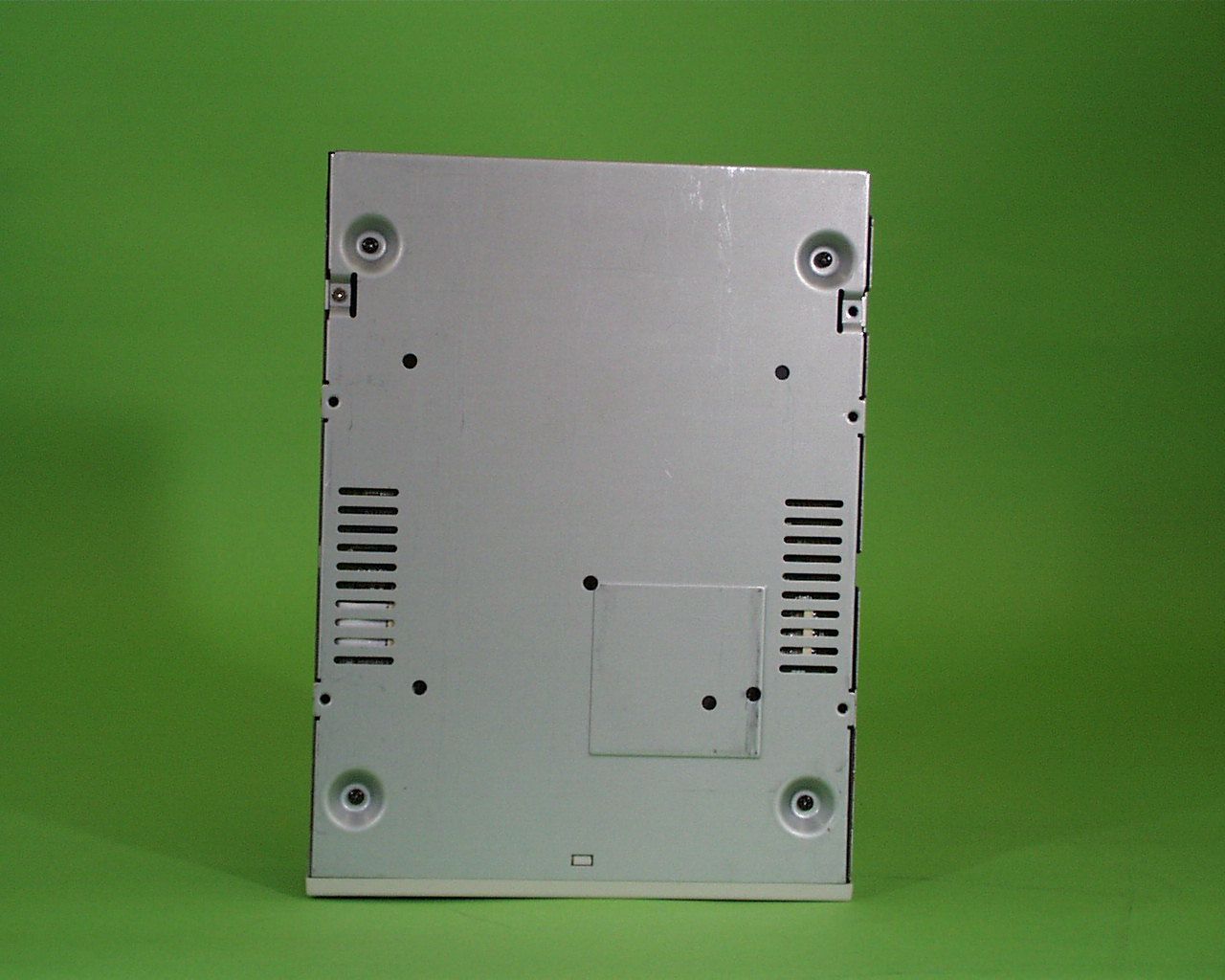

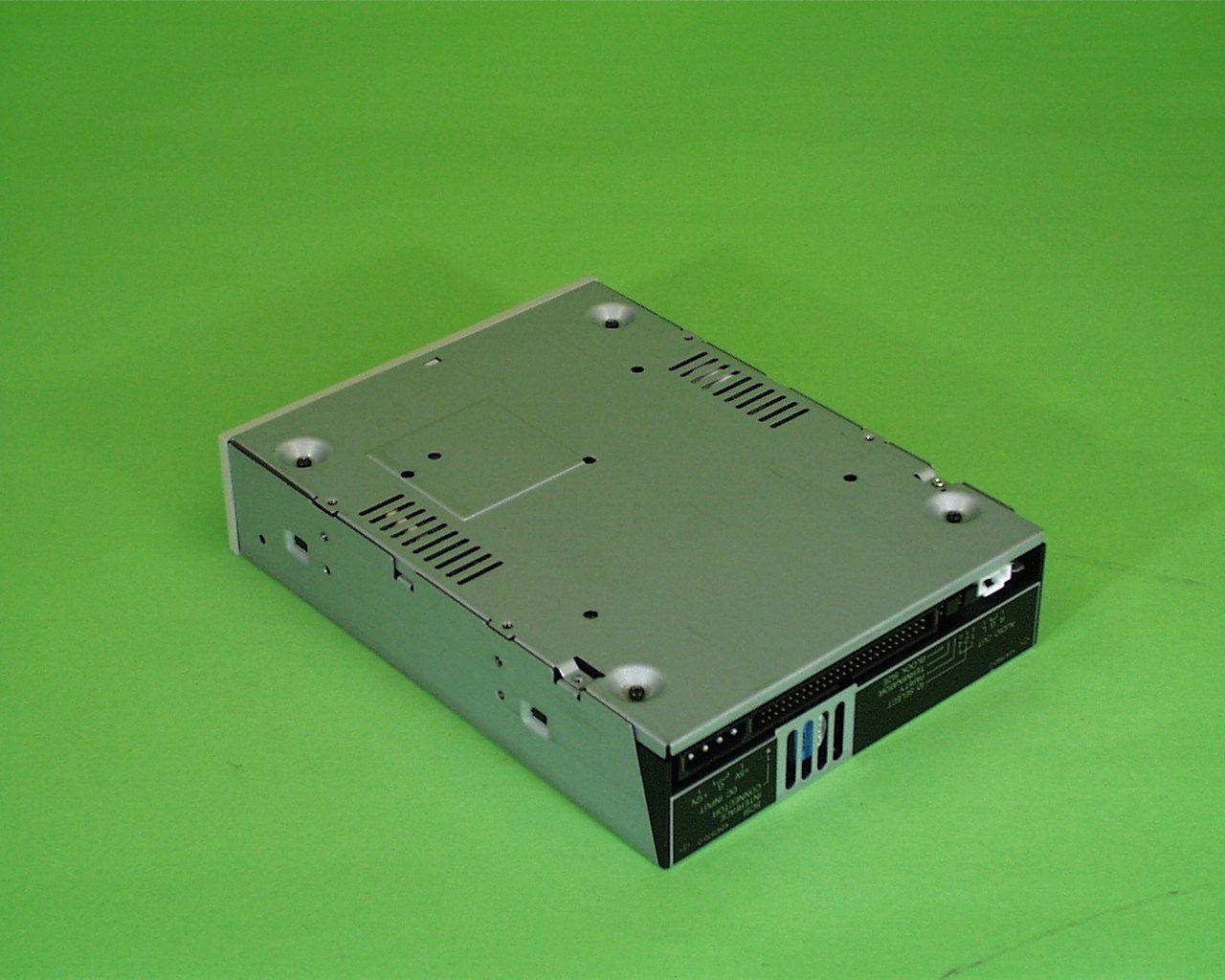

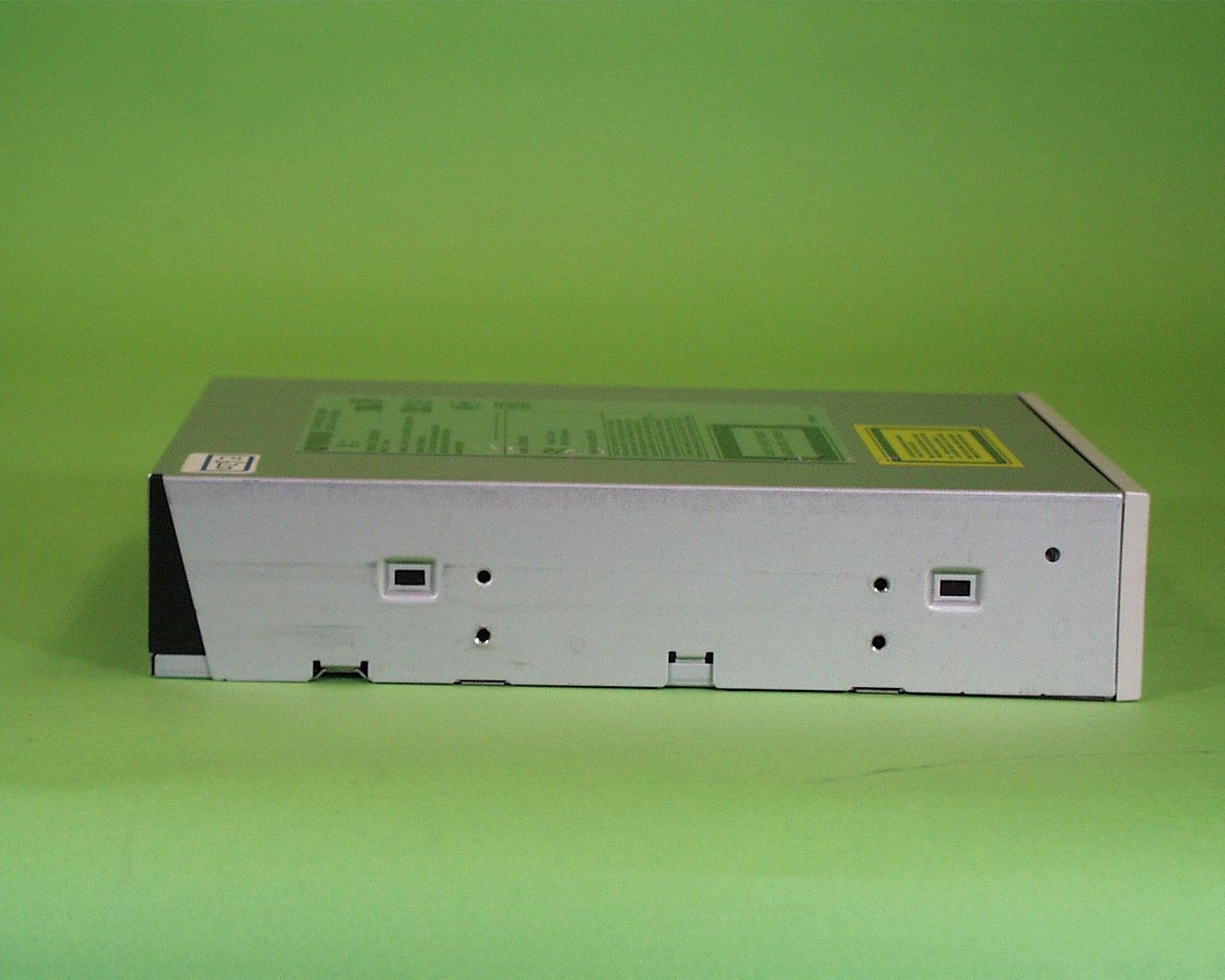

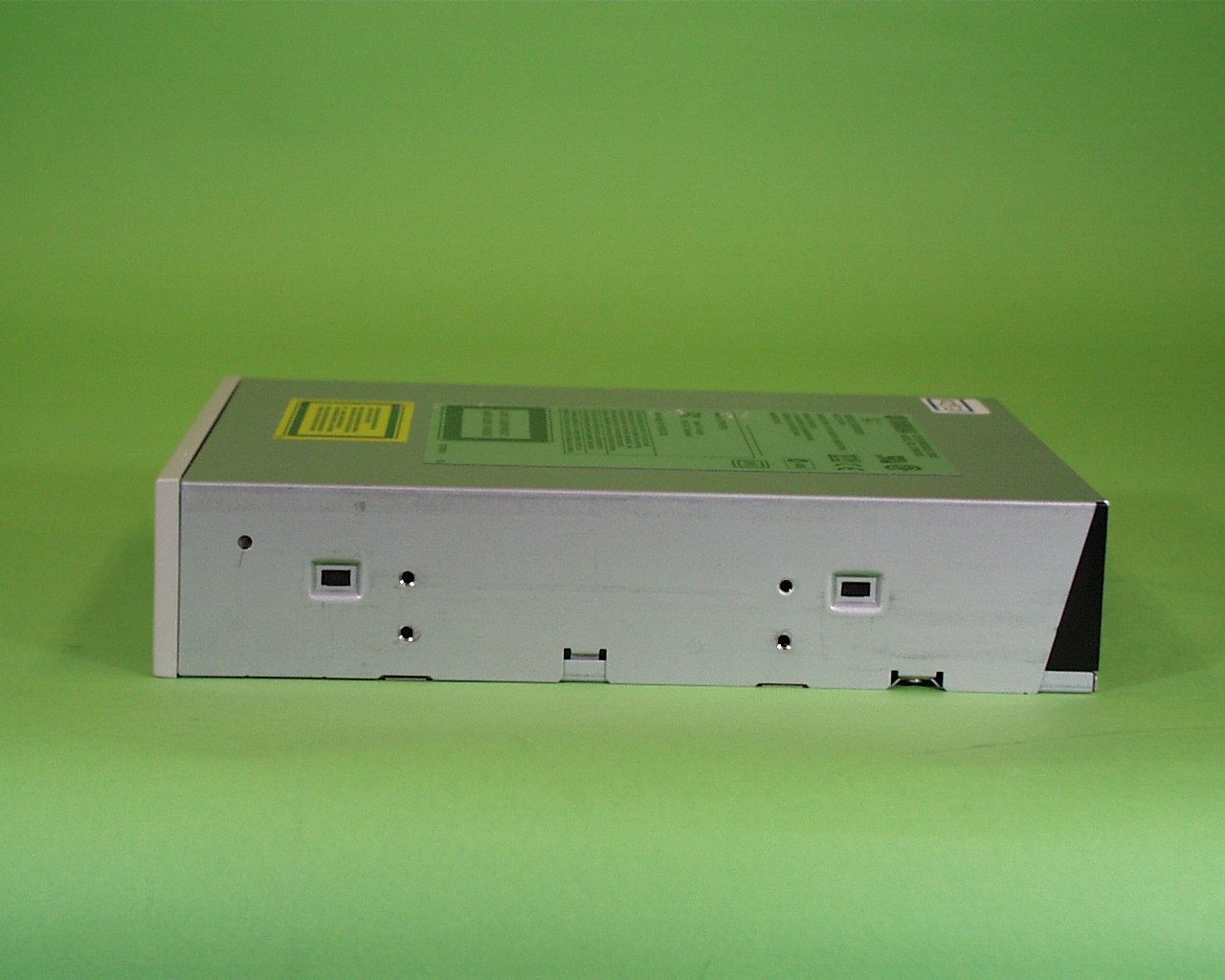

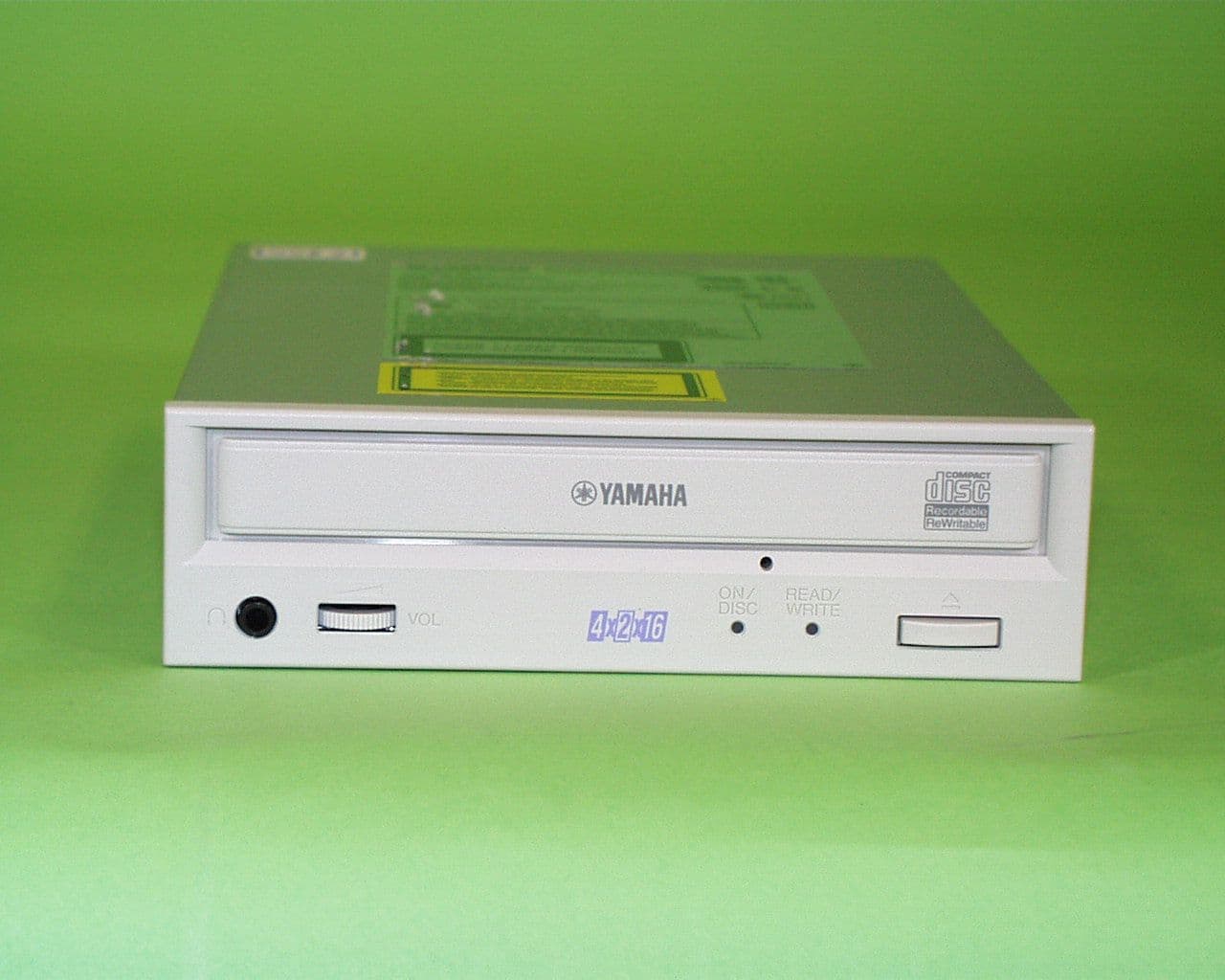

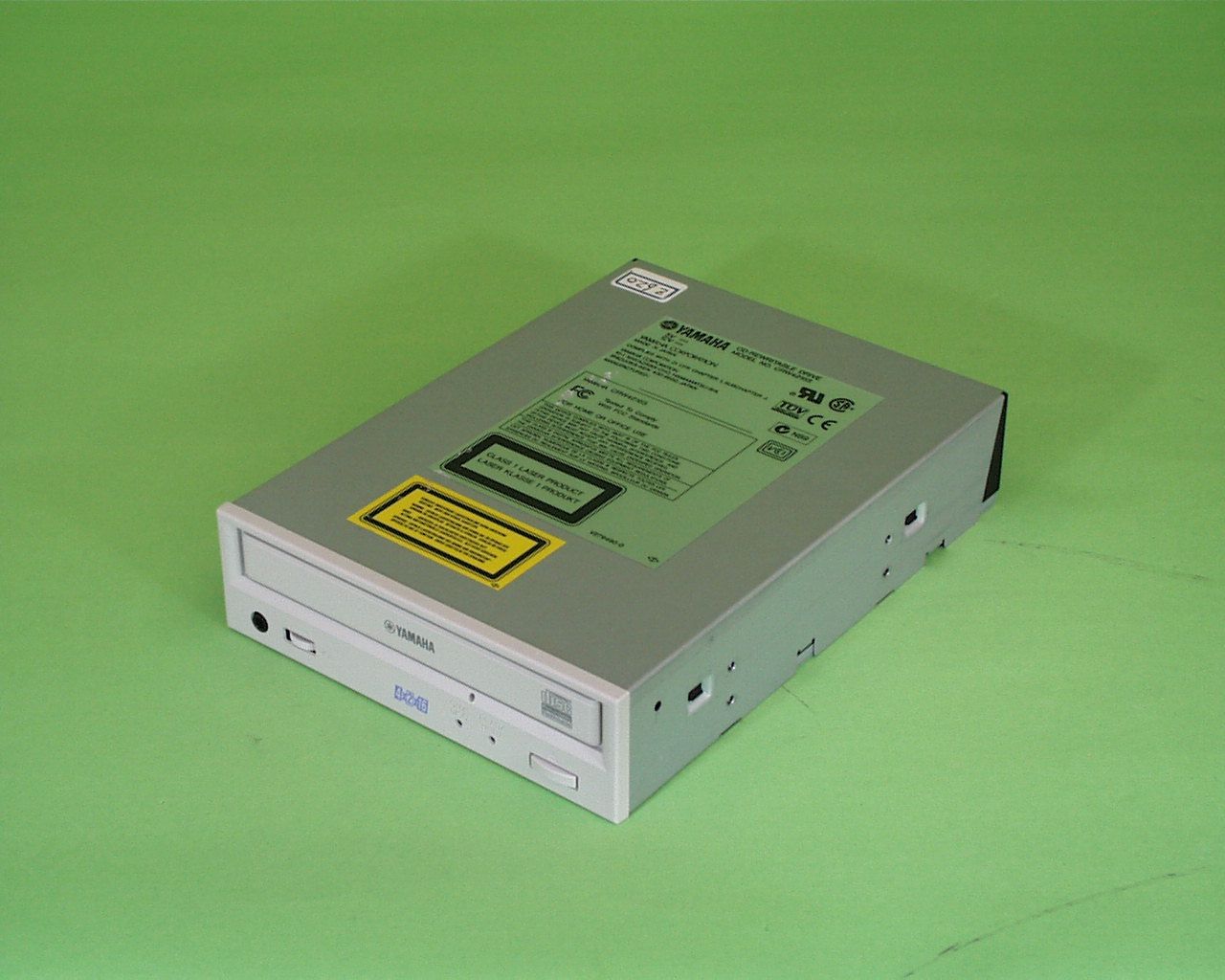

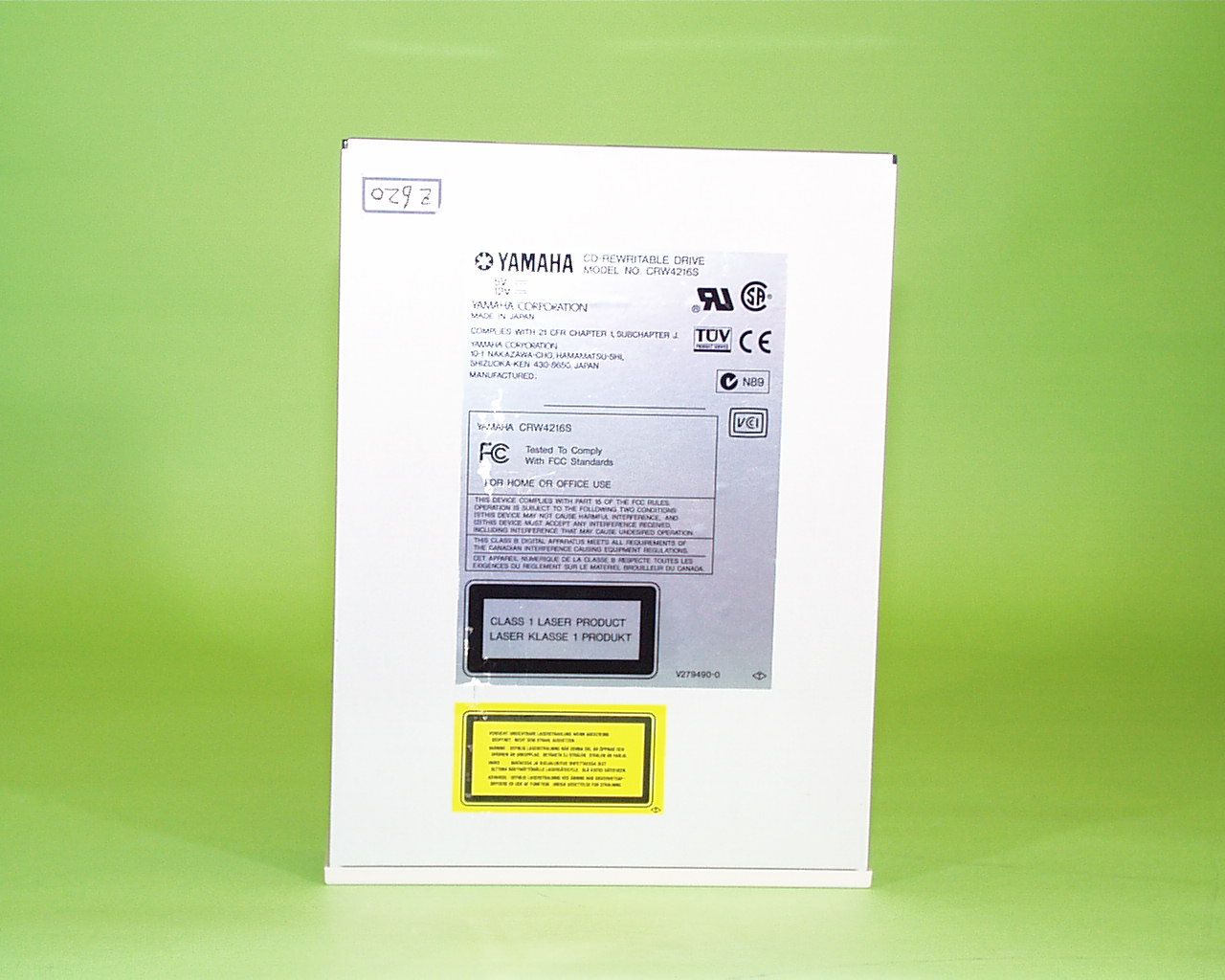

Rear View of EUT Top View of EUT Front View of EUT Rating Plate FCC ID Label FCC ID : A6R11F56 CRW4416S Series Label Location FCC ID : A6R11F56 MODEL NO. CRW4416S
