A6R11F57

User Guide Guide de l’utilisateur Bedienungsanleitung CRW4416SX SERIES English Français Deutsch Responsible Party:Yamaha Systems Technology, Inc. Address:100 Century Center Court San Jose, California 95112 Telephone:(408) 467-2330 FAX:(408) 437-8791 FCC INFORMATION (U.S.A.) 1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT! This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product. 2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA. 3. NOTE: This product has been tested and found to comply with the requirements listed in FCC Regulations, Part 15 for Class ì Bî digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices. This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices. Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the product ì OFFî and ì ONî , please try to eliminate the problem by using one of the following measures: Relocate either this product or the device that is being affected by the interference. Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s. In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to coaxial type cable. If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Systems Technology, Inc. 100 Century Center Court, San Jose, CA95112, U.S.A. This output is value measured at a distance 200mm from the objective lens surface on the optical pick-up block. ANSI Class : Class 1 Material : GaAlAs Wavelength : 783-789 nm Emission Duration : Continuous Laser Output Power : Less than 44.6 μW* * Laser Diode Properties ADVARSEL USYNLIG LASERSTRÅLING VED ÅBNING. UNDGÅ UDSAETTELSE FOR STRÅLING. VAROITUS LAITTEEN KÄYTTÄMINEN MUULLA KUIN TÄSSÄ KÄYTTÖOHJEESA MAINITULLA TAVALLA SAATTAA ALTISTAA KÄYTTÄJÄN TURVALLISUUSLUOKAN 1 YLITTÄVÄLLE NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. VARNING OM APPARATEN ANVÄNDS PÅ ANNAT SÄTT ÄN I DENNABRUKSANVISNING SPECIFICERATS, KAN ANVÄNDAREN UTSÄTTAS FÖR OSYNLIG LASERSTRÅLNING, SOM ÖVERSKRIDER GRÄNSEN FÖR LASERKLASS 1. CLASS 1 LASER PRODUCT LASER KLASSE 1 PRODUKT LUOKAN 1 LASERLAITE PRODUIT LASER DE CLASSE 1 This compact disc player is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT label must be located on the exterior. Varningsanvisning för laserstrålning. VORSICHT : UNSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GEOFFNET. NICHT DEM STRAHL AUSSETZEN. VARNING : OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD OCH SPÄRREN ÄR URKOPPLAD. BETRAKTA EJ STRÅLEN ÄR FARLIG. VARO! : AVATAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTINA NÄKYMÄTTÖMÄLLE LASERS TEILYLLE. ÄLÄ KATSO SÄTESSEN. ADVARSEL : USYNLIG LASERSTRALNING VED ÅBNING NÄR SIKKERHETSAF- BYDERE ER UDE AF FUNKTION. UNDGÅ UDSETTELS FOR STRÅLING. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Important Precautions i Important Precautions Please read the following precautions before operating CRW4416SX. • Do not remove the CRW4416SX’s top cover. This device uses semiconductor laser. Refer all servicing to qualified personnel. • Do not attempt to touch the inside of the CRW4416SX. Electricity may have been built up even after you turn off the power. • CRW4416SX is a sophisticated electronic device. Handle it with care. • If the fuse blows, CRW4416SX should be checked by a qualified engineer. Do not just replace the fuse. Replacing the fuse by yourself may cause the protec- tion circuit to be damaged. • The CRW4416SX uses high-density circuits and LSIs. Even a small incident may cause malfunctions to occur. • If CRW4416SX operates incorrectly, See “Trouble- shooting” on page 13. If the problem persists, consult your CRW4416SX dealer. • Yamaha is not responsible for any data or information losses resulting from the operation of CRW4416SX. Installation Precautions ii Installation Precautions •Install CRW4416SX on a level surface. •Do not install CRW4416SX near water, in direct sunlight, close to heating units, or in areas subject to high or low tem- perature extremes, excessive dust, vibration, or severe shocks. •Do not expose CRW4416SX to extremes of humidity. •The ambient temperature where CRW4416SX is installed should be between 5 ° C and 40 ° C (41 ° F–104 ° F). •Using CRW4416SX close to a television or radio may cause interference. Install CRW4416SX at least one meter away from television and radio equipment. •Do not block the CRW4416SX ventilation slots. Install CRW4416SX with at least 10 cm of free space all-around. •Make sure the CRW4416SX power cord is not located in a posi- tion where it is likely to be walked on or pinched by other equipment. Operating Precautions iii Operating Precautions •Do not subject CRW4416SX to impact or shock when in use. This may impair recording or playback. •Do not place heavy objects on CRW4416SX. •Avoid moving CRW4416SX from cold to warm places, and avoid sudden room temperature rises, as condensat…

Text truncated - open the document above for the full version.

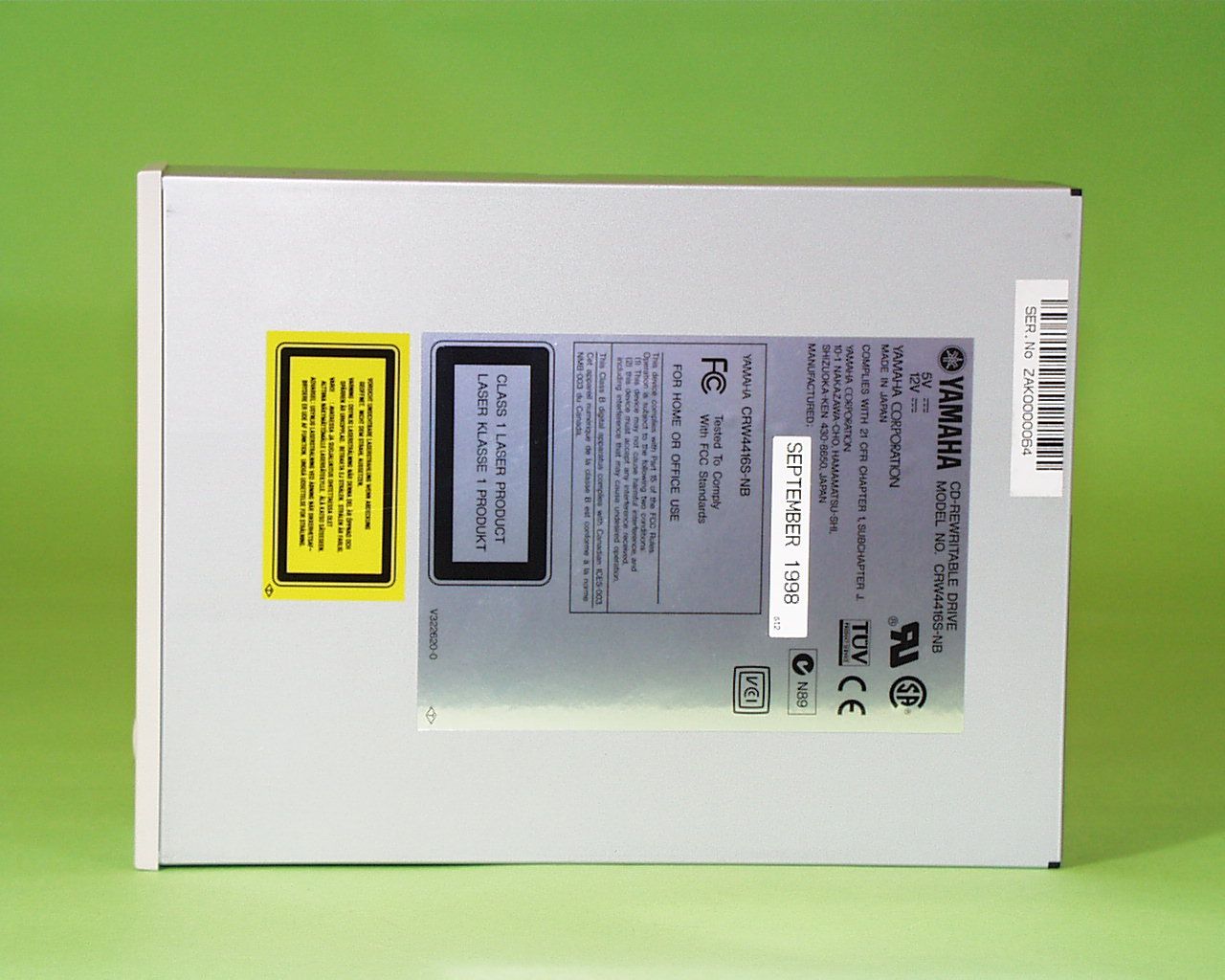

FCC ID : A6R11F57 CRW4416SX Series FCC ID Label

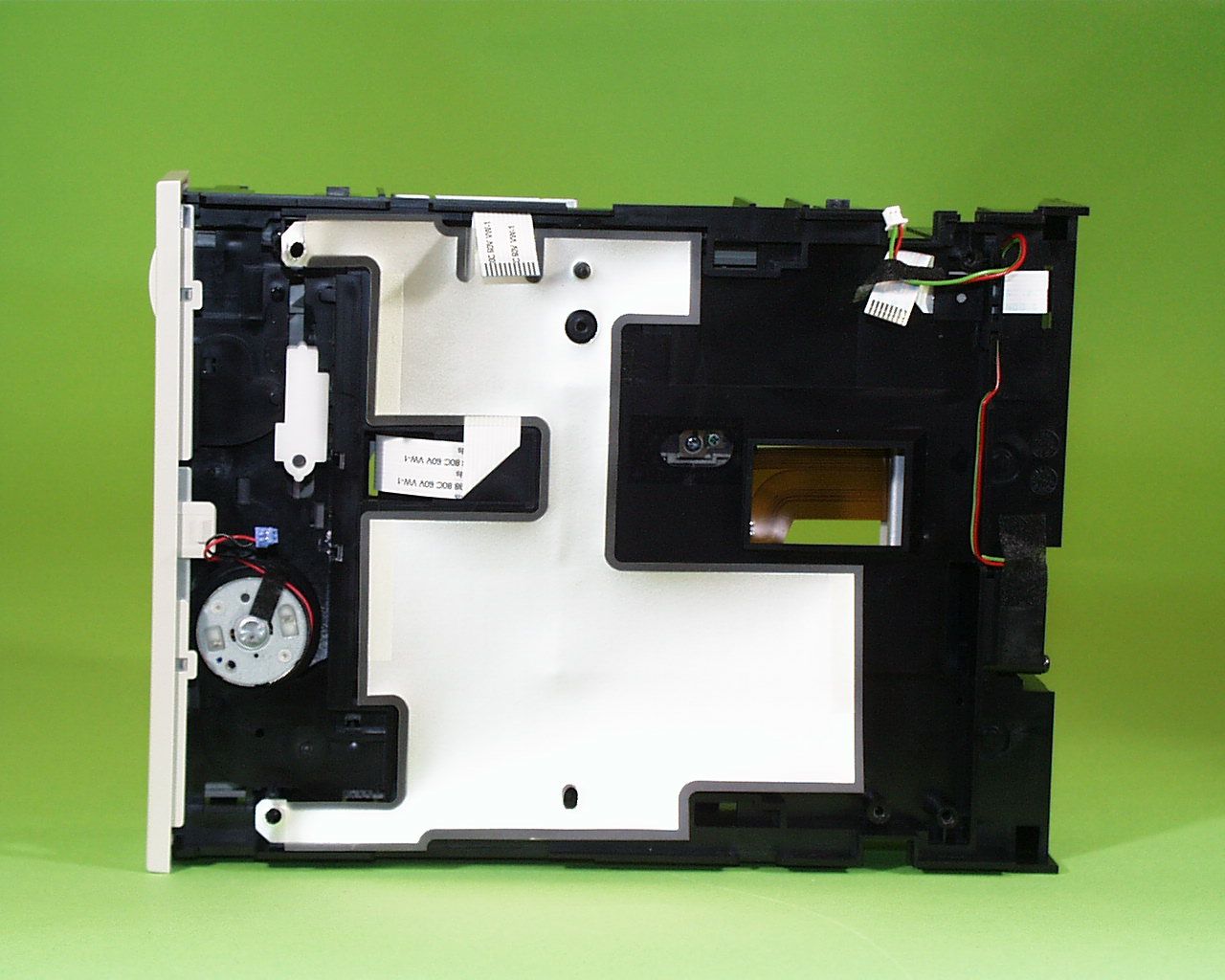

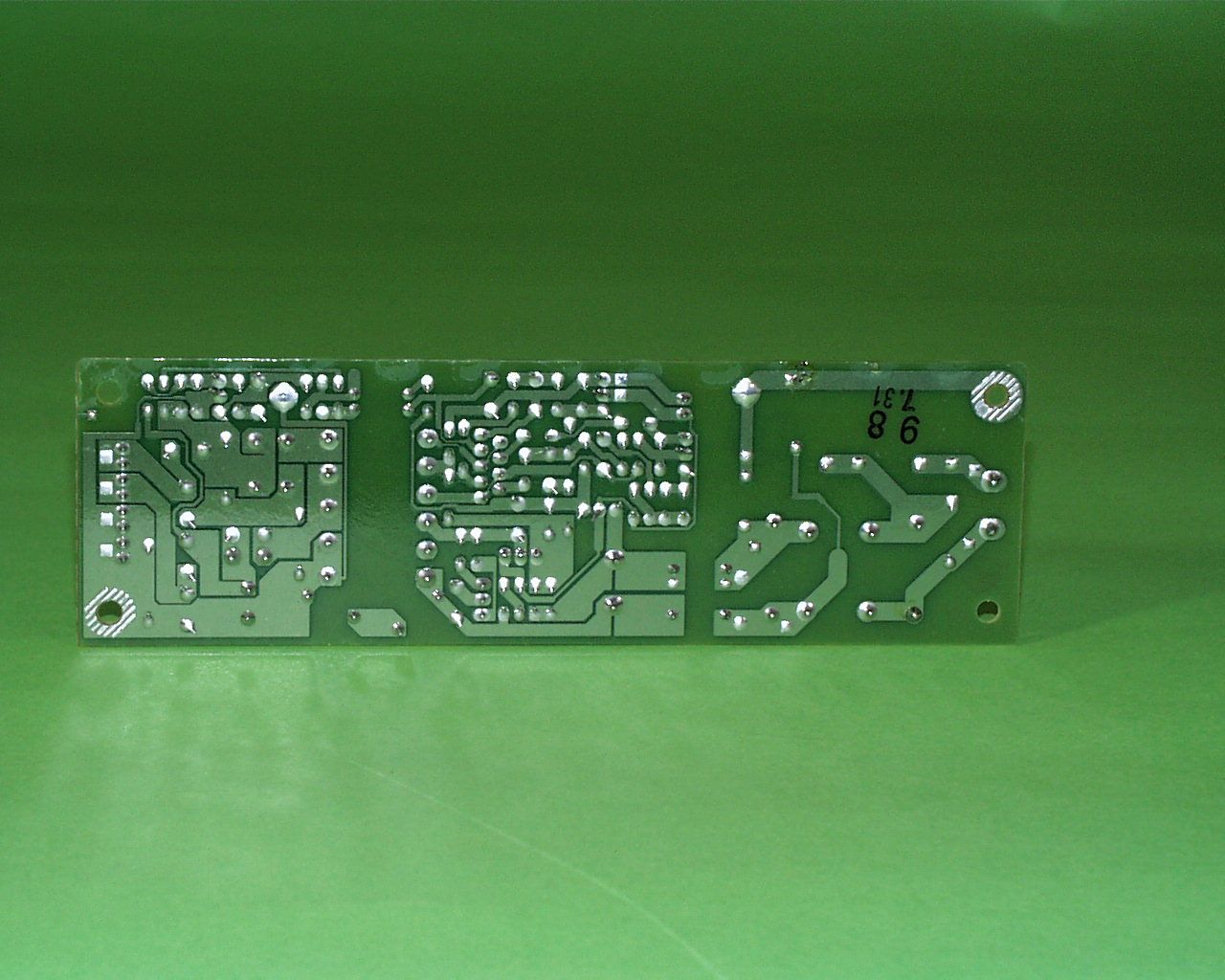

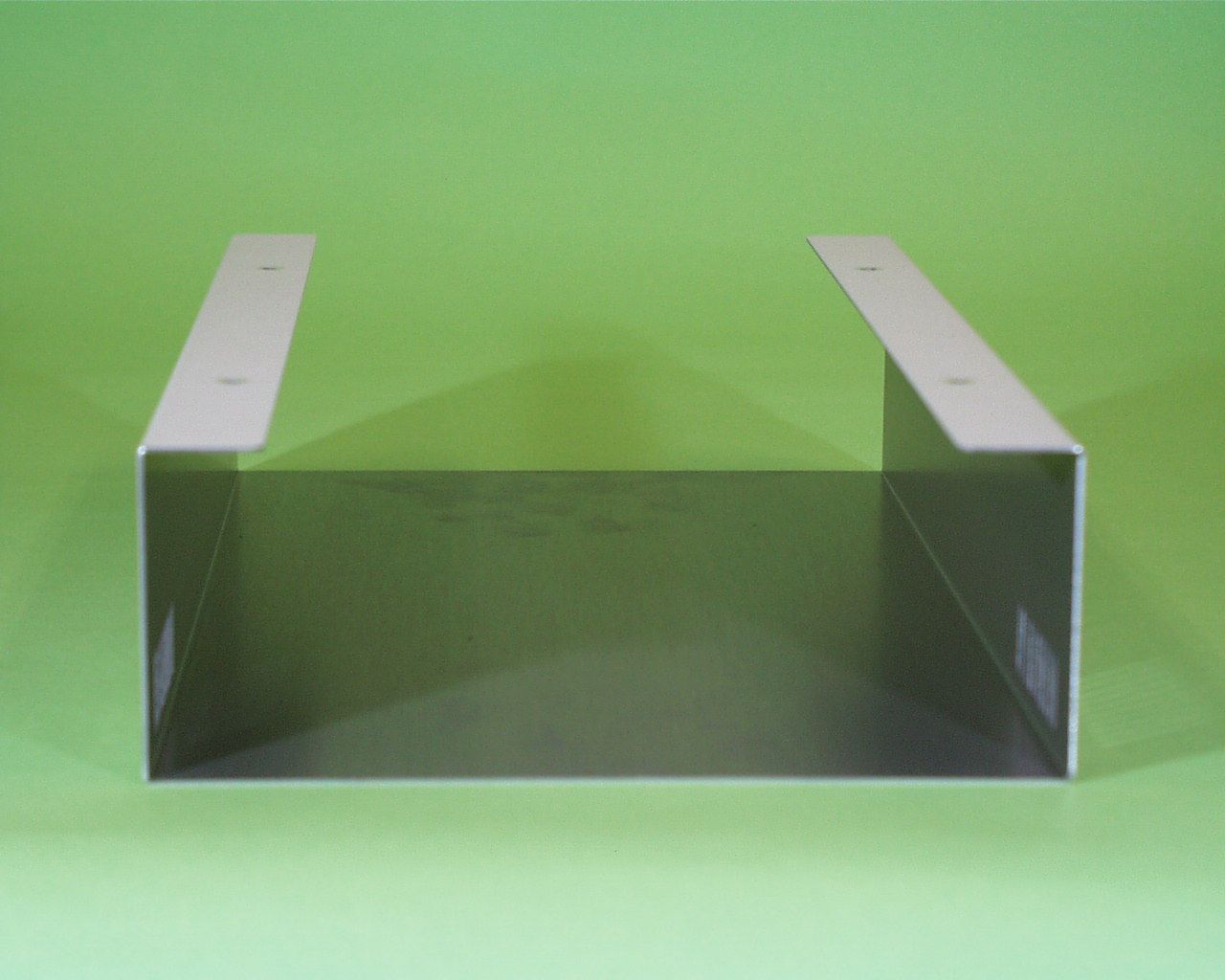

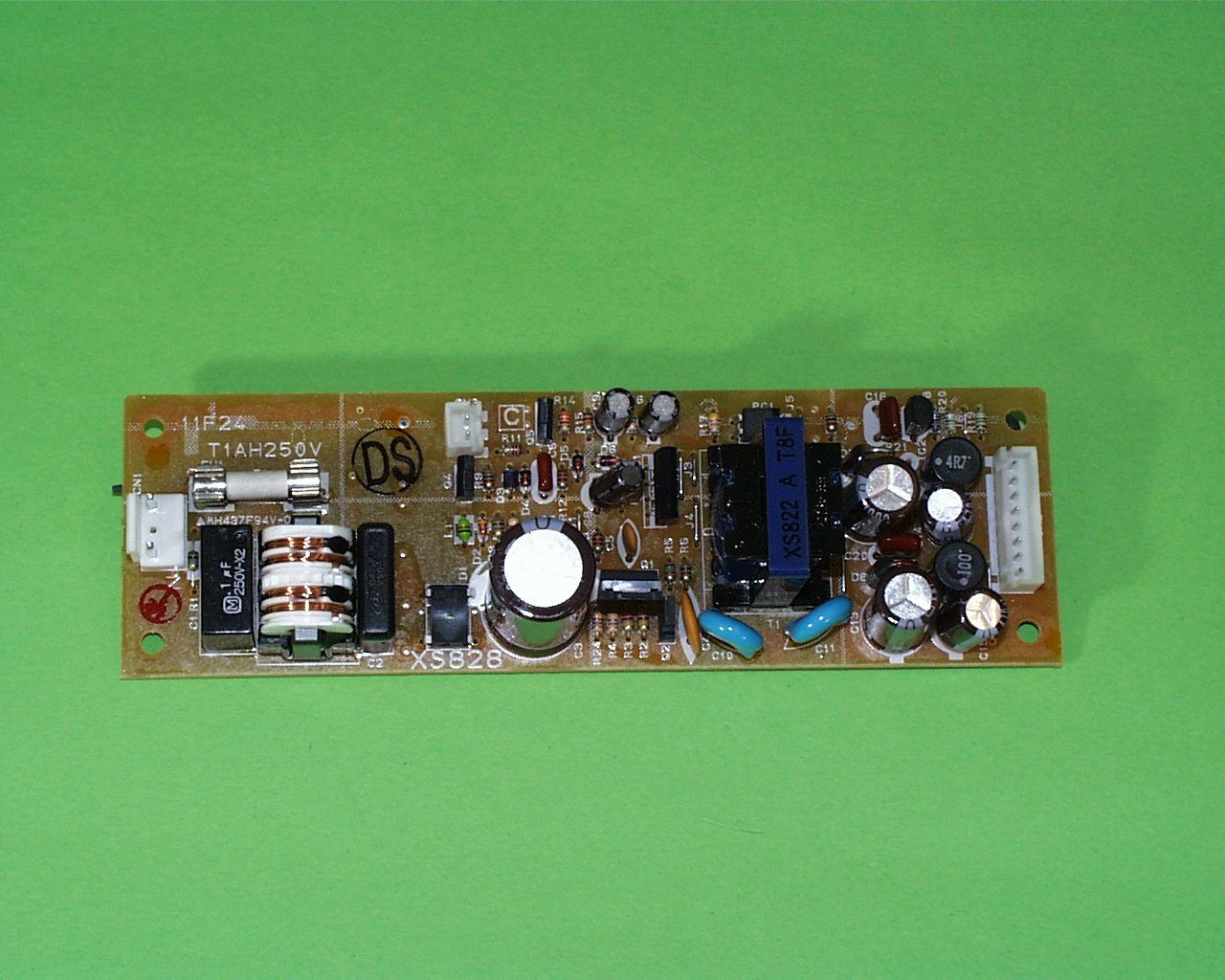

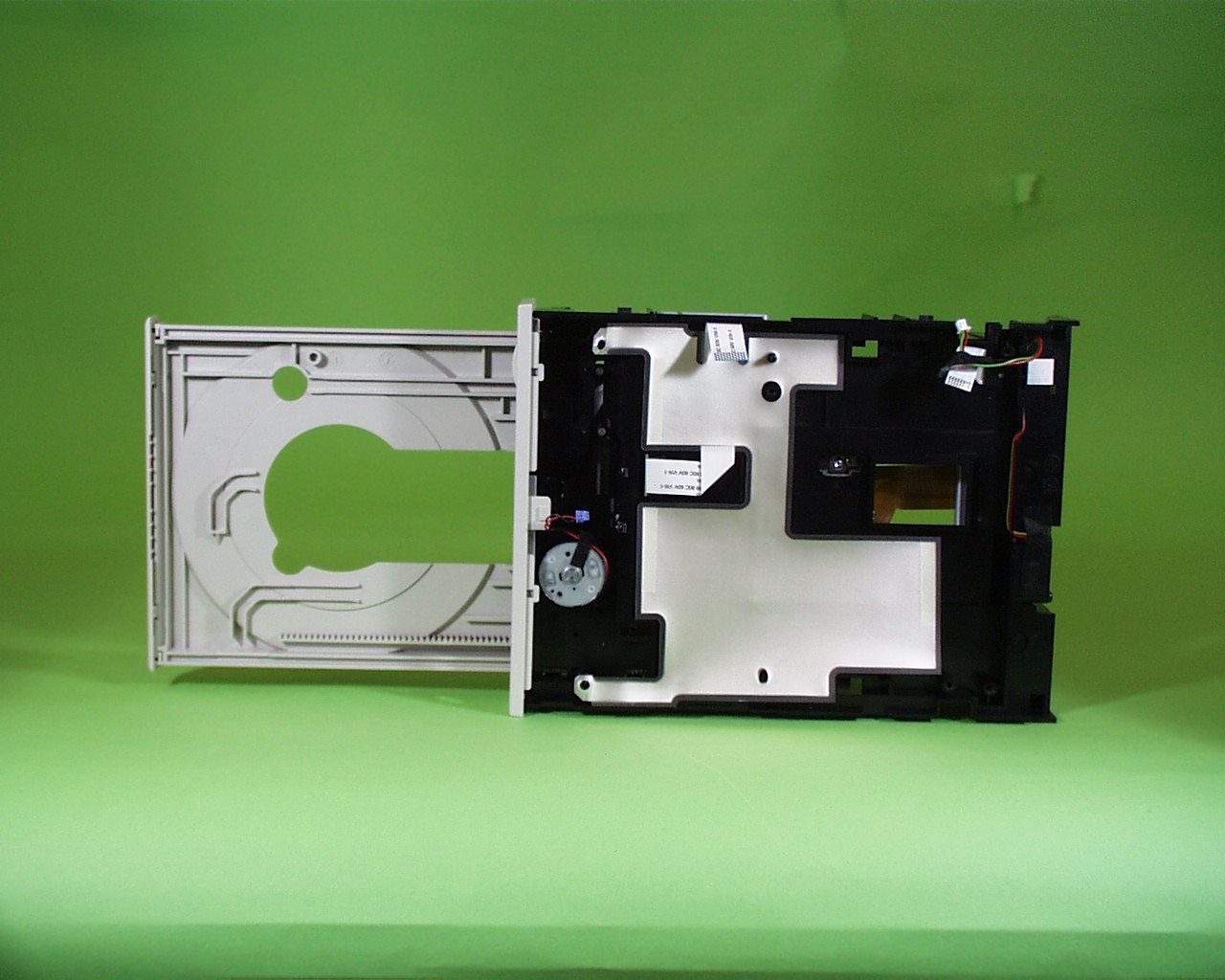

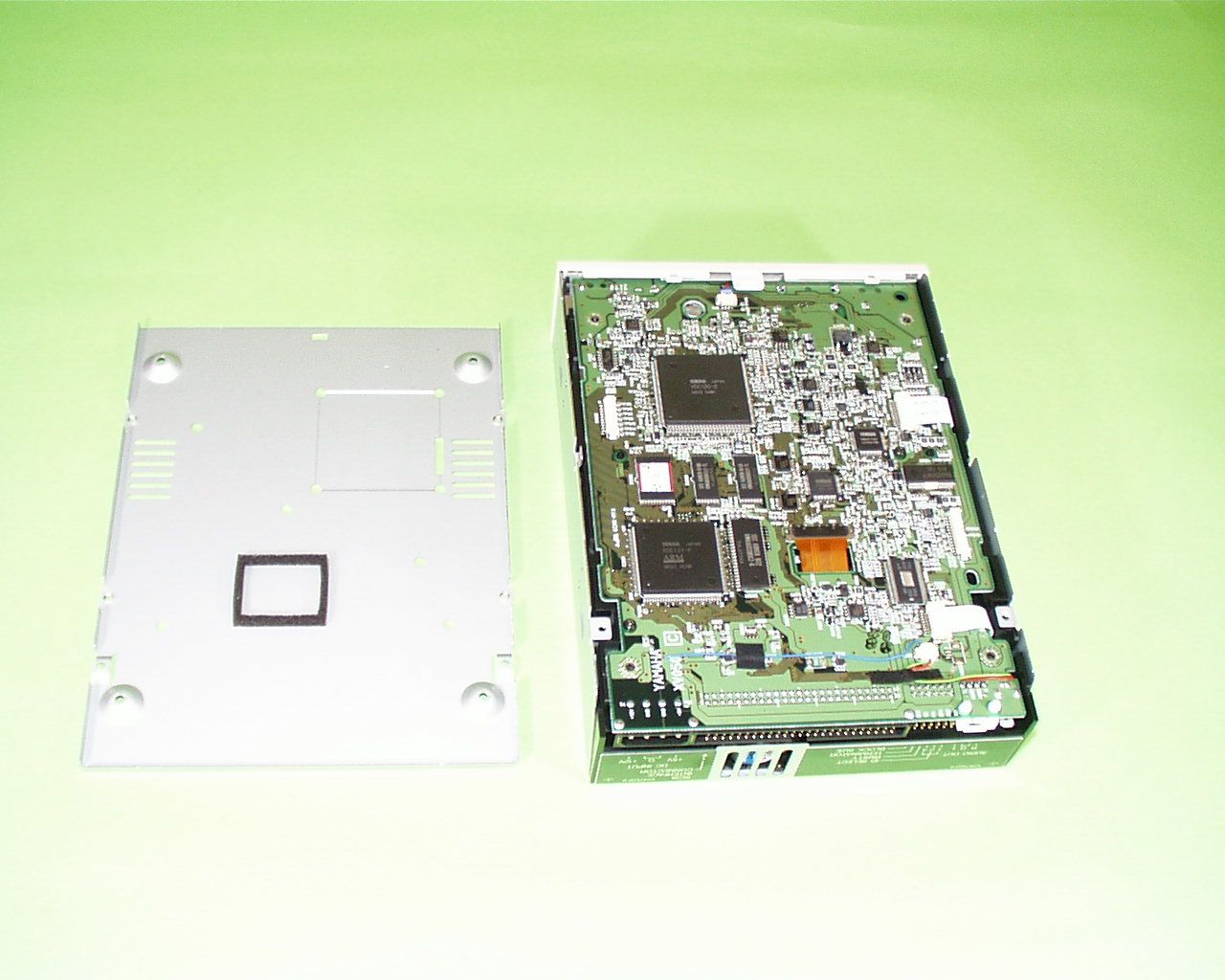

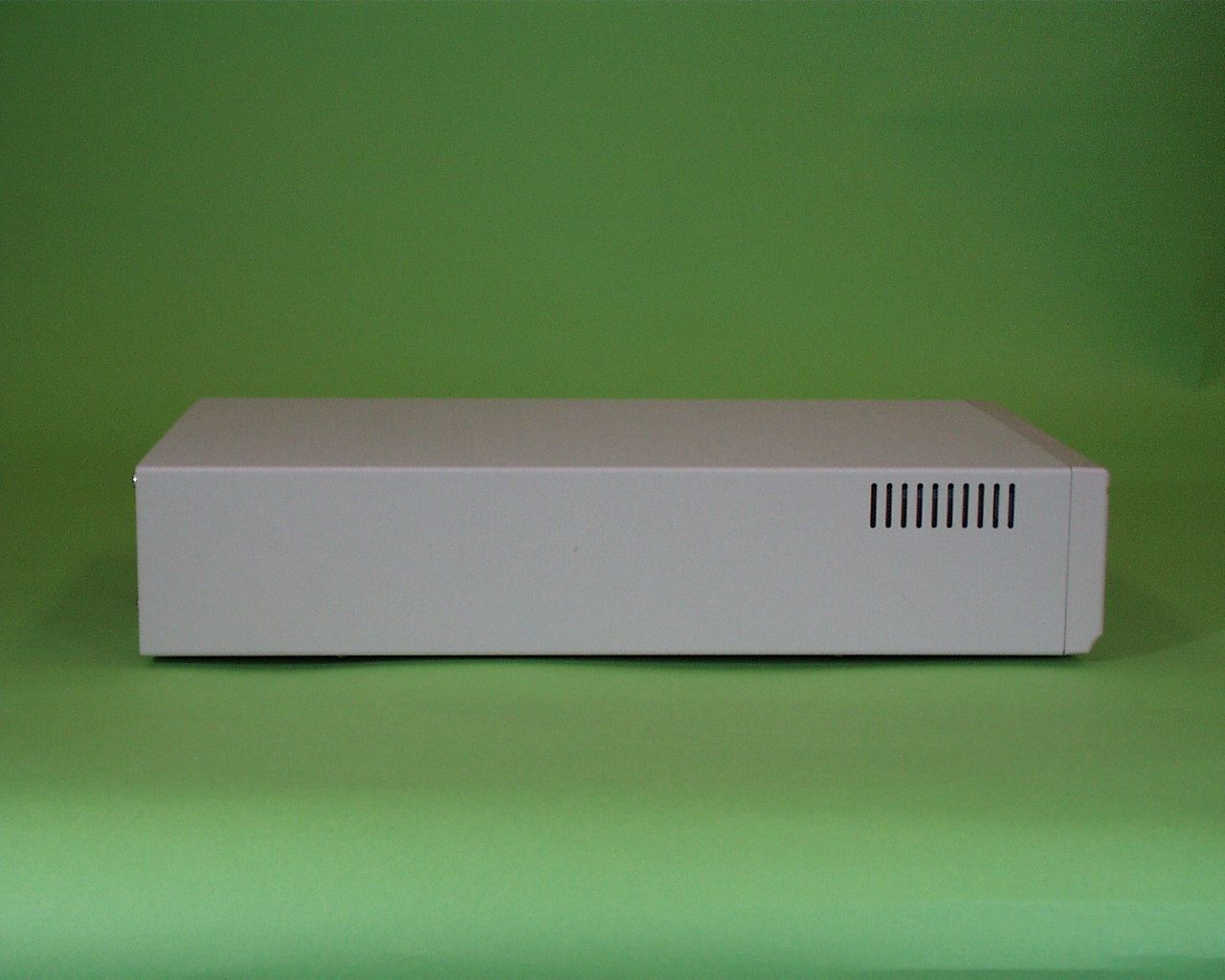

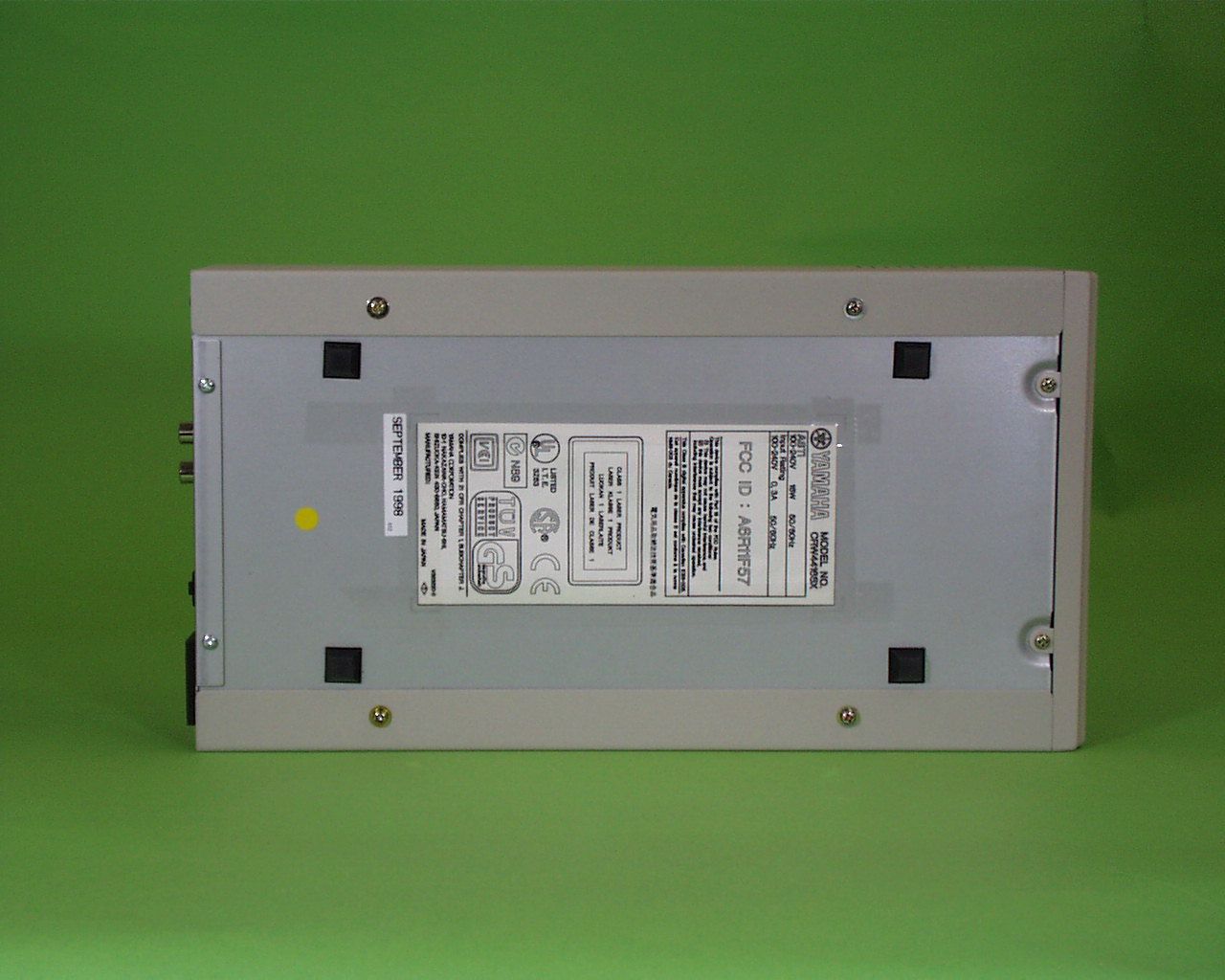

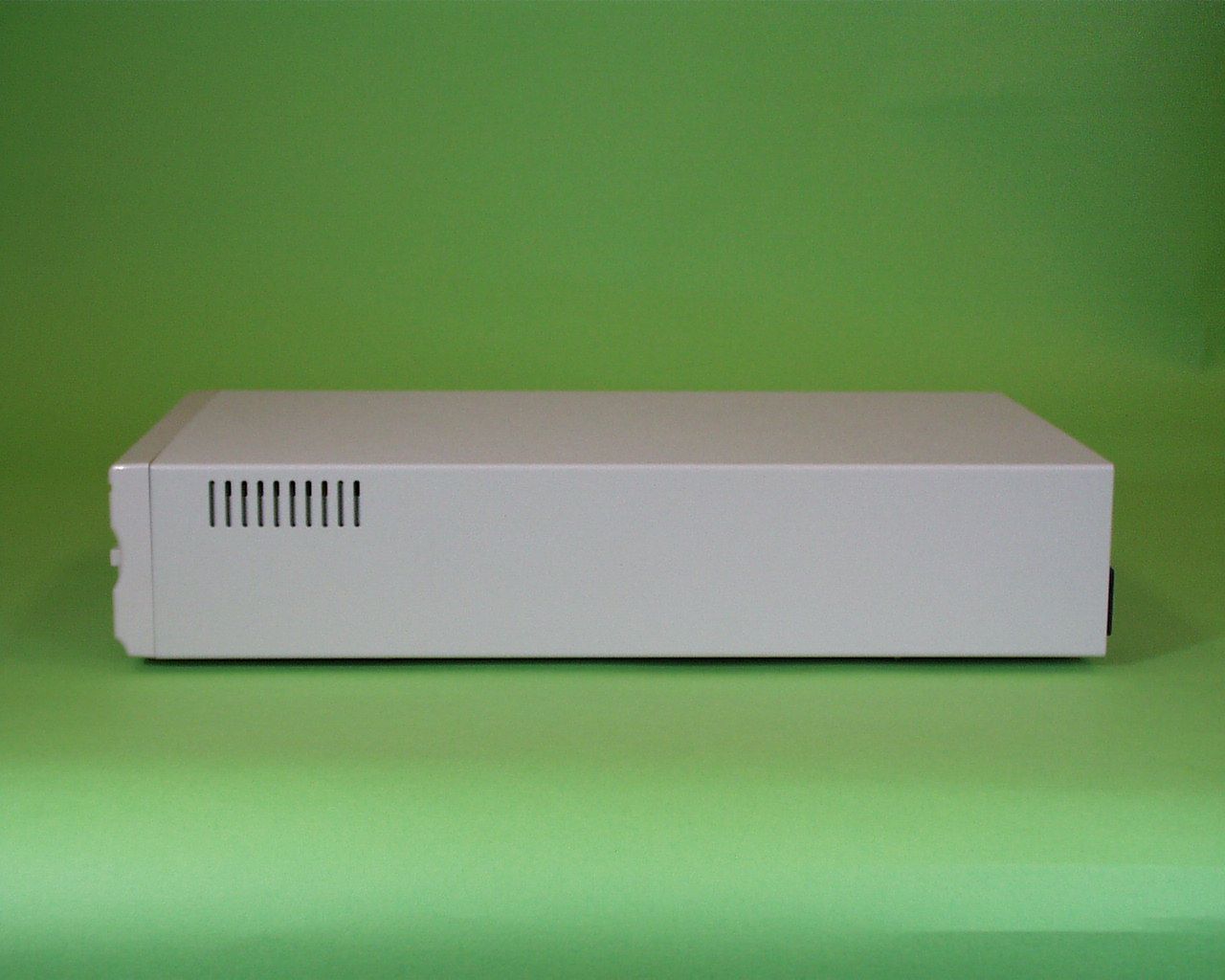

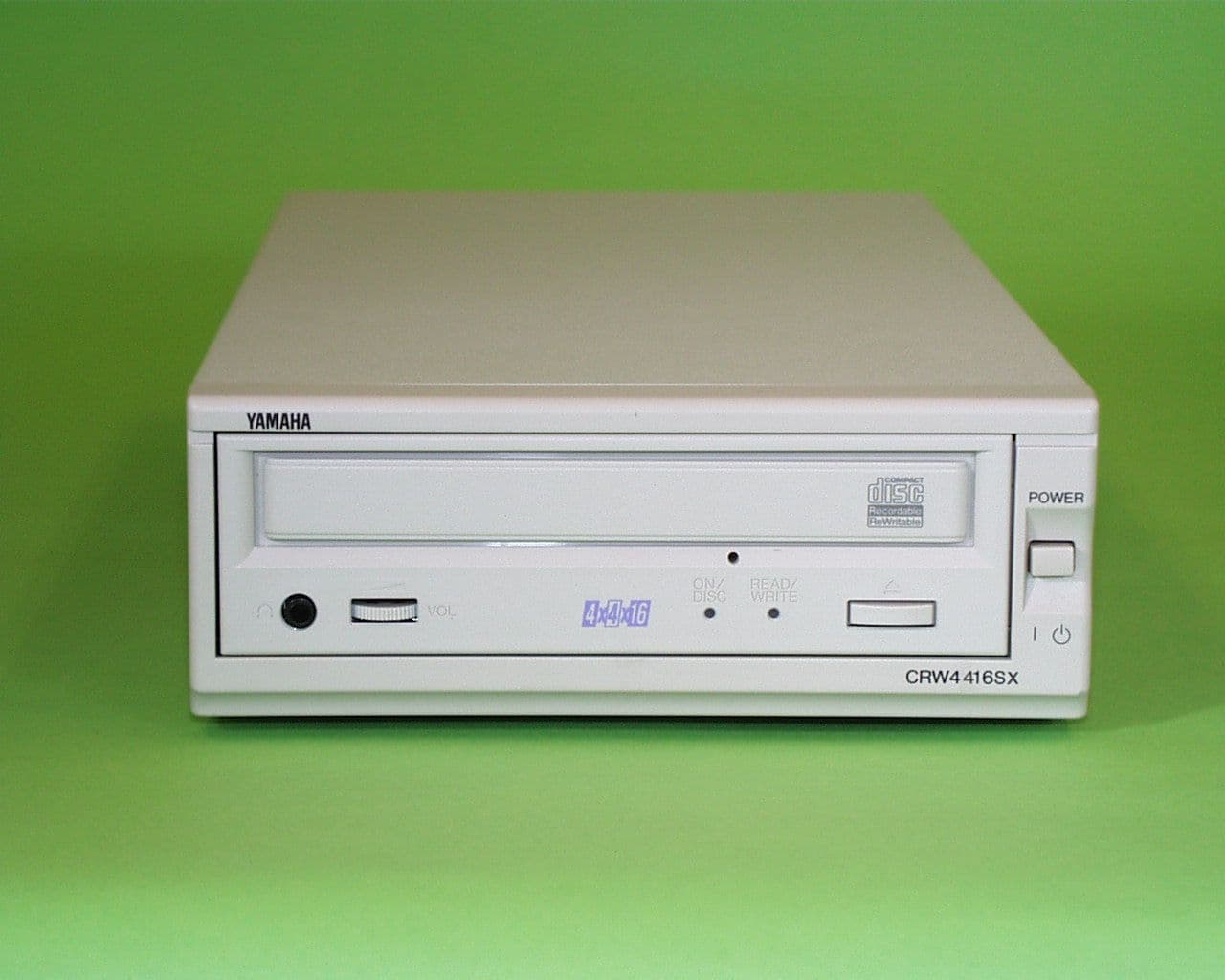

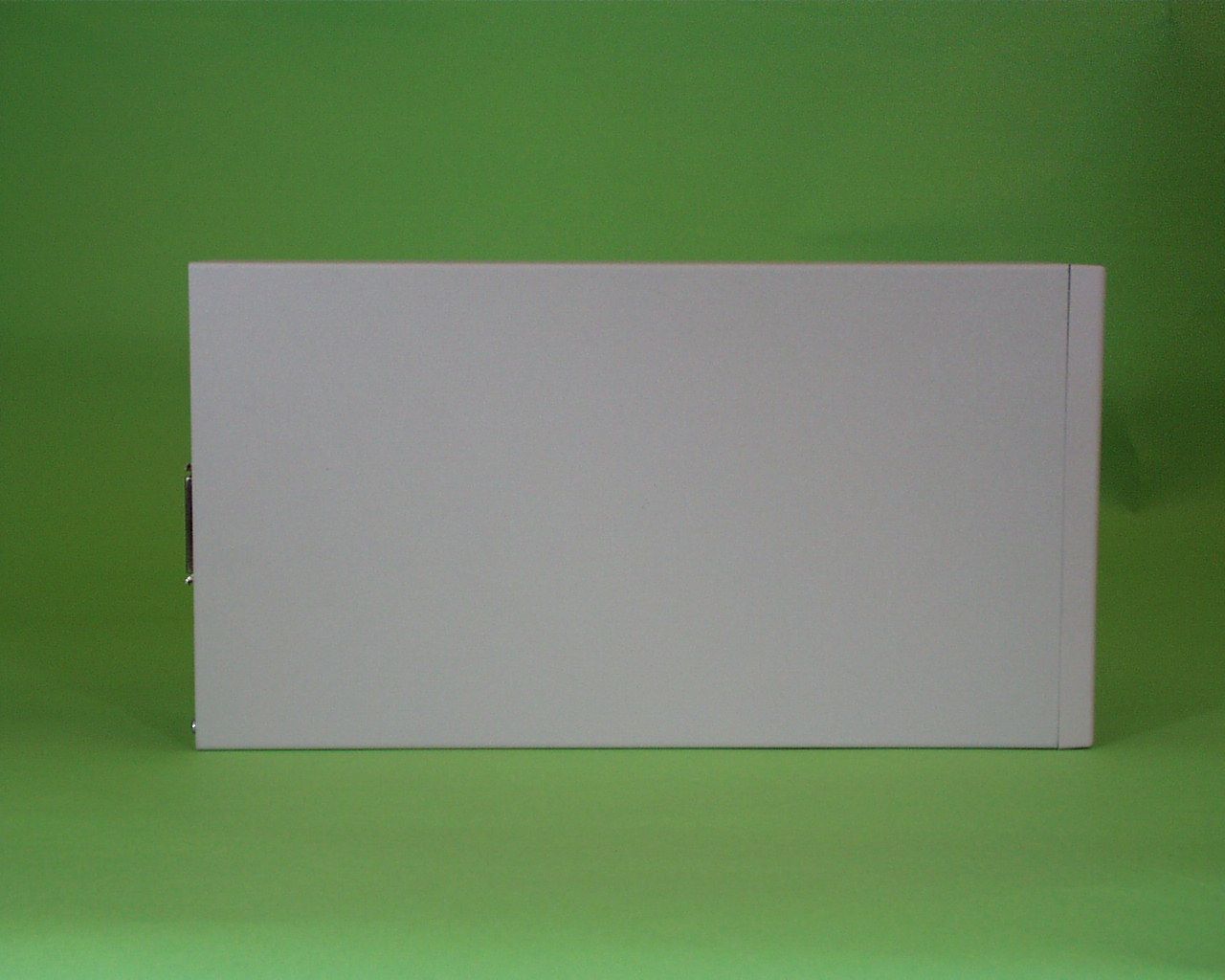

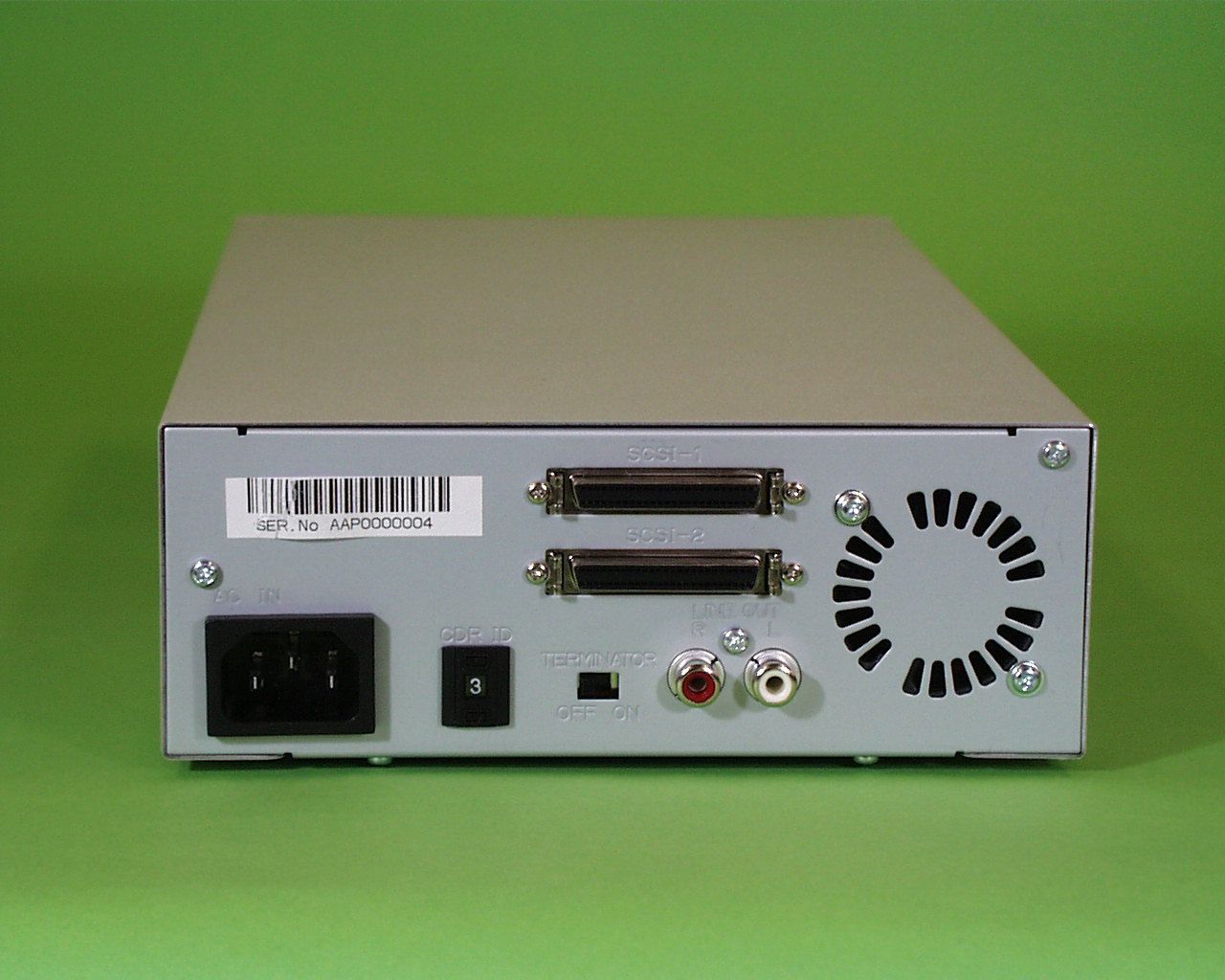

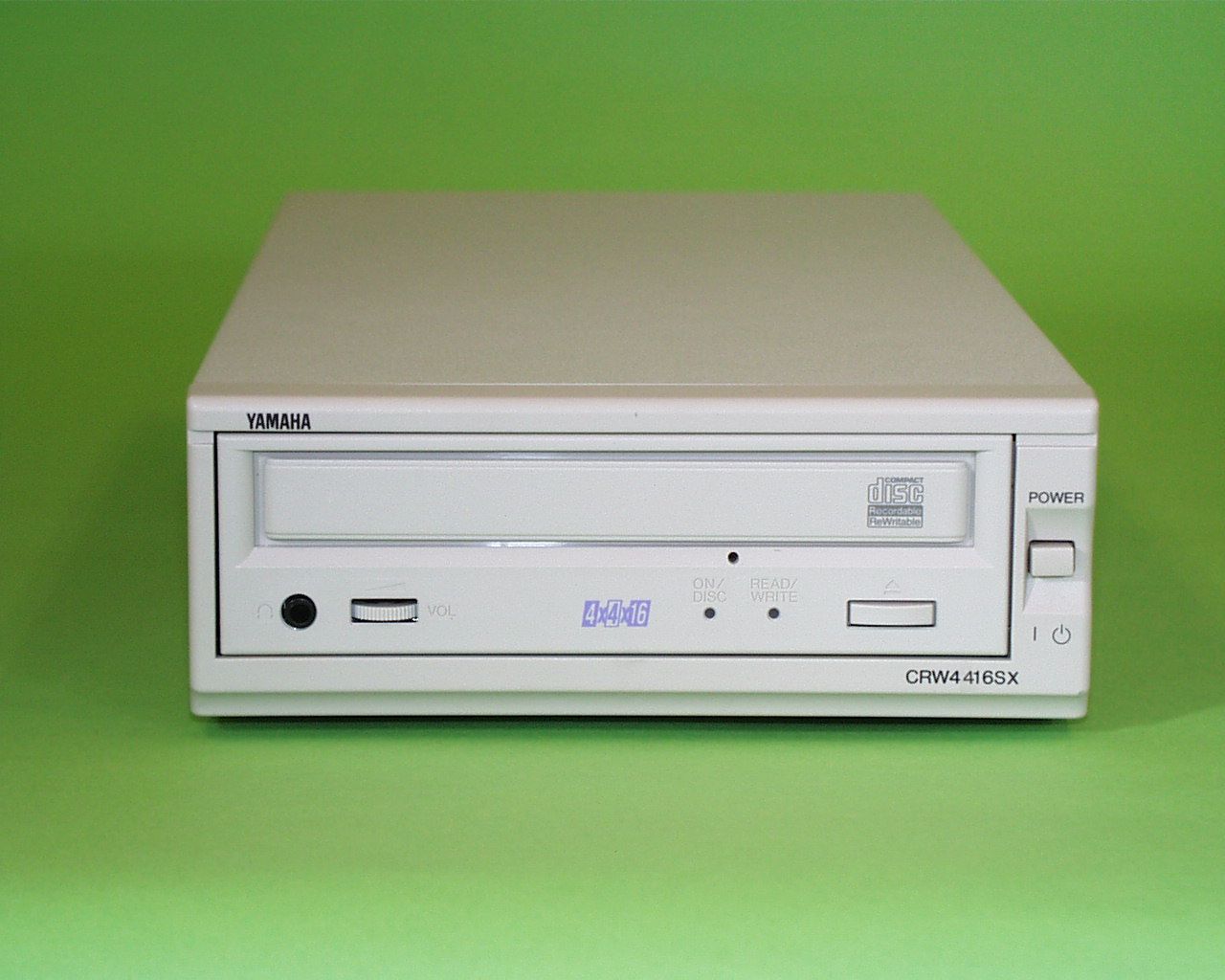

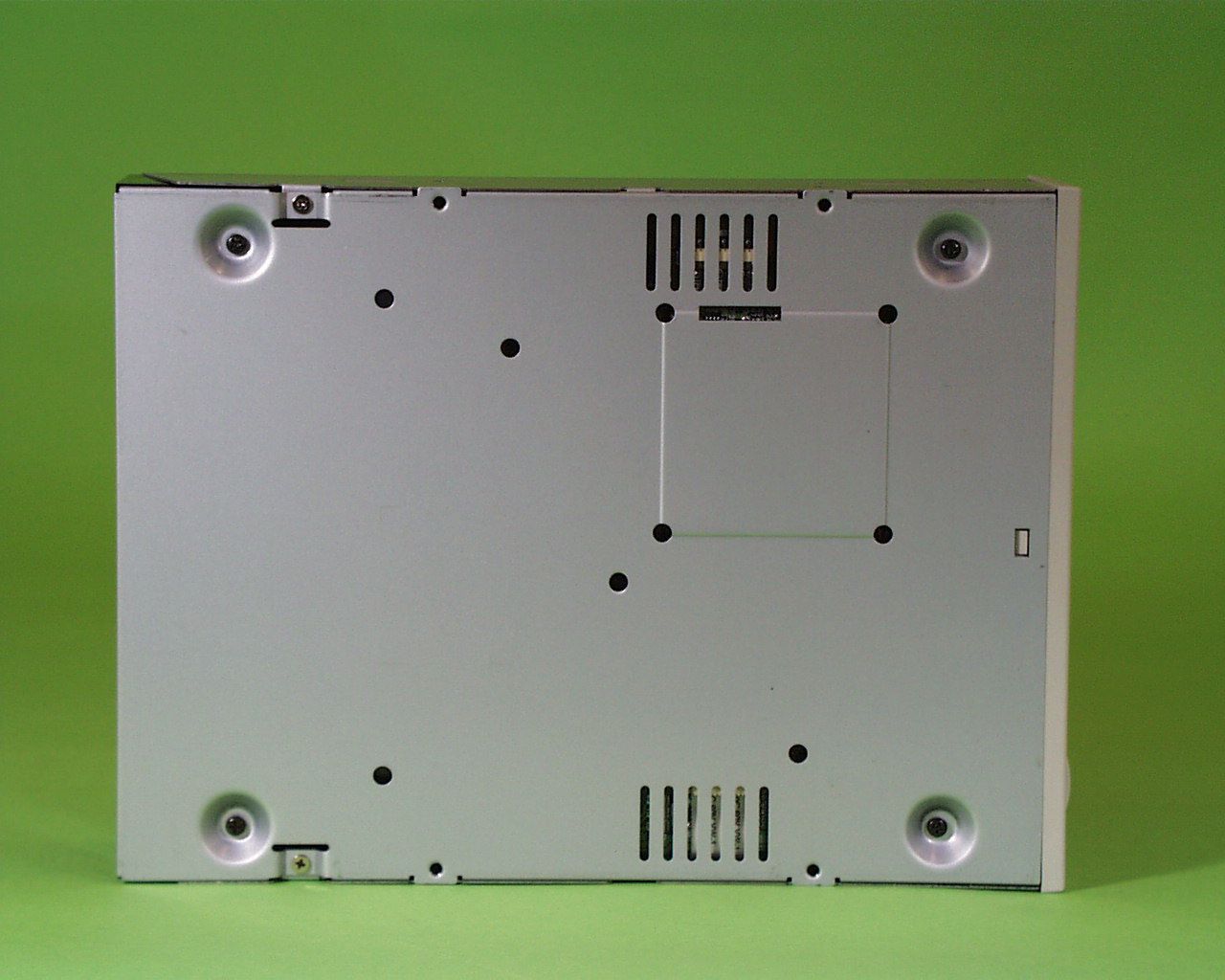

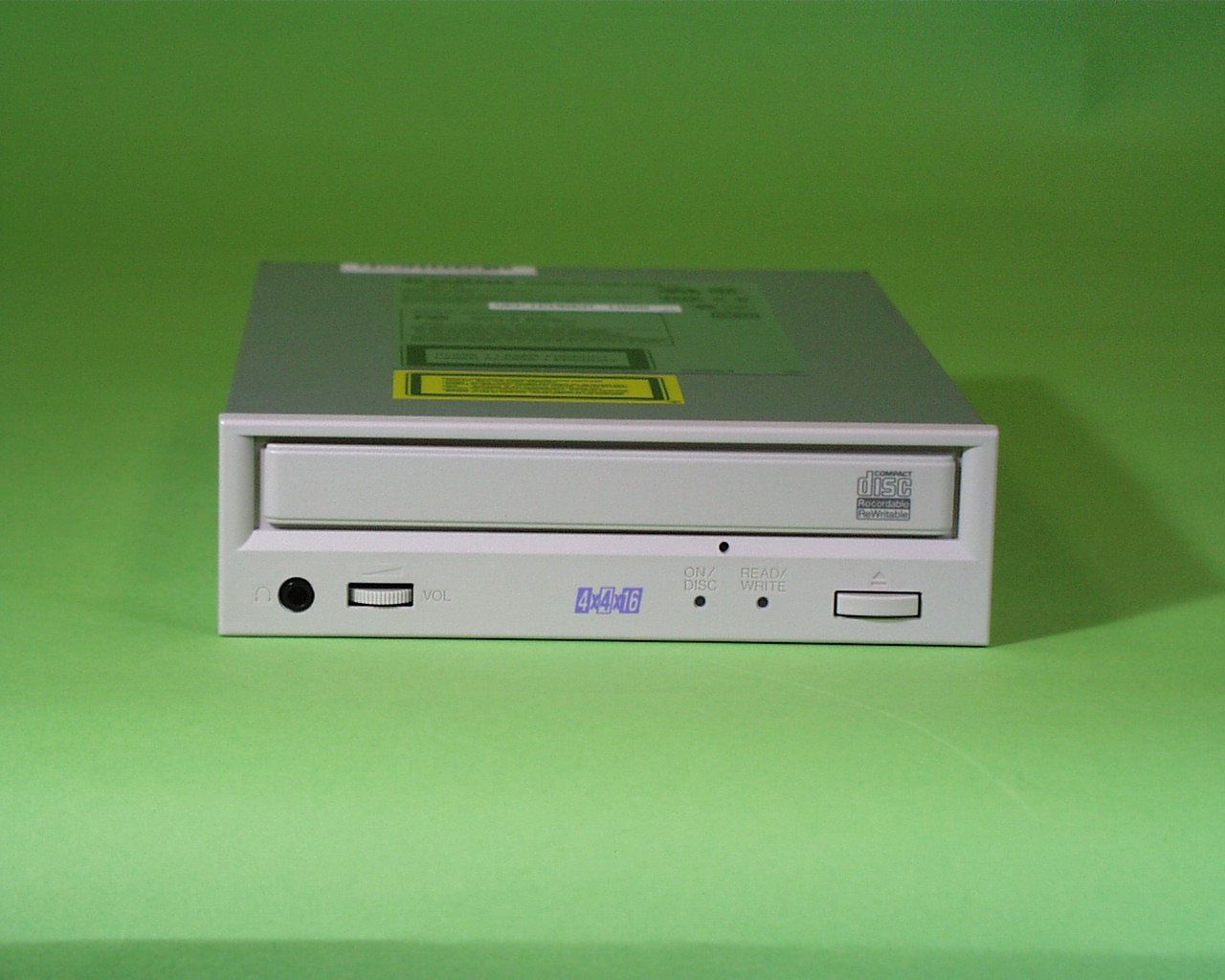

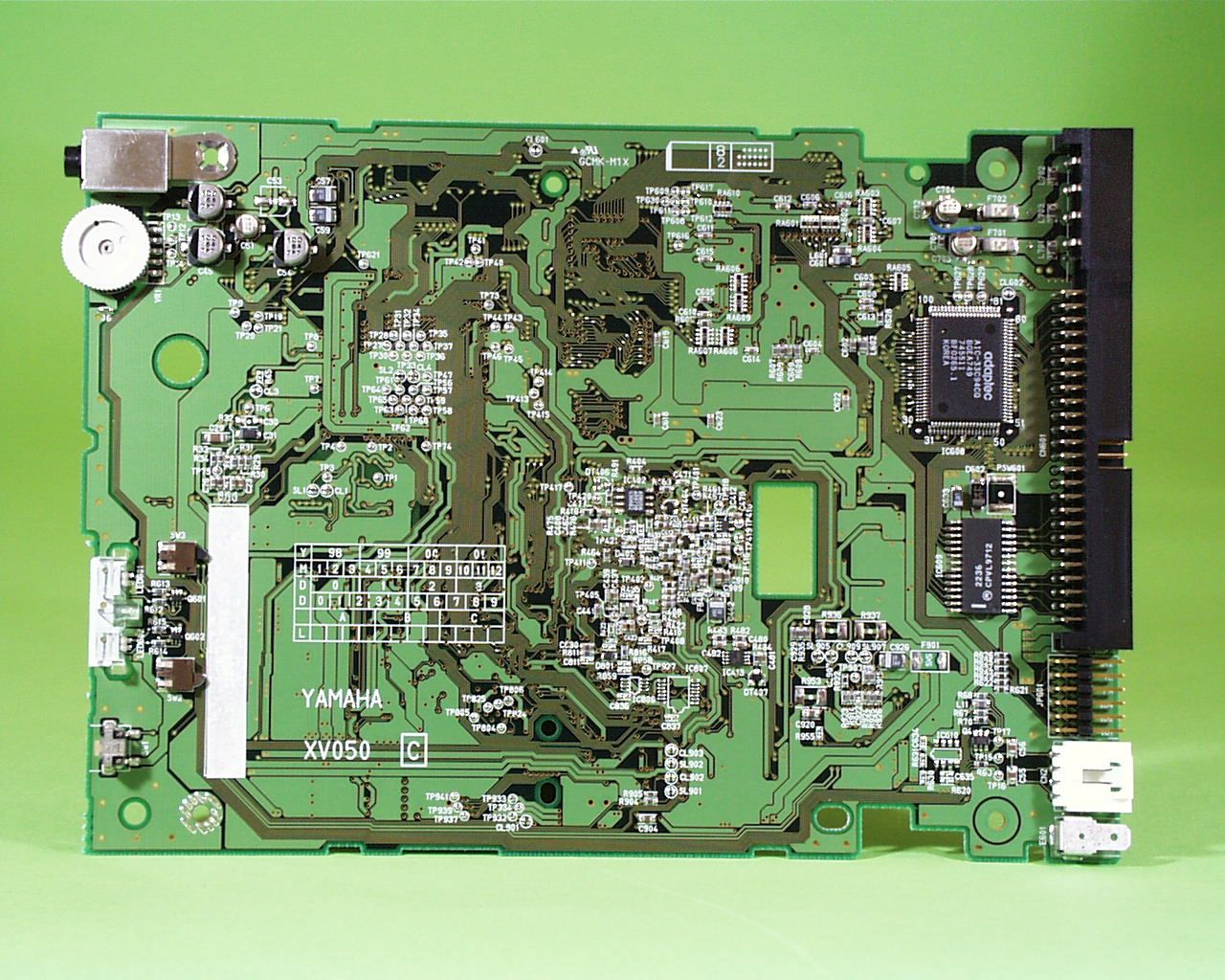

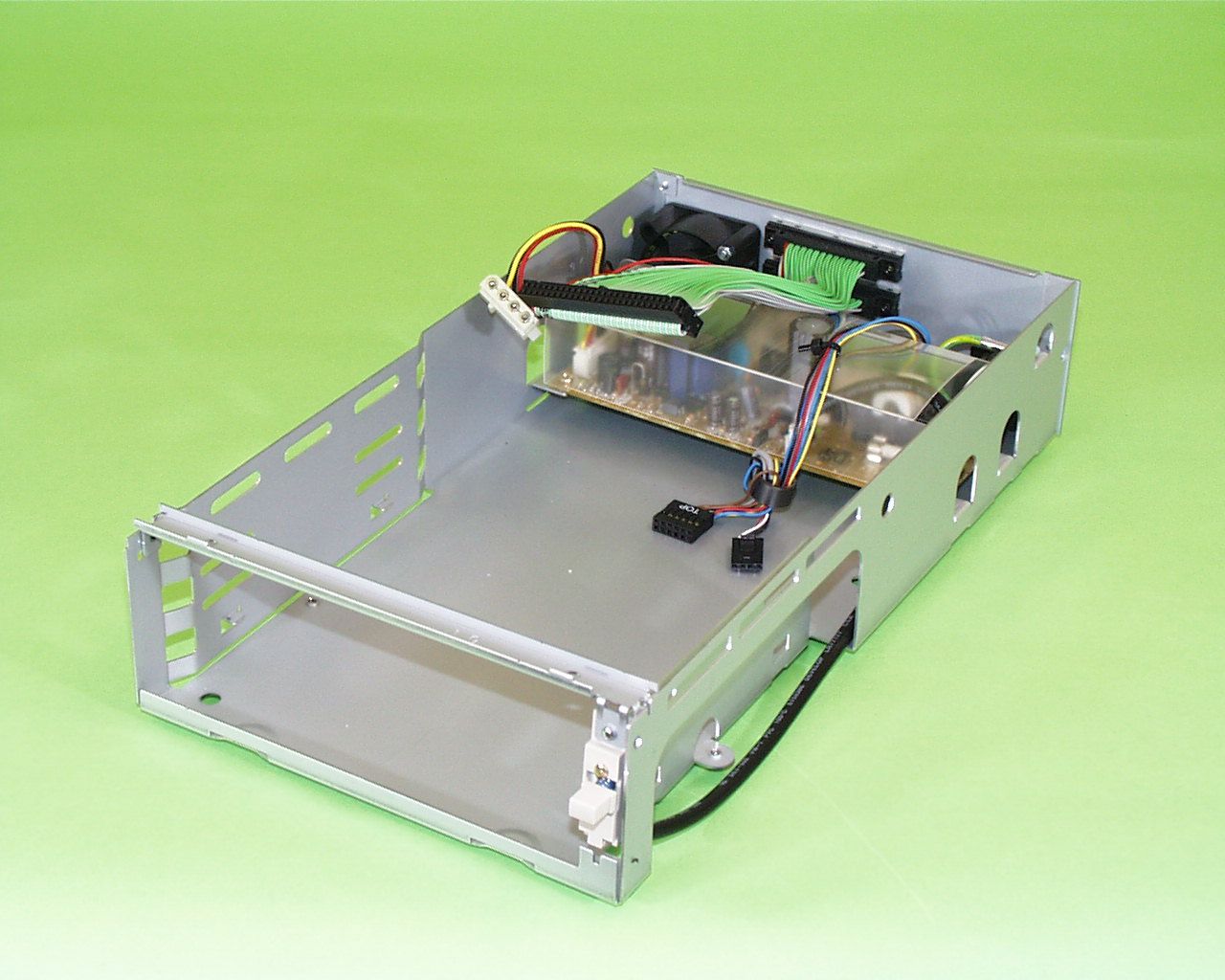

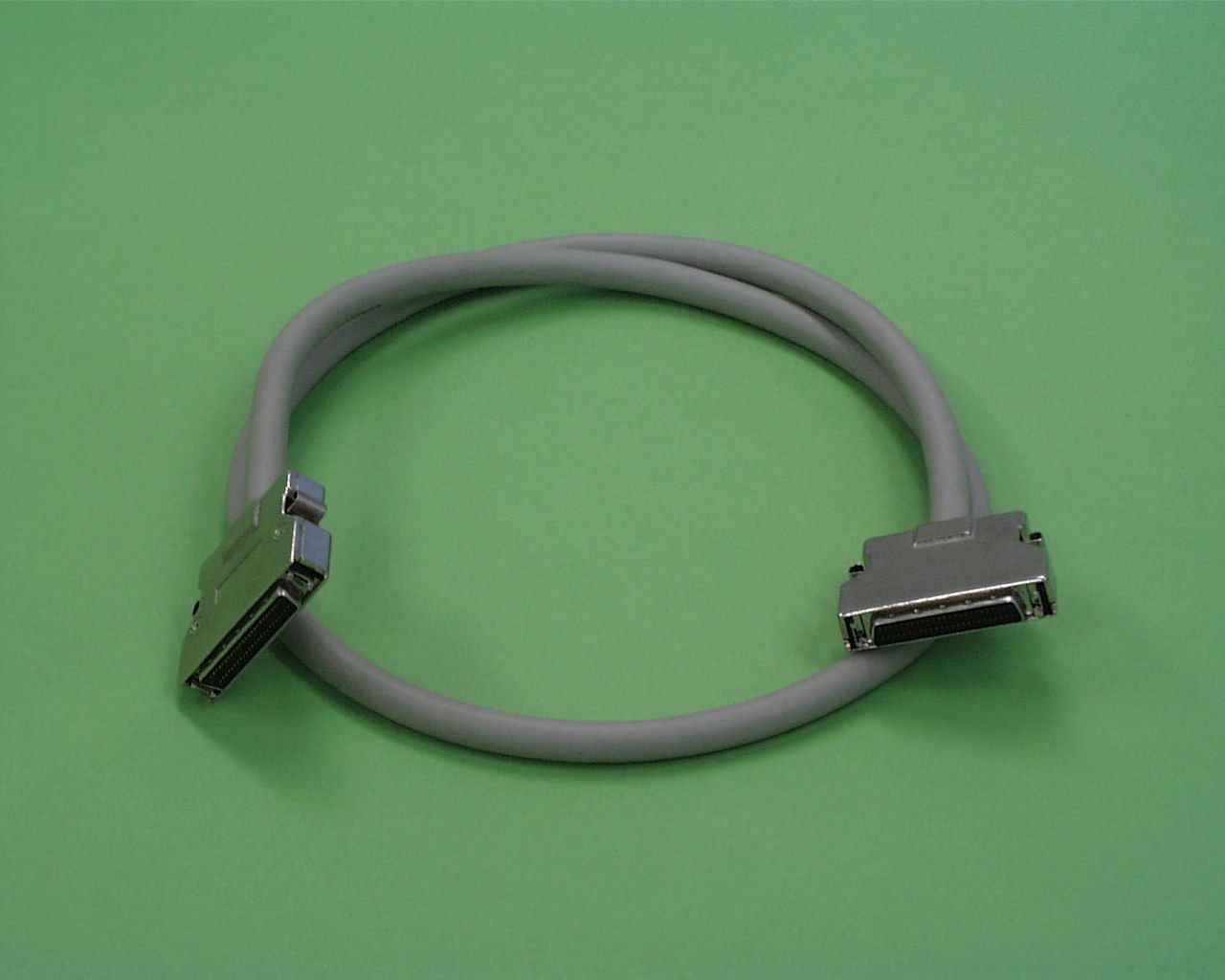

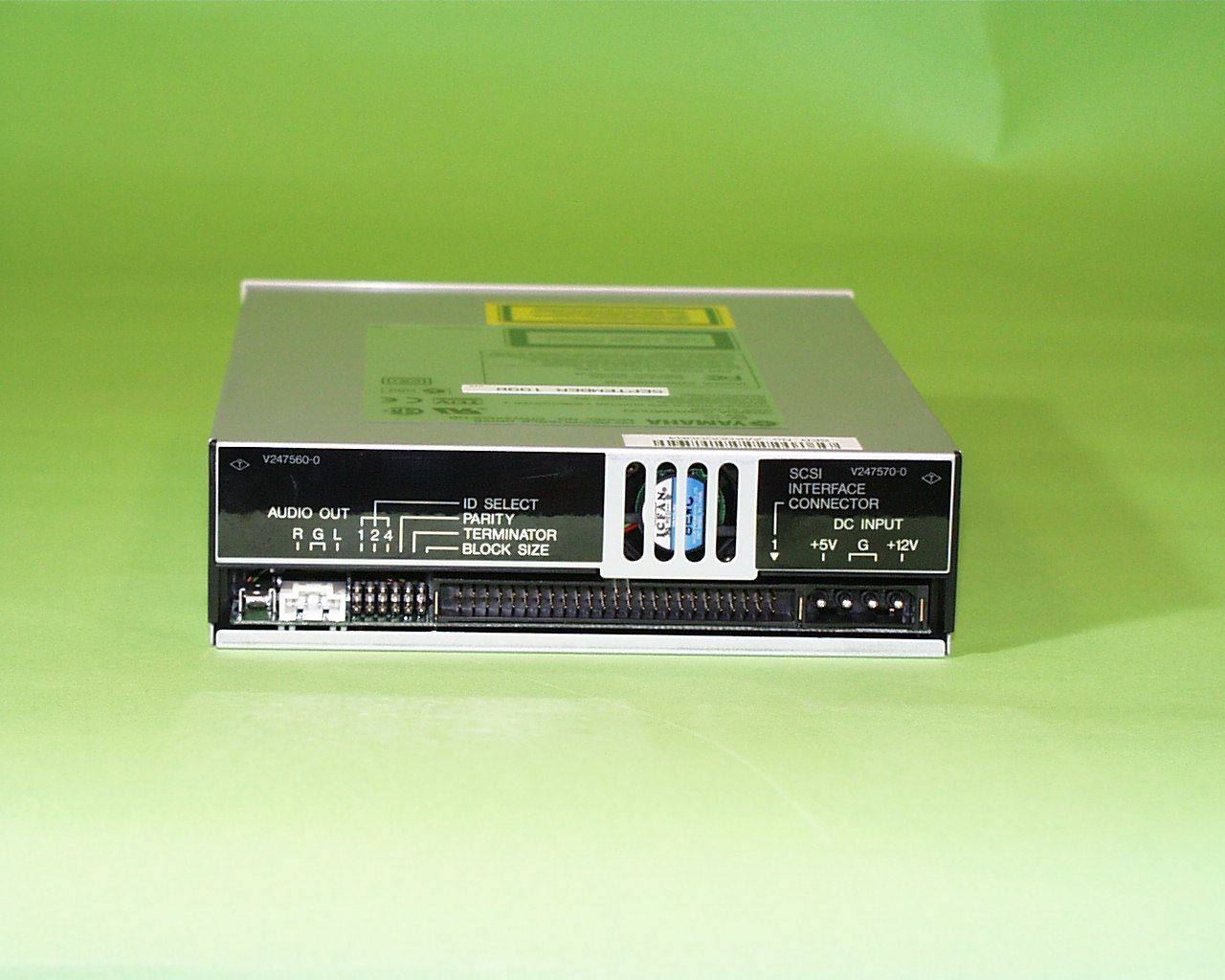

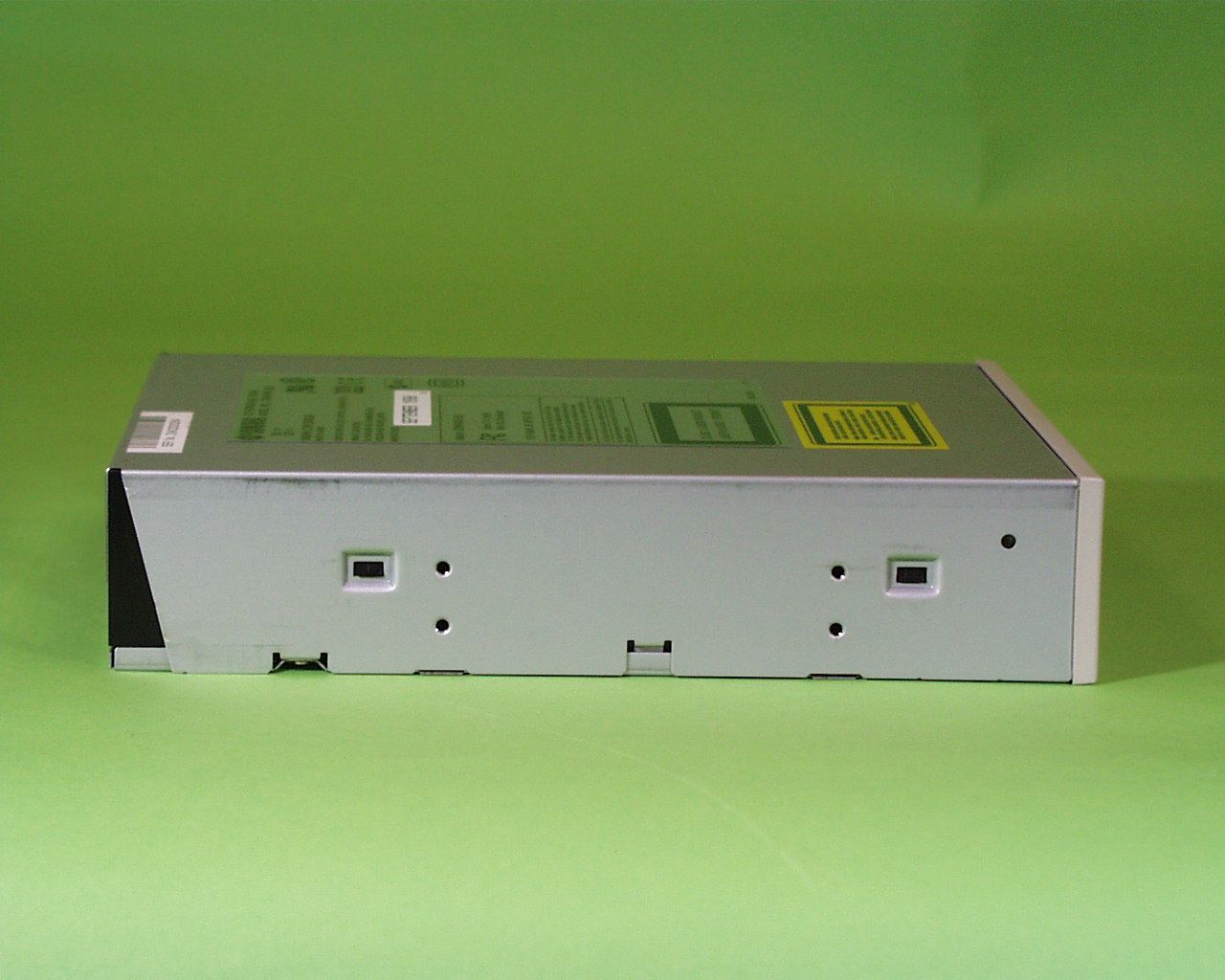

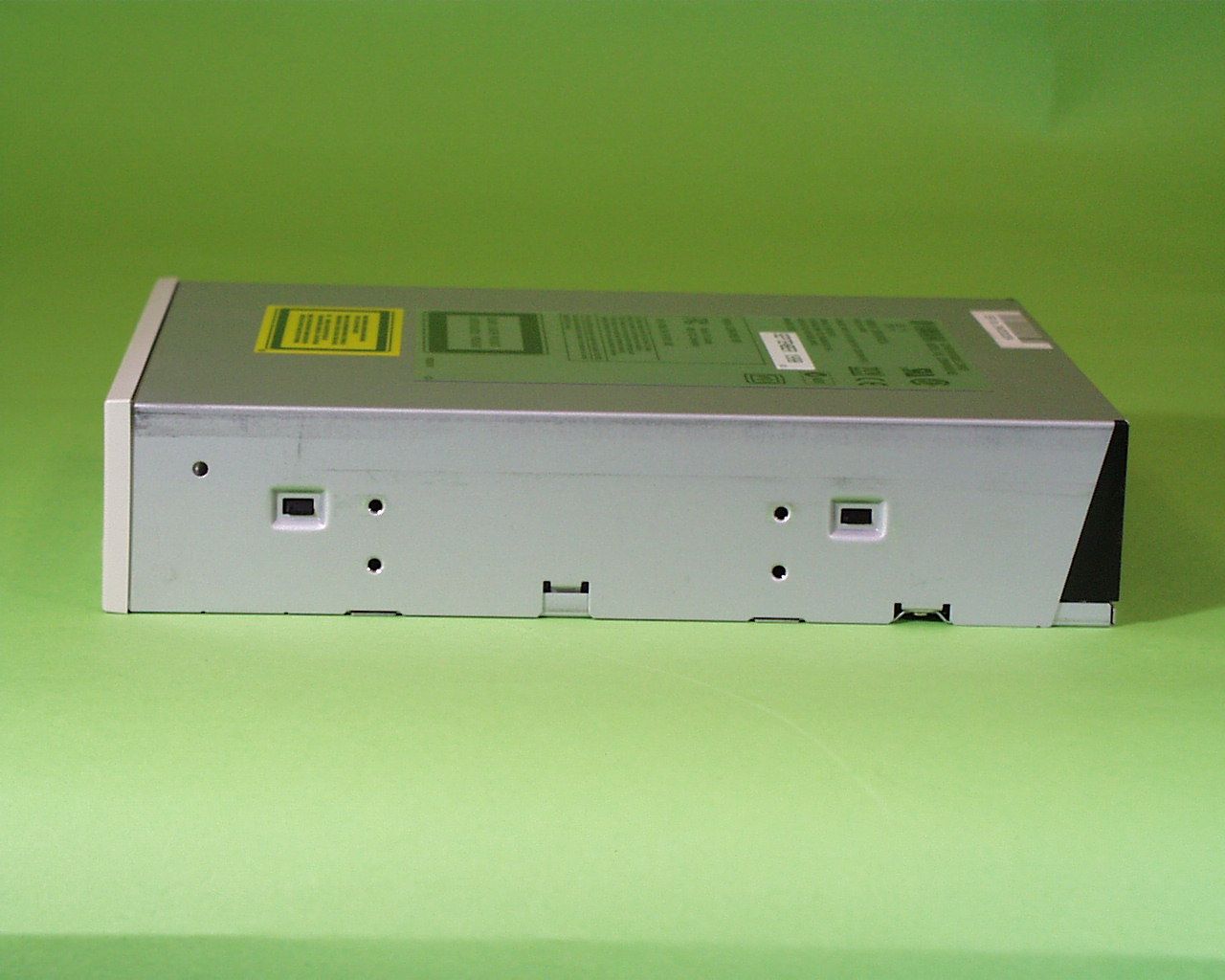

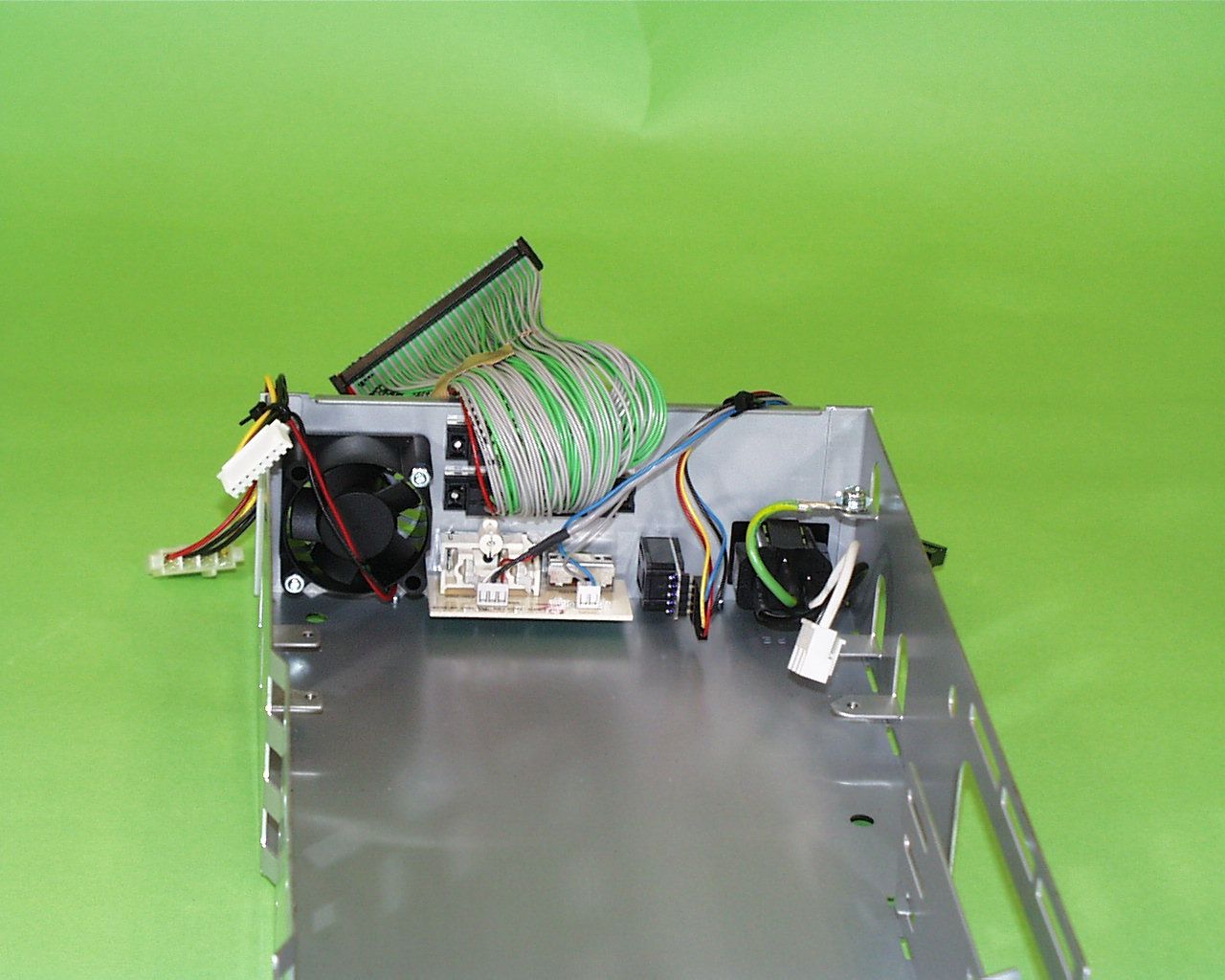

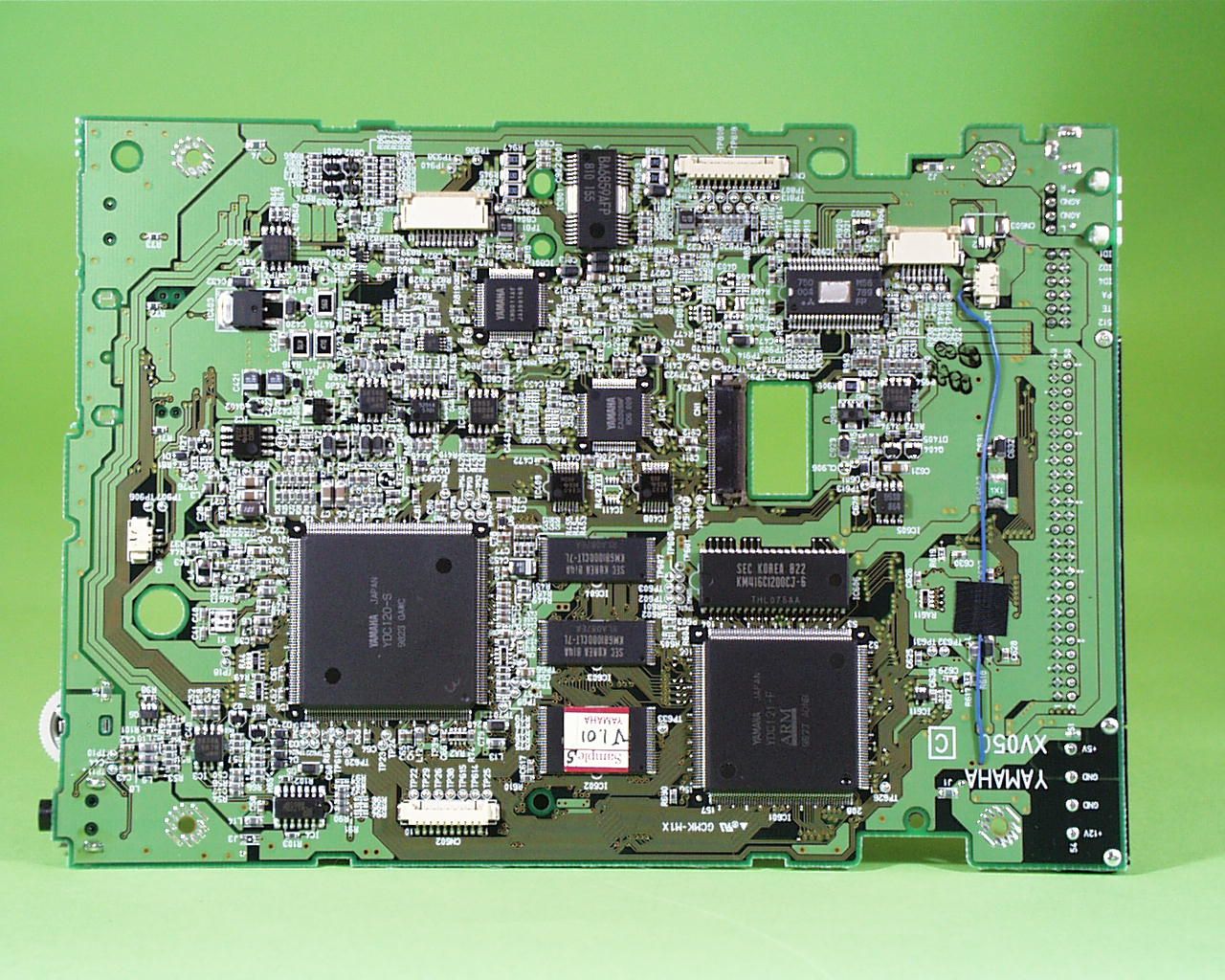

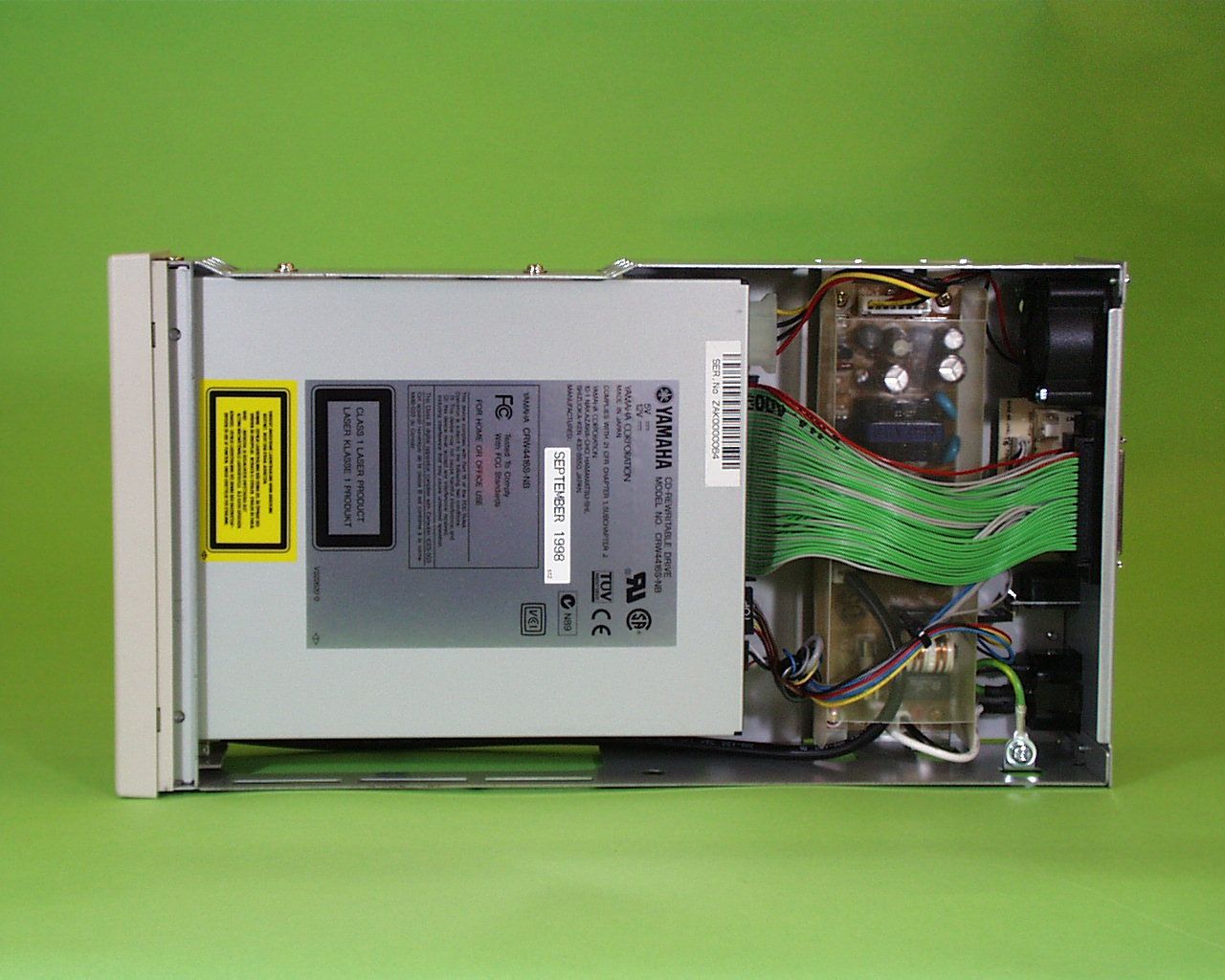

Front View of EUT Bottom View of EUT Rear View of EUT FCC ID : A6R11F57 CRW4416SX Series Label Location Rating Plate FCC ID Label

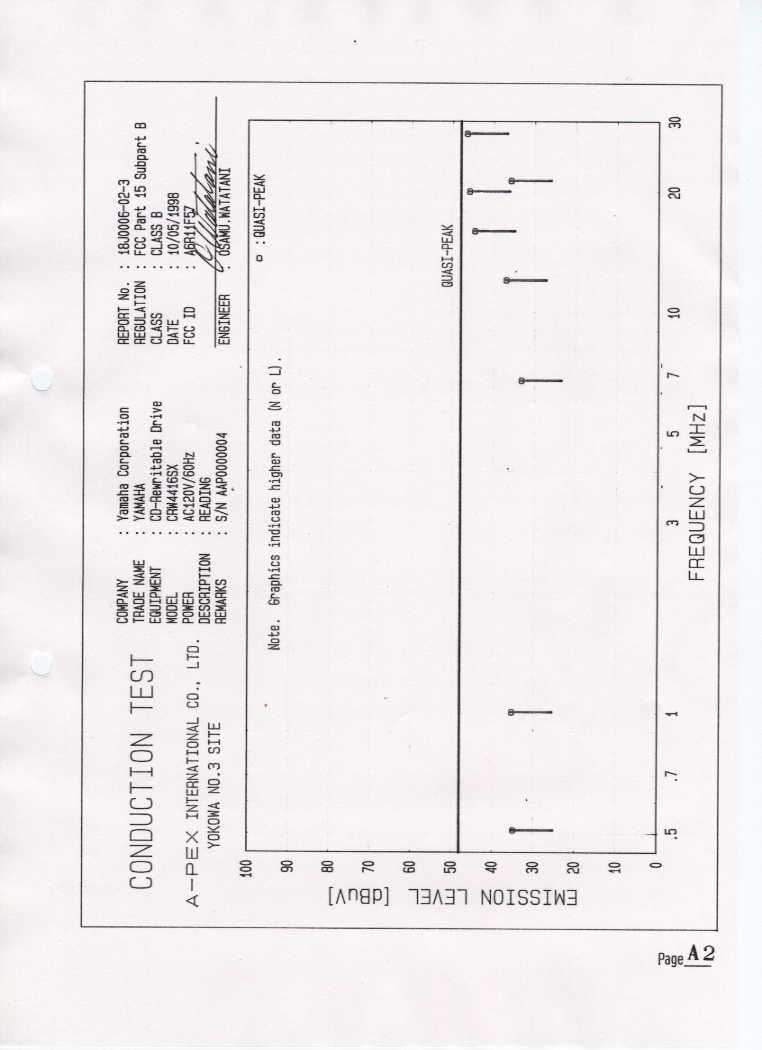

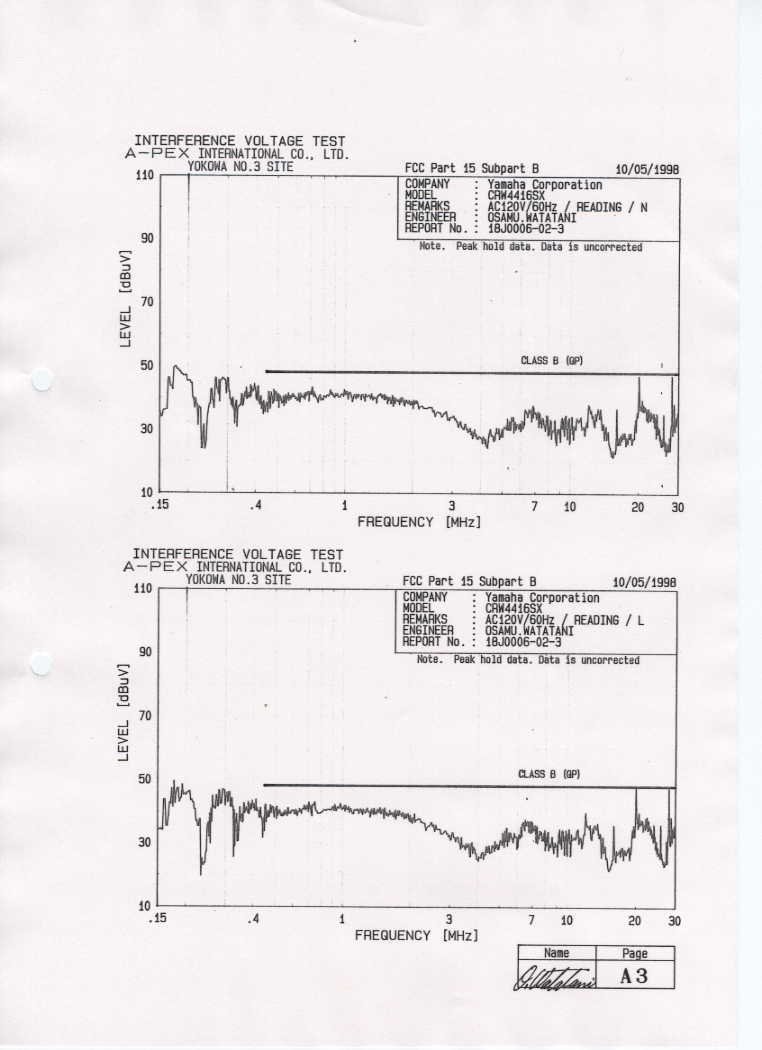

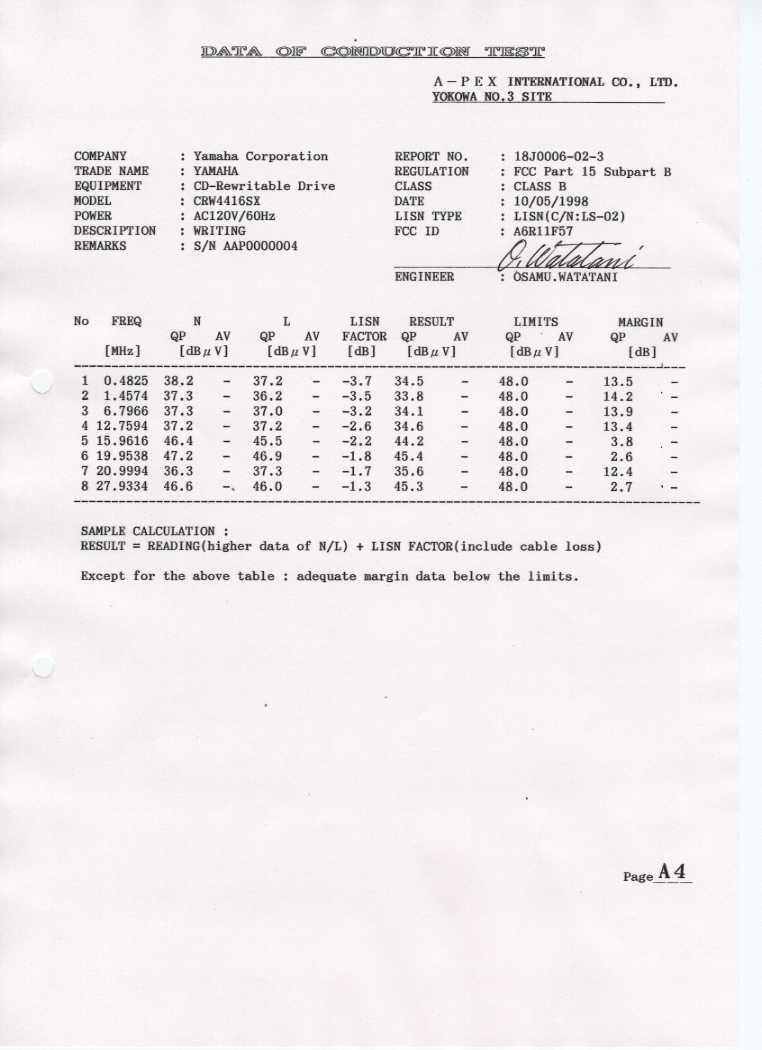

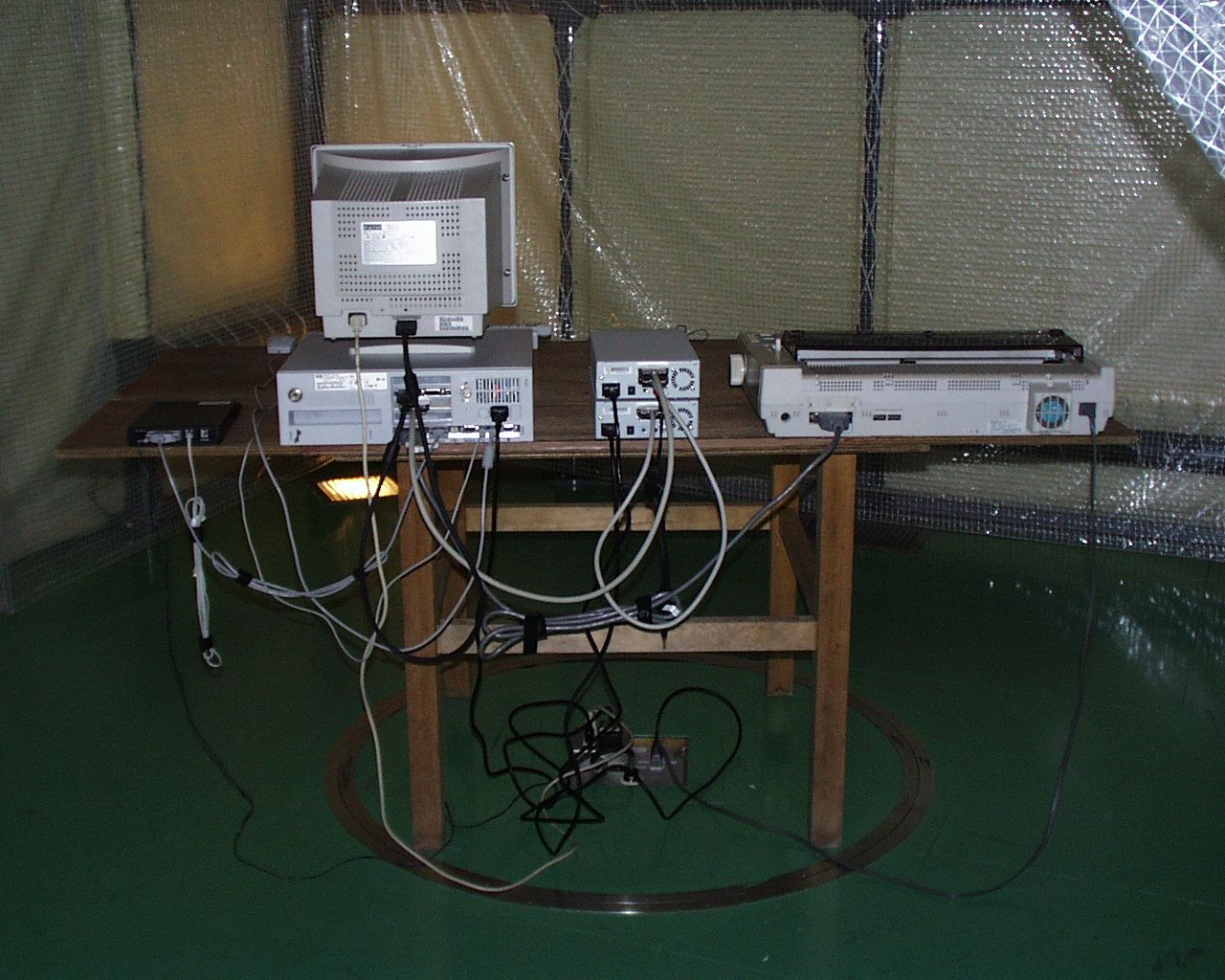

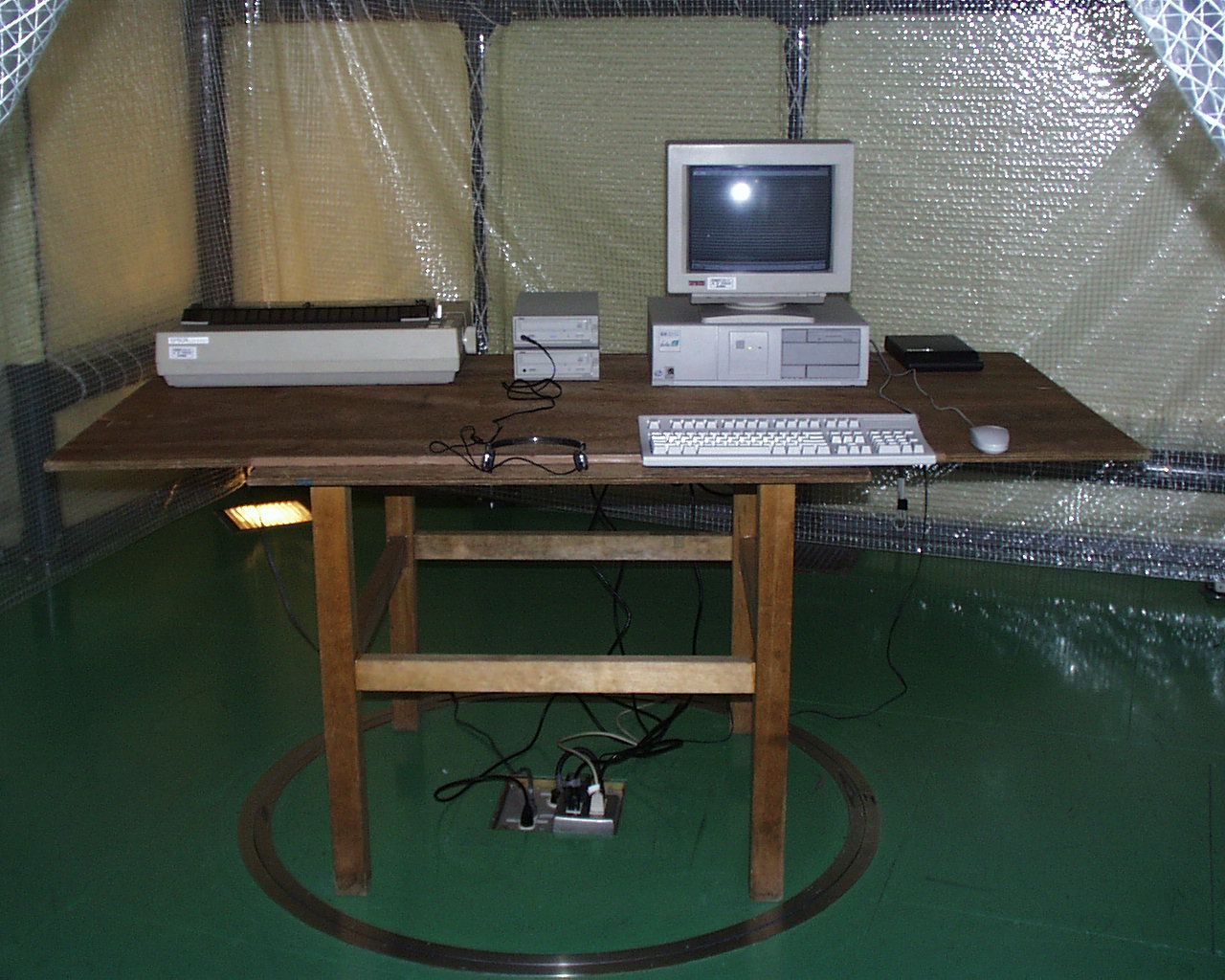

Testing Laboratory A-pex International Co., Ltd.Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 This laboratory is registered by the NIST/NVLAP, U.S.A. The tests reported herein have been performed in accordance with its terms of registration. EMISSION TEST REPORT Test Report No. : 18J0006-02-3 Yamaha Corporation, Model: CRW4416SX FCC Part 15 Subpart B 1. This test report shall not be reproduced except in full, without the written approval of A-Pex International Co., Ltd. 2. This test report does not constitute an endorsement by NIST/NVLAP or U.S. Government. 3. This equipment is in compliance with above regulation. We hereby certify that the data are contain a true representation of the emission profile. 4. The results in this report apply only to the sample tested. 5. This test report clearly shows that EUT, CRW4416SX, CD-Rewritable Drive is in compliance with FCC Part 15 Subpart B Class B, and Industry Canada ICES-003 Issue 3, CSA C108.8 Class B, specification. Date of test: October 5, 8, 1998 Issued date: October 19, 1998 Tested by: Approved by: Osamu WatataniTetsuya Hashimoto EMC sectionGroup Leader of EMC section Form Version No. 1 Test report FCC ID: A6R11F57 Our reference: 18J0006-02-3 Page: 2 of 18 Issued date: 98-10-19 Testing Laboratory A-pex International Co., Ltd.Telephone: +81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 Table of ContentsPage 1 GENERAL INFORMATION3 1.1 Product Description4 1.2 Tested System Details5 1.3 Tested Methodology6 1.4 Test Facility6 2 SYSTEM TEST CONFIGURATION7 2. 1 Operation Environment 7 2.2 Justification7 2. 3 EUT Exercise Software7 2.4 Test Procedure8 Figure 2.1 Configuration of Tested System9 3 CONDUCTED AND RADIATED MEASUREMENT PHOTOS11 Figure 3.1 Conducted Measurement Photos11 Figure 3.2 Radiated Measurement Photos12 3.1 Measurement Uncertainty13 4 CONDUCTED EMISSION DATA14 5 RADIATED EMISSION DATA15 5.1 Field Strength Calculation16 6 TEST EQUIPMENT USED17 APPENDIX18 A:Test DataA1 - A11 Test report FCC ID: A6R11F57 Our reference: 18J0006-02-3 Page: 3 of 18 Issued date: 98-10-19 Testing Laboratory A-pex International Co., Ltd.Telephone: +81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 1 GENERAL INFORMATION APPLICANT: Yamaha Corporation ADDRESS: 203 Matsunokijima, Toyooka-mura, Iwata-gun, Shizuoka-ken, 438-0192 Japan Tel: +81-539-62-5348 Fax: +81-539-62-5138 REGULATION(S): FCC Part 15 Subpart B, Class B MODEL NUMBER: CRW4416SX SERIAL NUMBER: AAP0000004 KIND OF EQUIPMENT: CD-Rewritable Drive TESTED DATE: October 5, 8, 1998 TEST REPORT NUMBER: 18J0006-02-3 TEST SITE: A-PEX Yokowa NO.3 Open Test Site Test report FCC ID: A6R11F57 Our reference: 18J0006-02-3 Page: 4 of 18 Issued date: 98-10-19 Testing Laboratory A-pex International Co., Ltd.Telephone: +81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 1.1 Product Description Yamaha Corporation, Model CRW4416SX (referred to as the EUT in this report) is a CD-Rewritable Drive. The clock frequency used in the EUT is 33.868MHz. Power Supply is AC 100 240V, 50/60Hz, 0.3A I/O terminal Front : Headphone Rear : SCSI Interface2, Audio Line Out L & R Model No. Maximum SpeedInterface CD-RCD-RWReading CRW4416SX4416SCSI Test report FCC ID: A6R11F57 Our reference: 18J0006-02-3 Page: 5 of 18 Issued date: 98-10-19 Testing Laboratory A-pex International Co., Ltd.Telephone: +81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 1.2 Tested System Details The FCC IDs for all equipment, plus description of all cables used in the tested system are: Model FCC ID Description Cable description Backshell Material (1) YAMAHAA6R11F57CD-RewritableShielded SCSI Cable2P.V.C. M/N: CRW4416SXDriveUnshielded Audio CableP.V.C. S/N: AAP0000004Unshielded AC Power CableP.V.C. (EUT) (2) Hewlett PackardN/APCUnshielded AC Power CableP.V.C. M/N: D4553A S/N: FR71472939 (3) Matsushita ElectricN/AHeadphne Unshielded Headphone CableP.V.C. Industrial Co., Ltd. M/N: RD-9227 (4) Hewlett PackardC1GE03633KeyboardShielded Keyboard CableP.V.C. M/N: E03633WLUS2-C (5) Hewlett PackardDZL211029 MouseShielded Mouse CableP.V.C. M/N: M-S34 S/N: LZA65242852 (6) DigitalBEJCQ472 CRTShielded Video CableP.V.C. M/N: PCXCV-GAUnshielded AC Power CableP.V.C. S/N: 1K34015842 (7) EPSONBKM5DEP18MAPrinter Unshielded AC Power CableP.V.C. M/N: P18MAShielded Printer CableP.V.C. S/N: OFG1007634 (8) EPSONBKM552C202A Modem Shielded Modem CableP.V.C. M/N: C202AUnshielded DC Power CableP.V.C. S/N: 10309 (9) EPSONN/A AC AdaptorUnshielded DC Power CableP.V.C. M/N: PAZ244OU (10) YAMAHAA6R11F57CD-RewritableShielded SCSI CableP.V.C. M/N: CRW4A16SXDriveUnshielded AC Power CableP.V.C. S/N: AAP0000002 Test report FCC ID: A6R11F57 Our reference: 18J0006-02-3 Page: 6 of 18 Issued date: 98-10-19 Testing Laboratory A-pex International Co., Ltd.Telephone: +81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 1.3 Tested Methodology Both conducted and radiated testing were performed according to the procedures in FCC/ANSI C63.4(1992). Radiated testing was performed at a distance of 3 meters from the antenna to EUT . 1.4 Test Facility The open area test site and conducted measurement facility used to collect the radiated data is located on 108, Yokowa-cho, Ise-shi, Mie-ken, 516-1106 Japan. This site has been fully described in a report dated Aug. 1, 1997 submitted to FCC office, and accepted in a letter dated Sep. 16, 1997 (31040/SIT 1300F2). Test report FCC ID: A6R11F57 Our reference: 18J0006-02-3 Page: 7 of 18 Issued date: 98-10-19 Testing Laboratory A-pex International Co., Ltd.Telephone: +81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 2 SYSTEM TEST CONFIGURATION 2.1 Opearation Environment Conduction Radiation Temperature : 22.4: 26.4 Humidity: 60%: 34% Power supply : AC 120V/60Hz (DC 5V/12V): AC 120V/60Hz (DC 5V/12V) 2.2 J…
