Owner’s Manual Bedienungsanleitung Mode d’emploi Manual de instrucciones 2/19CRW/e.qx 2/19/99 5:46 PM Page 1 FCC INFORMATION (U.S.A.) 1.IMPORTANT NOTICE:DO NOT MODIFY THIS UNIT! This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product. 2.IMPORTANT:When connecting this product to accessories and/or another product use only high quality shielded cables. Cable/s supplied with this product MUSTbe used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA. 3.NOTE:This product has been tested and found to comply with the requirements listed in FCC Regulations, Part 15 for Class “B” digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices. This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices. Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the product “OFF” and “ON,” please try to eliminate the problem by using one of the following measures: Relocate either this product or the device that is being affected by the interference. Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s (only applies to external drives). In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to coaxial type cable. If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Systems Technology, Inc. 100 Century Center Court, San Jose, CA95112, U.S.A. Laser Diode Properties Material:GaAlAs Wavelength:783-789 nm Emission Duration:Continuous Laser Output Power:Less than 44.6 μW* *This output is value measured at a distance 200mm from the objective lens surface on the optical pick-up block. ANSI Class : Class 1 CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. This device is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT label must be located on the exterior. CAUTION : INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM. VORSICHT : UNSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GEOFFNET. NICHT DEM STRAHL AUSSETZEN. VARNING : OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD OCH SPÄRREN ÄR URKOPPLAD. BETRAKTA EJ STRÅLEN. STRÅLEN ÄR FARLIG. VARO! : AVATAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTINA NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN. ADVARSEL : USYNLIG LASERSTRALNING VED ÅBNING NÅR SIKKERHETSAF- BRYDERE ER UDE AF FUNKTION. UNDGÅ UDSETTELSE FOR STRÅLNING, This manual applies to the CRW6416S and CRW6416S-NB. The CRW6416S front panel displays the YAMAHAbrand name. The CRW6416S-NB front panel does not display a brand name. CLASS 1 LASER PRODUCT LASER KLASSE 1 PRODUKT LUOKAN 1 LASERLAITE PRODUIT LASER DE CLASSE 1 ADVARSEL USYNLIG LASERSTRÅLING VED ÅBNING. UNDGÅ UDSAETTELSE FOR STRÅLING. VAROITUS LAITTEEN KÄYTTÄMINEN MUULLAKUIN TÄSSÄ KÄYTTÖOHJEESAMAINITULLATAVALLASAATTAA ALTISTAAKÄYTTÄJÄN TURVALLISUUSLUOKAN 1 YLITTÄVÄLLE NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. VARNING OM APPARATEN ANVÄNDS PÅ ANNATSÄTTÄN I DENNABRUKSANVISNING SPECIFICERATS, KAN ANVÄNDAREN UTSÄTTAS FÖR OSYNLIG LASERSTRÅLNING, SOM ÖVERSKRIDER GRÄNSEN FÖR LASERKLASS 1. Warning instruction for laser radiation. Varningsanvisning för laserstrålning. 2/19CRW/e.qx 2/19/99 5:46 PM Page 2 SAFETY PRECAUTIONS PLEASE READ CAREFULLY BEFORE PROCEEDING These precautions explain how to use the device correctly and safely, thereby preventing injury to yourself or to others. This section has been sub-divided into a WARNING section and a CAUTION section, according to the likelihood and nature of any potential injuries or damage inflicted. They relate to your personal safety, and also help you minimize the risk of damaging the device. Please read these sections carefully before proceeding. WARNING Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical shock, short-circuiting, damages, fire or other hazards. These precautions include, but are not limited to, the following: lDo not open the device or attempt to disassemble or modify it. Otherwise, there is an increased risk of electrical shock or fire. The device contains no user- serviceable parts. If it appears to be malfunctioning, have it inspected by qualified service personnel. lDo not look inside the device. If you expose your eyes to the laser inside the device, you risk losing your vision. lDo not insert fingers or foreign objects into the device. Otherwise, there is an increased risk of personal injury, electrical shock, damage to the device or fire. Please take particular care if small children are present. lDo not expose the device to rain, use it near water or in damp or wet conditions or place containers on it containing liquids which might spill into any openings. Otherwise, there is an increased risk of electrical shock, fire or personal injury. lFollow the Owner’s Manual carefully. Otherwise, there is an increased risk of personal injury, electrical shock, fire or damage to the unit. Follow the correct procedure when setting up the device. lIf unusual smells, sounds or smoke emanate from the device or if liquids enter the device, s…

Text truncated - open the document above for the full version.

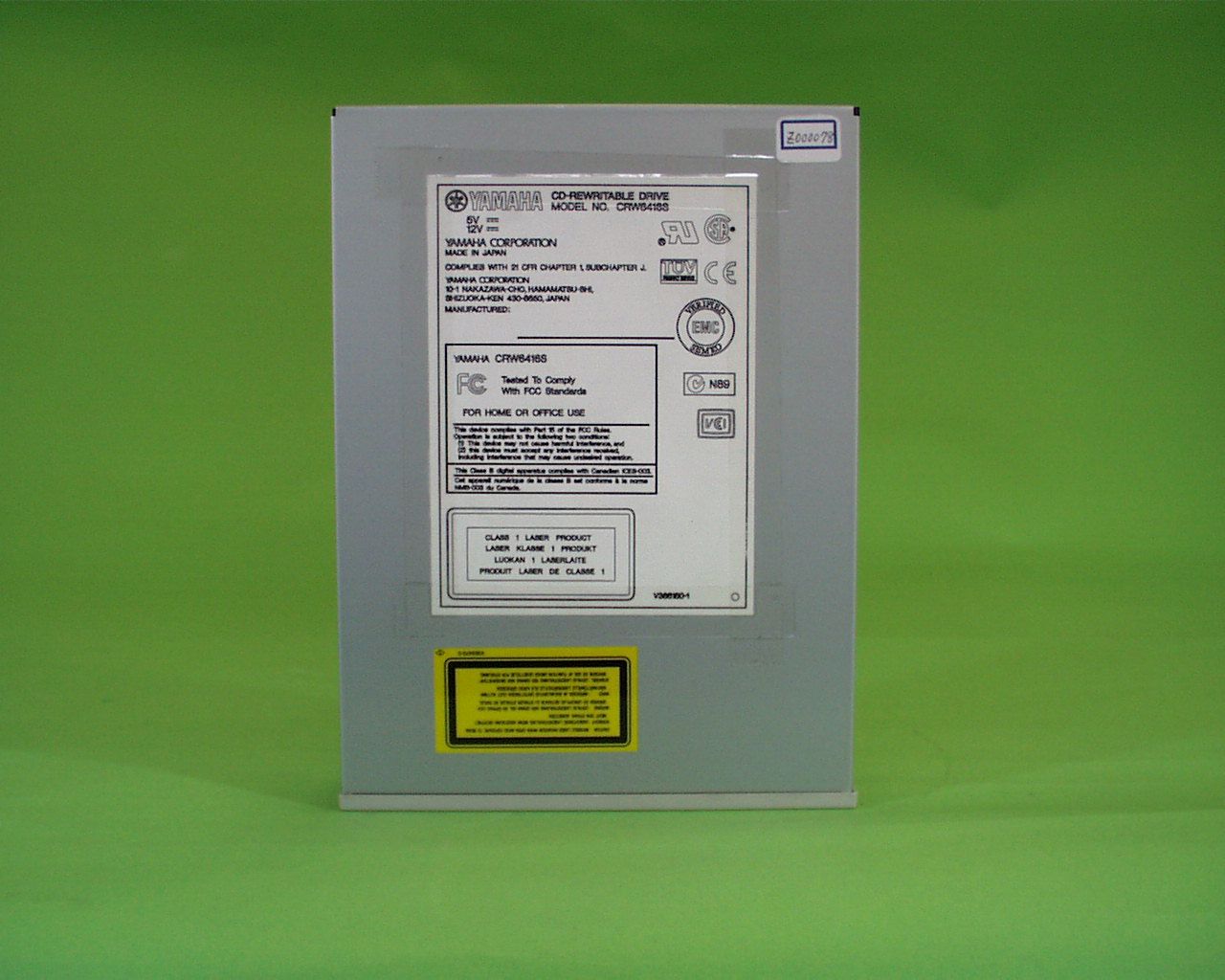

FCC ID : A6R11F59 CRW6416S Series FCC ID Label

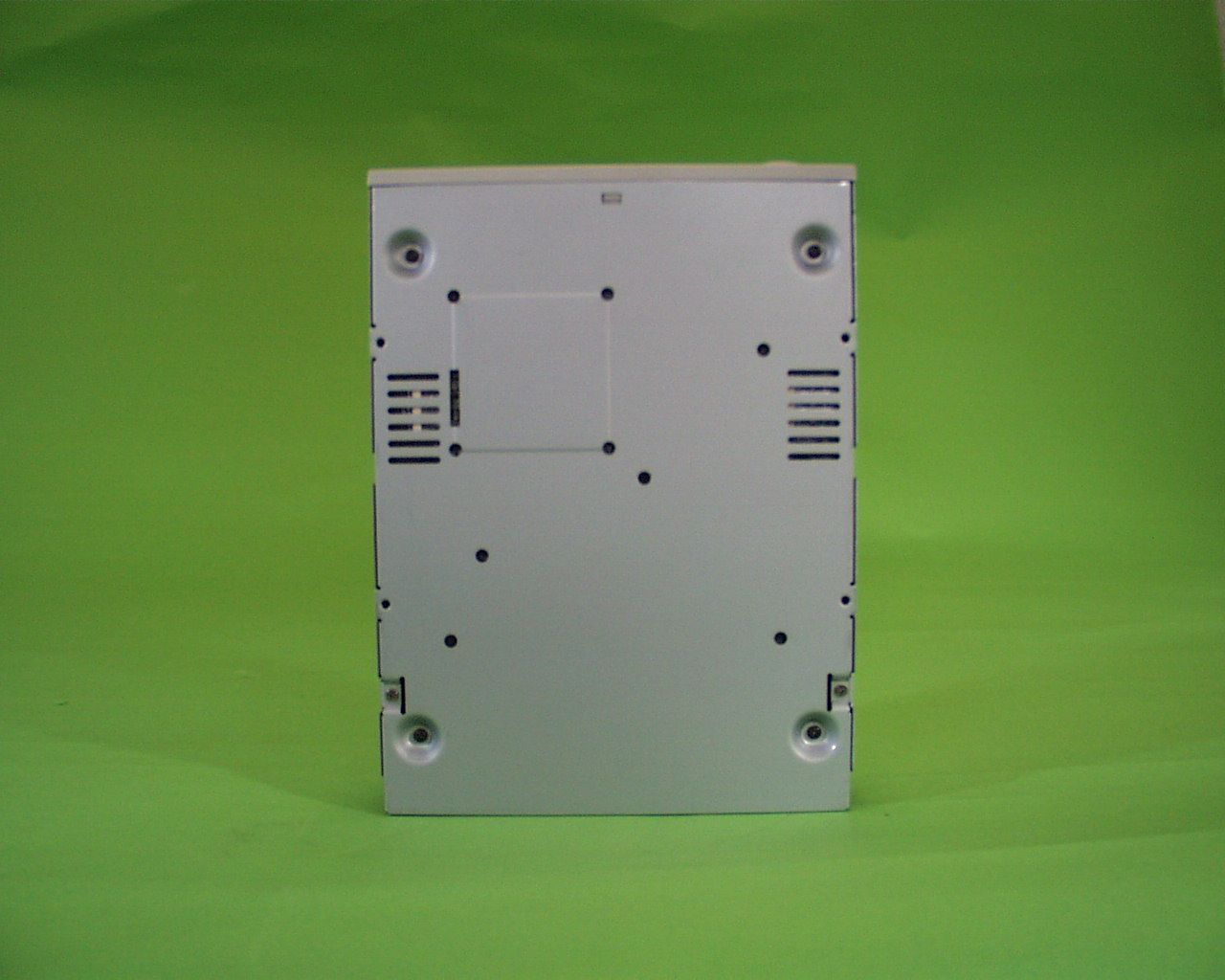

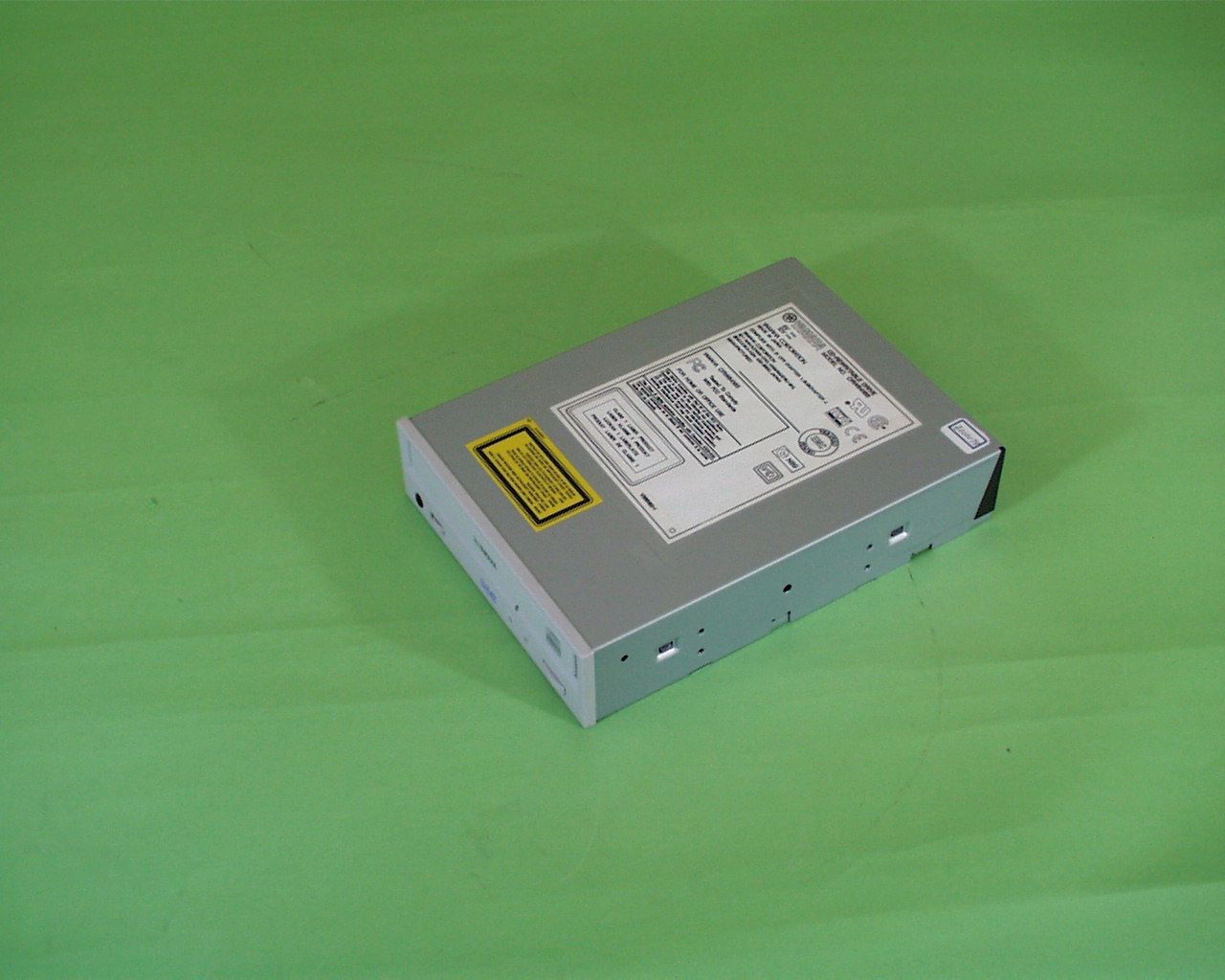

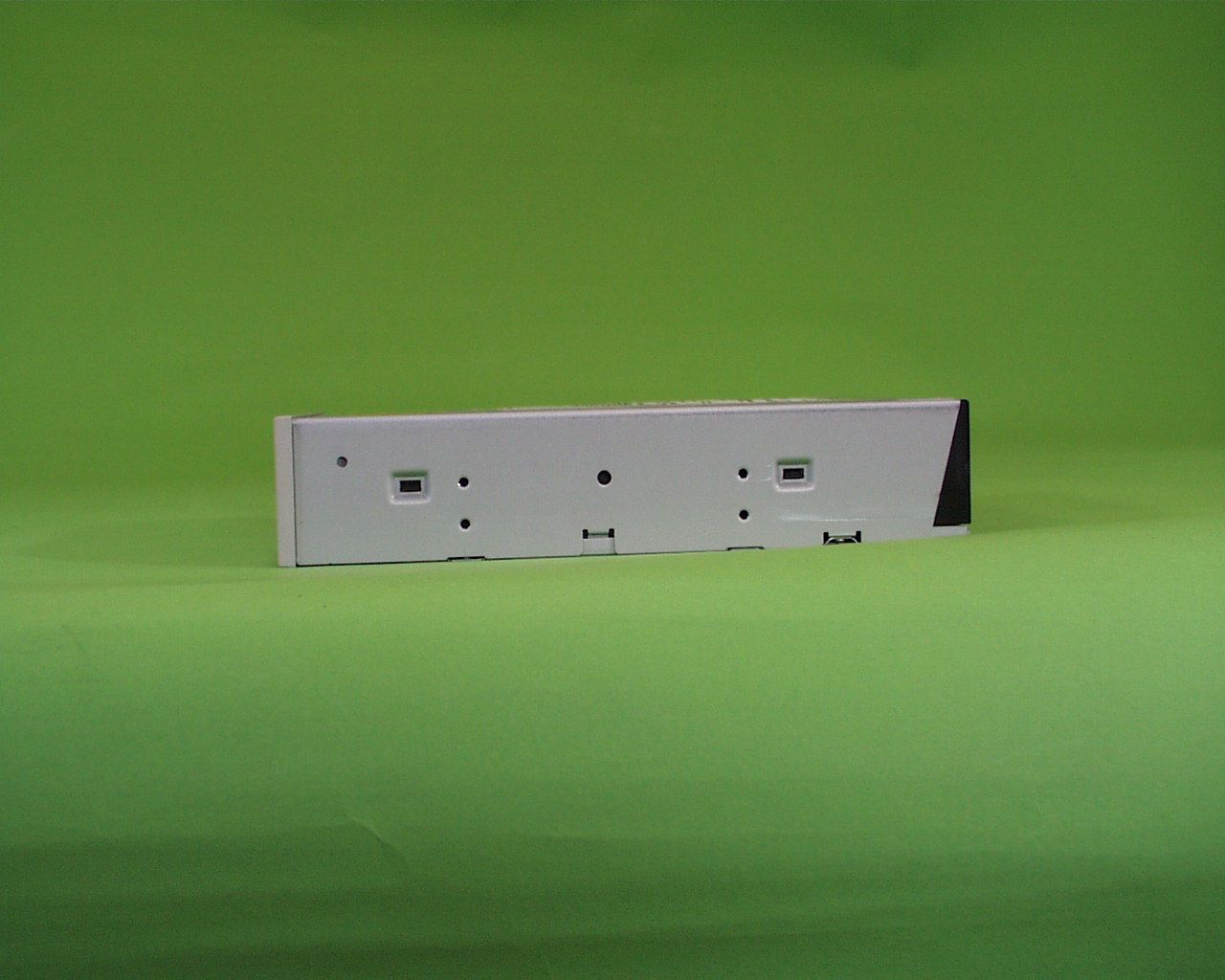

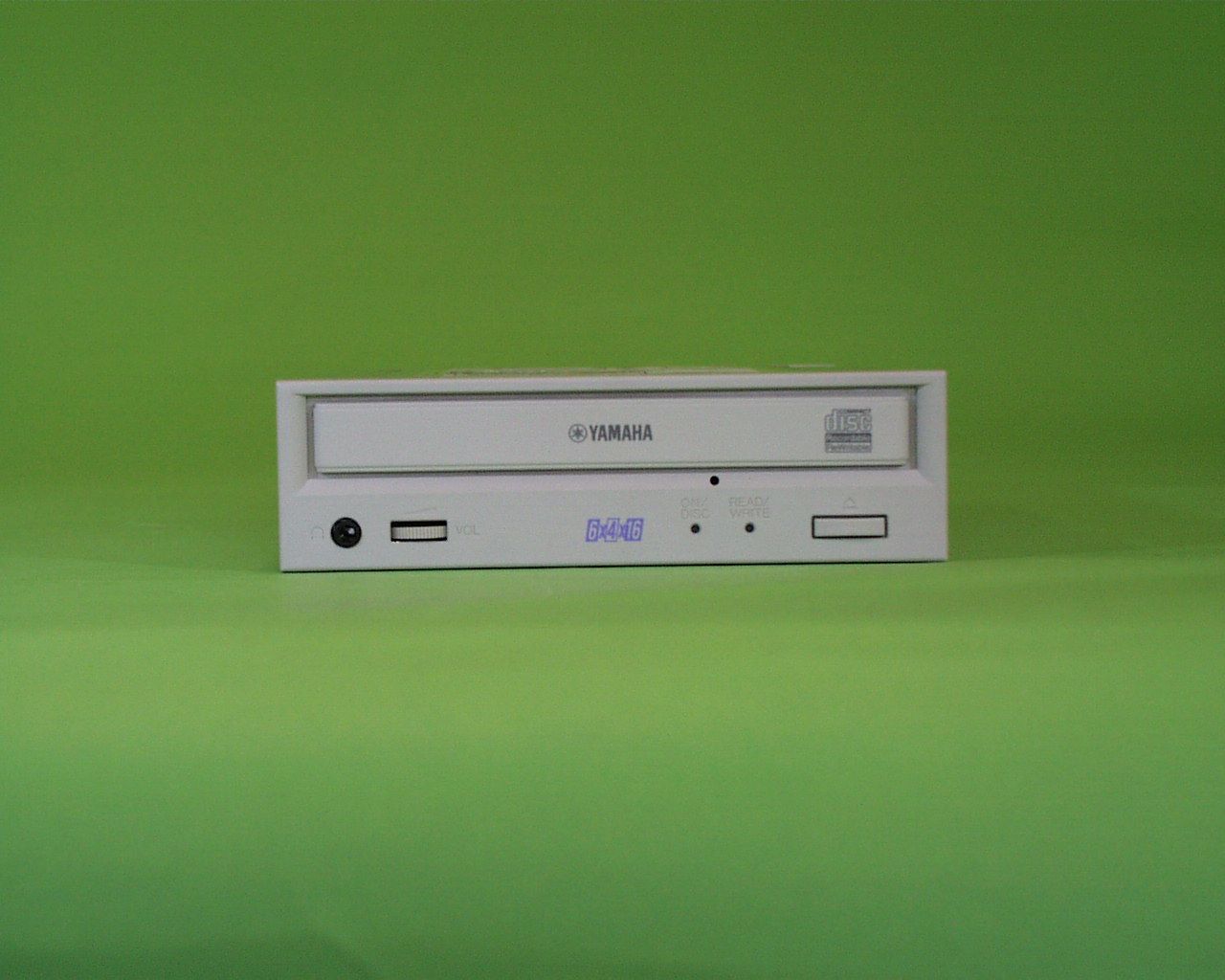

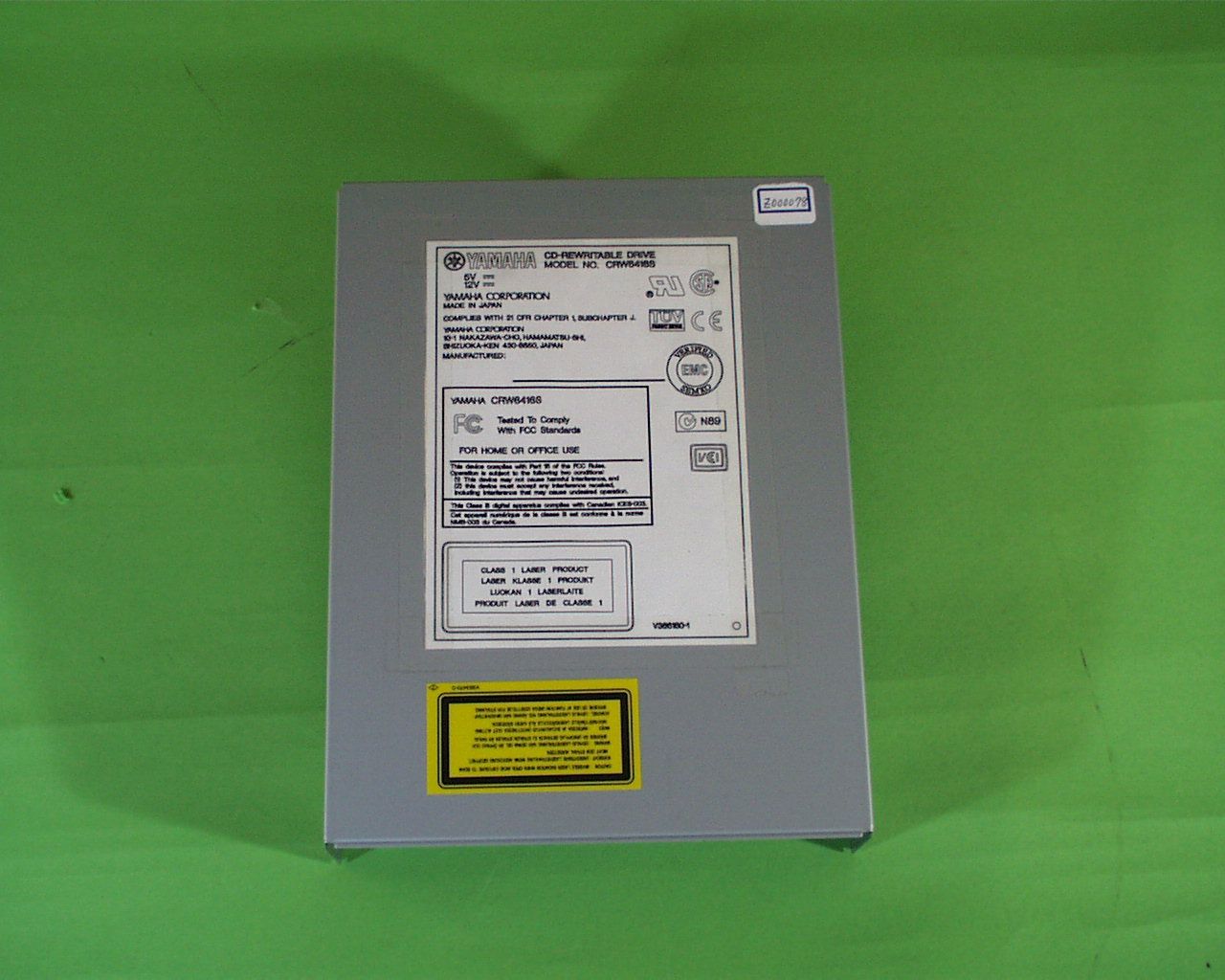

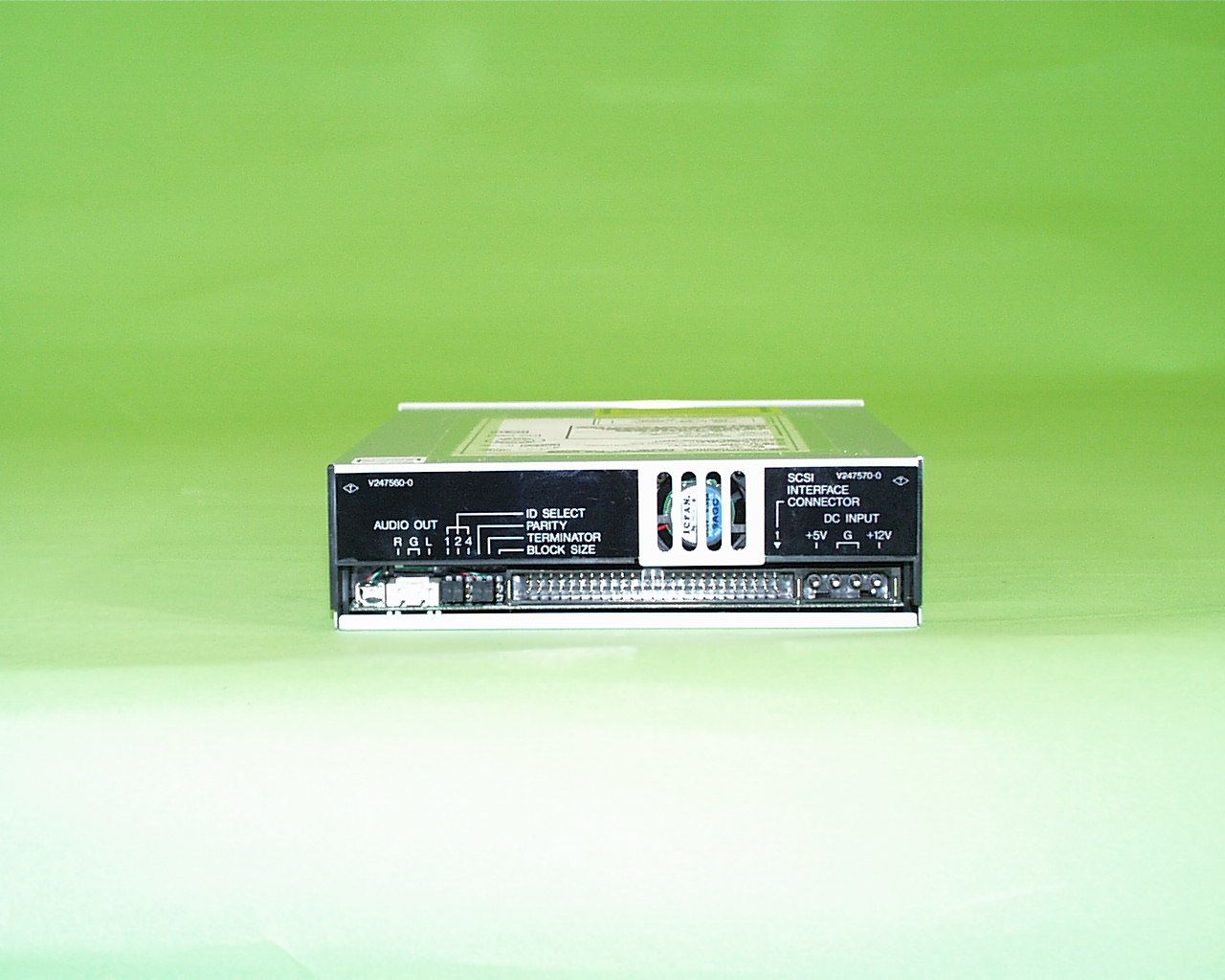

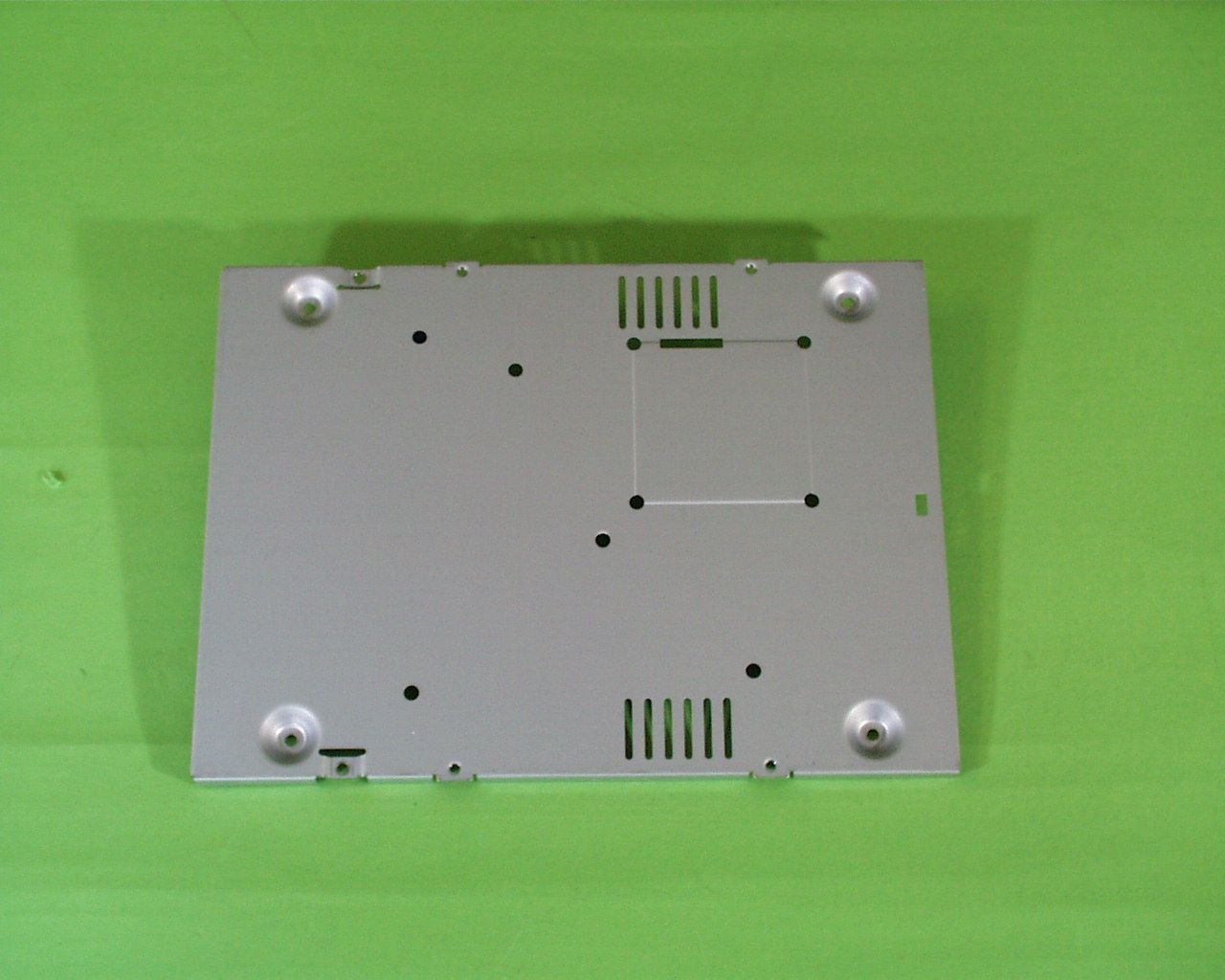

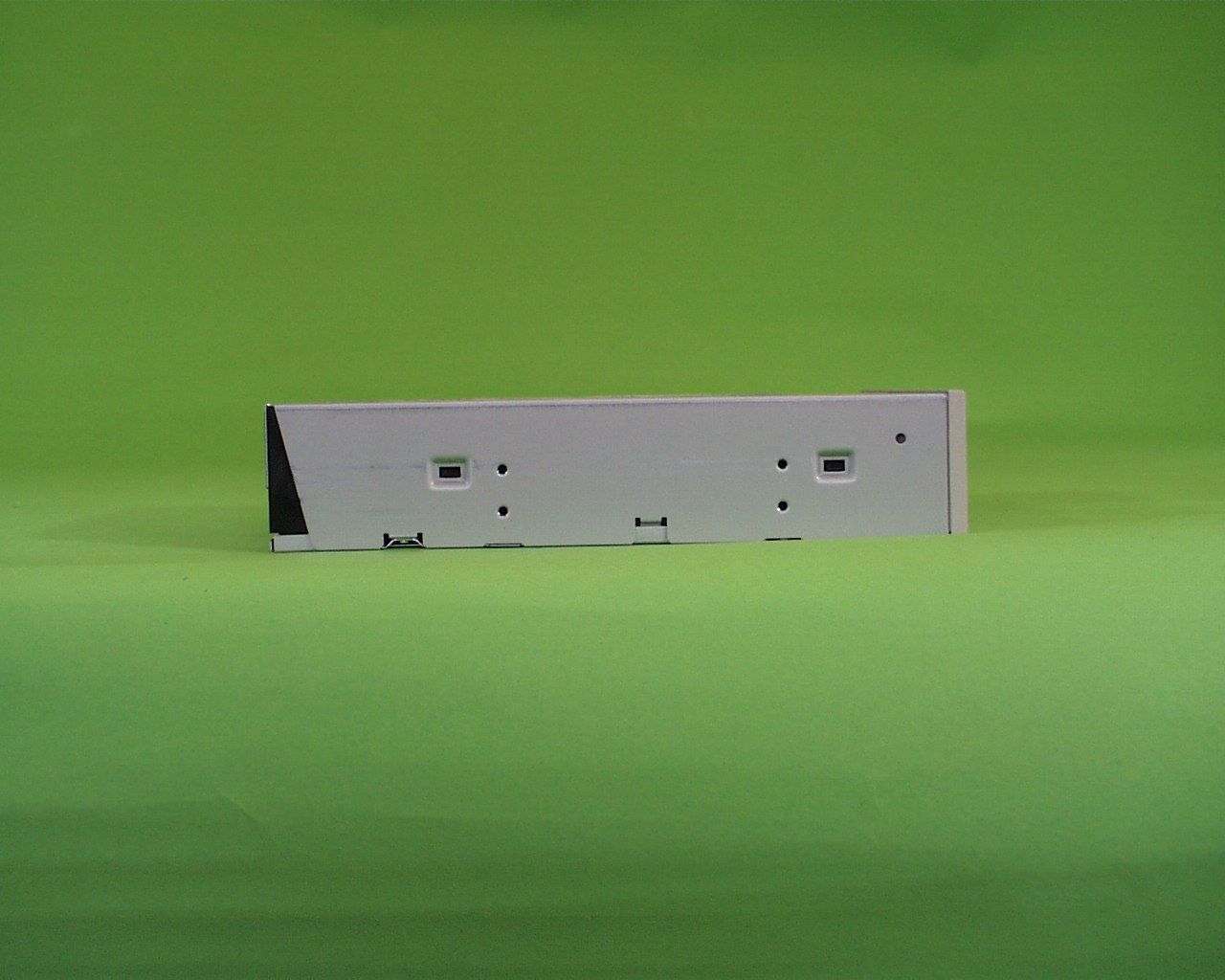

Rear View of EUT Top View of EUT Front View of EUT FCC ID : A6R11F59 CRW6416S Series Label Location Rating Plate FCC ID Label

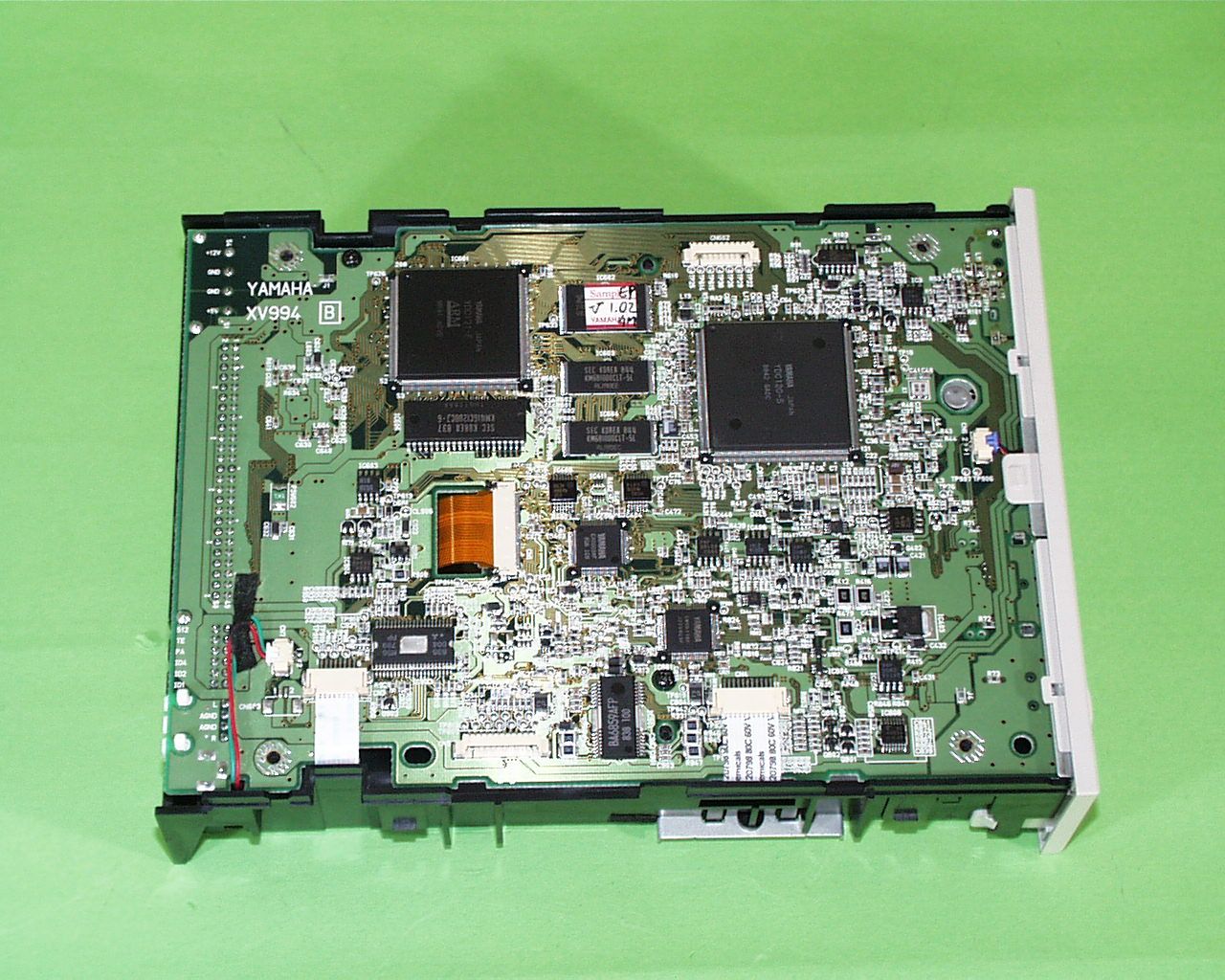

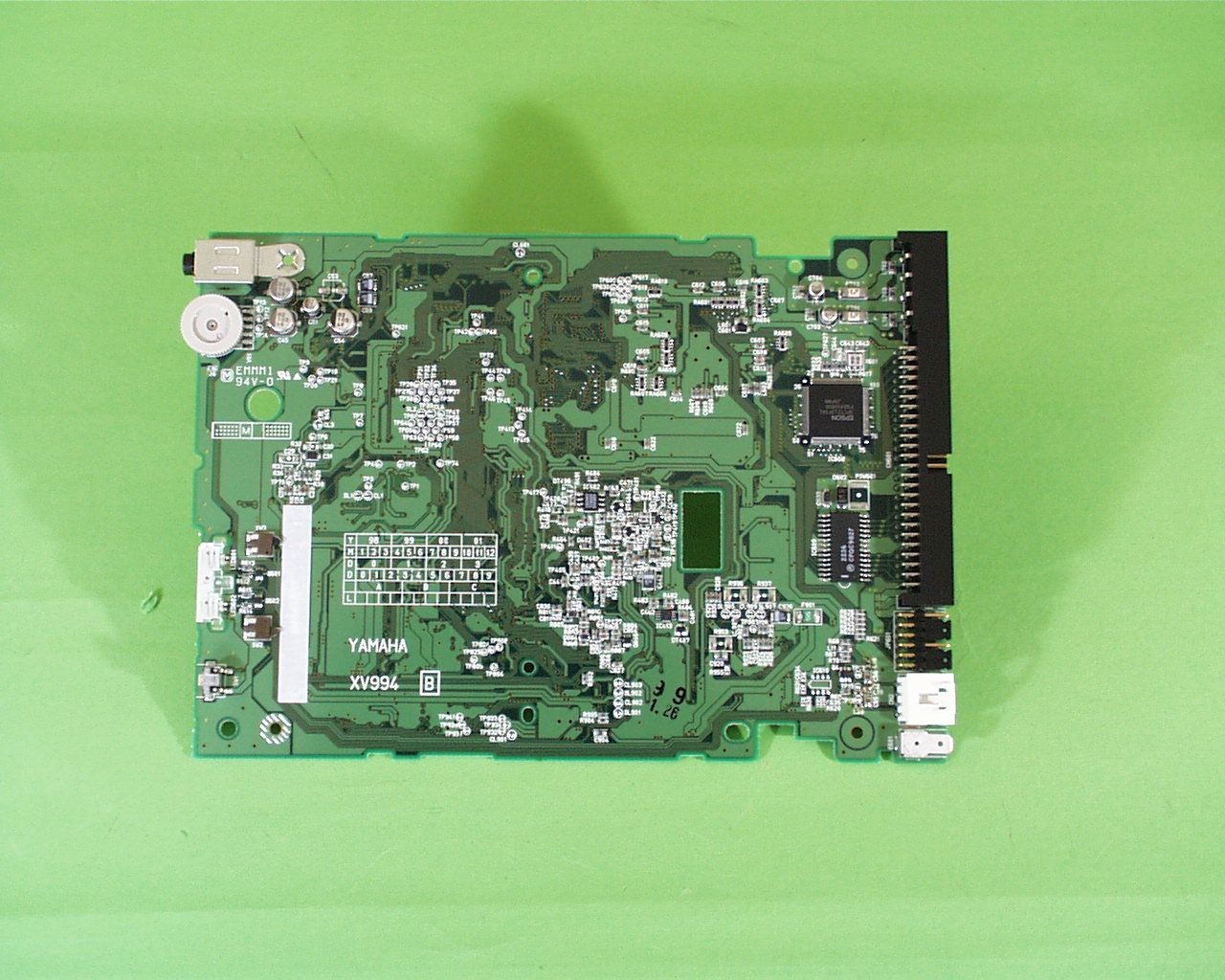

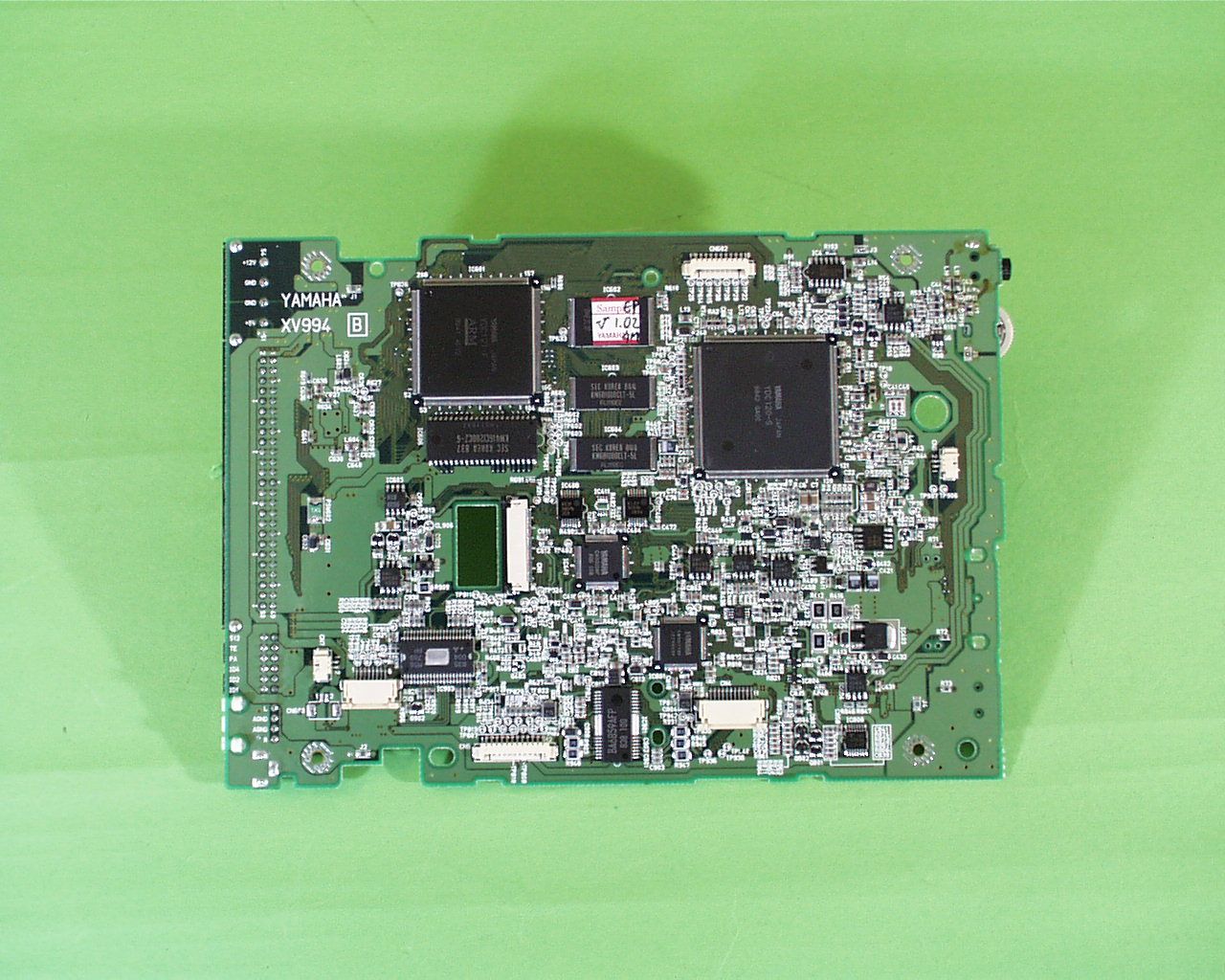

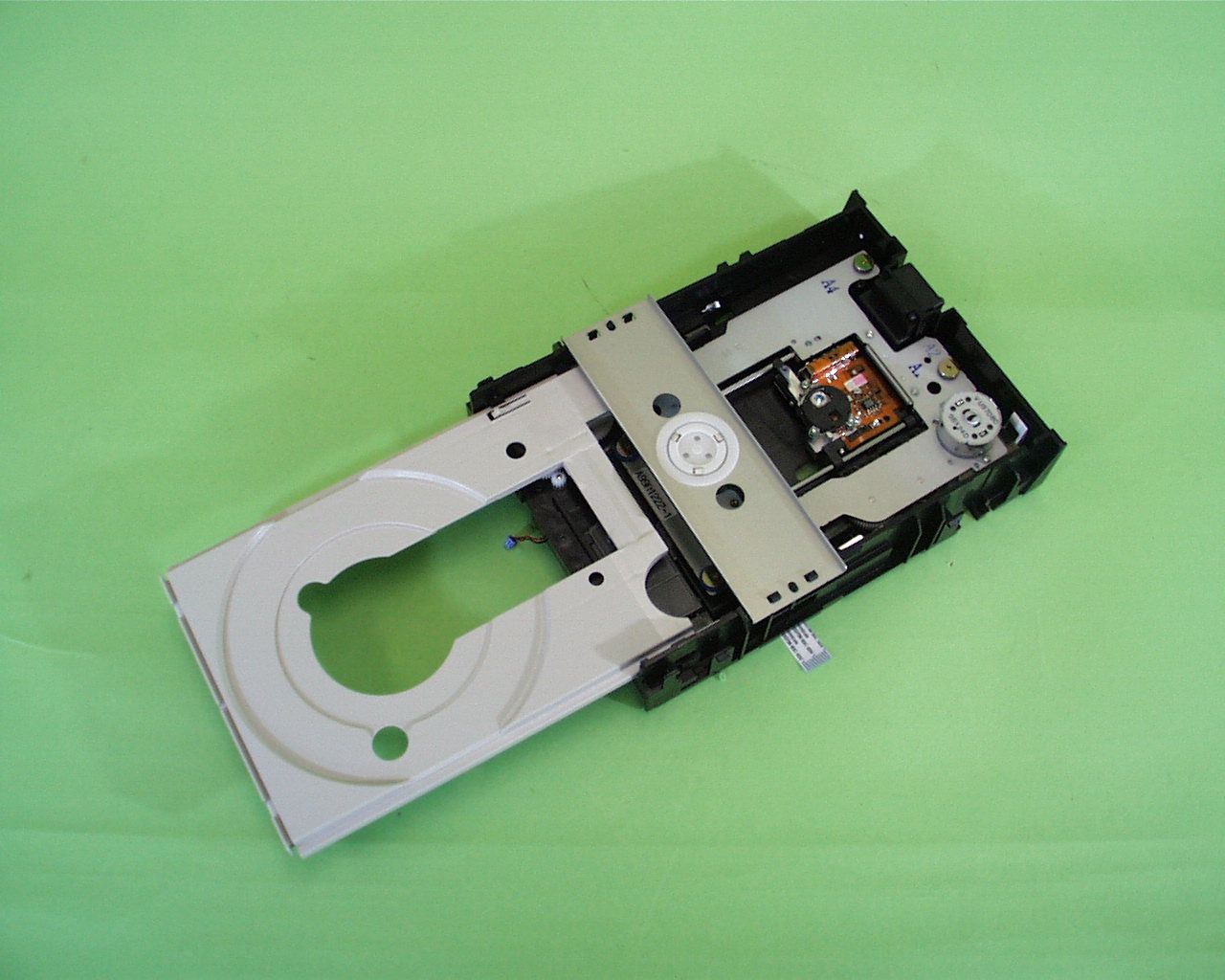

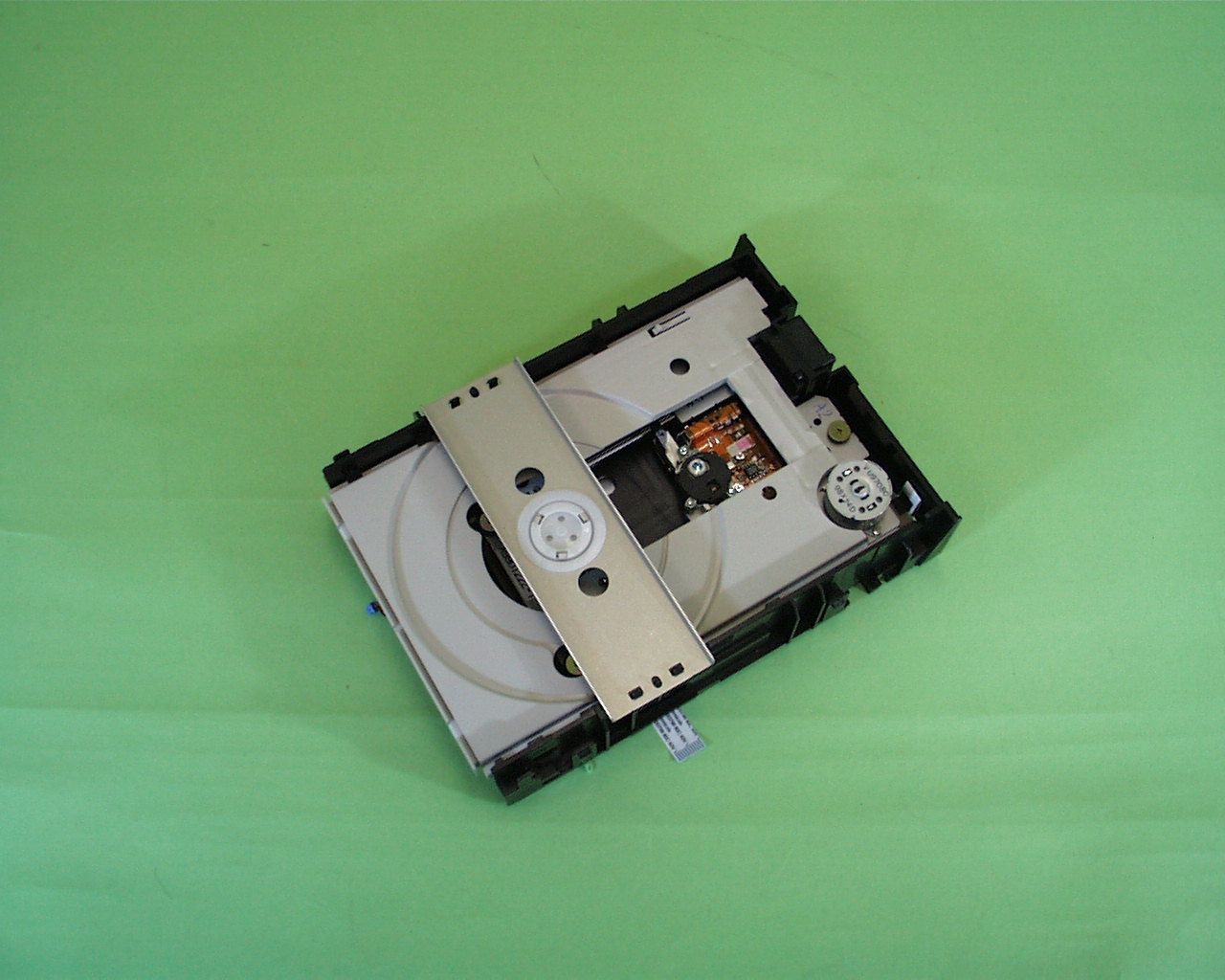

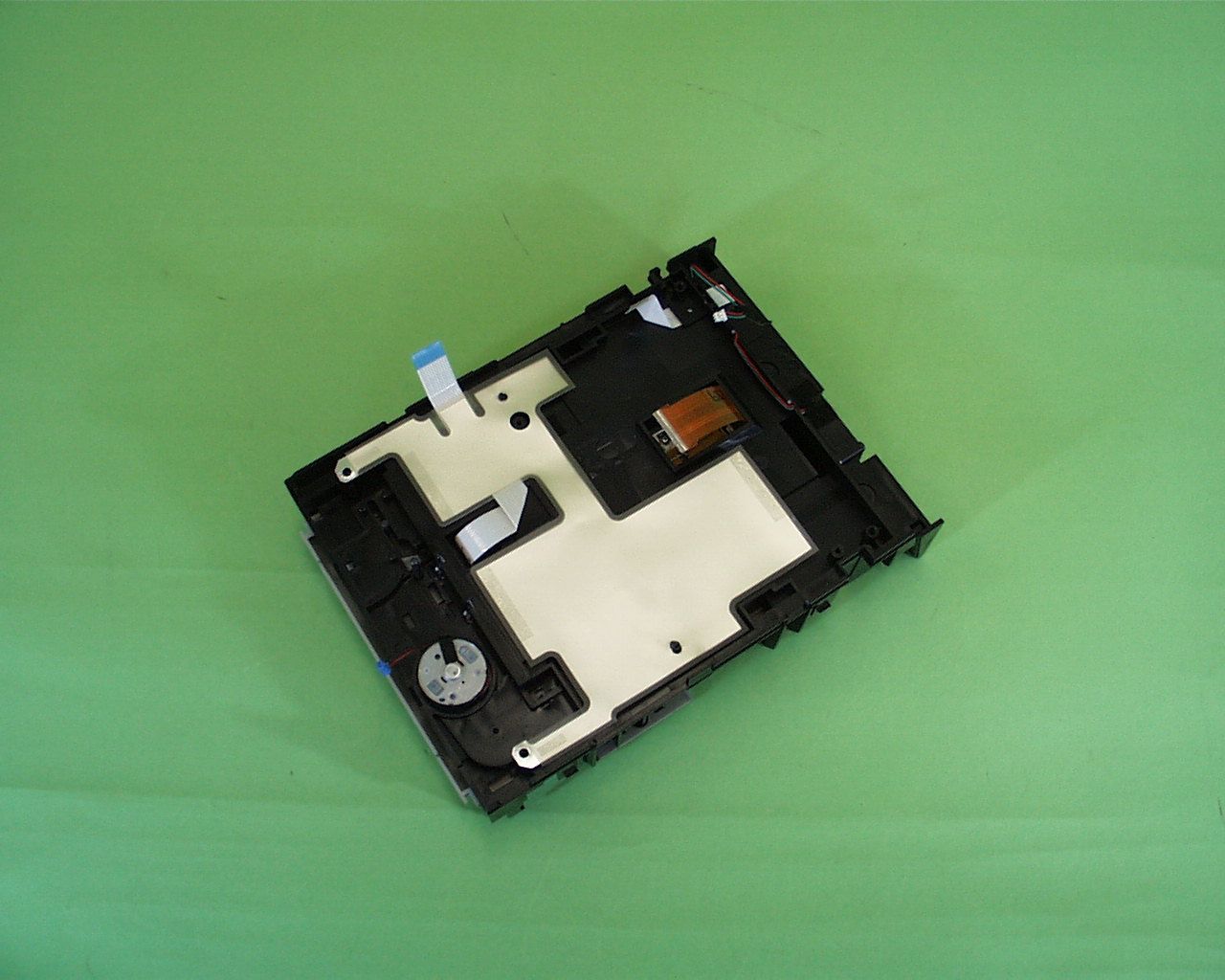

IC1 YDC120-S SCSI-2 Interface Audio Out SERVO Focus Tracking Feed Loading RED Wobble EFM Focus Tracking Spindle(DSV,Wobble,BCLK) Auto Adjust OPC,ROPC IC401 CA0009AF(A2) ALPC ROPC HF OW OPC RF Feed Motor Loading Motor IC901 BA6859A Spindle Driver Spindle Motor Optical Head Module Laser Driver OEIC I-V PPD Laser Over Drive Detect IC903 M56759FP (YOU-3/6) Actuater Driver Disc Micro-COM I/F IC601 YDC121-F CPU ( ARM7 ) CDROM ENC/DEC Subcode R-W ENC/DEC DRAM Controller IDE Controller Audio Processer IC4 PCM1725U DAC IC406 M5201A Gain Select Linear Encoder ALPC IN ALPC OUT IC609 MCCS142236 SCSI Terminator Spindle RED ENC/DEC Subcode P,Q ENC/DEC IC801 CM0011AF(A1) Focus Tracking Wobble EQ. 33.8688MHz IC606 M5M418160/65(FP/EDO) DRAM (1M x16) IC608 SPC7212FDA2 SCSI Controller IC602 MBM29F400 FLASH (256K x16) IC603,604 HM62864 SRAM (64K x16) FCC ID : A6R11F59 CRW6416S Series Block Diagram

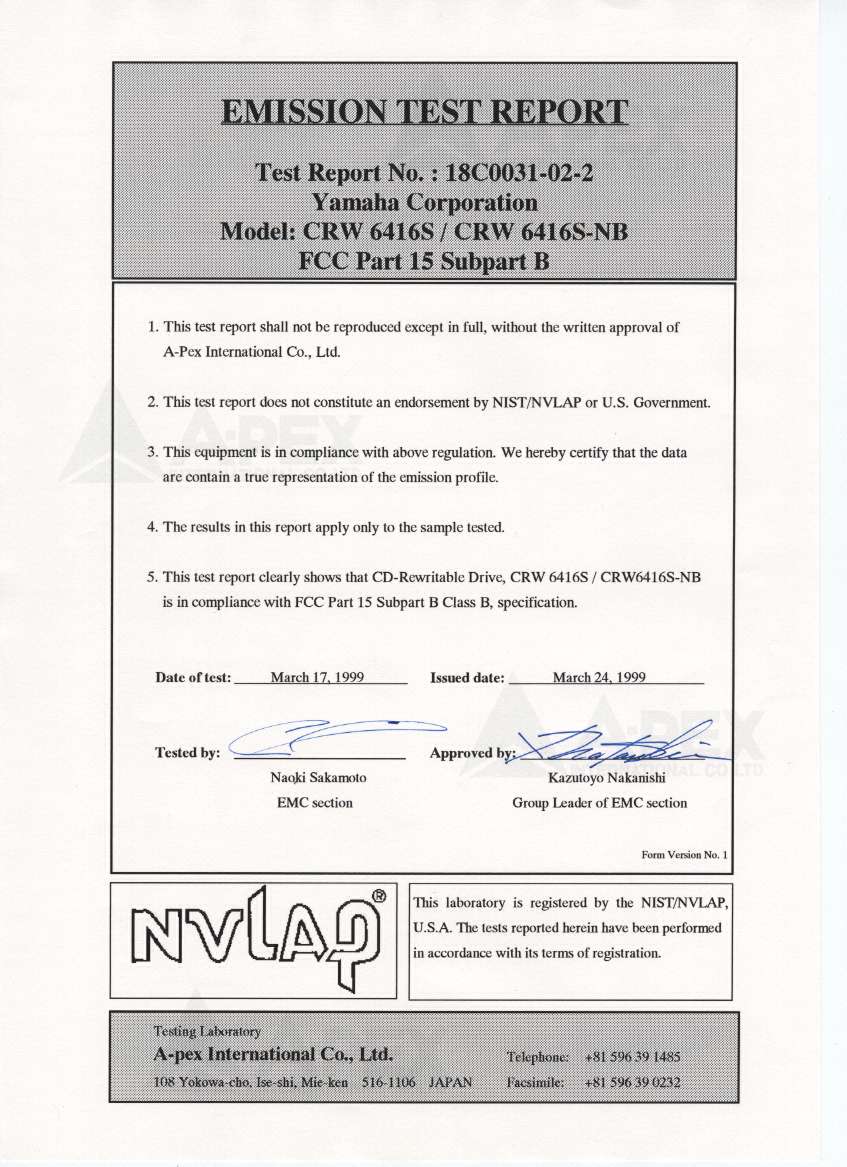

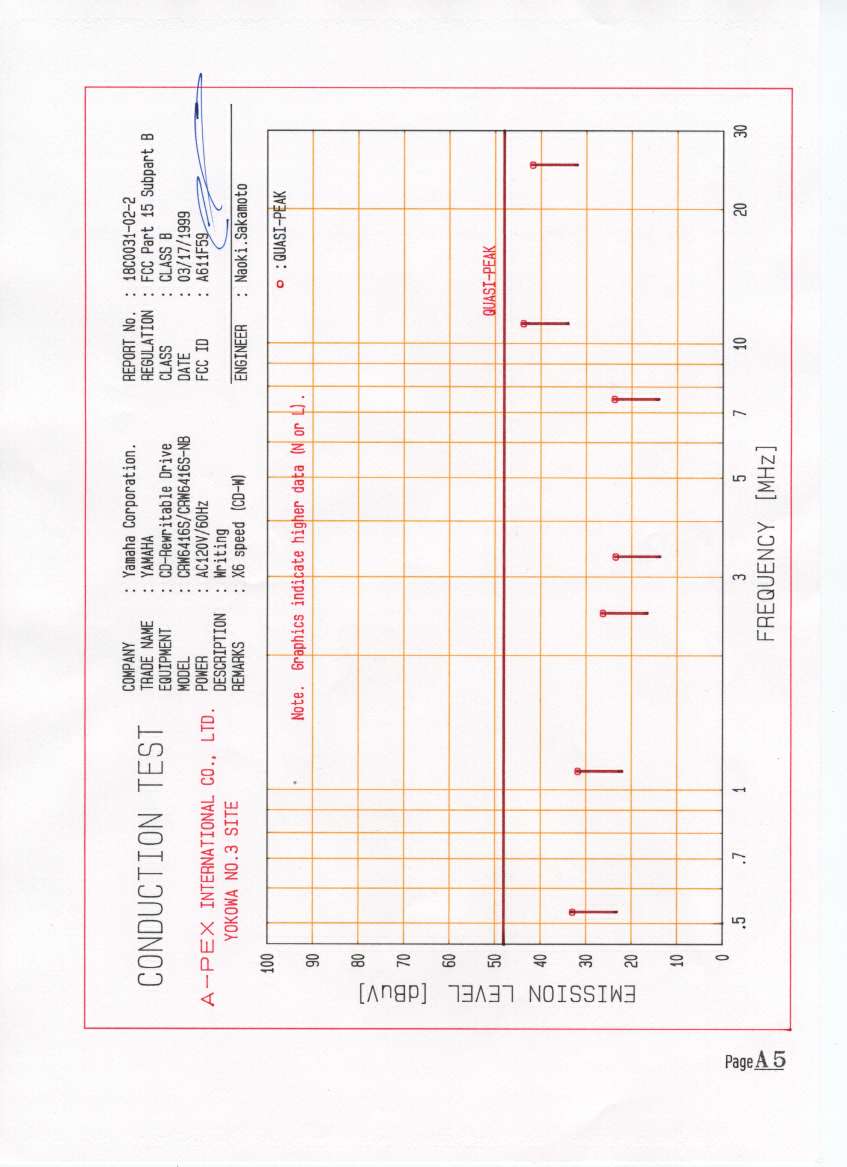

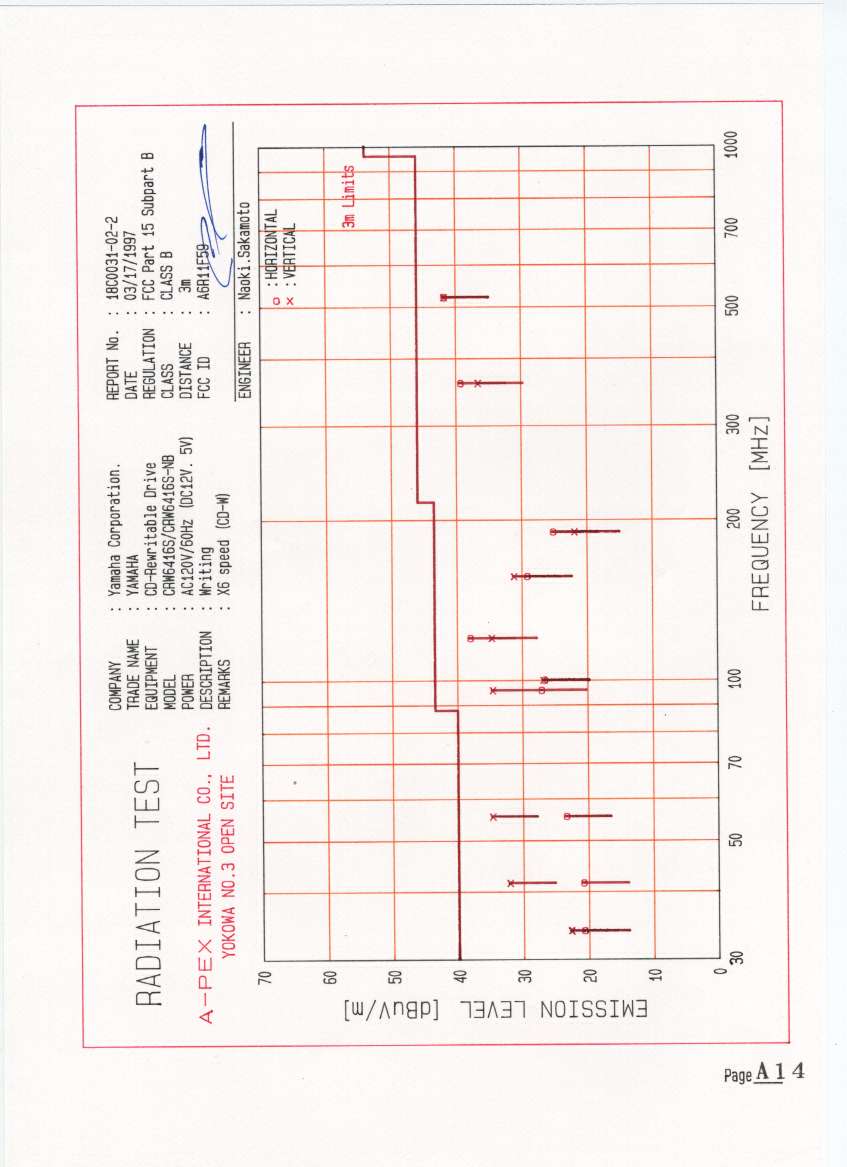

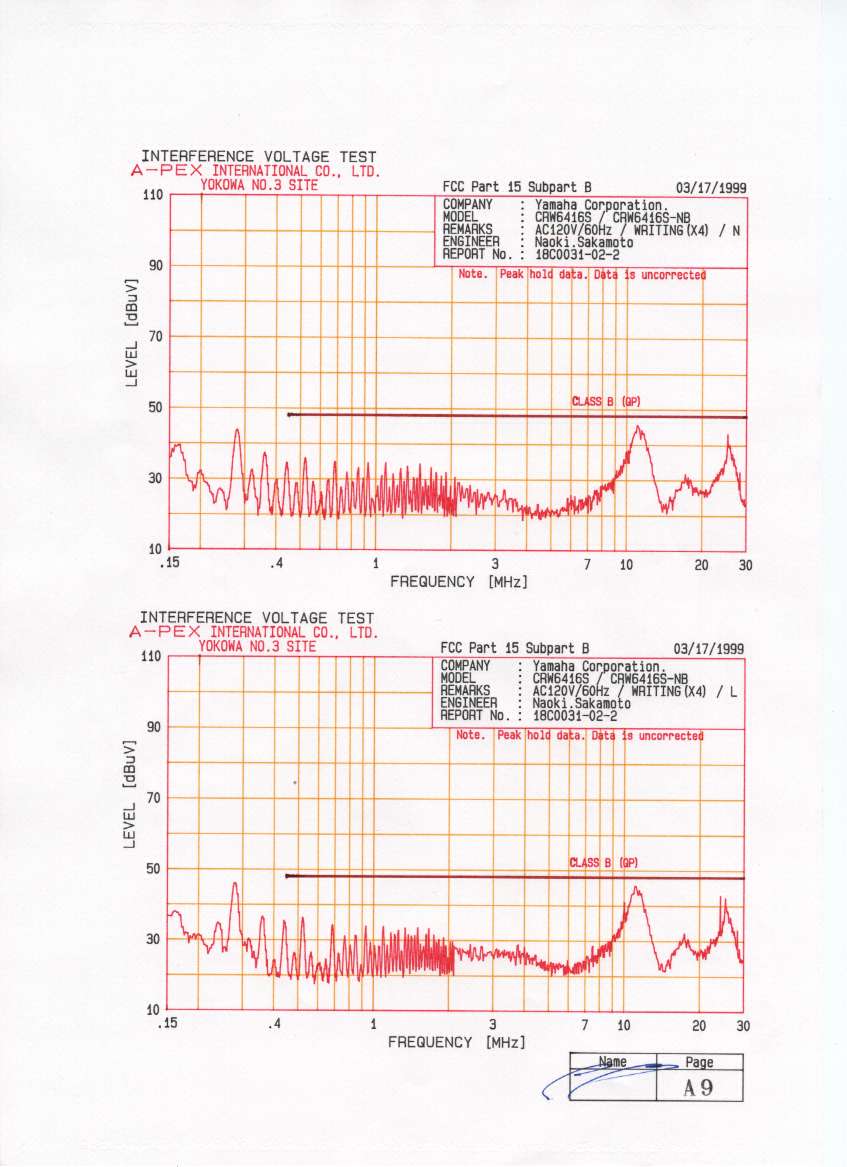

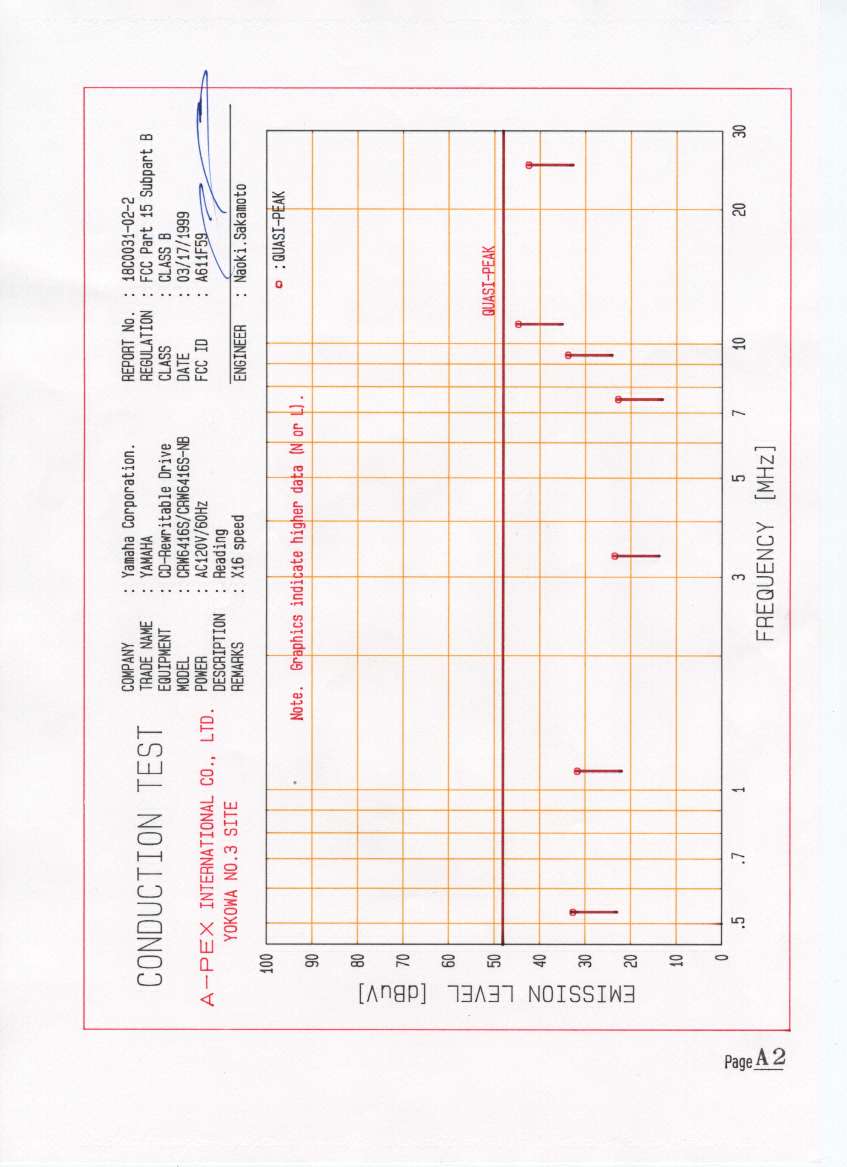

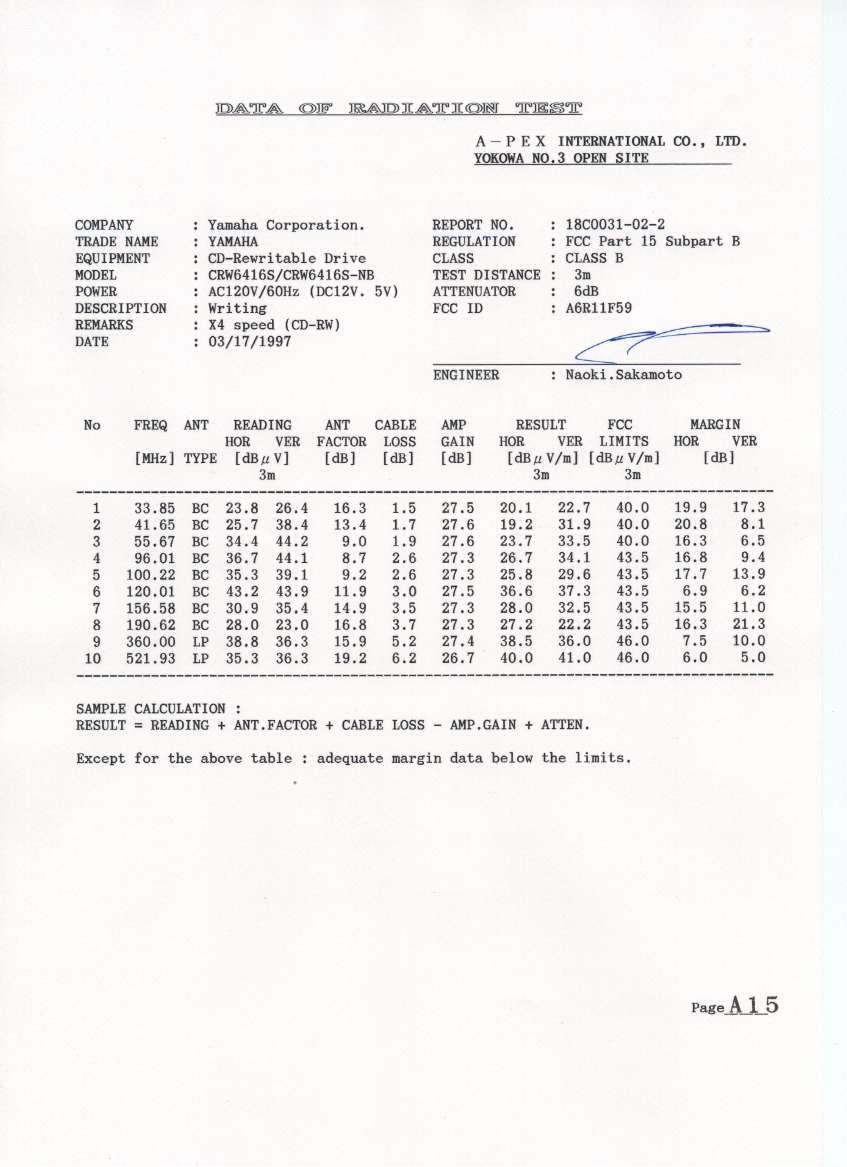

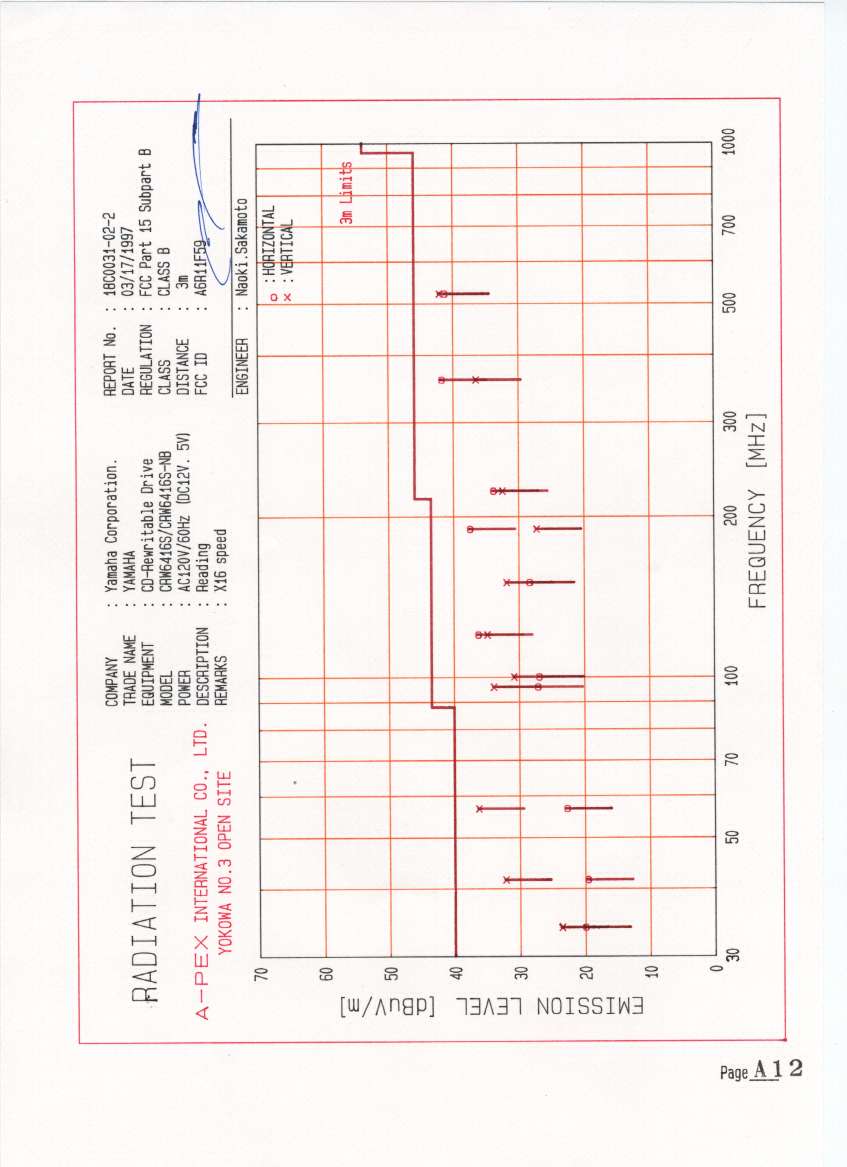

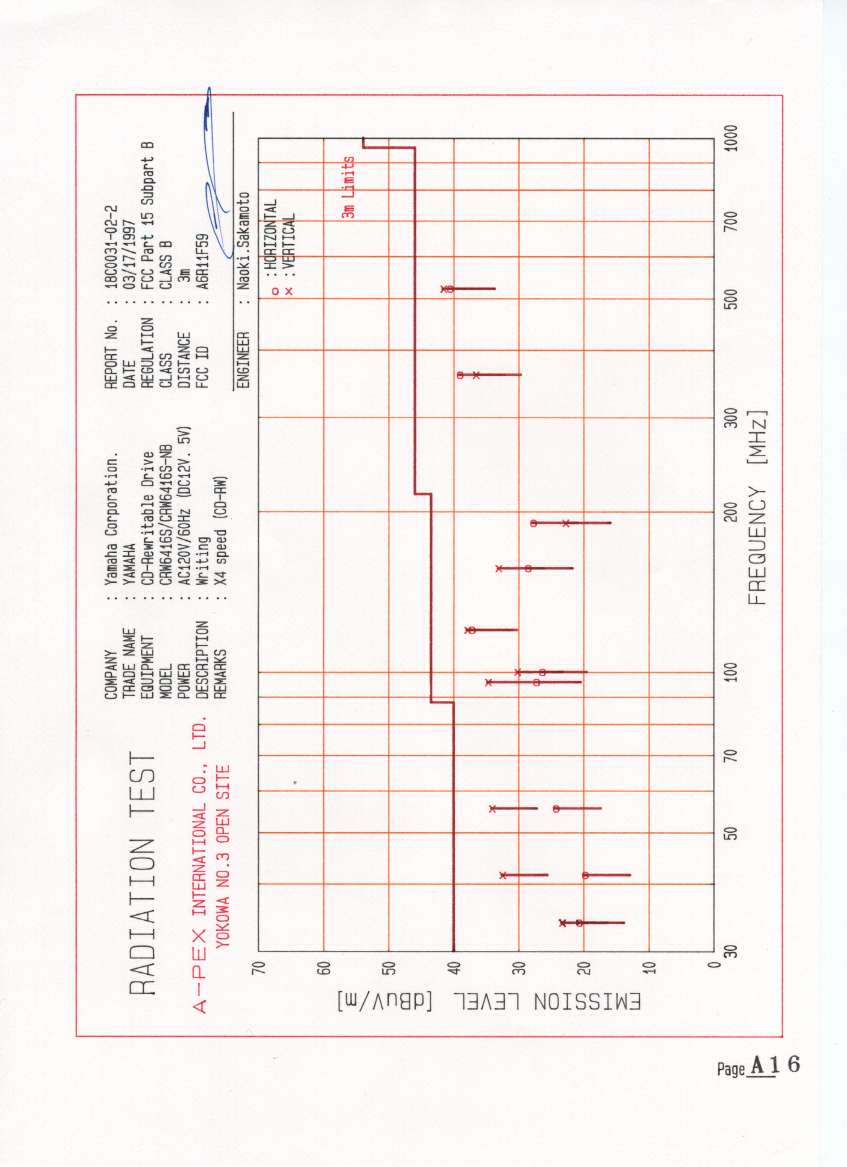

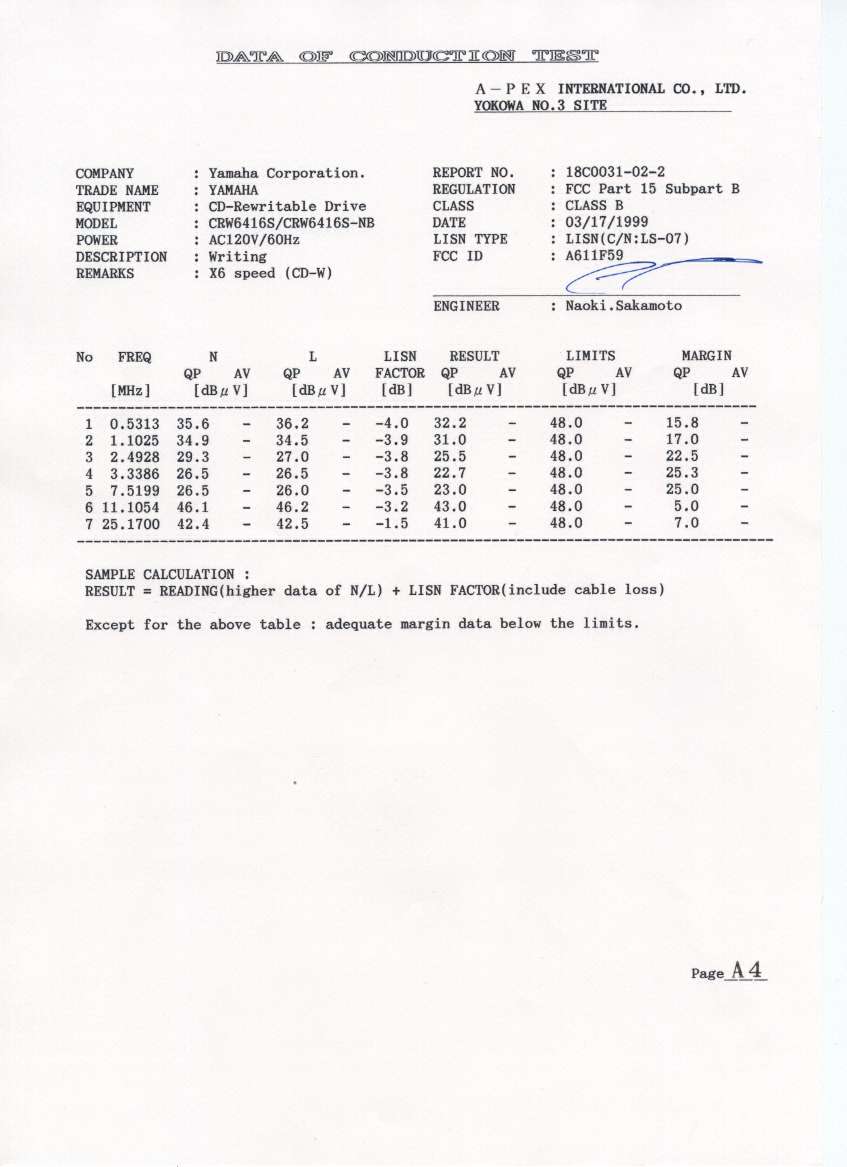

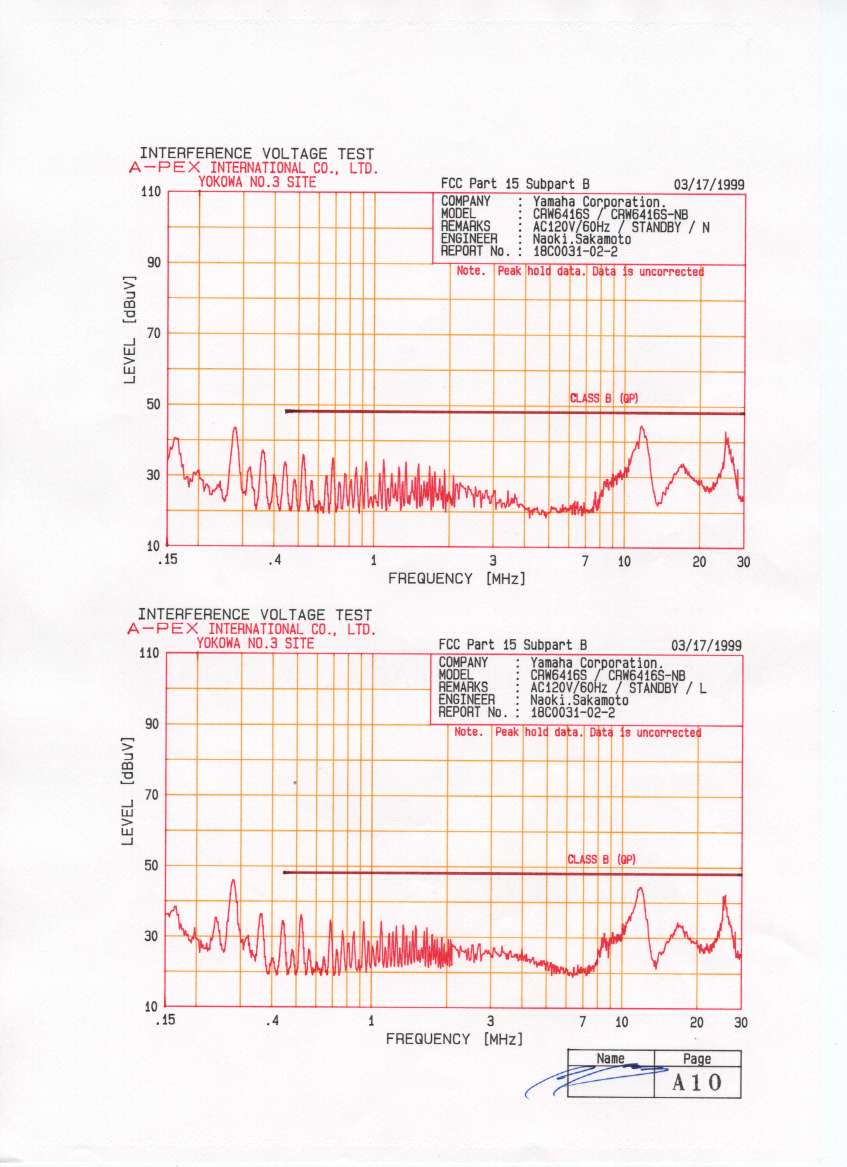

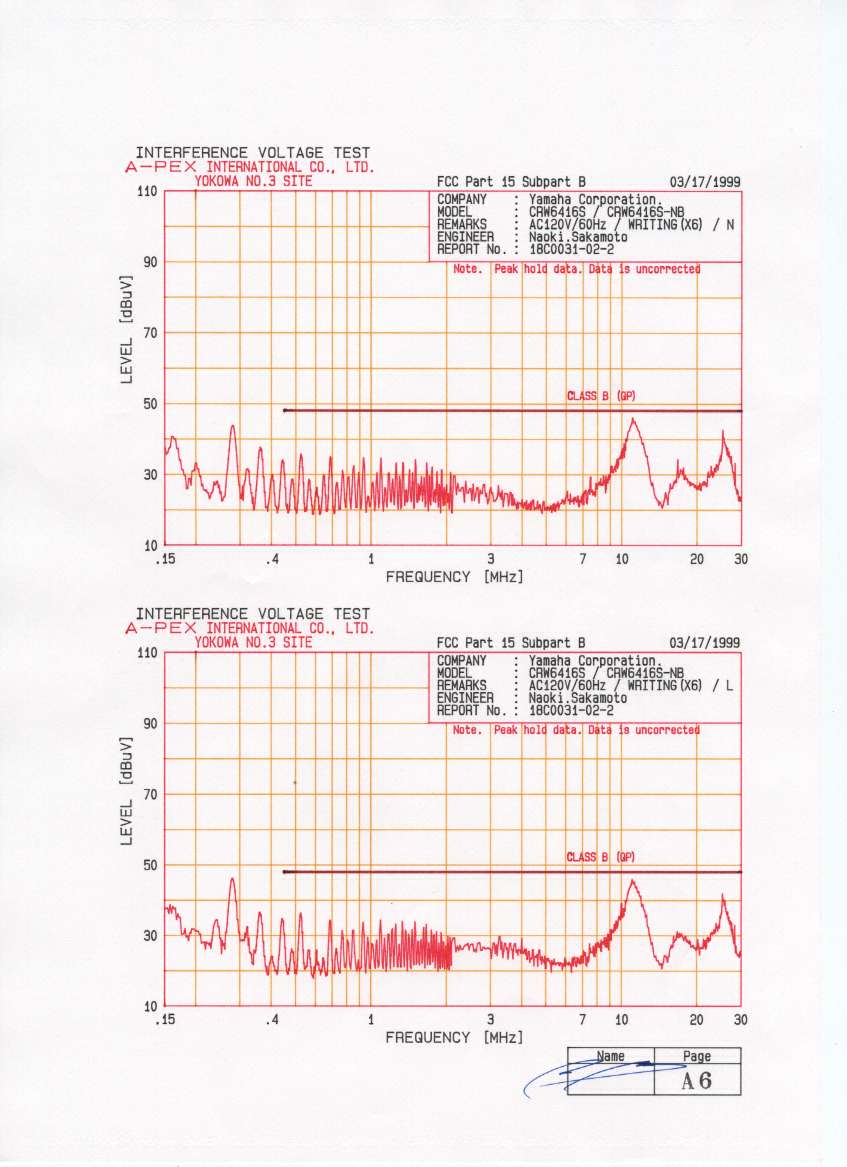

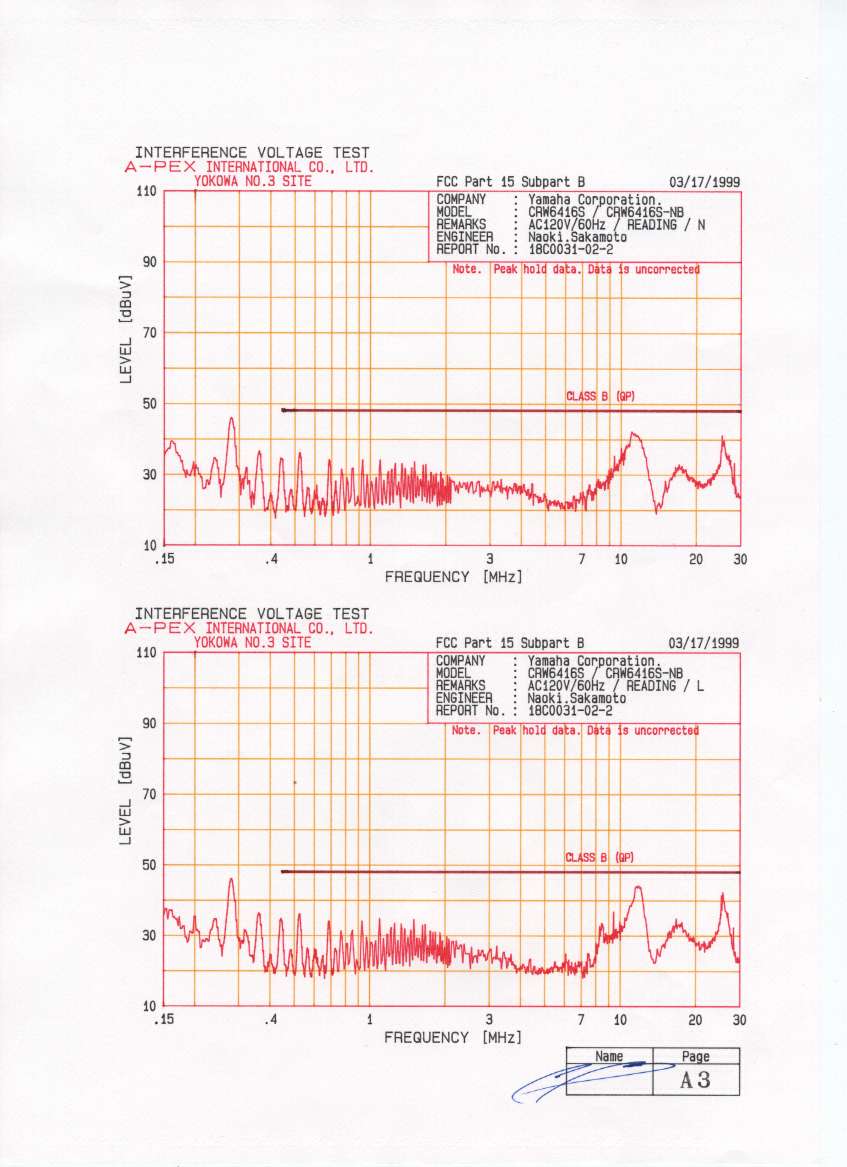

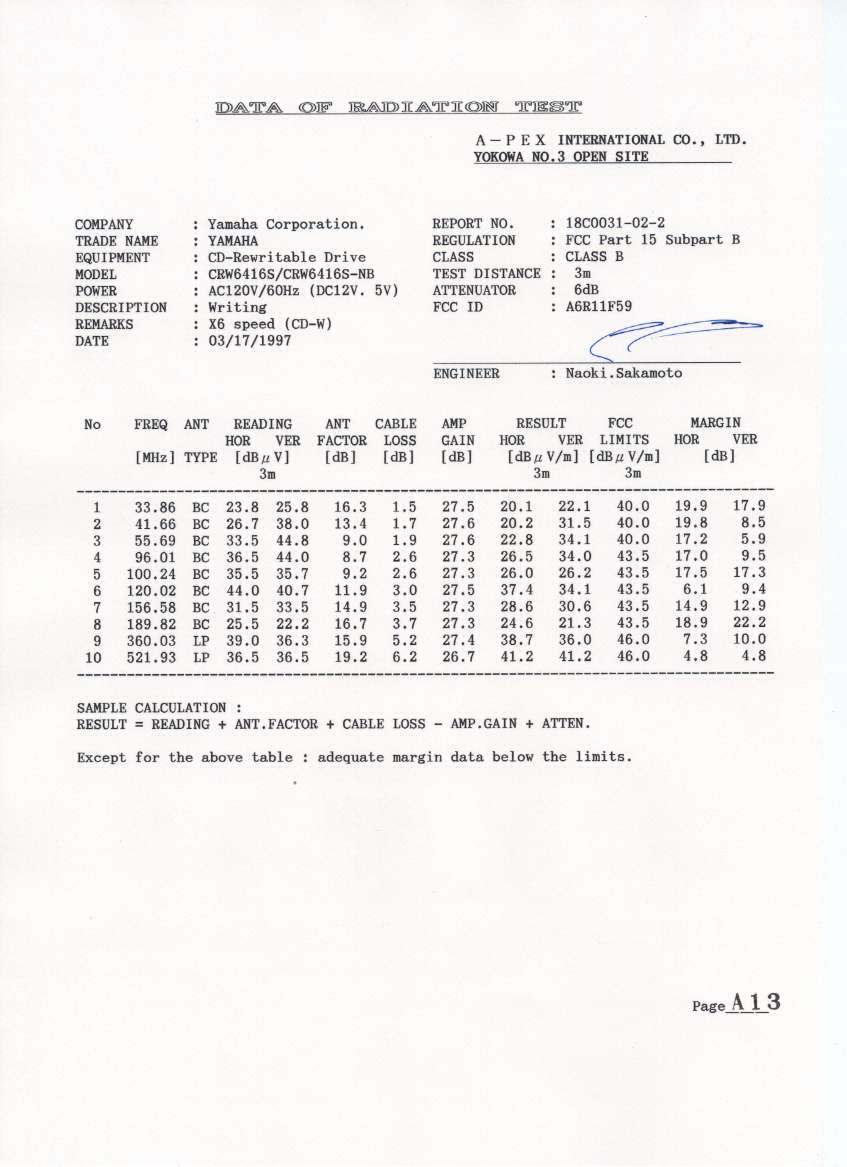

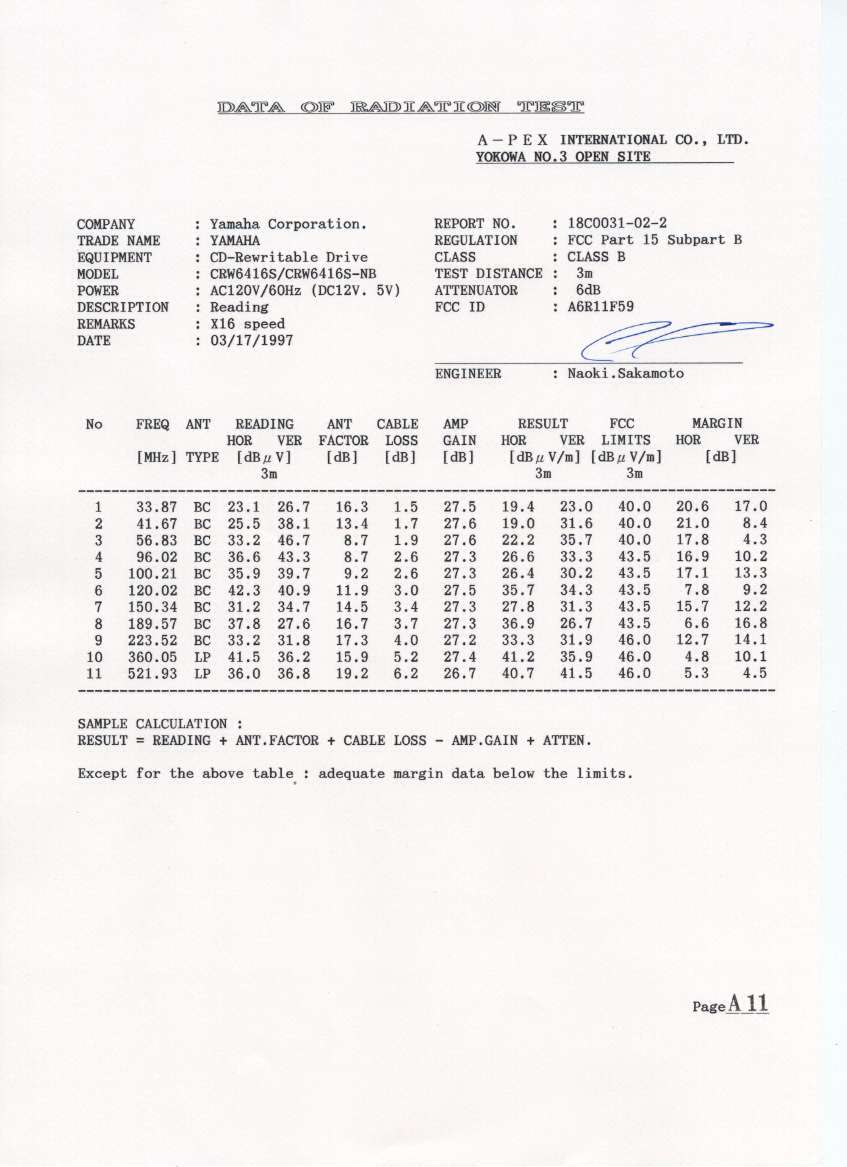

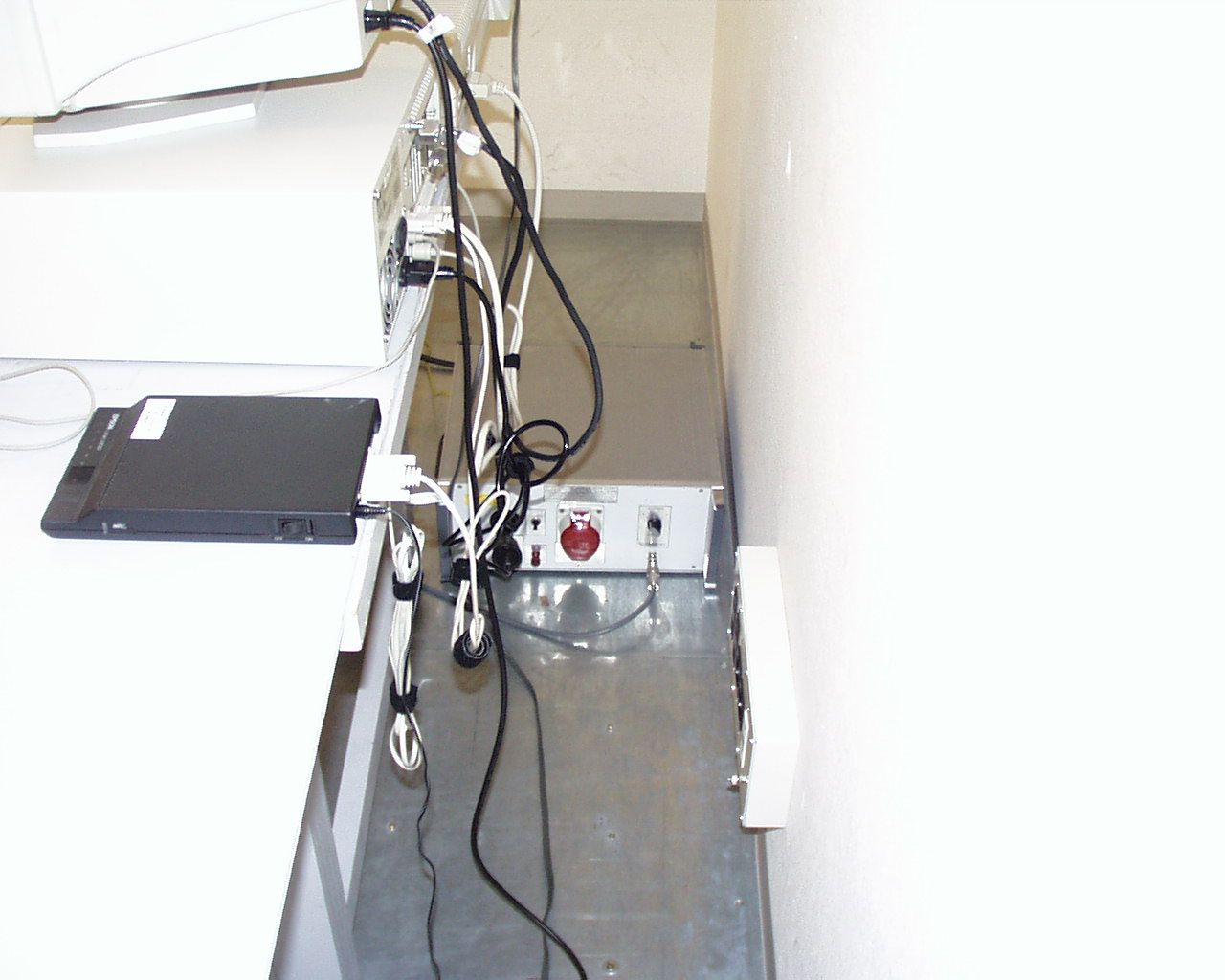

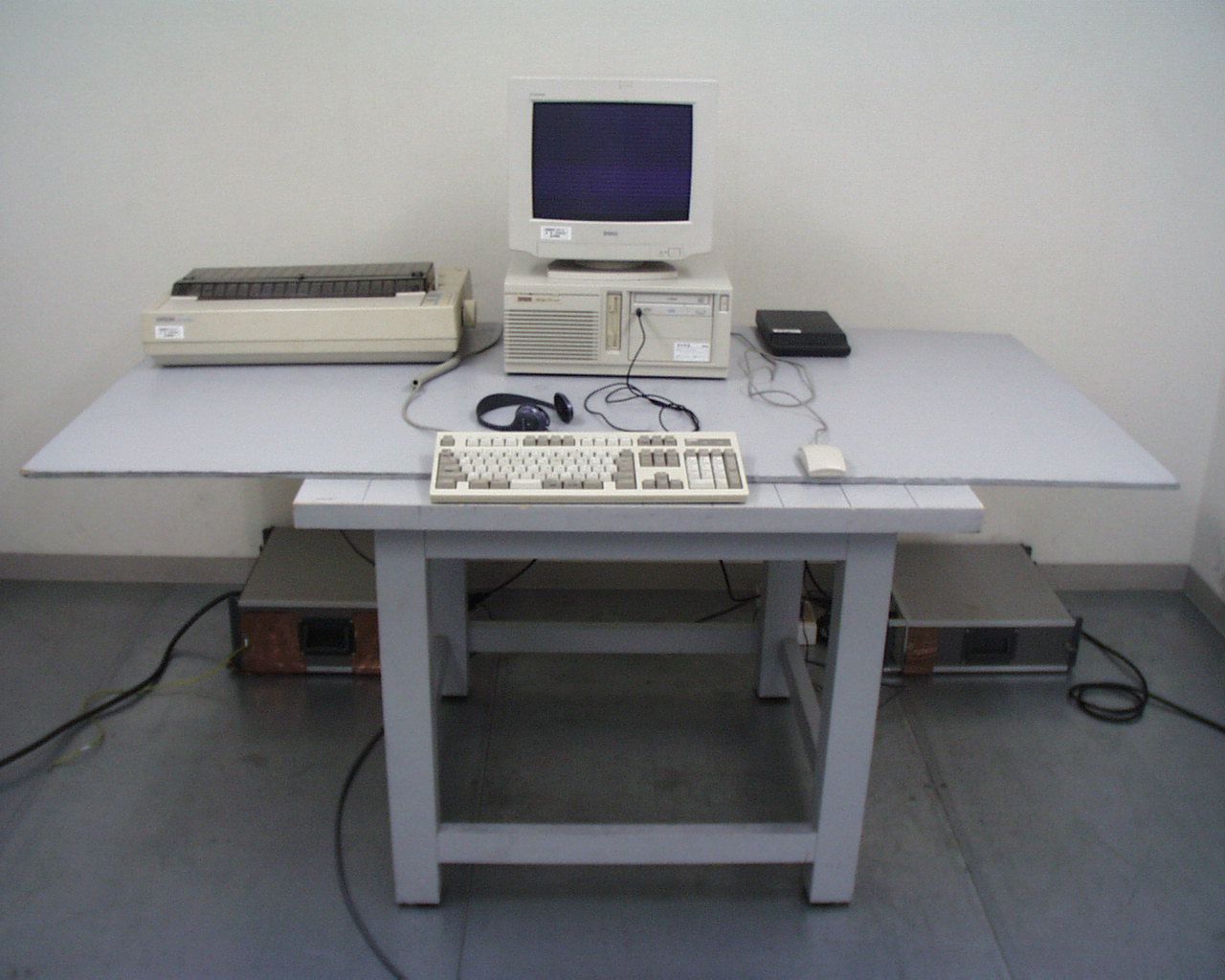

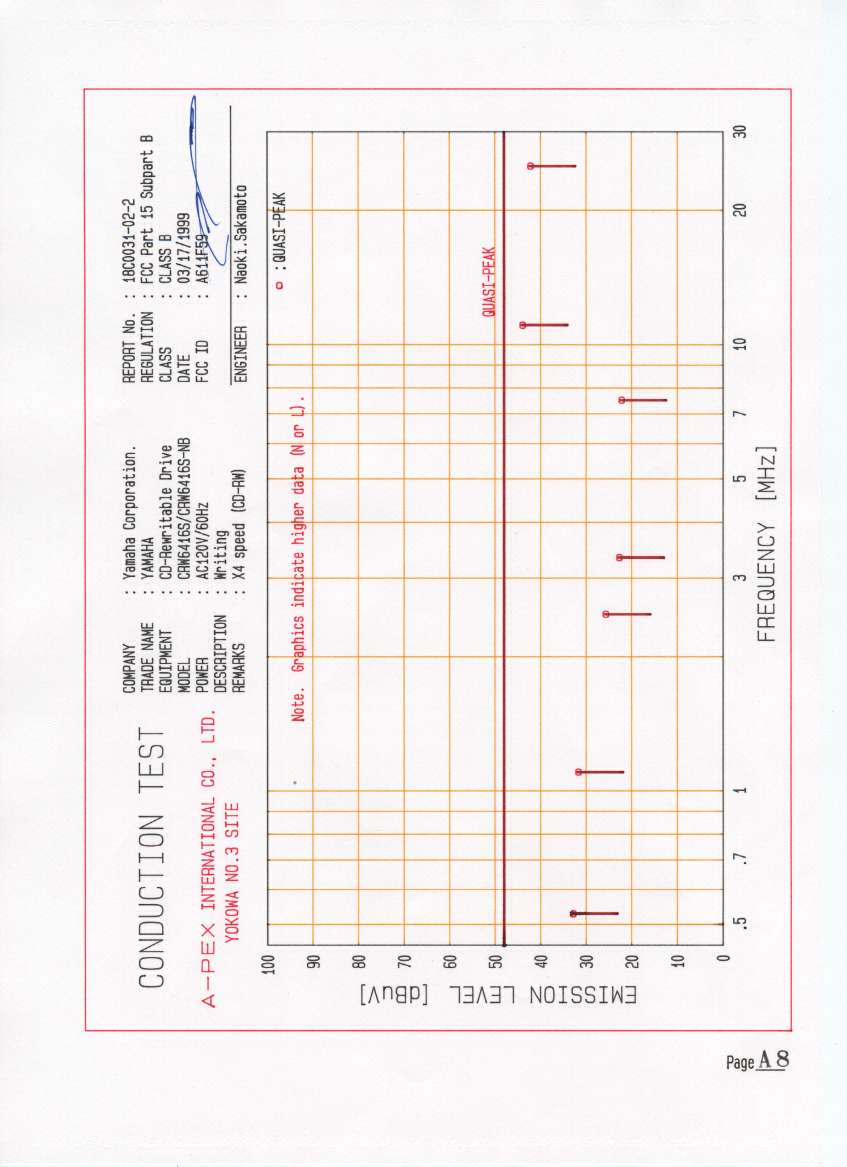

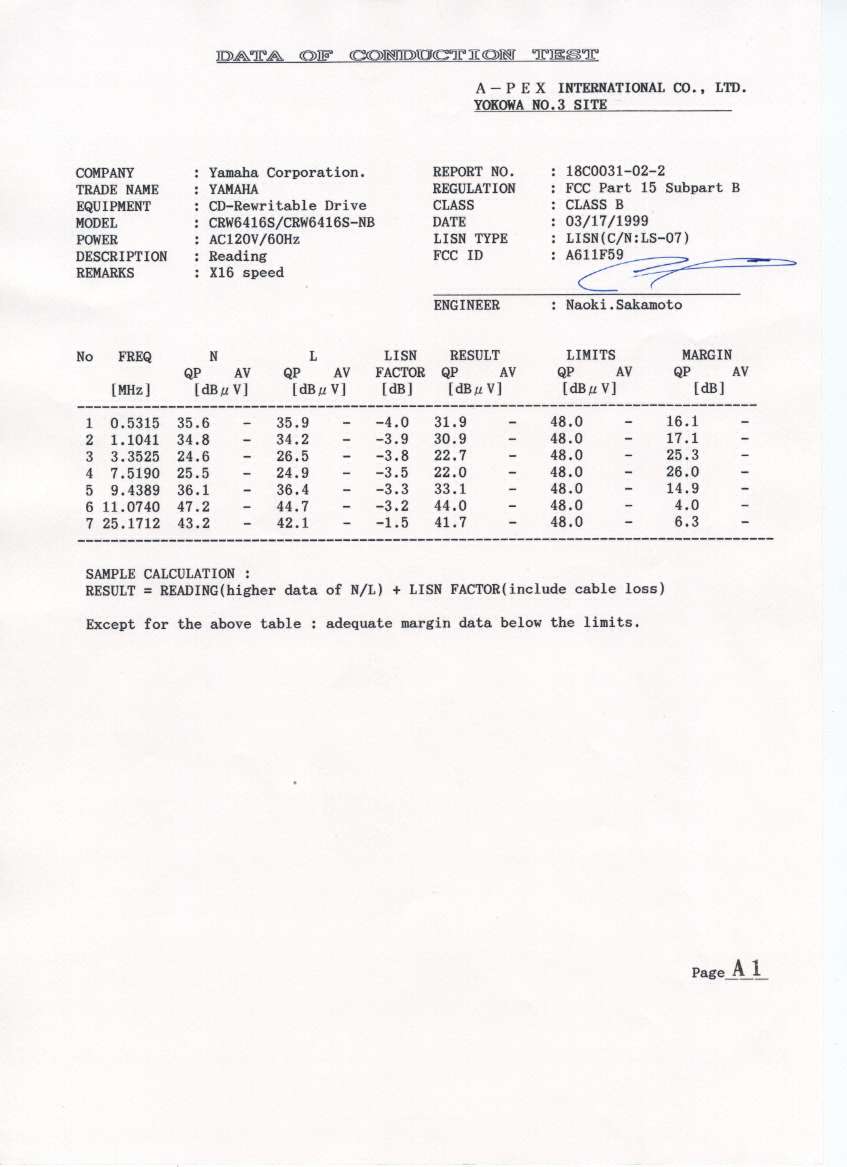

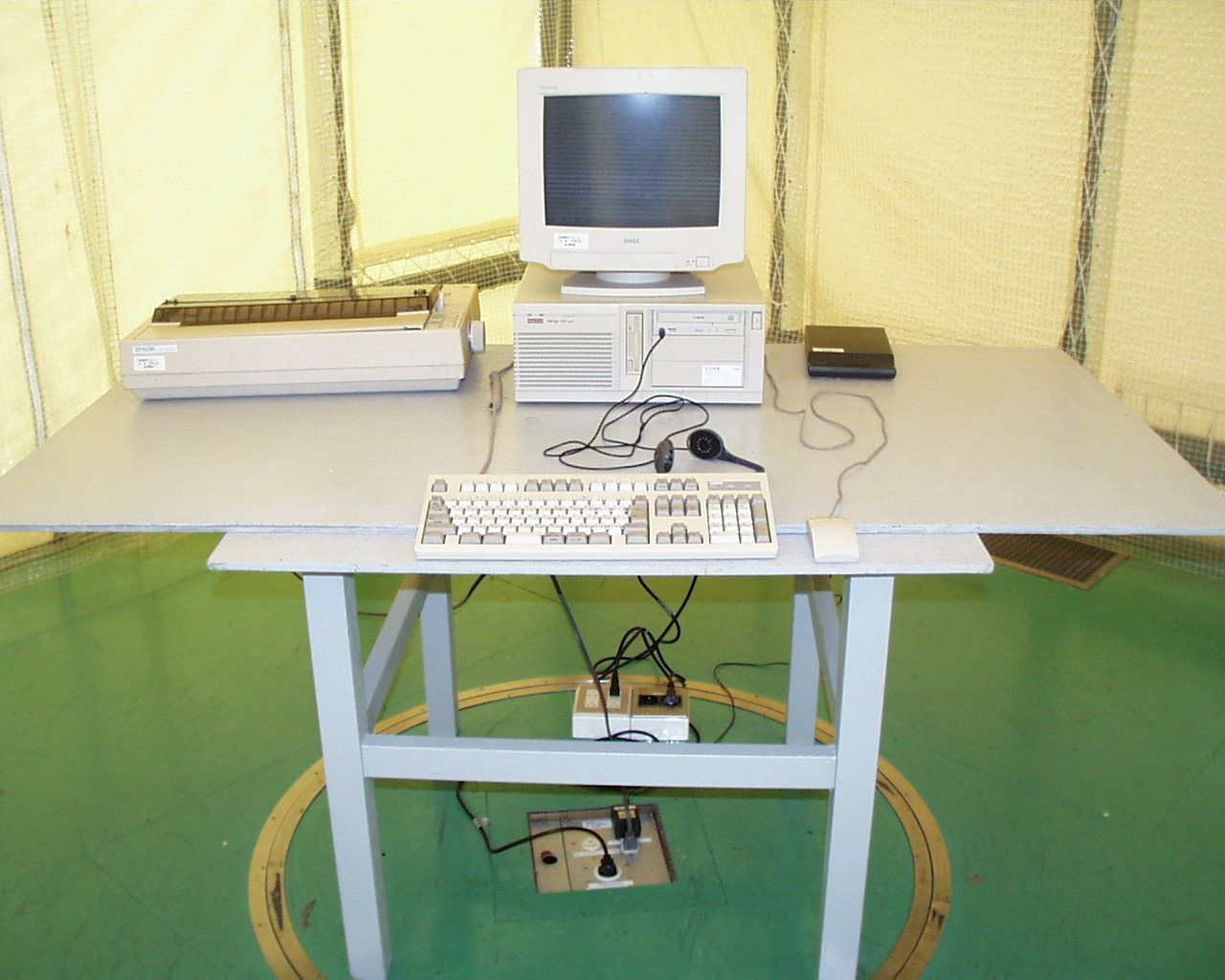

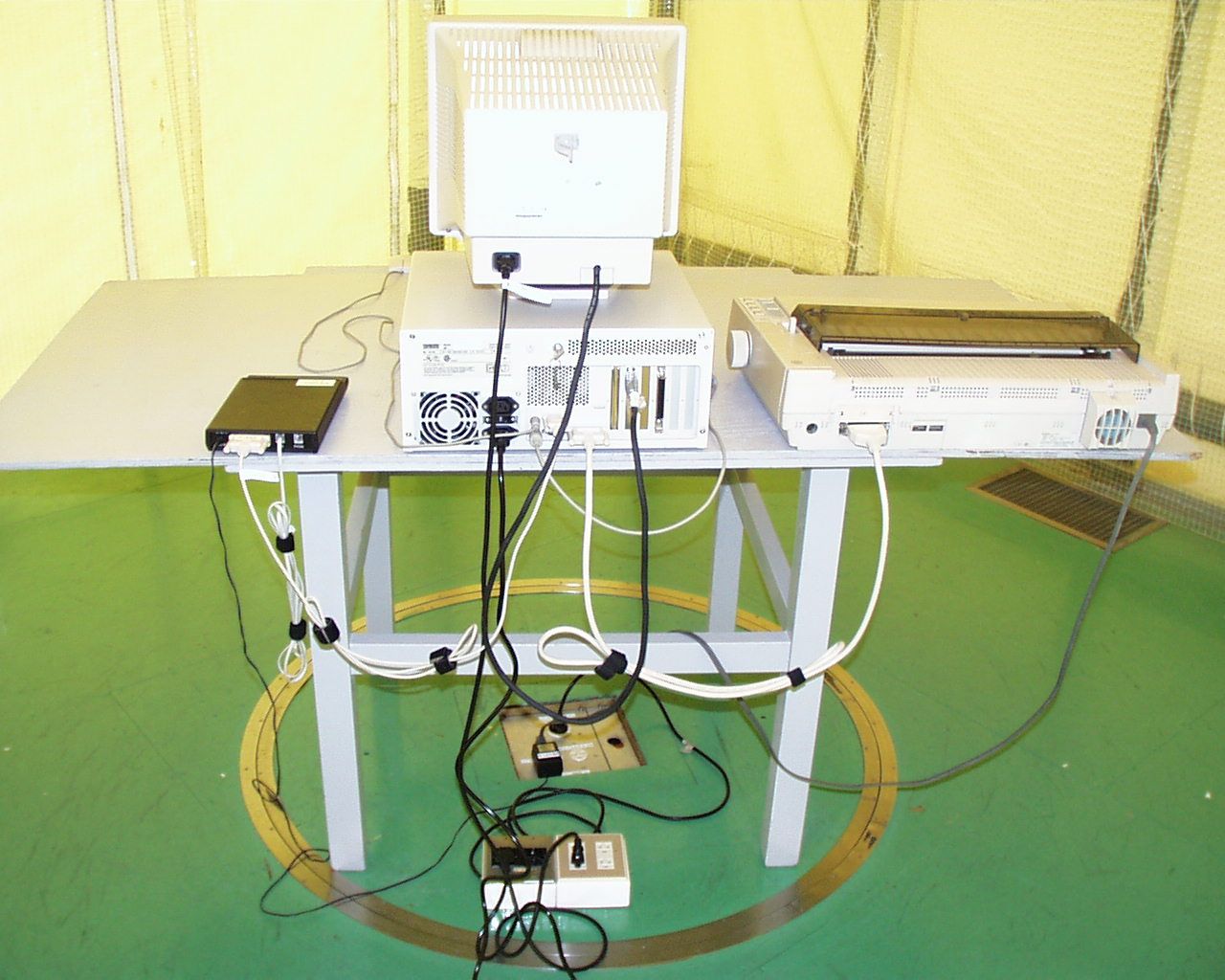

Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Facsimile:+81 596 39 0232 This laboratory is registered by the NIST/NVLAP, U.S.A. The tests reported herein have been performed in accordance with its terms of registration. EMISSION TEST REPORT Test Report No. : 18C0031-02-2 Yamaha Corporation Model: CRW 6416S / CRW 6416S-NB FCC Part 15 Subpart B 1. This test report shall not be reproduced except in full, without the written approval of A-Pex International Co., Ltd. 2. This test report does not constitute an endorsement by NIST/NVLAP or U.S. Government. 3. This equipment is in compliance with above regulation. We hereby certify that the data are contain a true representation of the emission profile. 4. The results in this report apply only to the sample tested. 5. This test report clearly shows that CD-Rewritable Drive, CRW 6416S / CRW6416S-NB is in compliance with FCC Part 15 Subpart B Class B, specification. Date of test: March 17, 1999 Issued date: March 24, 1999 Tested by: Approved by: Naoki SakamotoKazutoyo Nakanishi EMC section Group Leader of EMC section Form Version No. 1 Test report FCC ID : A6R11F59 Our reference: 18C0031-02-2 Page: 2 of 17 Issued date: 99-03-24 Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 Table of Contents Page 1 GENERAL INFORMATION3 1.1 Product Description4 1.2 Tested System Details4 1.3 Tested Methodology5 1.4 Test Facility5 2 SYSTEM TEST CONFIGURATION6 2. 1 Operation Environment 6 2.2 Justification6 2. 3 EUT Exercise Software6 2.4 Test Procedure7 Figure 2.1 Configuration of Tested System8 3 CONDUCTED AND RADIATED MEASUREMENT PHOTOS10 Figure 3.1 Conducted Measurement Photos10 Figure 3.2 Radiated Measurement Photos11 3.1 Measurement Uncertainty12 4 CONDUCTED EMISSION DATA13 5 RADIATED EMISSION DATA14 5.1 Field Strength Calculation15 6 TEST EQUIPMENT USED16 APPENDIX17 A:Test Data A1 - A16 B: Declaration of Conformity B1 Test report FCC ID : A6R11F59 Our reference: 18C0031-02-2 Page: 3 of 17 Issued date: 99-03-24 Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 1 GENERAL INFORMATION APPLICANT: Yamaha Corporation ADDRESS: 10-1 Nakazawa-cho, Hamamatsu-shi, Shizuoka-ken, 430-8650 Japan Tel: +81-539-62-5348 Fax: +81-539-62-5138 REGULATION(S): FCC Part 15 Subpart B, Class B MODEL NUMBER: CRW 6416S / CRW 6416S-NB SERIAL NUMBER: Z000055 KIND OF EQUIPMENT: CD-Rewritable Drive TESTED DATE: March 17, 1999 RECEIPT DATE OF SAMPLE : March 17, 1999 TEST REPORT NUMBER: 18C0031-02-2 TEST SITE: A-PEX Yokowa NO.3 Open Test Site Test report FCC ID : A6R11F59 Our reference: 18C0031-02-2 Page: 4 of 17 Issued date: 99-03-24 Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 1.1 Product Description Yamaha Corporation, Model: CRW 6416S (referred to as the EUT in this report) is a CD-Rewritable Drive. The clock frequency used in the EUT is 33.68MHz. 1.2 Tested System Details The FCC IDs for all equipment, plus description of all cables used in the tested system are: Model FCC ID Description Cable description Backshell Material (1) YAMAHAA6R11F59CD-Rewritable Drive- M/N: CRW 6416S S/N: Z000055 (EUT) (2) DigitalAO9-PC76XPersonal ComputerUnshielded AC Power CableP.V.C. M/N: PC766 FR-766 JA-3C S/N: TB42124910 (3) SonyN/AHeadhopneUnshielded Headphone CableP.V.C. M/N: MDR-35 (4) Digital N/AKeyboard Shielded Keyboard CableP.V.C. M/N: PCXAJ-AA S/N: TB40713659 (5) Digital DZL210513MouseShielded Mouse CableP.V.C. M/N: M-S28 S/N: LT40717616 (6) DELL AK8CPD15SF1CRTUnshielded AC Power CableP.V.C. M/N: D1526T-HS Shielded Video CableP.V.C. S/N: 2009513 (7) EPSONBKM5DEP18MAPrinterShielded Printer CableP.V.C. M/N:P18MAUnshielded AC Power CableP.V.C. S/N: OFG1007634 (8) EPSONBKM552C202AModemShielded RS-232C CableP.V.C. M/N: C202A S/N: 10309 (9) EPSONN/AAC AdapterUnshielded DC Power CableP.V.C. M/N: H00CAA S/N: 022754 (10)ADAPTECFGT1542CFSCSI Board- M/N: AHA-1542CF S/N: BDOE4360S07 Test report FCC ID : A6R11F59 Our reference: 18C0031-02-2 Page: 5 of 17 Issued date: 99-03-24 Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 1.3 Tested Methodology Both conducted and radiated testing were performed according to the procedures in FCC/ANSI C63.4(1992). Radiated testing was performed at a distance of 3 meters from the antenna to EUT . 1.4 Test Facility The open area test site and conducted measurement facility used to collect the radiated data is located at 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 Japan. This site has been fully described in a report dated Aug. 1, 1997 submitted to FCC office, and accepted in a letter dated Sep. 16, 1997 (31040/SIT 1300F2). Test report FCC ID : A6R11F59 Our reference: 18C0031-02-2 Page: 6 of 17 Issued date: 99-03-24 Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 2 SYSTEM TEST CONFIGURATION 2.1 Operation Environment Conduction Radiation Temperature : 24: 23 Humidity: 50%: 62% Power supply : AC 120V/60Hz : AC 120V/60Hz 2.2 Justification The system was configured in typical fashion (as a customer would normally use it) for testing. 2.3 EUT Exercise Software The EUT exercise program used during radiated and conducted testing was designed to exercise the various system components in a manner similar to typical use. The sequence is used: Operation: Reading mode x 16 Writing mode x 6 (CD-W) Writing mode x 4 (CD-RW) Reading : Playback the recorded CD then display “H” on the CRT display continuously. Writing : Write the data to CD four or six times speed. Flash “W” on the CRT display. Test report FCC ID : A6R11F59 Our refere…
