A6RAWCD2AWireless Module

無線モジュール取り付け位置 / Setting Position of wireless module 製品名 / Product name: AWCD2 A Typical Product: NS-WSW40 YAMAHA Corp. Akihiro Kawata Checked ChargedDate 2012/4/10 CommentsJudge AWCD2 PFTA-AW (Antenna) 表記要件 / Marking on the product and and instruction in product manual 製品名 / Module name: AWCD2 本体表示 / Marking on the product 全ての製品は以下を表示すること All products should be mark bellow Contains FCC ID: A6RAWCD2A Contains IC: 740B-AWCD2A DoCを適用する製品は以下を表示すること The product apply DoC procedure shold be mark bellow(CFR47 2.1074, 15.19(b)) 検証を適用する製品はユニークなIDをつけなくてはならない(会社名、モデル名など) そのIDはFCC IDと誤解されることがあってはならない The product apply verification procedure shold be mark unique ID (company name, model name, etc.)(CFR47 2.954) That unique ID shall not be confused with FCC ID. マニュアル表示 / Instruction in product manual Products should be describe in manual bellow. YAMAHA Corp. Tetsuro Yamaji DateJudgeCommentsChecked Charged 2012/7/19

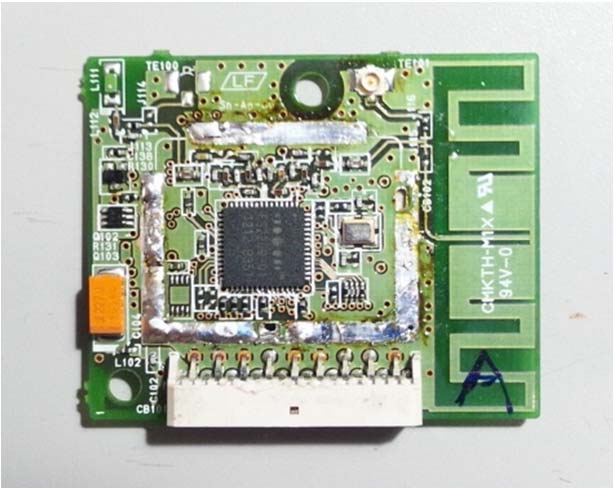

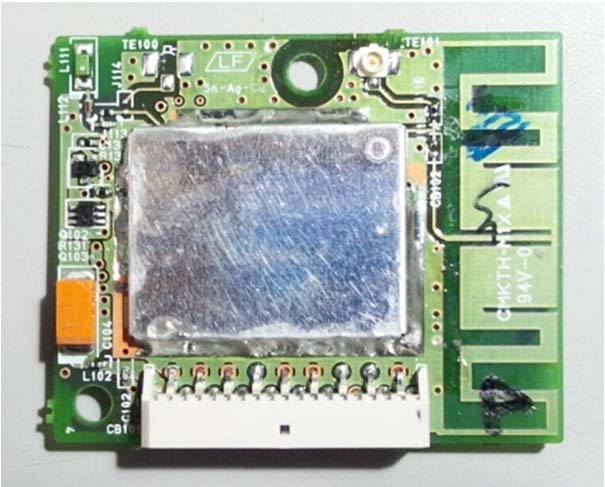

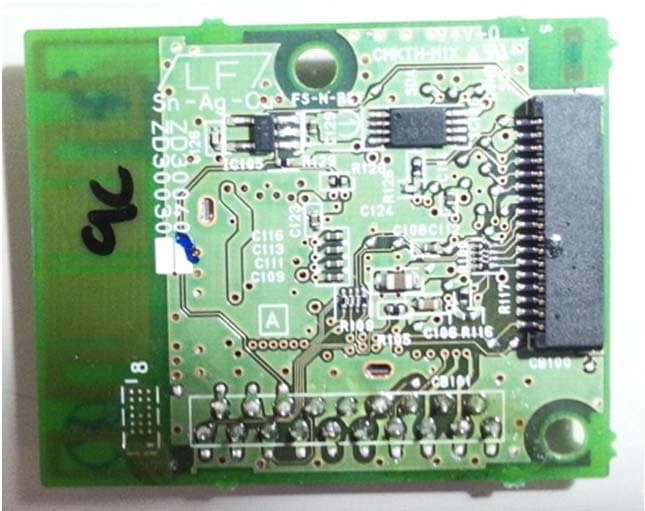

Photo 製品名 / Product name: AWCD2 TP基板の写真（シールド） EEPROM拡大写真 このコネクタは無線認証のためだけのもので量産には使いません / This Connector is only for wireless certification test, not use mass product

銘板 / Label plate 製品名 / Product name: AWCD2 写真，または図 / Photograph or Drawing Data. 銘版貼り付け位置 / Label position. ラベルはシールドケースの上に貼られます 銘版 / Label / Label is put on the shield case. 材質 / Materials 白コート紙 White Mirror Coat 接着剤 / Glue アクリル系接着剤 Acrylic Adhesive Checked ChargedDateCommentsJudge PWB Pattern Anttena Shield Case Connector

Photo 製品名 / Product name: AWCD2 TP基板の写真（シールド） EEPROM拡大写真 このコネクタは無線認証のためだけのもので量産には使いません / This Connector is only for wireless certification test, not use mass product

UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: YAMAHA CORPORATION T ype of Equipment : Wireless Module Model No. : AWCD2 FCC ID: A6RAWCD2A YAMAHA CORPORATION declares that Model : AWCD2 ⇒ complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091 (for mobile). RF Ex posure Calculations: ← The following information provides the minimum separation distance for the highest gain antenna provided with the “AWCD2“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 6.24 mW (Maximum peak output power) G = 1.66 Numerical Antenna gain; equal to2.20dBi r =20.0 cm For: AWCD2S =0.00206 mW/cm 2 No. : 32IE0264-HO-01 RF Exposure / MPE Calculation

Test report No. : 32IE0264-HO-01-A-R1 Page : 2 of 35 Issued date : July 24, 2012 Revised date : July 26, 2012 FCC ID : A6RAWCD2A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 3 SECTION 3: Test specification, procedures & results ............................................................................ 4 SECTION 4: Operation of E.U.T. during testing .................................................................................... 7 SECTION 5: Conducted Emission ............................................................................................................ 9 SECTION 6: Radiated Spurious Emission ............................................................................................ 10 SECTION 7: Antenna Terminal Conducted Tests ................................................................................ 11 APPENDIX 1: Data of EMI test .............................................................................................................. 12 Conducted Emission ......................................................................................................................... 12 6dB Bandwidth ................................................................................................................................. 14 Maximum Peak Output Power .......................................................................................................... 16 Radiated Spurious Emission ............................................................................................................. 17 Conducted Spurious Emission .......................................................................................................... 21 Conducted Emission Band Edge compliance ................................................................................... 27 Power Density ................................................................................................................................... 28 99%Occupied Bandwidth ................................................................................................................. 30 APPENDIX 2: Test instruments ............................................................................................................. 31 APPENDIX 3: Photographs of test setup ............................................................................................... 33 Conducted Emission ......................................................................................................................... 33 Radiated Spurious Emission ............................................................................................................. 34 Worst Case Position (Horizontal: Z-axis/ Vertical:Y-axis) .............................................................. 35 Test report No. : 32IE0264-HO-01-A-R1 Page : 3 of 35 Issued date : July 24, 2012 Revised date : July 26, 2012 FCC ID : A6RAWCD2A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : YAMAHA CORPORATION Address : 10-1 Nakazawa-cho Naka-ku Hamamatsu 430-8650 Japan Telephone Number : +81-53-460-2376 Facsimile Number : +81-53-460-2376 Contact Person : Yusuke Tabata SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Wireless Module Model No. : AWCD2 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC5.0V Receipt Date of Sample : June 16, 2012 Country of Mass-production : Malaysia Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Radio Specification Radio Type : Transceiver Frequency of Operation : 2405.30553-2466.74373MHz Modulation : GFSK Power Supply (radio part input) : DC3.0/1.8V Antenna type : Printed Folded Antenna Antenna Gain : 2.2dBi (peak) Test report No. : 32IE0264-HO-01-A-R1 Page : 4 of 35 Issued date : July 24, 2012 Revised date : July 26, 2012 FCC ID : A6RAWCD2A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2012, final revised on May 17, 2012 and effective June 18, 2012 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted Emission FCC: ANSI C63.4:2003 7. AC powerline Conducted Emission measurements FCC: Section 15.207 QP 31.0dB, 27.64825MHz, L AV 22.3dB, 12.28820MHz, L Complied - IC: RSS-Gen 7.2.4 IC: RSS-Gen 7.2.4 6dB Bandwidth FCC: "Guidance on Measurement of Digital Transmission Systems Operating under Section15.247" FCC: Section 15.247(a)(2) See data. Complied Conducted IC: RSS-Gen 4.6.2 IC: RSS-210 A8.2(a) Maximum Peak Output Power FCC: "Guidance on Measurement of Digital Transmission Systems Operating under Section15.247" FCC: Section 15.247(b)(3) Complied Conducted IC: RSS-Gen 4.8 IC: RSS-210 A8.4(4) Power Density FCC: "Guidance on Measurement of Digital Transmission Systems Operating under Section15.247" FCC: Section 15.247 (e) Complied Conducted IC: - IC: RSS-210 A8.2(b) Spurious Emission Restricted Band Edges FCC: "Guidance on Measurement of Digital Transmission Systems Operating under Sect…

Text truncated - open the document above for the full version.

Test report No. : 32IE0264-HO-01-A-R1 Page : 33 of 35 Issued date : July 24, 2012 Revised date : July 26, 2012 FCC ID : A6RAWCD2A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 32IE0264-HO-01-A-R1 Page : 34 of 35 Issued date : July 24, 2012 Revised date : July 26, 2012 FCC ID : A6RAWCD2A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 32IE0264-HO-01-A-R1 Page : 35 of 35 Issued date : July 24, 2012 Revised date : July 26, 2012 FCC ID : A6RAWCD2A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: Z-axis/ Vertical:Y-axis) X-axis Y-axis Z-axis End of Report
