Wireless LAN Wireless LAN 11Mbps Series User Manual Version 1.2.1 – Aug. 2002 User manual Wireless LAN 11 Mbps 1 Wireless LAN Copyright statement No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording, or otherwise without the prior writing of the publisher. Printed in Taiwan, May. 2002 User manual Wireless LAN 11 Mbps 2 RADIATION EXPOSURE STATEMENT The available scientific evidence does not show that any health problems are associated with using low power wireless devices. There is no proof, however, that these low power wireless devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure to low level RF that does not produce heating effects causes no known adverse health effects. Many studies of low level RF exposures have not found any biological effects. Some studies have suggested that some biological effects might occur, but such findings have not been confirmed by additional research. The WD05740 has been tested and found to comply with the Federal Communications Commission (FCC) guidelines on radio frequency energy (RF) exposures. The maximum SAR levels tested for the WD05740 has been shown to be 0.563W/kg at body. This device should not be co-located or operated with any other antenna or transmitter. In addition, use of the equipment other than PDA may not ensure compliance with FCC RF exposure quidlines. FCC AND INDUSTRY CANADA INFORMATION (U.S.A , CANADA) FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.Properly shielded an grounded cables and connectors must be used for connection to host computer and / or peripherals in order to meet FCC emission limits. The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada's website www.hc-sc.gc.ca/rpb « L'installateur du présent matériel radio doit s'assurer que l'antenne est située ou pointée de manière à ce que cette dernière n'émette pas de champs radioélectriques supérieurs aux limites spécifiées par Santé Canada pour le grand public; consulter le Code de sécurité 6, disponible sur le site Web de Santé Canada, à l'adresse suivante : www.hc-sc.gc.ca/rpb. » This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. L'utilisation de ce dispositif est autorisee seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l'utilisateur du dispositif doit etre pret a accepter tout brouillage radioelectrique recu, meme si ce brouillage est susceptible de compromettre le fonctionnement du dispositif. FCC INFORMATION (U.S.A) IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT! This product, when installed as indicated in the instructions contained in this manual, meets FCC reqirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shieldedcables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use to use this product in the USA. NOTE: This product has been tested and found to comply with the requirements listed in FCC Regulations, Part 15 for Class "B" digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential enviroment will not result in harmful interference with other electronic devices. This requirement generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices. Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the unit "OFF" and "ON", please try to eliminate the problem by using one of the following measures: Relocate rither this product or the device that is being affected by the interference. Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s. In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to co-axial type cable. If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Corporation of America, Electronic Service Division, 6600 Orangethorpe Ave, Buena Park, CA 90620 Wireless LAN .Contents 1. Introduction.................................................................................................4 2. Wireless LAN Basics..................................................................................5 3. Installation for Windows platform................................................................6 3.1. Installation Overview...........................................................................7 3.2. Install Procedure for Windows 98/ME/2000/XP...............................8 3.3. Win CE 3.0 Install Procedure ..................................................................17 4. Configuratio…

Text truncated - open the document above for the full version.

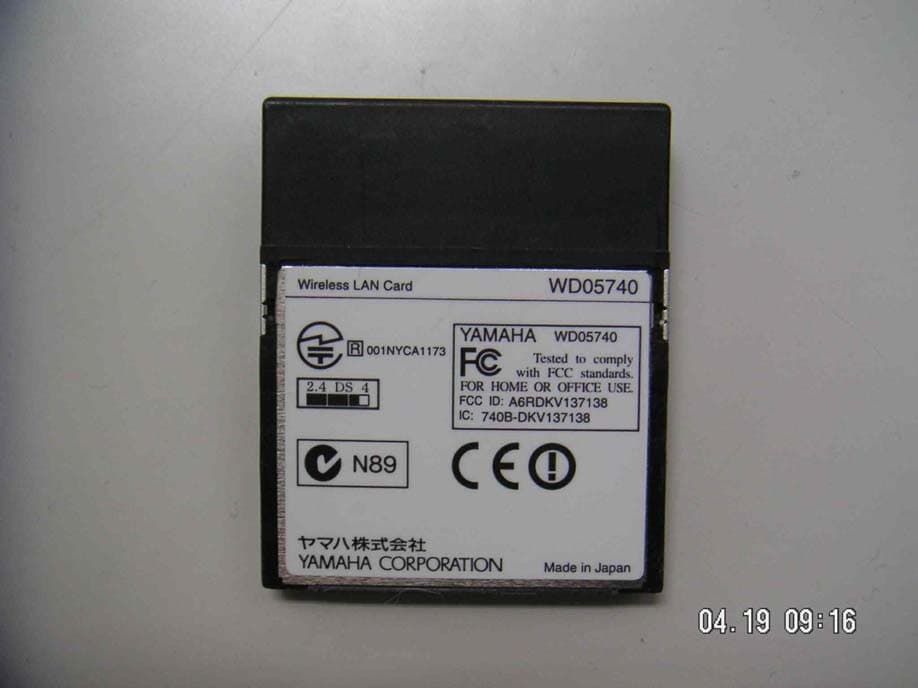

YAMAHA CORPORATION FCC ID: A6RDKV137138 External Photo Front YAMAHA CORPORATION FCC ID: A6RDKV137138 Rear

YAMAHA CORPORATION FCC ID: A6RDKV137138 Internal Photo Module - Top YAMAHA CORPORATION FCC ID: A6RDKV137138 Module-Bottom with RF Shield YAMAHA CORPORATION FCC ID: A6RDKV137138 Module-Bottom without RF Shield

Test report No. : 24EE0060-HO-1 Page : 1 of 61 Issued date : January 16, 2004 Revised date : April 27, 2004 FCC ID : A6RDKV137138 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 MF058b(10.04.03) SAR EVALUATION REPORT Report No. : 24EE0060-HO-1 Applicant : YAMAHA CORPORATION Type of Equipment : Wireless LAN Card Model No. : WD05740 FCC ID : A6RDKV137138 Test standard : FCC47CFR 2.1093 FCC OET Bulletin 65, Supplement C Test Result : Complied Max SAR Measured : 0.563W/kg( Body, 2412MHz ) 1. This test report shall not be reproduced except full or partial, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with above regulation. We hereby certify that the data contain a true representation of the SAR profile. 4. The test results in this test report are traceable to the national or international standards. Date of test : January 06, 2004 Tested by : Miyo Ikuta Head Office EMC Lab. Approved by : Tetsuo Maeno Site Manager of Head Office EMC Lab. Test report No. : 24EE0060-HO-1 Page : 2 of 61 Issued date : January 16, 2004 Revised date : April 27, 2004 FCC ID : A6RDKV137138 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 CONTENTS PAGE SECTION 1 : Client information ................................................................................................................. 3 SECTION 2 : Equipment under test (Wireless LAN Card)....................................................................... 4 SECTION 3 : Requirements for compliance testing defined by the FCC ................................................ 5 SECTION 4 : Dosimetry assessment setup .................................................................................................. 5 SECTION 5 : Test system specifications...................................................................................................... 9 SECTION 6 : Measurement outline ........................................................................................................... 10 SECTION 7 : Test setup of EUT ................................................................................................................ 11 SECTION 8 : Measurement uncertainty ................................................................................................... 15 SECTION 9 : Simulated tissue liquid parameter...................................................................................... 16 SECTION 10 : System validation data ...................................................................................................... 17 SECTION 11 : Evaluation procedure ........................................................................................................ 18 SECTION 12 : Exposure limit .................................................................................................................... 19 SECTION 13 : SAR Measurement results................................................................................................. 20 SECTION 14 : Equipment & calibration information ............................................................................. 21 SECTION 15 : References........................................................................................................................... 22 APPENDIX 1 : Photographs of test setup................................................................................................ 23 APPENDIX 2 : SAR Measurement data .................................................................................................. 29 APPENDIX 3 : Validation Measurement data ........................................................................................38 APPENDIX 4 : System Validation Dipole (D2450V2,S/N: 713)............................................................. 40 APPENDIX 5 : Dosimetric E-Field Probe Calibration (ET3DV6,S/N: 1685) ...................................... 49 Test report No. : 24EE0060-HO-1 Page : 3 of 61 Issued date : January 16, 2004 Revised date : April 27, 2004 FCC ID : A6RDKV137138 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 1 : Client information Company Name : YAMAHA CORPORATION Brand Name : YAMAHA Address : 10-1 Nakazawa-Cho,Hamamatsu-City,Shizuoka-Pref 430-8650 ,Japan Telephone Number : +81 53 460 2376 Facsimile Number : +81 53 460 2379 Contact Person : Kenji Fujisawa Test report No. : 24EE0060-HO-1 Page : 4 of 61 Issued date : January 16, 2004 Revised date : April 27, 2004 FCC ID : A6RDKV137138 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 2 : Equipment under test (Wireless LAN Card) 2.1 Identification of Wireless LAN Card Applicant : YAMAHA CORPORATION Type of Equipment : Wireless LAN Card Model No. : WD05740 Serial No. : D2.3A.E4 Country of Manufacture : Japan Receipt Date of Sample : January 06,2003 Condition of EUT : Production prototype (Not for sale: This sample is equivalent to mass-produced items.) Category Identified : Portable device 2.2 Product description of Wireless LAN Card Tx Frequency : 2412MHz~2462MHz Modulation : DSSS: Direct sequence spread spectrum (IEEE802.11b) Rating : DC 3.3V Max.Output Power Tested : 16.10 dBm Peak Conducted Antenna Type : Monopole Test report No. : 24EE0060-HO-1 Page : 5 of 61 Issued date : January 16, 2004 Revised date : April 27, 2004 FCC ID : A6RDKV137138 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 3 : Requirements for compliance testing defined by the FCC The US Federal Communications Commis…

Text truncated - open the document above for the full version.

Test report No. : 24EE0060-HO-1 Page : 49 of 61 Issued date : January 16, 2004 Revised date : April 27, 2004 FCC ID : A6RDKV137138 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 5 : Dosimetric E-Field Probe Calibration (ET3DV6,S/N: 1685) Test report No. : 24EE0060-HO-1 Page : 50 of 61 Issued date : January 16, 2004 Revised date : April 27, 2004 FCC ID : A6RDKV137138 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24EE0060-HO-1 Page : 51 of 61 Issued date : January 16, 2004 Revised date : April 27, 2004 FCC ID : A6RDKV137138 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24EE0060-HO-1 Page : 52 of 61 Issued date : January 16, 2004 Revised date : April 27, 2004 FCC ID : A6RDKV137138 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24EE0060-HO-1 Page : 53 of 61 Issued date : January 16, 2004 Revised date : April 27, 2004 FCC ID : A6RDKV137138 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24EE0060-HO-1 Page : 54 of 61 Issued date : January 16, 2004 Revised date : April 27, 2004 FCC ID : A6RDKV137138 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24EE0060-HO-1 Page : 55 of 61 Issued date : January 16, 2004 Revised date : April 27, 2004 FCC ID : A6RDKV137138 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24EE0060-HO-1 Page : 56 of 61 Issued date : January 16, 2004 Revised date : April 27, 2004 FCC ID : A6RDKV137138 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24EE0060-HO-1 Page : 57 of 61 Issued date : January 16, 2004 Revised date : April 27, 2004 FCC ID : A6RDKV137138 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24EE0060-HO-1 Page : 58 of 61 Issued date : January 16, 2004 Revised date : April 27, 2004 FCC ID : A6RDKV137138 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24EE0060-HO-1 Page : 59 of 61 Issued date : January 16, 2004 Revised date : April 27, 2004 FCC ID : A6RDKV137138 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24EE0060-HO-1 Page : 60 of 61 Issued date : January 16, 2004 Revised date : April 27, 2004 FCC ID : A6RDKV137138 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24EE0060-HO-1 Page : 61 of 61 Issued date : January 16, 2004 Revised date : April 27, 2004 FCC ID : A6RDKV137138 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124

FCC ID : A6RDKV137138 Test report No. : 24EE0057-YK-6 Page : 2 of 46 Issued date : January 20, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(10.04.03) Table of Contents Page 1 GENERAL INFORMATION 3 1.1 Tested Methodology 3 1.2 Test Facility 3 2 PRODUCT DESCRIPTION 4 3 SYSTEM TEST CONFIGURATION 5 3.1 Justification 5 3.2.Configuration of Tested System 6 4 MEASUREMENT UNCERTAINTY 7 5 SUMMARY OF TEST 8 5.1 §15.207 Conducted Emissions 8 5.2 §15.247(a)(2) 6dB Bandwidth (Antenna port Conducted) 8 5.3 §15.247(b)(3) Maximum Peak Output Power (Antenna port Conducted) 8 5.4 §15.247(c) Out of Band Emissions (Radiated) 9 5.5 §15.247(c) Out of Band Emissions (Antenna Port Conducted) 10 5.6 §15.247(d) Power Density (Antenna Port Conducted) 10 Contents of Appendixes 11 APPENDIX 1: Photographs of test setup 12 APPENDIX 2: Test Data 15 APPENDIX 3: Test instruments 46 FCC ID : A6RDKV137138 Test report No. : 24EE0057-YK-6 Page : 3 of 46 Issued date : January 20, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(10.04.03) 1 GENERAL INFORMATION Company Name : YAMAHA CORPORATION Brand Name : YAMAHA Address : 10-1 Nakazawa-cho, Hamamatsu-shi, Shizuoka-ken, 430-8650 JAPAN Telephone Number : +81 53 460 2376 Facsimile Number : +81 53 460 2379 Contact Person : Kenji Fujisawa Type of Equipment : Wireless LAN Card Model No. : WD05740 Serial No. : D2.3A.E4 Rating : DC 3.3V Country of Manufacture : Japan Receipt Date of Sample : December 15, 2003 Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Regulation(s) : FCC Part15 Subpart C, Section 15.247 Test Site : UL Apex Yamakita EMC Lab. No.1 Open Test Site 1.1 Tested Methodology The measurements were performed according to the procedures in ANSI C63.4 (2001). These tests were also referred to FCC 97-114 “Guidance on Measurement for Direct Spread Spectrum Systems”. 1.2 Test Facility This site has been fully described in a report submitted to FCC office, and accepted on September 20, 2002. (No.1 Open Test Site Registration No.: 95486) NVLAP Lab. code : 200441-0 FCC ID : A6RDKV137138 Test report No. : 24EE0057-YK-6 Page : 4 of 46 Issued date : January 20, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(10.04.03) 2 PRODUCT DESCRIPTION Model: WD05740 (referred to as the EUT in this report) is a Wireless LAN Card. The clock frequency used in EUT : 44MHz Frequency characteristics : 2412MHz through 2462MHz Number of channels/ channel spacing : 11 channels/ 5MHz spacing Modulation : DSSS: Direct sequence spread spectrum (IEEE802.11b) Antenna type : Monopole Antenna Gain : 1.1dBi Operating Voltage : DC 3.3V(AC Adapter of PC, 100V-240V) *FCC Part15.31(e) The host device provide the Wireless LAN Card with stable power supply (DC: 3.3V), and the Wireless LAN Card complies power supply regulation. *FCC Part15.203 The Wireless LAN Card and its antenna comply with this requirement since this antenna is built in Wireless LAN Card when they are put up for sale and they are used with a particular antenna connector. FCC ID : A6RDKV137138 Test report No. : 24EE0057-YK-6 Page : 5 of 46 Issued date : January 20, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(10.04.03) 3 SYSTEM TEST CONFIGURATION 3.1 Justification The system was configured in typical fashion (as a customer would normally use it) for testing. Test mode: Transmitting mode Low channel : 2412MHz Middle channel : 2437MHz High channel : 2462MHz FCC ID : A6RDKV137138 Test report No. : 24EE0057-YK-6 Page : 6 of 46 Issued date : January 20, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(10.04.03) 3.2 Configuration of Tested System Front View Top View *Cabling was taken into consideration and test data was taken under worse case conditions. Description of EUT and support equipment No. Item Model number Serial number Manufacturer FCC ID Remarks A Wireless LAN Card WD05740 D2.3A. E4 YAMAHA CORPORATION A6RDKV137138 EUT B Note PC FMV-LS553W R1100518 Fujitsu Limited - - C AC Adapter FMV-AC311S 02609311A Fujitsu Limited - - List of cables used No. Name Length (m) Shield Backshell material 1 AC Power Cable 1.9 Unshielded Polyvinyl chloride 2 DC Power Cable 1.8 Unshielded Polyvinyl chloride Extend board B A: EUT C AC120V/60Hz 2 1 B A: EUT Extend board 2 1 AC120V/60Hz C FCC ID : A6RDKV137138 Test report No. : 24EE0057-YK-6 Page : 7 of 46 Issued date : January 20, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(10.04.03) 4 MEASUREMENT UNCERTAINTY Conducted emission test The measurement uncertainty (with a 95% confidence level) for this test was ±1.3dB. The data listed in this test report has enough margin, more than site margin. Radiated emission test The measurement uncertainty (with 95% confidence level) for this test using Biconical antenna is ±4.8dB. The measurement uncertainty (with 95% confidence level) for this test using Logperiodic antenna is ±5.2dB. The measurement uncertainty (with 95% confidence level) for this test using Horn antenna is ±6.6dB. The data listed in this report meets the limits unless the uncertainty is taken into consideration. FCC ID : A6RDKV137138 Test report No. : 24EE0057-YK-6 Page : 8 of 46 Issued date : January 20, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-m…

Text truncated - open the document above for the full version.

FCC ID : A6RDKV137138 Test report No. : 24EE0057-YK-6 Page : 12 of 46 Issued date : January 20, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(10.04.03) Conducted emission FCC ID : A6RDKV137138 Test report No. : 24EE0057-YK-6 Page : 13 of 46 Issued date : January 20, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(10.04.03) Radiated emission FCC ID : A6RDKV137138 Test report No. : 24EE0057-YK-6 Page : 14 of 46 Issued date : January 20, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(10.04.03) Pre check of worse-case position Z axis X axis Y axis
