A6RNW01ANetwork Module

Confidential NW-01 Installation Manual FCC ID of this product is as follows. FCC ID: A6RNW01A For OEM integration only – device cannot be sold to general public. Therefore we will ask OEM to include the following statements required by FCC on the product and in the Installation manual Notice. Contents 1.Connector 2.Supply Voltage 3.Power Levels 4.Notice Confidential 4. Notice Contains Transmitter Module FCC ID: A6RNW01A Contains FCC ID: A6RNW01A or Please describe the following warning on the final product which contains this module. ※When the product is small, as for these words mentioned above, the posting to a manual is possible. Confidential 4. Notice ●Please describe the following warning to the manual. FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. Note) Portable equipment : Equipment for which the spaces between human body and antenna are used within 20cm. Mobile equipment : Equipment used at position in which the spaces between human body and antenna exceeded 20cm. This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body. Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles les radioélectriques (RF) de la FCC lignes directrices d'exposition et d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement doit être installé et utilisé en gardant une distance de 20 cm ou plus entre le dispositif rayonnant et le corps ●When installing it in a mobile equipment. Please describe the following warning to the manual. ●When installing it in a portable equipment. It is necessary to take a SAR test with your set mounting this module. Class II permissive change application is necessary using the SAR report.

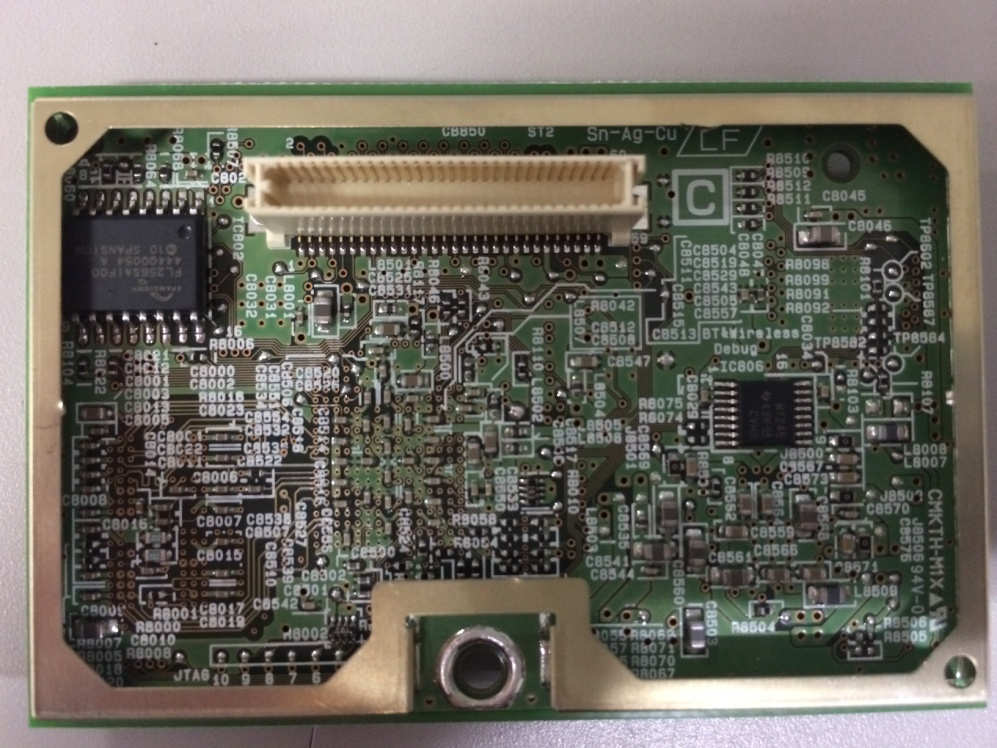

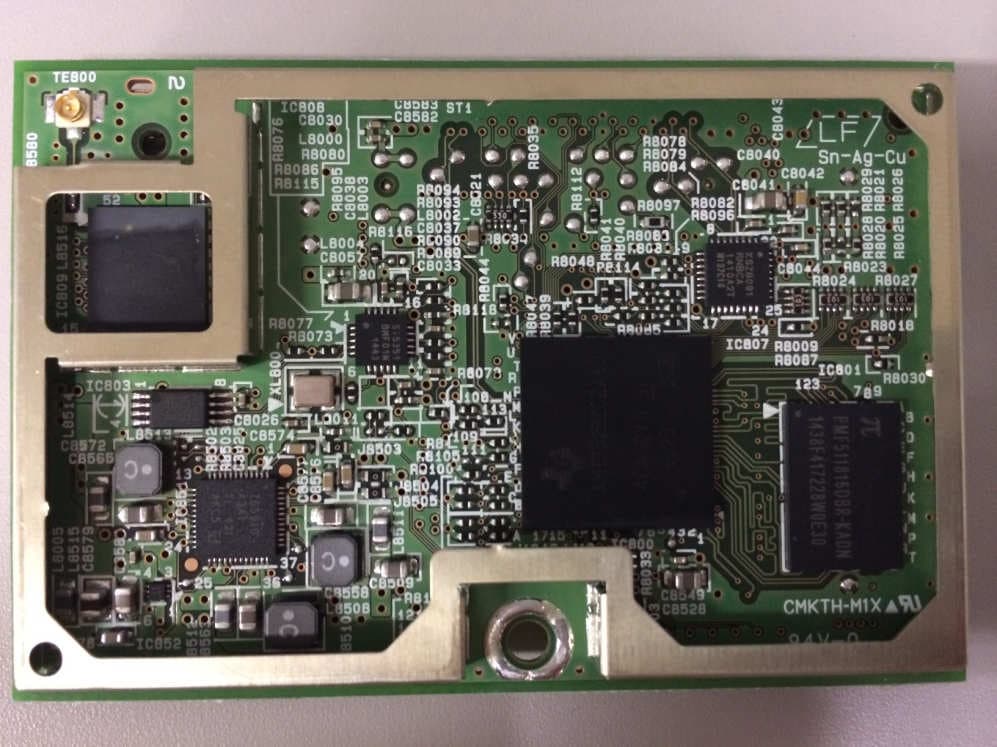

NW-01 Product Photo NW-01 Product PhotoNW-01 Product Photo NW-01 Product Photo Dimension: 50L x 75W x 13H mm Weight: 40 g Lenght Width Height <Front> <Bottom> <Up> <Under> <Right> <Left>

NW-01 Product Photo NW-01 Product PhotoNW-01 Product Photo NW-01 Product Photo Dimension: 50L x 75W x 13H mm Weight: 40 g Lenght Width Height <Front> <Bottom> <Up> <Under> <Right> <Left>

UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Applicant: Yamaha Corporation Type of Equipment : Network Module*WLAN part Model No. : NW-01 FCC ID: A6RNW01 A Yamaha Corporation declares that Model : NW-01 complies with FCC radiation exposure requirement specified in the FCC Rule 2.1091 (for mobile). RF Exposure Calculations: The following information provides the minimum separation distance for the highest gai n antenna provided with the “NW-01“ as calculated from (B) Limits for General Population / Uncontrolled Exposure of TABLE 1- LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) of §1.1310 Radiofrequency radiation exposure limits. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 13.49 mW (Maximum average output power) G = 1.86 Numerical Antenna gain; equal to2.70 dBi r =20.0 cm For: NW-01S =0.00500 mW/cm 2 No. : 10646854H RF Exposure / MPE Calculation Even taking into account the tolerance, this device can be satisfied with the limits.

Test report No. : 10646854H-A-R2 Page : 2 of 41 Issued date : March 5, 2015 Revised date : April 7, 2015 FCC ID : A6RNW01A UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10646854H-A Revision Test report No. Date Page revised Contents - (Original) 10646854H-A March 5, 2015 - - 1 10646854H-A-R1 April 2, 2015 P9 Addition of the following note: *1) Band edge compliance was confirmed at pre-check. 2 10646854H-A-R2 April 7, 2015 P5 Correction: Power Supply (inner) of WLAN part DC 1.8V → DC 3.3V 2 10646854H-A-R2 April 7, 2015 P6 Correction: Stable voltage of FCC Part 15.31 (e) DC 1.8V → DC 3.3V Test report No. : 10646854H-A-R2 Page : 3 of 41 Issued date : March 5, 2015 Revised date : April 7, 2015 FCC ID : A6RNW01A UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 4 SECTION 3: Test specification, procedures & results ............................................................................ 6 SECTION 4: Operation of E.U.T. during testing .................................................................................... 9 SECTION 5: Conducted Emission .......................................................................................................... 11 SECTION 6: Radiated Spurious Emission ............................................................................................ 12 SECTION 7: Antenna Terminal Conducted Tests ................................................................................ 13 APPENDIX 1: Data of EMI test .............................................................................................................. 14 Conducted Emission ......................................................................................................................... 14 6dB Bandwidth ................................................................................................................................. 15 Maximum Peak Output Power .......................................................................................................... 18 Average Output Power ...................................................................................................................... 21 Radiated Spurious Emission ............................................................................................................. 22 Conducted Spurious Emission .......................................................................................................... 30 Power Density ................................................................................................................................... 31 99%Occupied Bandwidth ................................................................................................................. 34 APPENDIX 2: Test instruments ............................................................................................................. 36 APPENDIX 3: Photographs of test setup ............................................................................................... 38 Conducted Emission ......................................................................................................................... 38 Radiated Spurious Emission ............................................................................................................. 39 Worst Case Position .......................................................................................................................... 40 Test report No. : 10646854H-A-R2 Page : 4 of 41 Issued date : March 5, 2015 Revised date : April 7, 2015 FCC ID : A6RNW01A UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Yamaha Corporation Address : 10-1 Nakazawa-cho, Naka-ku, Hamamatsu Shizuoka, 430-8650, Japan Telephone Number : +81-53-460-2376 Facsimile Number : +81-53-460-2379 Contact Person : Toshihiro Inoue SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Network Module Model No. : NW-01 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 5.0V Receipt Date of Sample : January 10, 2015 Country of Mass-production : Malaysia Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : 32.768kHz, 2.25MHz, 6MHz, 22.5792MHz, 24.576MHz, 25MHz, 26MHz, 50MHz, 400MHz Operating temperature : 0deg. C to +67deg. C Test report No. : 10646854H-A-R2 Page : 5 of 41 Issued date : March 5, 2015 Revised date : April 7, 2015 FCC ID : A6RNW01A UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radio Specification WLAN (IEEE802.11b/g/n-20) Equipment Type Transceiver Frequency of Operation 2412-2462MHz Type of Modulation DSSS, OFDM Bandwidth & Channel spacing 20MHz & 5MHz Method of frequency generation Synthesizer Power Supply (inner) DC 3.3V Antenna Type Dipole Antenna Antenna Gain Antenna with 30mm RF CABLE: 2.7dBi Antenna with 120mm RF CABLE: 2.5dBi Antenna with 160mm RF CABLE: 2.4dBi Antenna with 200mm RF CABLE: 2.3dBi Antenna with 500mm RF CABLE: 1.8dBi Bluetooth (Ver. 2.1 with EDR function) Equipment Type Transceiver Frequency of Operation 2402-2480MHz Type of Modulation FHSS (GFSK, π/4DQPSK, 8DPSK) Bandwidth & Channel spacing 1MHz & 1MHz Method of frequenc…
