A6RPDXW61APortable Player Dock

U PDX-W61 Portable Player Dock Station d’accueil pour Baladeur OWNER’S MANUAL MODE D’EMPLOI MANUAL DE INSTRUCCIONES En Fr Es English i En IMPORTANT SAFETY INSTRUCTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. • Explanation of Graphical Symbols The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. IMPORTANT Please record the serial number of this unit in the space below. MODEL: Serial No.: The serial number is located on the rear of the unit. Retain this Owner’s Manual in a safe place for future reference. Read these instructions.1 Keep these instructions.2 Heed all warnings.3 Follow all instructions.4 Do not use this apparatus near water.5 Clean only with dry cloth.6 Do not block any ventilation openings. Install in 7 accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat 8 registers, stoves, or other apparatus (including amplifiers) that produce heat. Do not defeat the safety purpose of the polarized or 9 groundingtype plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. Protect the power cord from being walked on or pinched 10 particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. Only use attachments/accessories specified by the 11 manufacturer. Use only with the cart, stand, tripod, bracket, 12 or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip‑over. Unplug this apparatus during lightning storms or when 13 unused for long periods of time. Refer all servicing to qualified service personnel. Servicing 14 is required when the apparatus has been damaged in any way, such as power‑supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. We Want You Listening For A Lifetime Yamaha and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion ‑ and, most importantly, without affecting your sensitive hearing. Since hearing damage from loud sounds is often undetectable until it is too late, Yamaha and the Electronic Industries Association’s Consumer Electronics Group recommend you to avoid prolonged exposure from excessive volume levels. This device complies with Part 15 of FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. 01_En_00_PDX-61_U.indd 18/17/2010 10:36:05 AM ii En IMPORTANT SAFETY INSTRUCTIONS This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS‑102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). FCC INFORMATION (for US customers) IMPORTANT NOTICE : DO NOT MODIFY THIS 1 UNIT! This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product. IMPORTANT :2 When connecting this product to accessories and/or another product use only high quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA. NOTE :3 This product has been tested and found to comply with the requirements listed in FCC Regulations, Part 15 for Class “B” digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices. This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices. Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the unit “OFF” and “ON”, please try to eliminate the problem by using one of the following measures: Relocate either this product or the device that is being affected by the interference. Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s. In the case of radio or TV interference, reloc…

Text truncated - open the document above for the full version.

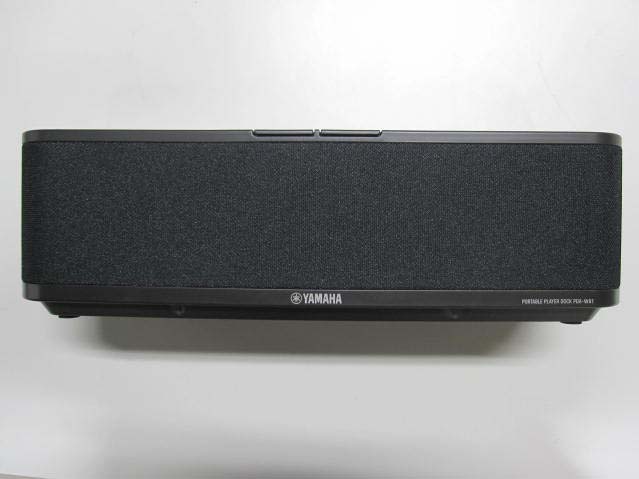

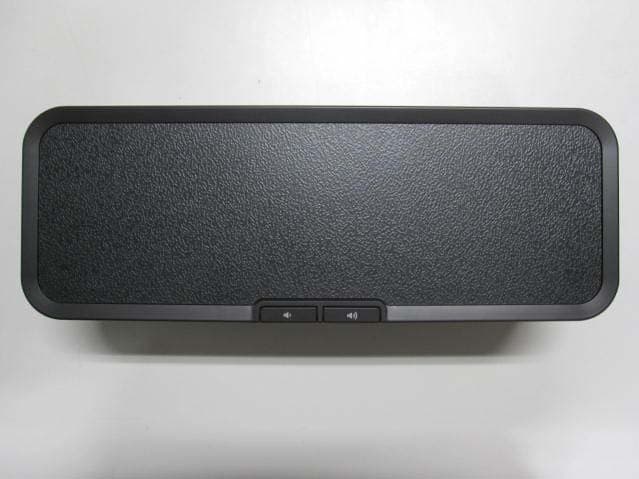

Photo YAMAHA CORPORATION Portable Player Dock [PDX-W61] Front Rear Photo YAMAHA CORPORATION Portable Player Dock [PDX-W61] Top Bottom Photo YAMAHA CORPORATION Portable Player Dock [PDX-W61] Right Left

Label Photo

Photo YAMAHA CORPORATION Portable Player Dock [PDX-W61] Location of RF Part Location of RF Part Photo YAMAHA CORPORATION Portable Player Dock [PDX-W61] RF Part RF Part (without Shield) Photo YAMAHA CORPORATION Portable Player Dock [PDX-W61] RF Part

UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: YAMAHA CORPORATION Type of Equipment : Portable Player Dock Model No. : PDX-W61 FCC ID: A6RPDXW61A IC Number:740B-PDXW61A YAMAHA CORPORATION declares that Model : PDX-W61 ⇒ complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091 (for mobile). RF Exposure Calculations: ← The following information provides the minimum separation distance for the highest gain antenna provided with the “PDX-W61“ as calculate d from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 5.66 mW (Maximum peak output power) G = 1.49 Numerical Antenna gain; equal to1.74dBi r =20.0 cm For: PDX-W61S =0.00168 mW/cm 2 No. : 30KE0083-HO-01 RF Exposure / MPE Calculation

Test report No. : 30KE0083-HO-01-A-R2 Page : 2 of 36 Issued date : August 2, 2010 Revised date : August 27, 2010 FCC ID : A6RPDXW61A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information.........................................................................................................3 SECTION 2: Equipment under test (E.U.T.)...........................................................................................3 SECTION 3: Test specification, procedures & results............................................................................4 SECTION 4: Operation of E.U.T. during testing ....................................................................................8 SECTION 5: Conducted Emission..........................................................................................................10 SECTION 6: Radiated Spurious Emission ............................................................................................11 SECTION 7: Antenna Terminal Conducted Tests................................................................................12 APPENDIX 1: Photographs of test setup ...............................................................................................13 Conducted Emission .........................................................................................................................13 Radiated Spurious Emission .............................................................................................................14 APPENDIX 2: Data of EMI test..............................................................................................................15 Conducted Emission .........................................................................................................................15 6dB Bandwidth .................................................................................................................................18 Maximum Peak Output Power ..........................................................................................................20 Radiated Spurious Emission .............................................................................................................21 Conducted Spurious Emission ..........................................................................................................27 Conducted Emission Band Edge compliance ...................................................................................31 Power Density ...................................................................................................................................32 99%Occupied Bandwidth .................................................................................................................34 APPENDIX 3: Test instruments .............................................................................................................35 Test report No. : 30KE0083-HO-01-A-R2 Page : 3 of 36 Issued date : August 2, 2010 Revised date : August 27, 2010 FCC ID : A6RPDXW61A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : YAMAHA CORPORATION Address : 10-1 Nakazawa-cho, Naka-ku, Hamamatsu 430-8650, Japan Telephone Number : +81-53-460-3320 Facsimile Number : +81-53-460-2878 Contact Person : Akira Urushibata SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Portable Player Dock Model No. : PDX-W61 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC15.0V Receipt Date of Sample : July 12, 2010 Country of Mass-production : China Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Portable Player Dock(model: PDX-W61) is a powered speaker system with wireless communication with iPod & iPhone by use of bundled transmitter(YIT-W11TX). It can play music of iPod & iPhone with transmitter or external analog audio input AUXIN. General Specification Clock frequency(ies) in the system : CPU clock: 10MHz RF reference clock: 12.288MHz CODEC audio clock: 24.576MHz Radio Specification Radio Type : Transceiver Frequency of Operation : 2405.376-2473.984MHz Modulation : GFSK Power Supply (radio part input) : DC 3.3V Antenna type : PCB pattern antenna Antenna Gain : 1.74dBi (Antenna A for Transmitting/Receiving) 0.95dBi (Antenna B for Receiving) Test report No. : 30KE0083-HO-01-A-R2 Page : 4 of 36 Issued date : August 2, 2010 Revised date : August 27, 2010 FCC ID : A6RPDXW61A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part15 Subpart C: 2010, final revised on January 22, 2010 and effective March 1, 2010 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks FCC: ANSI C63.4:2003 7. AC powerline Conducted Emission measurements FCC: Section 15.207 Conducted Emission IC: RSS-Gen 7.2.2 IC: RSS-Gen 7.2.2 [Tx] QP 17.2dB, 0.37428MHz, L AV 13.9dB, 0.37428MHz, L [Rx] QP 16.6dB, 0.37260MHz, L AV 13.3dB, 0.37260MHz, L Complied- FCC: "Guidance on Measurement of Digital Transmission Systems Operating under Section15.247" FCC: Section 15.247(a)(2) 6dB Bandwidth IC: RSS-Gen 4.6.2 IC: RSS-210 A8.2(a) Complied Conducted FCC: "Guidance on Measurement of Digital Transmission Systems Operating under Section15.247" FCC: Section 15.247(b)(3) Maximum Peak Output P…

Text truncated - open the document above for the full version.

Test report No. : 30KE0083-HO-01-A-R2 Page : 15 of 36 Issued date : August 2, 2010 Revised date : August 27, 2010 FCC ID : A6RPDXW61A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Conducted Emission DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.3 Semi Anechoic Chamber Date : 2010/07/17 Company : YAMAHA CORPORATION Report No.:30KE0083-HO-01 Kind of EUT : Portable Player DockPower:AC 120V / 60Hz Model No. : PDX-W61 Temp./Humi.:23deg.C. / 59% Serial No. : - Engineer:Hiroshi Kukita Mode / Remarks: Transimitting 2405.376MHz LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data. CALCULATION:RESULT[dBuV]=READING[dBuV]+C.F[dB](LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV] << QP/AV DATA >> L :QP :AV N :QP :AV .15M 30M .2M .3M .5M .7M 1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 _ Frequency _ Reading Level _ Reading Level _ Corr . _ Results _ Results _ Limit _ Limit _ Margin _ Margin _ Phase _ Comment _ Frequency _ QP _ AV _ Factor _ QP _ AV _ QP _ AV _ QP _ AV _ Phase _ Comment _ [ MHz ] _ [dBuV ] _ [ dBuV ] _ [ dB ] _ [dBuV] _ [dBuV] _ [dBuV] _ [dBuV] _ [dB] _ [dB] _ Phase _ Comment _ 0 . 16404 _ 28 . 5 _ 14 . 5 _ 13 . 3 _ 41.8 _ 27.8 _ 65.3 _ 55.3 _ 23.5 _ 27.5 _ N _ 0 . 19432 _ 25 . 9 _ 16 . 7 _ 13 . 3 _ 39.2 _ 30.0 _ 63.8 _ 53.8 _ 24.6 _ 23.8 _ N _ 0 . 37698 _ 27 . 0 _ 21 . 0 _ 13 . 3 _ 40.3 _ 34.3 _ 58.3 _ 48.3 _ 18.0 _ 14.0 _ N _ 0 . 72076 _ 11 . 3 _ 5 . 7 _ 13 . 3 _ 24.6 _ 19.0 _ 56.0 _ 46.0 _ 31.4 _ 27.0 _ N _ 1 . 07680 _ 3 . 3 _ - 1 . 9 _ 13 . 3 _ 16.6 _ 11.4 _ 56.0 _ 46.0 _ 39.4 _ 34.6 _ N _ 18 . 39560 _ 3 . 8 _ - 1 . 4 _ 14 . 6 _ 18.4 _ 13.2 _ 60.0 _ 50.0 _ 41.6 _ 36.8 _ N _ 0 . 15294 _ 32 . 0 _ 16 . 0 _ 13 . 3 _ 45.3 _ 29.3 _ 65.8 _ 55.8 _ 20.5 _ 26.5 _ L _ 0 . 19632 _ 27 . 6 _ 17 . 8 _ 13 . 3 _ 40.9 _ 31.1 _ 63.8 _ 53.8 _ 22.9 _ 22.7 _ L _ 0 . 37428 _ 27 . 9 _ 21 . 2 _ 13 . 3 _ 41.2 _ 34.5 _ 58.4 _ 48.4 _ 17.2 _ 13.9 _ L _ 0 . 72186 _ 10 . 0 _ 4 . 3 _ 13 . 3 _ 23.3 _ 17.6 _ 56.0 _ 46.0 _ 32.7 _ 28.4 _ L _ 1 . 12010 _ 6 . 2 _ 1 . 0 _ 13 . 3 _ 19.5 _ 14.3 _ 56.0 _ 46.0 _ 36.5 _ 31.7 _ L _ 18 . 47721 _ 5 . 2 _ 0 . 1 _ 14 . 6 _ 19.8 _ 14.7 _ 60.0 _ 50.0 _ 40.2 _ 35.3 _ L Test report No. : 30KE0083-HO-01-A-R2 Page : 16 of 36 Issued date : August 2, 2010 Revised date : August 27, 2010 FCC ID : A6RPDXW61A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Conducted Emission Test place Head Office EMC Lab. No.3 Semi Anechoic Chamber Report No. 30KE0083-HO-01 Date 07/17/2010 Temperature/ Humidity 23 deg.C./ 59% Engineer Hiroshi Kukita Mode Tx 2405.376MHz 2436.096MHz 2473.984MHz Y scale [dBuV] Chart N L Test report No. : 30KE0083-HO-01-A-R2 Page : 17 of 36 Issued date : August 2, 2010 Revised date : August 27, 2010 FCC ID : A6RPDXW61A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Conducted Emission DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.3 Semi Anechoic Chamber Date : 2010/07/17 Company : YAMAHA CORPORATIONReport No.:30KE0083-HO-01 Kind of EUT : Portable Player DockPower:AC 120V / 60Hz Model No. : PDX-W61 Temp./Humi.:23deg.C. / 59% Serial No. : - Engineer:Hiroshi Kukita Mode / Remarks: Receiving 2436.096MHz LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data. CALCULATION:RESULT[dBuV]=READING[dBuV]+C.F[dB](LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV] << QP/AV DATA >> L :QP :AV N :QP :AV .15M 30M.2M .3M .5M .7M 1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 _ Frequency _ Reading Level _ Reading Level _ Corr . _ Results _ Results _ Limit _ Limit _ Margin _ Margin _ Phase _ Comment _ Frequency _ QP _ AV _ Factor _ QP _ AV _ QP _ AV _ QP _ AV _ Phase _ Comment _ [ MHz ] _ [dBuV ] _ [ dBuV ] _ [ dB ] _ [dBuV] _ [dBuV] _ [dBuV] _ [dBuV] _ [dB] _ [dB] _ Phase _ Comment _ 0 . 15042 _ 29 . 1 _ 12 . 7 _ 13 . 3 _ 42.4 _ 26.0 _ 66.0 _ 56.0 _ 23.6 _ 30.0 _ N _ 0 . 20122 _ 25 . 4 _ 16 . 5 _ 13 . 3 _ 38.7 _ 29.8 _ 63.6 _ 53.6 _ 24.9 _ 23.8 _ N _ 0 . 37260 _ 27 . 8 _ 21 . 2 _ 13 . 3 _ 41.1 _ 34.5 _ 58.4 _ 48.4 _ 17.3 _ 13.9 _ N _ 0 . 75224 _ 11 . 2 _ 5 . 4 _ 13 . 3 _ 24.5 _ 18.7 _ 56.0 _ 46.0 _ 31.5 _ 27.3 _ N _ 1 . 01227 _ 6 . 7 _ 0 . 2 _ 13 . 3 _ 20.0 _ 13.5 _ 56.0 _ 46.0 _ 36.0 _ 32.5 _ N _ 18 . 34160 _ 3 . 9 _ - 1 . 2 _ 14 . 6 _ 18.5 _ 13.4 _ 60.0 _ 50.0 _ 41.5 _ 36.6 _ N _ 0 . 15044 _ 32 . 2 _ 15 . 7 _ 13 . 3 _ 45.5 _ 29.0 _ 66.0 _ 56.0 _ 20.5 _ 27.0 _ L _ 0 . 20153 _ 25 . 6 _ 15 . 4 _ 13 . 3 _ 38.9 _ 28.7 _ 63.5 _ 53.5 _ 24.6 _ 24.8 _ L _ 0 . 37260 _ 28 . 5 _ 21 . 8 _ 13 . 3 _ 41.8 _ 35.1 _ 58.4 _ 48.4 _ 16.6 _ 13.3 _ L _ 0 . 75061 _ 12 . 6 _ 6 . 1 _ 13 . 3 _ 25.9 _ 19.4 _ 56.0 _ 46.0 _ 30.1 _ 26.6 _ L _ 1 . 10760 _ 11 . 7 _ 5 . 9 _ 13 . 3 _ 25.0 _ 19.2 _ 56.0 _ 46.0 _ 31.0 _ 26.8 _ L _ 18 . 17700 _ 5 . 6 _ 0 . 2 _ 14 . 6 _ 20.2 _ 14.8 _ 60.0 _ 50.0 _ 39.8 _ 35.2 _ L Test report No. : 30KE0083-HO-01-A-R2 Page : 18 of 36 Issued date : August 2, 2010 Revised date : August 27, 2010 FCC ID : A6RPDXW61A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 6dB Bandwidth Test place Head Office EMC Lab. No.7 Measurement Room Report No. 30KE0083-HO-01 Date 07/12/2010 Temperature/ Humidity 22 deg.C./ 54% Engineer Tomotaka Sasagawa Mode Tx Frequency 6dB Bandwidth Limit [MHz] [MHz] [kHz] 2405.376 2.157 >500 2436.096 2.092 >500 2473.984 1.799 >500 Test report No. : 30KE0083-HO-01-A-R2 Page : 19 of 36 Issued date : August 2, 2010 Revised date : August 27, 2010 FCC ID : A6RPDXW61A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 59…

Text truncated - open the document above for the full version.

Test report No. : 30KE0083-HO-01-A-R2 Page : 13 of 36 Issued date : August 2, 2010 Revised date : August 27, 2010 FCC ID : A6RPDXW61A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 30KE0083-HO-01-A-R2 Page : 14 of 36 Issued date : August 2, 2010 Revised date : August 27, 2010 FCC ID : A6RPDXW61A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Spurious Emission Photo 1 Photo 2
