A7RM115ABLUETOOTH MODULE

Assembly instructions (1/2) 1. Put on a frame. 2. Fix bluetooth module by 2 screws. Bluetooth module OBT-01 Screw Frame Information to the user. (2/2) Indicate "Contains FCC ID: A7RM115A" and "Contains IC: 10291A-M115A" to the host device installed. Discribe the following sentence to a user's manual of the host device. FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. Le présent appareil est conforme aux la partie 15 des règles de la FCC et CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles les radioélectriques (RF) de la FCC lignes directrices d'exposition dans le Supplément C à OET65 et d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui est considérée conforme sans évaluation de l’exposition maximale autorisée. Cependant, cet équipement doit être installé et utilisé en gardant une distance de 20 cm ou plus entre le dispositif rayonnant et le corps (à l’exception des extrémités : mains, poignets, pieds et chevilles).

En CD Receiver System CS-355 CD Receiver (CR-245BT) Speakers (D-T05) Instruction Manual Thank you for purchasing an Onkyo CD Receiver System. Please read this manual thoroughly before making any connections and plugging it in. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new CD Receiver System. Please retain this manual for future reference. Getting Started .......................... 2 Connections ............................ 13 Basic Operations .................... 17 Playing CDs ............................. 19 Playing Your iPod/iPhone/iPad ..................... 22 Playing Back via Bluetooth ................................. 23 Listening to the Radio ............ 24 Playing a USB Flash Drive ...................... 26 Clock and Timer ...................... 26 Miscellaneous ......................... 29 E39_CS-355_En_120614.book 1 ページ ２０１２年６月１４日 木曜日 午後１時４８分 2 Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radia- tors, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are pro- vided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience recepta- cles, and the point where they exit from the appara- tus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table spec- ified by the manufacturer, or sold with the apparatus. When a cart is used, use cau- tion when moving the cart/ apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. Damage Requiring Service Unplug the apparatus from the wall outlet and refer servicing to qualified service personnel under the following conditions: A. When the power-supply cord or plug is damaged, B. If liquid has been spilled, or objects have fallen into the apparatus, C. If the apparatus has been exposed to rain or water, D. If the apparatus does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the apparatus to its normal operation, E. If the apparatus has been dropped or damaged in any way, and F. When the apparatus exhibits a distinct change in performance this indicates a need for service. 16. Object and Liquid Entry Never push objects of any kind into the apparatus through openings as they may touch dangerous volt- age points or short-out parts that could result in a fire or electric shock. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases shall be placed on the apparatus. Don’t put candles or other burning objects on top of this unit. 17. Batteries Always consider the environmental issues and fol- low local regulations when disposing of batteries. 18. If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is ade- quate ventilation. Leave 20 cm (8") of free space at the top and sides and 10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4") away from the rear panel or wall, creating a flue- like gap for warm air to escape. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR AVIS PORTABLE CART WARNING S3125A E39_CS-355_En_120614.book 2 ページ ２０１２年６月１４日 木曜日 午後１時４８分 3 Precautions 1. Recording Copyright—Unless it’s for personal use only, recording copyrighted material is illegal without the permission of the copyright holder. 2. AC Fuse—The AC fuse inside the unit is not user- serviceable. If you cannot turn on the unit, contact your Onkyo dealer. 3. Care —Occasionally you should dust the unit all over with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild detergent and water. Dry the unit immediately afterwards with a clean cloth. Don’t use abrasive cloths, thinners, alcohol, or other chemical solvents, because they may damage the finish or remove the panel lettering. 4.…

Text truncated - open the document above for the full version.

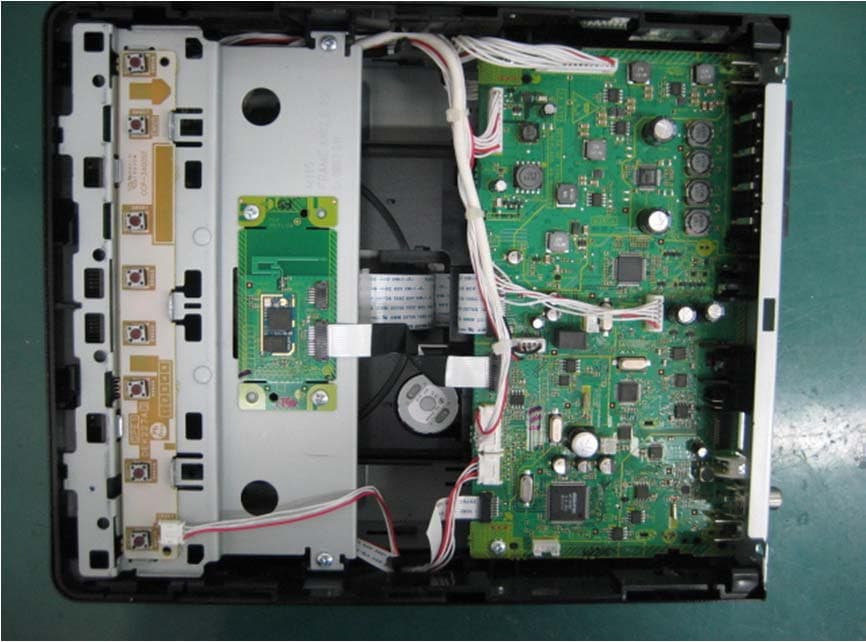

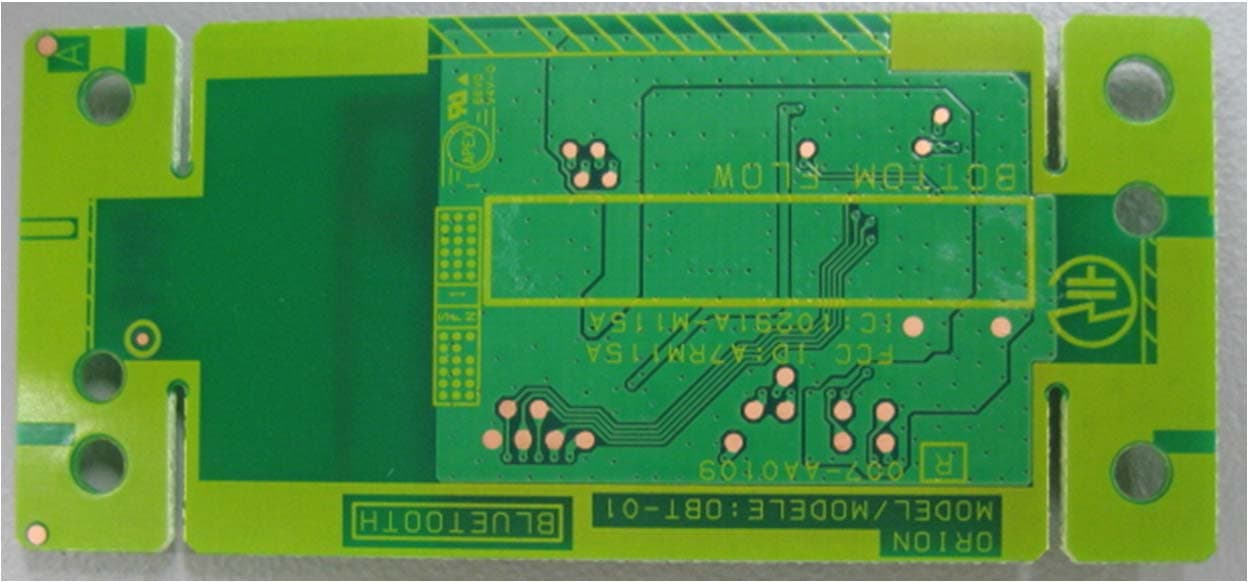

Photo inside the product Inside of the product The connecting portion of the module Module Cable A printed circuit board of the product Top of the module Bottom of the module

OBT-01 Label

Photo inside the product Inside of the product The connecting portion of the module Module Cable A printed circuit board of the product Top of the module Bottom of the module

UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: Orion Electric Co., Ltd. Type of Equipment : BLUETOOTH MODULE Model No. : OBT-01 FCC ID: A7RM115A IC Number: 10291A-M115A Orion Electric Co., Ltd. declares that Model : OBT-01 ⇒ complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091 (for mobile). RF Exposure Calculations: ← The following information provides the minimum separation distance for the highest gain antenna provided with the “OBT-01“ as calculate d from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 1.54 mW (Maximum peak output power) G = 0.50 Numerical Antenna gain; equal to-3.00dBi r =20.0 cm For: OBT-01S =0.00015 mW/cm 2 No. : 32IE0103-HO-01 RF Exposure / MPE Calculation

Test report No. : 32IE0103-HO-01-A-R1 Page : 2 of 54 Issued date : July 4, 2012 Revised date : July 12, 2012 FCC ID : A7RM115A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 3 SECTION 3: Test specification, procedures & results ............................................................................ 4 SECTION 4: Operation of E.U.T. during testing .................................................................................... 8 SECTION 5: Conducted Emission .......................................................................................................... 10 SECTION 6: Radiated Spurious Emission ............................................................................................ 11 SECTION 7: Antenna Terminal Conducted Tests ................................................................................ 13 APPENDIX 1: Data of EMI test .............................................................................................................. 15 Conducted Emission ......................................................................................................................... 15 20dB Bandwidth and Carrier Frequency Separation ......................................................................... 19 Number of Hopping Frequency ........................................................................................................ 22 Dwell time ......................................................................................................................................... 24 Maximum Peak Output Power .......................................................................................................... 27 Radiated Spurious Emission ............................................................................................................. 28 Conducted Spurious Emission .......................................................................................................... 35 Conducted Emission Band Edge compliance ................................................................................... 47 99%Occupied Bandwidth ................................................................................................................. 49 APPENDIX 2: Test instruments ............................................................................................................. 51 APPENDIX 3: Photographs of test setup ............................................................................................... 53 Conducted Emission ......................................................................................................................... 53 Radiated Spurious Emission ............................................................................................................. 54 Test report No. : 32IE0103-HO-01-A-R1 Page : 3 of 54 Issued date : July 4, 2012 Revised date : July 12, 2012 FCC ID : A7RM115A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Orion Electric Co Ltd. Address : 41-1 Iehisa-cho Echizen-city, Fukui-Pref 915-8555 Japan Telephone Number : +81-778-23-0001 Facsimile Number : +81-778-23-7799 Contact Person : Shigeto Yamada SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : BLUETOOTH MODULE Model No. : OBT-01 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 3.3V (AC120V/60Hz (Host)) Receipt Date of Sample : June 15, 2012 Country of Mass-production : Thailand Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Radio Specification [Bluetooth (Ver. 2.0 with EDR function)] Radio Type : Transceiver Frequency of Operation : 2402-2480MHz Modulation : FHSS Power Supply (radio part input) : DC 3.3V Antenna type : Inverted F Antenna Antenna Gain : -3.0dBi Test report No. : 32IE0103-HO-01-A-R1 Page : 4 of 54 Issued date : July 4, 2012 Revised date : July 12, 2012 FCC ID : A7RM115A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2012, final revised on May 17, 2012 and effective June 18, 2012 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz Test report No. : 32IE0103-HO-01-A-R1 Page : 5 of 54 Issued date : July 4, 2012 Revised date : July 12, 2012 FCC ID : A7RM115A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 3.2 Procedures and results Item Test Procedure Specification Worst Margin Results Remarks Conducted Emission FCC: ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC: Section 15.207 QP 10.0dB, 11.60113MHz, N AV 6.9dB, 0.40040MHz, N Complied - IC: RSS-Gen 7.2.4 IC: RSS-Gen 7.2.4 Carrier Frequency Separation FCC: FCC Public Notice DA 00-705 FCC: Section15.247(a)(1) See data. Complied Conducted IC: - IC: RSS-210 A8.1 (b) 20dB Bandwidth FCC: FCC Public Notice DA 00-705 FCC: Section15.247(a)(1) - Conducted IC: - IC: RSS-210 A8.1 (a) Number of Hopping Frequency FCC: FCC Public Notice DA 00-705 FCC: Section15.247(a)(1)(iii) Complied Conducted IC: - IC: RSS-210 A8.1 (d) D…

Text truncated - open the document above for the full version.

Test report No. : 32IE0103-HO-01-A-R1 Page : 53 of 54 Issued date : July 4, 2012 Revised date : July 12, 2012 FCC ID : A7RM115A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 32IE0103-HO-01-A-R1 Page : 54 of 54 Issued date : July 4, 2012 Revised date : July 12, 2012 FCC ID : A7RM115A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Spurious Emission Photo 1 Photo 2 End of Report
