A7RM2J4ADVD / VCR TV Interface Device

Hi-Fi VCR & DVD VIDEO RECORDER D-VR5SU OWNER’S MANUAL 2 24 34 49 53 63 Introduction Various settings Disc playback Tape playback Recording Editing the disc ©2006 Toshiba Corporation 78 82 Dubbing Additional information This device does not tape-record copy protected DVD Video Discs. DIGITAL VIDEO 2J40101A Cover3/4/06, 10:42 AM1 DRAFT Introduction 2 WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, do not expose this appliance to rain or moisture. CAUTION:TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. FCC NOTICE:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be deter- mined by turning the equipment off and on, the user is encouraged to try to correct the interfer- ence by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. CAUTION:Changes or modifications not expressly approved by the partly responsible for compliance with the FCC Rules could void the user's authority to operate this equipment. CAUTION:THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM. TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS USER'S GUIDE CARE- FULLY AND RETAIN FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE MAINTE- NANCE, CONTACT AN AUTHORIZED SERVICE LOCATION. USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT TRY TO OPEN THE ENCLO- SURE. VISIBLE LASER RADIATION MAY BE PRESENT WHEN THE ENCLOSURE IS OPENED. DO NOT STARE INTO BEAM. The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. Location of the required Marking The rating sheet and the safety caution are on the rear of the unit. CERTIFICATION: COMPLIES WITH FDA RADIATION PERFORMANCE STANDARDS, 21 CFR SUBCHAPTER J. SAFTY PRECAUTIONS RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. 2J40101A P02-073/4/06, 10:42 AM2 Introduction 3 1. READ INSTRUCTIONS All the safety and operating instructions should be read before the unit is operated. 2. RETAIN INSTRUCTIONS The safety and operating instructions should be retained for future reference. 3. HEED WARNINGS All warnings on the unit and in the operating instructions should be adhered to. 4. FOLLOW INSTRUCTIONS All operating and use instructions should be followed. 5. CLEANING Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a soft dry cloth for cleaning the exterior cabinet only. 6. ATTACHMENTS The manufacturer of this unit does not make any recommendations for attachments, as they may cause hazards. 7. WATER AND MOISTURE Do not use this unit near water. For example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. 8. ACCESSORIES Do not place this unit on an unstable cart, stand, tripod, bracket, or table. The unit may fall, causing serious injury, and serious damage to the unit. 8A.An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn. 9. VENTILATION Slots and openings in the cabinet back or bottom are provided for ventilation, to ensure reliable operation of the unit, and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat source. This unit should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided and/or the manufacturer’s instructions have been adhered to. 10. POWER SOURCE This unit should be operated only from the type of power source indicated on the rating plate. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. 11. GROUNDING OR POLARIZATION This unit is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug. 12. POWER-CORD PROTECTION Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon o…

Text truncated - open the document above for the full version.

Disc playback 46 MP3/WMA/JPEG/DivX ® playback MP3 CD •MP3 files must have the extension letters “.mp3”. •Standard, sampling frequency, and the bit rate: MPEG-1 Audio 32kHz, 44.1kHz, 48kHz 32kbps to 320kbps (constant bit rate or variable bit rate) •The recommend recording setting for a high quality sound is 44.1kHz of sampling frequency and 128kbps of constant bit rate. WMA CD •When creating a WMA disc, make sure that the copyright function is off. DRM (Digital Rights Manage- ment) files cannot be played back. •WMA files must have the extension letters “.wma”. •Standard, sampling frequency, and the bit rate: WMA version 7 and 8 32kHz, 48kbps 44.1kHz, 48kbps to 192kbps 48kHz,128kbps to 192kbps •Music files recorded as mono, 48kHz, 48kbps cannot be played back by this unit. Playing back MP3/WMA files 1 Press or to select MP3 or WMA file. •In case the disc includes more than 10 files, you can turn to the next or the previous page. (See page 43.) 2 Carry out either of the item a or b below. a: Press ENTER. b: Press to select “PLAY” and press ENTER. The TRACK INFO screen appears to playback the selected file. For the details of the TRACK INFO screen, see “Various opera- tions on CD” on page 43.









      !  "   # $










       ! "  #$% ! &  & " # 3 To return to the BROWSER screen, press RETURN. •To stop playback of the MP3 or WMA files, press TITLE MENU. This DVD/VCR requires discs and recordings to meet certain technical standards in order to achieve optimal playback quality. Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3 or WMA files) and these require certain pre- existing conditions (see above) to ensure compatible playback. Because this area of technology is still evolving, Toshiba cannot guarantee that all recordable discs will produce optimal playback quality. The technical criteria set forth in this owner’s manual are meant only as a guide. Please be advised that you must obtain permission from the applicable copyright owners to download copyrighted content, including music files, in any format, including the MP3 and WMA formats, prior to the downloading thereof. Toshiba has no right to grant and does not grant permission to download any coprighted content. 2J40101A P41-473/4/06, 10:44 AM46 Disc playback 47 MP3/WMA/JPEG/DivX ® playback Playing back JPEG files 1 Press or to select JPEG file. •In case the disc includes more than 10 files, you can turn to the next or the previous page. (See page 43.) 2 Carry out either of the item a or b below. a: Press ENTER. b: Press to select “PLAY” and press ENTER. The thumbnail images of the JPEG files stored in the route direc- tory or the folder appear. Press , , or to select the pages of the thumbnail im- ages, or select the JPEG file to be displayed at first for the slide show. 3 Press ENTER to play the selected picture. If you have set the interval time for JPEG slide show, the pictures will be played back one after another automatically. (See page 33.) •Press ZOOM to enlarge the displayed image. •Press ANGLE to rotate the image by 90 degrees each time. Alone.jpg Ambassadeurs-Aristide_Bruant.jp Arlstide Bruant.jpg At_the_Moulin_Rouge.jpg Clown Cha-U-Kao.jpg Dancer Seated.jpg EI Dorado.jpg Galerie 65 Cannes.jpg Jane Avril-1893.jpg Alfred Ia Guigne.jpg /popArt BROWSER ENTER RETURNPLAYBACK SET END SELECT TITLE MENU Saxophone.jpgBaseball.jpgDrive.jpg party_240803.jpgpractice_ski.jpgMy_car.jpg ENTER RETURNPLAYBACKEND SELECT SELECT TITLE MENU JPEG CD JPEG files must have the extension letters “.jpe”, “.jpeg” or “.jpg”. 4 To return to the thumbnail screen, press RETURN. •To stop the slide show, press TITLE MENU. 2J40101A P41-473/4/06, 10:44 AM47 Disc playback 48 1 Press or to select DivX ® file. •If the disc includes more than 10 files, you can move to the next or previous page. (See page 43.) 2 Carry out the item a or b listed below. a:Press ENTER. b:Press and then press or to select “PLAY” and press ENTER. The selected title is played back. •You can use Fast forward, Review, Still, Frame advance, SKIP 6/7, and Slow motion playback (See page 37). DivX ® video specifications •DivX ® file must have the extension letters “.avi” “.div” or “.divx” •DivX® version: DivX® 3, 4, 5, and 6 (specifically 3.1.1, 4.1.2, 5.0.2, 5.0.5, 5.1.1, 5.2.1, 6.0 at Home Theater profile). Audio format: MPEG1 Layer2 (MP2), MPEG1 Layer3(MP3) Bit rate: 8kbps - 320kbps Sampling frequencies: 32kHz, 44.1kHz, 48kHz Resolution: Max 720 x 576 (at 25fps) Max 720 x 480 (at 30fps) NOTE: It may take a while to start to play DivX ® video. Please wait until picture appears on screen. If the incorrect DRM file is loaded, “Authorization Error This player is not authorized to play this video.” will appear on the screen. When you attempt to play DivX ® VOD, the number of plays is lim- ited and the following message will appear on the screen. If you wish to play it, select “YES”. •If the number of plays goes over the limit, then “Rental Expired” will be displayed, in which case the file will not be played. MP3/WMA/JPEG/DivX ® playback Playing back DivX ® video files

          !

           2J40101A P48-553/4/06, 10:44 AM48 T ape playback 49 Tape speed and maximum recording time Loading and unloading a cassette tape Use only video cassette tapes marked and . •Cassettes marked “VHS” (or “S-VHS”) can be us…

Text truncated - open the document above for the full version.

Editing the disc 68 Editing a playlist Combining the title You can create a playlist by combining the several original titles or playlists. To combine the titles, it is necessary to create a playlist at first. By combining the titles in the playlist, a playlist where several titles are combined is created. 1 Press TITLE MENU to display the title menu. 2 Select the playlist where you want to combine the titles. • Press or to select the playlist. • Press to display the editing menu of the playlist. • Press or to select “TITLE COMBINE”.











         ! "#$ %



'() (

*


  +









*

*
3 Press ENTER. Select the title that you want to combine from the title menu.










                  !"#



%& &

 '


 4 Press ENTER. Following the playlist, the selected title is combined. The several titles were combined so that the total recording time is displayed.









         !" #$%!&



()* )

+


 2J40101A P63-713/4/06, 10:45 AM68 Editing the disc 69 Editing a playlist Erasing a playlist You can erase the created playlist. Even if you erase the playlist, the original title will not be erased. 1 Press TITLE MENU to display the title menu. 2 Select the playlist that you want to erase. • Press or to select the playlist. • Press to display the editing menu of the playlist. • Press or to select “DELETE TITLE”.











                  !"#



%&' &

 (


  )




(%



(




3 Press ENTER. The selected playlist will be erased.













 !" !

#


 2J40101A P63-713/4/06, 10:45 AM69 Editing the disc 70 Editing an original title In VR mode, you can edit various items, whereas in Video mode, you can only edit the title names. NOTES: •You can automatically add a chap- ter mark in recording. For more in- formation, see page 32. •In case the disc includes more than 9 titles, you can turn to the next or the previous page. (See page 35.) Preparation: • Turn ON the TV and set to the video input mode. • Load the recorded disc. • Press DVD to select the DVD mode. (The DVD indicator will light.) Adding a chapter mark You can add a chapter mark to the original title. You can add up to 999 chapter marks to one disc. 1 Press TITLE MENU to display the title menu. 2 Select the original title where a chapter mark is added. • Press or to select the original title. • Press to display the editing menu of the original title. • Press or to select “ADD CHAPTER MARK”.











                  !"#



%&' &

 (

  ) (
&










*  )   &


 3 Press ENTER. The ADD CHAPTER MARK screen will appear. ENTER RETURNENTERBACKEND TITLE MENU ADD CHAPTER MARK NAME11/25/2003 08:41 AM CHAPTER1/3 LENGTH00:00:00/00:30:17 4 Press PLAY to search a scene where you want to add the chapter mark. •Search the scene by using each operation button (F.FWD, REW, SKIP 77 77 7, SKIP 66 66 6, PAUSE/STILL, SLOW, INSTANT SKIP) for the playback. ENTER RETURNENTERBACKEND TITLE MENU ADD CHAPTER MARK NAME11/25/2003 08:41 AM CHAPTER1/3 LENGTH00:02:03/00:30:17 7% 2J40101A P63-713/4/06, 10:45 AM70 Editing the disc 71 Editing an original title 5 When the scene you want to add a chapter mark, press ENTER. The playback is paused and the position of the added chapter mark appears green. ADD CHAPTER MARK 17% NAME11/25/2003 08:41 AM CHAPTER2/4 LENGTH00:03:08/00:30:17 The added chapter mark 6 If you want to continue to add chapter mark, repeat step 5. 7 Adding chapter marks is finished. • To display the title menu, press RETURN. • To return to the normal screen, press TITLE MENU. Combining chapters By erasing the added chapter marks, the chapters can be combined. 1 Press TITLE MENU to display the title menu. 2 Select the original titles where you want to combine the chapters. • Press or to select the original title. • Press to display the editing menu of original title. • Press or to select “COMBINE CHAPTERS”.











                  !"#



%&' &

 (

  ) (
&










*  )   &


 3 Press ENTER. The COMBINE CHAPTERS screen will appear. At the beginning, the top still image in the chapter 2 is displayed. NOTE: Chapter marks that have been added automatically in the erasing of a scene procedure (page 73) cannot be erased. 2J40101A P63-713/4/06, 10:45 AM71 Editing the disc 72 4 Press SKIP 77 77 7 or SKIP 66 66 6 to select the chapter marks to be erased. 5 Press ENTER. The chapter marks are erased and 2 chapters are combined into 1 chapter. 6 To continue erasing the chapter marks, repe…

Text truncated - open the document above for the full version.

External Photos

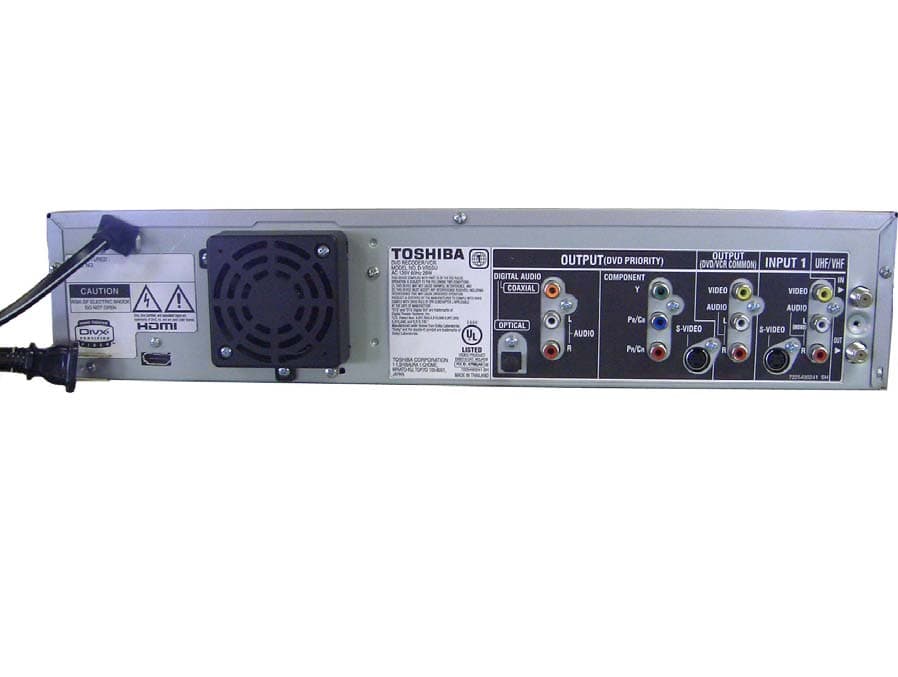

ATTACHMENT J-1 FCC ID: A7RM2J4A FCC IDENTIFIER (§2.926)  LABELING REQUIREMENT(§15.19) --- Labeling BACK VIEW

Internal Photos

CIRCUIT DESCRIPTION 1/2 This device is combined a DVD Recorder with a Video cassette recorder and operates with an AC commercial power supply.(AC120V, 60Hz) This device includes TV interface Device, Television Broadcast receiver, and Digital device of product category defined by FCC. The external connectors are equipped with DV Input, Front Audio (L/R)/Video/S-Video Input, RF input/Output, Rear Audio(L/R)/Video/S-Video Input, HDMI Output, Rear Audio(L/R) /Video/S-Video Output, Component Output, Coaxial Digital Audio Output, Optical Digital Audio Output, and DVD Audio Output L/R. The circuit is composed by Power Supply Block, VCR Block, and DVD Recorder Block, if divided roughly. The explanation is as follows and the details are referred to Block Diagram. Power Supply Block: Use the switching regulator circuit and provide the power supply to each circuit. VCR Block: The circuit of this block is composed by Y/C/Audio/CCD/Head Amp, Syscon, Tuner/Jack, Display, Hi-Fi Demodulator, AV SW, Operation /LED and so on. RF Modulator output is output in US 3ch or 4ch and Emission frequency is as Follows: Emission Frequency; US 3ch Video carrier: 61.25MHz Audio carrier: 65.75MHz US 4ch Video carrier: 67.25MHz Audio carrier: 71.75MHz The oscillating frequencies that is used this block are the follows: 10MHz, 32.768KHz---- Syscon/TIMER/SERVO IC Clock 3.579545MHz--- Y/C/Audio/CCD/Head Amp IC Clock DVD Block: The circuit of this block is composed by AV Encorder, MPEG, Memory, Audio, PHY, HDMI and so on. The oscillating frequencies that is used this block are the follows: 135MHz--- SD-RAM Clock (RAMCLK) 27MHz--- MPEG Master Clock (GCLK) 18.4327MHz--- Audio Master Clock (AMCLK) 3.072MHz---Audio bit Clock (ABCLK) 48kHz---Audio L/R Clock (LRCLK) 27MHz---Video Clock(VIDCLK) 27MHz---Serial Bit Clock(SBCLK) 27MHz/74.25MHz---HDMI DATA Clock(HDCLK.PCLK) 24.576MHz---DV Master Clock (DVGCLK) 33.75MHz---DV DATA Clock (ISOCLK)

Test report No. : 26GE0303-YW-1 Page : 1 of 157 Date of issue : April 10, 2006 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Certification EMI TEST REPORT Test Report No. : 26GE0303-YW-1 Applicant : Orion Electric Co., Ltd. Type of equipment : DVD Recorder with Video Cassette Recorder Model number : D-VR5SU FCC ID : A7RM2J4A Test standard : FCC Part 15 Subpart B ICES-003 Issue No.4 Class B Test result : Complied Similar model : Model No. Brand name Model No. Brand name D-VR5SC TOSHIBA - - - - - - - - - - - - - - - - - - 1. This test report shall not be reproduced except in full or partial, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with above regulation. We hereby certify that the data contain a true representation of the EMC profile. 4. The test results in this test report are traceable to the national or international standards. 5. This test report does not constitute an endorsement by NIST/NVLAP or U.S. Government. Date of test : February 22 to March 15, 2006 Tested by: Tsubasa Takayama Seigo Kakehi Engineer of EMC Service Engineer of EMC Service Toshifumi Yoneshige Yuichi Kaneyama Engineer of EMC Service Engineer of EMC Service Approved by: Hiroya Tabata Leader of EMC Service Test report No. : 26GE0303-YW-1 Page : 2 of 157 Date of issue : April 10, 2006 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Contents Page Section 1 : Client information 3 Section 2 : Equipment under test (E.U.T.) 3 Section 3 : Test specification, procedures & results 4 Section 4 : Operation of E.U.T. during tests 6 Section 5 : Conducted emission 7 Section 6 : Radiated emission 10 Section 7 : Antenna terminal voltage 13 Section 8 : RF output level / spurious emission 14 Section 9 : Antenna transfer switch 16 Section 10 : Picture sensitivity 17 Section 11 : Noise figure 18 Contents of Appendixes 19 Appendix 1 : Photographs of test set up 20 Appendix 2 : Data of EMI tests 27 Appendix 3: Test instruments 157 Test report No. : 26GE0303-YW-1 Page : 3 of 157 Date of issue : April 10, 2006 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Section 1 : Client information Company name : Orion Electric Co., Ltd. Address : 41-1 Iehisa-cho, Echizen-shi, Fukui-ken, 915-8555 JAPAN Telephone number : +81 778 23 0019 Facsimile number : +81 778 23 7799 Contact person : Yoshimasa Tanikawa Section 2 : Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of equipment : DVD Recorder with Video Cassette Recorder Brand Name : TOSHIBA Model number : D-VR5SU FCC ID : A7RM2J4A Rating : AC 120 V / 60 Hz Manufacturer : 1. World Electric (Thailand) Ltd. 236 Moo 2 Nongchark, Banbung, Chonburi 20170, Thailand 2. Korat Denki Ltd. 149 Moo 10 Tambol Chokchai, Amphur Chokchai, Nakhonratchasima 30190, Thailand 228 Moo 3 Tambol Nongbuasala, Amphur Muang, Nakhonratchasima 30000, Thailand 3. Orion America, Inc. Hwy 41 North, Orion Place, Princeton, Indiana 47670, U.S.A Receipt Date of Sample : February 22, 2006 Condition of EUT : Production Prototype (Not for Sale: This sample is equivalent to mass-produced items.) 2.2 Product description Model: D-VR5SU (referred to as the EUT in this report) is a DVD Recorder with Video Cassette Recorder. The EUT specifications is as follows. Tuner type : Quartz PLL frequency synthesized I / F : 45.75 MHz (Picture), 41.25 MHz (Sound) Receiving channel : VHF 2 – 13 ch / UHF 14 – 69 ch / CATV 1 – 125 ch Antenna input : 75 ohm Video signal : NTSC color Power source : AC 120 V / 60 Hz, 29W I / O terminal (Video) : RCA in 1Vp-p 75 ohm, RCA out 1 Vp-p 75 ohm I / O terminal (Audio) : RCA in –8 dB 47 k ohm, RCA out –8 dB 1 k ohm Test report No. : 26GE0303-YW-1 Page : 4 of 157 Date of issue : April 10, 2006 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Section 3 : Test specification, procedures and results 3.1 Test specification Test specification : FCC Part 15 Subpart B Title : FCC 47 CFR Part 15 Radio Frequency Device Subpart B Unintentional Radiators Test Specification : ICES-003 Issue No. 4 Title : Spectrum Management Interference-Causing Equipment Standard Digital Apparatus *ICES-003 (Issue No. 4) is based on FCC Part 15. 3.2 Procedures & results Item Test procedure Limits Worst margin Result Conducted emission ANSI C63.4:2003 CISPR 22 16.3 dB (14.3190 MHz/ 14.3192 MHz, QP, N, AV In 2+ Rec.) Complied Radiated emission ANSI C63.4:2003 IEEE 187:1990 30–88 MH: 100 uV/m 88–216 MHz: 150 uV/m 216–960 MHz: 200 uV/m above 960 MHz: 500 uV/m 2.4 dB (741.75 MHz, Vertical; VCR +Rec.) Complied Antenna terminal voltage ANSI C63.4:2003 2 nW (at 75 ohm) 23.8 dB (2624.286 MHz, Cable) Complied RF output level Video signal: 3000 uV Aural signal: 671 uV 4.9 dB (61.25 MHz, 3ch, AV Input / VCR Playback) Complied Spurious emission ANSI C63.4:2003 94.8 uV 23.4 dB (617.1300 MHz, 4ch, DVD Play) Complied Transfer switch ANSI C63.4:2003 9.5 dB 3.2 dB (403.5000 MHz/ 269.000 MHz, 4ch, VCR Play) Complied Picture sensitivity ANSI C63.4:2003 8 dB 1.8 dB Complied Noise figure FCC/OET MP:2:1986 14 dB 1.8 dB (651.25 MHz, 44ch) Complied For ICES-003, only the tests, which relate to the digital device of conducted emission and radiated emission, were performed. 3.3 Additions or deviations to standard No addition, deviation or exclusion has been made from standards. 3.4 Confirmation UL Apex Co., Ltd. hereby confirms that E.U.T., in the configuration tests, complies with the specifications FCC Part15 Subpart B and ICES-003 Issue No. 4. Test report No. : 26GE0303-YW-1 Page : 5 of 157 Date of issue : April 10, 2006 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Tel…

Text truncated - open the document above for the full version.

DATA OF RADIATION TEST UL Apex Co., Ltd. YOKOWA No.3 OPEN TEST SITE Report No.: 2GE0303-YW-1 Applicant : Orion Electric Co.,Ltd. Kind of Equipment : DVD Recorder with Video Cassette Recorder Model No. : D-VR5SU Serial No. : - Power : AC120V/60Hz Mode : TV Reception+Rec(25dBmV) Remarks : - Date : 3/15/2006 Test Distance : 3 m Temperature : 21 °C Engineer : Toshifumi Yoneshige Humidity : 45 ％ Regulation : FCC Part15B CLASS B(Peak Limit / Upper1GHz) No. FREQ. ANT READING ANT AMP CABLE ATTEN. RESULT LIMITS MARGIN TYPE HOR VER FACTOR GAIN LOSS HOR VER HOR VER [MHz] [dBμV] [dB/m] [dB] [dB] [dB] [dBμV/m] [dBμV/m] [dB] ---------------------------------------------------------------------------------------------- 1. 1014.90 BB 48.7 50.9 24.0 40.0 3.9 0.0 36.6 38.8 74.0 37.4 35.2 2. 1349.99 BB 54.2 60.7 24.2 39.5 4.3 0.0 43.2 49.7 74.0 30.8 24.3 3. 1760.00 BB 47.9 46.7 24.4 38.8 4.8 0.0 38.3 37.1 74.0 35.7 36.9 ---------------------------------------------------------------------------------------------- CALCULATION: READING + ANT.FACTOR + CABLE LOSS - AMP.GAIN + ATTEN. Except for the above table: adequate margin data below the limits. ANT TYPE:1-5GHz Horn Page: DATA OF RADIATION TEST UL Apex Co., Ltd. YOKOWA No.3 OPEN TEST SITE Report No.: 2GE0303-YW-1 Applicant : Orion Electric Co.,Ltd. Kind of Equipment : DVD Recorder with Video Cassette Recorder Model No. : D-VR5SU Serial No. : - Power : AC120V/60Hz Mode : TV Reception+Rec(25dBmV) Remarks : - Date : 3/15/2006 Test Distance : 3 m Temperature : 21 °C Engineer : Toshifumi Yoneshige Humidity : 45 ％ Regulation : FCC Part15B CLASS B(Peak Limit / Upper1GHz) Emission Level [dBμV/m] Frequency [MHz] □Horizontal×Vertical 0 10 20 30 40 50 60 70 80 90 100 30 100 500 1000 2000 5000 Page: DATA OF RADIATION TEST UL Apex Co., Ltd. YOKOWA No.3 OPEN TEST SITE Report No.: 2GE0303-YW-1 Applicant : Orion Electric Co.,Ltd. Kind of Equipment : DVD Recorder with Video Cassette Recorder Model No. : D-VR5SU Serial No. : - Power : AC120V/60Hz Mode : AV Input1+Rec(1Vp-p) Remarks : - Date : 3/14/2006 Test Distance : 3 m Temperature : 23 °C Engineer : Tsubasa Takayama Humidity : 65 ％ Regulation : FCC Part15B CLASS B No. FREQ. ANT READING ANT AMP CABLE ATTEN. RESULT LIMITS MARGIN TYPE HOR VER FACTOR GAIN LOSS HOR VER HOR VER [MHz] [dBμV] [dB/m] [dB] [dB] [dB] [dBμV/m] [dBμV/m] [dB] ---------------------------------------------------------------------------------------------- 1. 540.00 BB 37.6 35.0 20.3 27.9 5.5 5.9 41.4 38.8 46.0 4.6 7.2 ---------------------------------------------------------------------------------------------- CALCULATION: READING + ANT.FACTOR + CABLE LOSS - AMP.GAIN + ATTEN. Except for the above table: adequate margin data below the limits. Page: DATA OF RADIATION TEST UL Apex Co., Ltd. YOKOWA No.3 OPEN TEST SITE Report No.: 2GE0303-YW-1 Applicant : Orion Electric Co.,Ltd. Kind of Equipment : DVD Recorder with Video Cassette Recorder Model No. : D-VR5SU Serial No. : - Power : AC120V/60Hz Mode : AV Input1+Rec(1Vp-p) Remarks : - Date : 3/14/2006 Test Distance : 3 m Temperature : 23 °C Engineer : Tsubasa Takayama Humidity : 65 ％ Regulation : FCC Part15B CLASS B Emission Level [dBμV/m] Frequency [MHz] □Horizontal×Vertical 0 10 20 30 40 50 60 70 30 100 500 1000 Page: DATA OF RADIATION TEST UL Apex Co., Ltd. YOKOWA No.3 OPEN TEST SITE Report No.: 2GE0303-YW-1 Applicant : Orion Electric Co.,Ltd. Kind of Equipment : DVD Recorder with Video Cassette Recorder Model No. : D-VR5SU Serial No. : - Power : AC120V/60Hz Mode : AV Input1+Rec(1Vp-p) Remarks : - Date : 3/15/2006 Test Distance : 3 m Temperature : 23 °C Engineer : Toshifumi Yoneshige Humidity : 65 ％ Regulation : FCC Part15B CLASS B(Average Limit / Upper1GHz) No. FREQ. ANT READING ANT AMP CABLE ATTEN. RESULT LIMITS MARGIN TYPE HOR VER FACTOR GAIN LOSS HOR VER HOR VER [MHz] [dBμV] [dB/m] [dB] [dB] [dB] [dBμV/m] [dBμV/m] [dB] ----------------------------------------------------------…

Text truncated - open the document above for the full version.
