A7RM2J4BDVD / VCR TV Interface Device






 2J40801A_En_01_0515/5/06, 2:49 PM1 DRAFT The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. The lightning flash with arrowhead, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN D1-4-2-3_En IMPORTANT NOTICE – THE SERIAL NUMBER FOR THIS EQUIPMENT IS LOCATED IN THE REAR. PLEASE WRITE THIS SERIAL NUMBER ON YOUR ENCLOSED WARRANTY CARD AND KEEP IN A SECURE AREA. THIS IS FOR YOUR SECURITY. D1-4-2-6-1_En Information to User Alteration or modifications carried out without appropriate authorization may invalidate the user’s right to operate the equipment. D8-10-2_En NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: –Reorient or relocate the receiving antenna. –Increase the separation between the equipment and receiver. –Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. –Consult the dealer or an experienced radio/TV technician for help. D8-10-1-2_En CAUTION : USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. CAUTION : THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD. D6-8-2-1_En WARNING – TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. D1-4-2-1_En CAUTION: This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables and connectors for connections. D8-10-3a_En This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. D8-10-1-3_EF Thank you for buying this Pioneer product. Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference. 2J40801A_En_01_0515/5/06, 2:49 PM2 READ INSTRUCTIONS — All the safety and operating instructions should be read before the product is operated. RETAIN INSTRUCTIONS — The safety and operating instructions should be retained for future reference. HEED WARNINGS — All warnings on the product and in the operating instructions should be adhered to. FOLLOW INSTRUCTIONS — All operating and use instructions should be followed. CLEANING — The product should be cleaned only with a polishing cloth or a soft dry cloth. Never clean with furniture wax, benzine, insecticides or other volatile liquids since they may corrode the cabinet. ATTACHMENTS — Do not use attachments not recommended by the product manufacturer as they may cause hazards. WATER AND MOISTURE — Do not use this product near water — for example, near a bathtub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like. ACCESSORIES — Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer. CART — A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. VENTILATION — Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to. POWER SOURCES — This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. LOCATION – The appliance should be installed in a stable location. NONUSE PERIODS – The power cord of the appliance should be unplugged from the outlet when left un-used for a long period of time. GROUNDING OR POLARIZATION • If this product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other), it will fit into the outlet onl…

Text truncated - open the document above for the full version.

Playback 05 46 En Playing back JPEG files JPEG CD JPEG files must have the extension letters “.jpe”, “.jpeg” or “.jpg”. 1Press
or  to select JPEG file. •In case the disc includes more than 10 files, you can turn to the next or the previous page. (See page 42.) Alone.jpg Ambassadeurs-Aristide_Bruant.jp Arlstide Bruant.jpg At_the_Moulin_Rouge.jpg Clown Cha-U-Kao.jpg Dancer Seated.jpg EI Dorado.jpg Galerie 65 Cannes.jpg Jane Avril-1893.jpg Alfred Ia Guigne.jpg /popArt BROWSER ENTER RETURNPLAYBACK SET END SELECT TITLE MENU 2Carry out either of the item a or b below. a: Press ENTER. b: Press  to select “PLAY” and press ENTER. The thumbnail images of the JPEG files stored in the route directory or the folder appear. Press
, ,  or  to select the pages of the thumbnail images, or select the JPEG file to be displayed at first for the slide show. Base_ball.jpgFriend.jpgDrive.jpg party_240803.jpgpractice_ski.jpgMy_car.jpg ENTER RETURNPLAYBACKEND SELECT SELECT TITLE MENU 3Press ENTER to play the selected picture. If you have set the interval time for JPEG slide show, the pictures will be played back one after another automati- cally. (See page 32.) •Press ZOOM to enlarge the displayed image. •Press ANGLE to rotate the image by 90 degrees each time. 4To return to the thumbnail screen, press RE- TURN. •To stop the slide show, press TITLE MENU. 2J40801A_En_40_4715/5/06, 2:52 PM46 Playback 05 47 En 1Press
or  to select DivX ® file. •If the disc includes more than 10 files, you can move to the next or previous page. (See page 42.) 2Carry out the item a or b listed below. a:Press ENTER. b:Press  and then press
or  to select “PLAY” and press ENTER. The selected title is played back. •You can use Fast forward, Review, Still, Frame advance, SKIP /, and Slow motion playback (See page 36). Note •It may take a while to start to play DivX ® video. Please wait until picture appears on screen. If the incorrect DRM file is loaded, “Authorization Error This player is not authorized to play this video.” will appear on the screen. When you attempt to play DivX ® VOD, the number of plays is limited and the following message will appear on the screen. If you wish to play it, select “YES”. •If the number of plays goes over the limit, then “Rental Expired” will be displayed, in which case the file will not be played.

          !

           Playing back DivX ® video files DivX ® video specifications •DivX ® file must have the extension letters “.avi” “.div” or “.divx” •DivX ® version: DivX ® 3, 4, 5, and 6 (specifically 3.1.1, 4.1.2, 5.0.2, 5.0.5, 5.1.1, 5.2.1, 6.0 at Home Theater profile). Audio format: MPEG1 Layer2 (MP2), MPEG1 Layer3(MP3) Bit rate: 8kbps - 320kbps Sampling frequencies: 32kHz, 44.1kHz, 48kHz Resolution: Max 720 x 576 (at 25fps) Max 720 x 480 (at 30fps) Note •Character setting for external subtitle setting corresponds ISO8859-1 (Latin1) only. Other character code cannot be displayed. •For external subtitle files the following subtitle format filename extensions are supported (please note that these files are not shown within the disc navigation menu): “.sub” “.smi” “.srt” “.ssa” “.txt” “.ass” “.rt” “.aqt” “.psb” •The filename of the movie file has to be repeated at the beginning of the filename for the external subtitle file. 2J40801A_En_40_4715/5/06, 2:52 PM47 Playback 05 48 En Preparation: •Connect to a TV equipped with component jacks which support progressive video input. •Turn ON the TV and set it to the corresponding video input mode. •Press DVD/VCR to select the DVD mode. (The DVD indicator will light.) 1Press PROGRESSIVE. The PROGRESSIVE indicator “ P ” on the display window will light. And “COMPONENT: 480p” will appear on the display. •The unit recognizes the picture source (film or video) of the current disc according to the disc information. 2Press PLAY to start playback. P •To make the progressive scanning mode inactive, press PROGRESSIVE. The PROGRESSIVE indicator “ P ” on the display window will go off, and “COM- PONENT: 480i” will appears on the display. Different scanning modes Interlaced scan Technology that alternately displays odd-numbered scanning lines and even-numbered scanning lines. Also called “480i”, “i” meaning “interlace”. Progressive scan Technology that simultaneously displays odd-numbered scanning lines and even-numbered scanning lines from top to bottom. Also called “480p”, “p” meaning “progressive”. Note •Some discs may not be played back with the progressive scan mode correctly because of the disc characteristics or recording condition. •There are some progressive TV and High-Definition TV sets that are not fully compatible with the unit, resulting in an unnatural picture when playing back a DVD disc in the progressive scan mode. In such a case, use the interlaced scanning mode. •You cannot activate the progressive scan mode in the following cases: - the unit is in the VCR mode. •S-Video and the Video out jack cannot output at the same time when progressive scanning mode is appeared. Progressive scan DVD-Video RAM VR mode Video mode DVD-R The unit supports the progressive scanning system as well as the conventional interlaced scanning system. If your TV is equipped with component video input jacks which support the progressive video input, you can enjoy higher picture quality by making the progressive scanning mode active. 2J40801A_En_48_5215/5/06, 2:52 PM48 Playback 05 49 En Loading and unloading a cassette tape VCR Use only video cassette tapes marked and . •Cassettes marked “VHS” (or “S-VHS”) can be used with this video cassette recorder. However, S-VHS recording is not possible with this model. •This model is equipped with SQPB (S-VHS QUASI PLAYBACK) that makes it possible to playback S- VHS recordings with regular VHS resolution. •HQ VHS is compatible with existing VHS…

Text truncated - open the document above for the full version.

Editing 07 68 En Erasing a scene (Edit title) RAM VR mode You can erase an unnecessary scene from the created playlist. When you erase the scene from the playlist, the scene is not erased from the original title. 1Press TITLE MENU to display the title menu. 2Select the playlist where a scene you want to erase is included. • Press
or  to select the playlist. • Press  to display the editing menu of the playlist. • Press
or  to select “EDIT TITLE”. ENTER RETURNENTERBACK SET END SELECT TITLE MENU DISC NAME:———— 11/23/2006 08:41AM 006 EP 11/25/2006 10:03PM 011 SP 11/29/2006 11:30AM 009 SP 12/01/2006 06:52PM 006 XP Family REC DATE :11/23/2006 TIME:08:41AM LENGTH:00:30:17 CHANNEL :006 REC MODE :EP TITLE MENU PLAY EDIT PROGRAM DELETE TITLE RENAME TITLE TITLE COMBINE EDIT TITLE 3Press ENTER. The EDIT TITLE screen appears. ENTER RETURNENTERBACKEND TITLE MENU EDIT TITLE NAMEFamily CHAPTER 1/3 LENGTH00:00:00/00:30:17 00:00:00 00:00:0000:00:00 Preview Press SELECT to start 4Press ENTER to playback the playlist on the EDIT TITLE screen. Use each operation button (F.FWD, REW, SKIP +, SKIP –, PLAY, PAUSE/STILL, SLOW, CM SKIP) for the playback to search the starting point of the scene you want to erase. SELECT ENTER RETURNENTERBACKEND TITLE MENU EDIT TITLE 00:08:28 00:00:0000:00:00 Preview SET START SET END Finish NAMEFamily CHAPTER 1/3 LENGTH00:08:28/00:30:17 5Press
or  to select “SET START” at the start point of the scene that you want to erase and press ENTER. (To set the start point easily, search the start point while “SET START” is selected) The still image at the start point appears at the left small screen. SELECT ENTER RETURNENTERBACKEND TITLE MENU EDIT TITLE 00:11:42 00:10:2000:11:42 Preview Adjust start SET END Finish NAMEFamily CHAPTER 2/3 LENGTH00:11:42/00:30:17 2J40801A_En_65_7315/5/06, 2:53 PM68 Editing 07 69 En 6Press
or  to select “SET END” at the end point of the scene you want to erase and press ENTER. The still image at the end point appears at the right small screen. SELECT ENTER RETURNENTERBACKEND TITLE MENU EDIT TITLE NAMEFamily CHAPTER 2/3 LENGTH00:15:58/00:30:17 00:15:58 00:10:2000:15:58 Preview Adjust start Adjust end Finish 7Check the erased scenes. •Select “Preview” and press ENTER. Then the video where the scenes between the start and end points are erased is played back. •Each operation button (F.FWD, REW, SKIP +, SKIP –, PLAY, PAUSE/STILL) for playback also can be used. 8Adjust the start and end points. •To adjust the start point, select “Adjust start” and press ENTER. You can change the start point by pressing  or . •To adjust the end point, select “Adjust end” and press ENTER. You can change the end point in the same way as the start point. 9If you determine the scene to be erased, press
or  to select “Finish” and press ENTER. •A chapter mark is automatically added at the location of the erased scene. Note •It is no problem to omit the procedures for confirm- ing the scene or adjusting start and end points. •It is not possible to make any adjustments for 2 seconds after a title starts or 2 seconds before it ends. •To set a start point at the beginning of a title, set it during countdown. •The points during editing may be different from the preview. •Start and end points are adjusted in units of 1 second. 2J40801A_En_65_7315/5/06, 2:53 PM69 Editing 07 70 En Combining the title RAM VR mode You can create a playlist by combining the several original titles or playlists. To combine the titles, it is necessary to create a playlist at first. By combining the titles in the playlist, a playlist where several titles are combined is created. 1Press TITLE MENU to display the title menu. 2Select the playlist where you want to combine the titles. • Press
or  to select the playlist. • Press  to display the editing menu of the playlist. • Press
or  to select “TITLE COMBINE”. ENTER RETURNENTERBACK SET END SELECT TITLE MENU DISC NAME:———— 11/23/2006 08:41AM 006 EP 11/25/2006 10:03PM 011 SP 11/29/2006 11:30AM 009 SP 12/01/2006 06:52PM 006 XP Title 1 PL Family REC DATE :11/23/2006 TIME:08:41AM LENGTH:00:30:17 CHANNEL :006 REC MODE :EP TITLE MENU PLAY EDIT TITLE DELETE TITLE RENAME TITLE TITLE COMBINE TITLE COMBINE 3Press ENTER. Select the title that you want to combine from the title menu. ENTER RETURNENTERBACKEND SELECT TITLE MENU DISC NAME:———— 11/23/2006 08:41AM 006 EP 11/25/2006 10:03PM 011 SP 11/29/2006 11:30AM 009 SP 12/01/2006 06:52PM 006 XP Family REC DATE :11/25/2006 TIME:10:03PM LENGTH:00:20:00 CHANNEL :011 REC MODE :SP TITLE MENU 4Press ENTER. Following the playlist, the selected title is combined. The several titles were combined so that the total recording time is displayed. ENTER RETURNPLAYBACK SET END SELECT TITLE MENU DISC NAME:———— 11/23/2006 08:41AM 006 EP 11/25/2006 10:03PM 011 SP 11/29/2006 11:30AM 009 SP 12/01/2006 06:52PM 006 XP Title 1 PL Family REC DATE :11/23/2006 TIME:08:41AM LENGTH:00:50:17 CHANNEL :006 REC MODE :EP TITLE MENU 2J40801A_En_65_7315/5/06, 2:53 PM70 Editing 07 71 En Erasing a playlist RAM VR mode You can erase the created playlist. Even if you erase the playlist, the original title will not be erased. 1Press TITLE MENU to display the title menu. 2Select the playlist that you want to erase. • Press
or  to select the playlist. • Press  to display the editing menu of the playlist. • Press
or  to select “DELETE TITLE”. ENTER RETURNENTERBACK SET END SELECT TITLE MENU DISC NAME:———— 11/23/2006 08:41AM 006 EP 11/25/2006 10:03PM 011 SP 11/29/2006 11:30AM 009 SP 12/01/2006 06:52PM 006 XP Family REC DATE :11/23/2006 TIME:08:41AM LENGTH:00:30:17 CHANNEL :006 REC MODE :EP TITLE MENU PLAY EDIT TITLE DELETE PROGRAM RENAME TITLE TITLE COMBINE DELETE TITLE 3Press ENTER. The selected playlist will be erased. ENTER RETURNPLAYBACK SET END SELECT TITLE MENU DISC NAME:———— 11/23/2006 08:41AM 006 EP 11/25/2006 10:03PM 011 SP 11/29/2006 11:30AM 009 SP 12/01/2006 06:52PM 006 XP REC DATE :12/01/2006 TIME:06:52PM LENGTH:00:30:07 CHANNEL :006 REC…

Text truncated - open the document above for the full version.

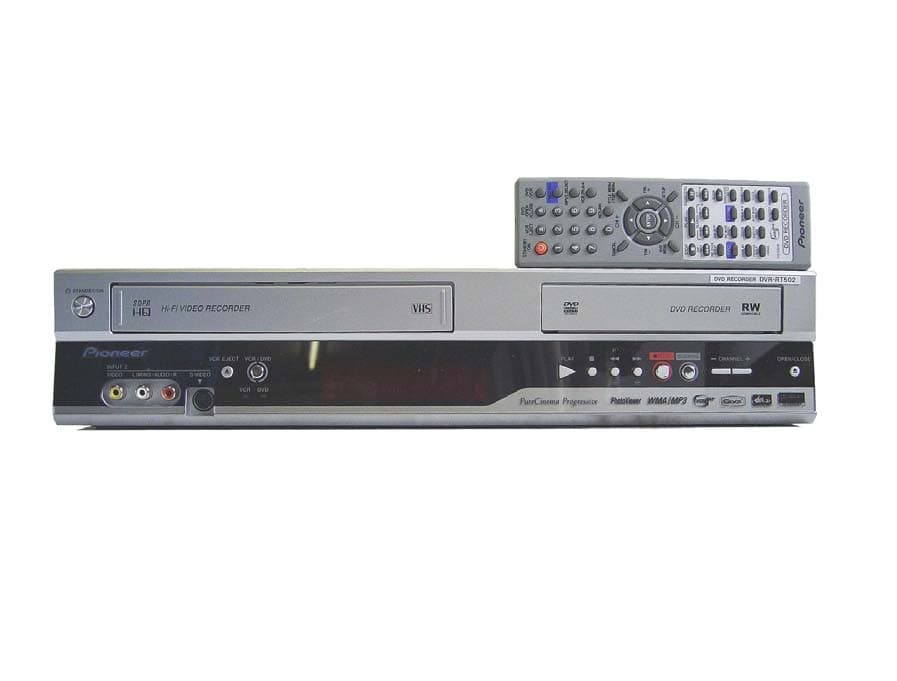

ExternalPhotos

ATTACHMENT J-1 FCC ID: A7RM2J4B FCC IDENTIFIER (2.926)  LABELING REQUIREMENT(15.19) --- Labeling BAC K V I E W

Internalphotos

CIRCUIT DESCRIPTION 1/2 This device is combined a DVD Recorder with a Video cassette recorder and operates with an AC commercial power supply.(AC120V, 60Hz) This device includes TV interface Device, Television Broadcast receiver, and Digital device of product category defined by FCC. The external connectors are equipped with Front Audio(L/R)/Video/S-Video Input, RF input/Output, Rear Audio(L/R)/Video/S-Video Input, Rear Audio(L/R) /Video/S-Video Output, Component Output, Coaxial Digital Audio Output, and DVD Audio Output L/R. The circuit is composed by Power Supply Block, VCR Block, and DVD Recorder Block, if divided roughly. The explanation is as follows and the details are referred to Block Diagram. Power Supply Block: Use the switching regulator circuit and provide the power supply to each circuit. VCR Block: The circuit of this block is composed by Y/C/Audio/CCD/Head Amp, MICON, Tuner/Jack, Display, Hi-Fi Demodulator, AV SW, Operation and so on. RF Modulator output is output in US 3ch or 4ch and Emission frequency is as Follows: Emission Frequency; US 3ch Video carrier: 61.25MHz Audio carrier: 65.75MHz US 4ch Video carrier: 67.25MHz Audio carrier: 71.75MHz The oscillating frequencies that is used this block are the follows: 10MHz, 32.768KHz---- Syscon/TIMER/SERVO IC Clock 3.579545MHz--- Y/C/Audio/CCD/Head Amp IC Clock DVD Block: The circuit of this block is composed by AV Encorder, MPEG, Memory, Audio and so on. 2/2 The oscillating frequencies that is used this block are the follows: 135MHz--- SD-RAM Clock (RAMCLK) 27MHz--- MPEG Master Clock (GCLK) 18.4327MHz--- Audio Master Clock (AMCLK) 3.072MHz---Audio bit Clock (ABCLK) 48kHz---Audio L/R Clock (LRCLK) 27MHz---Video Clock(VIDCLK) 27MHz---Serial Bit Clock(SBCLK)

Test report No. : 26IE0251-YW-1 Page : 1 of 143 Date of issue : May 11, 2006 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Certification EMI TEST REPORT Test Report No. : 26IE0251-YW-1 Applicant : Orion Electric Co., Ltd. Type of equipment : DVD Recorder with Video Cassette Recorder Model number : DVR-RT502-S FCC ID : A7RM2J4B Test standard : FCC Part 15 Subpart B ICES-003 Issue No.4 Class B Test result : Complied Similar model : Model No. Brand name Model No. Brand name DVR-RT402-S Pioneer - - - - - - - - - - - - - - - - - - 1. This test report shall not be reproduced except in full or partial, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with above regulation. We hereby certify that the data contain a true representation of the EMC profile. 4. The test results in this test report are traceable to the national or international standards. Date of test: April 20 to May 8, 2006 Tested by: Masanori Nishiyama Engineer of EMC Service Tsubasa Takayama Engineer of EMC Service Approved by: Go Ishiwata Engineer of EMC Service Hiroya Tabata Leader of EMC Service Test report No. : 26IE0251-YW-1 Page : 2 of 143 Date of issue : May 11, 2006 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Contents Page Section 1 : Client information 3 Section 2 : Equipment under test (E.U.T.) 3 Section 3 : Test specification, procedures & results 4 Section 4 : Operation of E.U.T. during tests 6 Section 5 : Conducted emission 7 Section 6 : Radiated emission 10 Section 7 : Antenna terminal voltage 13 Section 8 : RF output level / spurious emission 14 Section 9 : Antenna transfer switch 16 Section 10 : Picture sensitivity 17 Section 11 : Noise figure 18 Contents of Appendixes 19 Appendix 1 : Photographs of test set up 20 Appendix 2 : Data of EMI tests 27 Appendix 3: Test instruments 143 Test report No. : 26IE0251-YW-1 Page : 3 of 143 Date of issue : May 11, 2006 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Section 1 : Client information Company name : Orion Electric Co., Ltd. Address : 41-1 Iehisa-cho, Echizen-shi, Fukui-ken, 915-8555 JAPAN Telephone number : +81 778 23 0019 Facsimile number : +81 778 23 7799 Contact person : Yoshimasa Tanikawa Section 2 : Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of equipment : DVD Recorder with Video Cassette Recorder Model number : DVR-RT502-S Brand name : Pioneer Rating : AC 120V / 60Hz Manufacturer : 1. World Electric (Thailand) Ltd. 236 Moo 2 Nongchark, Banbung, Chonburi 20170, Thailand 2. Korat Denki Ltd. 149 Moo 10 Tambol Chokchai, Amphur Chokchai, Nakhonratchasima 30190, Thailand 228 Moo 3 Tambol Nongbuasala, Amphur Muang, Nakhonratchasima 30000, Thailand 3. Orion America, Inc. Hwy 41 North, Orion Place, Princeton, Indiana 47670, U.S.A Receipt Date of Sample : April 20, 2006 Condition of EUT : Production model 2.2 Product description Model: DVR-RT502-S (referred to as the EUT in this report) is a DVD Recorder with Video Cassette Recorder. The EUT specifications is as follows. Tuner type : Quartz PLL frequency synthesized I / F : 45.75 MHz (Picture), 41.25 MHz (Sound) Receiving channel : VHF 2 – 13 ch / UHF 14 – 69 ch / CATV 1 – 125 ch Antenna input : 75 ohm Video signal : NTSC color Power source : AC 120 V / 60 Hz, 29 W I / O terminal (Video) : RCA in 1Vp-p 75 ohm, RCA out 1 Vp-p 75 ohm I / O terminal (Audio) : RCA in –8 dB 47 k ohm, RCA out –8 dB 1 k ohm Test report No. : 26IE0251-YW-1 Page : 4 of 143 Date of issue : May 11, 2006 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Section 3 : Test specification, procedures and results 3.1 Test specification Test specification : FCC Part 15 Subpart B Title : FCC 47 CFR Part 15 Radio Frequency Device Subpart B Unintentional Radiators Test Specification : ICES-003 Issue No. 4 Title : Spectrum Management Interference-Causing Equipment Standard Digital Apparatus *ICES-003 (Issue No. 4) is based on FCC Part 15. 3.2 Procedures & results Item Test procedure Limits Worst margin Result Conducted emission ANSI C63.4:2003 CISPR 22 19.0 dB (0.1500 MHz, QP, N, TV reception +VCR Rec. +DVD Rec.) Complied Radiated emission ANSI C63.4:2003 IEEE 187:1990 30–88 MH: 100 uV/m 88–216 MHz: 150 uV/m 216–960 MHz: 200 uV/m above 960 MHz: 500 uV/m 5.0 dB (945.00 MHz, Vertical, DVD Play +VCR +Rec.) Complied Antenna terminal voltage ANSI C63.4:2003 2 nW (at 75 ohm) 22.4 dB (3641.429 MHz, Air) Complied RF output level Video signal: 3000 uV Aural signal: 671 uV 5.9 dB (61.25 MHz, 3ch, VCR Playback +DVD Rec.) Complied Spurious emission ANSI C63.4:2003 94.8 uV 17.9 dB (54.1200 MHz, 3ch, DVD Play +VCR Rec.) Complied Transfer switch ANSI C63.4:2003 9.5 dB 3.9 dB (67.2500 MHz, 4ch, AV Input 1 +VCR Rec. +DVD Rec.(1Vp-p)) Complied Picture sensitivity ANSI C63.4:2003 8 dB 4.8 dB Complied Noise figure FCC/OET MP:2:1986 14 dB 7.4 dB (801.25 MHz, 69ch / 295.325 MHz, 36ch) Complied For ICES-003, only the tests, which relate to the digital device of conducted emission and radiated emission, were performed. 3.3 Additions or deviations to standard No addition, deviation or exclusion has been made from standards. 3.4 Confirmation UL Apex Co., Ltd. hereby confirms that E.U.T., in the configuration tests, complies with the specifications FCC Part15 Subpart B and ICES-003 Issue No. 4. Test report No. : 26IE0251-YW-1 Page : 5 of 143 Date of issue : May 11, 2006 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 3.5 Uncertainty Conducted emission (150 kHz – 30 MHz) The measurement uncertainty (with a 95% confidence level) for t…

Text truncated - open the document above for the full version.

DATA OF RADIATION TEST UL Apex Co.,Ltd. YAMAKITA No.1 OPEN TEST SITE Report No.: 26IE0251-YW Applicant : Orion Electric Co., Ltd. Kind of Equipment : DVD/VCR Model No. : DVR-RT502-S Serial No. : - Power : AC120V/60Hz Mode : AV Input1 + DVD/VCR Rec(1Vp-p) Remarks : Date : 4/20/2006 Test Distance : 3 m Temperature : 17 °CEngineer : Go Ishiwata Humidity : 75 ％ Regulation : FCC Part15B §15.109(a) Emission Level [dBμV/m] Frequency [MHz] □Horizontal×Vertical 0 10 20 30 40 50 60 70 30 100 500 1000 Page: DATA OF RADIATION TEST UL Apex Co.,Ltd. YAMAKITA No.1 OPEN TEST SITE Report No.: 26IE0251-YW Applicant : Orion Electric Co., Ltd. Kind of Equipment : DVD/VCR Model No. : DVR-RT502-S Serial No. : - Power : AC120V/60Hz Mode : AV Input1 + DVD/VCR Rec(1Vp-p) Remarks : AV(RBW:1MHz,VBW:10Hz) Date : 4/21/2006 Test Distance : 3 m Temperature : 21 °CEngineer : Go Ishiwata Humidity : 38 ％ Regulation : FCC Part15B §15.109(a) No. FREQ. ANT READING ANT AMP CABLE ATTEN. RESULT LIMITS MARGIN TYPE HOR VER FACTOR GAIN LOSS HOR VER HOR VER [MHz] [dBμV] [dB/m] [dB] [dB] [dB] [dBμV/m] [dBμV/m] [dB] ---------------------------------------------------------------------------------------------- 1. 1350.02 BB 40.8 44.7 24.7 37.8 4.8 0.0 32.5 36.4 54.0 21.5 17.6 ---------------------------------------------------------------------------------------------- CALCULATION: READING + ANT.FACTOR + CABLE LOSS - AMP.GAIN + ATTEN. ■ANTENNA:KHA-01(SAS-200 571) ■CABLE:KCC-D11/D12■PREAMP:KAF-02(8449B)■SPECTRUMANALYZER:KSA-04(R3271A) Page: DATA OF RADIATION TEST UL Apex Co.,Ltd. YAMAKITA No.1 OPEN TEST SITE Report No.: 26IE0251-YW Applicant : Orion Electric Co., Ltd. Kind of Equipment : DVD/VCR Model No. : DVR-RT502-S Serial No. : - Power : AC120V/60Hz Mode : AV Input1 + DVD/VCR Rec(1Vp-p) Remarks : AV(RBW:1MHz,VBW:10Hz) Date : 4/21/2006 Test Distance : 3 m Temperature : 21 °CEngineer : Go Ishiwata Humidity : 38 ％ Regulation : FCC Part15B §15.109(a) Emission Level [dBμV/m] Frequency [MHz] □Horizontal×Vertical 0 10 20 30 40 50 60 70 30 100 500 1000 2000 5000 Page: DATA OF RADIATION TEST UL Apex Co.,Ltd. YAMAKITA No.1 OPEN TEST SITE Report No.: 26IE0251-YW Applicant : Orion Electric Co., Ltd. Kind of Equipment : DVD/VCR Model No. : DVR-RT502-S Serial No. : - Power : AC120V/60Hz Mode : AV Input1 + DVD/VCR Rec(1Vp-p) Remarks : PK(RBW:1MHz,VBW:1MHz) Date : 4/21/2006 Test Distance : 3 m Temperature : 21 °CEngineer : Go Ishiwata Humidity : 38 ％ Regulation : FCC Part15B CLASS B(PK) No. FREQ. ANT READING ANT AMP CABLE ATTEN. RESULT LIMITS MARGIN TYPE HOR VER FACTOR GAIN LOSS HOR VER HOR VER [MHz] [dBμV] [dB/m] [dB] [dB] [dB] [dBμV/m] [dBμV/m] [dB] ---------------------------------------------------------------------------------------------- 1. 1350.02 BB 50.5 54.6 24.7 37.8 4.8 0.0 42.2 46.3 74.0 31.8 27.7 ---------------------------------------------------------------------------------------------- CALCULATION: READING + ANT.FACTOR + CABLE LOSS - AMP.GAIN + ATTEN. ■ANTENNA:KHA-01(SAS-200 571) ■CABLE:KCC-D11/D12■PREAMP:KAF-02(8449B)■SPECTRUMANALYZER:KSA-04(R3271A) Page: DATA OF RADIATION TEST UL Apex Co.,Ltd. YAMAKITA No.1 OPEN TEST SITE Report No.: 26IE0251-YW Applicant : Orion Electric Co., Ltd. Kind of Equipment : DVD/VCR Model No. : DVR-RT502-S Serial No. : - Power : AC120V/60Hz Mode : AV Input1 + DVD/VCR Rec(1Vp-p) Remarks : PK(RBW:1MHz,VBW:1MHz) Date : 4/21/2006 Test Distance : 3 m Temperature : 21 °CEngineer : Go Ishiwata Humidity : 38 ％ Regulation : FCC Part15B CLASS B(PK) Emission Level [dBμV/m] Frequency [MHz] □Horizontal×Vertical 0 10 20 30 40 50 60 70 80 90 100 30 100 500 1000 2000 5000 Page: DATA OF RADIATION TEST UL Apex Co.,Ltd. YAMAKITA No.1 OPEN TEST SITE Report No.: 26IE0251-YW Applicant : Orion Electric Co., Ltd. Kind of Equipment : DVD/VCR Model No. : DVR-RT502-S Serial No. : - Power : AC120V/60Hz Mode : AV Input1 + DVD/VCR Rec(5Vp-p) Remarks : Date : 4/20/2006 Test Distance : 3 m Temperature : 17 °CEngineer : Go Ishiwata Humidity : 75 ％ Regulation : FCC Part15B §15.109(a) No. FREQ. ANT READING ANT AMP CABLE ATTEN. RESULT LIMITS MARGIN TYPE HOR VER FACTOR GAIN LOSS HOR VER…
