A7RM2I4ADVD / VCR TV Interface Device

2 16 26 33 38 43 Introduction 46 49 62 70 DVD VIDEO PLAYER & VIDEO CASSETTE RECORDER SD-V594SU OWNER’S MANUAL ©2006 Toshiba Corporation This device does not tape-record copy protected DVD Video Discs. Connections Basic setup (VCR) Playback (VCR) Recording (VCR) Other functions (VCR) Basic playback (DVD) Advanced playback (DVD) Function setup (DVD) Others 2I40101A-En_cov12/30/05, 9:12 AM1 2 Introduction SAFETY PRECAUTIONS WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, do not expose this appliance to rain or moisture. CAUTION:TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. FCC NOTICE:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be deter- mined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. CAUTION:Changes or modifications not expressly approved by the partly responsible for compliance with the FCC Rules could void the user's authority to operate this equipment. CAUTION:THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM. TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS USER'S GUIDE CARE- FULLY AND RETAIN FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE MAINTE- NANCE, CONTACT AN AUTHORIZED SERVICE LOCATION. USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT TRY TO OPEN THE ENCLO- SURE. VISIBLE LASER RADIATION MAY BE PRESENT WHEN THE ENCLOSURE IS OPENED. DO NOT STARE INTO BEAM. The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. Location of the required Marking The rating sheet and the safety caution are on the rear of the unit. CERTIFICATION: COMPLIES WITH FDA RADIATION PERFORMANCE STANDARDS, 21 CFR SUBCHAPTER J. RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION




     2I40101A-En_p02-1312/30/05, 9:12 AM2 3 Introduction 1. READ INSTRUCTIONS All the safety and operating instructions should be read before the unit is operated. 2. RETAIN INSTRUCTIONS The safety and operating instructions should be retained for future reference. 3. HEED WARNINGS All warnings on the unit and in the operating instructions should be adhered to. 4. FOLLOW INSTRUCTIONS All operating and use instructions should be followed. 5. CLEANING Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a soft dry cloth for cleaning the exterior cabinet only. 6.ATTACHMENTS The manufacturer of this unit does not make any recommendations for attachments, as they may cause hazards. 7. WATER AND MOISTURE Do not use this unit near water. For example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. 8. ACCESSORIES Do not place this unit on an unstable cart, stand, tripod, bracket, or table. The unit may fall, causing serious injury, and serious damage to the unit. 8A.An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn. 9. VENTILATION Slots and openings in the cabinet back or bottom are provided for ventilation, to ensure reliable operation of the unit, and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat source. This unit should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided and/or the manufacturer’s instructions have been adhered to. 10. POWER SOURCE This unit should be operated only from the type of power source indicated on the rating plate. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. 11.GROUNDING OR POLARIZATION This unit is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug. 12. POWER-CORD PROTECTION Power-supply cords should be routed so that they are not likely to be walked on or pinched by items p…

Text truncated - open the document above for the full version.

41 Recording (VCR) One-touch Timer Recording (OTR) The One-touch Timer Recording feature provides a simple and convenient way to make a timed recording. One-touch Timer Recording (OTR) Press once twice 3 times 4 times 5 times NORMAL REC 0:30 1:00 1:30 2:00 3:00 4:00 5:00 6:00 NORMAL REC Recording timePress 6 times 7 times 8 times 9 times 10 times Recording time Load a cassette tape with the erase prevention tab intact. The VCR will automatically turn on. 1 Press SP/SLP to select the desired tape speed SP or SLP. The tape counter and “SP” or “SLP” will appear on the screen for about 4 seconds. 2 Set “TV” or “CABLE” option to the appropriate position
. 3 TV- VHF/UHF channels CABLE- Cable TV channels Press Direct channel selection buttons (0–9) or CH +/– to select the channel to be recorded. 4 Press REC/OTR. Recording begins. Press the button again to stop recording after 30 minutes. Each additional press of REC/OTR will increase recording time as shown in the chart below, up to a maximum of 6 hours. The OTR and recording time will appear on the screen for about 4 seconds. And, “ ” will appear on the display. 5 To cancel OTR Press STOP or turn off the power. “ ” will appear on screen for about 4 seconds. Note: If you wish to watch the DVD playback during OTR or standard recording, press DVD/VCR SELECT to change to DVD mode and perform the DVD playback 47 . 0–9 CH +/– REC/OTR SP/SLP DVD/VCR STOP Preparation: •Turn ON the TV and select to the corresponding video input. •Press DVD/VCR to operate the DVD/VCR. •Press DVD/VCR SELECT to select the VCR mode. (The VCR indicator will light.) Example: One-touch Timer Recording for 30 minutes. DVD/VCR SELECT

    2I40101A-En_p40-4312/30/05, 9:14 AM41 42 Recording (VCR) Timer recording Timer recording can be programmed on-screen with the remote control. The built-in timer allows automatic unattended recording of up to 8 programs within 1 month. Timer recording Notes: •Press CANCEL to move cursor backward for correction. •To record from external source set the channel to “L1” or “ L2”. Notes: •If the timer symbol () blinks when the timer recording ended, the TV program has not been completely recorded because of an insufficient tape length. Press TIMER REC to cancel the timer program or press EJECT to remove the cassette tape. •During timer recording standby mode, the VCR mode cannot be operated. To use the VCR, press TIMER REC at first, then press DVD/VCR SELECT to change to VCR mode. After VCR mode is selected, press TIMER REC again to put the VCR into timer recording standby mode. •If you press TIMER REC during timer recording, the recording operation will be interrupted. If you press TIMER REC again within the programmed time, the recording operation will start again. •After a power failure or disconnection of the power plug, all programmed recording settings and time display will be lost upon resumption of power. In this case, reset the clock and reprogram any timer recording. Press VCR MENU. Select “TIMER REC SET”, then press ENTER. Preparation: •Press DVD/VCR to operate the DVD/VCR. •Press DVD/VCR SELECT to select the VCR mode. •Load a cassette tape with the erase prevention tab intact. •Check the time and date are correct
. Example: Program a timer recording for the 26th day, channel 125 (Cable TV), 11:00 - 11:30 PM on timer program number 1 (Tape speed: SLP). 1 Press SET + or – to select one of the program line, then press ENTER. 2 Press SET + or – to select the date, then press ENTER. 3 Set the start time, end time, channel and tape speed as in step 3. 4 To enter other programs, repeat steps 2 through 4. •To return to the normal screen, press VCR MENU twice. 5 Press TIMER REC. The timer symbol () will appear on the display and the VCR standbys for recording. At the same time, VCR mode will change to DVD mode automatically. You can use DVD even if the VCR is in the timer recording mode. If you do not use the DVD, turn the power off. 6 Notes: •The timer recording will start at 5 seconds before the preset starting time. •If the timer symbol ( ) does not appear on the display when TIMER REC is pressed, the cassette is not inserted 34 . •If the cassette is ejected when TIMER REC is pressed, the erase prevention tab of the cassette may have been removed 34 . •During Timer recording, the power cannot be turned off. SET +/– DVD/VCR ENTER CANCEL VCR MENU EJECT TIMER REC DVD/VCR SELECT











 〈



 〉                      〈



 〉                      〈



 〉                   〈



 〉                    2I40101A-En_p40-4312/30/05, 9:14 AM42 43 Recording (VCR) Setting procedure To set daily/weekly timer To confirm Timer program: At step 1 on page 42 , select “TIMER REC SET” and press ENTER. The timer program list will appear on the screen. 2 The current day (Friday)SU-SA (Sunday to Saturday) MO-SA (Monday to Saturday) MO-FR (Monday to Friday) WKL-WEWKL-TH (Weekly Thursday) (Weekly Wednesday) One month later minus one day Weekly (e.g. WKL-TU: each Tuesday) or daily (e.g. MO- SA: Monday to Saturday) Timer recording Follow the procedure of timer recording on page 42 . At step 3, press SET + or – repeatedly until the desired setting appears. Then press ENTER. When you press SET…

Text truncated - open the document above for the full version.

External Photos

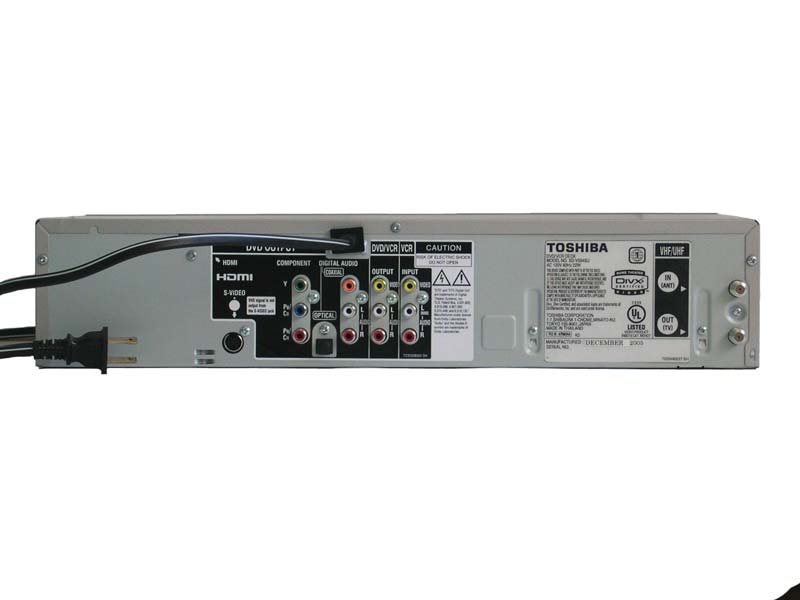

ATTACHMENT J-1 FCC ID: A7RM2I4A FCC IDENTIFIER (§2.926)  LABELING REQUIREMENT(§15.19) --- Labeling BACK VIEW

Internal Photos Internal Photos Tuner

CIRCUIT DESCRIPTION 1/2 This device is combined a DVD player with a Video cassette recorder and operates with an AC commercial power supply.(AC120V, 60Hz) This device includes TV interface Device, Television Broadcast receiver, and Digital device of product category defined by FCC. The external connectors are equipped with USB Input, Front Audio (L/R)/Video Input, RF Input/Output, Rear Audio (L/R)/Video Input, Rear Audio( L/R) /Video Output, Component Output, S-VHS Output, Coaxial Digital Audio Output, HDMI Output, Optical Digital Audio Output and DVD Audio Output L/R. The circuit is composed by Power Supply Block, VCR Block, DVD Block, if divided roughly. The explanation is as follows and the details are referred to Block Diagram. Power Supply Block: Use the switching regulator circuit and provide the power supply to each circuit. VCR Block: The circuit of this block is composed by Y/C/Audio/CCD/Head Amp, Syscon, Tuner/Jack, Tuner/IF/Modulator, Operation / Display, Hi-Fi Demodulator, and so on. RF Modulator output is output in US 3ch or 4ch and Emission frequency is as Follows: Emission Frequency; US 3ch Video carrier: 61.25MHz Audio carrier: 65.75MHz US 4ch Video carrier: 67.25MHz Audio carrier: 71.75MHz The oscillating frequencies that is used this block are the follows: 10MHz----VCR System Control IC Clock 3.579545MHz---Luminance and Chrominance IC Clock DVD Block: The circuit of this block is composed by Motor Drive, MPEG Decoder /Microprocessor/DSP/RF AMP, Memory, AUDIO/VIDEO, HDMI/USB and so on. The oscillating frequencies that is used this block are the follows: 135MHz--- SD-RAM Clock (RAMCLK) 27MHz--- MPEG Master Clock (GCLK) 12.288MHz--- Audio Master Clock (AMCLK) 3.072MHz---Audio bit Clock (ABCLK) 48kHz---Audio L/R Clock (ALRCLK) 27MHz/74.25MHz---HDMI DATA Clock(HDMI_CLK) 48MHz/67.5MHz---USB DATA Clocl(USB_CLK)

Test report No. : 26EE0195-YW-1 Page : 1 of 145 Date of issue : January 27, 2006 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Certification EMI TEST REPORT Test Report No. : 26EE0195-YW-1 Applicant : Orion Electric Co., Ltd. Type of equipment : DVD Player with Video Cassette Recorder Model number : SD-V594SU FCC ID : A7RM2I4A Test standard : FCC Part 15 Subpart B ICES-003 Issue No.4 Class B Test result : Complied Similar model : Model No. Brand name Model No. Brand name SD-V594SC TOSHIBA - - SD-V494SU TOSHIBA - - SD-V494SC TOSHIBA - - - - - - - - - - 1. This test report shall not be reproduced except in full or partial, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with above regulation. We hereby certify that the data contain a true representation of the EMC profile. 4. The test results in this test report are traceable to the national or international standards. 5. This test report does not constitute an endorsement by NIST/NVLAP or U.S. Government. Date of test : December 20, 2005 to January 11, 2006 Tested by: Tsubasa Takayama Tomoyuki Yamashita Engineer of EMC Service Engineer of EMC Service Masanori Nishiyama Engineer of EMC Service Approved by: Hiroya Tabata Leader of EMC Service Test report No. : 26EE0195-YW-1 Page : 2 of 145 Date of issue : January 27, 2006 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Contents Page Section 1 : Client information 3 Section 2 : Equipment under test (E.U.T.) 3 Section 3 : Test specification, procedures & results 4 Section 4 : Operation of E.U.T. during tests 6 Section 5 : Conducted emission 7 Section 6 : Radiated emission 10 Section 7 : Antenna terminal voltage 13 Section 8 : RF output level / spurious emission 14 Section 9 : Antenna transfer switch 16 Section 10 : Picture sensitivity 17 Section 11 : Noise figure 18 Contents of Appendixes 19 Appendix 1 : Photographs of test set up 20 Appendix 2 : Data of EMI tests 27 Appendix 3: Test instruments 145 Test report No. : 26EE0195-YW-1 Page : 3 of 145 Date of issue : January 27, 2006 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Section 1 : Client information Company name : Orion Electric Co., Ltd. Address : 41-1 Iehisa-cho, Echizen-shi, Fukui-ken, 915-8555 JAPAN Telephone number : +81 778 23 0019 Facsimile number : +81 778 23 7799 Contact person : Yoshimasa Tanikawa Section 2 : Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of equipment : DVD Player with Video Cassette Recorder Brand Name : TOSHIBA Model number : SD-V594SU FCC ID : A7RM2I4A Rating : AC 120 V / 60 Hz Manufacturer : 1. World Electric (Thailand) Ltd. 236 Moo 2 Nongchark, Banbung, Chonburi 20170, Thailand 2. Korat Denki Ltd. 149 Moo 10 Tambol Chokchai, Amphur Chokchai, Nakhonratchasima 30190, Thailand 228 Moo 3 Tambol Nongbuasala, Amphur Muang, Nakhonratchasima 30000, Thailand 3. Orion America, Inc. Hwy 41 North, Orion Place, Princeton, Indiana 47670, U.S.A Receipt Date of Sample : December 19, 2005 Condition of EUT : Production Prototype (Not for Sale: This sample is equivalent to mass-produced items.) 2.2 Product description Model: SD-V594SU (referred to as the EUT in this report) is a DVD Player with Video Cassette Recorder which can connect with USB device. The EUT specifications is as follows. Tuner type : Quartz PLL frequency synthesized I / F : 45.75 MHz (Picture), 41.25 MHz (Sound) Receiving channel : VHF 2 – 13 ch / UHF 14 – 69 ch / CATV 1 – 125 ch Antenna input : 75 ohm Video signal : NTSC color Power source : AC 120 V / 60 Hz, 20W I / O terminal (Video) : RCA in 1Vp-p 75 ohm, RCA out 1 Vp-p 75 ohm I / O terminal (Audio) : RCA in –8 dB 47 k ohm, RCA out –8 dB 1 k ohm Test report No. : 26EE0195-YW-1 Page : 4 of 145 Date of issue : January 27, 2006 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Section 3 : Test specification, procedures and results 3.1 Test specification Test specification : FCC Part 15 Subpart B Title : FCC 47 CFR Part 15 Radio Frequency Device Subpart B Unintentional Radiators Test Specification : ICES-003 Issue No. 4 Title : Spectrum Management Interference-Causing Equipment Standard Digital Apparatus *ICES-003 (Issue No. 4) is based on FCC Part 15. 3.2 Procedures & results Item Test procedure Limits Worst margin Result Conducted emission ANSI C63.4:2003 CISPR 22 7.0 dB (0.1672 MHz, AV, L1, USB mode) Complied Radiated emission ANSI C63.4:2003 IEEE 187:1990 30–88 MH: 100 uV/m 88–216 MHz: 150 uV/m 216–960 MHz: 200 uV/m above 960 MHz: 500 uV/m 1.9 dB (270.03 MHz, Horizontal, VCR Playback) Complied Antenna terminal voltage ANSI C63.4:2003 2 nW (at 75 ohm) 21.8 dB (641.42430 MHz, Air) Complied RF output level Video signal: 3000 uV Aural signal: 671 uV 4.6 dB (67.25 MHz, 4ch, TV Reception + Rec. 25dBmV) Complied Spurious emission ANSI C63.4:2003 94.8 uV 5.5 dB (17.22143 MHz, Air) Complied Transfer switch ANSI C63.4:2003 9.5 dB 9.0 dB (61.2500 MHz, 3ch, AV Input1 + Rec. 1Vp-p) Complied Picture sensitivity ANSI C63.4:2003 8 dB 4.1 dB Complied Noise figure FCC/OET MP:2:1986 14 dB 5.5 dB (651.25 MHz, 44ch / 133.25 MHz, 16ch) Complied For ICES-003, only the tests, which relate to the digital device of conducted emission and radiated emission, were performed. 3.3 Additions or deviations to standard No addition, deviation or exclusion has been made from standards. 3.4 Confirmation UL Apex Co., Ltd. hereby confirms that E.U.T., in the configuration tests, complies with the specifications FCC Part15 Subpart B and ICES-003 Issue No. 4. Test report No. : 26EE0195-YW-1 Page : 5 of 145 Date of issue : January 27, 2006 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yoko…

Text truncated - open the document above for the full version.

Test report No. : 26EE0195-YW-1 Page : 20 of 145 Date of issue : January 27, 2006 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Conducted emission Test report No. : 26EE0195-YW-1 Page : 21 of 145 Date of issue : January 27, 2006 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Radiated emission Test report No. : 26EE0195-YW-1 Page : 22 of 145 Date of issue : January 27, 2006 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Antenna terminal voltage Test report No. : 26EE0195-YW-1 Page : 23 of 145 Date of issue : January 27, 2006 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 RF output level / spurious emission Test report No. : 26EE0195-YW-1 Page : 24 of 145 Date of issue : January 27, 2006 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Antenna transfer switch Test report No. : 26EE0195-YW-1 Page : 25 of 145 Date of issue : January 27, 2006 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Picture sensitivity Test report No. : 26EE0195-YW-1 Page : 26 of 145 Date of issue : January 27, 2006 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Noise figure
