A7V-SR87503001Signal Booster

Operational Diagram (How It Works) Package Contents Page 2 Basic Signal Level Knowledge Page 3 Installation Step By Step Page 4‐8 SolidRF Terrain Super Cell PhoneBoosterManual Trouble Shooting Page 9‐10 TechnicalSpecification Phone Booster Manual Technical Specification Warranty Information Page 11 Safety Guidelines Page 12 If you have any questions or concerns when installing or operating your cell phone booster, please email us: [email protected] Manufactured and Warranted by SolidRF Technology Inc. Canada www.SolidRF.ca 1 Working Diagram (How It Works) 1. The outdoor antenna catches the signal from the tower. 2. Sends outside signal to the booster through a coax cable. 3. The booster amplifies the signal then rebroadcasts the signal indoors to all mobile devices within ran ge. The sizeand the coverage area and the strengthof the boosted signal are directly related to two key factors: 1. Signal strength received by the outdoor unit. So, setting up the outside unit where the signal is the strongest will provide the best results. 2Distanceofseparationbetweentheoutdoorunitandtheindoorantenna g 4. The system also works in reverse; amplifying outgoing signal back to the tower. Package Contents 2.Distance of separationbetween the outdoor unit and the indoor antenna. The kit includes the following items: 1. Booster； 2. Inside Antenna; 3. Power supply; 4. 10ft RG316cable, for connecting the outdoor unit and indoor unit; Booster Inside Antenna AC/DC Power Adapter RG316 Cable 2 Signal transmission loss and power level Coverage area ability Note: FCC regulations limit the amplification of all cell phone boosters in order to preventdamagetothetelecommunicationsinfrastructureThereforethemaximumprevent damage to the telecommunications infrastructure. Therefore, the maximum coverage area of a booster depends on the original power level of the signal captured by the outdoor unit. Notice: Not recommended when outdoor signal strength is less than ‐110dbm(3G/1x) or ‐120dBm(4G/LTE). The resulting coverage area of the boosted signal will be prohibitivelysmallprohibitively small. Power Level at the Outdoor Antenna Location Main Antenna Coverage Area (radius around antenna) Strong (5 bars on the cellphone)20 ft 3 Medium (3~4 bars on the cellphone)10 ft Weak (1~2 bars on the cellphone)6 ft Step1: Study your RV and make a installation planning ≥3 feet In order to achieve the best signal coverage effect, there is a certain distance requirement between the indoor and outdoor units. Make sure the inside and outside units are facing away from each other. First determine the location of the inside antenna. It should be the place you use your cell phone signal most of the time. Then choose the location of the outside antenna. It should be in front or rear on the roof, has the most distance from the inside antenna location. Also need consider how the route the cable inside. A B 4 Step2: Outdoor Antenna Installation Determine where you want to have the outside antenna on your RV. Mount outside antenna on the roof. Option A : Outside Roof Mount (Best Choice) 5 Option B : Rear Compartment Cover Mount (Second Choice) Mount outside booster to rear compartment cover NOTE: Keep in mind to stay below the max height limit allowed by law, which varies Step3: Cable Route & Booster Mount Determine where you want the cable to enter the RV. NOTE: With this option, we recommend doing a ‘soft install’ before drilling the hole. Set up the system by routing the cablethroughanopendoororwindowcompletingthesetupinstructionsverifyingthe pygy from state to state (generally 14’ in western states and 13’6” in eastern states). cable through an open door or window, completing the setup instructions, verifying the system works as desired, and then drilling the hole. Option A: Using existing cable entry point Option B: Through the slider on your RV (using the slider gasket as a seal). Option C: Drill a hole. Find a location to place the booster. NOTE: We recommend in a cabinet near a power source. Be sure it’s in a location that the 20’ RG‐58 cable can reach. 6

Step4: Connect the System 1Connectsixantennasonthebooster1.Connect six antennas on the booster 2. Connect the booster to the “Input” port of splitter by cable . Connect the inside antenna and Plug in the power adaptor and connect it to the nearest power outlet (surge protector recommended). 7 Step5: Evaluate the Effects •Now that all of the components of the booster are in place, and the booster is powered on, it’s time to check the performance. If everything checks out, return to steps 2 and 3 to finalize installation. Here’s what you should look for: 1.) Run a signal strength/speed check. Test the signal strength with the booster off, then re‐test the signal in the same location after you plug‐in the power supply. You should have a stronger signal. You can access the signal strength through the settings menu of your phone (a negative number in dBm) or download a speed test App. Remember that a stronger signal means the dBm is closer to zero. (Refer to the diagramonpage3)diagram on page 3) 2.) When you plug‐in the power adaptor, the booster runs a self‐diagnostic as it powers on. Use the LED light on the back of the main inside antenna to interpret the results. If everything is connected properly, and there is an adequate power supply, the LED light should stay continuous green. •If something is wrong, refer to the “Quick Troubleshooting” section at the end of the manual. Otherwise, finalize the installation. Happy boosting, happy trails! DecibelGainPowerAmplificationDistanceEnhanceCoverageEnhance Decibel Gain vs. Power Amplification/Distance/Coverage area Decibel GainPower Amplification (times) Distance Enhance (times) Coverage Enhance (times) 64x 2x 4x 108x3x9x 2064x10x100x Note:Decibel Gain and Power Amplification may vary depending on the specifics of your RV inside. Different materials and other obstructions in your home will result in different outcomes. 8 Correct functioning: •Power Light should be solid green •The lights on the front panel indicate the condition of the booster. Every time the booster is powered on, all of the lights will be green in color for several seconds then Quick Trouble shooting p,gg off. This means the booster has passed the self check and is in good condition.. Incorrect Functioning: (Please see the Troubleshooting Guide for further details) •If any of the lights on the front panel are flashing in green then off/continue flashing/solid green, it means that self oscillation is occurring. You must switch off the booster and check the outside and inside antennas immediatel y. Make sure you have Power Light yy followed the recommended installation process and check each step carefully. Refer to Self Oscillation section for more details of minimum required separation distance, antennas installation. If you can not fix the problem please contact the technical support or the reseller. SolidRF Technical Support: [email protected] Trouble Shooting: No Signal Improvement Step 1. Check power. Ensure the indoor unit is plugged in and the LED PLi hti 9 Power Light is green. Trouble Shooting: No Signal Improvement Step 4. Double check the location of outdoorandindoorunitsMakesurethatoutdoor and indoor units. Make sure that the Minimum Separation Requirements have been met. Make sure that the outside antenna is not pointed towards the inside antenna. ≥3 feet ≥2 feet≥2 feet Minimum Required Separation Distance Between Indoor and Outdoor Unit： Horizontal Distance = 3 feet (1 meter)() Vertical Distance = 2 feet (0.6 meter) (As far as possible) Step 5. Check incoming signal level at outdoor unit position. Usage of a booster is not 1010 pg recommend when the outdoor signal is less than ‐110dbm(3G/1x) or ‐120dBm(4G/LTE). Technical Specification Frequency (MHz) LTE (band 12/17) LTE (band 13) Cellular ( band5) PCS (band2/25) AWS (band 4) Uplink698‐716776‐787824‐8491850‐19151710‐1755 Downlink728‐746746‐757869‐8941930‐19952110‐2155 Noise figure<5dB In‐band Flatness<8dB Weight0.7Kg EIRP≤1W Gain adjustment20dB Impedance50 ohm WARRANTY Operating temperature‐5°~60° Current≦1.5A(9V/12V DC) Dimension(mm)155*125*25 WARRANTY The booster is covered under a three‐year product warranty for failures or defects that result from craftsmanship and/or materials. Dated proof of purchase should be retained for use in warranty cases. Contact the retailer/reseller directly with any warranty issues, or alternatively contact the manufacturer in cases where the reseller is no longer available to handle warranty claims. In cases where the reseller is unavailable, the product may be returned to the manufacturer at the consumer’sexpense,withadatedproofofpurchaseandareturnauthorizationletterwhichcanbeconsumer s expense, with a dated proof of purchase and a return authorization letter which can be attained by contacting SolidRF. This warranty does not apply to any signal booster components determined by SolidRF to have been subjected to misuse, abuse, neglect, tampering, or mishandling that result in damages to the physical or electronic properties of the product. Refurbished products that have been recertified to conform to product specifications may be used for product replacements. DISCLAIMER: The information provided by SolidRF is believed to be complete and accurate, to the best of our knowledge. However, no responsibility is assumed by SolidRF for any business or personal losses arising from the use of the information herein contained, or for any infringements of patents or other rights of third parties that may result from its use. 11 20 Install the indoor antenna according to the minimum service distance of the Inside server antenna modelMinimum separation distances D (m) ANT010901、ANT010701、ANT050701 ANT060302、ANT040301、ANT080301、 Install the indoor antenna according to the minimum service distance of the antenna model below. ANT080302、ANT060301、SR-21300100 ANT070101、ANT060303 0.2 0.55 Antenna Kitting Information ComponentProd No. Diti Gain/Loss Manufacturer 698‐746 MH 746‐787 MH 824‐ 894MH 1850…

Text truncated - open the document above for the full version.

ShenZhen S Add: No.8,s Tel: +86‐75 Email: chiy u Date: FEDERAL Authorizati o 7435 Oakla Columbia, M Subject: Att We, ShenZ under FCC and tested t (1) License upon FCC/ T (2) NPS an (3) NPS an operation) (4) NPS an removed (5) This C o does not req (6) Future s Best Regard Signature: Printed Na m Title: CEO SolidRF Com shop D,Bloc 5‐83142660 utopwave@ COMMUN on and Eval nd Mills Ro MD 21046 testation for Zhen SolidR ID: to ensure FC e consent fo TCB request d other com d other com d other com onsumer boo quire profes software up ds, me: Yu Chi mmunicatio ck C,Shan Sh 0 @163.com NICATIONS uation Divi s oad r Signal Boo RF Commun 1 CC complia or provider-s t) mpliance/saf mpliance/saf mpliance/saf oster is not ssional insta pgrade will n i ns Co., Ltd hui Ju,Longw Atte COMMISS sion oster nications Co ance. specific boos feguard feat feguard feat feguard feat user progra allation. not cause no wei RD station l SION o., Ltd, here ster has bee tures have b tures are de tures cannot ammable, do on-complian letter by declare t en obtained been implem faulted to “ t be field re oes not need nce. that the cert .w (consent be mented ON” config econfigured, d fine tuning tified signal which is man e made avai guration (in , disabled o g or adjustm l booster nufactured lable r ment, 2019-11-18 ATV-SR87503001,Model Number:Terrain 6

QA-FR-170-B Shenzhen SolidRF Communications Co., Ltd Add: No.8, Shop D, Block C, Shan Shui Ju, Longwei RD Tel: 86-755-83142660 Fax: +86-755-86107352 E-mail: [email protected] FCC Authorization Date: 2019-11-18 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , Shenzhen SolidRF Communications Co., Ltd Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Printed Name: Yu Chi Title: CEO

QA-FR-172-A Shenzhen SolidRF Communications Co., Ltd Add: No.8, Shop D, Block C, Shan Shui Ju, Longwei RD Tel: 86-755-83142660 Fax: +86-755-86107352 E-mail: [email protected] FCC Confidential Authorization Date: 2019-11-18 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: A7V-SR87503001 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Shenzhen SolidRF Communications Co., Ltd. hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description  Parts List/Tune up procedure (for licensed devices) The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature Printed Name: Yu Chi Title: CEO

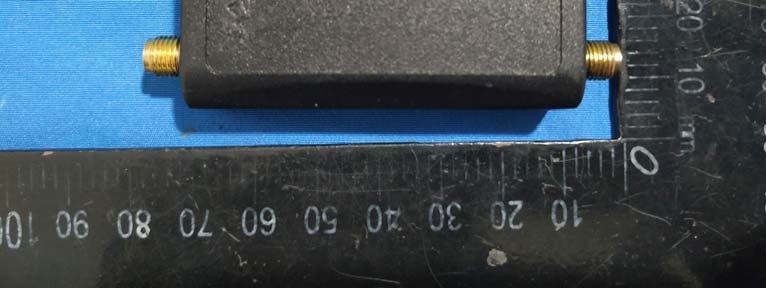

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Port

PrimBoost Intactwave www.SolidRF.ca Five band signal booster This is a CONSUMER device BEFORE USE MUST REGISTER THIS DEVICE,you with your wireless provider and have your provider's consent .Most wireless provider consent to the use of signal boosters .Some providers may not consent to the use of this device on their network .If you are unsure ,contact your provider. You o p erate this MUST device with approved antenna and cables as specified by the manufacture r . Antennas be installed at MUST least 20c m ( 8inches ) f romany person. You cease operating this device immediately if requested by the FCC or a licensed wireless MUST service provider. WARNING.E911 location information may not be provided or may be inaccurate for calls served by using this device. Maximum Output: 1W EIRP/Band (uplink) IC :10198A-SR87503001 [AWS&Canada LTE] [Verizon/Sprint] [AT&T/T-Mobile] FCC ID:A7V-SR87503001 HVIN：Terrain6 Model:Terrain6 GPS: 1575.42MHz www.SolidRF.ca Five band signal booster This is a CONSUMER device Maximum Output: 1W EIRP/Band (uplink) IC :10198A-SR87503001 [AWS&Canada LTE] [Verizon/Sprint] [AT&T/T-Mobile] FCC ID:A7V-SR87503001 HVIN：Terrain6 GPS: 1575.42MHz www.SolidRF.ca Five band signal booster This is a CONSUMER device Maximum Output: 1W EIRP/Band (uplink) IC :10198A-SR87503001 [AWS&Canada LTE] [Verizon/Sprint] [AT&T/T-Mobile] FCC ID:A7V-SR87503001 HVIN：Terrain6 GPS: 1575.42MHz www.SolidRF.ca Five band signal booster This is a CONSUMER device Maximum Output: 1W EIRP/Band (uplink) IC :10198A-SR87503001 [AWS&Canada LTE] [Verizon/Sprint] [AT&T/T-Mobile] FCC ID:A7V-SR87503001 HVIN：Terrain6 GPS: 1575.42MHz BEFORE USE MUST REGISTER THIS DEVICE,you with your wireless provider and have your provider's consent .Most wireless provider consent to the use of signal boosters .Some providers may not consent to the use of this device on their network .If you are unsure ,contact your provider. You o p erate this MUST device with approved antenna and cables as specified by the manufacture r . Antennas be installed at MUST least 20c m ( 8inches ) f romany person. You cease operating this device immediately if requested by the FCC or a licensed wireless MUST service provider. WARNING.E911 location information may not be provided or may be inaccurate for calls served by using this device. Model:Terrain6 BEFORE USE MUST REGISTER THIS DEVICE,you with your wireless provider and have your provider's consent .Most wireless provider consent to the use of signal boosters .Some providers may not consent to the use of this device on their network .If you are unsure ,contact your provider. You o p erate this MUST device with approved antenna and cables as specified by the manufacture r . Antennas be installed at MUST least 20c m ( 8inches ) f romany person. You cease operating this device immediately if requested by the FCC or a licensed wireless MUST service provider. WARNING.E911 location information may not be provided or may be inaccurate for calls served by using this device. Model:Terrain6 BEFORE USE MUST REGISTER THIS DEVICE,you with your wireless provider and have your provider's consent .Most wireless provider consent to the use of signal boosters .Some providers may not consent to the use of this device on their network .If you are unsure ,contact your provider. You o p erate this MUST device with approved antenna and cables as specified by the manufacture r . Antennas be installed at MUST least 20c m ( 8inches ) f romany person. You cease operating this device immediately if requested by the FCC or a licensed wireless MUST service provider. WARNING.E911 location information may not be provided or may be inaccurate for calls served by using this device. Model:Terrain6

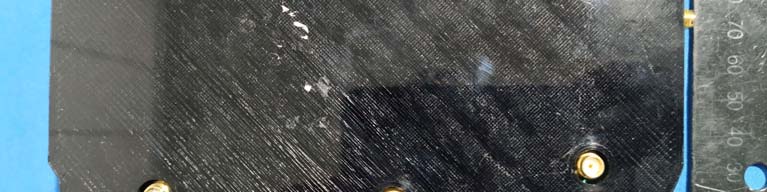

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS ANT ANT Chip1 Chip2

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG191113005-00 Page 1 of 2 FCC §1.1307(b) & §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = PG/4R² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG191113005-00 Page 2 of 2 Calculated Data: Mode Frequency Band(MHz) Antenna Gain Cable Loss Maximum Conducted Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric)dB (dBm)(mW) Uplink 698-716 1.5 1.41 0 23 200 20.00 0.056 0.465 776-787 1.5 1.41 0 23 200 20.00 0.056 0.517 824-849 1.5 1.41 0 23 200 20.00 0.056 0.549 1710-1755 1.5 1.41 0 23 200 20.00 0.056 1 1850-1915 1.5 1.41 0 23 200 20.00 0.056 1 Downlink 728-746 9 7.94 2.3 -3 0.5 20.00 0.001 0.485 746-757 9 7.94 2.4 -3 0.5 20.00 0.001 0.497 869-894 9 7.94 2.6 -3 0.5 20.00 0.001 0.579 2110-2155 10 10.00 4.3 -3 0.5 20.00 0.001 1 1930-1995 10 10.00 4.0 -3 0.5 20.00 0.001 1 Note: the power was used for evaluation is rated power including tolerance. The worst antenna kitting, please refer the user manual. Downlink Cable loss=inside cable loss+Power supply Insertion loss Result: The device meet FCC MPE at 20 cm distance.

FCC PART 20.21 TEST REPORT For Shenzhen SolidRF Communications CO.,Ltd No.8, Shop D, Block C, Shan Shui Ju, Longwei RD , Shenzhen FCC ID: A7V-SR87503001 Report Type: Original Report Product Type: Signal Booster Re port Number: RDG191113005-00B Re port Date: 2019-12-10 Reviewed B y: Jerry Zhang EMC Manager Prepared By: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industry Area, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG191113005-00B Page 2 of 192 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 DECLARATIONS ............................................................................................................................................................ 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SPECIAL ACCESSORIES ................................................................................................................................................. 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 EXTERNAL I/O CABLE .................................................................................................................................................. 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 § 20.21(E)(3) – AUTHORIZED FREQUENCY BAND VERIFICATION ............................................................. 11 APPLICABLE STANDARD ............................................................................................................................................ 11 TEST PROCEDURE ...................................................................................................................................................... 11 TEST DATA ................................................................................................................................................................ 12 § 20.21(e)(8)(i)(D) ,§ 20.21(e)(8)(i)(B)& §20.21(e)(4)– MAXIMUM POWER MEASUREMENT ....................... 18 APPLICABLE STANDARD ............................................................................................................................................ 18 TEST PROCEDURE ...................................................................................................................................................... 18 TEST DATA ................................................................................................................................................................ 19 § 20.21(e)(8)(i)(C)(2), § 20.21(e)(8)(i)(B)&§20.21(e)(4) – MAXIMUM BOOSTER GIAN COMPUTATION .... 21 APPLICABLE STANDARDS........................................................................................................................................... 21 TEST PROCEDURE ...................................................................................................................................................... 21 TEST DATA ................................................................................................................................................................ 21 § 20.21(e)(8)(i)(F)- INTERMODULATION PRODUCT.......................................................................................... 23 APPLICABLE STANDARDS........................................................................................................................................... 23 TEST PROCEDURE ...................................................................................................................................................... 23 TEST DATA ........................................................................................................................................................…
