Advance Information Revision 0.4 12/2015 DS60001372C-Page 53 BM71 Regulatory Compliance Information BM71 Regulatory Compliance Information Revision 0.4 Dec’ 2015 BM71 Regulatory Compliance Information Advance Information Revision 0.4 12/2015 DS60001372C-Page 54 This document covers the Regulatory Compliance information which is part of the BM71 Module datasheet and related documents shared with customers. Advance Information Revision 0.4 12/2015 DS60001372C-Page 55 BM71 Regulatory Compliance Information 1.0 ANTENNA 1.1 Antenna Characteristics 1.1.1 CERAMIC CHIP ANTENNA The BM71 module contains an integral ceramic chip antenna. The Figure 1-1 illustrates the antenna performance of the module. FIGURE 1-1: BM71 ANTENNA RADIATION PATTERN Frequency 2442 MHz Max Gain 0.1 dBi Efficiency 42.7% BM71 Regulatory Compliance Information Advance Information Revision 0.4 12/2015 DS60001372C-Page 54 APPENDIX A: CERTIFICATION NOTICES BM71 module regulatory approval status: • BT SIG/QDID:74246 • United States/FCC ID: A8TBM71S2 • Canada/IC ID: 12246A-BM71S2 HVIN: BM71BLES1FC2 • Europe/CE: In Progress • Japan/MIC: 005-101150 • Korea/KCC: MSIP-CRM-mcp-BM71BLES1FC2 • Taiwan/NCC No: In Progress A.1 REGULATORY APPROVAL This section outlines the regulatory information for the BM71 module for the following countries: • United States • Canada • Europe • Japan • Korea • Taiwan A.1.1 UNITED STATES The BM71 module is in progress to receive Federal Communications Commission (FCC) CFR47 Telecom- munications, Part 15 Subpart C "Intentional Radiators" modular approval in accordance with Part 15.212 Mod- ular Transmitter approval. Modular approval allows the end user to integrate the BM71 module into a finished product without obtaining subsequent and separate FCC approvals for intentional radiation, provided no changes or modifications are made to the module cir- cuitry. Changes or modifications could void the user's authority to operate the equipment. The end user must comply with all of the instructions provided by the Grantee, which indicate installation and/or operating conditions necessary for compliance. The finished product is required to comply with all appli- cable FCC equipment authorizations regulations, requirements and equipment functions not associated with the transmitter module portion. For example, com- pliance must be demonstrated to regulations for other transmitter components within the host product; to requirements for unintentional radiators (Part 15 Sub- part B "Unintentional Radiators"), such as digital devices, computer peripherals, radio receivers, etc.; and to additional authorization requirements for the non-transmitter functions on the transmitter module (i.e., Verification, or Declaration of Conformity) (e.g., transmitter modules may also contain digital logic func- tions) as appropriate. A.1.2 LABELING AND USER INFORMATION REQUIREMENTS The BM71 module has to be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the out- side of the finished product into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording as follows: Contains Transmitter Module FCC ID: A8TBM71S2 or Contains FCC ID: A8TBM71S2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Due to the limited module size (9.0 x 11.5mm) the FCC Identifier is displayed in the Datasheet only and cannot be displayed on the module label. Note: This device has no been auorized as required by the rules of the ederal Com- munications Commission This device is no and may not be, offered or sale or leasor sold or leased, until auorization is obtained Advance Information Revision 0.4 12/2015 DS60001372C-Page 55 BM71 Regulatory Compliance Information A user's manual for the finished product should include the following statement: Additional information on labeling and user information requirements for Part 15 devices can be found in KDB Publication 784748 available at the FCC Office of Engineering and Technology (OET) Laboratory Division Knowledge Database (KDB) http://apps.fcc.gov/oetcf/kdb/index.cfm. A.1.3 RF EXPOSURE All transmitters regulated by FCC must comply with RF exposure requirements. KDB 447498 General RF Exposure Guidance provides guidance in determining whether proposed or existing transmitting facilities, operations or devices comply with limits for human exposure to Radio Frequency (RF) fields adopted by the Federal Communications Commission (FCC). From the FCC Grant: Output power listed is conducted. This grant is valid only when the module is sold to OEM integrators and must be installed by the OEM or OEM integrators. This transmitter is restricted for use with the specific antenna(s) tested in this application for Certification and must not be co-located or operating in conjunction with any other antenna or transmitters within a host device, except in accordance with FCC multi-transmitter product procedures. A.1.4 HELPFUL WEB SITES Federal Communications Commission (FCC): http://www.fcc.gov FCC Office of Engineering and Technology (OET) Lab- oratory Division Knowledge Database (KDB): http://apps.fcc.gov/oetcf/kdb/index.cfm is equipment has been tested and found o comply wihe limi for a Class B digil device pursuan o pa 15 of the FCC Rule These limis are designed provide reasonable protection agains haul inerence in a residential insallation. his equip- ment generate uses and can radiate radio fre- quency energy and if no insalled and used in accordance wih he inruions may cause harmful in erence to radio communicions However ere is no guaranee hat innce will not occur in a paricular inllaion his equipmen does cause harmful in nce to radio or television recepiowhich ca…

Text truncated - open the document above for the full version.

Appendix P Photo Documentation Page 1 of 2 10053432 001; 10053433 001; 10053434 001 Product: Brand Name: Bluetooth module Microchip Type Identification: FCC/IC/CE:BM71abcSeFC2, RN4871;NCC: BM71BLES1FC2,RN4871 Appendix P Photo Documentation Page 2 of 2 10053432 001; 10053433 001; 10053434 001 Product: Brand Name: Bluetooth module Microchip Type Identification: FCC/IC/CE:BM71abcSeFC2, RN4871;NCC: BM71BLES1FC2,RN4871

Sample Label drawing on BM71 Module Packaging:

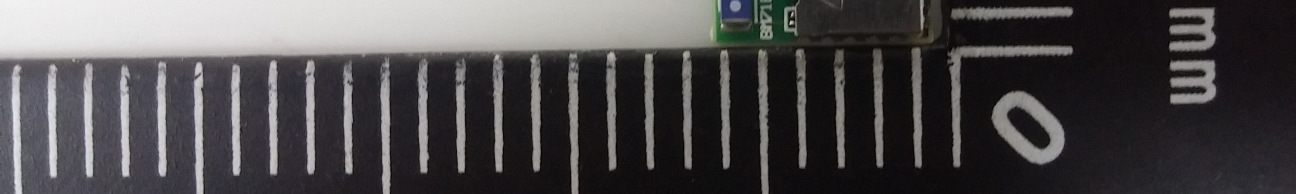

Appendix P Photo Documentation Page 1 of 2 10053432 001; 10053433 001; 10053434 001 Product: Brand Name: Bluetooth module Microchip Type Identification: FCC/IC/CE:BM71abcSeFC2, RN4871;NCC: BM71BLES1FC2,RN4871 Appendix P Photo Documentation Page 2 of 2 10053432 001; 10053433 001; 10053434 001 Product: Brand Name: Bluetooth module Microchip Type Identification: FCC/IC/CE:BM71abcSeFC2, RN4871;NCC: BM71BLES1FC2,RN4871 Chip Antenna

Pr odu k te Prod ucts T es tR epor tN o . Se it e2 7v on3 2 Pa ge27o f3 2 R E SU L T:P assed T es t s t an d ar d :F CCK DBP u bli ca t i on44 7 49 8 D 01v 0 5 Th ema x i m u mpeako u t p u t po w erof t h e t ransm i tt er i s 1 . 2 4m W . Th esepara t i on b e t w een h an d an d an t enna i smore t h an 5 mm . H enc e t h eEU Ti se x c l u e d e d fromSARe v a l u a t i on . Pl easea l sorefer t o F CCK DB p u bli c a t i on44 7 49 8 D 01v0 5:M o bil e P or t a bl eR F E x pos u re

Produkte Products Prüfbericht - Nr.: Test Report No. 10053432 001 Seite 2 von 32 Page 2 of 32 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Passed 5.1.2 PEAK OUTPUT POWER RESULT: Passed 5.1.3 6DB BANDWIDTH AND 99% BANDWIDTH RESULT: Passed 5.1.4 POWER DENSITY RESULT: Passed 5.1.5 CONDUCTED SPURIOUS EMISSIONS AND FREQUENCY BAND EDGE MEASURED IN 100KHZ BANDWIDTH RESULT: Passed 5.1.6 SPURIOUS EMISSION RESULT: Passed 5.2.1 MAINS CONDUCTED EMISSIONS RESULT: Passed 6.1.1 ELECTROMAGNETIC FIELDS RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 10053432 001 Seite 3 von 32 Page 3 of 32 Contents 1. GENERAL REMARKS ............................................................................................... 4 1.1 COMPLEMENTARY MATERIALS ................................................................................. 4 2. TEST SITES ............................................................................................................ 5 2.1 TEST LABORATORY ................................................................................................ 5 2.2 TEST FACILITY ........................................................................................................ 5 2.3 LIST OF TEST AND MEASUREMENT INSTRUMENTS ...................................................... 6 2.4 TRACEABILITY ........................................................................................................ 7 2.5 CALIBRATION ......................................................................................................... 7 2.6 MEASUREMENT UNCERTAINTY ................................................................................. 7 3. GENERAL PRODUCT INFORMATION ........................................................................... 8 3.1 PRODUCT FUNCTION AND INTENDED USE ................................................................. 8 3.2 SYSTEM DETAILS AND RATINGS ............................................................................... 8 3.3 INDEPENDENT OPERATION MODES ........................................................................... 9 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS .............................................. 9 3.5 SUBMITTED DOCUMENTS ......................................................................................... 9 4. TEST SET-UP AND OPERATION MODES ................................................................... 10 4.1 PRINCIPLE OF CONFIGURATION SELECTION ............................................................ 10 4.2 TEST OPERATION AND TEST SOFTWARE................................................................. 10 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................... 10 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE .............................................. 11 4.5 TEST SETUP DIAGRAM .......................................................................................... 11 5. TEST RESULTS ..................................................................................................... 13 5.1 TRANSMITTER REQUIREMENT & TEST SUITES ......................................................... 13 5.1.1 Antenna Requirement ................................................................................................................ 13 5.1.2 Peak Output Power .................................................................................................................... 14 5.1.3 6dB Bandwidth and 99% Bandwidth .......................................................................................... 15 5.1.4 Power Density ............................................................................................................................ 18 5.1.5 Conducted spurious emissions and Frequency Band Edge measured in 100kHz Bandwidth ................................................................................................................................... 21 5.1.6 Spurious Emission ..................................................................................................................... 25 5.2 MAINS EMISSIONS................................................................................................. 26 5.2.1 Mains Conducted Emissions ...................................................................................................... 26 6. SAFETY HUMAN EXPOSURE ................................................................................... 27 Produkte Products Prüfbericht - Nr.: Test Report No. 10053432 001 Seite 4 von 32 Page 4 of 32 6.1 RADIO FREQUENCY EXPOSURE COMPLIANCE ......................................................... 27 6.1.1 Electromagnetic Fields ............................................................................................................... 27 7. PHOTOGRAPHS OF THE TEST SET-UP ..................................................................... 28 8. LIST OF TABLES ................................................................................................... 32 9. LIST OF PHOTOGRAPHS......................................................................................... 32 1. General Remarks 1.1 Complementary Materials The following attachments are integral parts of this test report: Appendix P: Photo Documentation internal view (File Name: 10053432APPENDIX P) Appendix D: Test Result of Radiated Emissions (File Name: 10053432APPENDIX D) Test Specifications The following standards were applied. Table 1: Applied Standard and Test Levels Radio NCC Low-power Radio-frequency Devices Technical Regulations LP0002(2011)(100年6月28日) FCC CFR47 Part 15: Subpart C Section 15.247 RSS-247 Issue 1 May 2015 ANSI C63.10:2013 KDB558074 D01 DTS Meas Guidance v02 Produkte Products Prüfbericht - Nr.: Test Report No. 10053432 001 Seite 5 von 32 Page 5 of 32 2. Test Sites 2.1 Test Laboratory TUV Rheinland Taiwan Ltd. Taichung Branch Office No.9, Lane 36, Minsheng Rd., Sec. 3, Daya District, Taichung City 428 Taiwan (R.O…
