A8TBM8NSPXSYC2ABluetooth Module

Datasheet of Bluetooth BM87SPPS5MC2 Module ISSC Technologies Corp. Revision History Date Revision Content Version 2013/09/05 The first version 0.9 CONFIDENTIAL © 2000~2013 ISSC Technologies Corp. 2 Content 1. Introduction ...................................................................................................................... 3 1.1. Major Components ................................................................................................................................. 3 1.2. Features ................................................................................................................................................. 3 1.3. Application ............................................................................................................................................. 3 2. Product Specification ...................................................................................................... 4 2.1. Chipset ................................................................................................................................................... 4 2.2. Interfaces ............................................................................................................................................... 4 3. Hardware Architecture ..................................................................................................... 5 4. Compatibility Requirements ............................................................................................ 5 5. Environmental Requirements ......................................................................................... 6 5.1. Temperature ........................................................................................................................................... 6 5.2. Humidity ................................................................................................................................................. 6 Appendix A: Dimension and Foot Print ................................................................................... 7 Appendix B: Product Image ...................................................................................................... 7 Appendix C: Reflow Profile ....................................................................................................... 8 Appendix D: Label Information ................................................................................................. 8 Appendix E: Packaging Information ........................................................................................ 8 CONFIDENTIAL © 2000~2013 ISSC Technologies Corp. 3 1. Introduction Part Name: ISSC BM87SPPS5MC2 Bluetooth module Part Number: BM87SPPS5MC2-xxxxxx The ISSC BM87SPPS5MC2 Bluetooth module is designed for both MFi (The Made for iPhone, iPad and iPod badge) and Bluetooth SPP App-Enabled Accessories with audio solution. It is available in the 2.4GHz ISM band Class 2 Radio, compatible with Bluetooth Core Specification Version 3.0 + EDR and has passed the Bluetooth SIG and FCC Part 15 certification ISSC IS1687SM single chip solution combines transceiver and baseband function to decrease the external components. It narrows down the module size, minimizes its cost and the optimized power design minimize power consumption to keep low battery. To provide the best audio and voice quality, IS1687SM also integrates a DSP co-processor, a PLL, and a stereo CODEC to handle voice and audio applications. For voice, not only basic A-law/μ-law/CVSD encoding /decoding but also enhanced noise reduction and echo cancellation are implemented by the built-in DSP to reach the best quality in the both sending and receiving sides. For enhanced audio applications, SBC or MP3 encoding/decoding functions can be also carried out by DSP to satisfy A2DP requirements. 1.1. Major Components - ISSC IS1687SM (7x7 mm 2 , 56 pin QFN, single-chip Bluetooth transceiver and baseband processor) - 4M bits flash and 32K bits (24C32) EEPROM 1.2. Features - Bluetooth 3.0 EDR compliant - Profiles: HSP 1.0, HFP 1.5, A2DP 1.0, AVRCP 1.0, SPP 1.0 - Low power 1.8V RF operation - RF transmitter output power Class 2 - RF receiver GFSK typical -90dBm, π/4 PSK typical -91dBm, 8DPSK typical -84dBm - Internal ROM and 4Mibts of flash - 36-MIPS DSP co-processor (32/24/16-bit fixed point core) - I2C for external EEPROM and Apple CP (to accomplish certification and authorization flow in MFi App-Enabled Accessories) - 2 LED drivers 1.3. Application - Stereo Headset - Bluetooth Speakerphone - Toys - Gaming - Health & Fitness - Smart Watch/Feature Watch - Wearable Accessories - Conference/Education system CONFIDENTIAL © 2000~2013 ISSC Technologies Corp. 4 Product Specification 1.4. Chipset 7x7 mm 2 56 pin QFN IS1687SM 1.5. Interfaces - Multi function GPIO interface - Bluetooth RF interface - UART up to 921600 bps - I2C for external EEPROM and authentication chip - UART interface for external peripherals control. - Serial audio interface CONFIDENTIAL © 2000~2013 ISSC Technologies Corp. 5 Hardware Architecture Block Diagram Power Tree 2. Compatibility Requirements The BM87SPPS5MC2 Bluetooth module shall pass the standard test plan, which includes hardware compatibility and reliability, and software compatibility test. CONFIDENTIAL © 2000~2013 ISSC Technologies Corp. 6 3. Environmental Requirements 3.1. Temperature Conditions Operating Temperature Non-Operating Temperature Minimum - 40 °C - 40°C Maximum +85 °C +85 °C 3.2. Humidity Conditions Operating Humidity Non-Operating Humidity Minimum 10% 5% Maximum 90% 95% CONFIDENTIAL © 2000~2013 ISSC Technologies Corp. 7 Appendix A: Dimension and Foot Print 1. Dimension & Foot Print - Dimension: 25.7 mm* 14.3 mm* 1.86 mm (Length* Width* Height) - Tolerance: +/- 0.25 mm Appendix B: Product Image CONFIDENTIAL © 2000~2013 ISSC Technologies Corp. 8 Appendix C: Reflow Profile 1.) Follow: IPC/JEDEC J-STD-020 C 2.) Condition: Average ramp-up rate (217°C to pe…

Text truncated - open the document above for the full version.

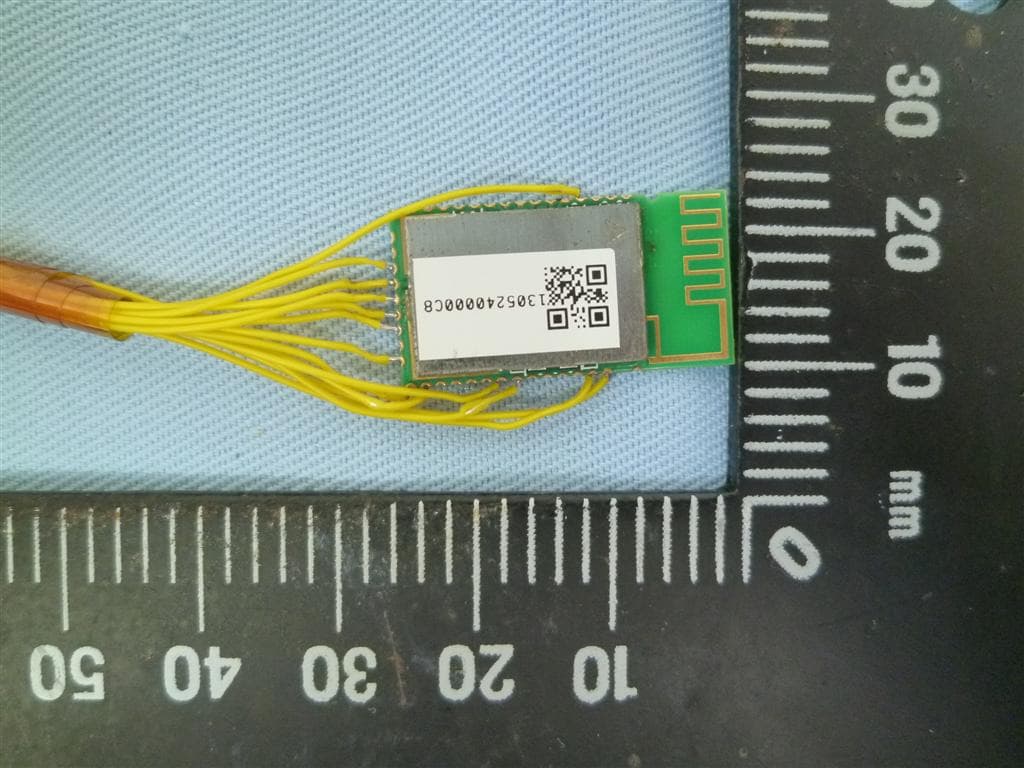

ATTACHMENT Photo Documentation Page 1 of 2 Product: Bluetooth Shielding Module Type Identification: A8TBM8NSPXSYC2A ATTACHMENT Photo Documentation Page 2 of 2 Product: Bluetooth Shielding Module Type Identification: A8TBM8NSPXSYC2A

ATTACHMENT Photo Documentation Page 1 of 2 Product: Bluetooth Shielding Module Type Identification: A8TBM8NSPXSYC2A ATTACHMENT Photo Documentation Page 2 of 2 Product: Bluetooth Shielding Module Type Identification: A8TBM8NSPXSYC2A

Produkte Products Prüfbericht - Nr.: Test Report No. 10043355 001 Seite 41 von 44 Page 41 of 44 6. Safety Human exposure 6.1 Radio Frequency Exposure Compliance 6.1.1 Electromagnetic Fields RESULT: Passed Test standard : FCC KDB Publication 447498 Since maximum peak output power of the transmitter is <1mW, hence the EUT is excluded from SAR evaluation according to FCC KDB publication 447498 D01: Mobile Portable RF Exposure..

Produkte Products Prüfbericht - Nr.: Test Report No. 10043355 001 Seite 2 von 44 Page 2 of 44 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Passed 5.1.2 PEAK OUTPUT POWER RESULT: Passed 5.1.3 20DB BANDWIDTH RESULT: Passed 5.1.4 99% BANDWIDTH RESULT: Passed 5.1.5 CONDUCTED SPURIOUS EMISSIONS AND FREQUENCY BAND EDGE MEASURED IN 100KHZ BANDWIDTH RESULT: Passed 5.1.6 SPURIOUS EMISSION RESULT: Passed 5.1.7 FREQUENCY SEPARATION RESULT: Passed 5.1.8 NUMBER OF HOPPING FREQUENCY RESULT: Passed 5.1.9 TIME OF OCCUPANCY RESULT: Passed 5.2.1 MAINS CONDUCTED EMISSIONS RESULT: Passed 6.1.1 ELECTROMAGNETIC FIELDS RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 10043355 001 Seite 3 von 44 Page 3 of 44 Contents 1. GENERAL REMARKS ............................................................................................... 5 1.1 COMPLEMENTARY MATERIALS ................................................................................. 5 2. TEST SITES ............................................................................................................ 6 2.1 TEST FACILITIES ..................................................................................................... 6 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ...................................................... 6 2.3 TRACEABILITY ........................................................................................................ 7 2.4 CALIBRATION ......................................................................................................... 7 2.5 MEASUREMENT UNCERTAINTY ................................................................................. 7 3. GENERAL PRODUCT INFORMATION ........................................................................... 8 3.1 PRODUCT FUNCTION AND INTENDED USE ................................................................. 8 3.2 SYSTEM DETAILS AND RATINGS ............................................................................... 8 3.3 INDEPENDENT OPERATION MODES ........................................................................... 9 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ............................................ 10 3.5 SUBMITTED DOCUMENTS ....................................................................................... 10 4. TEST SET-UP AND OPERATION MODES ................................................................... 11 4.1 PRINCIPLE OF CONFIGURATION SELECTION ............................................................ 11 4.2 TEST OPERATION AND TEST SOFTWARE................................................................. 11 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................... 11 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE .............................................. 12 4.5 TEST SETUP DIAGRAM .......................................................................................... 12 5. TEST RESULTS ..................................................................................................... 14 5.1 TRANSMITTER REQUIREMENT & TEST SUITES ......................................................... 14 5.1.1 Antenna Requirement ................................................................................................................ 14 5.1.2 Peak Output Power .................................................................................................................... 15 5.1.3 20dB Bandwidth ......................................................................................................................... 19 5.1.4 99% Bandwidth .......................................................................................................................... 23 5.1.5 Conducted spurious emissions and Frequency Band Edge measured in 100kHz Bandwidth ................................................................................................................................... 27 5.1.6 Spurious Emission ..................................................................................................................... 33 5.1.7 Frequency Separation ................................................................................................................ 34 5.1.8 Number of hopping frequency .................................................................................................... 36 5.1.9 Time of Occupancy .................................................................................................................... 38 6. SAFETY HUMAN EXPOSURE ................................................................................... 41 6.1 RADIO FREQUENCY EXPOSURE COMPLIANCE ......................................................... 41 6.1.1 Electromagnetic Fields ............................................................................................................... 41 Produkte Products Prüfbericht - Nr.: Test Report No. 10043355 001 Seite 4 von 44 Page 4 of 44 7. PHOTOGRAPHS OF THE TEST SET-UP ..................................................................... 42 8. LIST OF TABLES ................................................................................................... 44 9. LIST OF PHOTOGRAPHS......................................................................................... 44 Produkte Products Prüfbericht - Nr.: Test Report No. 10043355 001 Seite 5 von 44 Page 5 of 44 1. General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix P: Photo Documentation (File Name: 10043355APPENDIX P) Appendix D: Test Result of Radiated Emissions (File Name: 10043355APPENDIX D) Test Specifications The following standards were applied (in bold: product standards, otherwise: basic standards). Table 1: Applied Standard and Test Levels Radio FCC CFR47 Part 15: Subpart C Section 15.247 ANSI C63.4:2009, Public Notice DA 00-705 Produkte Products Prüfbericht -…

Text truncated - open the document above for the full version.

Test Report No.10043355 001 Appendix D: Radiated Spurious Emission Data (File: 10043355AppendixD) Contents Spurious Emissions, Band Edges, 2.35-2.5G ............................................................................................. 2 Spurious Emissions, TX Mode, 1-18G ..................................................................................................... 10 Spurious Emissions, TX Mode, 18-26G ................................................................................................... 22 Spurious Emissions, TX Mode, 30M-1G ................................................................................................. 34 Spurious Emissions, Band Edge, 2.35-2.5G 2 Spurious Emissions, Band Edges, 2.35-2.5G Radiated Bandedge (GFSK) Low Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 3 Low Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 4 Radiated Bandedge (GFSK) High Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 5 High Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 6 Radiated Bandedge (8DPSK) Low Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 7 Low Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 8 Radiated Bandedge (8DPSK) High Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 9 High Channel (Ver) Spurious Emissions, TX Mode, 1-18G 10 Spurious Emissions, TX Mode, 1-18G Service No.: 114010205-BM87-NEW Test Distance: 3M Test Standard: FCC above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2013/9/2 20:39:50 Applicant: ISSC Test Rating: DC 3.3V Product: Bluetooth Shielded Module Temp.( °C °C°C °C)/Hum.(%): 24(°C °C°C °C)/56% Model No.: BM87SPPS5 Test Engineer: Hugo Chang Test Mode: BT-2402 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 3533.654 -5.84 51.72 45.88 74.00 -28.12 peak 100 238 2 5222.756 -1.14 49.88 48.74 74.00 -25.26 peak 100 115 3 6121.795 4.11 45.79 49.90 74.00 -24.10 peak 100 32 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 11 Service No.: 114010205-BM87-NEW Test Distance: 3M Test Standard: FCC above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2013/9/2 20:40:51 Applicant: ISSC Test Rating: DC 3.3V Product: Bluetooth Shielded Module Temp.(°C °C°C °C)/Hum.(%): 24(°C °C°C °C)/56% Model No.: BM87SPPS5 Test Engineer: Hugo Chang Test Mode: BT-2402 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 3588.141 -5.79 51.96 46.17 74.00 -27.83 peak 100 0 2 4786.859 -2.80 51.96 49.16 74.00 -24.84 peak 100 118 3 5985.577 3.58 46.84 50.42 74.00 -23.58 peak 100 285 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 12 Service No.: 114010205-BM87-NEW Test Distance: 3M Test Standard: FCC above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2013/9/2 20:43:17 Applicant: ISSC Test Rating: DC 3.3V Product: Bluetooth Shielded Module Temp.(°C °C°C °C)/Hum.(%): 24(°C °C°C °C)/56% Model No.: BM87SPPS5 Test Engineer: Hugo Chang Test Mode: BT-2441 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 5304.487 -0.73 49.93 49.20 74.00 -24.80 peak 100 290 2 6884.615 4.98 46.25 51.23 74.00 -22.77 peak 100 76 3 7974.359 5.99 45.64 51.63 74.00 -22.37 peak 100 234 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 13 Service No.: 114010205-BM87-NEW Test Distance: 3M Test Standard: FCC above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2013/9/2 20:44:19 Applicant: ISSC Test Rating: DC 3.3V Product: Bluetooth Shielded Module Temp.(°C °C°C °C)/Hum.(%): 24(°C °C°C °C)/56% Model No.: BM87SPPS5 Test Engineer: Hugo Chang Test Mode: BT-2441 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 3642.628 -5.76 51.30 45.54 74.00 -28.46 peak 100 126 2 4868.590 -2.57 51.72 49.15 74.00 -24.85 peak 100 126 3 5931.090 3.21 46.99 50.20 74.00 -23.80 peak 100 281 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 14 Service No.: 114010205-BM87-NEW Test Distance: 3M Test Standard: FCC above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2013/9/2 20:48:20 Applicant: ISSC Test Rating: DC 3.3V Product: Bluetooth Shielded Module Temp.(°C °C°C °C)/Hum.(%): 24(°C °C°C °C)/56% Model No.: BM87SPPS5 Test Engineer: Hugo Chang Test Mode: BT-2480 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 3588.141 -5.79 51.93 46.14 74.00 -27.86 peak 100 105 2 5413.462 -0.20 50.09 49.89 74.00 -24.11 peak 100 118 3 7783.654 6.09 45.18 51.27 74.00 -22.73 peak 100 59 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 15 Service No.: 114010205-BM87-NEW Test Distance: 3M Test Standard: FCC above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2013/9/2 20:49:21 Applicant: ISSC Test Rating: DC 3.3V Product: Bluetooth Shielded Module Temp.(°C °C°C °C)/Hum.(%): 24(°C °C°C °C)/56% Model No.: BM87SPPS5 Test Engineer: Hugo Chang Test Mode: BT-2480 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 3697.115 -5.71 51.44 45.73 74.00 -28.27 peak 100 360 2 4950.320 -2.36 54.24 51.88 74.00 -22.12 pea…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 10043355 001 Seite 42 von 44 Page 42 of 44 7. Photographs of the Test Set-Up Photograph 1: Set-up for Spurious Emissions (Front View) Photograph 2: Set-up for Spurious Emissions (Back View 1) Produkte Products Prüfbericht - Nr.: Test Report No. 10043355 001 Seite 43 von 44 Page 43 of 44 Photograph 3: Set-up for Spurious Emissions (Back View 2) Photograph 4: Set-up for Conducted testing
