A8TBM77SPPSYC2ABluetooth Module

Datasheet of Bluetooth BM77SPPS5MC2 Module ISSC Technologies Corp. Revision History Date Revision Content Version 2013/07/03 First Version 1.0 2013/07/09 Add descriptions in current consumption part 1.1 2013/08/20 Update UART baud rate information 1.2 2013/10/01 Update current consumption & Timing Sequence photo 1.3 CONFIDENTIAL © 2000~2012 iSSC Technologies Corp. 2 Content 1. Introduction ..................................................................................................................... 3 1.1. Major Components ................................................................................................................................ 3 1.2. Features ............................................................................................................................................... 3 1.3. Application ............................................................................................................................................ 3 2. Product Specification ..................................................................................................... 4 2.1. Chipset ................................................................................................................................................. 4 2.2. Interfaces .............................................................................................................................................. 4 3. Hardware Architecture .................................................................................................... 5 4. Compatibility Requirements ........................................................................................... 5 5. Environmental Requirements......................................................................................... 6 5.1. Temperature.......................................................................................................................................... 6 5.2. Humidity................................................................................................................................................ 6 Appendix A: Dimension and Foot Print ................................................................................... 7 Appendix B: Product Image ...................................................................................................... 7 Appendix C: Reflow Profile ....................................................................................................... 7 Appendix D: Label Information ................................................................................................. 8 Appendix E: Reversion History ................................................................................................ 9 CONFIDENTIAL © 2000~2012 iSSC Technologies Corp. 3 1. Introduction Part Name: ISSC BM77SPPS5MC2 Bluetooth module Part Number: BM77SPPS5MC2-xxxxxx The ISSC BM77SPPS5MC2 Bluetooth module is design for MFi (The Made for iPod, Made for iPhone and Made for iPad logos) and Bluetooth standard SPP/ BLE electronic accessories via Bluetooth connectivity. It is available in the 2.4GHz ISM band Class 2 Radio, compatible with Bluetooth Core Specification Version 3.0/ 4.0 + EDR. ISSC IS1677NM single chip solution combines transceiver and baseband function to decrease the external components. It narrows down the module size and minimizes its cost. The optimized power design minimize power consumption to keep low battery and the module is integrated with shielding case and 2.4GHz RF Chip antenna. It has passed the Bluetooth SIG and FCC Part 15 certification. 1.1. Major Components - ISSC IS1677NM (40 pin QFN, single-chip Bluetooth transceiver and baseband processor) - Serial EEPROM 8K (1024*8) TSSOP 8P 1.2. Features - Bluetooth 3.0/ 4.0+ EDR compliant - Low power 1.8V RF operation - RF transmitter output power Class 2 - RF receiver GFSK typical -90dBm, π/4 PSK typical -90dBm, 8DPSK typical -83dBm, BLE typical -92dBm - Internal ROM and 4Mibts of flash - I2C for external EEPROM and authentication chip (to enable functionality between your electronic accessory and the iPod, iPhone and iPad) - 1 LED driver 1.3. Application - GPS - Printers - Electric Scale - Blood Pressure Monitors - Bar code Scanner - Industrial Applications (CNC, PLC, RFID) - Embedded systems CONFIDENTIAL © 2000~2012 iSSC Technologies Corp. 4 2. Product Specification 2.1. Chipset 6x6 mm 2 40 pin QFN IS1677NM 2.2. Interfaces - Multi function GPIO interface - Bluetooth RF interface - UART up to 921600 bps - I2C for external EEPROM and authentication chip CONFIDENTIAL © 2000~2012 iSSC Technologies Corp. 5 3. Hardware Architecture Block Diagram Power Tree 4. Compatibility Requirements The BM77SPPS5MC2 Bluetooth module shall pass the standard test plan, which includes hardware compatibility and reliability, and software compatibility test. CONFIDENTIAL © 2000~2012 iSSC Technologies Corp. 6 5. Environmental Requirements 5.1. Temperature Conditions Operating Temperature Non-Operating Temperature Minimum -10 °C -40°C Maximum +70 °C +85 °C 5.2. Humidity Conditions Operating Humidity Non-Operating Humidity Minimum 10% 5% Maximum 90% 95% CONFIDENTIAL © 2000~2012 iSSC Technologies Corp. 7 Appendix A: Dimension and Foot Print 1. Dimension - Dimension: 22 mm* 12 mm* 1.86 mm (Length* Width* Height) - Tolerance: +/- 0.25 mm 2. Suggested Load Board Foot Print Appendix B: Product Image Appendix C: Reflow Profile 1.) Follow: IPC/JEDEC J-STD-020 C 2.) Condition: CONFIDENTIAL © 2000~2012 iSSC Technologies Corp. 8 Average ramp-up rate (217°C to peak): 1~2°C/sec max. Preheat：150~200C、60~180 seconds Temperature maintained above 217°C : 60~150 seconds Time within 5°C of actual peak temperature: 20 ~ 40 sec. Peak temperature：250+0/-5°C or 260+0/-5°C Ramp-down rate : 3°C/sec. max. Time 25°C to peak temperature : 8 minutes max. Cycle interval：5 minus Slope: 1~2°C/ sec max. (217°C to peak) 217°C Peak: 250+0/-5°C Or 260+0/-5°C Ramp down rate: Max. 3°…

Text truncated - open the document above for the full version.

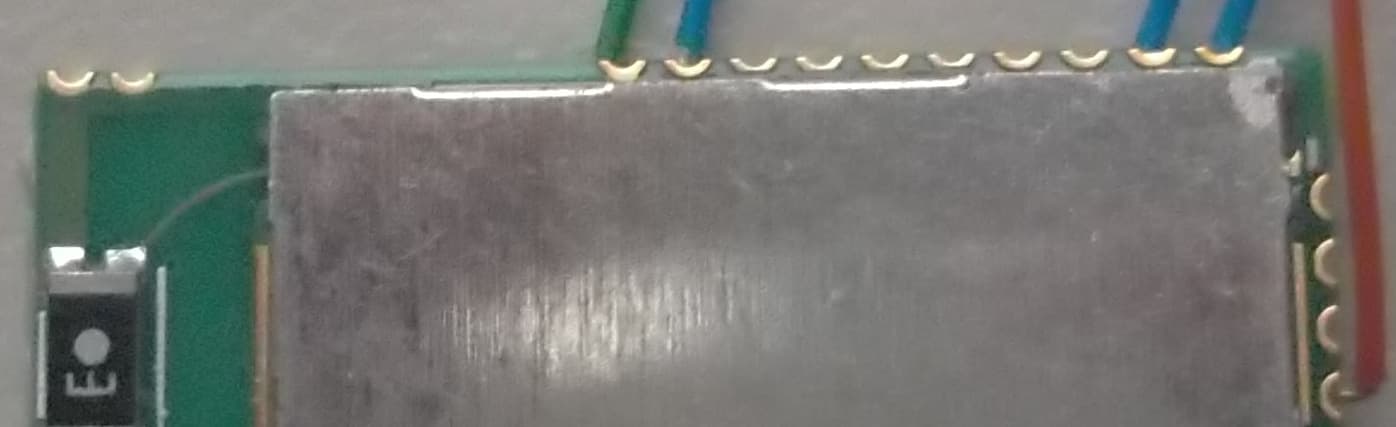

ATTACHMENT Photo Documentation Page 1 of 1 Product: Bluetooth Shielding Module Type Identification: A8TBM77SPPSYC2A

ATTACHMENT Photo Documentation Page 1 of 1 Product: Bluetooth Shielding Module Type Designation: FCC ID: A8TBM77SPPSYC2A

Produkte Products Prüfbericht - Nr.: Test Report No. 10043195 001 Seite 41 von 44 Page 41 of 44 6. Safety Human exposure 6.1 Radio Frequency Exposure Compliance 6.1.1 Electromagnetic Fields RESULT: Passed Test standard : FCC KDB Publication 447498 Since maximum average output power found in the EN 300 328 test report of the transmitter is <1mW, hence the EUT is excluded from SAR evaluation according to FCC KDB publication 447498 D01: Mobile Portable RF Exposure..

Produkte Products Prüfbericht - Nr.: Test Report No. 10043195 001 Seite 2 von 44 Page 2 of 44 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Passed 5.1.2 PEAK OUTPUT POWER RESULT: Passed 5.1.3 20DB BANDWIDTH RESULT: Passed 5.1.4 99% BANDWIDTH RESULT: Passed 5.1.5 CONDUCTED SPURIOUS EMISSIONS AND FREQUENCY BAND EDGE MEASURED IN 100KHZ BANDWIDTH RESULT: Passed 5.1.6 SPURIOUS EMISSION RESULT: Passed 5.1.7 FREQUENCY SEPARATION RESULT: Passed 5.1.8 NUMBER OF HOPPING FREQUENCY RESULT: Passed 5.1.9 TIME OF OCCUPANCY RESULT: Passed 6.1.1 ELECTROMAGNETIC FIELDS RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 10043195 001 Seite 3 von 44 Page 3 of 44 Contents 1. GENERAL REMARKS ............................................................................................... 5 1.1 COMPLEMENTARY MATERIALS ................................................................................. 5 2. TEST SITES ............................................................................................................ 6 2.1 TEST FACILITIES ..................................................................................................... 6 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ...................................................... 6 2.3 TRACEABILITY ........................................................................................................ 7 2.4 CALIBRATION ......................................................................................................... 7 2.5 MEASUREMENT UNCERTAINTY ................................................................................. 7 3. GENERAL PRODUCT INFORMATION ........................................................................... 8 3.1 PRODUCT FUNCTION AND INTENDED USE ................................................................. 8 3.2 SYSTEM DETAILS AND RATINGS ............................................................................... 8 3.3 INDEPENDENT OPERATION MODES ........................................................................... 9 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ............................................ 10 3.5 SUBMITTED DOCUMENTS ....................................................................................... 10 4. TEST SET-UP AND OPERATION MODES ................................................................... 11 4.1 PRINCIPLE OF CONFIGURATION SELECTION ............................................................ 11 4.2 TEST OPERATION AND TEST SOFTWARE................................................................. 11 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................... 11 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE .............................................. 12 4.5 TEST SETUP DIAGRAM .......................................................................................... 12 5. TEST RESULTS ..................................................................................................... 14 5.1 TRANSMITTER REQUIREMENT & TEST SUITES ......................................................... 14 5.1.1 Antenna Requirement ................................................................................................................ 14 5.1.2 Peak Output Power .................................................................................................................... 15 5.1.3 20dB Bandwidth ......................................................................................................................... 19 5.1.4 99% Bandwidth .......................................................................................................................... 23 5.1.5 Conducted spurious emissions and Frequency Band Edge measured in 100kHz Bandwidth ................................................................................................................................... 27 5.1.6 Spurious Emission ..................................................................................................................... 33 5.1.7 Frequency Separation ................................................................................................................ 34 5.1.8 Number of hopping frequency .................................................................................................... 36 5.1.9 Time of Occupancy .................................................................................................................... 38 6. SAFETY HUMAN EXPOSURE ................................................................................... 41 6.1 RADIO FREQUENCY EXPOSURE COMPLIANCE ......................................................... 41 6.1.1 Electromagnetic Fields ............................................................................................................... 41 Produkte Products Prüfbericht - Nr.: Test Report No. 10043195 001 Seite 4 von 44 Page 4 of 44 7. PHOTOGRAPHS OF THE TEST SET-UP ..................................................................... 42 8. LIST OF TABLES ................................................................................................... 44 9. LIST OF PHOTOGRAPHS......................................................................................... 44 Produkte Products Prüfbericht - Nr.: Test Report No. 10043195 001 Seite 5 von 44 Page 5 of 44 1. General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix PI: Photo Documentation internal view (File Name: 10043195APPENDIX PI) Appendix PE: Photo Documentation external view (File Name: 10043195APPENDIX PE) Appendix D: Test Result of Radiated Emissions (File Name: 10043195APPENDIX D) Test Specifications The following standards were applied (in bold: product standards, otherwise: basic standards). Table 1: Applied Standard and Test Levels Radio FCC CFR47 Part 15: Subpart C Section 15.247 ANSI C63.4:2009, Public…

Text truncated - open the document above for the full version.

Test Report No.10043195 001 Appendix D: Radiated Spurious Emission Data (File: 10043195AppendixD) Contents Spurious Emissions, Band Edges, 2.35-2.5G ............................................................................................. 2 Spurious Emissions, TX Mode, 1-18G ..................................................................................................... 10 Spurious Emissions, TX Mode, 18-26G ................................................................................................... 22 Spurious Emissions, TX Mode, 30M-1G ................................................................................................. 34 Spurious Emissions, Band Edge, 2.35-2.5G 2 Spurious Emissions, Band Edges, 2.35-2.5G Radiated Bandedge (GFSK) Low Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 3 Low Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 4 Radiated Bandedge (GFSK) High Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 5 High Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 6 Radiated Bandedge (8DPSK) Low Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 7 Low Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 8 Radiated Bandedge (8DPSK) High Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 9 High Channel (Ver) Spurious Emissions, TX Mode, 1-18G 10 Spurious Emissions, TX Mode, 1-18G Service No.: 114010205-BT Test Distance: 3M Test Standard: FCC above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2013/8/20 13:05:48 Applicant: ISSC Test Rating: DC 5V Product: Bluetooth Shielded Module Temp.(°C °C°C °C)/Hum.(%): 27(°C °C°C °C)/48% Model No.: BM77SPPS5 Test Engineer: Hugo Chang Test Mode: BT-2402-TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 3615.385 -5.77 52.25 46.48 74.00 -27.52 peak 150 358 2 4786.859 -2.80 52.04 49.24 74.00 -24.76 peak 150 176 3 7647.436 6.17 45.73 51.90 74.00 -22.10 peak 150 192 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 11 Service No.: 114010205-BT Test Distance: 3M Test Standard: FCC above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2013/8/20 13:06:50 Applicant: ISSC Test Rating: DC 5V Product: Bluetooth Shielded Module Temp.(°C °C°C °C)/Hum.(%): 27(°C °C°C °C)/48% Model No.: BM77SPPS5 Test Engineer: Hugo Chang Test Mode: BT-2402-TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 3588.141 -5.79 51.74 45.95 74.00 -28.05 peak 150 354 2 5250.000 -1.01 50.15 49.14 74.00 -24.86 peak 150 2 3 6911.859 4.95 45.62 50.57 74.00 -23.43 peak 150 4 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 12 Service No.: 114010205-BT Test Distance: 3M Test Standard: FCC above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2013/8/20 13:09:02 Applicant: ISSC Test Rating: DC 5V Product: Bluetooth Shielded Module Temp.(°C °C°C °C)/Hum.(%): 27(°C °C°C °C)/48% Model No.: BM77SPPS5 Test Engineer: Hugo Chang Test Mode: BT-2441-TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 3479.167 -5.89 51.62 45.73 74.00 -28.27 peak 100 113 2 4868.590 -2.57 51.30 48.73 74.00 -25.27 peak 100 177 3 6230.769 4.49 45.83 50.32 74.00 -23.68 peak 100 292 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 13 Service No.: 114010205-BT Test Distance: 3M Test Standard: FCC above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2013/8/20 13:10:04 Applicant: ISSC Test Rating: DC 5V Product: Bluetooth Shielded Module Temp.(°C °C°C °C)/Hum.(%): 27(°C °C°C °C)/48% Model No.: BM77SPPS5 Test Engineer: Hugo Chang Test Mode: BT-2441-TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 3615.385 -5.77 52.40 46.63 74.00 -27.37 peak 100 60 2 4732.372 -2.93 50.27 47.34 74.00 -26.66 peak 100 306 3 5740.385 1.90 46.94 48.84 74.00 -25.16 peak 100 359 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 14 Service No.: 114010205-BT Test Distance: 3M Test Standard: FCC above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2013/8/20 13:11:42 Applicant: ISSC Test Rating: DC 5V Product: Bluetooth Shielded Module Temp.(°C °C°C °C)/Hum.(%): 27(°C °C°C °C)/48% Model No.: BM77SPPS5 Test Engineer: Hugo Chang Test Mode: BT-2480-TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 3179.487 -6.30 52.39 46.09 74.00 -27.91 peak 100 193 2 6012.820 3.72 45.77 49.49 74.00 -24.51 peak 100 1 3 8491.987 6.45 44.21 50.66 74.00 -23.34 peak 100 169 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 15 Service No.: 114010205-BT Test Distance: 3M Test Standard: FCC above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2013/8/20 13:12:44 Applicant: ISSC Test Rating: DC 5V Product: Bluetooth Shielded Module Temp.(°C °C°C °C)/Hum.(%): 27(°C °C°C °C)/48% Model No.: BM77SPPS5 Test Engineer: Hugo Chang Test Mode: BT-2480-TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 3560.897 -5.81 52.44 46.63 74.00 -27.37 peak 100 341 2 5277.244 -0.86 50.06 49.20 74.00 -24.80 peak 100 146 3 7729.167 6.13 4…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 10043195 001 Seite 42 von 44 Page 42 of 44 7. Photographs of the Test Set-Up Photograph 1: Set-up for Spurious Emissions (Front View) Photograph 2: Set-up for Spurious Emissions (Back View 1) Produkte Products Prüfbericht - Nr.: Test Report No. 10043195 001 Seite 43 von 44 Page 43 of 44 Photograph 3: Set-up for Spurious Emissions (Back View 2) Photograph 4: Set-up for Conducted testing
