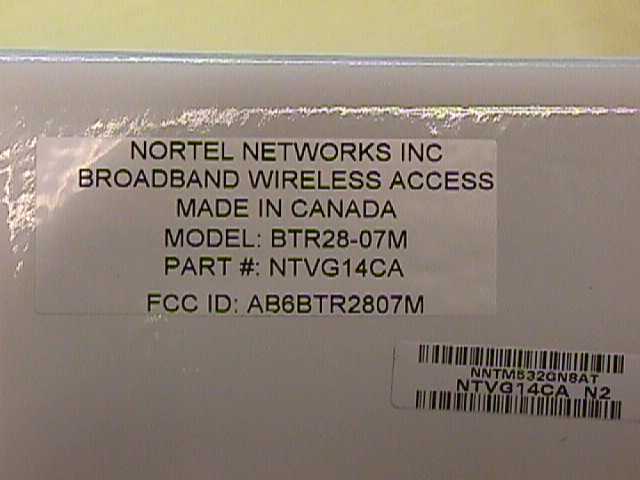

AB6BTR2807MLMDS BTS transceiver

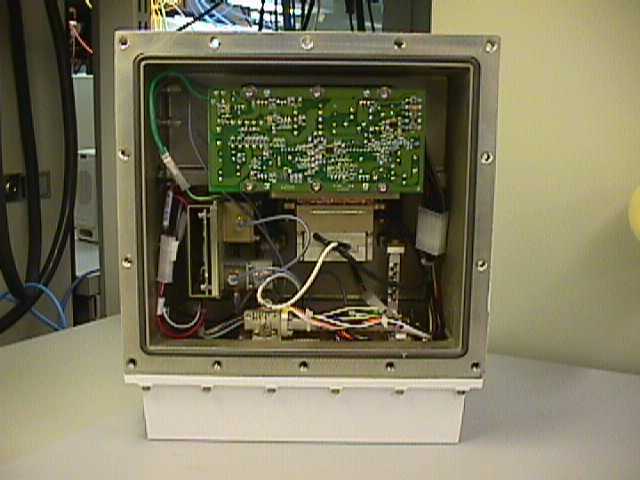

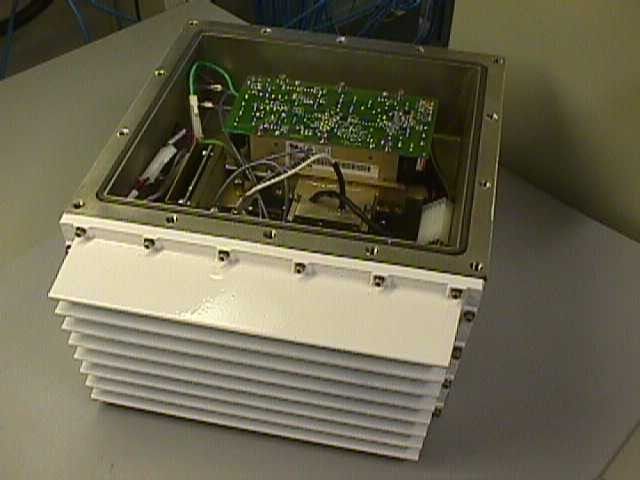

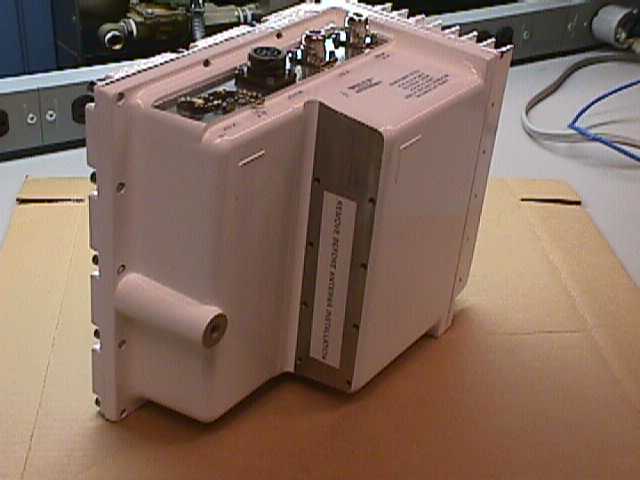

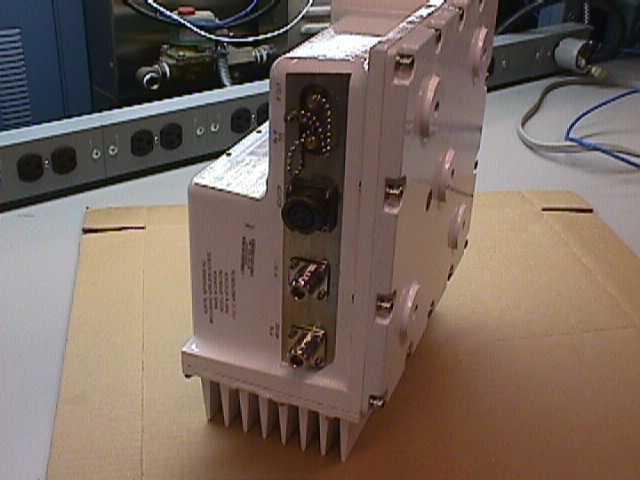

NTP#: 411-1333-920 Draft 01.01 June 2000 BTR 28-07 GHz MMIC Quick Reference Guide Product Overview The BTR 28-07 GHz MMIC (NTVG14CA) outdoor transceiver is a state-of-the- art broadband microwave transceiver designed to operate at various frequency bands downstream. It is a combined broadband transmitter and receiver deployed in Nortel Networks Reunion point-to-multipoint system. It is compatible with Reunion’s Release 1.2 and 1.3 equipment. Figure 1: BTR 28-07M Block Diagram Rx IF Output Tx IF Input Transceiver Lightening Radi o Protect or Lightening Protect or Rx RF I nput (Test Point ‘B’) (Test Point ‘A’) Tx RF Output Te s t Po r t Rx IF Output Te s t Po r t Lightening Protect or BTR 28-07M Transceiver Tx IF/DC Input 411-1333-920 Draft 01.01 June 2000 2 BTR 28-07 MMIC Specification Table 1: BTR 28-07M Technical Specifications TXIF InputRF Output Frequency Range 28-07M 500-650 MHz29.10-29.25 GHz Output Level (P1 dB) ≥27 dBm, -40° to +55° C Output Level (IP3) > +35 dBm Input Impedance 50 Ohms Input/Output Connector N-Type FemaleWR-28 Input/Output VSWR 1.925:1, maximum2.32:1, max (or 8 dB) Gain (not including antenna) 32±.6 dB, minimum Gain Variation ±5.0 dB over all conditions Gain Flatness ±1.9 dB, maximum LO leakage -30 dBm Frequency Stability <±4 ppm, (-40° to +55° C) and aging Tx Noise Power-115 dBm/Hz, maximum Tx IF Test Port Coupling -16± 1 dB AntennaBTR Frequency 27.5-31.3 GHz Frequency Band 2731 Bore-sight Gain (Azimuth) 15.75±1.25 dBi, 90° Horn 18.90±1.25 dBi, 45° 23.8±1.3 dBi, 15° Wave-guide Interface WR-28 size non-standard hole pattern Size (Length x Height x Width) 10" x 9" x 2" (90°) Polarity single pole (H/H & V/V polarization) Sectorized Angle Available 15°, 45°, and 90° BTR 28-07 GHz MMIC Quick Reference Guide 3 RXRF Input IF Output Frequency Range 28-07M28.20-28.35 GHz250-400 MHz Input/Output ConnectorWR-28 non-standard hole pattern N-Type Female Input IP3 level-10 dBm, minimum Output Impedance50 Ohms Input/Output VSWR2.32:1, max (or 8.0 dB)1.925:1 (10 dB) Gain (not including antenna) 28.0 ± 0.6 dB Gain Variation ±5.0 dB over all conditions Gain Flatness ±1.9 dB over bandwidth Gain Stability ±2.5 dB over temp. Frequency Stability <±4 ppm, over all conditions LO Leakage -35 dBm, maximum Noise Figure ≤ 7.2 dB, maximum Rx IF Test Port Coupling -14 ±1 dB Power RequirementsBTR Input Voltage-48 VDC Input Current <2 Amp Input Power 50 Watts, maximum EnvironmentalBTR Humidity100% condensing Altitude 10,000 feet Operating Temperature -40° to +55°C Storage Temperature Range -45° to +70°C MechanicalBTR Size (Length x Height x Width)19.2" x 10.3" x 6.7" (49 x 26 x 17 cm) Weight without brackets 35 lbs. (16KG) Information is subject to change without notice. Nortel reserves the right to make changes in design or components as progress in engineering and manufacturing may warrant. © 2000 Northern Telecom Ltd. Converted Frequency Formula Use the following formula to calculate the converted frequency: TX: ƒ RF OUT (GHz) = 28.60 (GHz) + ƒ IF INPUT (MHz) RX: ƒ IF OUTPUT (MHz) = 28.60 (GHz) - ƒ RF INPUT (GHz) Note: The antenna has an option of a hydrophobic coating that can help to reduce ice build-up effect. Note: Vent holes are covered with a Goretex TM patch. Note: The transceiver mounts to a vertical pole of 2.5” to 4.5” outside diame- ter. It has a range of motion of 90° over and -60° under horizon. The bases of the antenna mount can rotate ±180°. Note: The module connector is N-Type female. The receive IF input/output cables present a male N-Type connector. The Tx IF and the Rx IF test ports are SMA-Type female. The Telemetry port: 6 pin female military-style con- nector. Technical Assistance Contact Information In case additional technical assistance is required, or the transceiver unit is damaged upon receipt, contact Nortel Networks. Nortel Networks Broadband Wireless Access (BWA) provides 24-hour customer service and technical support to ensure your service operation is trouble-free. If you have questions or need technical support, contact Nortel Networks Broadband Wireless Access at the following telephone numbers: • In the USA and Canada, call 972-BWA-ETAS/972-292-3827

Norte l Networks Limited P.O. Bo x 3511, Station C Otta wa ON K1 Y 4H7 ∙ Canada Tel613 763 7847 Fax613 763 8091 www.nortelnetworks.com June 9, 2000 Denis Lalonde Radio Compatibility Eng.Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland, 21046 RE: AB6BTR2807M Dear Sir or Madam: Nortel requests, pursuant to 47 CFR 0.457 and 0.459 of the commission's rules, that the following items be held CONFIDENTIAL due to their proprietary nature. We consider this leading edge technology developed by Nortel and our partners and being new technology, would not want to make this information available to our competitors. Exhibit Type File name of Exhibit 1. Schematics assembly drawings 2. Parts list SLVG0108_MSL_00_01 3. Parts list SLVG14CA_MSL_00_03_msl_report 4. Block Diagram 28-07M_BTR_Block_Diagram Sincerely, Denis Lalonde [email protected]

FCCID: AB6BTR2807M Document Issue: 1.0RF-00298-00Radio Compatibility Test Report Date: June 9, 2000Security status: Proprietary Page vii of vii NTVG14CA REUNION 28-07M BTR VERIFICATION OF COMPLIANCE Reunion 28-07M BTR On the basis of measurements here reported on June 9, 2000, the above referenced equipment is verified as meeting the requirements of FCC Part 101 (Fixed Microwave Services), and FCC Part 2 requirements. The Test data included in this report applies to the product titled above manufactured by Nortel Networks. Tested by: Denis Lalonde Nortel Networks 21 Richardson Side rd Kanata, Ontario Canada K2K 2C1 FCCID: AB6BTR2807M Document Issue: 1.0RF-00298-00Radio Compatibility Test Report Date: June 9, 2000Security status: Proprietary Page 1 of 39 NTVG14CAREUNION 28-07M BTR 1. Results Summary The system described in Section 3.0 meets the requirements FCC Part 101and Part 2, Fixed Microwave Services (10-1-97 edition). A summary of the test cases can be found in the following table. Table 1-1: Test Case Summary ParameterCNCNTNAReference to remark Transmitter characteristics Maximum output power (FCC Part 2.1046)X Occupied Bandwidth (FCC Part 2.1049)X RF spectrum mask (FCC Part 101.111)X Tx Conducted Spurious emissions (FCC Part 101.111) X Radiated Spurious emissions (FCC Part 101.111)X Tx Frequency Stability (FCC Part 101.107)X Note: C: The parameter is compliant with the requirements NC: The parameter is not compliant with the requirements NT: The parameter is not tested NA: The test of this parameter is not applicable FCCID: AB6BTR2807M Document Issue: 1.0RF-00298-00Radio Compatibility Test Report Date: June 9, 2000Security status: Proprietary Page 2 of 39 NTVG14CAREUNION 28-07M BTR 2. Introduction 2.1. Scope This report contains the measured results as required by FCC Part 101, and Part 2 requirements. The measurement procedure used is described in this document. 3. Production Description 3.1. Product and Functional Description The unit tested in this report consisted of a DC powered system. The product trade name is Reunion 28- 07M BTR. This is a Reunion family product. The FCC ID of this product is AB6BTR2807M. The model of this product is NTVG14CA. The emission designators for this product are 7M0D7W (1 carrier), 14M0D7W (2 carriers) , and 28M0D7W (4 carriers). This system was configured with a NNE (Network Node Equipment), a BTR, an RPE and the cables necessary to activate the hardware under investigation. Table 3-1 below provides a description of each component and the respective serial and model numbers. Table 3-1: Hardware descriptions Product and Firmware descriptionModel No.Serial No. EUTBTRNTVG14CANNTR2807MB01 BRM x 4NTVH28AA NTVH28BA NTVH28AA NTVH28AA NNTM532LLXU3 NNTM532LLXNX NNTM532LM2P4 NNTM532LM2K0 CIMNTVH25AANNTM532G83MJ AWMNTVH04AANNTM532Q1X92 Ethernet hubBaystack 10700227746 RSM 9016NTVH13BANNTM532G9M7P RSM 9116NTVH20BANNTM532GC0WU UGBNTVH29ABNNTM532GC356 Support Equipmen t RPENTVH24AANNTM532G94KQ FCCID: AB6BTR2807M Document Issue: 1.0RF-00298-00Radio Compatibility Test Report Date: June 9, 2000Security status: Proprietary Page 3 of 39 NTVG14CAREUNION 28-07M BTR A picture of the equipment under test is shown in Figure 1. Figure 1: Equipment Under Test 3.2. Manufacturer Nortel Networks Canada Limited Calgary, Alberta Canada 3.3. Software The software used during testing was representative of system performance under actual network usage conditions. Additional features required to activity and/or control specific radio functions (i.e. channel allocation, BER performance, power control) may be required as long as they are consistent with radio performance under actual network usage conditions. 3.4. Transmitter Technical Characteristics The following table lists the technical characteristics of the transmitters. Table 3-2: Transmitter Technical Characteristics Tx ParameterDescription Frequency Range29.1 GHz to 29.25 GHz (BTR) Channel Spacing7 MHz IF500 MHz to 650 MHz (BTR) Tx Power (nom)21.0 dBm per carrier (1 carriers configuration) 16.0 dBm per carrier (2 carriers configuration) 11.5 dBm per carrier (4 carriers configuration) Modulation Characteristics16-QAM Antenna gain15.5 dBi (90 deg. sector) 18.2 dBi (45 deg. sector) 20.0 dBi (30 deg. sector) 23.0 dBi (15 deg. sector) FCCID: AB6BTR2807M Document Issue: 1.0RF-00298-00Radio Compatibility Test Report Date: June 9, 2000Security status: Proprietary Page 4 of 39 NTVG14CAREUNION 28-07M BTR 3.5. Receiver Technical Characteristics The following table lists the technical characteristics of the receiver. Table 3-3: Receiver Technical Characteristics Rx ParameterDescription Frequency Range28.2 GHz to 28.35 GHz (BTR) Channel Spacing7 MHz IF250 MHz to 400 MHz Modulation CharacteristicsQPSK 3.6. Antenna Port(s) and System Cables The following tables show the EUT antenna interface port(s) used for RF measurements and description of any system cables (IF IDU to ODU for example). Table 3-4: Antenna Port Description IdentificationDescriptionConnector Tx Antenna PortWaveguide Connection for Transmission to Antenna WR-28 Rx Antenna PortWaveguide Connection for Receiver to Antenna WR-28 Table 3-5: Cable Description QtyPurposeDescriptionConnector 1NNE to RPE telemetry cable 10mMIL type 1RPE to BTR telemetry cable 2 feetMIL type 11 to 4 Telemetry cable splitter MIL type 2IF cables 10m N type 2AC Power cables 10m 250V, 20A 3.7. System Modification No modifications were necessary in order to comply with requirements as detailed FCC Part 101 requirements. FCCID: AB6BTR2807M Document Issue: 1.0RF-00298-00Radio Compatibility Test Report Date: June 9, 2000Security status: Proprietary Page 5 of 39 NTVG14CAREUNION 28-07M BTR 4. General test conditions 4.1. Test Facility Emission testing was performed in the Nortel Networks Product Integrity Radio Compatibility laboratory, located at 21 Richardson Side rd, Kanata, Ontario, Canada. 4.2. Climatic Conditions Climatic conditions are controlled within the following specifications: ß Ambient tempera…

Text truncated - open the document above for the full version.

Page 1 of 39 NTVG14CAREUNION 28-07M BTR Annex B (Plots) Figure 9 (2807M 01 0004) Figure 10 (2807M 01 0005) Page 2 of 39 NTVG14CAREUNION 28-07M BTR Figure 11 (2807M 01 0006) Figure 12 (2807M 01 0007) Page 3 of 39 NTVG14CAREUNION 28-07M BTR Figure 13 (2807M 01 0008) Figure 14 (2807M 01 0009) Page 4 of 39 NTVG14CAREUNION 28-07M BTR Figure 15 (2807M 01 0010) Figure 16 (2807M 01 0011) Page 5 of 39 NTVG14CAREUNION 28-07M BTR Figure 17 (2807M 01 0012)
