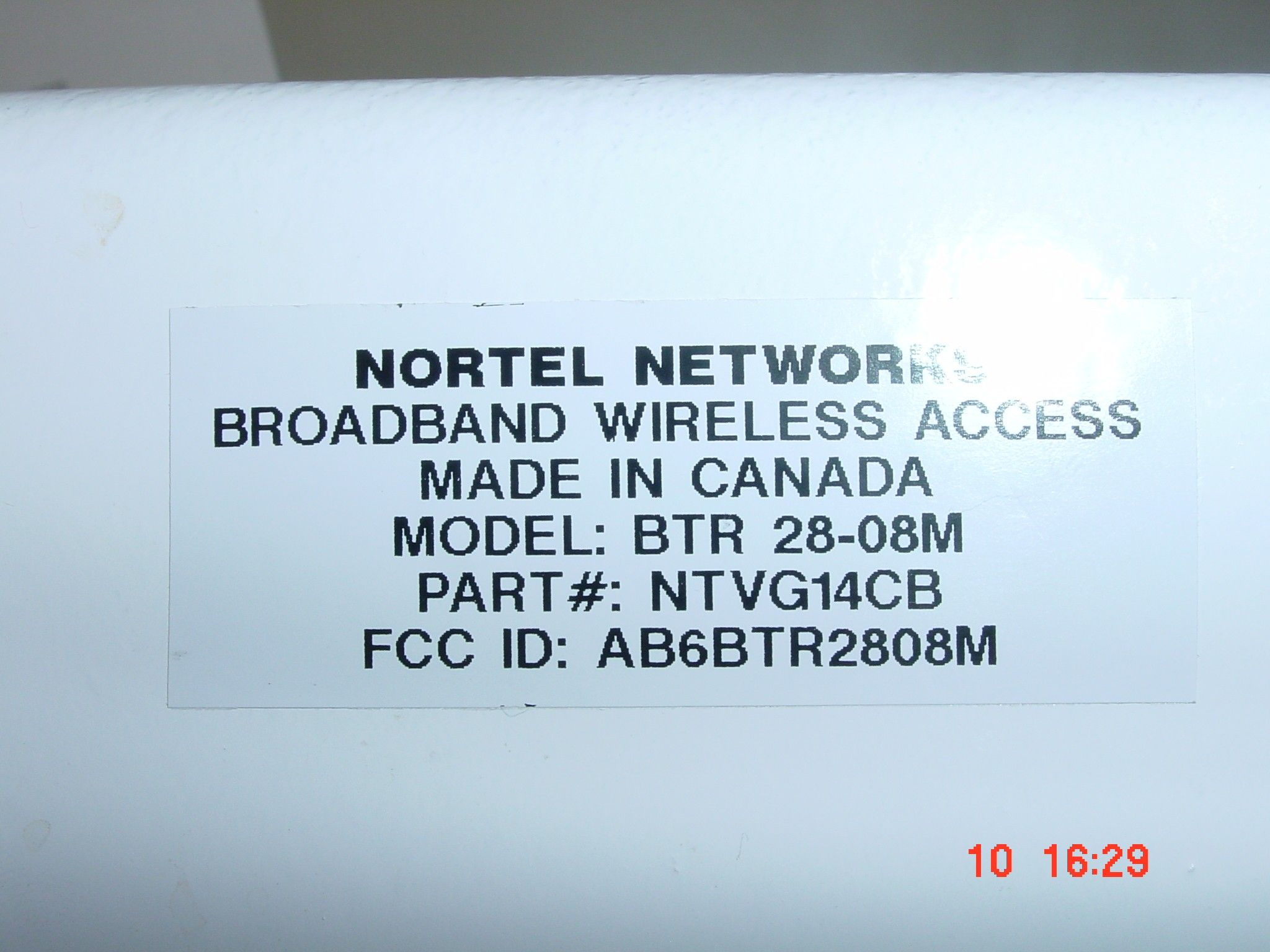

AB6BTR2808MLMDS BTS Transceiver

Avaya Canada Corporation

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Jan 30, 2001
Application Purpose: Original Equipment
Date of Application: Nov 13, 2000
Equipment Note: LMDS BTS Transceiver
Frequency Range: 27514.00000000 - 27636.00000000
Company: Avaya Canada Corporation
Country: Canada

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

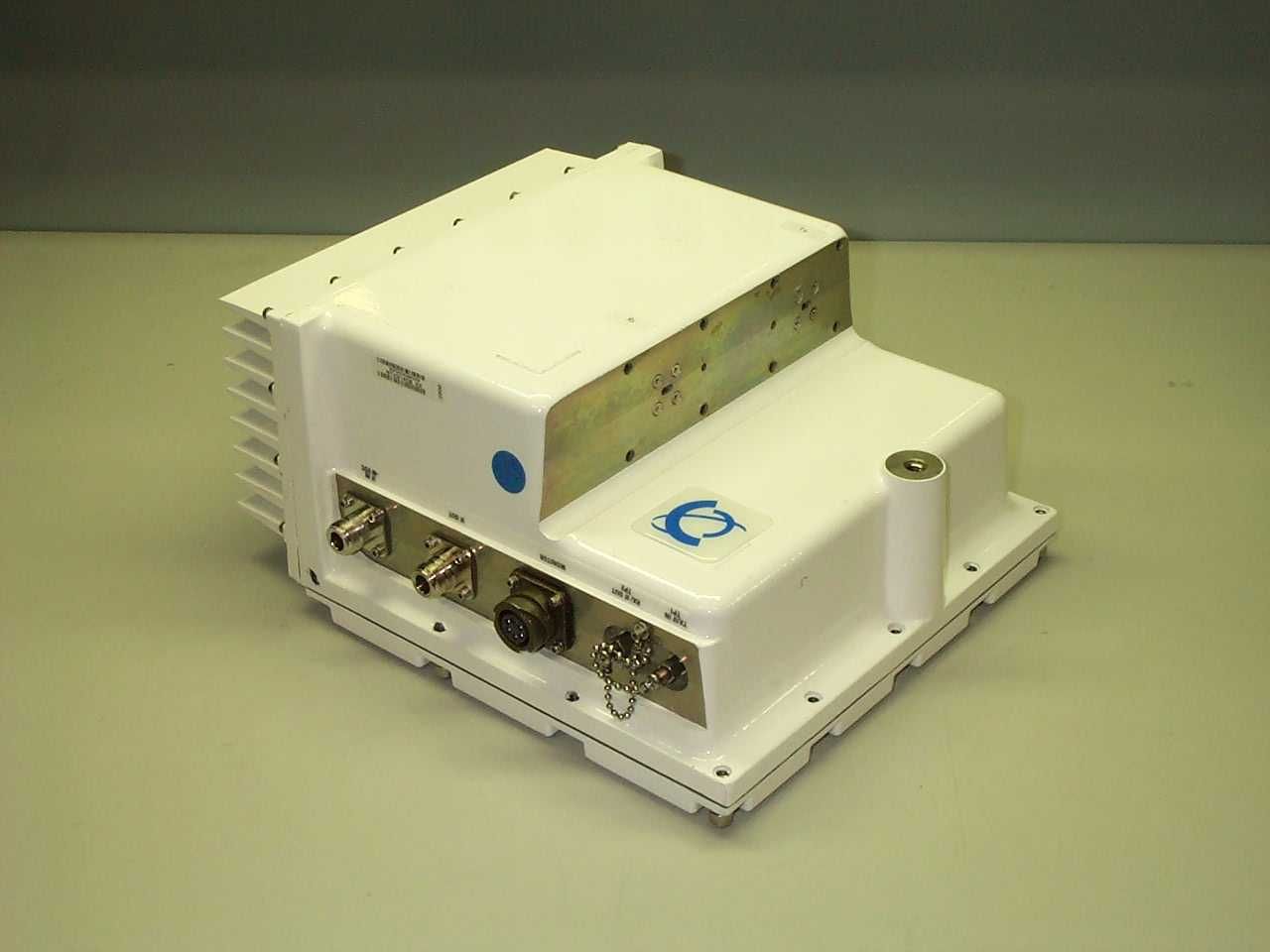

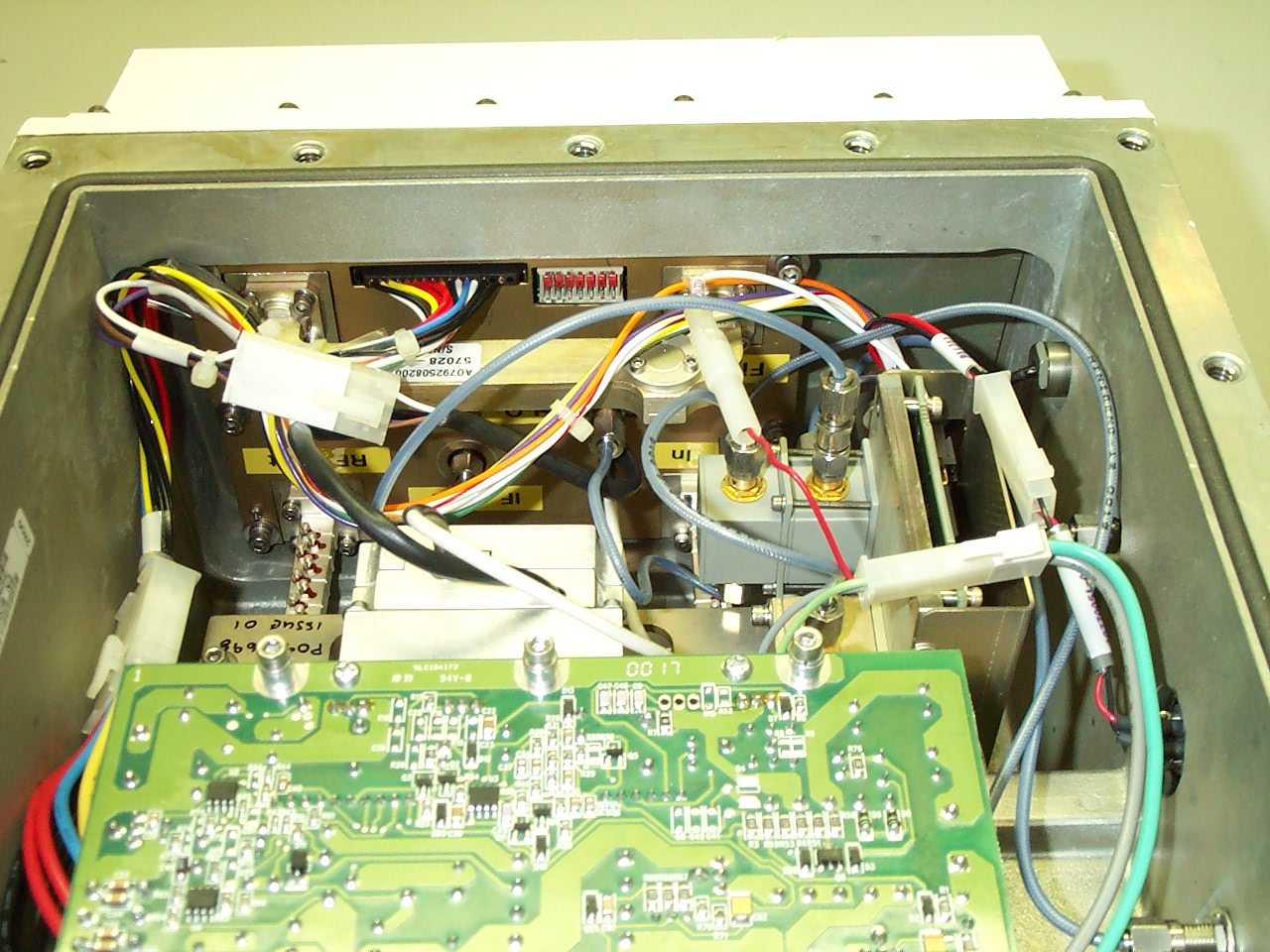

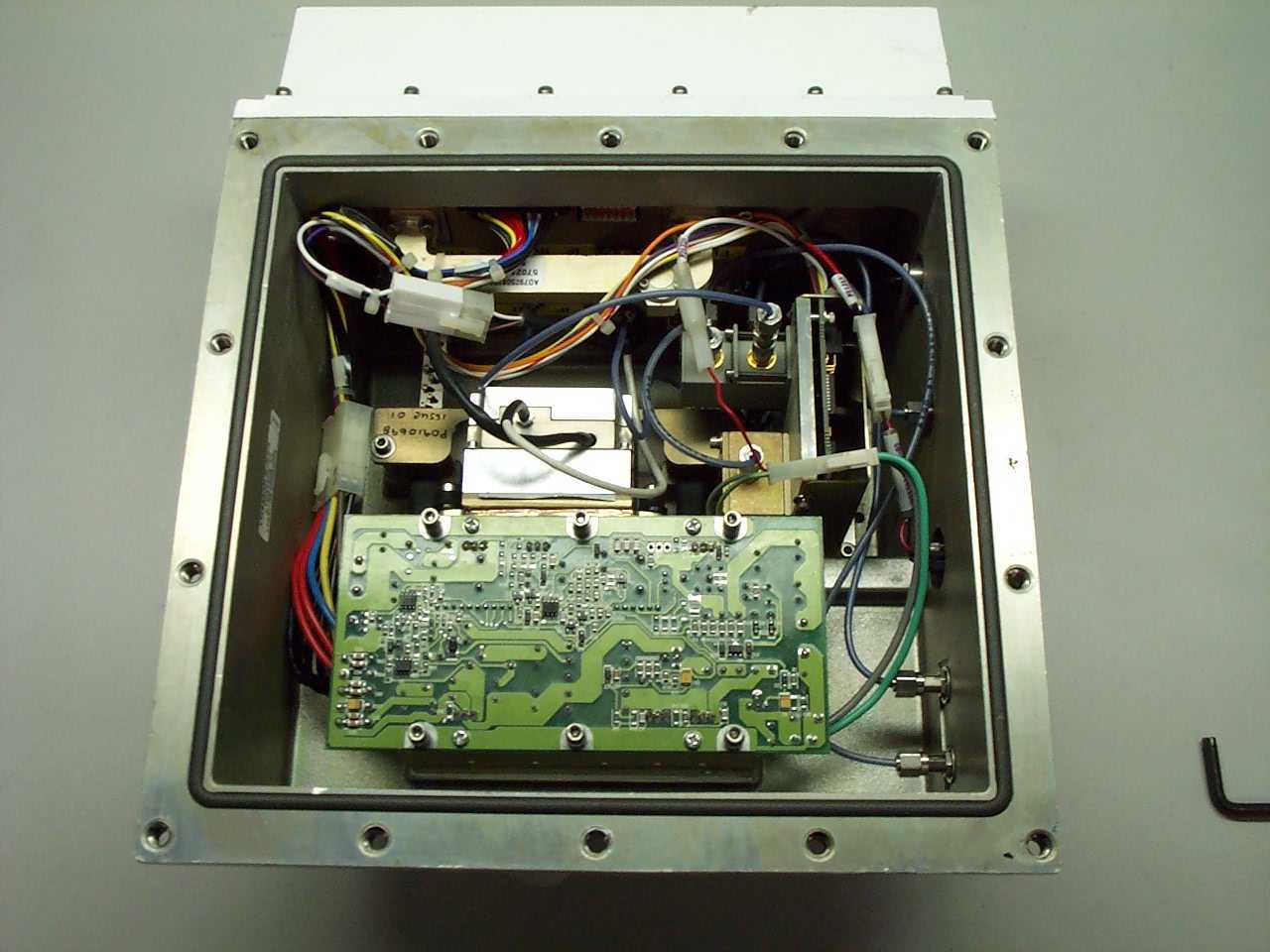

NTP#: 411-1333-922 Draft 01.03 November 2000 BTR 28-08 GHz MMIC Quick Reference Guide Product Overview The BTR 28-08 GHz MMIC (NTVG14BH) outdoor transceiver is a state-of-the- art broadband microwave transceiver designed to operate at various frequency bands downstream. It is a combined broadband transmitter and receiver deployed in Nortel Networks Reunion point-to-multipoint system. It is compatible with Reunion’s Release 1.2, 1.3 and 1.4 equipment. Figure 1: BTR 28M Block Diagram Rx IF Output Tx IF Input Lightning Radio Module Protector Lightning Protector Rx RF Input Tx RF Output Te s t P o r t Rx IF Output Te s t P o r t Lightning Protector Telemetry Signals BTR 28M Transceiver Tx IF/DC Input 411-1333-922 Draft 01.03 November 2000 2 BTR 28-08 MMIC Specification Table 1: BTR 28-08M Technical Specifications TXIF InputRF Output Frequency Range 2 8 - 0 8 M 500-650 MHz27.50 - 27.65 GHz Output Level (P1 dB) 26.25 dBm, -40° to +55° C Output Level (IP3) > +34.5 dBm Input Impedance 50 Ohms Input/Output Connector N-Type FemaleWR-28 (non-standard hole pattern) Input/Output VSWR2.1:1, maximum2.6:1, max (or 7 dB) Gain (not including antenna) @ 25° C30 ±1 dB, minimum Gain vs. Temperature ±2.0 dB, (-40° to +55° C) Gain Flatness ±2.0 dB over bandwidth LO leakage <-43 dBm (outband) Frequency Stability <±4 ppm, Over all Conditions AntennaBTR Frequency 27.5 - 31.3 GHz Port-to-Port Isolation 55 dB (V/V); 55 dB (H/H) Bore-sight Gain (Azimuth) 15.75±1.25 dBi, 90° Horn 18.9±1.25 dBi, 45° 23.8±1.3 dBi, 15° Wave-guide Interface WR-28 (non-standard hole pattern) Mounted on transceiver housing WR-28 flange Size (Length x Height x Width) 10" x 9" x 2" (90°) Polarity single polarity H/H and V/V Sectorized Angle Available 15°, 45°, and 90° BTR 28-08 GHz MMIC Quick Reference Guide 3 RXRF Input IF Output Frequency Range 28-08M27.85 - 28.00 GHz150-300 MHz Input/Output Connector WR-28 (non-stan- dard hole pattern) Type N jack (F) Input P1 dB -13 dBm min Output Impedance 50 Ohms Input/Output VSWR 2.3:1, max (or 8 dB)2.1:1 (or 9 dB), maximum Gain (not including antenna) 29 dB Gain Flatness ±2.0 dB over bandwidth Gain Stability <+2.0 dB over temperature Frequency Stability <±4 ppm, Over all Conditions Noise Figure 7.5 dB, -40° to +55° C Power RequirementsBTR Input Voltage-48 VDC nominal Input Inrush Current 4.5A max Input Power 66 Watts, maximum EnvironmentalBTR Humidity100% condensing Altitude 10,000 feet Operating Wind Resistance 50m/second on all surfaces Operating Temperature -40° to +55°C Storage Temperature Range -45° to +70°C (packaged) Solar Loading ETS 300 019 class 4.1 1120W/m 2 , 50°C max. MechanicalBTR Size (Length x Height x Width)19.1" x 10.3" x 5.8" (47.75 x 26 x 14.5 cm) Weight without brackets 40 lbs. (17.8 KG) Information is subject to change without notice. Nortel reserves the right to make changes in design or components as progress in engineering and manufacturing may warrant. © 2000 Northern Telecom Ltd. Converted Frequency Formula Use the following formula to calculate the converted frequency: TX: ƒ RF OUT (GHz) = 28.15 - ƒ IF IN (GHz) RX: ƒ IF OUT (GHz) = 28.15 - ƒ RF IN (GHz) Note: Electrostatic deposition powder coat, scratch free. Note: Vent holes are covered with a Goretex TM patch. Note: The transceiver mounts to a vertical pole of 2.5” to 4.5” outside diame- ter. It has a range of motion of 90° over and -60° under horizon. The bases of the antenna mount can rotate ±180°. Technical Assistance Contact Information In case additional technical assistance is required, or the transceiver unit is damaged upon receipt, contact Nortel Networks. Nortel Networks Broadband Wireless Access (BWA) provides 24-hour customer service and technical support to ensure your service operation is trouble-free. If you have questions or need technical support, contact Nortel Networks Broadband Wireless Access at the following telephone numbers: • In the USA and Canada, call 972-BWA-ETAS/972-292-3827

Cover Letter(s)

C-MAC Engineering 21 Richardson Side rd Kanata ON K2K 2C1 ∙ Canada Tel613 763 7847 Fax613 763 8091 www.cmac.com November 13, 2000 Denis Lalonde Radio Compliance Specialist Federal Communicatio ns Co mmission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland, 21046 Re: AB6BTR2808M Dear Sir or Madam: This is a FCC Part 101 application for Nortel Network’s Reunion 28-08M BTS LMDS transceiver. The FCCID of this equipment is AB6BTR2808M. Two test reports are submitted. The main report demonstrate compliance of the LMDS BTS transceiver while it transmits signal described by the following emission designators: 10M0D7W, and 40M0D7W. An addendum report is also submitted to demonstrate compliance of the product while it transmits a 7M0D7W and a 28MOD7Wsignal Nortel Networks requests, pursuant to 47 CFR 0.457 and 0.459 of the commission's rules, that the following items be held CONFIDENTIAL due to their proprietary nature. Nortel Networks considers this leading edge technology developed by Nortel and its partners and being new technology, would not want to make this information available to its competitors. Exhibit Type File name of Exhibit 1. Schematics advg14ca-am-11_btr_assy.pdf 2. Parts list SLVG0108.doc 3. Parts list SLVG14CB.doc 4. Block Diagram 28-08M_BTR_Block_Diagram.doc Please call me or write if you have any questions or comments. Regards, Denis Lalonde Product Integrity email:[email protected] C-MAC Engineering

Operational Description

Test Report

Master: ktlPT101SubC.doc Date: April 12, 2000 KTL Test Report:0R02873 Applicant:Nortel Networks 21 Richardson Side Road Kanata, Ontario K2K 2C1 Equipment Under Test:BTR 28-08M (E.U.T.)NTVG14CB S/W Ver. 1.2 In Accordance With:FCC Part 101, Subpart C Tested By:KTL Ottawa Inc. 3325 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: R. Grant, Wireless Group Manager Date: Sept 5,00 Total Number of Pages:36 Authorized Copy: CD KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R02873 EQUIPMENT: BTR 28-08M, NTVG14CB, S/W Ver. 1.2 Page 2 of 33 Table of Contents Section 1. Summary of Test Results......................................................................................3 Section 2. General Equipment Specification........................................................................5 Section 3. RF Power Output..................................................................................................6 Section 4. Occupied Bandwidth............................................................................................7 Section 5. Spurious Emissions at Antenna Terminals........................................................21 Section 6. Field Strength of Spurious Emissions................................................................31 Section 7. Frequency Stability.............................................................................................32 Section 8. Test Equipment List...........................................................................................33 Annex A Test Diagrams....................................................................................................A1 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R02873 EQUIPMENT: BTR 28-08M, NTVG14CB, S/W Ver. 1.2 Page 3 of 33 Section 1.Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 101, Subpart C. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit TNB Equipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100351-0 TESTED BY: Glen Westwell, Technologist DATE: Sept 4,00 KTL Ottawa Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. KTL Ottawa Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R02873 EQUIPMENT: BTR 28-08M, NTVG14CB, S/W Ver. 1.2 Page 4 of 33 Summary Of Test Data Name Of TestPara. No.Result RF Power Output101.113Complies Audio Frequency Response——Not Applicable Audio Low-Pass Filter Response——Not Applicable Modulation Limiting——Not Applicable Occupied Bandwidth101.111Complies Spurious Emissions at Antenna Terminals101.111Complies Field Strength of Spurious Emissions101.111Complies * Frequency Stability101.107Complies Footnotes For N/A’s:This equipment does not have any provision for conventional analogue voice processing circuits. * Equipment authorized to be operated in the 38000 to 40000 MHz band is exempt from the frequency tolerance requirement. Test Conditions: IndoorTemperature:24 °C Humidity:46 % OutdoorTemperature:25 °C Humidity:44 % . KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R02873 EQUIPMENT: BTR 28-08M, NTVG14CB, S/W Ver. 1.2 Page 5 of 33 Section 2.General Equipment Specification Manufacturer: Nortel Networks Model No.: BTR 28-08M, NTVG14CB S/W Ver. 1.2 Serial No.: NNTM532GPH4X Date Received In Laboratory: August 14, 2000 KTL Identification No.: Item #1 Supply Voltage Input: -48 Vdc Frequency Range: 27.505 – 27.645 GHz Tunable Bands: 1 Necessary Bandwidth: (1 Carrier)OCC. BW = 7.83 MHz (4 Carrier)OCC. BW = 31.32 MHz Types of Modulation: 4, 16 & 64 QAM @ 7.456 Msps FDMA Data Rate(s): 7.456 Msps Internal/External Data Source: External Emission Designator: 7M83D9W 15M7D9W 23M5D9W 31M3D9W Output Impedance: 50Ω RF Power Output (rated): 14.5 to 22 dBm Channel Spacing(s): 10 MHz Operator Selection of Operating Frequency: None Power Output Adjustment Capability: Attenuation Adjust 31 – 0 dB KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R02873 EQUIPMENT: BTR 28-08M, NTVG14CB, S/W Ver. 1.2 Page 6 of 33 Section 3.RF Power Output Para. No.: 1.1046 Test Performed By: Glen WestwellDate of Test: August 24, 2000 Minimum Standard:101.113 (a), 55 dBW Test Results:Complies Measurement Data: Rated (dBm)Measured (dBm) 22.022.1 22.022.0 20.020.1 20.020.1 18.017.9 18.018.0 20.520.4 20.520.8 17.517.5 17.517.8 14.514.8 14.515.3 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R02873 EQUIPMENT: BTR 28-08M, NTVG14CB, S/W Ver. 1.2 Page 7 of 33 Section 4.Occupied Bandwidth Para. No.: 2.1049 Test Performed By: Glen WestwellDate of Test: August 25, 2000 Minimum Standard:101.111 (a)(2)(ii) Test Results:Complies Test Data:See attached graph(s). KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R02873 EQUIPMENT: BTR 28-08M, NTVG14CB, S/W Ver. 1.2 Page 8 of 33 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R02873 EQUIPMENT: BTR 28-08M, NTVG14CB, S/W Ver. 1.2 Page 9 of 33 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R02873 EQUIPMENT: BTR 28-08M, NTVG14CB, S/W Ver. 1.2 Page 10 of 33 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R02873 EQUIPMENT: BTR 28-08M, NTVG14CB, S/W Ver. 1.2 Page 11 of 33 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R02873 EQUIPMENT: BTR 28-08M, NTVG14CB, S/W Ver. 1.2 Page 12 of 33 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R02873 EQUIPMENT: BTR 28-08M, NTVG14CB, S/W Ver. 1.2 Page 13 of 33 K…

Text truncated - open the document above for the full version.

Test Report

Radio Compatibility Test Report Nortel Networks Reunion 28-08M BTR Document issue: 1.0 PI-00328-00 Security status: ProprietaryDate: October 30, 2000 Keywords: Reunion 28-08M BTR, FCC Part 101 radio regulatory requirements Abstract: This report documents the measurements that the C-MAC Engineering Product Integrity group performed in order to demonstrate radio regulatory compliance to FCC Part 101 requirements. Author(s): Horia Popovici Approved by: Denis Lalonde Recommended by: Real Perriard Funder: Nortel Networks Project Leader: David Levy External Project #: 23649 Internal Project #: KP000117 © Copyright C-MAC Engineering, October 2000 This document is the property of C-MAC Engineering who owns the copyright therein. The information in this document is given in confidence and without the written consent of C-MAC Engineering by contract or otherwise the document must not be copied, reprinted, or reproduced in any material form either wholly or in part nor must the contents of the document or any method or technique available therefrom be disclosed to any third party. PI-00328-00Nortel Networks Reunion 28-08M BTR Issue: 1.0Radio Compatibility Test Report October 30, 2000Security status: Proprietary iii Distribution List Copy No.NameDepartmentLocation 1. PI FileC-MAC PIKAN 2. Ron OostlanderNortel Networks RB21WDLN2 3. David LevyC-MAC PIKAN PI-00328-00Nortel Networks Reunion 28-08M BTR Issue: 1.0Radio Compatibility Test Report October 30, 2000Security status: Proprietary iv Executive Summary This report documents the measurements performed by the C-MAC Engineering Product Integrity group on the Nortel Networks Reunion 28-08M BTR (TDMA Configuration) from September 12 to September 19, 2000 in order to demonstrate radio regulatory compliance to FCC Part 101 requirements. Release Control Record Issue No.Reason for changeDate Issued 1.0OriginalOctober 30, 2000 PI-00328-00Nortel Networks Reunion 28-08M BTR Issue: 1.0Radio Compatibility Test Report October 30, 2000Security status: Proprietary v CERTIFICATE OF COMPLIANCE Product Name:Reunion 28-08M BTR Model Identifier: NTVG14CB On the basis of measurements here reported on October 30, 2000, the above referenced equipment is verified as meeting the requirements of FCC Part 101 (Fixed Microwave Services), and FCC Part 2 (Maximum Output Power and Occupied Bandwidth) requirements. The Test data included in this report applies to the product titled herein manufactured by Nortel Networks. Certified by: Denis Lalonde C-MAC Engineering, Inc. 21 Richardson Side Road Kanata, Ontario K2K 2C1 Canada PI-00328-00Nortel Networks Reunion 28-08M BTR Issue: 1.0Radio Compatibility Test Report October 30, 2000Security status: Proprietary vi PI-00328-00Nortel Networks Reunion 28-08M BTR Issue: 1.0Radio Compatibility Test Report October 30, 2000Security status: Proprietary vii Table of Contents 1.TEST AND RESULTS SUMMARY .................................................................................. 1 2.REFERENCE DOCUMENTATION................................................................................... 2 2.1. S PECIFICAT IONS ........................................................................................................ 2 2.2. S TANDARDS .............................................................................................................. 2 2.3. O THER R EFERENCE D OCUMENTATION ....................................................................... 2 2.4. G LOSSARY O F A CRONYMS ......................................................................................... 2 3.PRODUCT DESCRIPTION............................................................................................. 2 3.1. P RODUCT I DENT IFICAT ION ......................................................................................... 3 3.2. F UNCTIONAL D ESCRIPTION ........................................................................................ 3 3.3. P RODUCT C ONFIGURATION (E QUIPMENT U NDER T EST ) .............................................. 4 4.GENERAL TEST CONDITIONS...................................................................................... 5 4.1. T EST F ACILIT Y ........................................................................................................... 5 4.2. C LIMATIC C ONDITIONS ............................................................................................... 5 4.3. M EASUREMENT I NSTRUMENTATION ........................................................................... 5 5.TEST RESULTS............................................................................................................ 6 5.1. N AME OF T EST : M AXIMUM T RANSMIT P OWER .............................................................. 6 5.2. N AME OF T EST : O CCUPIED B ANDWIDTH ...................................................................... 7 5.3. N AME OF T EST : RF S PECTRUM M ASK ......................................................................... 8 6.TEST EQUIPMENT........................................................................................................ 9 6.1. T EST C ONFIGURATION ............................................................................................... 9 6.1. T EST E QUIPMENT L IST ............................................................................................... 9 ANNEX A (NORTEL REUNION 28-08M BTR TEST PLOTS).................................................. 10 ANNEX B (NORTEL REUNION 28-08M BTR TEST PLAN) ......................…

Text truncated - open the document above for the full version.
