AB6BTR3101PLMDS 31 GHz transceiver (HUB)

Pkgid:0000007 PROPRIETARY INFORMATION: The information contained in this document is the property of Nortel (Northern Telecom). Except as specifically authorized in writing, the holder of this document shall keep all information contained herein confidential and shall protect same in whole or in part from disclosure and dissemination to third parties.  Nortel Networks 1998, 1999 All Rights Reserved BWA - BTR Microwave Transceiver and RPE Installation Installation Method - 08-0283 October 12, 1999 Issue Number: 03.04 BWA - BTR Microwave Transceiver and RPE Installation / 3 October 12, 1999Method 08-0283 Table of Contents 1.0 General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 1.1 Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 1.2 Sequence. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 1.3 Reason for Reissue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2.0 Material Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2.1 Required Documents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2.2 Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2.3 Supplies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2.4 Customer Supplied Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2.5 Emergency Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 3.0 Precautions and Preparations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 3.1 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 3.2 Preparations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 4.0 Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 4.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 4.2 Unpacking the BTR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 4.3 Observe Installation Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 4.4 Preparing the BTR for Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Procedure 1 – Prepare BTR for Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 4.5 Mounting the BTR to the Antenna Mast Using a Single Mount . . . . . . . . . . . . . . . . . . . . 19 Procedure 2 – Mounting the BTR to the Antenna Mast Using a Single Mount . . . . 19 4.6 Install the BTR(s) Using the Dual Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Procedure 3 – Install the BTR(s) Using the Dual Mount. . . . . . . . . . . . . . . . . . . . . 22 4.7 Alignment of BTR’s Using the Alignment Tool. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Procedure 4 – Alignment of BTR’s Using the Alignment Tool . . . . . . . . . . . . . . . . . 28 4.8 Install the RPE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Procedure 5 – Install the RPE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 5.0 Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 6.0 Appendices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Appendix A - Acronyms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Last Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 4 / BWA - BTR Microwave Transceiver and RPE Installation Method 08-0283October 12, 1999 Illustrations Figure 1 – BTR Antenna Polarity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Figure 2 – Tape Covering Flange. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Figure 3 – Antenna Placement on the BTR2400 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Figure 4 – Antenna bottom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Figure 5 – BTR with RFC antenna in position for mounting . . . . . . . . . . . . . . . . . . . . . . . . . 15 Figure 6 – 9/64 Allen head screws and washers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Figure 7 – Screwdriver with extensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Figure 8 – The RF reflector is mounted parallel to the cylinder on the end of the antenna.. 17 Figure 9 – Four 7/16th’s All thread bolts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Figure 10 – 4 holes on the back of BTR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Figure 11 – Back of BTR with All thread bolts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Figure 12 – U-Brackets. . . …

Text truncated - open the document above for the full version.

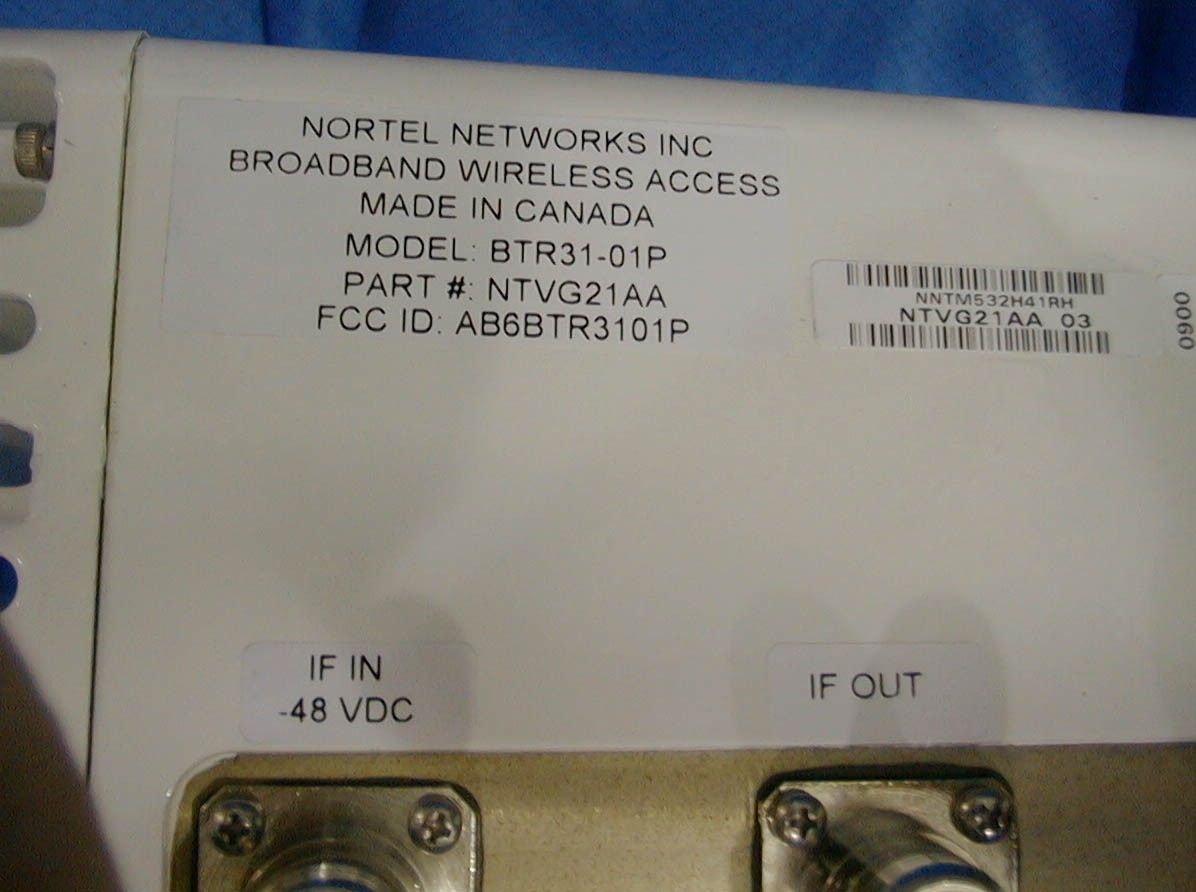

Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland, 21046 March 27, 2000 re: 31-01P BTR (FCC ID: AB6BTR3101P, Confirmation Code: EA97120) Dear Sir or Madam: This Nortel Networks application is for a 31 GHz LMDS Base (HUB) Transceiver Model BTR3101P. The BTR Part Number is NTVG21AA and the FCC ID is AB6BTR3101P. A separate application has been filed on the same date for the associated customer premises transceiver, Model CTR3101P, part number NTVG22AA, and FCC ID AB6CTR3101P. These two units were initially the subjects of a combined application made in December 1999, which requested FCC ID OHOBTRCTR3101. This application was dismissed in March 2000 because of the failure by Nortel to respond to the FCC’s original requests for clarification. Information requested included individual FCC ID’s, additional parts lists, and there were some errors in the report wording. This combined application was submitted from the Nortel Broadband Wireless operation in Winnipeg, Manitoba, which has subsequently been closed. Since then, Nortel Networks has consolidated Wireless Development activities in Ottawa, Canada. The failure by Nortel to respond to the FCC’s original requests for clarification were in great part due to the relocation of development activities from Winnipeg to Ottawa and some related staff discontinuities. The additional “time to market” which will result from the need for new applications has placed Nortel in a difficult position with respect to contractual obligations to a major customer. Nortel respectfully requests that this pair of applications be treated as a continuation of the original approval activity. In particular, we would be grateful for any reduction or possible elimination of the current file-processing period, which any new application has to go through to reach the engineering review stage. Sincerely, Denis Lalonde Radio Compatibility Eng. Nortel Networks P.O. Box 3511, Station C Ottawa, Ontario, Canada K1Y 4H7

Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland, 21046 April 27, 2000 re: 31-01P BTR (FCC ID: AB6BTR3101P, 13EA97120) Dear Sir or Madam: Nortel requests, pursuant to 47 CFR 0.457 and 0.459 of the commission's rules, that the fol- lowing items be held CONFIDENTIAL due to their proprietary nature. We consider this leading edge technology developed by Nortel and our partners and being new technology, would not want to make this information available to our competitors. Exhibit Type File name of Exhibit 1. Parts listslvg21aa_msl-00-05 2. Parts listslvg0101_msl-00-13 3. SchematicsBTR-blkdiag 4. SchematicsBTRlayout 5. SchematicsBTRlayout1 Sincerely, Denis Lalonde Radio Compatibility Eng. Nortel Networks P.O. Box 3511, Station C Ottawa, Ontario, Canada K1Y 4H7

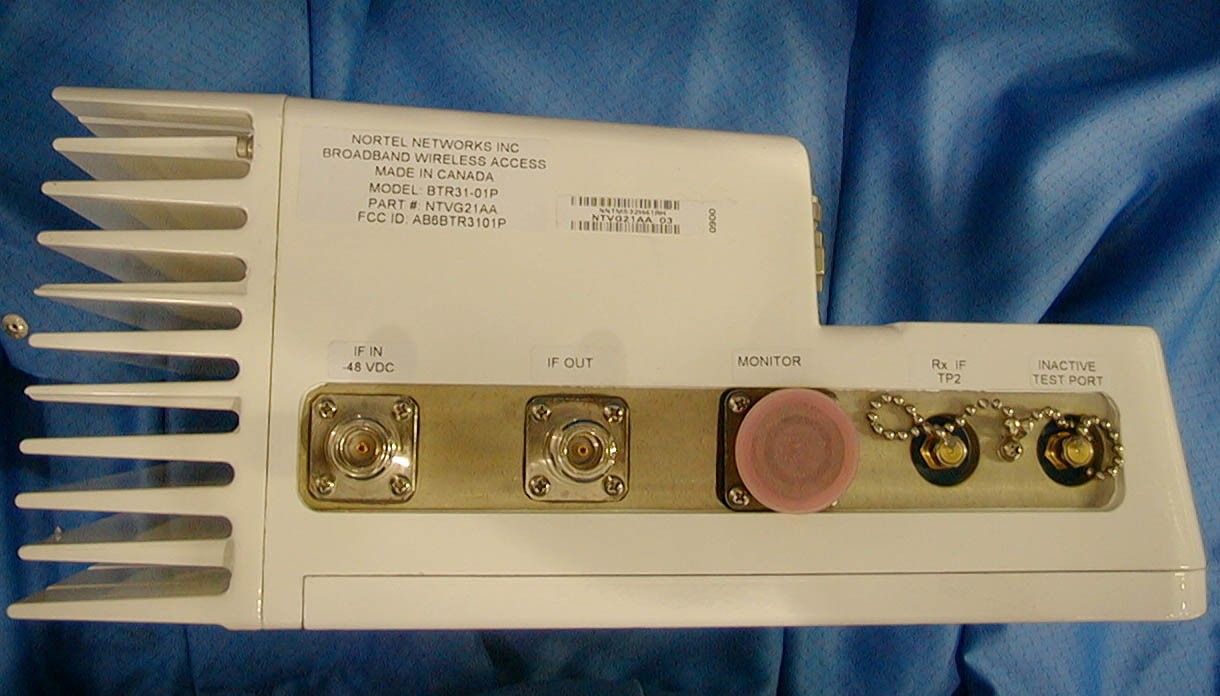

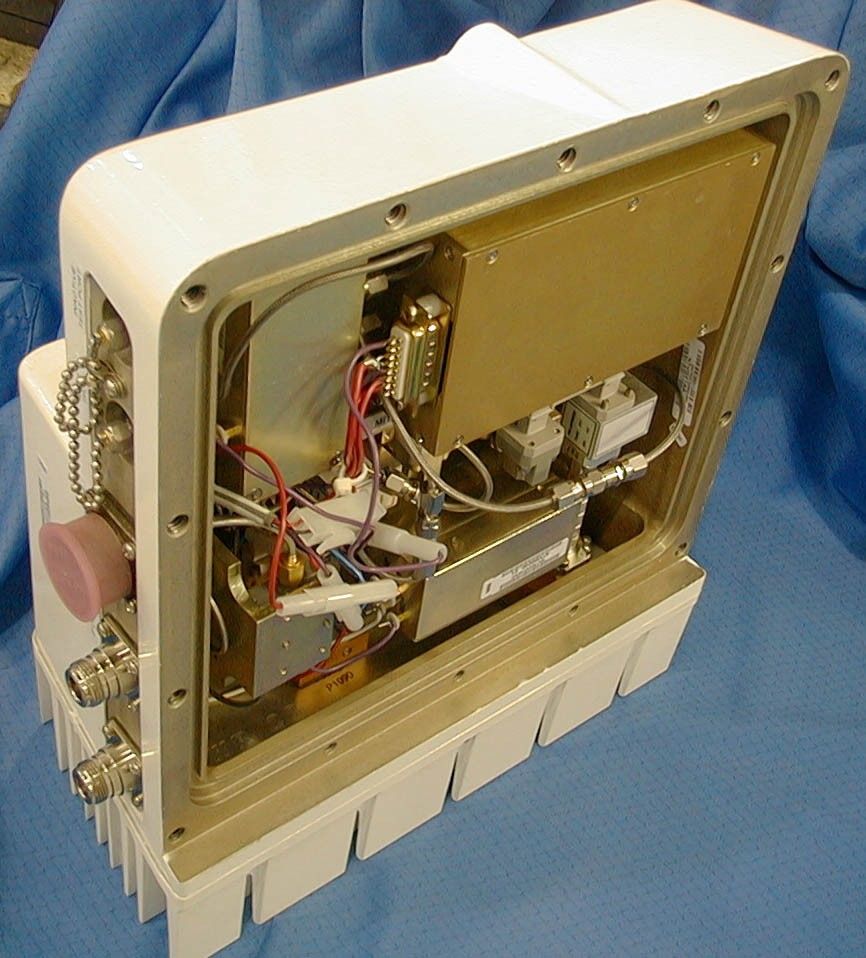

NTP #: 411-1333-906 Preliminary 02.01 December 1999 BTR 31 GHZ PLUMB Product Overview The BTR 31GHz outdoor transceiver (NTVG 21-AA) is a state-of-the-art broad- band microwave transceiver designed to operate at various frequency bands downstream. It is a combined broadband transmitter and receiver deployed in Reunion’s point-to-multipoint system. It is compatible with Reunion’s Release 1.2, 1.3 and 1.4 equipment. Figure 1: BTR 31GHz Block Diagram P. A m p LNA VHF AMP Monitoring/Control Power Supply Diplexer Antenna Up-converter Down-converterBPFBPF BPFBPF LO BTR 31GHz Transceiver 411-1333-906 Preliminary 02.01 December 1999 2 BTR 31GHz Specification Table 1: BTR 31 GHz Technical Specifications TXIF InputRF Output Frequency Range 31-01P 450-525 MHz31.0-31.075 GHz Output Level (P1 dB) ≥27 dBm, -40° to +55° C Output Level (IP3) > +35 dBm Input Impedance 50 Ohms Input/Output Connector N-Type FemaleWR-28 Input/Output VSWR 1.8:1, maximum1.8:1, max (or 13 dB) Gain (not including antenna) 34±1 dB, minimum Gain vs. Temperature ±3.0 dB, (-40° to +55° C) Gain Flatness <±1.5 dB over 75 MHz BW LO leakage <-43 dBm (outband) Frequency Stability <±2 ppm, (-40° to +55° C) AntennaBTR Frequency 31.0-31.075 GHz Gain +15.0 dBi, 90 ±9° Horn Input/output microwave connector for the antenna WR-28 Mounted on transceiver housing WR-28 flange Size (Length x Height x Width) 10" x 9" x 2" (90°) TX / RX wave polarity linear, single pole (horizontal or vertical) Sectorized Angle Available 15°, 30°, 45°, 60° and 90° BTR 31 GHz Plumb Quick Reference Guide 3 RXRF Input IF Output Frequency Range 31-01P 31.225-31.3 GHz 225-300 MHz Input/Output Connector WR-28 Cover FlangeN-Type Female Input IP3 --18 dBm Output Impedance 50 Ohms Input/Output VSWR 1.8:1, max (or 13 dB)1.8:1, maximum Gain (not including antenna) 37±1 dB, minimum Gain Flatness ±2.0 dB over bandwidth Gain Stability <±3.0 dB over tempera- ture Frequency Stability <±2 ppm, (-40° to +55° C) Noise Figure SSB < 7.5 dB, -40° to +55° C Power RequirementsBTR Input Voltage±48 VDC Input Current <2 Amp Input Power 100 Watts, maximum EnvironmentalBTR Humidity100% condensing Altitude 10,000 feet Operating Temperature -40° to +55°C Storage Temperature Range -60° to +75°C MechanicalBTR Size (Height x Width x Depth)19.2" x 10.3" x 6.7" (49 x 26 x 17 cm) Weight without brackets 35 lbs. (16KG) Information is subject to change without notice. Nortel reserves the right to make changes in design or components as progress in engineering and manufacturing may warrant. © 1999 Northern Telecom Ltd. Converted Frequency Formula Use the following formula to calculate the converted frequency: TX: ƒ RF OUT (GHz) = 31.525 - ƒ IF IN (GHz) RX: ƒ IF OUT (GHz) = 31.525- ƒ RF IN (GHz) Technical Assistance Contact Information In case additional technical assistance is required, or the transceiver unit is damaged upon receipt, contact Nortel Networks. Nortel Networks Broadband Wireless Access (BWA) provides 24-hour customer service and technical support to ensure your service operation is trouble-free. If you have questions or need technical support, contact Nortel Networks Broadband Wireless Access at the following telephone numbers: • In the USA and Canada, call 972-BWA-ETAS/972-292-3827

Nortel BWA Type Acceptance Radio Transceiver Test Report Product Description:31 GHz Base Station (BTR) Model: BTR3101P Nortel BWA File #AB6BTR3101P M ITCH H EBERT PI S PECIALIST D ATE N OVEMBER 30, 1999 W INNIPEG , Type Acceptance Test Report : ii DECLARATION BY Nortel Networks BWA The tests were performed from Sep 11 through Sep 30,1999 at the Nortel Networks BWA’s EMC Laboratory in Winnipeg. The following personnel collaborated to this project: Mitch Hebert, PI Specialist Eduardo Atanacio, PI Tech Testing was performed and supervised by the undersigned. The test supervisor attests to the accuracy of the test data recorded in this report. Performed by: Eduardo Atanacio Date September 30, 1999 Supervised by: Mitch HebertDate September 30, 1999 © This document shall not be reproduced without the written approval of Nortel BWA Total number of pages: 45 The results presented in this report refer only to the product(s) described in section 1. All equipment and instrumentation used during this test have been verified and/or calibrated. All calibration certificates are traceable to the National Research Council of Canada (CNRC) and/or to the American National Institute of Standards and Technology (NIST) standards and can be provided on request. Nortel BWA is registered ISO 9002:1998, certificate # 766.2. Type Acceptance Test Report : iii TABLE OF CONTENTS Page 1. INTRODUCTION...................................................................................................................... 1 O BJECT ............................................................................................................................................. 1 E QUIPMENT UNDER T EST D ESCRIPTION ............................................................................................ 1 A NTENNAE ........................................................................................................................................ 1 G ENERAL .......................................................................................................................................... 2 R ESULTS ........................................................................................................................................... 2 T EST F ACILITIES D ESCRIPTION ......................................................................................................... 3 T EST E QUIPMENT .............................................................................................................................. 3 2. CONDUCTED EMISSIONS ...................................................................................................... 4 T EST C ONDITIONS ............................................................................................................................. 4 M INIMUM S PECIFICATIONS .............................................................E RROR ! B OOKMARK NOT DEFINED . T EST R ESULTS ................................................................................................................................... 4 M EASUREMENT D ATA ....................................................................................................................... 4 T EST M ETHOD .................................................................................................................................. 4 T EST S YSTEM T EST C ONFIGURATION ................................................................................................ 4 3. RADIATED EMISSIONS .......................................................................................................... 6 T EST C ONDITIONS ............................................................................................................................. 6 S PECIFICATIONS ..............................................................................E RROR ! B OOKMARK NOT DEFINED . T EST R ESULTS ................................................................................................................................... 6 M EASUREMENT D ATA ....................................................................................................................... 6 T EST M ETHOD .................................................................................................................................. 6 T EST S YSTEM C ONFIGURATION ......................................................................................................... 7 4. TEMPERATURE STABILITY TESTS ..................................................................................... 8 T EST C ONDITIONS ............................................................................................................................. 8 S PECIFICATIONS ................................................................................................................................8 T EST R ESULTS ................................................................................................................................... 8 M EASUREMENT D ATA ....................................................................................................................... 8 T EST M ETHOD .................................................................................................................................. 8 T EST S YSTEM C ONFIGURATION ......................................................................................................... 9 5. CO/ADJACENT CHANNEL TEST ......................................................................................... 10 T EST C ONDITIONS ........................................................................................................................... 10 Type Acceptance Test Report : iv M INIMUM S PECIFICATIONS ............................................................................................................. 10 A DJACENT C HANNEL T EST M ETHOD ........................................................................…

Text truncated - open the document above for the full version.
