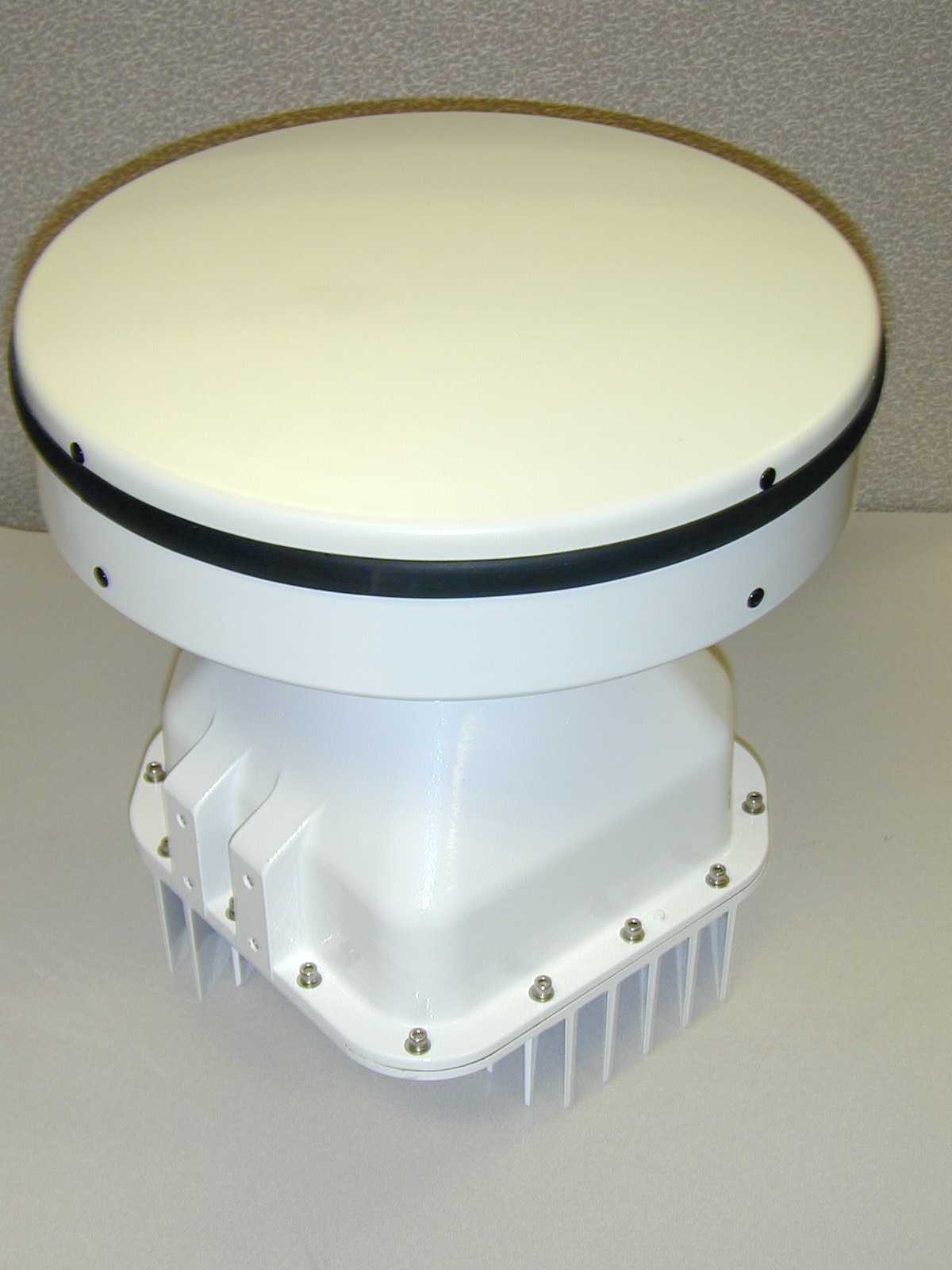

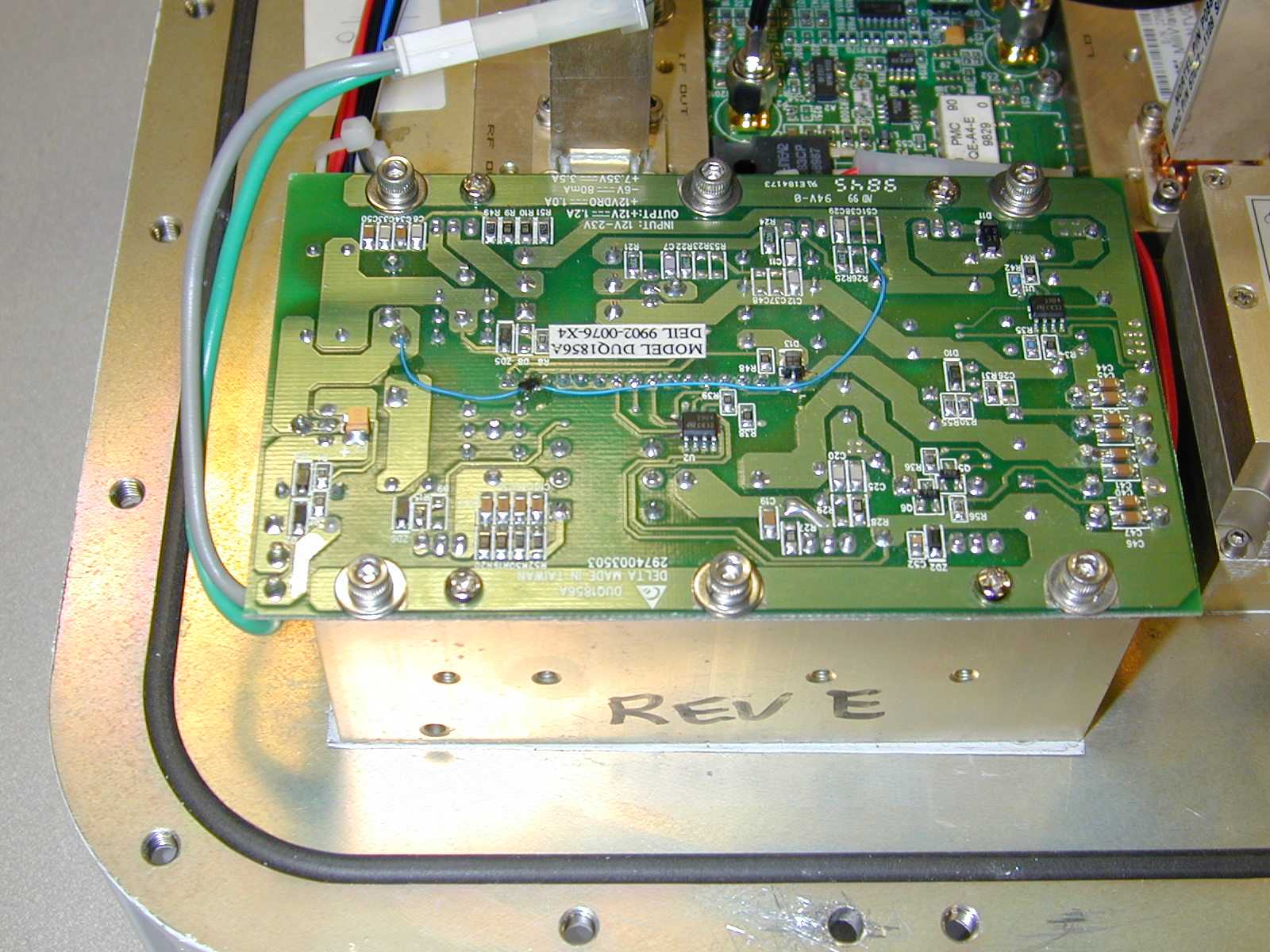

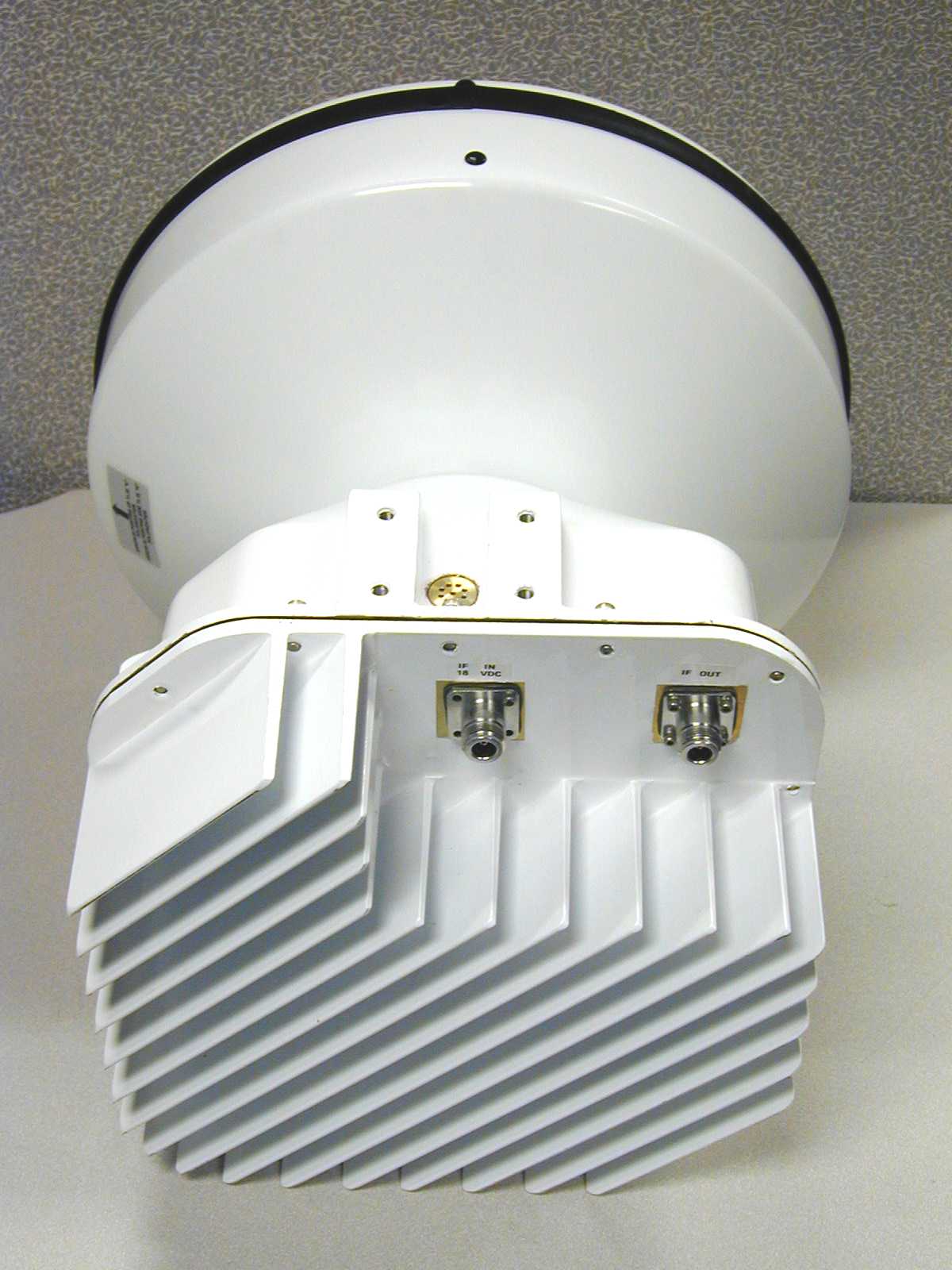

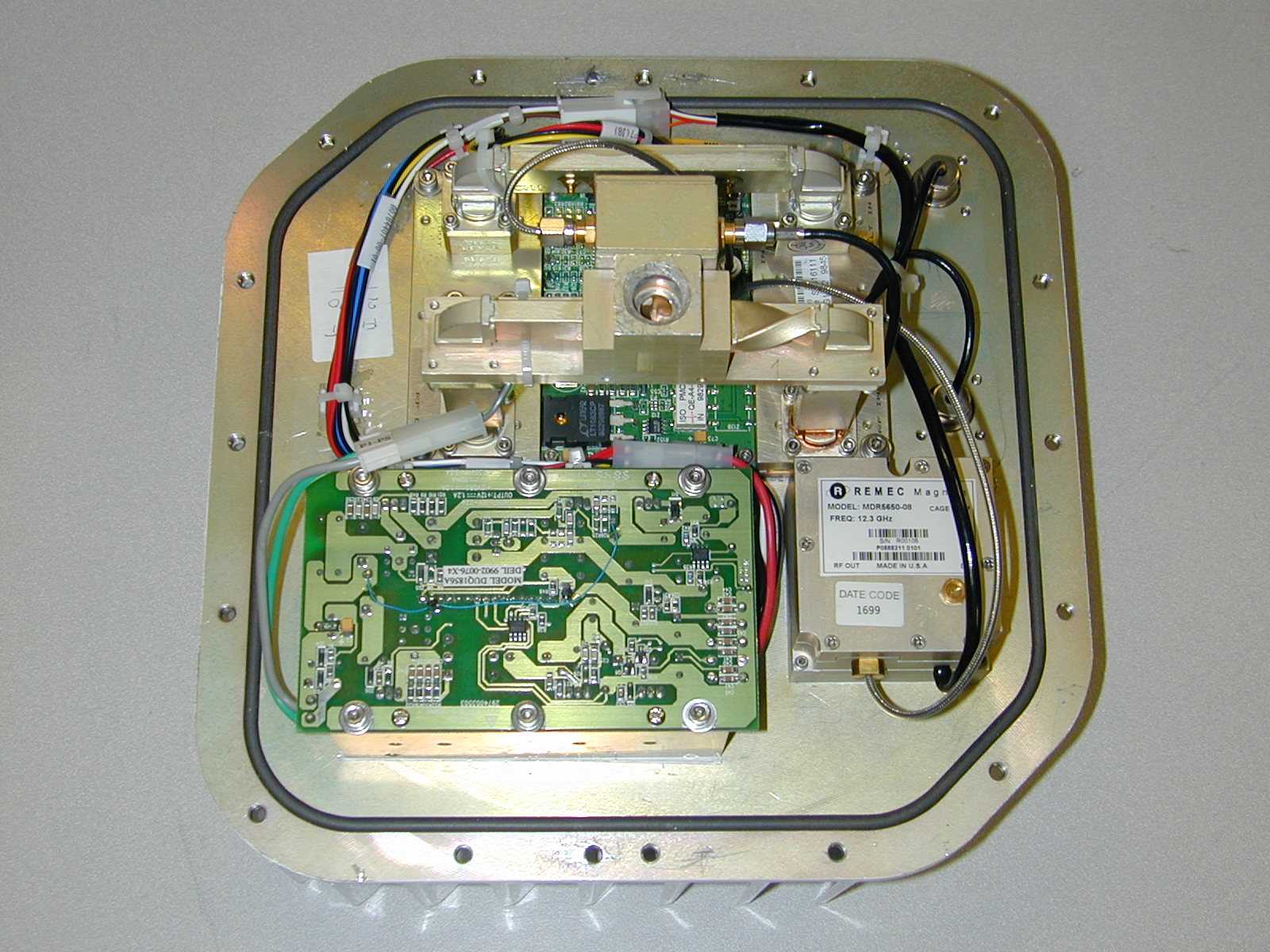

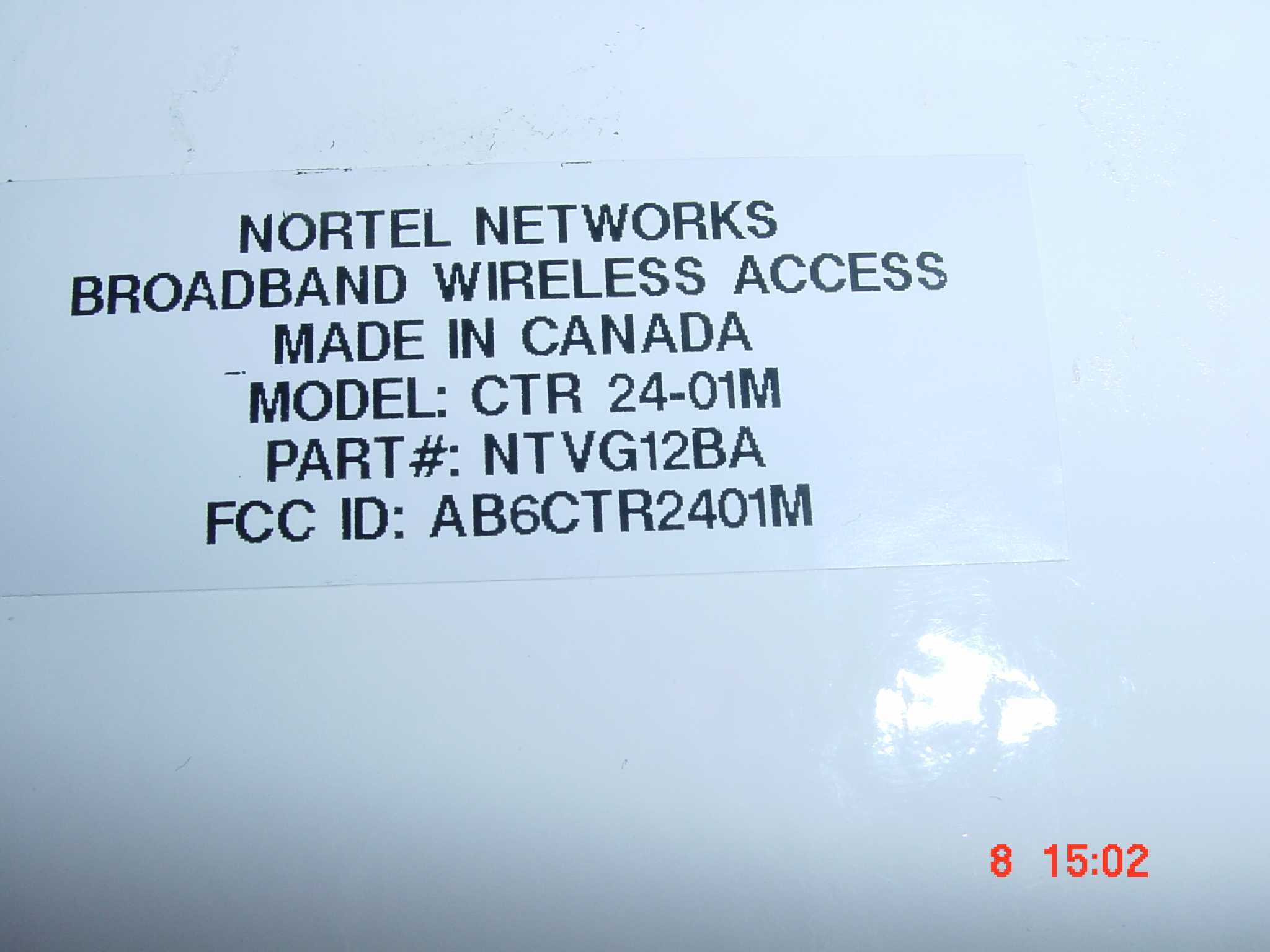

AB6CTR2401MCPE 24 GHz Service Transceiver

NTP #: 411-1333-911 Preliminary 01.01 December 2000 CTR 24-01 GHz MMIC Quick Reference Guide Product Overview The CTR 24-01 MMIC (DSVG12BA) outdoor transceiver is a customer premise transceiver designed to operate in various Receiver (Rx) and Transmitter (Tx) frequency bands. It is a Nortel Networks Reunion product that operates in con- junction with base station products, as well as customer premise products. It is compatible with Reunion’s Release 1.2, 1.3 and 1.4 equipment. Figure 1: CTR 24-01M Block Diagram Rx I F Tx IF/DC Input Transceiver Lightning Protector Lightning Protector Rx RF I nput (Test Tx RF Output/ Te s t Po r t Tx IF Input Te s t Po r t Rx IF Output Out put CTR 24-01M Transceiver 411-1333-911 Preliminary 01.01 December 2000 2 CTR 24-01 GHz MMIC Specification Table 1: CTR 24-01M Technical Specifications TXIF InputRF Output Frequency Range 24-01M 450-650 MHz25.05 - 25.25 GHz Output Level (P1 dB) ≥23.0 dBm, -40° to +30° C ≥22.5 dBm, +30° to +50° C ≥22.5 dBm, +50° to +60° C Input Impedance 50 Ohms Input/Output Connector N-Type FemaleN/A (integrated antenna) Input/Output VSWR 1.925:1 (or 10 dB), maximum N/A (integrated antenna) Gain (mid-band at room tem- perature not including antenna) 32 ±1.0 dB, minimum Gain Variation ±5.5 dB over all conditions Gain Flatness ±2 dB over 200 MHz BW LO leakage <-43 dBm (outband) Frequency Stability <±4 ppm over all conditions Tx Noise Power -115 dBm/Hz, maximum Tx IF Test Port Coupling -16± 1 dB AntennaCTR Frequency 24.25 - 26.5 GHz Frequency Band 2426 Gain 36.5 dBi ±0.9 dB Polarity Cross Pole (dual polarization) Beam Width (azimuth) Beam Width (elevation) 2.5±0.2°, maximum 2.5±0.2°, maximum Port-to-Port Isolation 35 dB, minimum Cross-Polarization Discrimination > 30 dB Diameter 14" (35 cm) CTR 24-01 GHz MMIC Quick Reference Guide 3 RXRF Input IF Output Frequency Range 24-01M24.25 - 24.45 GHz150 - 350 MHz Input/Output Connector N/A (integrated antenna) N-Type female Input P1 dB -18 dBm Output Impedance N/A50 Ohms Input/Output VSWR N/A1.925:1, max (or 10 dB) Gain (mid-band at room tem- perature not including antenna) 28 ±1.0 dB Gain Flatness ±2.0 dB over bandwidth Gain Variation ±5.5 dB over all conditions Frequency Stability <±4 ppm over all conditions Power Requirements CTR Input Voltage18 VDC Input Inrush Current <7.5 A max Input Power 50 Watts, maximum EnvironmentalCTR Humidity100% condensing Altitude 3000 meters Operating Wind Resistance 50m/second on all surfaces Operating Temperature -40° to +60°C Storage Temperature Range -45° to +70°C (packaged) Solar Loading ETS 300 019 class 4.1 1120W/m 2 , 50°C max. MechanicalCTR Size (Length x Height x Width)14" x 14" x 11" (35.6 x 35.6 x 27.9 cm) Weight without brackets 11.41 KG Information is subject to change without notice. Nortel reserves the right to make changes in design or components as progress in engineering and manufacturing may warrant. © 2000 Northern Telecom Ltd. Converted Frequency Formula Use the following formula to calculate the converted frequency: TX: ƒ RF OUT (GHz) = ƒ IF IN (GHz) + 24.6 RX: ƒ IF OUT (GHz) = 24.6 - ƒ RF IN (GHz) Note: Vent holes are covered with a Goretex TM patch. Note: The transceiver mounts to a vertical pole of 2.5” to 4.5” outside diame- ter. It has a range of motion of 90° over and -60° under horizon. The bases of the antenna mount can rotate ±180°. Technical Assistance Contact Information In case additional technical assistance is required, or the transceiver unit is damaged upon receipt, contact Nortel Networks. Nortel Networks Broadband Wireless Access (BWA) provides 24-hour customer service and technical support to ensure your service operation is trouble-free. If you have questions or need technical support, contact Nortel Networks Broadband Wireless Access at the following telephone numbers: • In the USA and Canada, call 972-BWA-ETAS/972-292-3827

C-MAC Engineering 21 Richardson Side rd Kanata ON K2K 2C1 ∙ Canada Tel613 763 7847 Fax613 763 8091 www.cmac.com January 25, 2001 Denis Lalonde Radio Compliance Specialist Federal Communicatio ns Co mmission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland, 21046 Re: AB6CTR2401M Dear Sir or Madam: This is a FCC Part 101 application for Nortel Network’s iBWA 5100 24-01M CPE LMDS transceiver. The FCCID of this equipment is AB6CTR2401M. Two test reports are submitted. The main report demonstrate compliance of the LMDS CPE transceiver while it transmits signal described by the following emission designators: 2M18D9W, 5M48D9W, 4M43D9W, and 9M93D9W. An addendum report is also submitted to demonstrate compliance of the product w hile it transmits a 2M8D9W, 5M6D9W, 6M2D9W, or 12M4D9W signal The power levels listed on Form 731 and recorded in the test reports are composite power levels. EmissionChannel SpacingCompositeSub-carrier Comment Designator (MHz) Power (dBm) Power (dBm) 2M18D9W3.318181 carrier 2M8D9W3.515151 carrier 4M43D9W5.518181 carrier 5M48D9W6.618152 x 3.3 MHz carriers 5M6D9W7.018181 carrier 6M2D9W7.015122 x 3.5 MHz carriers 9M93D9W11.018152 x 5.5 MHz carriers 12M4D9W1418152 x 7.0 MHz carriers Page 2 of 2 Nortel Networks requests, pursuant to 47 CFR 0.457 and 0.459 of the commission's rules, that the following items be held CONFIDENTIAL due to their proprietary nature. Nortel Networks considers this leading edge technology developed by Nortel and its partners and being new technology, would not want to make this information available to its competitors. Exhibit Type File name of Exhibit 1. Schematics advg12ba-am-04.pdf 2. Parts list 24-01M_CTR_Generic_Parts_List.doc 3. Parts list 24-01M_CTR_Unique_Parts_List.doc 4. Block Diagram 24-01M_ CTR_Block Diag.doc Please call me or write if you have any questions or comments. Regards, Denis Lalonde Product Integrity email:[email protected] C-MAC Engineering

NTP #: 411-1333-911 Preliminary 01.01 December 2000 CTR 24-01 GHz MMIC Quick Reference Guide Product Overview The CTR 24-01 MMIC (DSVG12BA) outdoor transceiver is a customer premise transceiver designed to operate in various Receiver (Rx) and Transmitter (Tx) frequency bands. It is a Nortel Networks Reunion product that operates in con- junction with base station products, as well as customer premise products. It is compatible with Reunion’s Release 1.2, 1.3 and 1.4 equipment. Figure 1: CTR 24-01M Block Diagram Rx I F Tx IF/DC Input Transceiver Lightning Protector Lightning Protector Rx RF I nput (Test Tx RF Output/ Te s t Po r t Tx IF Input Te s t Po r t Rx IF Output Out put CTR 24-01M Transceiver 411-1333-911 Preliminary 01.01 December 2000 2 CTR 24-01 GHz MMIC Specification Table 1: CTR 24-01M Technical Specifications TXIF InputRF Output Frequency Range 24-01M 450-650 MHz25.05 - 25.25 GHz Output Level (P1 dB) ≥23.0 dBm, -40° to +30° C ≥22.5 dBm, +30° to +50° C ≥22.5 dBm, +50° to +60° C Input Impedance 50 Ohms Input/Output Connector N-Type FemaleN/A (integrated antenna) Input/Output VSWR 1.925:1 (or 10 dB), maximum N/A (integrated antenna) Gain (mid-band at room tem- perature not including antenna) 32 ±1.0 dB, minimum Gain Variation ±5.5 dB over all conditions Gain Flatness ±2 dB over 200 MHz BW LO leakage <-43 dBm (outband) Frequency Stability <±4 ppm over all conditions Tx Noise Power -115 dBm/Hz, maximum Tx IF Test Port Coupling -16± 1 dB AntennaCTR Frequency 24.25 - 26.5 GHz Frequency Band 2426 Gain 36.5 dBi ±0.9 dB Polarity Cross Pole (dual polarization) Beam Width (azimuth) Beam Width (elevation) 2.5±0.2°, maximum 2.5±0.2°, maximum Port-to-Port Isolation 35 dB, minimum Cross-Polarization Discrimination > 30 dB Diameter 14" (35 cm) CTR 24-01 GHz MMIC Quick Reference Guide 3 RXRF Input IF Output Frequency Range 24-01M24.25 - 24.45 GHz150 - 350 MHz Input/Output Connector N/A (integrated antenna) N-Type female Input P1 dB -18 dBm Output Impedance N/A50 Ohms Input/Output VSWR N/A1.925:1, max (or 10 dB) Gain (mid-band at room tem- perature not including antenna) 28 ±1.0 dB Gain Flatness ±2.0 dB over bandwidth Gain Variation ±5.5 dB over all conditions Frequency Stability <±4 ppm over all conditions Power Requirements CTR Input Voltage18 VDC Input Inrush Current <7.5 A max Input Power 50 Watts, maximum EnvironmentalCTR Humidity100% condensing Altitude 3000 meters Operating Wind Resistance 50m/second on all surfaces Operating Temperature -40° to +60°C Storage Temperature Range -45° to +70°C (packaged) Solar Loading ETS 300 019 class 4.1 1120W/m 2 , 50°C max. MechanicalCTR Size (Length x Height x Width)14" x 14" x 11" (35.6 x 35.6 x 27.9 cm) Weight without brackets 11.41 KG Information is subject to change without notice. Nortel reserves the right to make changes in design or components as progress in engineering and manufacturing may warrant. © 2000 Northern Telecom Ltd. Converted Frequency Formula Use the following formula to calculate the converted frequency: TX: ƒ RF OUT (GHz) = ƒ IF IN (GHz) + 24.6 RX: ƒ IF OUT (GHz) = 24.6 - ƒ RF IN (GHz) Note: Vent holes are covered with a Goretex TM patch. Note: The transceiver mounts to a vertical pole of 2.5” to 4.5” outside diame- ter. It has a range of motion of 90° over and -60° under horizon. The bases of the antenna mount can rotate ±180°. Technical Assistance Contact Information In case additional technical assistance is required, or the transceiver unit is damaged upon receipt, contact Nortel Networks. Nortel Networks Broadband Wireless Access (BWA) provides 24-hour customer service and technical support to ensure your service operation is trouble-free. If you have questions or need technical support, contact Nortel Networks Broadband Wireless Access at the following telephone numbers: • In the USA and Canada, call 972-BWA-ETAS/972-292-3827

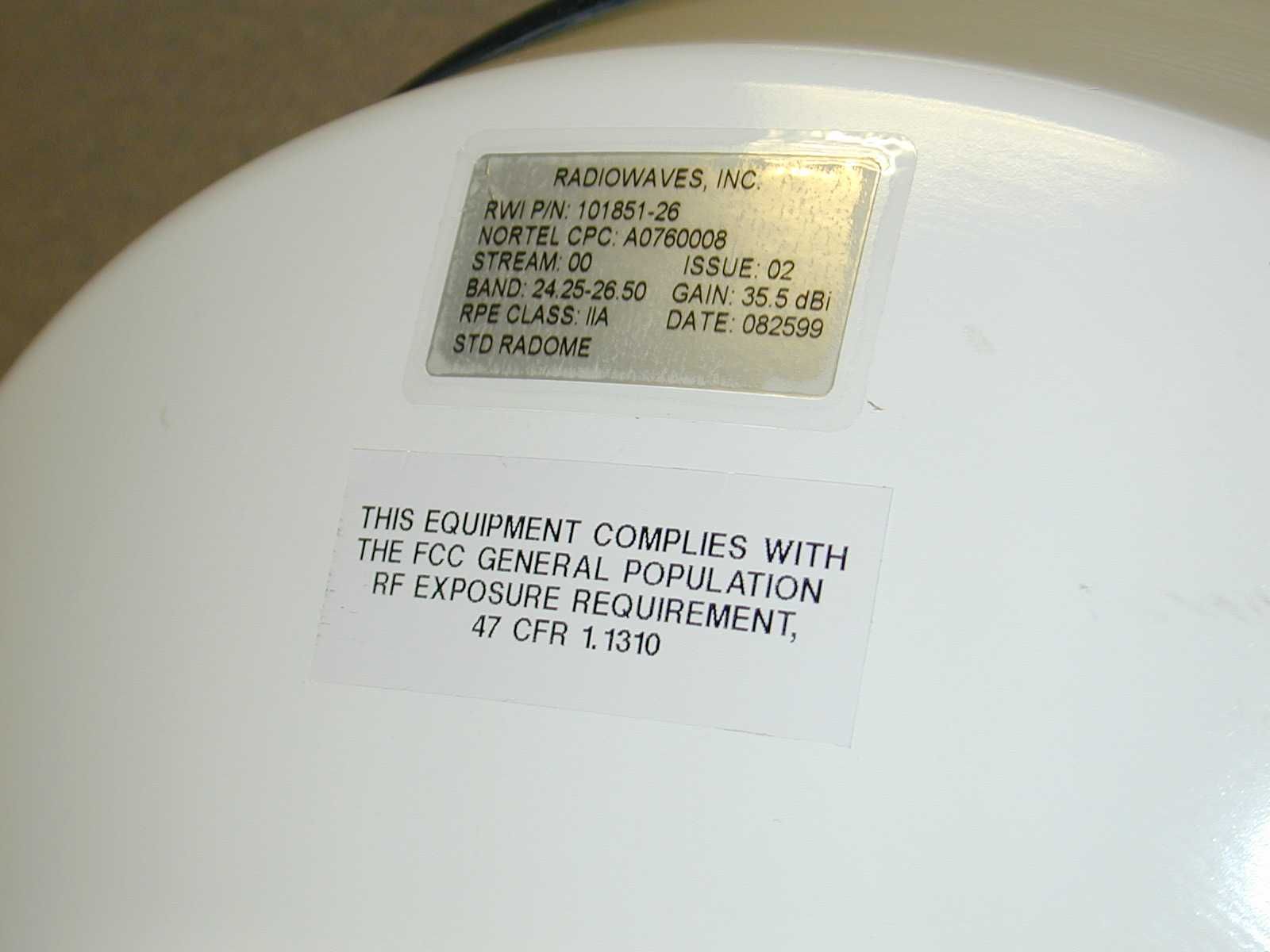

C-MAC Engineering 21 Richardson Side rd Kanata ON K2K 2C1 ∙ Canada Tel613 763 7847 Fax613 763 8091 www.cmac.com January 25, 2001 Denis Lalonde Radio Compatibility Eng. Federal Communicatio ns Co mmission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland, 21046 Re: AB6CTR2401M Dear Sir or Madam: This document describes the method used for determining the minimum separation distance between the CTR and the general public in order to prevent RF exposure as per paragraph 1.1310. The minimum separation distance was determined with calculations. They were done using FCC OST/OET Bulletin 65 ("Evaluating Compliance with FCC Specified Guidelines for Human Exposure to Radiofrequency Radiation’’). The aperture antenna equations for predicting RF fields from that document were used. They yielded the following results. The power density of the 24-01M CTR: - at the surface of the antenna is 0.84 mW/cm 2 (OST/OET Bulletin 65 equation 11) - in the near field (R < 2.5 m) is less than 0.55 mW/cm 2 (equation 12, 13, 14) - in the transition region (2.5m < R < 6.1m) is less than 0.55 mW/cm 2 (equation 16, 17) - in the far field (R > 6.1 m) is less than 0.23 mW/cm 2 (equation 18) Power = 23.0 dBm = 1 dB compression point of the CTR Antenna diameter = 13.7 inches Frequency = 25150 MHz Antenna gain = 37.4 dBi The FCC General Population limit is 1 mW/cm 2 , hence the equipment meets the requirement at any distance. A picture of the radiation hazard label has been submitted. The exhibit type of this file is “ID Label/Location Info”. The file name is; - Radiation hazard label.jpg A label is installed on both sides of the CTR. Regards, Denis Lalonde Product Integrity email:[email protected] C-MAC Engineering

CERTIFICATE OF COMPLIANCE Product Name:iBWA System 5100 24-01M CTR Model Identifier: NTVG12BA On the basis of measurements here reported on January 22, 2001, the above referenced equipment is verified as meeting the requirements of FCC Part 101 (Fixed Microwave Services), and FCC Part 2 requirements. The Test data included in this report applies to the product titled herein manufactured by Nortel Networks. Certified by: Denis Lalonde C-MAC Engineering, Inc. 21 Richardson Side Road Kanata, Ontario K2K 2C1 Canada Report Number: 10000123Nortel Networks iBWA System 5100 24-01M CTR Issue: 1.0Radio Compatibility Test Report January 22, 2001Security status: Proprietary ii Report Number: 10000123Nortel Networks iBWA System 5100 24-01M CTR Issue: 1.0Radio Compatibility Test Report January 22, 2001Security status: Proprietary iii Table of Contents 1.TEST AND RESULTS SUMMARY............................................................................. 1 2.REFERENCE DOCUMENTATION............................................................................. 2 2.1. S PECIFICAT IONS ....................................................................................................... 2 2.2. S TANDARDS ............................................................................................................. 2 2.3. O THER R EFERENCE D OCUMENTATION ..................................................................... 2 2.4. G LOSSARY OF A CRONYMS ....................................................................................... 2 3.PRODUCT DESCRIPTION........................................................................................ 4 3.1. P RODUCT I DENT IFICAT ION ........................................................................................ 4 3.2. F UNCTIONAL D ESCRIPTION ....................................................................................... 4 3.3. P RODUCT C ONFIGURATION (E QUIPMENT U NDER T EST )............................................. 5 4.GENERAL TEST CONDITIONS................................................................................ 6 4.1. T EST F ACILIT Y ......................................................................................................... 6 4.2. C LIMATIC C ONDITIONS .............................................................................................. 6 4.3. M EASUREMENT I NSTRUMENTATION .......................................................................... 6 5.TEST RESULTS...................................................................................................... 7 5.1. M AXIMUM T RANSMIT P OWER T EST ............................................................................ 7 5.2. O CCUPIED B ANDWIDTH T EST ................................................................................... 8 5.3. RF S PECTRUM M ASK T EST ...................................................................................... 9 5.4. T RANSMITTER C ONDUCTED S PURIOUS E MISSIONS T EST ......................................... 10 6.TEST EQUIPMENT................................................................................................ 11 6.1. T EST C ONFIGURATION ........................................................................................... 11 6.2. T EST E QUIPMENT L IST ........................................................................................... 12 ANNEX A: NORTEL IBWA SYSTEM 5100 24-01M CTR TEST PLOTS................................. 13 ANNEX B: NORTEL IBWA SYSTEM 5100 24-01M CTR TEST PLAN................................... 31 Report Number: 10000123Nortel Networks iBWA System 5100 24-01M CTR Issue: 1.0Radio Compatibility Test Report January 22, 2001Security status: Proprietary iv List of Tables Table 1-1: Test Case Summary ............................................................................................. 1 Table 3-1: Hardware descriptions .......................................................................................... 5 Table 6-1: Test equipment used........................................................................................... 12 List of Figures Figure 3-1: Nortel Networks Reunion TDMA system................................................................ 3 Figure 5-1: Spectrum mask limit............................................................................................. 8 Figure 6-1: Test configuration for Tx output power, Tx nominal output power ........................... 10 Figure 6-2: Test config. for occ. bandwidth, sp. mask and Tx conducted spurious emissions .... 10 Figure A-1 (99% Occupied Bandwidth, 1 carrier, 4QAM) ....................................................... 12 Figure A-2 (99% Occupied Bandwidth, 2 carriers, 4QAM) ..................................................... 12 Figure A-3 (99% Occupied Bandwidth, 1 carrier, 16QAM) ..................................................... 13 Figure A-4 (99% Occupied Bandwidth, 2 carriers, 16QAM).................................................... 13 Figure A-5 (Spectrum Mask, 4QAM, channel B, 1 carrier)...................................................... 14 Figure A-6 (Spectrum Mask, 4QAM, channel B, 2 carriers) .................................................... 14 Figure A-7 (Spectrum Mask, 4QAM, channel T, 1 carrier)...................................................... 15 Figure A-8 (Spectrum Mask, 4QAM, channel T, 2 carriers) .................................................... 15 Figure A-9 (Spectrum Mask, 16QAM, channel B, 1 carrier).................................................... 16 Figure A-10 (Spectrum Mask, 16QAM, channel B, 2 carriers) ................................................ 16 Figure A-11 (Spect…

Text truncated - open the document above for the full version.

Master: ktlPT101SubC.doc Date: April 12, 2000 KTL Test Report:0R03222 Issue 2.0 Applicant:Nortel Networks 21 Richardson Side Road Kanata, Ontario K2K 2C1 Equipment Under Test:CTR 24-01M, RWI P/N 101851-26 (E.U.T.)Nortel CPC: A0760008 Also Covers CTR 24-01MO, NTVG12BD In Accordance With:FCC Part 101, Subpart C Tested By:KTL Ottawa Inc. 3325 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: R. Grant, Wireless Manager Date:January 24, 2001 Total Number of Pages:68 Authorized Copy:Soft Copy KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 2 of 65 Table of Contents Section 1. Summary of Test Results......................................................................................3 Section 2. General Equipment Specification........................................................................5 Section 3. RF Power Output..................................................................................................7 Section 4. Occupied Bandwidth............................................................................................8 Section 5. Spurious Emissions at Antenna Terminals........................................................59 Section 6. Field Strength of Spurious Emissions................................................................63 Section 7. Frequency Stability.............................................................................................64 Section 8. Test Equipment List...........................................................................................65 Annex A Test Diagrams....................................................................................................A1 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 3 of 65 Section 1.Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 101, Subpart C. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit TNB Equipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100351-0 TESTED BY: DATE: January 24, 2001 Glen Westwell, Technologist KTL Ottawa Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. KTL Ottawa Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 4 of 65 Summary Of Test Data Name Of TestPara. No.Result RF Power Output101.113Complies Occupied Bandwidth101.111Complies Spurious Emissions at Antenna Terminals101.111Complies Field Strength of Spurious Emissions101.111Complies Frequency Stability101.107Complies Footnotes For N/A’s: Test Conditions: IndoorTemperature:24 °C Humidity:42 % OutdoorTemperature:N/A Humidity:N/A . KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 5 of 65 Section 2.General Equipment Specification Manufacturer: Nortel Networks Model No.: CTR 24-01M, SW Version 1.2 RWI P/N 101851-26 Nortel CPC: A0760008 Serial No.: None Date Received In Laboratory: October 30, 2000 KTL Identification No.: Item #1 Transmitter Supply Voltage Input: +18 VDC Frequency Range: Tx 25.05260 GHz to 25.24740 GHz @ 3.3 MHz Channel Spacing Tx = 25.05370 GHz to 25.24630 GHz @ 5.5 MHz Channel Spacing Tunable Bands: None Types of Modulation: 4, 16, 64 QAM@ 2.048 Msps FDMA @ 4.224 Msps FDMA Internal/External Data Source: External Emission Designator: 2M18D9W & 5M48D9W @ 3.3 MHz CH. Spacing 4M43D9W & 9M93D9W @ 5.5 MHz CH. Spacing Output Impedance: 50Ω RF Power Output (rated): 12 dBm to 18 dBm Channel Spacing(s): 3.3 MHz @ 2.048 Msps 5.5 MHz @ 4.224 Msps Power Output Adjustment Capability: 0-21 dBm Attenuation KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 6 of 65 Equipment Under Test (1)CTR 24-01M, RWI P/N 101851-26, Nortel CPC: A0760008 (2)NIU 6154NTVJ09CA 02 NNTM532LMU39 (3)NIU 6154NTVJ09CA 02 NNTM532LN60A KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 7 of 65 Section 3.RF Power Output Para. No.: 1.1046 Test Performed By: Glen WestwellDate of Test: November 3, 2000 Minimum Standard:101.113 (a) Test Results:Complies. The RF output power is within 1 dBm of the rated power. Measurement Data: Rated (dBm)Measured (dBm) 1818.7 1616.6 1 Carrier 1414.5 1818.7 1515.4 2 Carriers 1212.5 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 8 of 65 Section 4.Occupied Bandwidth Para. No.: 2.1049 Test Performed By: Glen WestwellDate of Test: November 3, 2000 Minimum Standard:101.111 (a)(2)(ii) Test Results:Complies. Test Data:See attached graph(s). Note:In plots where 100 kHz RBW was used, the limit has been decreased by another 10 dB. KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 9 of 65 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 10 of 65 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 11 of 65 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 12 of 65 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 13 of 65 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 14 of 65 KTL O…

Text truncated - open the document above for the full version.

KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 35 of 65 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 36 of 65 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 37 of 65 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 38 of 65 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 39 of 65 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 40 of 65 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 41 of 65 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 42 of 65 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 43 of 65 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 44 of 65 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 45 of 65 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 46 of 65 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 47 of 65 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 48 of 65 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 49 of 65 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 50 of 65 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 51 of 65 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 52 of 65 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 53 of 65 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 54 of 65 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 55 of 65 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 56 of 65 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 57 of 65 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 58 of 65 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 59 of 65 Section 5.Spurious Emissions at Antenna Terminals Para. No.: 2.1051 Test Performed By: Glen WestwellDate of Test: November 1, 2000 Minimum Standard:101.111 (a)(2)(iii), -13 dBm Test Results:Complies. No emissions were detected within 20 dB of the specification limit. Test Data:See attached graph(s). KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 60 of 65 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 61 of 65 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 62 of 65 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 63 of 65 Section 6.Field Strength of Spurious Emissions Para. No.: 2.1053 Test Performed By: Glen WestwellDate of Test: November 3, 2000 Minimum Standard:101.111(a)(2)(iii), -13 dBm 84.4 dBμV/m @ 3m < 1 GHz 82.2 dBμV/m @ 3m > 1 GHz Test Results:Complies No emissions were detected within 20 dB of the specification limit. Test Data:The spectrum was searched from 30 MHz to 100 GHz. No emissions were detected. KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 64 of 65 Section 7.Frequency Stability Para. No.: 2.1055 Test Performed By: Glen WestwellDate of Test: November 3, 2000 Minimum Standard:± 0.03 %, 7306 kHz Test Results:Complies The maximum frequency drift is 20 Hz. This is 0.00008% Measurement Data:Standard Test Voltage:STV +18 VDC Standard Test Voltage:25155.000 MHz Test ConditionFrequency (kHz)Frequency Drift (kHz) STV25 155 01010 115% STV25 155 01010 85% STV25 155 01111 -30°C 25 155 02020 -20°C 25 155 01313 -10°C 25 155 01313 0°C 25 155 01414 +10°C 25 155 01313 +30°C 25 155 01313 +40°C 25 155 01313 +50°C 25 155 01010 KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page 65 of 65 Section 8.Test Equipment List CAL CYCLE EQUIPMENTMANUFACTURERMODELSERIALLAST CAL.NEXT CAL. 1 YearSpectrum AnalyzerHewlett Packard8565EFA000981June 16/00June 16/01 1 YearClimate ChamberThermotronSM-16C15649-SCOUCOU 2 YearRF Power MeterHewlett PackardE4418BFA001413Nov. 8/99Dec. 7/00 1 YearHorn AntennaEMCO #231154336Nov. 11/99Nov. 11/00 1 YearLog Periodic Antenna 1EMCOLPA-251141Aug. 4/99Aug. 4/00 3 YearStandard Gain HornElectro-MetricsSH-50/60-1FA000479July 7/00July 7/01 3 YearStandard Gain HornElectro-MetricsSH-50/60-2FA000485July 7/00July 7/01 3 yearHarmonic MixerH.P.50-75GhzFA001027Mar. 9/00Mar. 9/03 3 yearHarmonic MixerH.P.75-110GhzFA001302Oct. 13/98Oct. 13/01 3 yearDiplexerOlsen - OMLDPL.26 (H.P)Mar. 15/00Mar 15/03 3 yearMixer/Antenna 40-60Ghz Olsen – OMLM19HWA (H.P.) Mar. 15/00Mar. 15/03 3 yearMixer /Antenna 60-90Ghz Olsen – OMLM12HWA (H.P.) Mar. 15/00Mar. 15/03 3 yearMixer / Antenna 90-140Ghz Olsen – OMLM08HWA (H.P.) Mar. 15/00Mar. 15/03 NA: Not Applicable NCR: No Cal Required COU: CAL On Use KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 ANNEX A EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page A1 of A3 Annex A Test Diagrams KTL OttawaFCC PART 101, SUBPART C PROJECT NO.: 0R03222 ANNEX A EQUIPMENT: CTR 24-01M ISSUE: 2.0 Page A2 of A3 Para. No. 2.1046 - R.F. Power Output Para. No. 2.1049 - Occupied Bandwidth Para. No. 2.1051 - Spurious Emissions at Antenna Terminals Para. No. 2.1053 - Field Strength of Spurious Radiation E.U.T.Power Meter E.U.T.Attenuator Spectrum Analyzer E.U.T.Attenuator Spectrum Analyzer E.U.T. Spectrum Analyzer Search Ant…

Text truncated - open the document above for the full version.
