AB6CTR2807MLMDS CPE transceiver

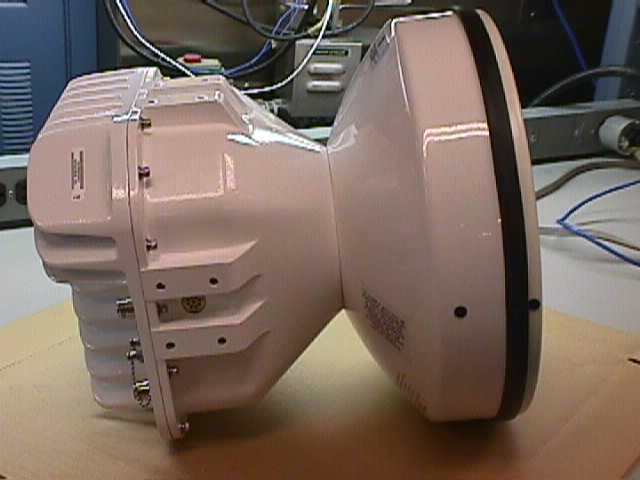

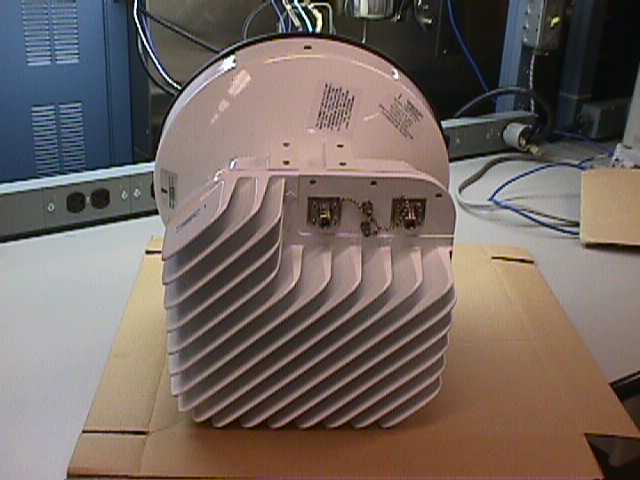

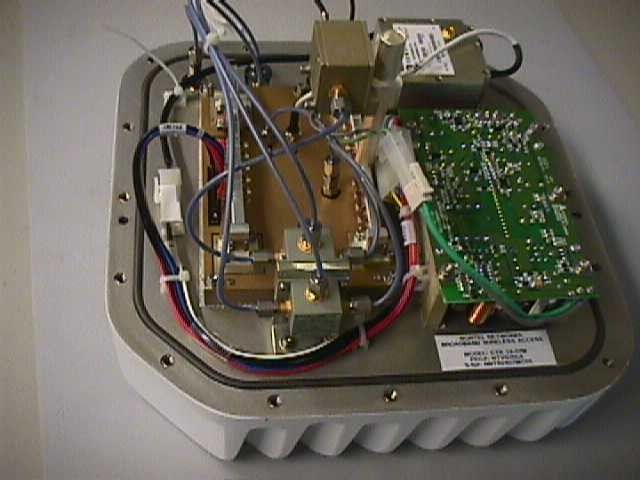

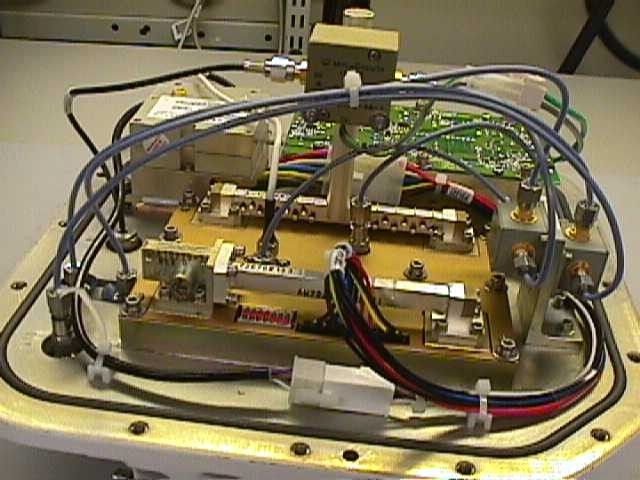

NTP #: 411-1333-921 Draft 01.01 June 2000 CTR 28-07 GHz MMIC Quick Reference Guide Product Overview The CTR 28-07 MMIC (NTVG16CA) outdoor transceiver is a customer premise transceiver designed to operate in various Receiver (Rx) and Transmitter (Tx) frequency bands. It is a Nortel Networks Reunion product that operates in con- junction with base station products, as well as customer premise products. It is compatible with Reunion’s Release 1.2 and 1.3 equipment. Figure 1: CTR 28M Block Diagram Rx I F Tx IF/DC Input Transceiver Lightening Sect ion Protect or Lightening Protect or Rx RF I nput (Test Tx RF Output/ Point ‘A’) Te s t Po r t Tx IF Input Te s t Po r t Rx IF Output Out put CTR 28-07M Transceiver 411-1333-921 Draft 01.01 June 2000 2 CTR 28-07 MMIC Specification Table 1: CTR 28-07M Technical Specifications TXIF InputRF Output Frequency Range 28-07M500-650 MHz28.20-28.35 GHz Output Level (P1 dB) ≥23 dBm, -40° to +55° C Output Level (IP3) +31.0 dBm Input Impedance 50 Ohms Input/Output Connector N-Type FemaleN/A Gain (not including antenna) 32.0 ±0.6 dB Gain Variation ±5.0 dB over all conditions Gain Flatness ±1.9 dB over bandwidth Frequency Stability <±4 ppm over all conditions Noise Power -115 dBm/Hz TX Test Port SMA female TX IF Test Port Coupling -16±1 dB AntennaCTR Frequency 27.5-28.31.3 GHz Frequency Band 2731 Gain 36.2 dBi, minimum Polarity Cross Pole (dual polarization) Beam Width (azimuth) Beam Width (elevation) 2.5±TBD°, minimum 2.5±TBD°, minimum Cross-Polarization Discrimination > 30.0 dB Diameter 14" (35 cm) CTR 28-07 GHz MMIC Quick Reference Guide 3 RXRF Input IF Output Frequency Range 28-07M29.10-29.25 GHz 250-400 MHz Input/Output Connector N/AN-Type Female Output Impedance 50 Ohms Gain (not including antenna) 28±0.6 dB, minimum Gain Variation ±5.0 dB over all conditions Gain Flatness ±1.9 dB over bandwidth Frequency Stability <±4 ppm,over all conditions Noise Figure ≤ 7.2 dB, maximum LO Leakage -35 dBm, maximum RX Test Port SMA female RX IF Test Port Coupling -14±1 dB Power RequirementsCTR Input Voltage-48 VDC, 3.5A. max diplexed with TX cable Input Current <1.5 Amp Input Power 55 Watts, maximum EnvironmentalCTR Humidity100% condensing Altitude 10,000 feet Wind Resistance 50m/second on all surfaces Operating Temperature -40° to +55°C Storage Temperature Range -55° to +70°C MechanicalCTR Size (Length x Width)10.55" x 11.63" (26.4 x 29 cm) Weight without brackets 25 lbs. (11.1 KG) Information is subject to change without notice. Nortel reserves the right to make changes in design or components as progress in engineering and manufacturing may warrant. © 2000 Northern Telecom Ltd. Converted Frequency Formula Use the following formula to calculate the converted frequency: TX: ƒ RF OUT (GHz) = 28.85 (GHz) - ƒ IF IN (MHz) RX: ƒ IF OUT (MHz) = ƒ RF INPUT (GHz) - 28.85 (GHz) Note: The antenna has an option of a hydrophobic coating that can help to reduce ice build-up effect. Note: Vent holes are covered with a Goretex TM patch. Note: The transceiver mounts to a vertical pole of 2.5” to 4.5” outside diame- ter. It has a range of motion of 90° over and -60° under horizon. The bases of the antenna mount can rotate ±180°. Note: The module connector is N-Type female. The receive IF input/output cables present a male N-Type connector. The Tx IF and the Rx IF test ports are SMA-Type female. Technical Assistance Contact Information In case additional technical assistance is required, or the transceiver unit is damaged upon receipt, contact Nortel Networks. Nortel Networks Broadband Wireless Access (BWA) provides 24-hour customer service and technical support to ensure your service operation is trouble-free. If you have questions or need technical support, contact Nortel Networks Broadband Wireless Access at the following telephone numbers: • In the USA and Canada, call 972-BWA-ETAS/972-292-3827

Norte l Networks Limited P.O. Bo x 3511, Station C Otta wa ON K1 Y 4H7 ∙ Canada Tel613 763 7847 Fax613 763 8091 www.nortelnetworks.com June 9, 2000 Denis Lalonde Radio Compatibility Eng.Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland, 21046 RE: AB6CTR2807M Dear Sir or Madam: Nortel requests, pursuant to 47 CFR 0.457 and 0.459 of the commission's rules, that the following items be held CONFIDENTIAL due to their proprietary nature. We consider this leading edge technology developed by Nortel and our partners and being new technology, would not want to make this information available to our competitors. Exhibit Type File name of Exhibit 1. Schematics assembly drawings 2. Parts list SLVG1206_MSL_00_01_msl_report 3. Parts list SLVG1206_MSL_0001REPORT_TXT 4. Block Diagram 28-07M_CTR_Block_Diagram Sincerely, Denis Lalonde [email protected]

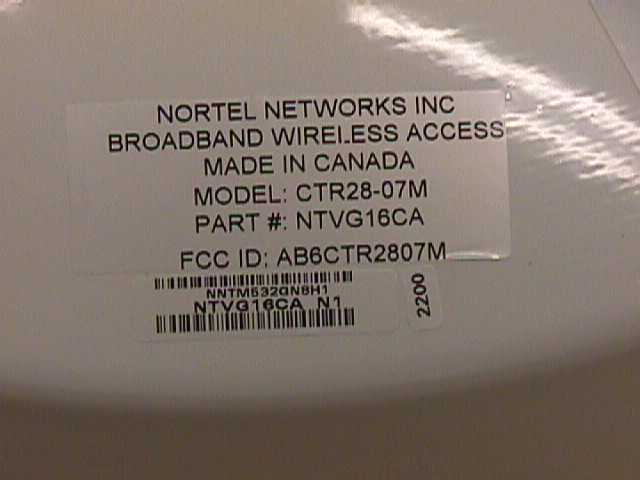

SHEET 2 o f 2 P0917012 STREAM 00 / ISSUE 01 FULL SCALE TO COMPLY WITH FCC RF EXPOSURE REQUIREMENT, 47 CFR 1.1310, FOR THE GENERAL POPULATION, A MINIMUM SEPARATION DISTANCE OF 0 CM IS REQUIRED BETWEEN THE ANTENNA AND ALL PERSONS DRAWN APPD STREAM ISSUE SCALE B (V2 -FRAMEBUILDER 9511) A 2 3 4 5 6 BCD 1 2 3 4 5 6 ABCD DRAWING NUMBER SIZE TITLEINITIAL APPLICATION PROPRIETARY INFORMATION: THE INFORMATION CONTAINED IN THIS DOCUMENT IS THE PROPERTY OF NORTHERN TELECOM LIM- ITED. EXCEPT AS SPECIFICALLY AUTHORIZED IN WRITING BY NORTHERN TELECOM LIMITED, THE HOLDER OF THIS DOCUMENT: (1) SHALL KEEP ALL INFORMATION CONTAINED HEREIN CONFIDENTIAL AND SHALL PROTECT SAME IN WHOLE OR IN PART FROM DISCLOSURE AND DISSEMINATION TO ALL THIRD PARTIES 1/1 1 NORTHERN TELECOM SHEET1 of 2 LABEL, RF WARNING P0917012 CTR31-01P EC 102-21030 03/May/2000 IML SL 00 01 NOTES:1. UNLESS OTHERWISE SPECIFIED, ALL DIMENSIONS ARE EXPRESSED IN INCHES. TOLERANCES SHALL BE: 2 DECIMAL PLACES = + .01 3 DECIMAL PLACES = + .005 ALL LABEL CORNERS SHALL HAVE A .03 RADIUS. 2. THIS DESIGN FILE WAS CREATED IN ACCORDANCE WITH NT STD 1517.20. LABEL/ARTWORKS MUST BE MANUFACTURED IN ACCORDANCE WITH NPS90942. 3. THE ARTWORK (SEE SHEET 2) SHALL BE PLOTTED AT A MINIMUM OF 1200 DPI. THE TEXT FONT(S) SHALLBE: UNIVERS 67 CONDENSED BOLD PER NPS90942. 4. MATERIAL: .010 CLEAR POLYCARBONATE PER R0115902 FINISH: VELVET/MATTE ADHESIVE: .002 PRESSURE SENSITIVE WITH PEEL OFF LINER PER R0113138 5. COLOURS SHALL CONFORM TO NORTHERN TELECOM OBSERVATIONAL STANDARD 2701.01. BACKGROUND: WHITE PER NORTHERNTELECOM STANDARD S-33294TEXT AND GRAPHICS: BLACK PER NORTHERN TELECOM STANDARD S-33154 6. LABEL TO BE REVERSE SCREEN PRINTED PER NPS90942-2. 2.50 3.50 TO COMPLY WITH FCC RF EXPOSURE REQUIREMENT, 47 CFR 1.1310, FOR THE GENERAL POPULATION, A MINIMUM SEPARATION DISTANCE OF 0 CM IS REQUIRED BETWEEN THE ANTENNA AND ALL PERSONS 4X 0.10 R

Norte l Networks Limited P.O. Bo x 3511, Station C Otta wa ON K1 Y 4H7 ∙ Canada Tel613 763 7847 Fax613 763 8091 www.nortelnetworks.com June 9, 2000 Denis Lalonde Radio Compatibility Eng. Federal Communicatio ns Co mmission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland, 21046 Re: AB6CTR2807M Dear Sir or Madam: This document describes the method used for determining the minimum separation distance between the CTR and the general public in order to prevent RF exposure as per paragraph 1.1310. The minimum separation distance was determined with calculations. They were done using FCC OST/OET Bulletin 65 ("Evaluating Compliance with FCC Specified Guidelines for Human Exposure to Radiofrequency Radiation’’). The aperture antenna equations for predicting RF fields from that document were used. They yielded the following results. The power density of the 28-07M CTR: - at the surface of the antenna is 0.75 mW/cm 2 (OST/OET Bulletin 65 equation 11) - in the near field (R < 2.8 m) is less than 0.3 mW/cm 2 (equation 12, 13, 14) - in the transition region (2.8m < R < 6.8m) is less than 0.13 mW/cm 2 (equation 16, 17) - in the far field (R > 6.8 m) is less than 0.13 mW/cm 2 (equation 18) Power = 22.5 dBm = 1 dB compression point of the CTR Antenna diameter = 13.7 inches Frequency = 28275 MHz Antenna gain = 36.2 dBi The FCC General Population limit is 1 mW/cm 2 , hence the use of 0 cm as the minimum separation limit. A drawing of the radiation warning label and a picture of its location as been submitted. The exhibit type of those files is “ID Label/Location Info”. Their file name are; - CTR_RF_Label.pdf - RF_Label_Position.pdf The size of the label is 2.5 inches by 3.5 inches. A label is installed on both sides of the CTR. Regards, Denis Lalo nde Product Integrity - Kanata Wireless Products email:[email protected] Nortel Networks Page 2

FCCID: AB6CTR2807M Document Issue: 1.0RF-00299-00Radio Compatibility Test Report June 9, 2000Security status: Proprietary Page vi of vi NTVG16CA REUNION 28-07M CTR VERIFICATION OF COMPLIANCE Reunion 28-07M CTR On the basis of measurements here reported on June 9, 2000, the above referenced equipment is verified as meeting the requirements of FCC Part 101 (Fixed Microwave Services), and FCC Part 2 requirements. The Test data included in this report applies to the product titled above manufactured by Nortel Networks. Reviewed by: Denis Lalonde Nortel Networks 21 Richardson Side rd Kanata, Ontario Canada K2K 2C1 FCCID: AB6CTR2807M Document Issue: 1.0RF-00299-00Radio Compatibility Test Report June 9, 2000Security status: Proprietary Page 1 of 28 NTVG16CAREUNION 28-07M CTR 1. Results Summary The system described in Section 3.0 meets the requirements FCC Part 101and Part 2, Fixed Microwave Services (10-1-97 edition). A summary of the test cases can be found in the following table. Table 1-1: Test Case Summary ParameterCNCNTNAReference to remark Transmitter characteristics Maximum output power (FCC Part 2.1046)X Occupied Bandwidth (FCC Part 2.1049)X RF spectrum mask (FCC Part 101.111)X Tx Conducted Spurious emissions (FCC Part 101.111) X Radiated Spurious emissions (FCC Part 101.111)X Tx Frequency Stability (FCC Part 101.107)X Note: C: The parameter is compliant with the requirements NC: The parameter is not compliant with the requirements NT: The parameter is not tested NA: The test of this parameter is not applicable FCCID: AB6CTR2807M Document Issue: 1.0RF-00299-00Radio Compatibility Test Report June 9, 2000Security status: Proprietary Page 2 of 28 NTVG16CAREUNION 28-07M CTR 2. Introduction 2.1. Scope This report contains the measured results as required by FCC Part 101, and Part 2 requirements. The measurement procedure used is described in this document. 3. Production Description 3.1. Product and Functional Description The unit tested in this report consisted of a DC powered module (-48V). The product trade name is Reunion 28-07M CTR. This is a Reunion family product. The FCC ID of this product is AB6CTR2807M. The model of this product is NTVG16CA. The emission designator for this product is 7M0D7W. This system was configured with a NIU (Network Interface Unit), a CTR, and the cables necessary to activate the hardware under investigation. Table 3-1 below provides a description of each component and the respective serial and model numbers. Table 3-1: Hardware descriptions Product and Firmware descriptionModel No.Serial No. EUTCTRNTVG16CANNTR2807MC01 Support Equipmen t NIUNTVJ27AANNTM532LLU6B FCCID: AB6CTR2807M Document Issue: 1.0RF-00299-00Radio Compatibility Test Report June 9, 2000Security status: Proprietary Page 3 of 28 NTVG16CAREUNION 28-07M CTR A picture of the equipment under test is shown in Figure 1. Figure 1: Equipment Under Test 3.2. Manufacturer Nortel Networks Canada Limited Calgary, Alberta Canada 3.3. Software The software used during testing was representative of system performance under actual network usage conditions. Additional features required to activity and/or control specific radio functions (i.e. channel allocation, BER performance, power control) may be required as long as they are consistent with radio performance under actual network usage conditions. 3.4. Transmitter Technical Characteristics The following table lists the technical characteristics of the transmitters. Table 3-2: Transmitter Technical Characteristics Tx ParameterDescription Frequency Range28.2 GHz to 28.35 GHz Channel Spacing7 MHz IF500 MHz to 650 MHz Tx Power (nom)19.5 dBm Modulation CharacteristicsQPSK Antenna gain36.2 dBi FCCID: AB6CTR2807M Document Issue: 1.0RF-00299-00Radio Compatibility Test Report June 9, 2000Security status: Proprietary Page 4 of 28 NTVG16CAREUNION 28-07M CTR 3.5. Receiver Technical Characteristics The following table lists the technical characteristics of the receiver. Table 3-3: Receiver Technical Characteristics Tx ParameterDescription Frequency Range29.1 GHz to 29.25 GHz Channel Spacing7 MHz IF250 MHz to 400 MHz Modulation Characteristics16-QAM 3.6. Antenna Port(s) and System Cables The following tables show the EUT antenna interface port(s) used for RF measurements and description of any system cables (IF IDU to ODU for example). Table 3-4: Antenna Port Description IdentificationDescription Tx/Rx Antenna PortCircular Waveguide Connection for Transmitter and Receiver to Antenna Table 3-5: Cable Description QtyPurposeDescriptionConnector 2IF cables 10m N type 3.7. System Modification No modifications were necessary in order to comply with requirements as detailed in FCC Part 101 requirements. FCCID: AB6CTR2807M Document Issue: 1.0RF-00299-00Radio Compatibility Test Report June 9, 2000Security status: Proprietary Page 5 of 28 NTVG16CAREUNION 28-07M CTR 4. General test conditions 4.1. Test Facility Emission testing was performed in the Nortel Networks Product Integrity Radio Compatibility laboratory, located at 21 Richardson Side rd, Kanata, Ontario, Canada. 4.2. Climatic Conditions Climatic conditions are controlled within the following specifications: ß Ambient temperature:15 ºC to 25 ºC ß Relative humidity:20% to 50% 4.3. Measurement Instrumentation Calibration of the measurement instrumentation is maintained in accordance with the supplier's recommendations, or as necessary to ensure its accuracy as per ISO 25 requirements. FCCID: AB6CTR2807M Document Issue: 1.0RF-00299-00Radio Compatibility Test Report June 9, 2000Security status: Proprietary Page 6 of 28 NTVG16CAREUNION 28-07M CTR 5. Test Results 5.1. Name of Test: Maximum Transmit Power 5.1.1. Test Procedure As per FCC Part 2.1046 The maximum transmit power was measured using the average power detector on a power meter. 5.1.2. Test Results Ambient Temperature:15 to 25 deg. C Relative Humidity:20 to 50 % Test Conditions:Nominal temperature, Nominal Power Supply Voltage Transmitter Power Level (dBm) Number of Carrie…
